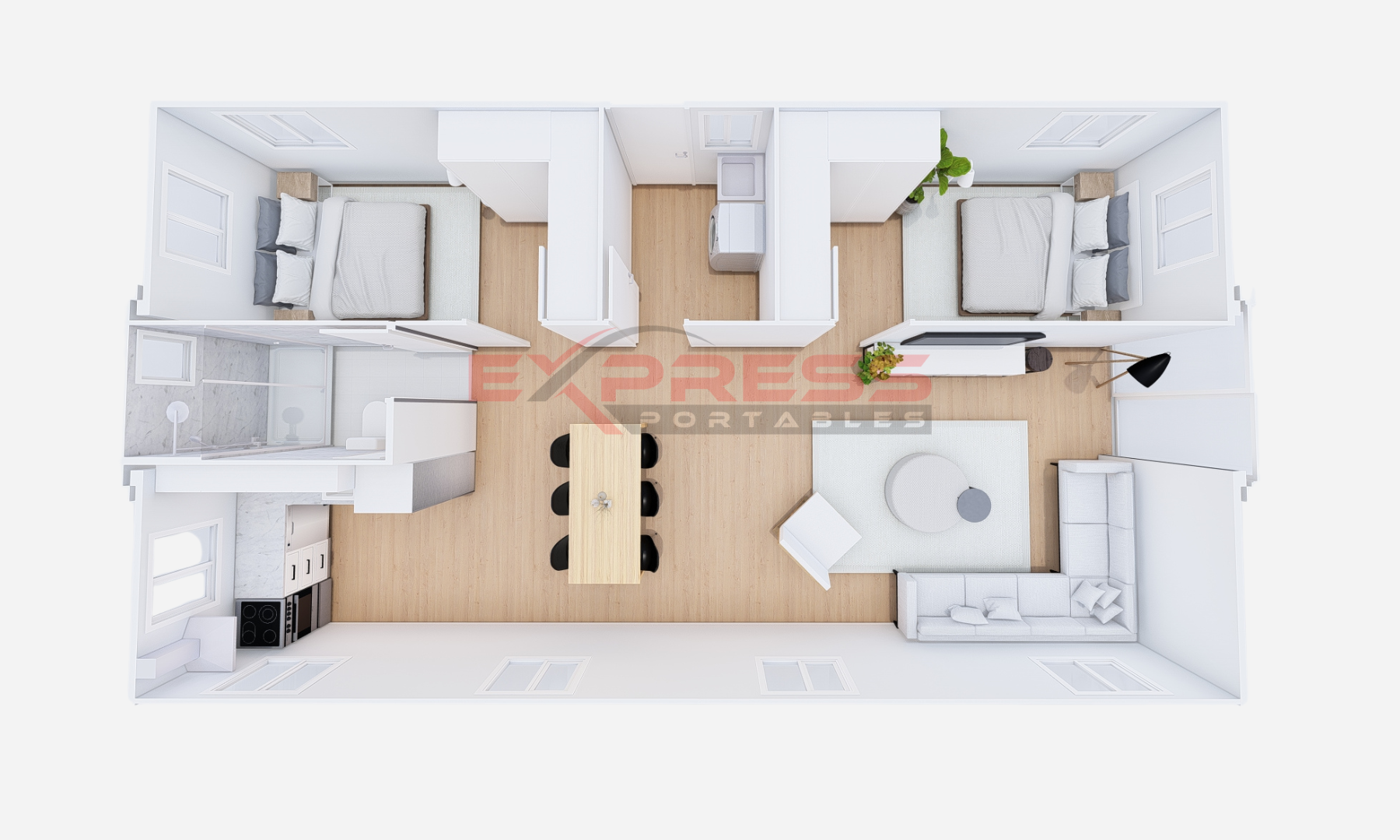

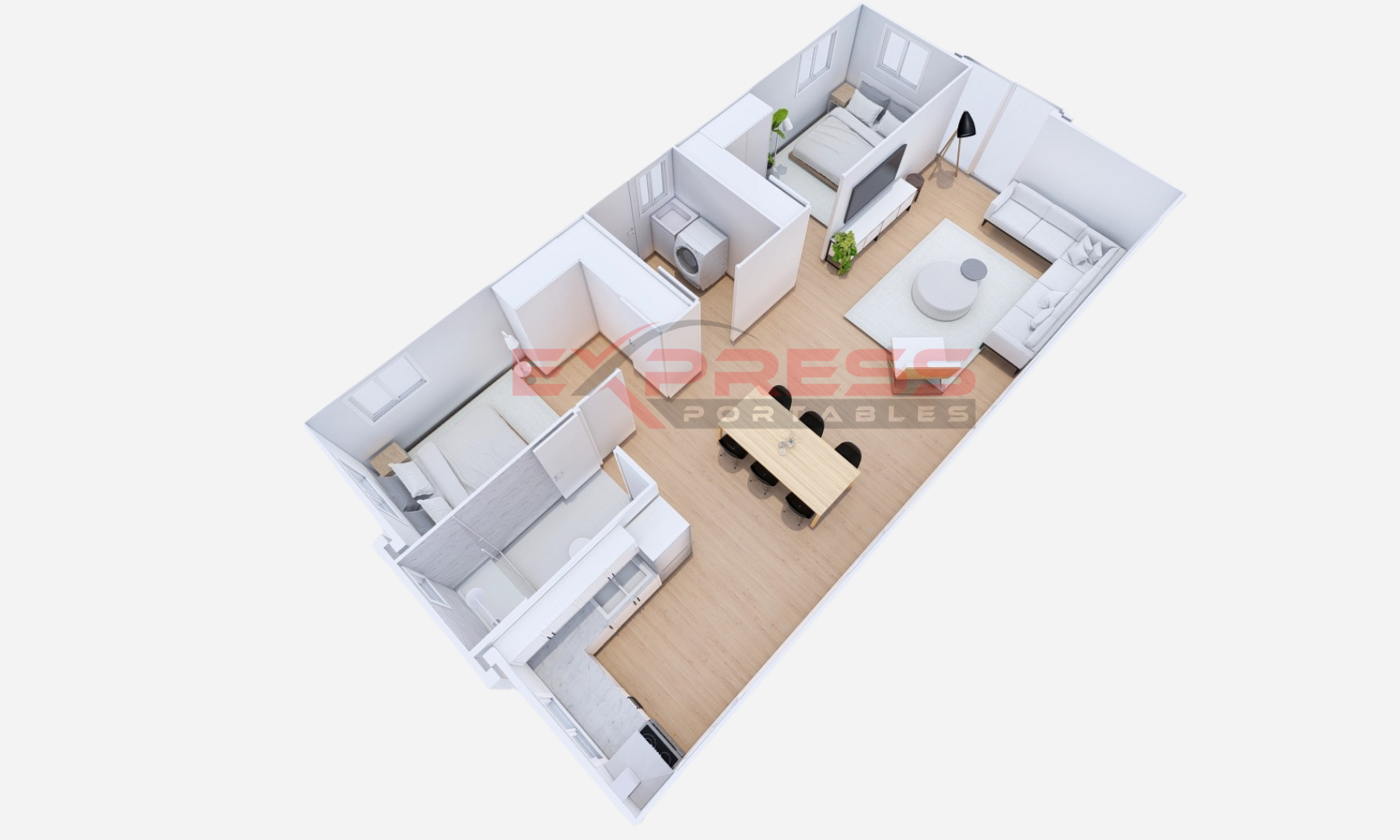

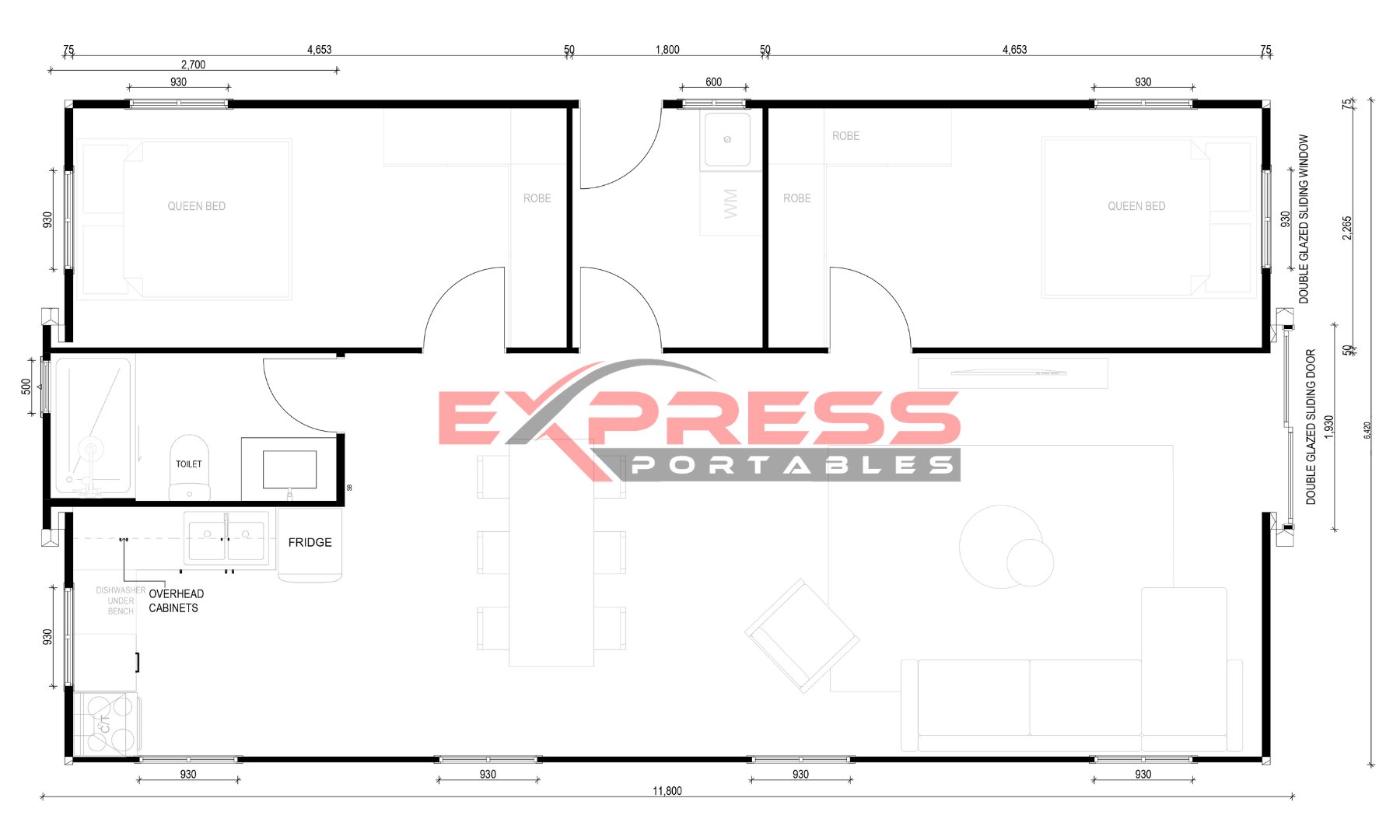

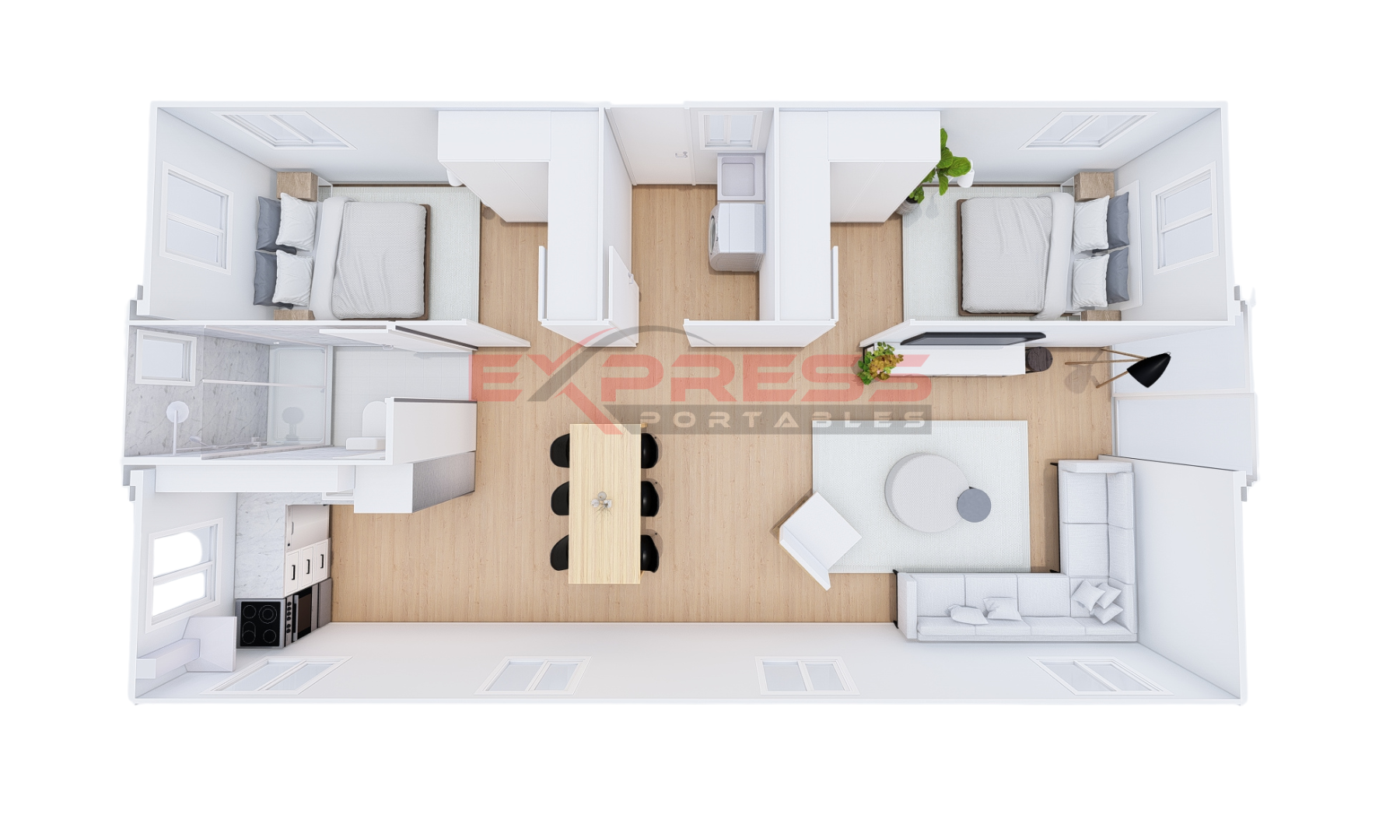

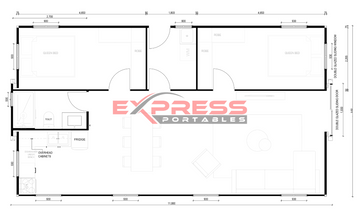

Floor Plan Options
We provide a selection of up to 15 distinct floor plans tailored for our 20ft mobile homes, including a range of layouts to accommodate various preferences and lifestyles. From open-plan to 4-bedroom options.
Regular price
$55,000.00
Regular price
Sale price
$55,000.00
Unit price
per
$55,000.00
(Incl. GST)
Buy Now, Pay Later with
Learn more
Learn more
Description
Description

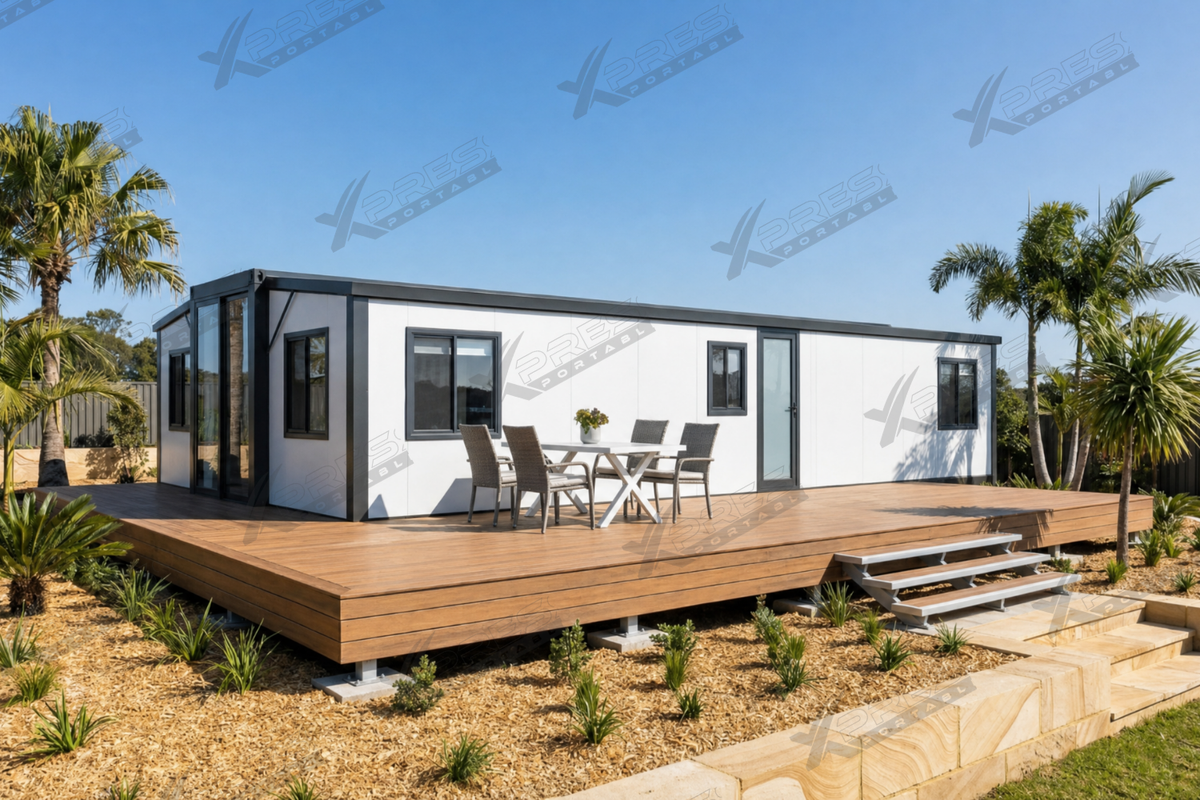

Constructed with a steel frame treated with epoxy and acrylic paint for enduring resilience against corrosion and wear, our mobile home boasts a sturdy foundation. Security is ensured by a glass and lockable aluminium entry door, inviting natural light while maintaining safety. Aluminium double-glazed windows with fly screens provide ventilation and insulation, enhancing the modern aesthetic.
The roof is equipped with glass-wool insulation and galvanized, painted steel, guaranteeing optimal temperature regulation and protection against the elements. Furthermore, the internal walls are made from 75mm EPS sandwich panels. The water and insect-resistant magnesium concrete composite floor ensures stability and resilience, complemented by a timber-looking PVC vinyl covering.
The bedrooms come with space for wardrobes, LED downlights and two electrical sockets. In between the two bedrooms is a dedicated laundry room with a built-in stainless steel sink and provisional space for a washing machine.
In the kitchen, soft-closing cabinets and overhead storage offer ample space, accompanied by a stainless-steel sink and tap. A 20mm quartz stone benchtop, renowned for its durability and aesthetic appeal, graces the kitchen and bathroom countertops.
The bathroom boasts a full-width shower with a shower rail, rainmaker shower head, and frosted privacy glass door, complemented by a soft-close toilet lid for added luxury. Completing the ensemble is a sink with a stainless-steel tap and a vanity featuring a mirror.
Please Note: Gas struts are also attached to the roof of the folded building, assisting with the unfolding process. These gas struts can then be removed once the building has been unfolded.
Dimensions
Dimensions
Weight
Weight
Ask a question
Ask a question
Key Features
Modern Kitchen
Complete with 20mm Quartz stone benchtops, stainless steel sink, and taps. Enjoy the seamless blend of style and functionality with soft-closing cabinets throughout.
Decking & Verandah
The Ekodeck composite decking is built on a solid base of 140x45 MGP10 H3 subfloor framing, with a waterproof membrane ensuring structural integrity and longevity. Please note this is not included with the product.
Optional Extras
Optional extras available for purchase include: air conditioning units, hot water systems and decking & verandah options. Enhance your living experience today.
Specifications
General Overview
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
AS/NZ electrical cable, power points & switchboard (Qualified Electrician Required)
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS wall panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA).
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed awning windows
Thickness
5mm glass
Doors
Entry
Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
General Overview
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
AS/NZ electrical cable, power points & switchboard (Qualified Electrician Required)
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS wall panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA).
Frame
Sub-floor Steel Chassis
150x100 Rectangular Hollow Section (RHS)
Steel Post
150x150 Square Hollow Section (SHS)
Steel Floor Bearer
70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist
50x30 Rectangular Hollow Section (RHS)
Casting
Corner castings on each corner
Coating
Expoxy coated and painted in gloss
Bathroom
Overview
The bathroom is fitted out and complete
Shower
Full room width shower on acrylic shower base
Toilet
S trap toilet with soft closing lid
Shower Head
Rain maker shower head with hand piece, adjustable shower rail
Vanity & Sink
Vanity with porcelain sink, chrome flick mixers
Walls
Marble look wall PVC wall lining
Tiles
Grey floor tiles
Installation
Instructions
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations
Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Interior Walls
50mm EPS Panel with an off white finish
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed awning windows
Thickness
5mm glass
Doors
Entry
Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
Roof
Steel Plate
3mm steel plate over the main body
Exterior Panels
75mm EPS panels on outside folding roof panels
Flooring
Sub-floor
Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer
2mm vinyl timber pattern - Grey or Brown
Skirting
PVC cornice and skirting
Floor Trims
Powdercoated internal corner trims
Kitchen
Shape
Kitchen plan provided (L-Shape Kitchen)
Cabinetry
Prebuilt kitchen cabinets packaged in a protective film ready for installation & overhead cabinets with soft closing hinges
Sink
Double bowl stainless sink with flick mixer
Benchtop
20mm white Quartz stone bench top
Provisional Space
Provisional space for dishwasher (620mm), freestanding cooker (650mm), rangehood (600mm), fridge (650mm)

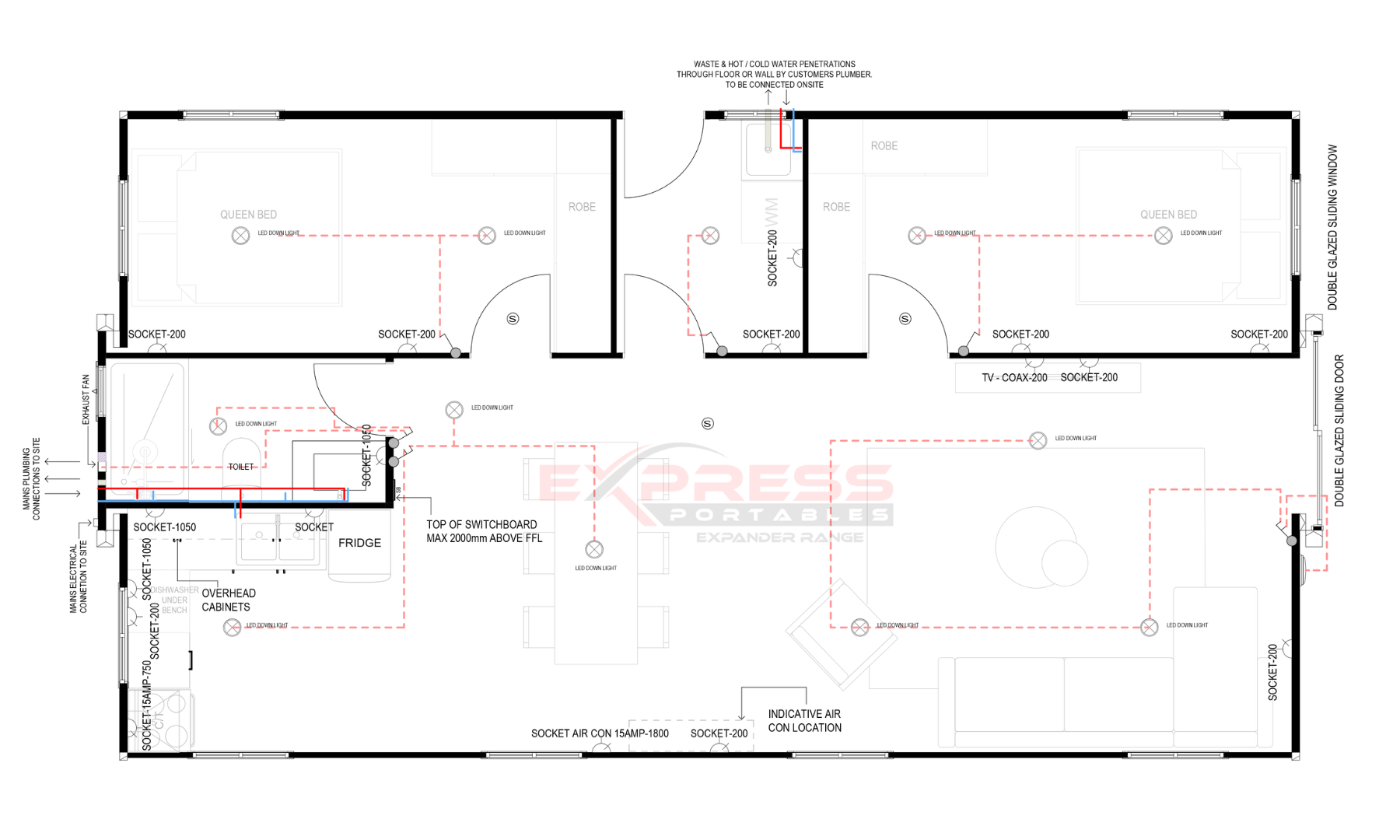

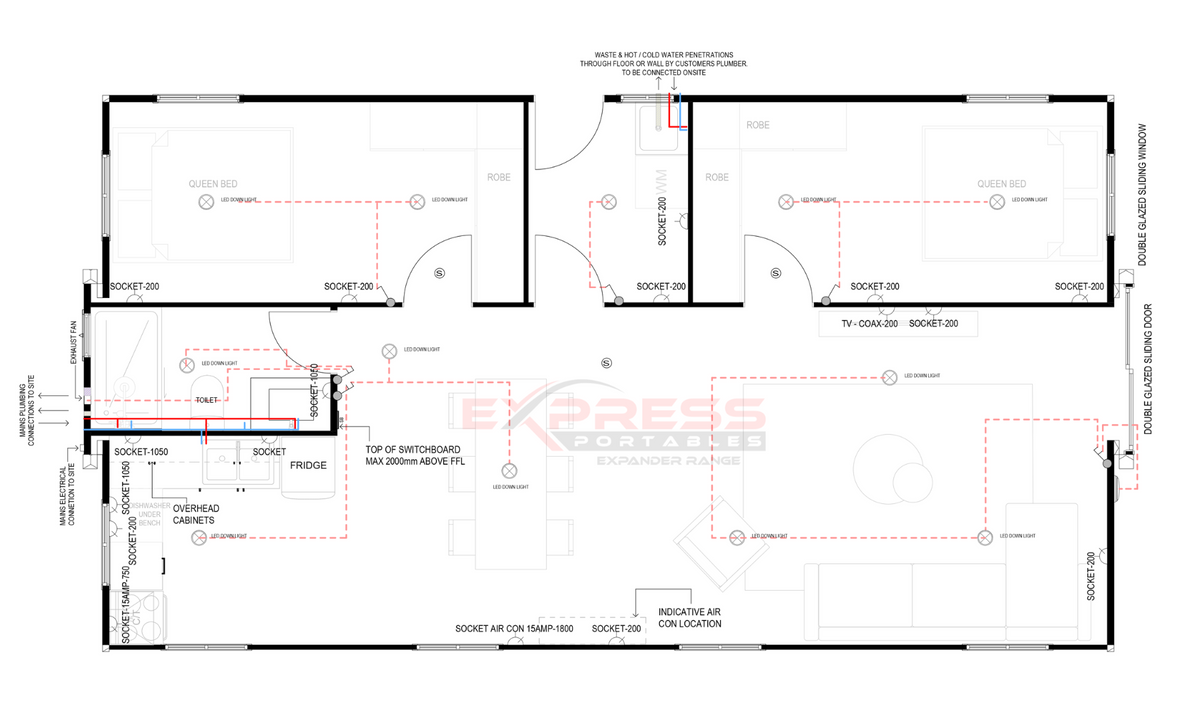

Electrical
Power
All electrical points are pre-wired inside walls. 15amp air conditioner high wall PowerPoint included in living room and all bedrooms
Lighting
All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building
Smoke Alarm
Smoke alarm hardwired back to switchboard per habitable room (customer must install)
Plumbing
Overview
Bathroom is pre-plumbed
Laundry Tub
Laundry tub is pre-plumbed
Water & Waste
Water and waste lines provided to kitchen sink for easy connection after opening the building
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
