Steel Frame
Featuring a steel frame ensuring structural integrity and stability. Engineered to withstand harsh weather conditions and the rigors of transportation, the steel frame provides a secure foundation for the entire structure.
Regular price
$19,900.00
Regular price
Sale price
$19,900.00
Unit price
per
$19,900.00
(Incl. GST)
Buy Now, Pay Later with
Learn more
Learn more
Description
Description

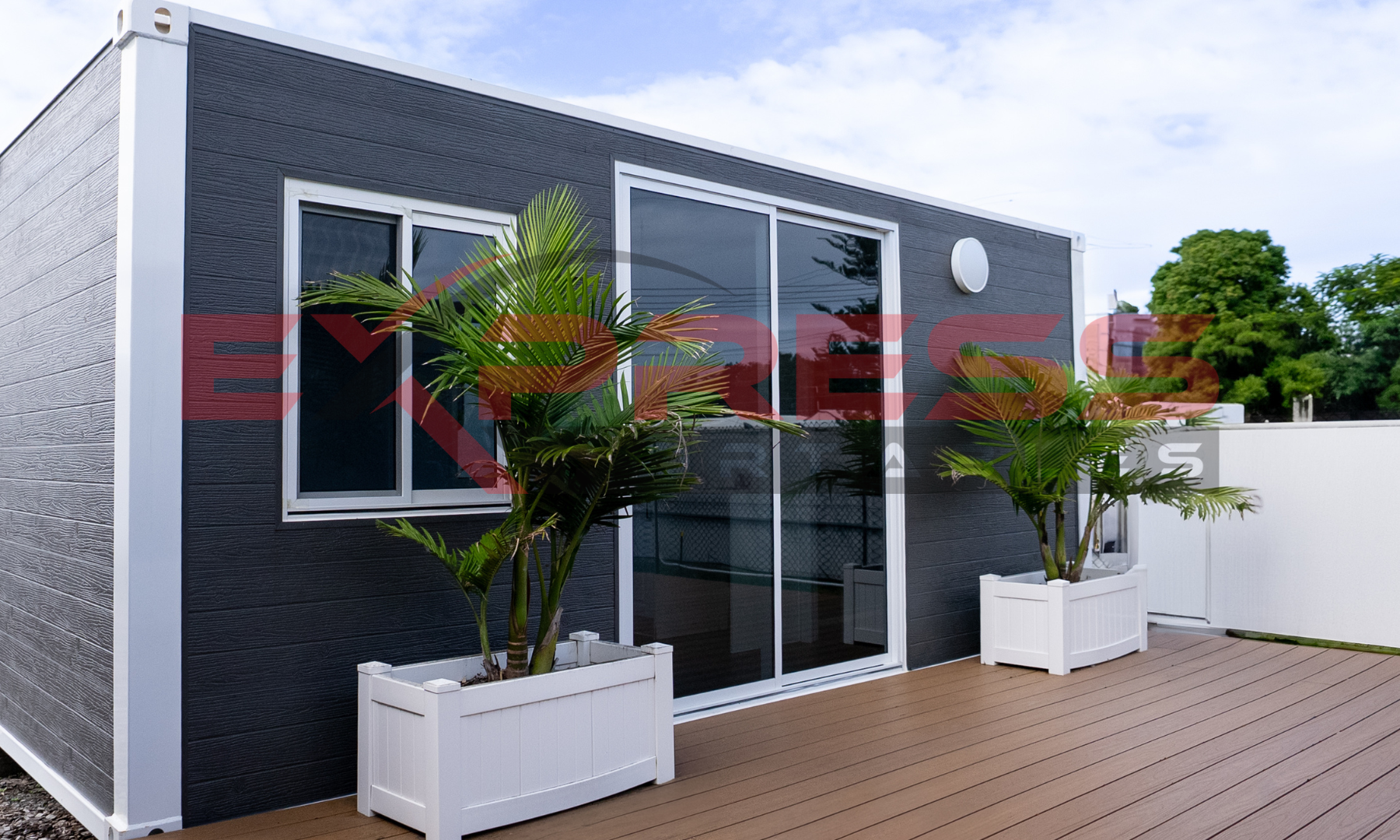

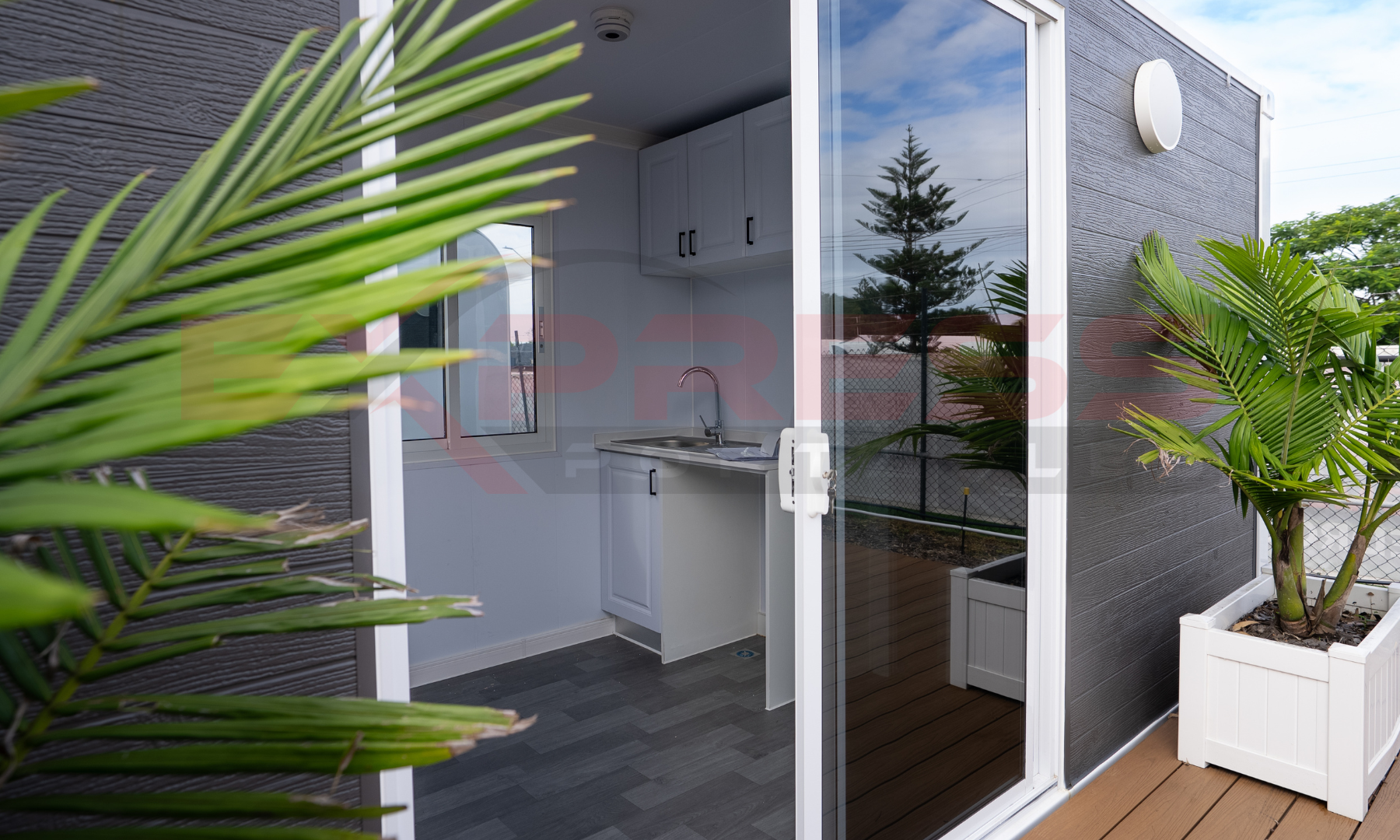

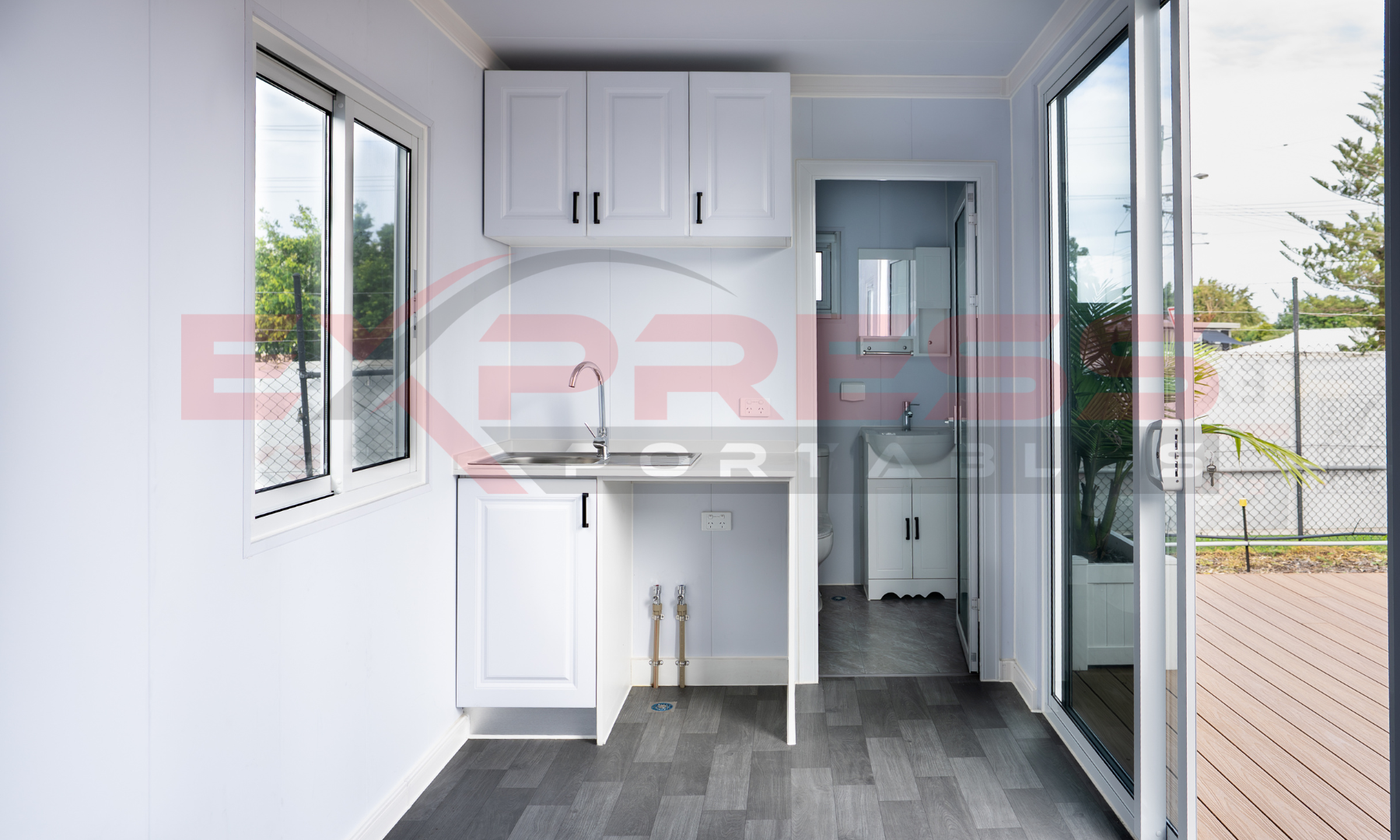

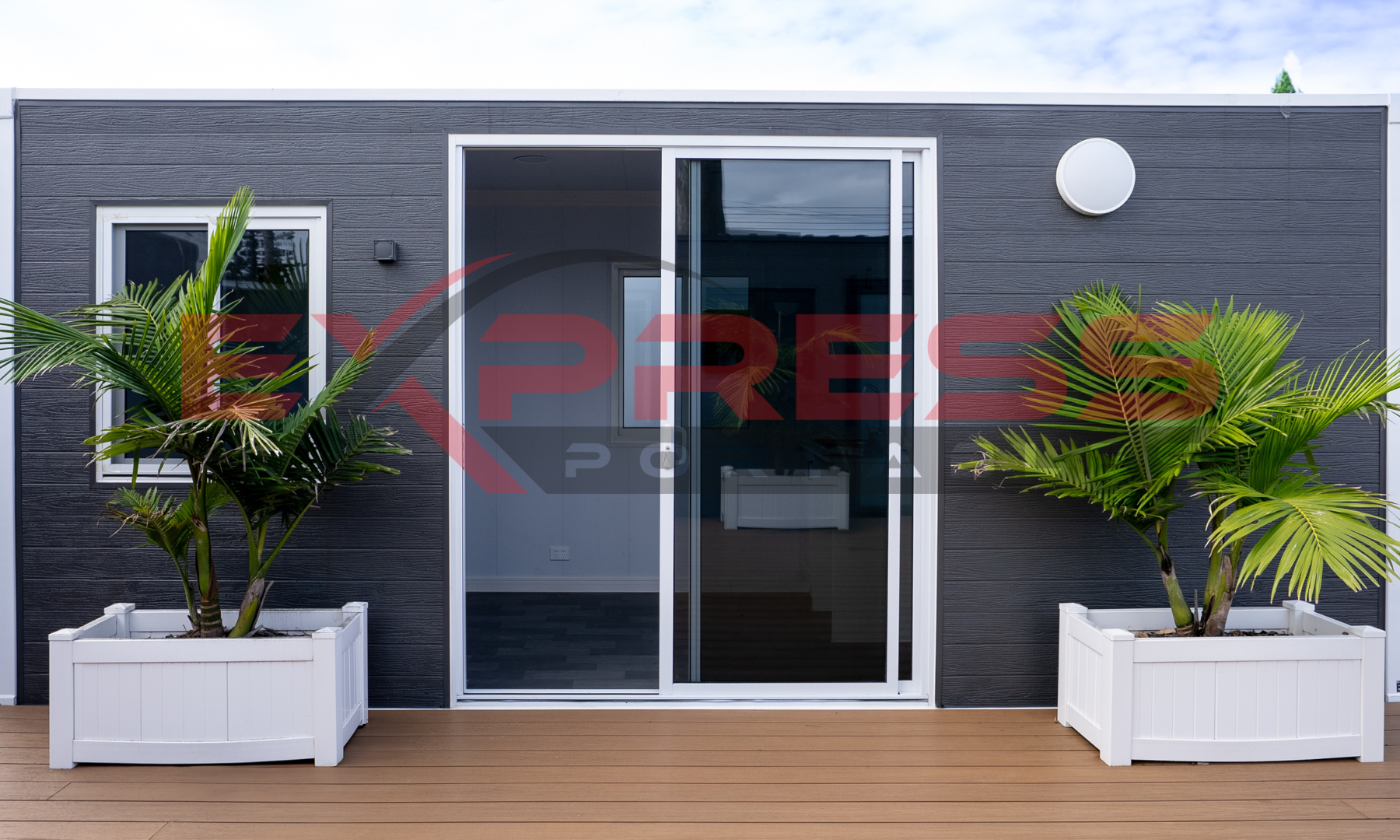

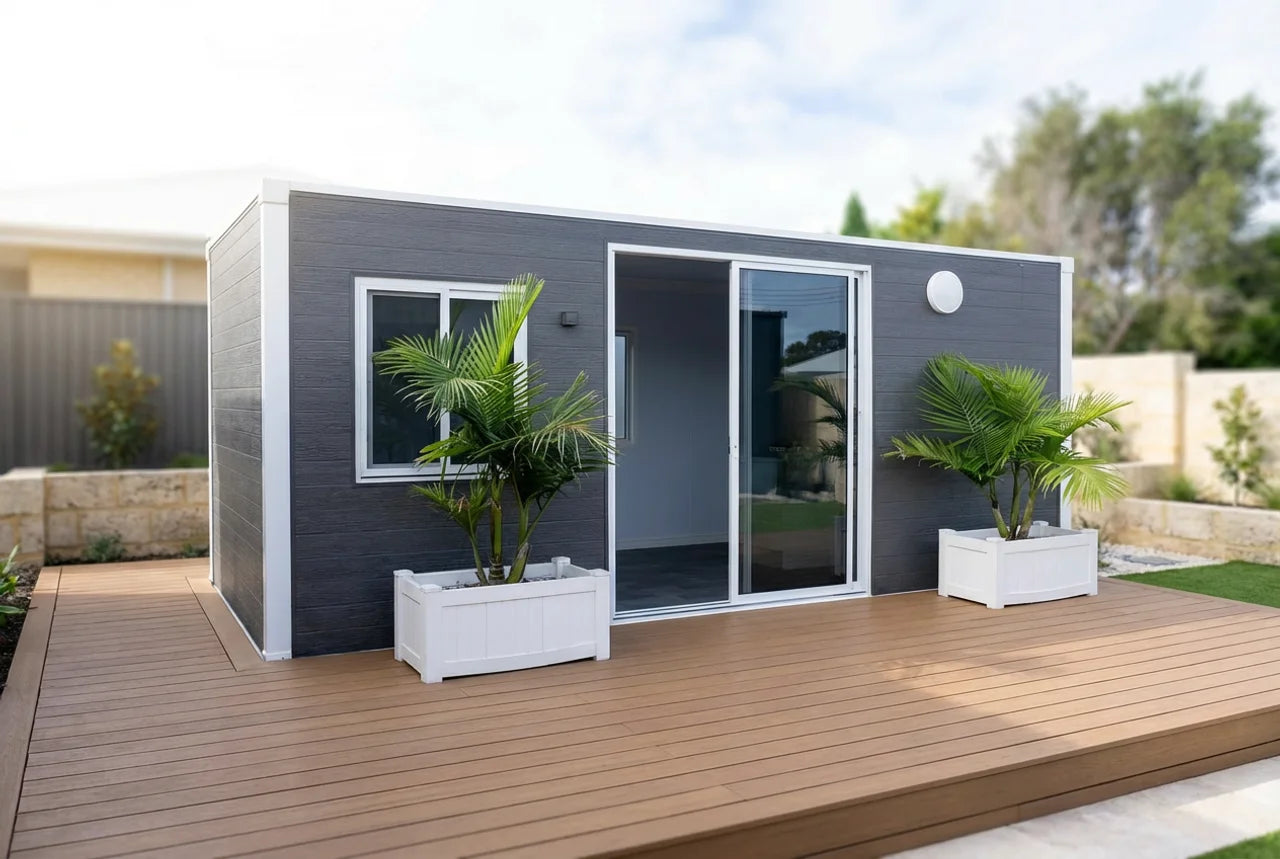

Featuring a steel frame and EPS panel walls the 'Cabin' is a versatile building that can be used as an accommodation unit, home office or personal work studio. At the front of the portable cabin is a double-glazed sliding door that acts as the main entry point into the building. The kitchen benchtop is manufactured from engineered stone with zero silica (test certificate supplied ) with a stainless steel sink and cabinets below it for storage. There are also two double-glazed awning windows in the unit, one at the front and one at the back of the unit.
The bathroom comes with a soft-flushing toilet, shower, ceramic vanity basin, mixer tap, mirror and a storage cabinetry. Featuring a sleek and modern marble like shower panel that adds to the overall aesthetics.
Please Note: the toilet and vanity waste is plumbed through the side of the building, along with the inlets. The shower and kitchen waste is plumbed underneath the building meaning that the building will need to be elevated (approx. 500mm) in order to allow access for plumbing.
Dimensions
Dimensions
Weight
Weight
Ask a question
Ask a question
Key Features
Mini Kitchenette
A small kitchenette with a smooth 20mm quartz counter (0% Silica), a stainless steel sink and provisional space for a washing machine. It's compact yet practical, making cooking and cleaning easy in this cosy space.
Built-in Bathroom
The bathroom comes with a soft-flushing toilet, shower, vanity basin, mixer tap, mirror and a storage cabinetry. Featuring a sleek and modern marble like shower panel that adds to the overall aesthetics.
Pre-plumbed
The building comes pre-plumbed with the toilet and vanity waste plumbed through the side of the building, along with the inlets. The shower and kitchen waste is plumbed underneath the building meaning that the building will need to be elevated (approx. 500mm) in order to allow access for plumbing.
LED Downlights
LED downlights are a stylish and energy-efficient lighting solution, designed to brighten your space while helping you save on energy costs. With their sleek, modern design, LED downlights offer a clean and unobtrusive look that complements any décor.
Hard-Wired Smoke Alarm
This building features a hard-wired smoke alarm connected to the main power, ensuring continuous operation. This provides 24/7 fire safety and peace of mind, offering reliable protection for your home
Specifications
General Overview
Entry Door
Glass entry sliding door
Windows
Double-glazed awning window
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame with steel floor joists
Roof
Glass-wool insulation, galvanised & painted steel
Wall
75mm EPS panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Walls
Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Wall
Windows
Frames
Aluminium frames
Type
Double-glazed awning window
Blinds & Flyscreens
Pull down blinds & flyscreens
Doors
Entry
Glass entry sliding door
General Overview
Entry Door
Glass entry sliding door
Windows
Double-glazed awning window
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame with steel floor joists
Roof
Glass-wool insulation, galvanised & painted steel
Wall
75mm EPS panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Bathroom
Flooring
18mm Magnesium subfloor concrete composite – water, rot and insect resistant
Shower
1400mm long with glass sliding door and acrylic shower base
Shower Door
Privacy glass bathroom door
Toilet
Modern toilet with soft close and dual flush
Vanity
Vanity with mixer tap & mirror storage above
Installation
Instructions
Instructions provided
DIY
The Cabin is a customer DIY installation, Express Portables will supply only
Footing Plans
Footing Plans supplied by Express Portables. Level site prepared and/or footings prepared by customer
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid/Semi-Trailer
Customer is required to organise a forklift unload or crane unload
Walls
Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Wall
Windows
Frames
Aluminium frames
Type
Double-glazed awning window
Blinds & Flyscreens
Pull down blinds & flyscreens
Doors
Entry
Glass entry sliding door
Roof
Interior Roof
Steel sheet roof with rockwool insulation
Exterior Panel
50mm EPS Panels
Flooring
Sub-Floor
18mm Magnesium subfloor concrete composite – water, rot and insect resistant.
Top Layer
2mm vinyl timber pattern - Grey or Brown
Skirting
PVC cornice and skirting
Kitchenette
Cabinetry
Soft-closing kitchen cabinets and overhead cabinets
Sink
Double bowl stainless sink with flick mixer
Benchtop
Marble look laminate benchtop
Electrical
Power
Mains electrical cable terminated on rear wall ready for connection to site
Lighting
LED downlights pre-installed and wired
Smoke Alarm
Smoke alarm hardwired back to switchboard (customer to install)
Plumbing
Water
Hot and cold water water lines preinstalled, connections through wall
Waste
Waste pre-plumbed (kitchenette sink, vanity, floor waste & shower), connection through wall
Council Compliance
Council Approval
Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
