Steel Frame
Featuring a steel frame ensuring structural integrity and stability. Engineered to withstand harsh weather conditions and the rigors of transportation, the steel frame provides a secure foundation for the entire structure.
Regular price
$3,600.00
Regular price
$4,250.00 AUD
Sale price
$3,600.00
Unit price
per
$3,600.00
(Incl. GST)
Buy Now, Pay Later with
Learn more
Learn more
Description
Description
The portable single toilet block is the ultimate solution for all your outdoor bathroom needs. It can be installed as a permanent or temporary solution. The simple design can be connected to the existing property with mains power, sewerage and water.
Designed for all your outdoor bathroom needs. The structural steel frame ensures durability, while 50mm insulated EPS panels provide a comfortable and climate-controlled interior. There is also a built-in exhaust fan ensuring effective ventilation, swiftly removing odours and maintaining a pleasant environment. We also offer a double toilet block which may be a more efficient and effective option.
Perfect for events, construction sites, or any temporary setting.
Dimensions
Dimensions
Weight
Weight
Ask a question
Ask a question
Key Features
Exhaust Fan
The exhaust fan effectively removes odors and ensures proper ventilation within the confined space by continuously circulating air.
Lifting Lugs
Equipped with lifting lugs on its top, allowing for straightforward lifting and transportation. These robust lugs serve as secure attachment points for cranes or lifting equipment during relocation or installation.
Tie Down Cleats
Robust fixtures designed to secure the restroom firmly in place during transportation or stationary use. These cleats allow for reliable anchoring, ensuring stability and preventing movement.
Specifications
General Overview
Entry Door
50mm EPS panel
Windows
Double-glazed awning window
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
50mm EPS panel walls
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Windows
Frames
Aluminium framed windows
Type
Double-glazed windows
Thickness
5mm glass
Doors
Shower
Privacy glass bathroom door
Entry
50mm EPS
General Overview
Entry Door
50mm EPS panel
Windows
Double-glazed awning window
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
50mm EPS panel walls
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Bathroom
Accessories
Paper roll holder, rain shower head, toilet brush, soap holder
Shower
Corner shower & acrylic base
Toilet
Modern toilet and soft close seat
Vanity
Porcelain vanity with chrome mixer tap
Compliance
Fixtures and fittings WELS Watermark AS/NZS 6400:2016 compliant
Wall
50mm EPS Panel with a Marble like PVC finish
Installation
Instructions
Instructions provided
DIY
Bathrooms are a customer DIY installation, Express Portables will supply only

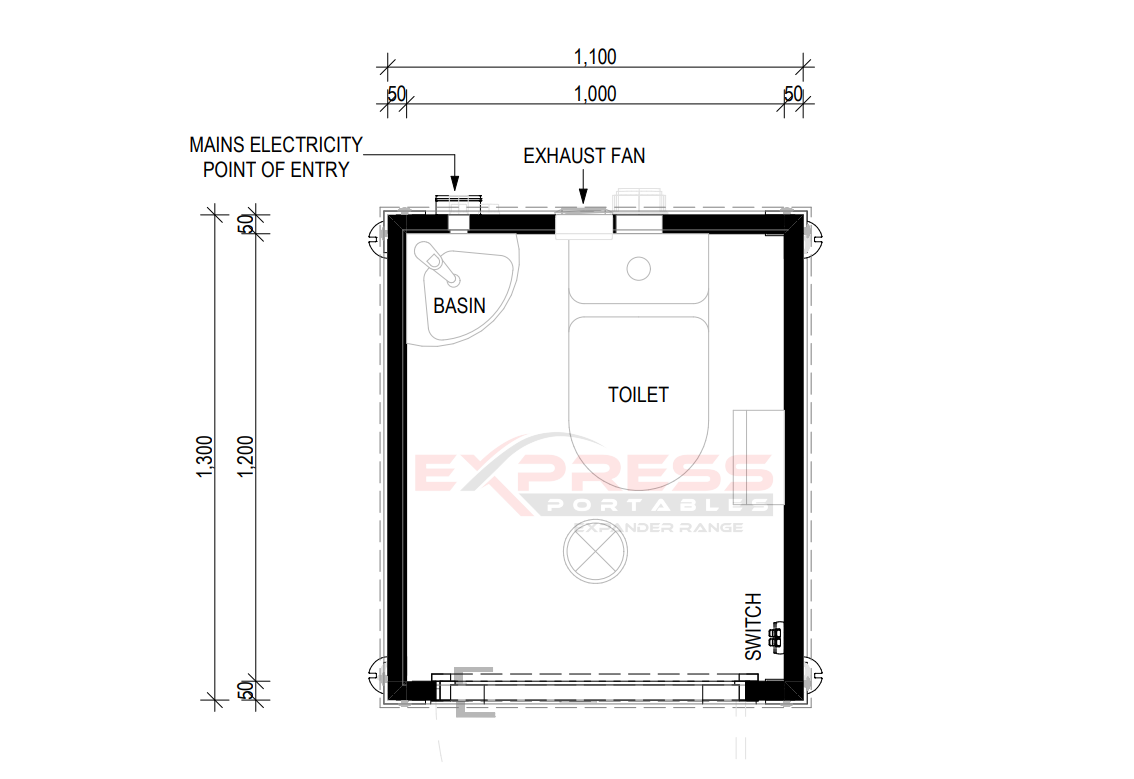

Footing Plans
Footing Plans supplied by Express Portables. Level site prepared and/or footings prepared by customer
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Wall
Interior Walls
50mm EPS Panel with a Marble like PVC finish
Windows
Frames
Aluminium framed windows
Type
Double-glazed windows
Thickness
5mm glass
Doors
Shower
Privacy glass bathroom door
Entry
50mm EPS
Roof
Interior Roof
50mm EPS panels
Exterior Roof
Exterior roof is 3mm steel sheet finished in epoxy dark grey paint
Flooring
Sub-Floor
Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer
2mm vinyl timber pattern
Skirting
PVC cornice and skirting
Features
Tie Down Cleats
Allow for reliable anchoring
Vanity
Porcelain vanity with chrome mixer tap
Lifting Lugs
Roof mount lugs for crane lifting
Forklift Pockets
Forklift pockets for transport
Electrical
Power
Mains electrical cable terminated on rear wall ready for connection to site
Lighting
LED downlights pre-installed and wired
Plumbing
Hot & Cold
Hot and cold water water lines pre-installed, connections through wall
Waste
42mm waste pre-plumbed (vanity, floor waste & shower), connection through wall
Sewer
Sewer connection through rear wall
