Steel Frame

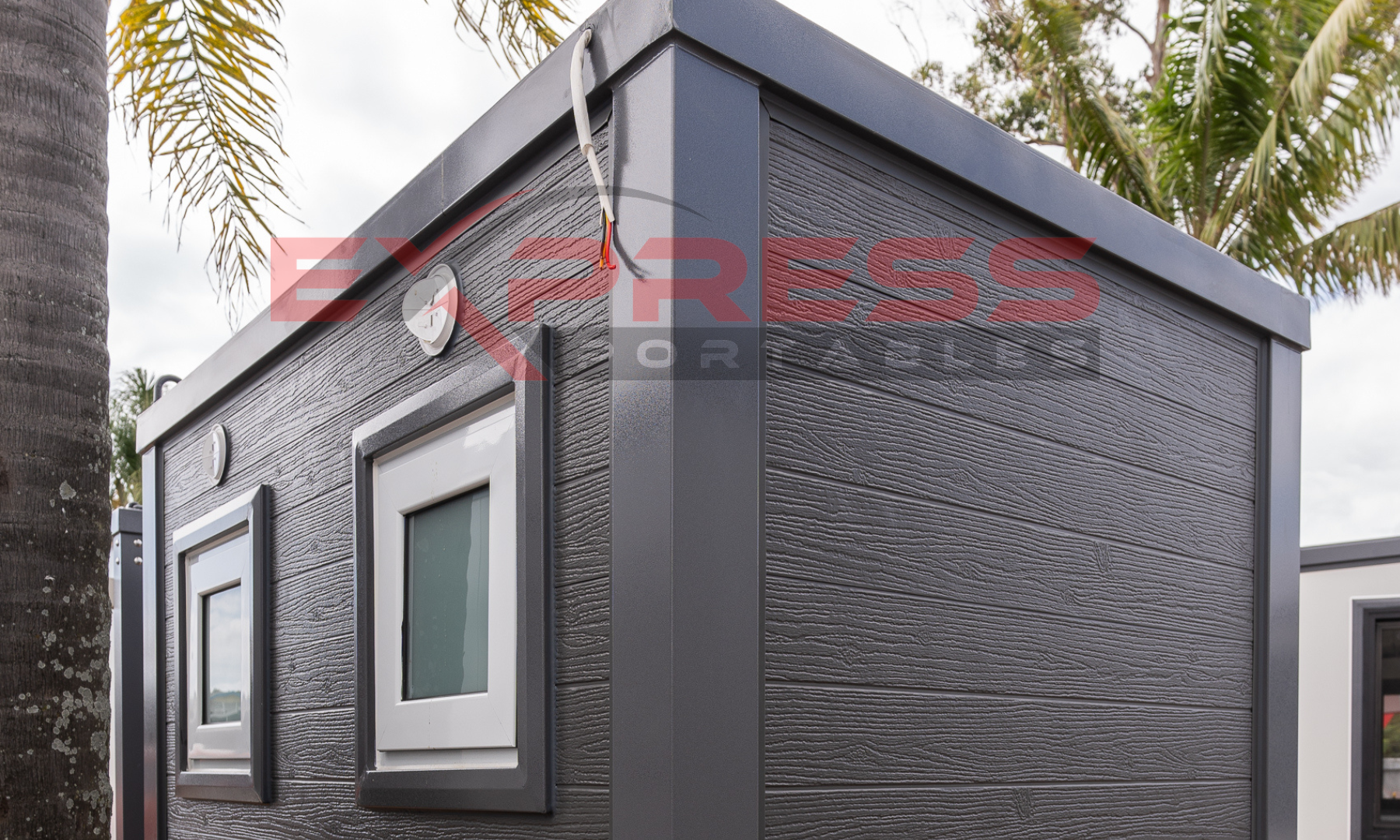

Featuring a steel frame ensuring structural integrity and stability. Engineered to withstand harsh weather conditions and the rigors of transportation, the steel frame provides a secure foundation for the entire structure.
Regular price
$6,550.00
Regular price
Sale price
$6,550.00
Unit price
per
$6,550.00
(Incl. GST)
Buy Now, Pay Later with
Learn more
Learn more
Description
Description

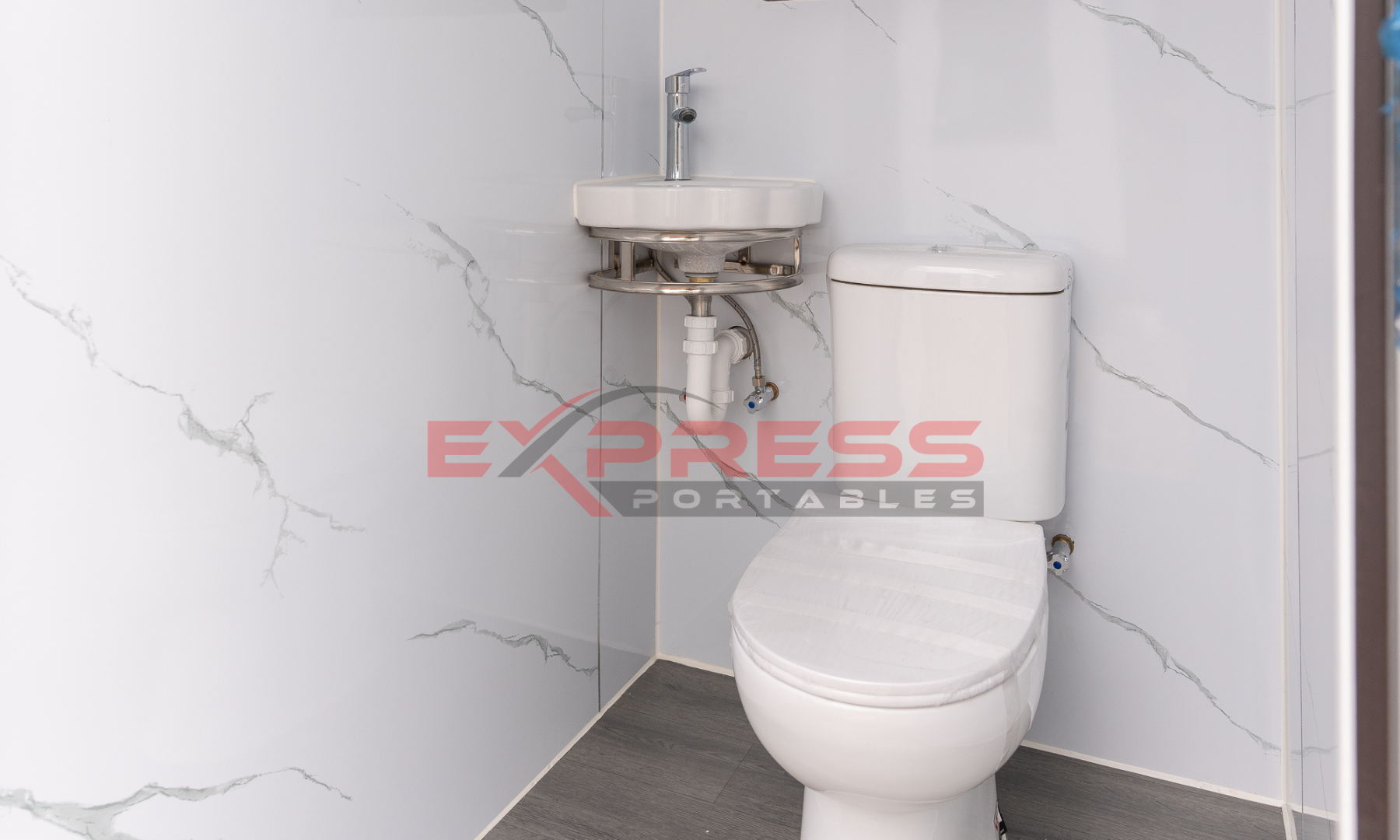

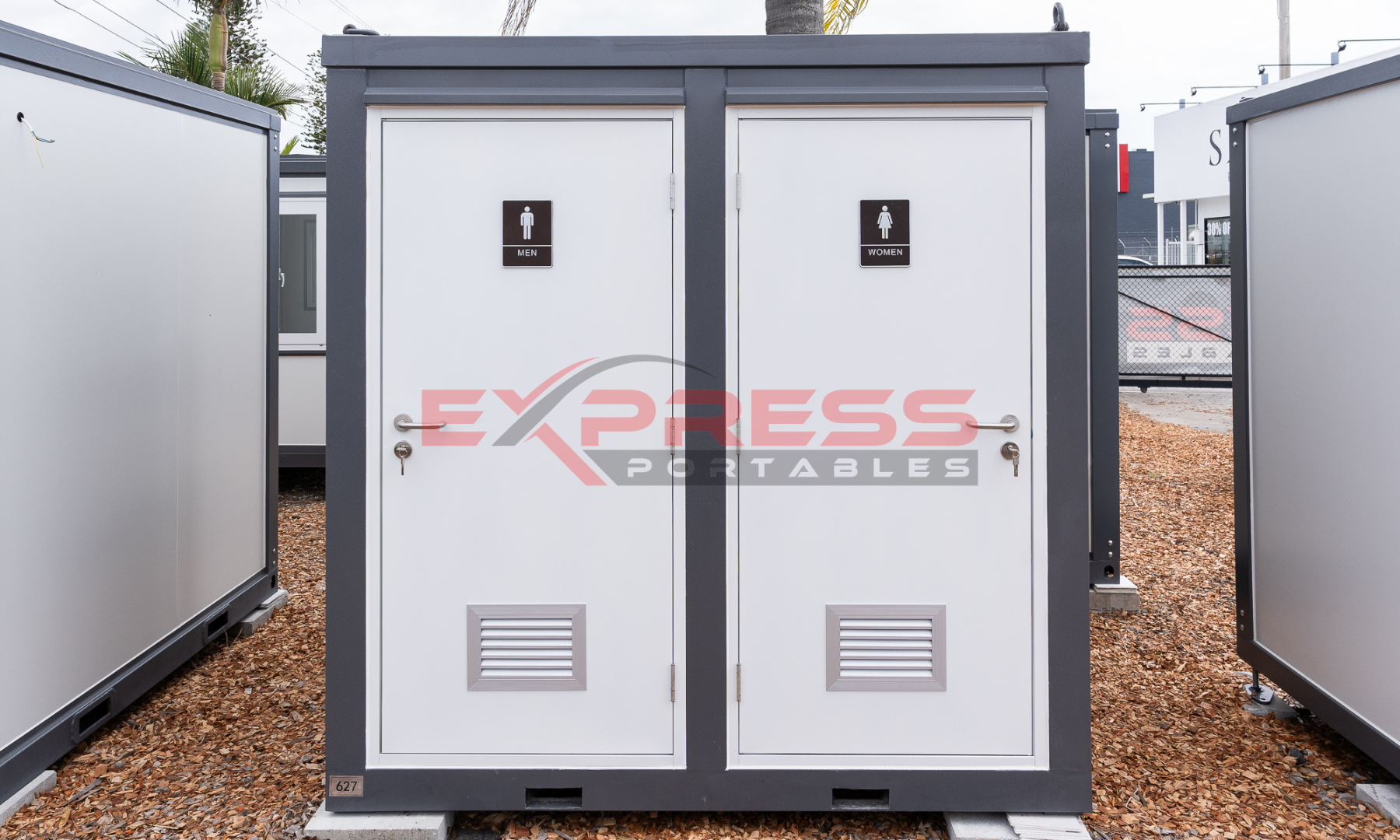

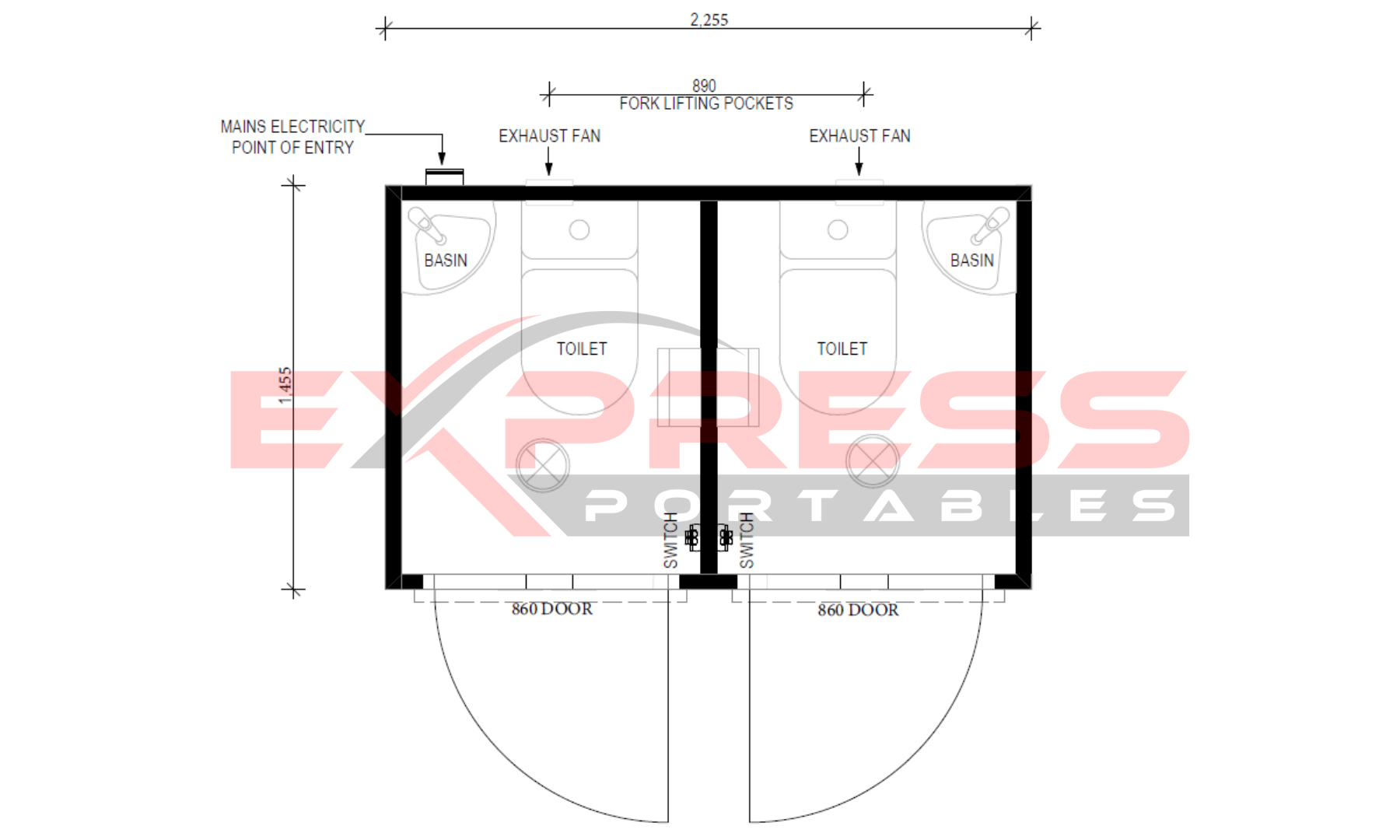

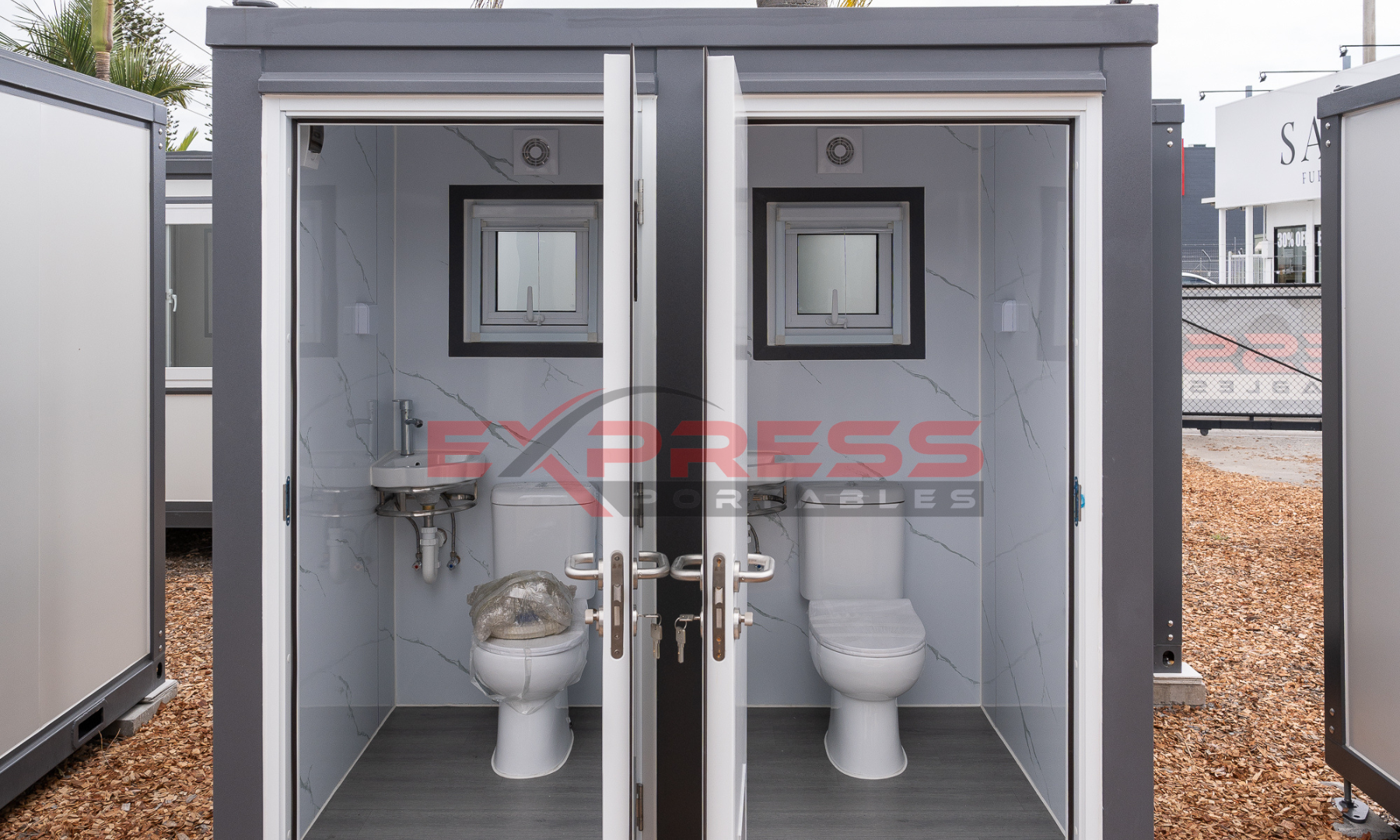

This portable double toilet consists of two single toilet blocks side by side. A more efficient and effective option as both toilet cubicles only require one set of waste connections. Featuring a built-in soft flushing toilet, vanity basin, mixer tapware, brush holder and paper towel dispenser.
The dual-functioning portable toilet block can be installed as a permanent fixture or kept portable for site relocation. A popular choice with festivals, weddings, construction sites and events.
Dimensions
Dimensions
Weight
Weight
Ask a question
Ask a question
Key Features

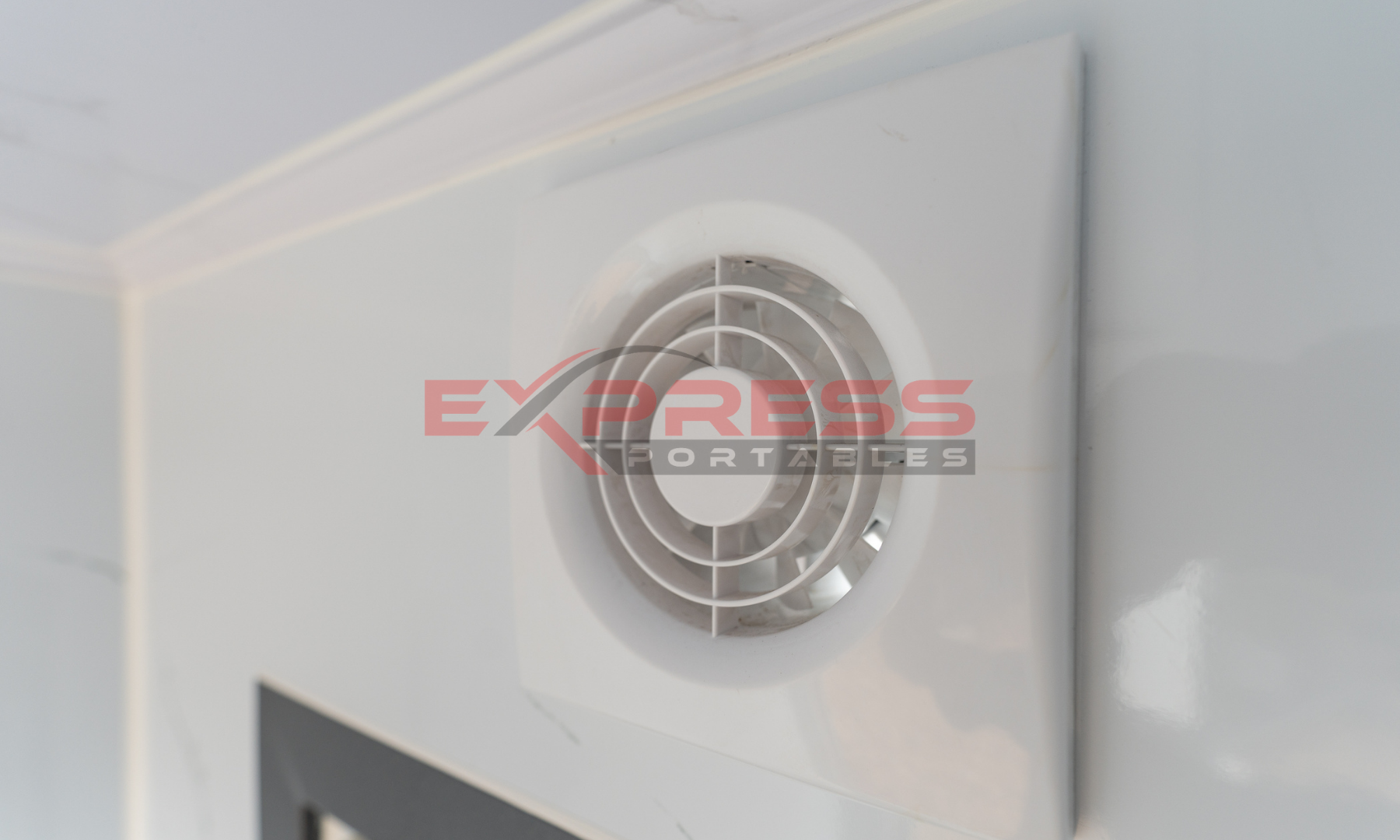

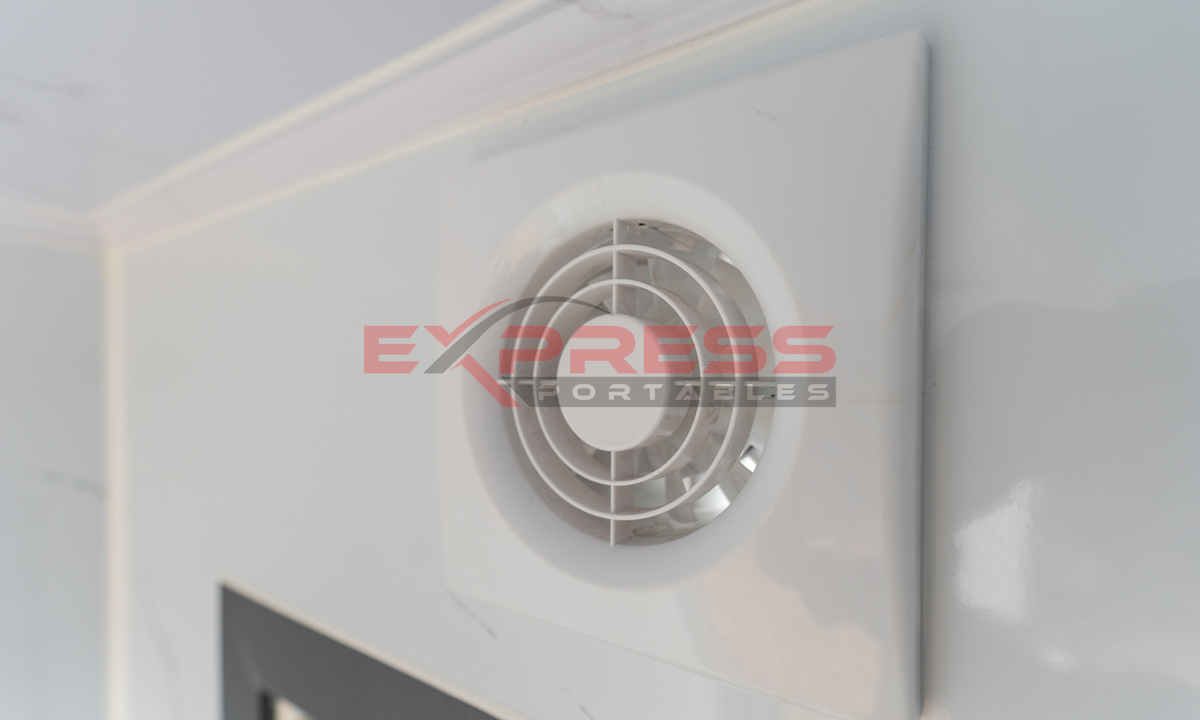

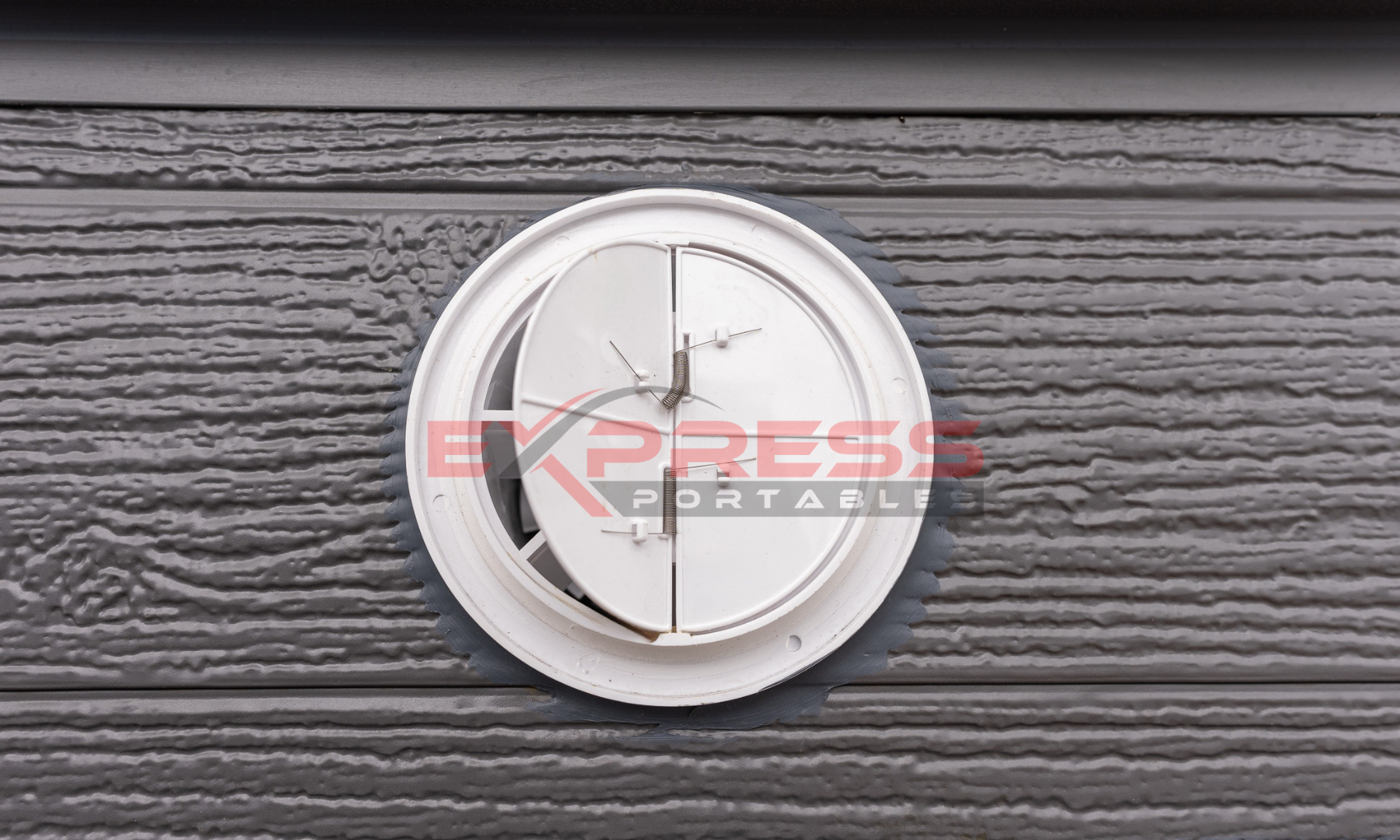

Exhaust Fan
The exhaust fan effectively removes odors and ensures proper ventilation within the confined space by continuously circulating air.
Lifting Lugs
Equipped with lifting lugs on its top, allowing for straightforward lifting and transportation. These robust lugs serve as secure attachment points for cranes or lifting equipment during relocation or installation.

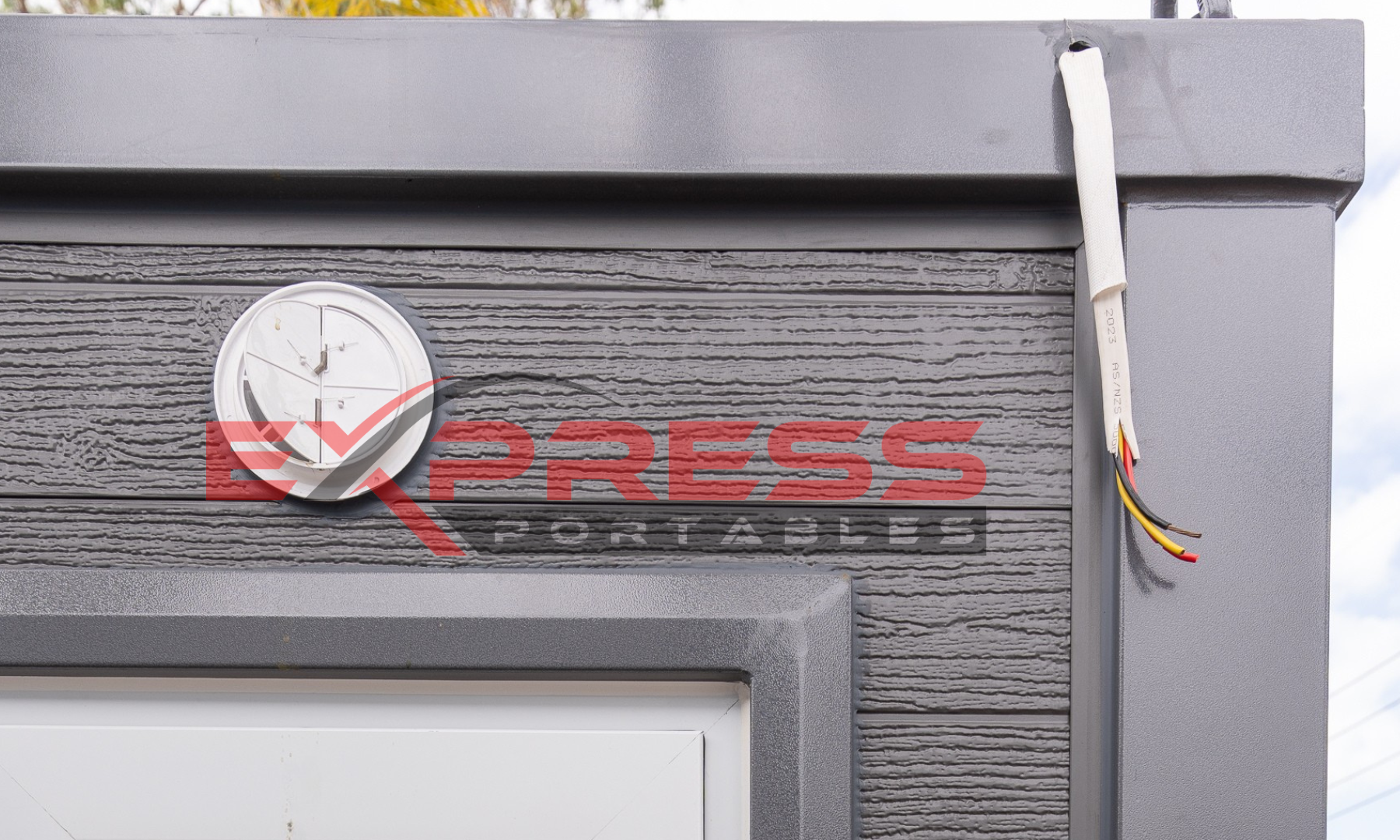

Mains Connection
Featuring a 15-amp socket, allowing it to connect easily to the mains power supply. Ensuring convenient access to electricity, enabling the unit to function effectively.
Tie Down Cleats
Robust fixtures designed to secure the restroom firmly in place during transportation or stationary use. These cleats allow for reliable anchoring, ensuring stability and preventing movement.
Specifications
General Overview
Entry Door
50mm EPS panel
Windows

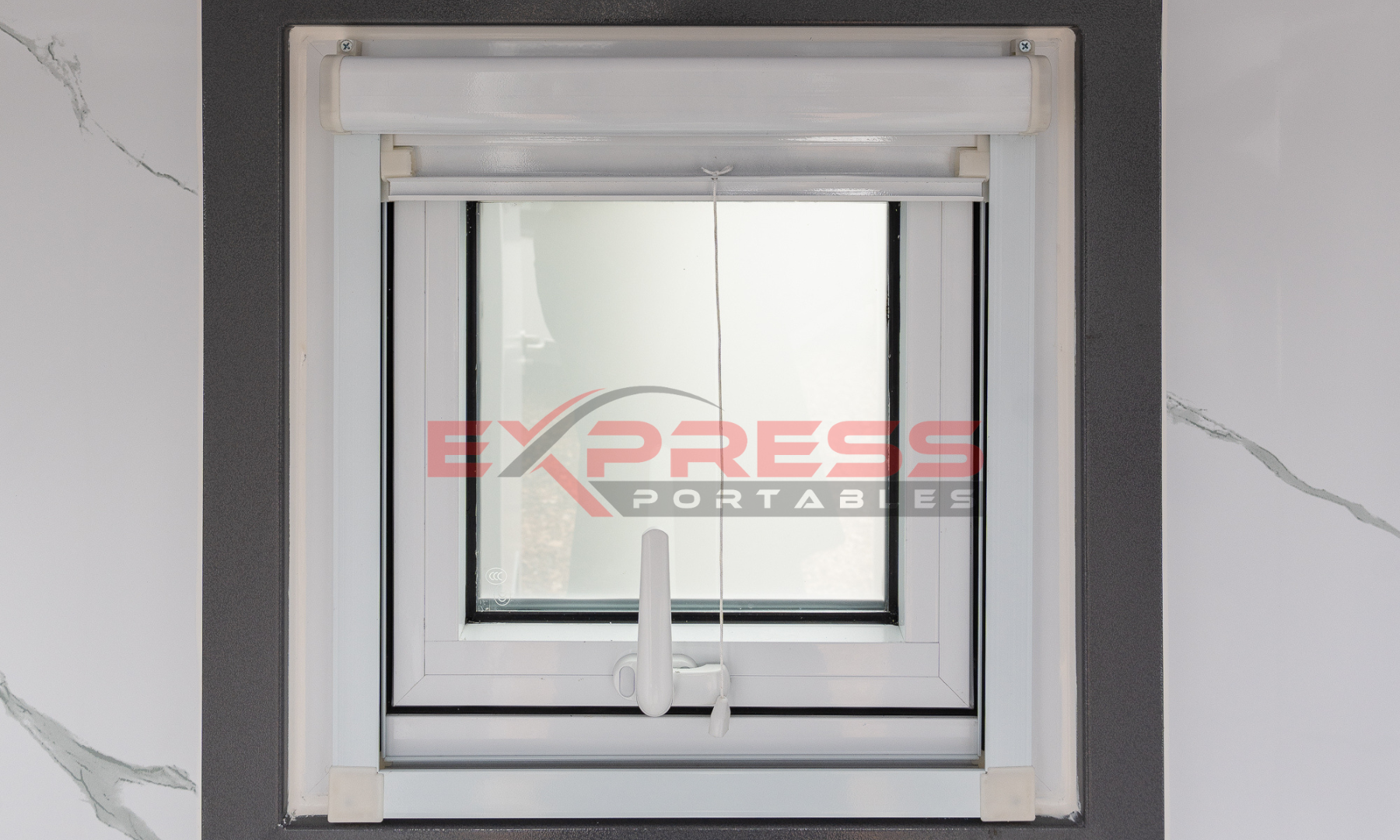

Double-glazed awning window
Electrical
AS/NZ electrical cable, power points & switchboard (Qualified Electrician Required)
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel

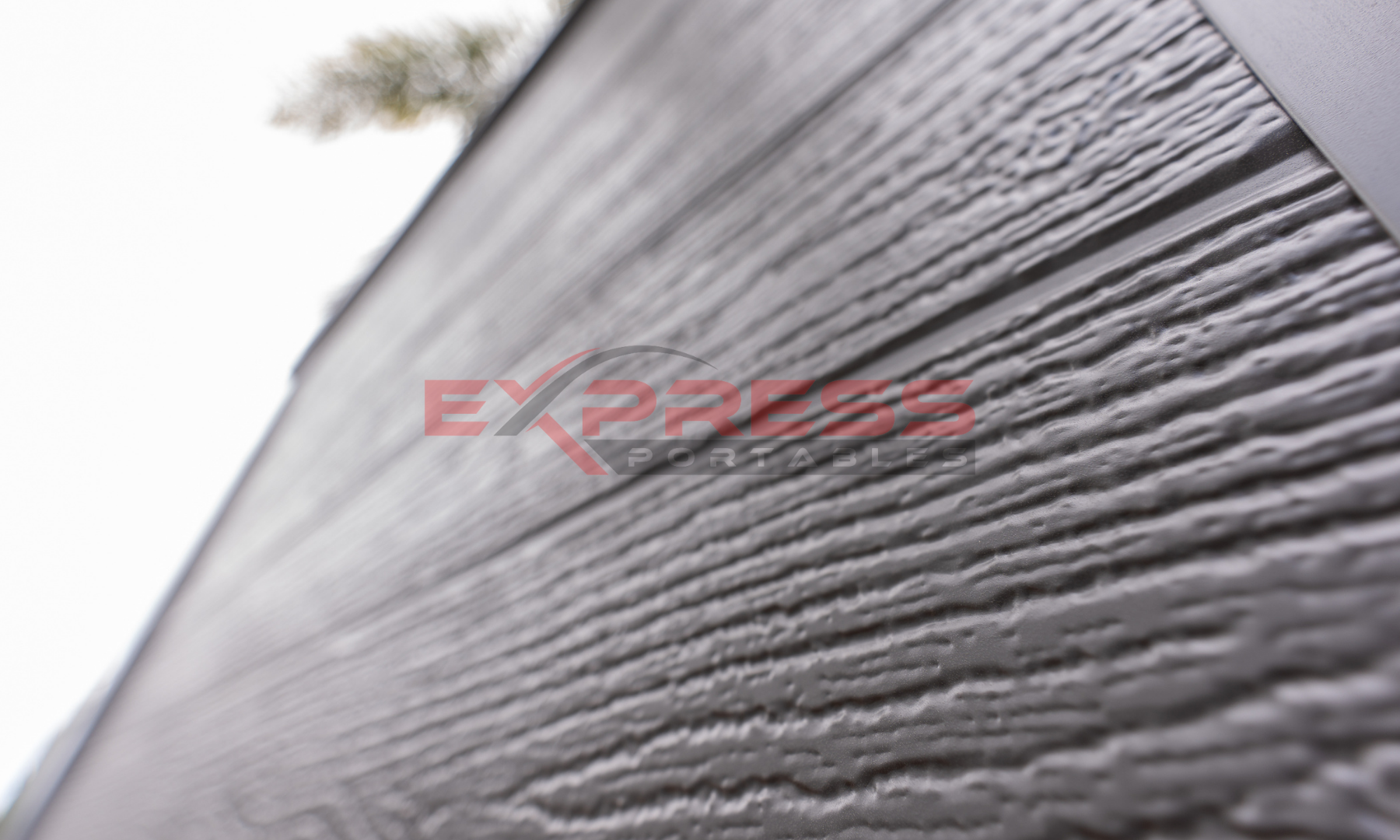

Walls
50mm EPS panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Windows
Frames
Aluminium framed windows
Type
Double-glazed windows
Thickness
5mm glass
Door
Shower
Privacy glass bathroom door
Entry
50mm EPS panel
General Overview
Entry Door
50mm EPS panel
Windows
Double-glazed awning window
Electrical
AS/NZ electrical cable, power points & switchboard (Qualified Electrician Required)
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
50mm EPS panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Bathroom
Accessories
Paper roll holder, rain shower head, toilet brush, soap holder
Shower
Corner shower & acrylic base
Toilet
Modern toilet and soft close seat
Vanity

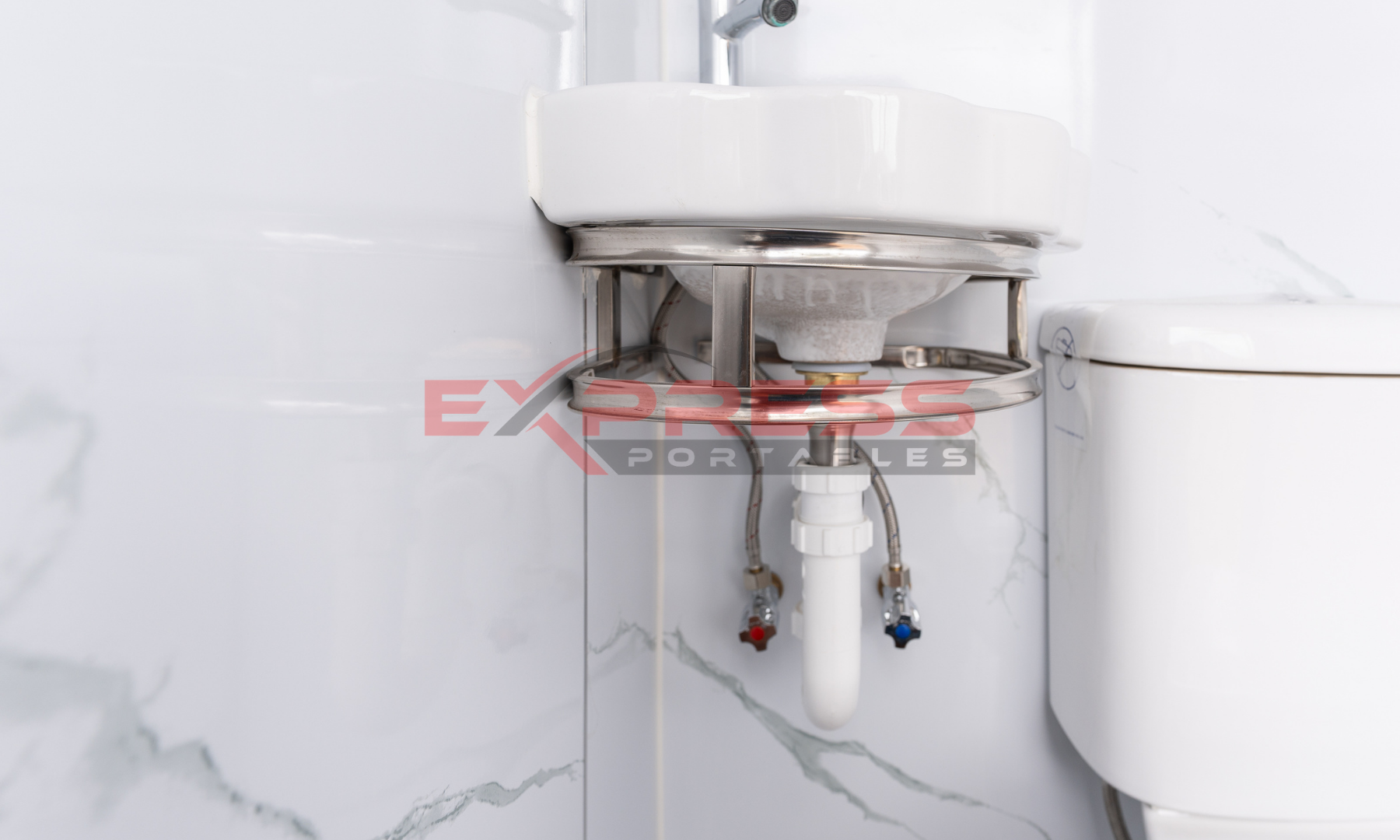

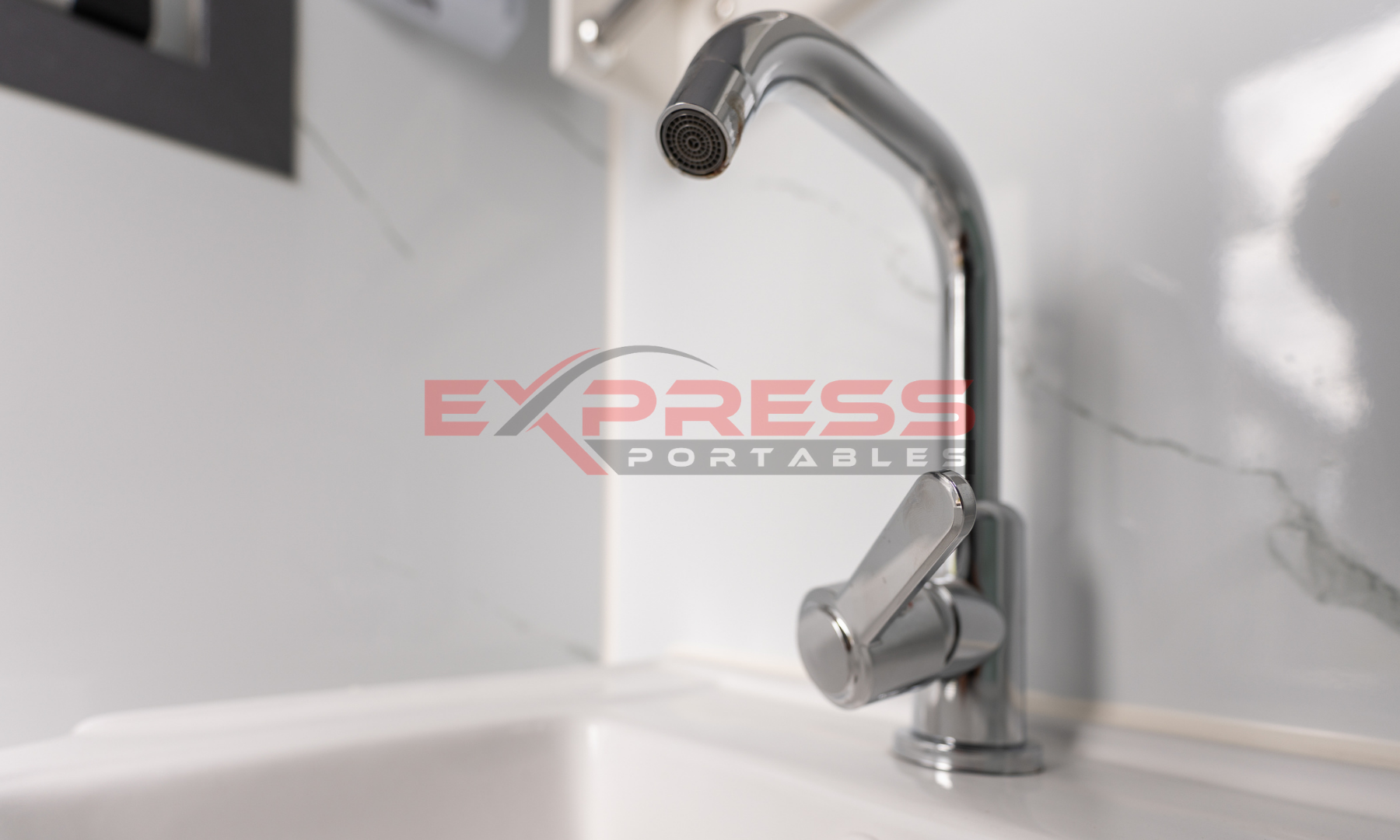

Porcelain vanity with chrome mixer tap
Compliance
Fixtures and fittings WELS Watermark AS/NZS 6400:2016 compliant
Wall

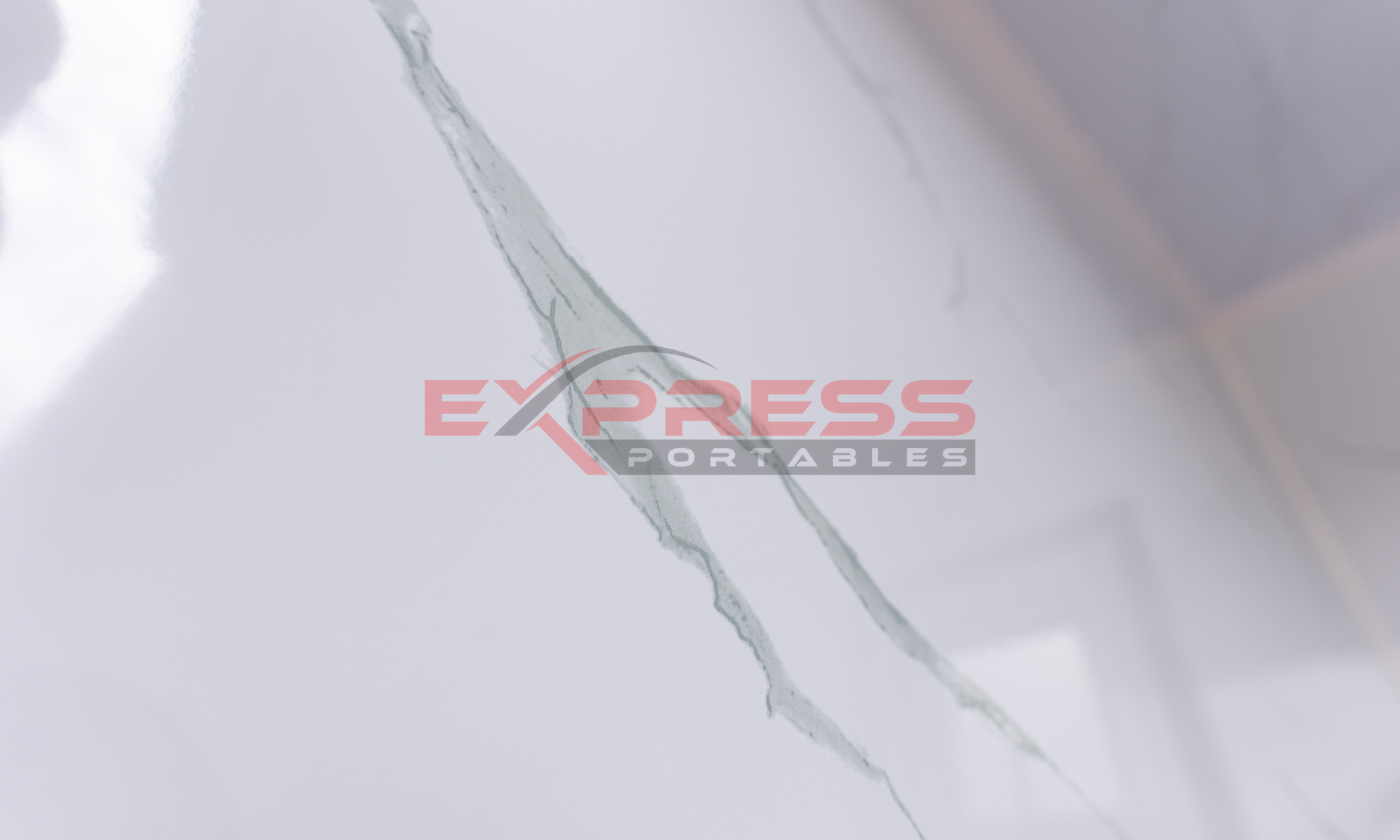

50mm EPS Panel with a Marble like PVC finish
Installation
Instructions
Instructions provided
DIY
Bathrooms are a customer DIY installation, Express Portables will supply only
Footing Plans
Footing Plans supplied by Express Portables. Level site prepared and/or footings prepared by customer
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Interior Walls
50mm EPS panels
Windows
Frames
Aluminium framed windows
Type
Double-glazed windows
Thickness
5mm glass
Door
Shower
Privacy glass bathroom door
Entry
50mm EPS panel
Roof
Interior Roof
50mm EPS panels
Exterior Roof
Exterior roof is 3mm steel sheet finished in epoxy dark grey paint
Flooring
Sub-Floor
Magnesium subfloor concrete composite – water, rot and insect resistant

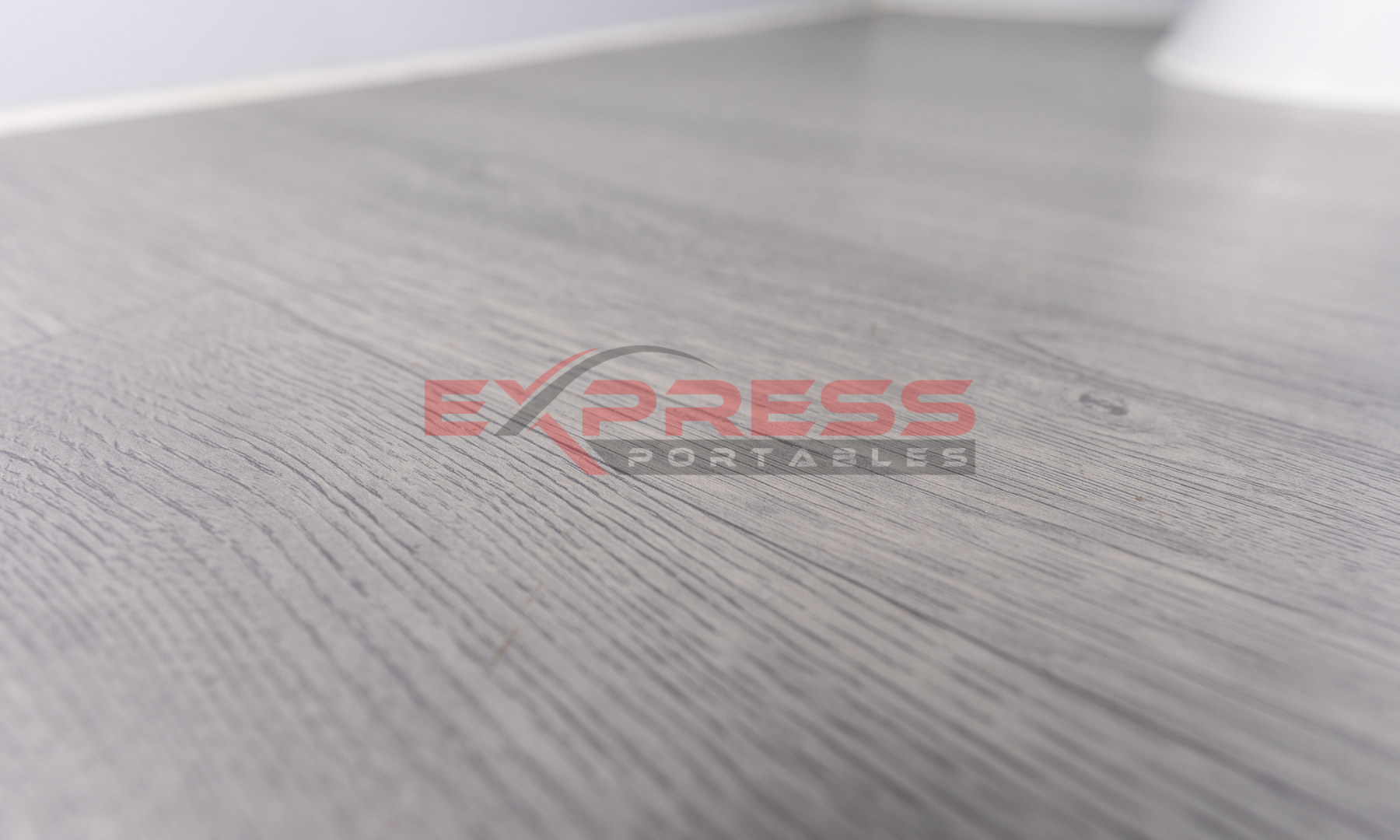

Top Layer
2mm vinyl timber pattern
Skirting
PVC cornice and skirting
Features
Tie Down Cleats
Allow for reliable anchoring
Vanity
Porcelain vanity with chrome mixer tap
Lifting Lugs
Roof mount lugs for crane lifting
Forklift Pockets
Forklift pockets for transport
Electrical
Power
Mains electrical cable terminated on rear wall ready for connection to site
Lighting
LED downlights pre-installed and wired

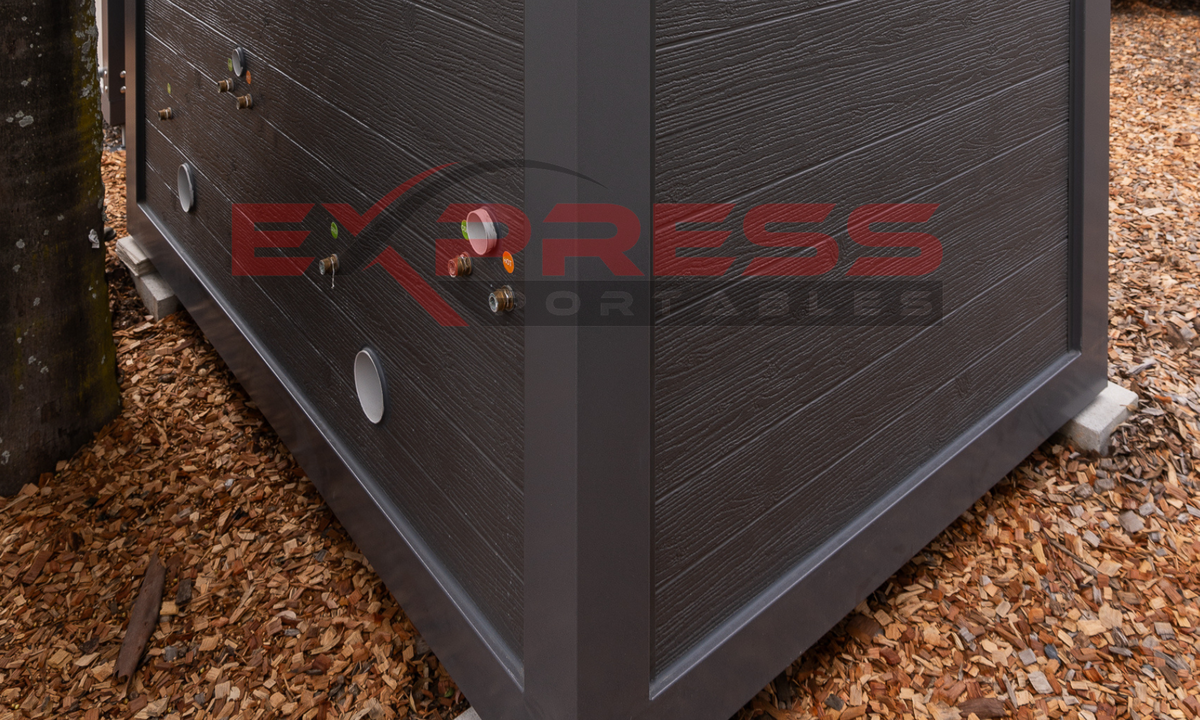

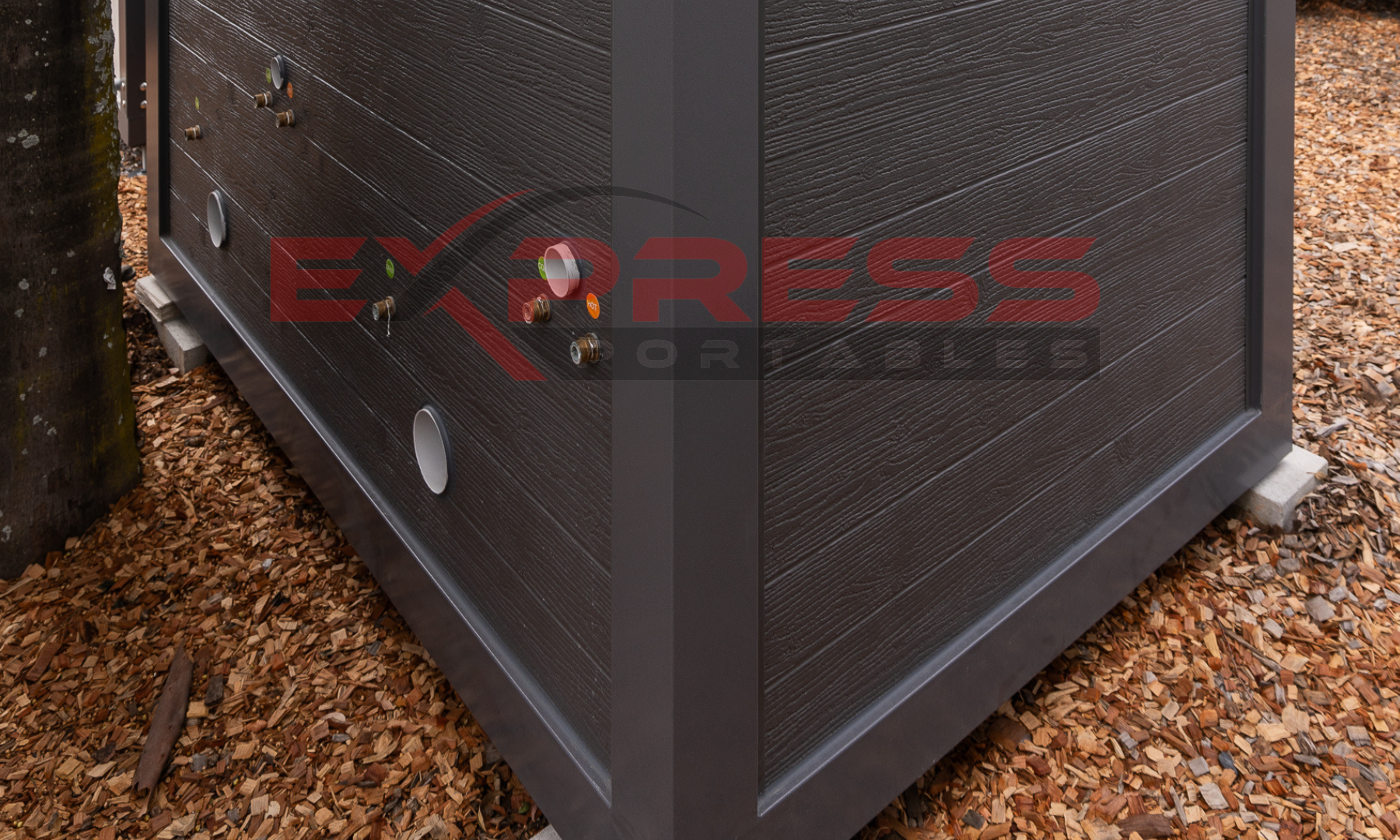

Plumbing

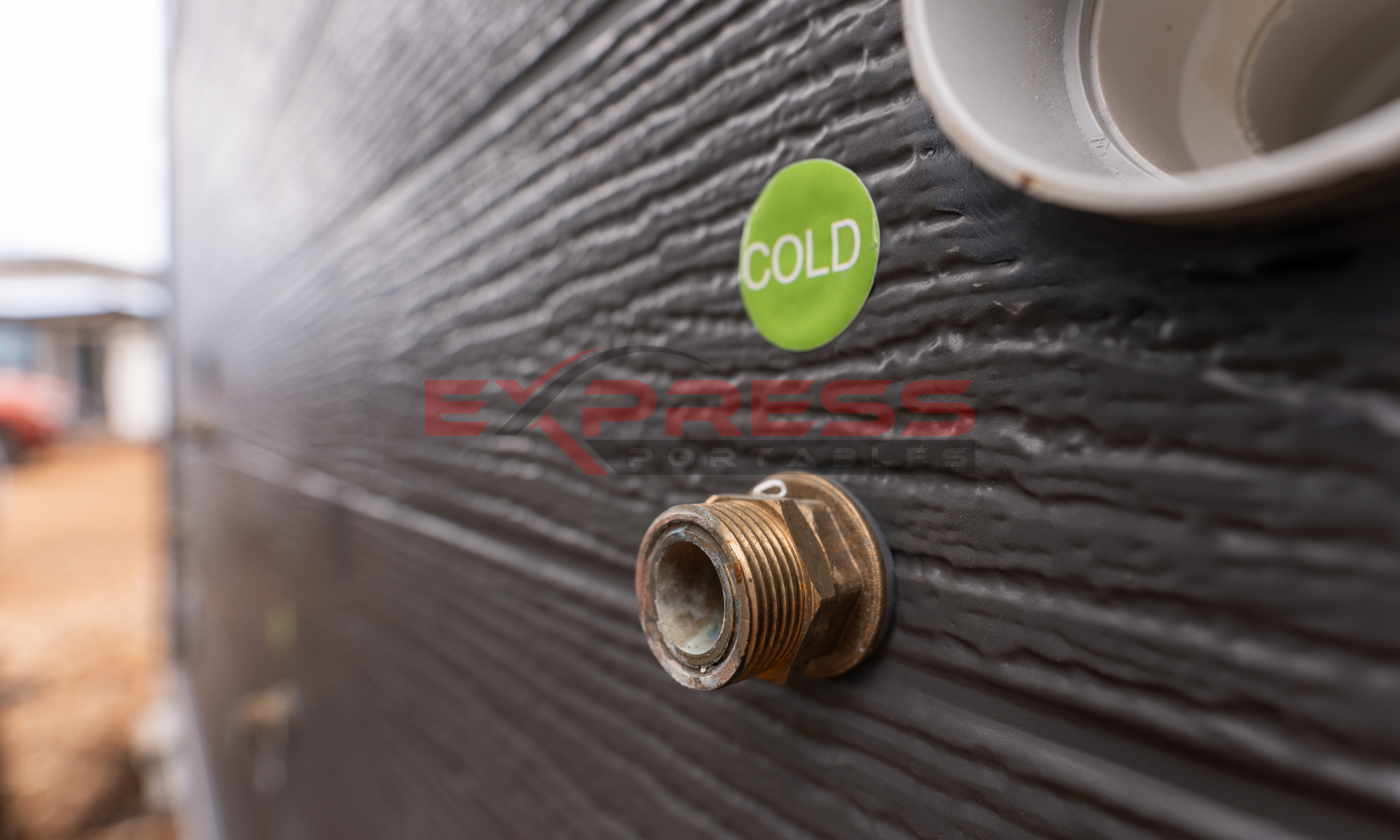

Hot & Cold
Hot and cold water water lines pre-installed, connections through wall
Waste
42mm waste pre-plumbed (vanity, floor waste & shower), connection through wall
Sewer
Sewer connection through rear wall
