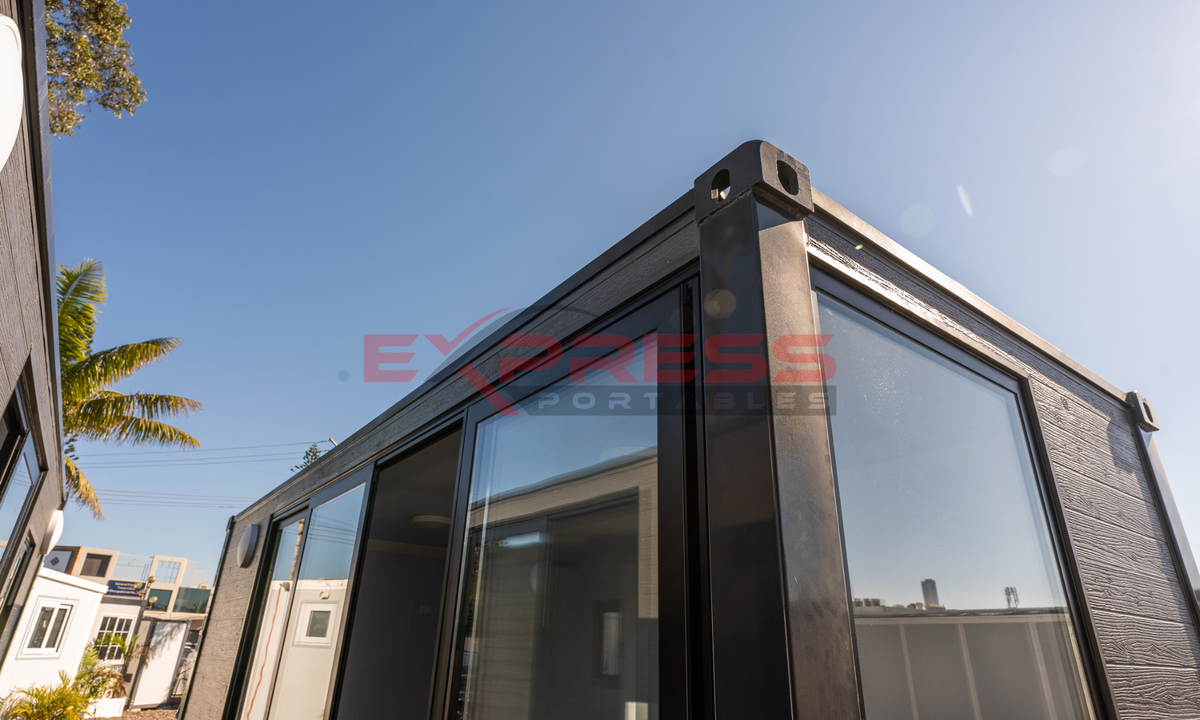

Steel Frame
Featuring a steel frame ensuring structural integrity and stability. Engineered to withstand harsh weather conditions and the rigors of transportation, the steel frame provides a secure foundation for the entire structure.
Regular price
$18,490.00
Regular price
Sale price
$18,490.00
Unit price
per
$18,490.00
(Incl. GST)
Buy Now, Pay Later with
Learn more
Learn more
Description
Description
Dimensions
Dimensions
Weight
Weight
Ask a question
Ask a question
Key Features

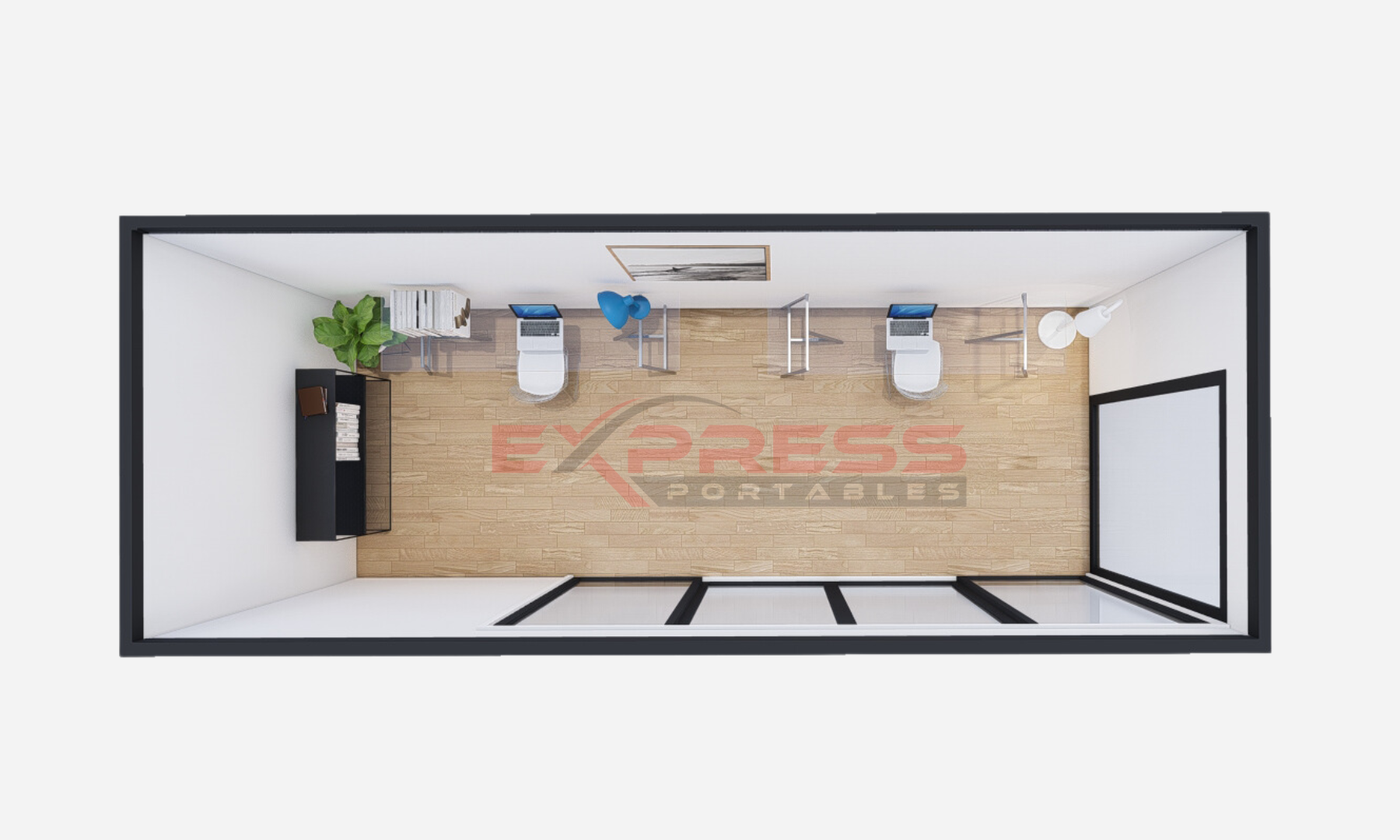

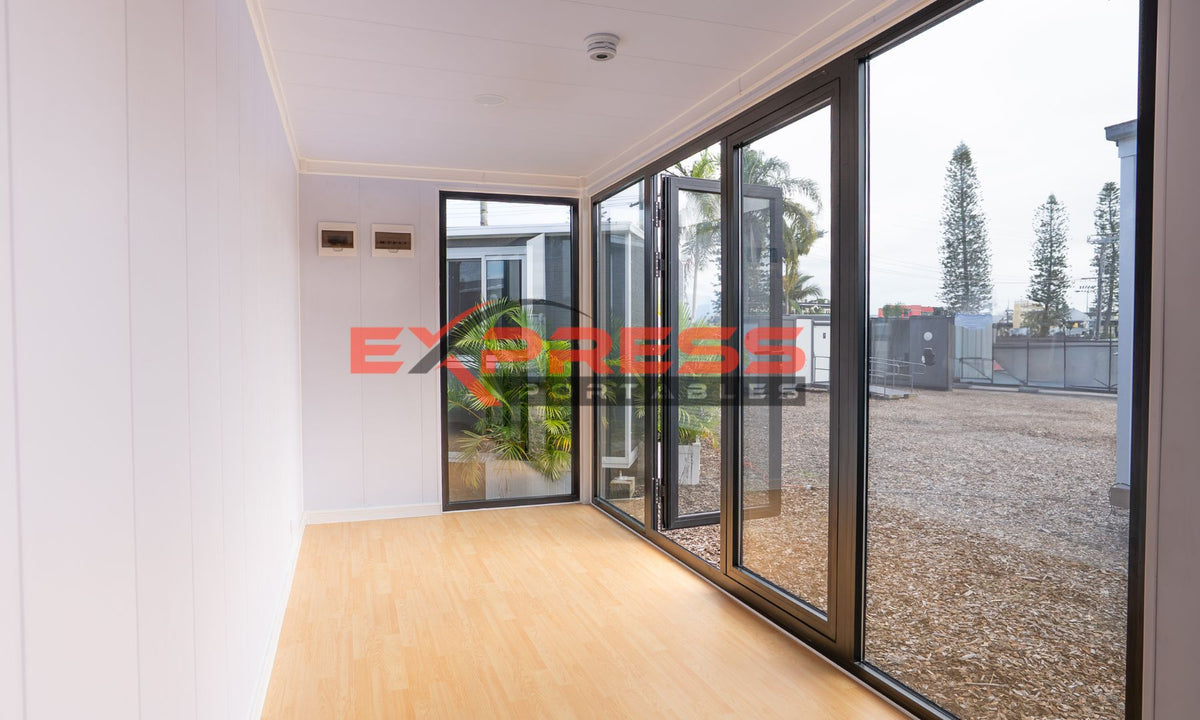

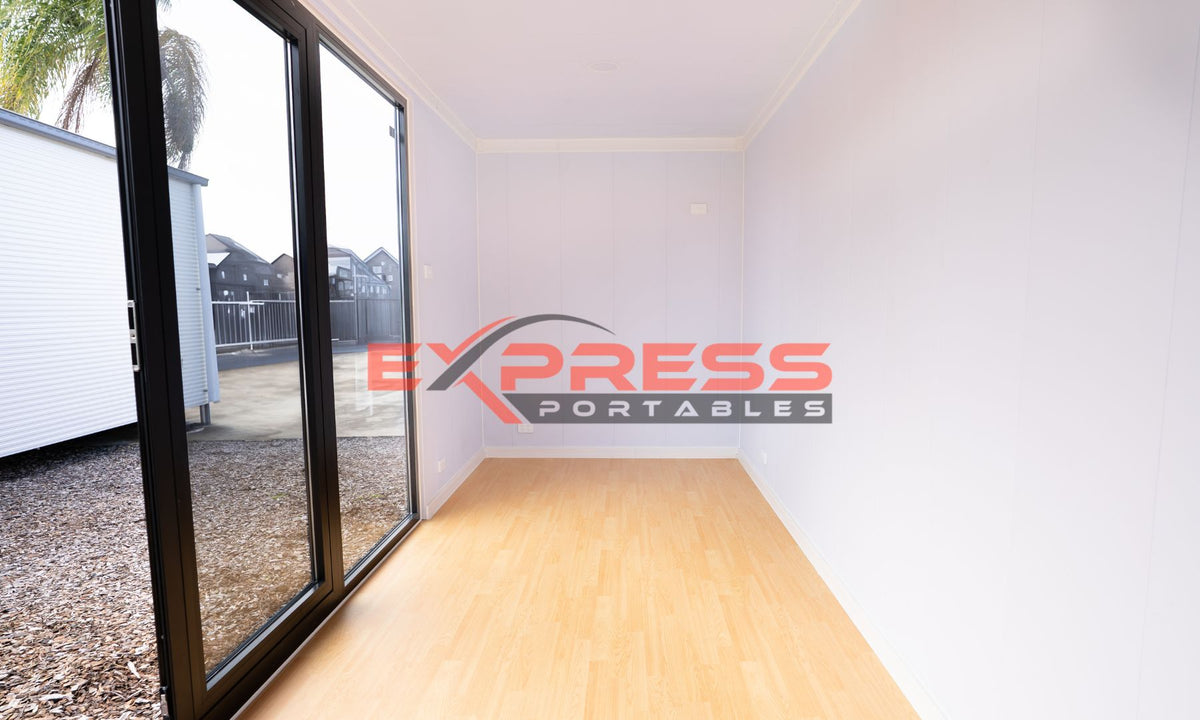

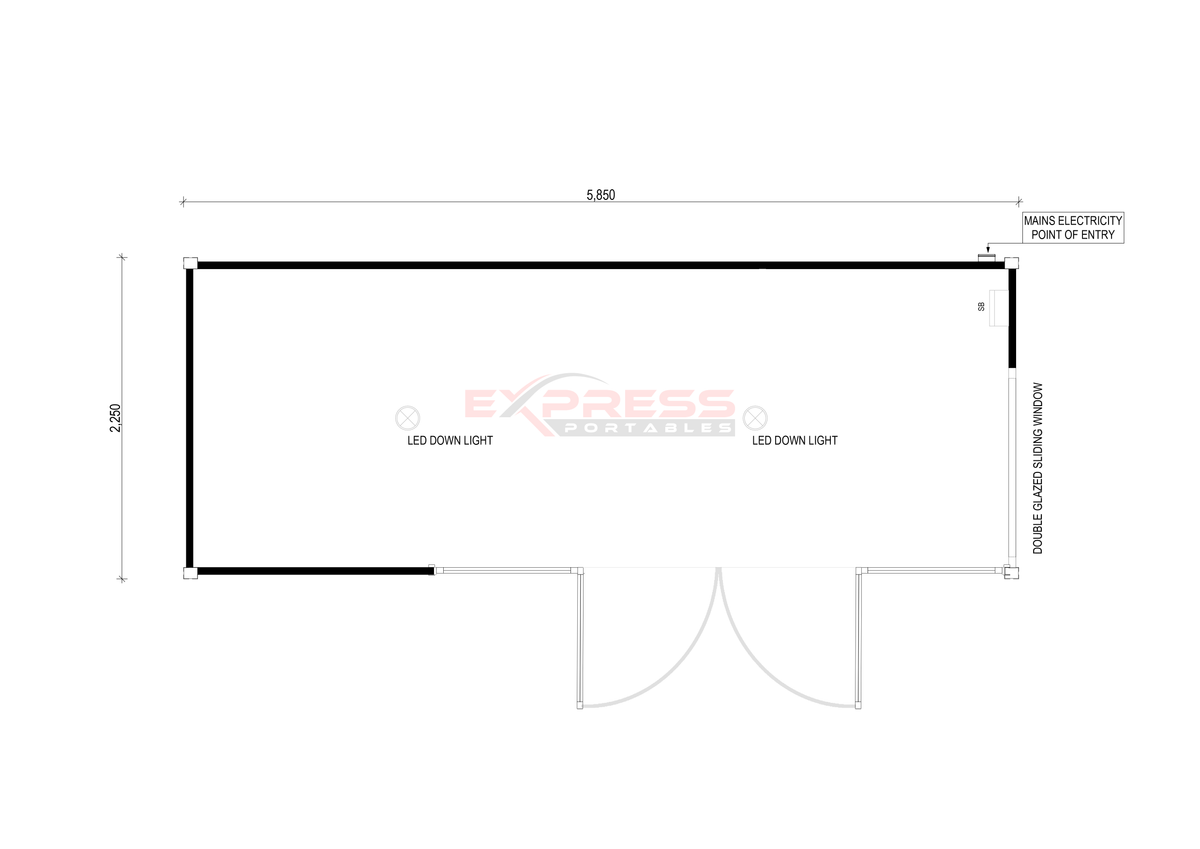

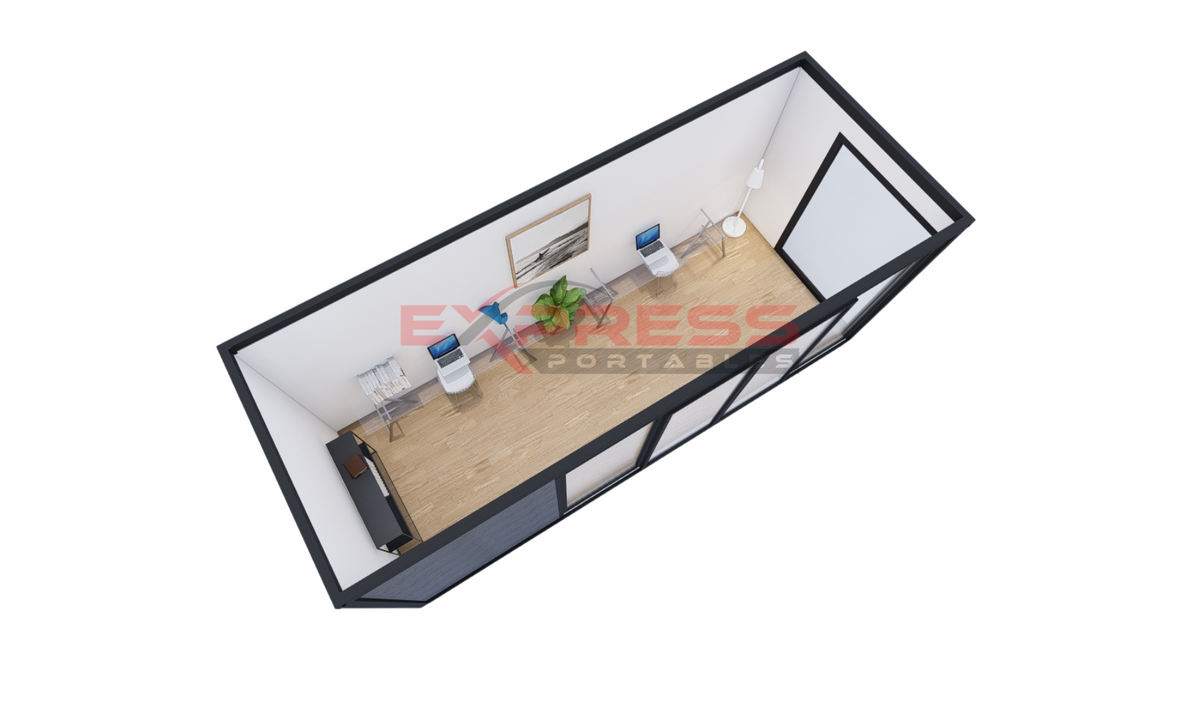

Open Floor Plan
This adaptable design offers flexible furniture arrangements and the ability to customise your space to perfectly match your lifestyle. It allows you to tailor your building to your unique needs and preferences, ensuring both functionality and personal comfort.
Non-migratory Cable
The building comes pre-wired and uses non-migratory sheathing ensuring reliable performance and longevity. The purple sheathing prevents the chemical reaction that would typically cause a standard white cable to deteriorate when in contact with various types of insulated panels. All our electrical parts are registered with the Electrical Equipment Safety Scheme (EESS)
Specifications
General Overview
Entry Door

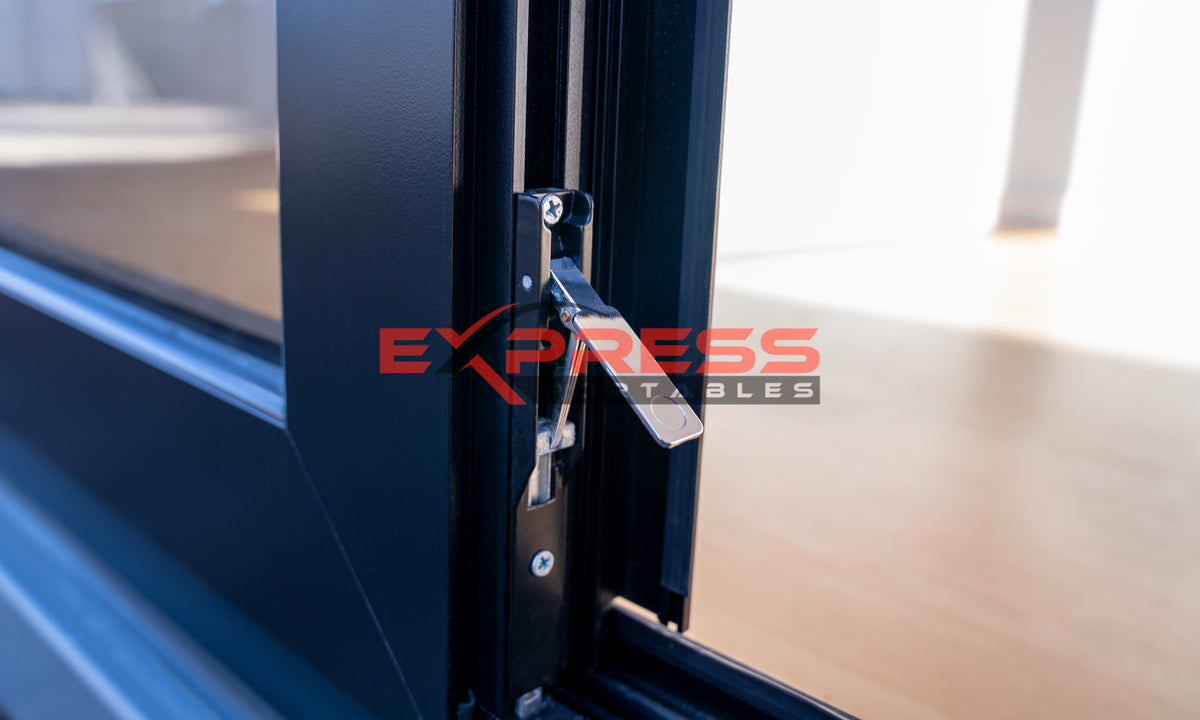

Glass entry sliding door
Windows
Double-glazed awning window
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame with steel floor joists
Roof
Glass-wool insulation, galvanised & painted steel
Wall
75mm EPS panels
Floor
Water & insect resistant magnesium concrete composite

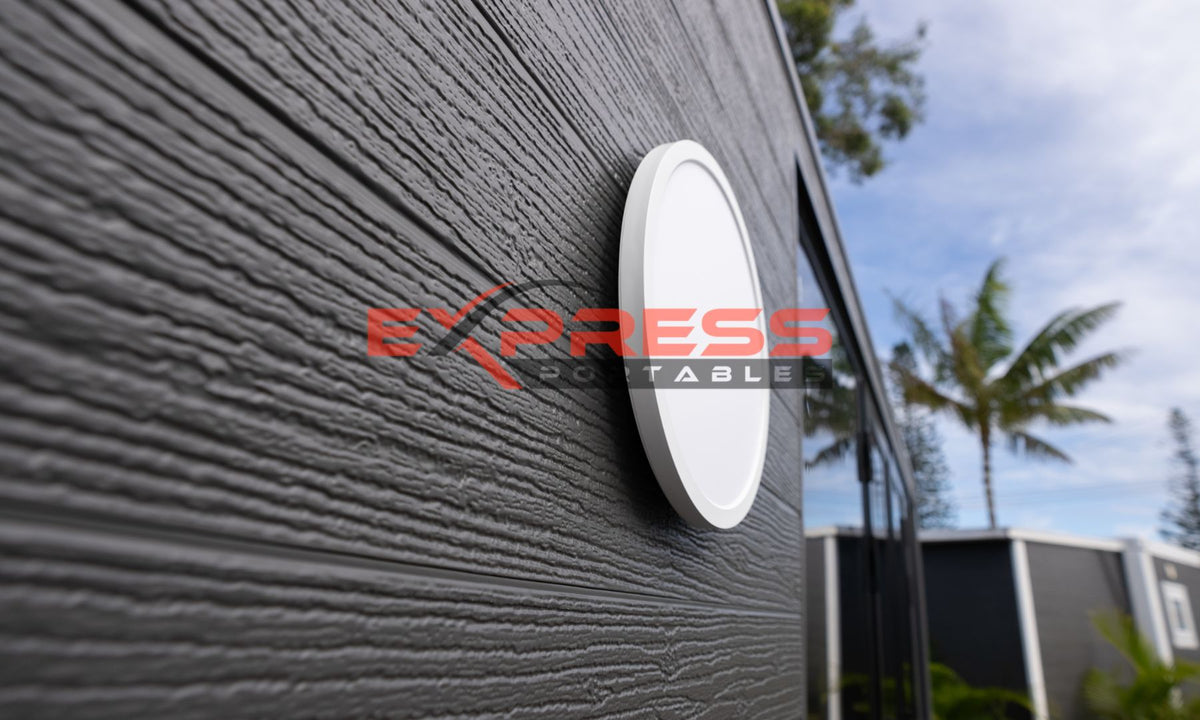

Lighting
LED oyster lights supplied
Council Compliance
Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Walls

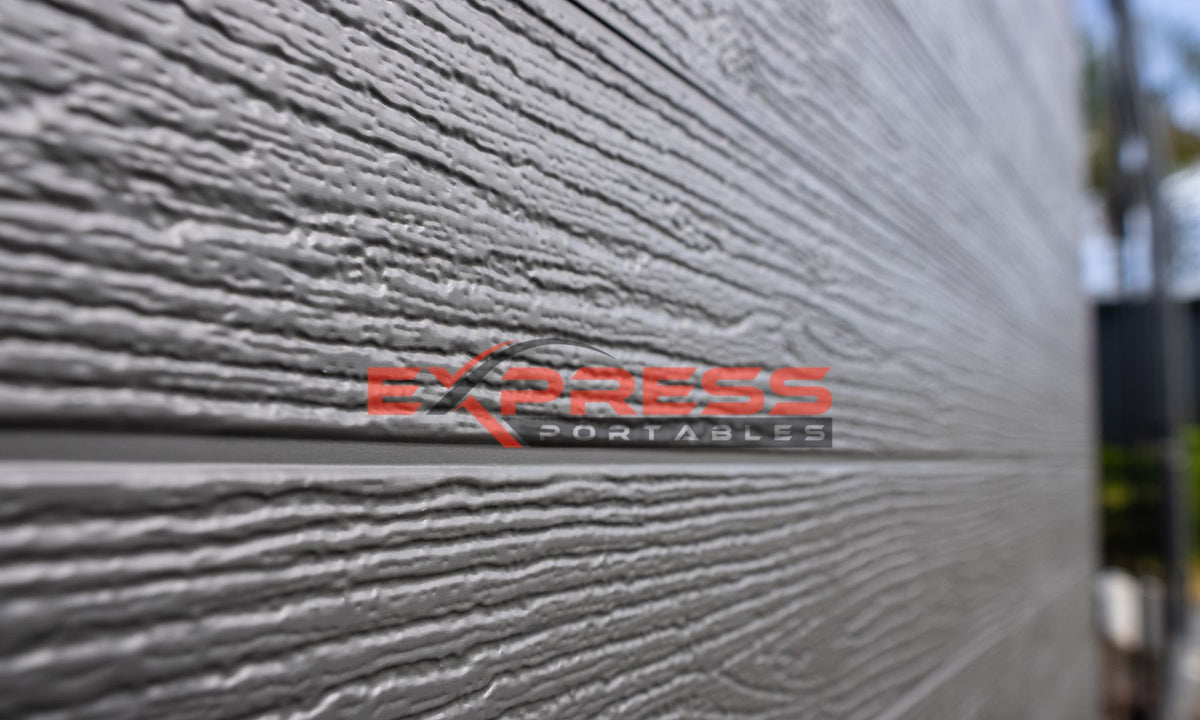

Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Wall
Windows
Frames
Aluminium frames
Type
Double-glazed awning window
Doors

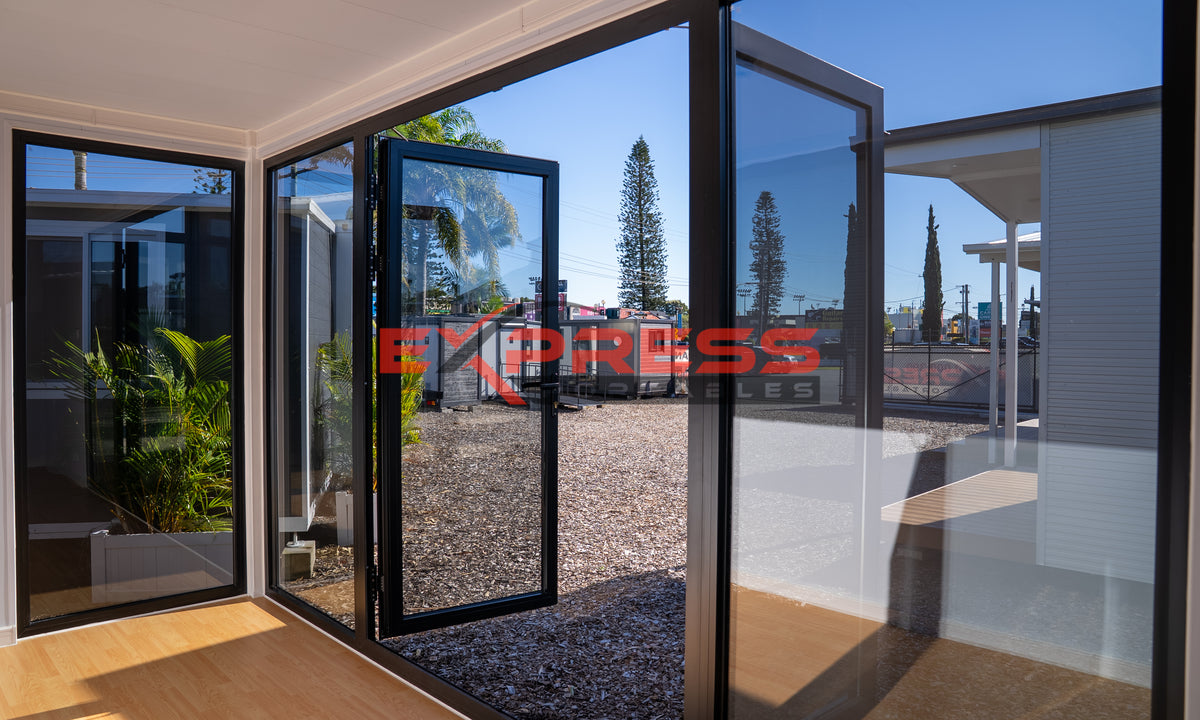

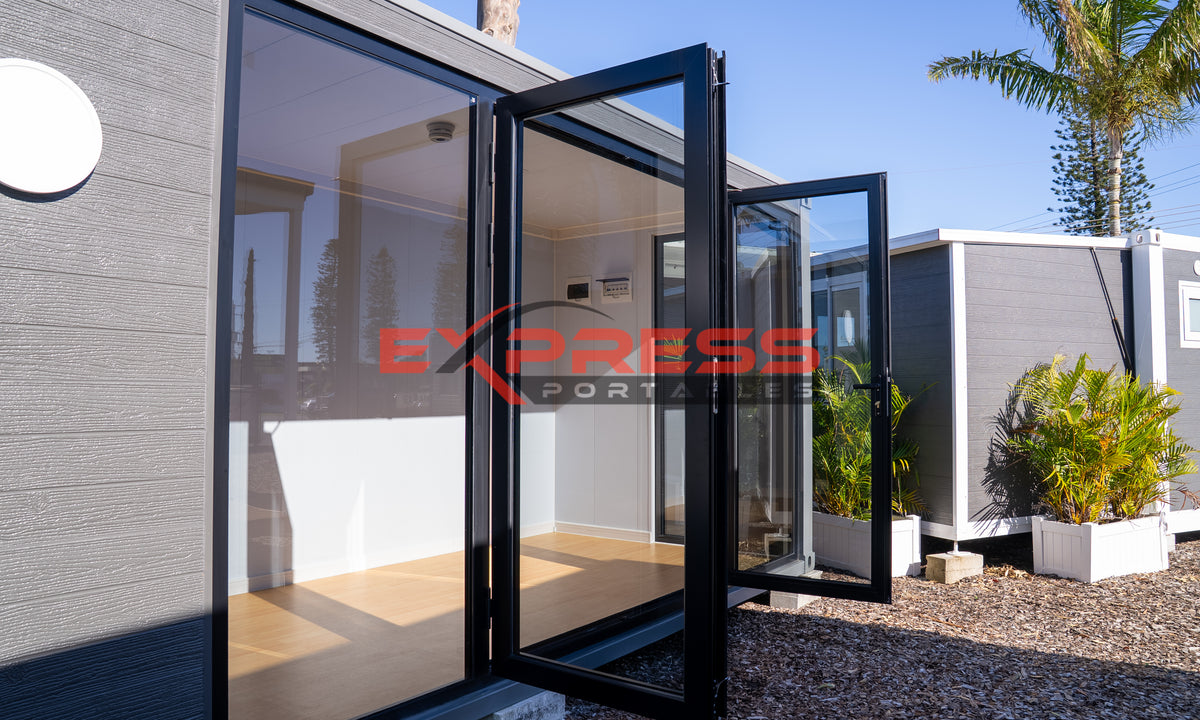

Entry
Glass entry sliding door
General Overview
Entry Door
Glass entry sliding door
Windows
Double-glazed awning window
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame with steel floor joists
Roof
Glass-wool insulation, galvanised & painted steel
Wall
75mm EPS panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Installation
Instructions
Instructions provided
DIY
The Cabin is a customer DIY installation, Express Portables will supply only
Footing Plans
Footing Plans supplied by Express Portables. Level site prepared and/or footings prepared by customer
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid/Semi-Trailer
Customer is required to organise a forklift unload or crane unload
Walls
Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Wall
Windows
Frames
Aluminium frames
Type
Double-glazed awning window
Doors
Entry
Glass entry sliding door
Roof
Interior Roof
Steel sheet roof with rockwool insulation
Exterior Panel
75mm EPS Panels
Flooring
Sub-Floor
18mm Magnesium subfloor concrete composite – water, rot and insect resistant.

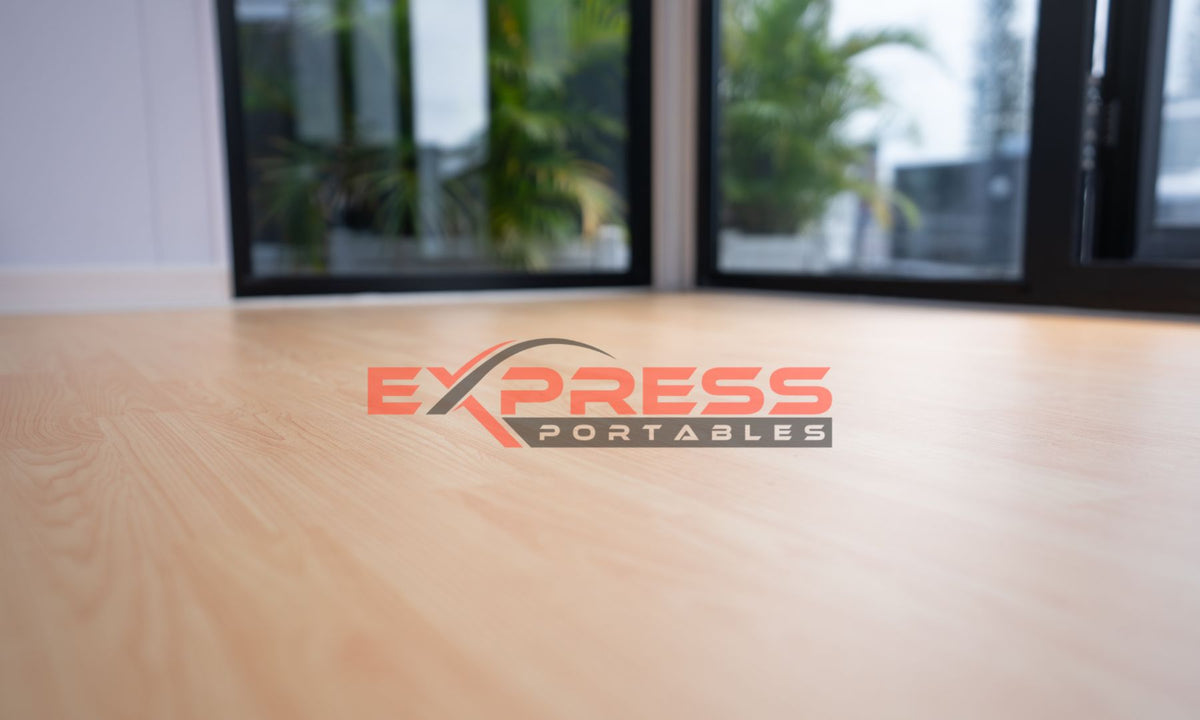

Top Layer
2mm vinyl timber pattern - Grey or Brown
Skirting
PVC cornice and skirting

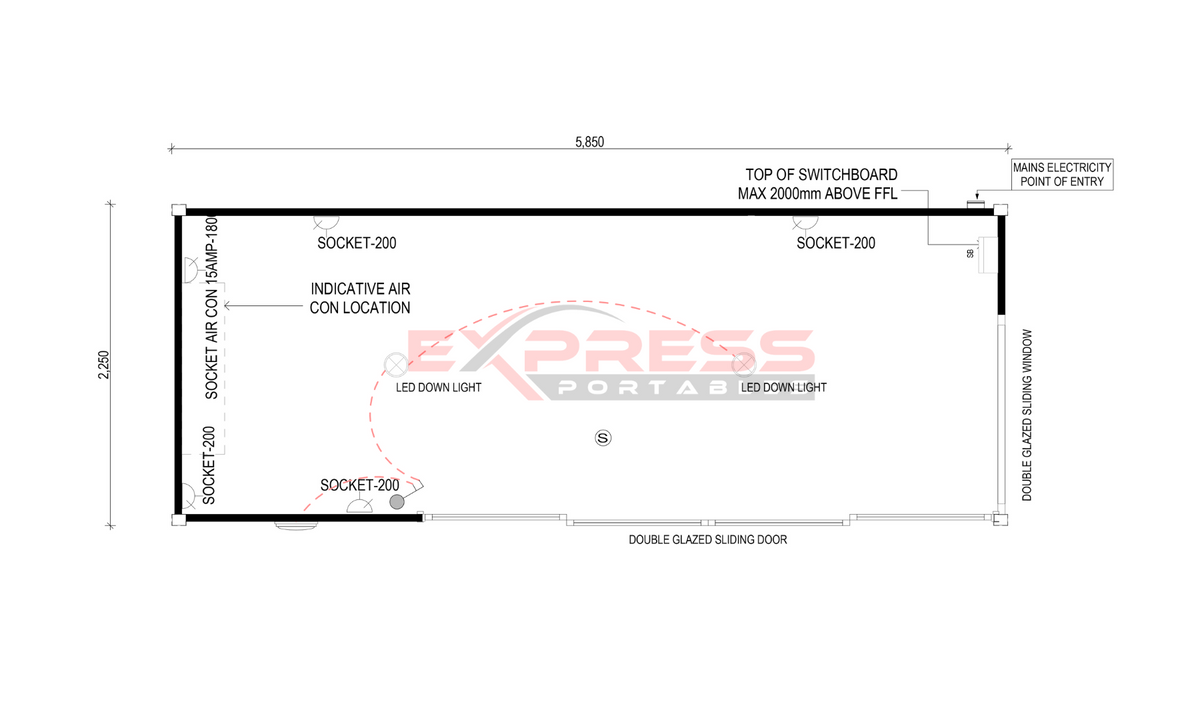

Electrical
Power
Mains electrical cable terminated on rear wall ready for connection to site
Lighting
LED downlights pre-installed and wired

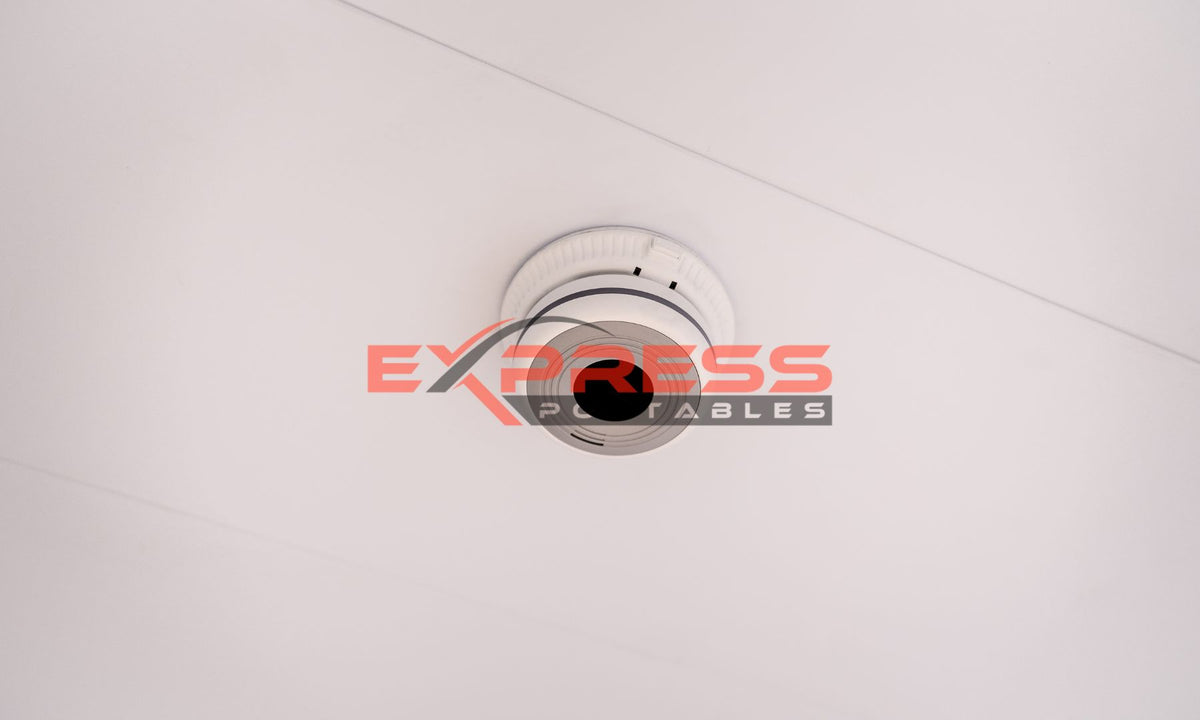

Smoke Alarm
Smoke alarm hardwired back to switchboard (customer to install)
Council Compliance
Council Approval
Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
