Express Portables offers Class 1a Expander Homes designed to meet the needs of modern living with flexibility, comfort, and compliance at their core.  Built to a certifiable standard in accordance with the National Construction Code (NCC) and all relevant provisions of the Australian Building Code (BCA), these homes meet strict national benchmarks for quality and safety.  - Important: While we provide all documentation required for certification, you will still need to engage your own licensed professionals, including; a plumber to connect water and sewer services, a electrician to connect and certify power, a building certifier to oversee approvals and issue the final occupancy certificate. Installation must be performed by a licensed builder or someone with an approved owner-builder permit. You’ll also need to arrange development approvals, site preparation, service connections, inspections, and other site-specific requirements.

Description

Express Portables’ Class 1a Expander Homes are fully self-contained, certifiable dwellings built to comply with the National Construction Code (NCC) and Australian Building Code (BCA), making them suitable for permanent residential use.

Each unit includes structural warranties, site-specific footing designs, building certification documents, and a detailed installation guide. All delivered in a packed-down format, ready for setup.

Important: While we provide all documentation required for certification, you will still need to engage your own licensed professionals, including:

- A plumber to connect water and sewer services

- An electrician to connect and certify power

- A building certifier to oversee approvals and issue the final occupancy certificate

Installation must be performed by a licensed builder or someone with an approved owner-builder permit. You’ll also need to arrange development approvals, site preparation, service connections, inspections, and other site-specific requirements.

We connect you with our trusted building certifier and structural engineer to help simplify the approval process, but your local site conditions and council requirements may vary.

Start by speaking with our sales team or visiting our Gold Coast Display Village. We’ll guide you through site suitability, certification, and next steps. From order to final occupancy.

Dimensions

External: Length: 11.8m | Width: 6.42m | Height: 3.73mm
Internal: Length: 11.8m | Width: 6.3m | Height: 2.4m

Weight

Approx | 10500kg

Ask a question

View full details

Key Features

NCC & BCA Class 1a Compliant Nationwide Delivery

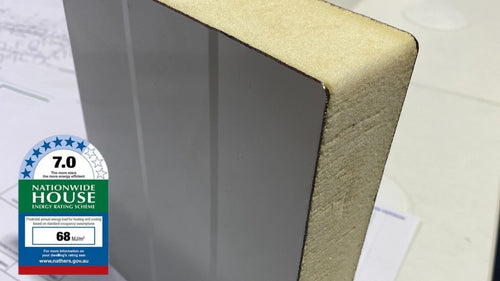

Insulation

Insulation

7 Star Energy Efficiency Rating (climate zone 2)

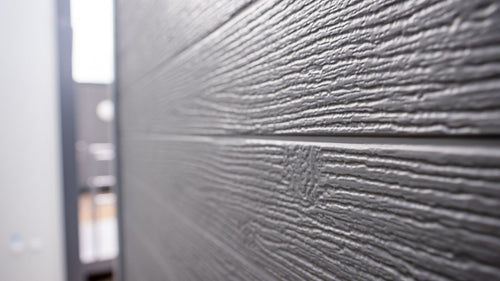

Cladding

Cladding

Timber grain effect

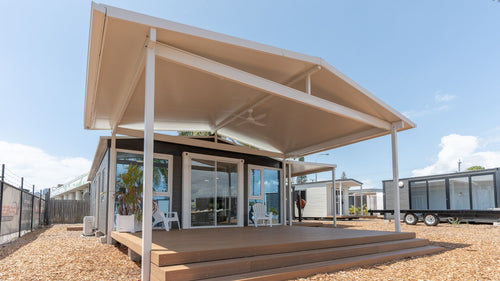

Roof

Roof

10° Pitched Roof

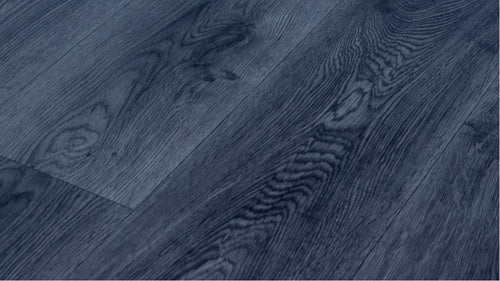

Flooring

Flooring

Timber look vinyl

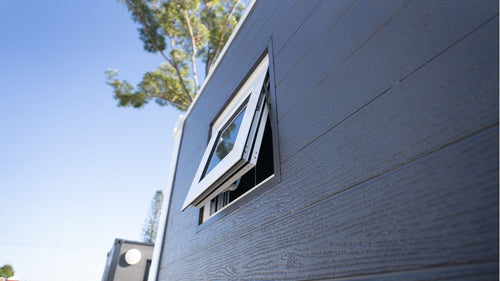

Windows and Doors

Windows and Doors

Aluminium Double Glazed

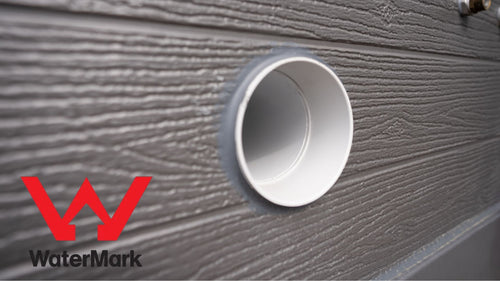

Plumbing

Plumbing

WELS & Watermark approved

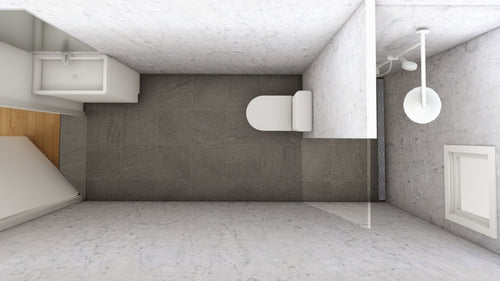

Bathroom

Bathroom

NCC Compliant Accessible Bathroom

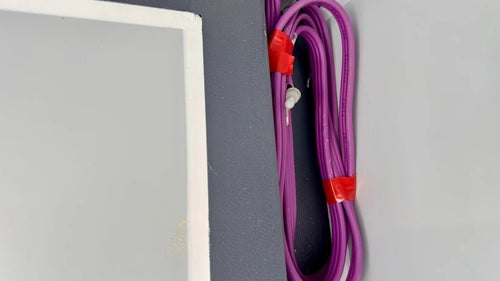

Electrical

Electrical

AS/NZS 3000

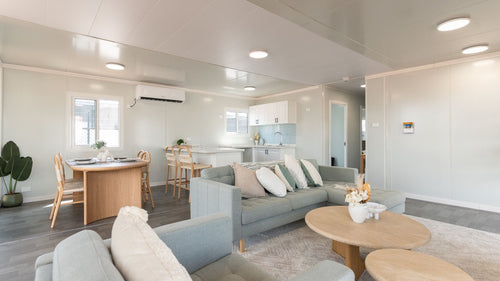

Ceiling height

Ceiling height

2400mm

Walls

Walls

75mm Polyurethane

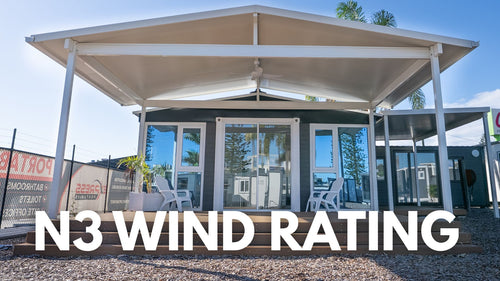

Wind rating

Wind rating

Engineered to N3

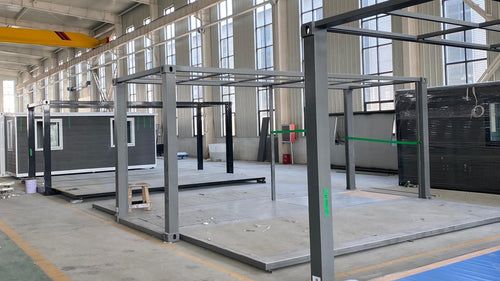

Structural

Structural

Engineered steel frame

Class 1a Expander vs Standard Expander

Feature Class 1a Expander Standard Expander
Building Code Compliance Compliant with NCC & BCA for residential use Some aspects do not meet Australian Building Code
Wind Rating Engineered to N3 wind rating No certified wind rating
Wall & Roof Panels High‑performance PU (polyurethane) panels EPS (expanded polystyrene) panels
Roof Insulation Insulated roof cavity with Anticon blanket No roof cavity insulation
Steel Frame Australian engineered galvanised steel frame with increased steel thickness Basic minimum‑spec steel
Bathroom Waterproofing AS/NZS compliant waterproof membrane system Waterproof wall lining board only
Ceiling Height 2400 mm standard Varies, typically from 2260 mm+
Energy Efficiency Compliant with Australian energy efficiency standards No energy efficiency compliance
Electrical Compliance All electrical components registered with the Electrical Equipment Safety System (EESS) All electrical components registered with the Electrical Equipment Safety System (EESS)

Polyurethane VS Polystyrene

PU Panels are suited for permanent dwellings (Class 1a) where energy efficiency, compliance, and long-term durability matter most.
EPS Panels are more cost-effective and lighter, but not as strong or thermally efficient.

PU Panels (Polyurethane) EPS Panels (Polystyrene)
Thermal Insulation ★★★★☆
High R-value - excellent for energy efficiency
★★★☆☆
Good insulation, but not as thermally efficient
Panel Strength ★★★★☆
High strength-to-weight ratio
★★★☆☆
Lightweight, but slightly less structural strength
Weight ★★★★☆
Lightweight but denser than EPS
★★★★★
Extremely lightweight
Moisture Resistance ★★★★☆
Closed-cell foam resists water and mould
★★☆☆☆
Can absorb moisture over time if not sealed
Fire Performance ★★★★☆
Available in fire-rated types that meet NCC
★★☆☆☆
Lower fire resistance unless treated
Sound Insulation ★★★★☆
Good acoustic suppression
★★☆☆☆
Limited sound-dampening ability
Durability / Longevity ★★★★☆
Long-lasting, resists degradation
★★★☆☆
Long lasting, but more prone to weathering & breakdown
Finish Quality ★★★★☆
Smoother and denser finish
★★★☆☆
Slightly softer feel, not as premium
Cost $$$
Higher upfront cost, better long-term performance
$$
Lower cost, suitable for low-budget
Applications Ideal for Class 1a dwellings, cold rooms, high-spec builds Common in sheds, low-cost cabins, or temporary use

What’s included from
Express Portables

Class 1a Expander Home

Ready for installation by a licensed builder or under an approved owner-builder permit.

Building Certification & Engineering

We connect you with our trusted Building Certifier and Structural Engineer to streamline the approval process.

Building Certifications

Paperwork and documentation to support council and/or certifier approval.

Engineered Footing Designs

Drawings tailored to your site’s soil type, wind rating, and conditions.

Transport to Your Site

If included, we coordinate the delivery of your home to your nominated site.

Warranty

Structural (6 yrs 6 mo) and non-structural (6 mo) defect protection.

Detailed Installation Guide for Builders & Trades

Step-by-step manual to guide licensed trades through setup and fit-off.

Additional costs for
The Purchaser to Consider

While Express Portables supplies the Expander Home, there are additional third-party costs to consider.
The following is a guideline only and can vary based on location, site conditions and local council requirements.

A soil test assesses soil conditions to ensure your footing design is appropriate and compliant.
A licensed certifier is required to approve your Class 1a dwelling before installation and issue a final occupancy certificate once complete.
  • Review plans and engineering documents
  • Lodge approvals with council
  • Coordinate required inspections
  • Issue the final Certificate of Occupancy
Council related fees are not included in your base package and should be factored into your budget separately. These costs are site-specific and determined by your local council or state authority, depending on the zoning, intended use of the building, and any applicable overlays or planning schemes.
Transport and crane services are a critical part of delivering and installing your Expander Home safely and efficiently. These services are typically quoted separately or itemised by Express Portables.
Customer to provide their own site plan with orientation and setbacks. We recommend a service like siteplansonline.com.au or engaging a site surveyor.
The Expander Home is delivered ready for installation; however, foundations and footings are installed by the site builder/concreter. The purchaser will need to engage an engineer to conduct soil testing and design site specific foundations. Express Portables work with a network of engineers familiar with our expanders for sign off.
The installation of your Expander Home must be carried out by a licensed builder or an individual holding a valid owner-builder permit, in accordance with local building regulations. Installation involves:
  • Positioning the home on engineered foundations or footings
  • Connecting services such as power, water, sewer/septic, and stormwater
  • Completing structural fix-offs, including expansion and sealing
  • Carrying out any on-site works like decks, stairs, or ramps if required
  • Coordinating inspections as part of the final certification process
  • This ensures the dwelling is installed safely, in full compliance with Class 1a requirements under the National Construction Code (NCC) and qualifies for final occupancy approval.

Certification Checklist

Express Portables Class 1a Expanders are designed and built to meet the standards as outlined in the National Construction Code (NCC). Our Class 1a Expanders are fully certifiable and adhere to the rigorous guidelines set by the Australian Building Code (BCA).
The Expander building must be installed by a licenced Builder or Owner Builder permit.

  • Form 15 – Structural frame design compliance
  • Form 12 – Structural frame inspection by Australian Engineer
  • Form 43 – Windows and sliding doors
  • Form 43 – Internal Waterproofing
  • Form 12 – Survey Set Out
  • Form 12 - Structural footing inspection
  • Form 8 – Plumbing - Onsite sewage work declaration
  • Form 43 – Plumbing and Drainage services
  • Form 19 – Plumbing Council Final Inspection
  • Form 43 – Electrician - Smoke alarms and Energy Efficient lighting

Process

Step 1: Initial Enquiry or Display Village Visit

Start by contacting the Express Portables sales team for a no-obligation chat about your project. We'll walk you through the options, answer any questions, and explain what's involved with owning a Class 1a Expander Home.

You can also book a private tour at our Gold Coast Display Village to view our homes in person.

Whether you’re still planning or ready to move ahead, this first step is all about giving you clarity, confidence, and expert advice from the start.

Step 2: Site Suitability & Pre-Approval Check

Once you’re ready to proceed, we’ll connect you with our trusted Building Certifier and Structural Engineer for a preliminary assessment. Alternatively you can provide your own preliminary assessment from a town planner or building certifier to assess eligibility.

You will need to provide your own site plan to conduct a preliminary assessment. This preliminary assessment helps identify any potential planning restrictions, zoning issues, or site challenges early on — such as setbacks, overlays, wind speed, and climate zone.

This step ensures you have confidence that your project is likely to meet council and building code requirements before moving further into the approvals process.

Step 3: Contract Signing & Initial Deposit

Once your site has been deemed suitable and you’re ready to move forward, we’ll prepare your Build Contract.

This contract will outline:

  • The scope of works and what's included in your Expander Home package
  • Customisations (if any) and your selected finishes
  • Estimated timeframes for manufacturing, delivery, and installation
  • Payment terms, including deposit and progress payments

To secure your place in our production schedule, a non-refundable initial deposit is required upon signing. This deposit confirms your commitment and allows us to begin the next steps — including final plans, engineering, and scheduling your batch build.

🛈 Note: We’ll ensure you have ample time to review and understand all contract details, and we’re here to answer any questions before you sign.

Step 4: Factory Construction

Once your contract is finalised, your home enters our scheduled production process. Built in controlled factory conditions by our trusted manufacturing partners, this approach ensures consistent quality, weather protection, and reliable delivery timelines.

The Express Portables design team oversees all aspects of compliance, workmanship, and detail throughout the build. Construction typically takes 9–11 weeks to complete.

Step 5: Shipping, Transport & Delivery

Once factory construction is complete, your home is carefully prepared for shipment. International shipping from our manufacturing facility typically takes 4–5 weeks.

Transport to your site is scheduled in coordination with you or your site builder. Your builder is responsible for unloading the building onto the prepared footings and beginning the installation process.

After installation, the customer is required to arrange the final Occupancy Certificate, with guidance and support provided by our Building Certifier to ensure a smooth approval process.

Request Quote

Frequently Asked Questions

Express Portables Class 1a Expander Homes are fully self-contained, certifiable dwellings built to comply with the National Construction Code (NCC) and Australian Building Code (BCA), designed for permanent residential use.

Yes, the Class 1a Expander Homes meet NCC and BCA standards and come with the necessary certifications for structural, insulation, plumbing, and electrical compliance.

Installation must be carried out by a licensed builder or someone holding an approved owner-builder permit to ensure compliance and safety.

No. Our Expander Homes are not certified for sites that require a Bushfire Attack Level (BAL) rating. If your property is located in a bushfire-prone area, additional assessment and modifications would be required, which are not currently offered by Express Portables.

We provide the Class 1a Expander Home (packed down), building certifications, site-specific footing designs, delivery (if quoted), a detailed installation guide, and structural warranties.

Costs like development approvals, site preparations, crane hire, appliances, furniture, decks, patios, gutters, and onsite installation services and insurances are not included.

Factory construction typically takes 9-11 weeks, followed by 4-5 weeks for international shipping to Australia.

You need to organise soil testing, footings, site works, and connection to utilities, usually via your site builder or other local contractors.

You will require development approvals and certification from a building certifier before installation, including a final occupancy certificate.

Our homes use 60mm polyurethane panels offering high thermal insulation and energy efficiency, superior to typical polystyrene panels.

Structural defects are covered for 6 years and 6 months, while non-structural defects have a 6-month warranty.

Yes, we offer options like decks, patios, air conditioners, and hot water units, which can be added separately to your Quote.

Yes, all windows and doors feature aluminium frames with double glazing to improve thermal and acoustic performance.

Your licensed builder will unload the home onto the engineered footings, install and assemble the Expander unit, connect all necessary services (power, water, sewer), complete structural fit-offs and coordinate required inspections to obtain final certification.

Yes, we arrange delivery across Australia and can coordinate transport as part of your package.

Start by contacting our sales team for an initial consultation or visit our Gold Coast Display Village. We will guide you through site suitability, approvals, contracts and the process.

No. The buildings do not have a snow load rating.
