Specifications
General Overview
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS panels
Floor
Sub-floor - Magnesium concrete composite board – water, rot and insect resistant
Lighting
LED oyster lights supplied
Council Compliance
The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA)
External Walls
With Cladding
60mm EPS panel walls & 15mm cladding
No Cladding
75mm EPS panel walls
Windows
Frames

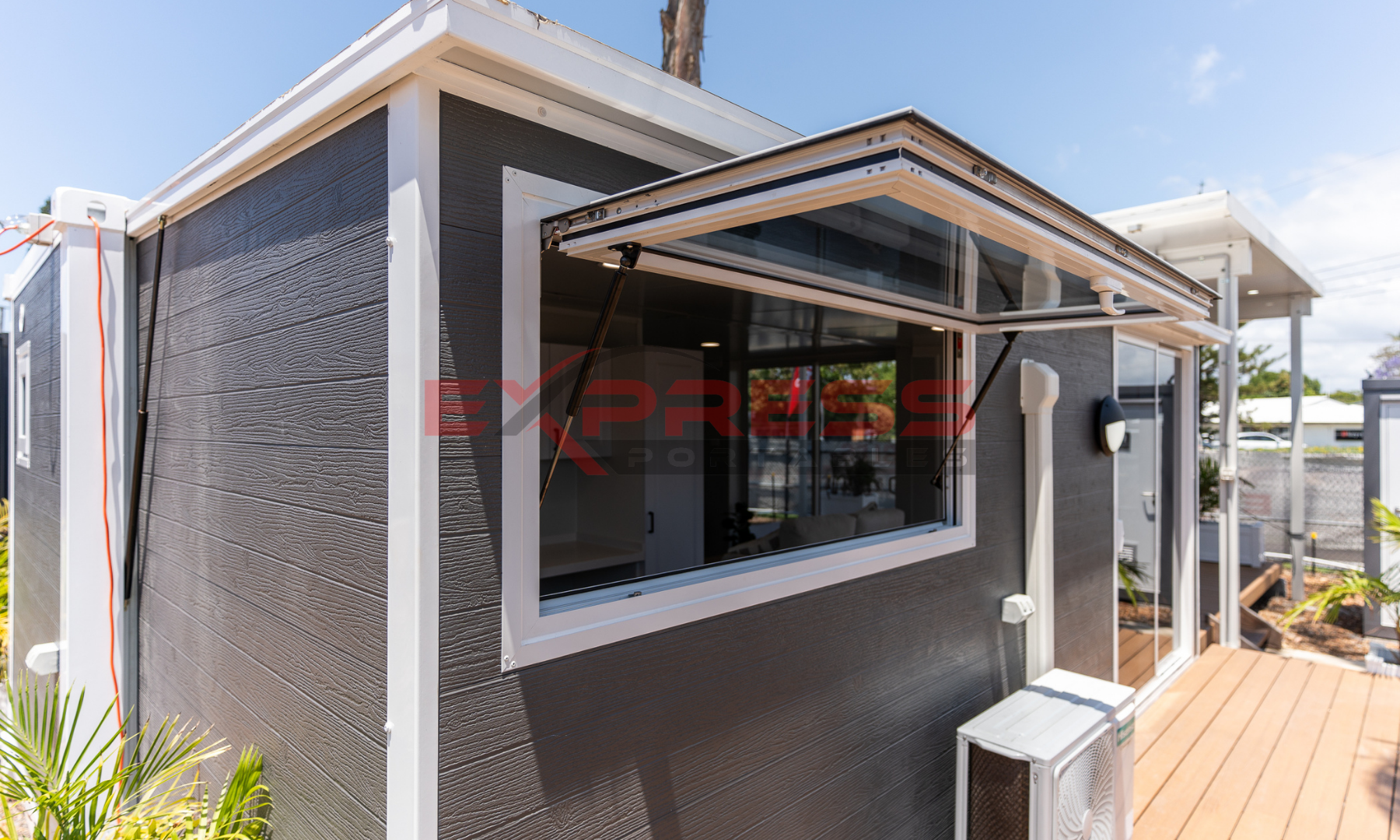

Aluminium framed windows
Type

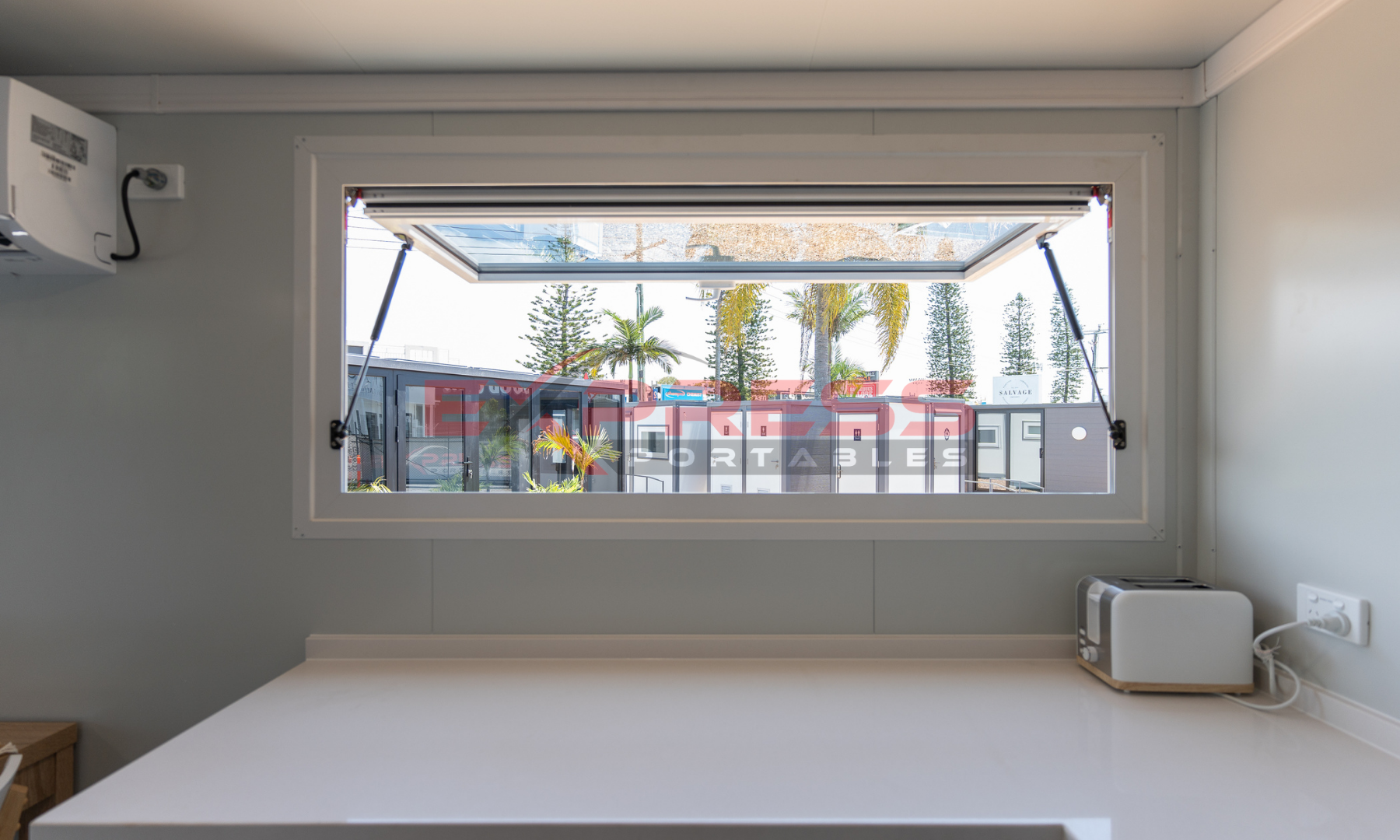

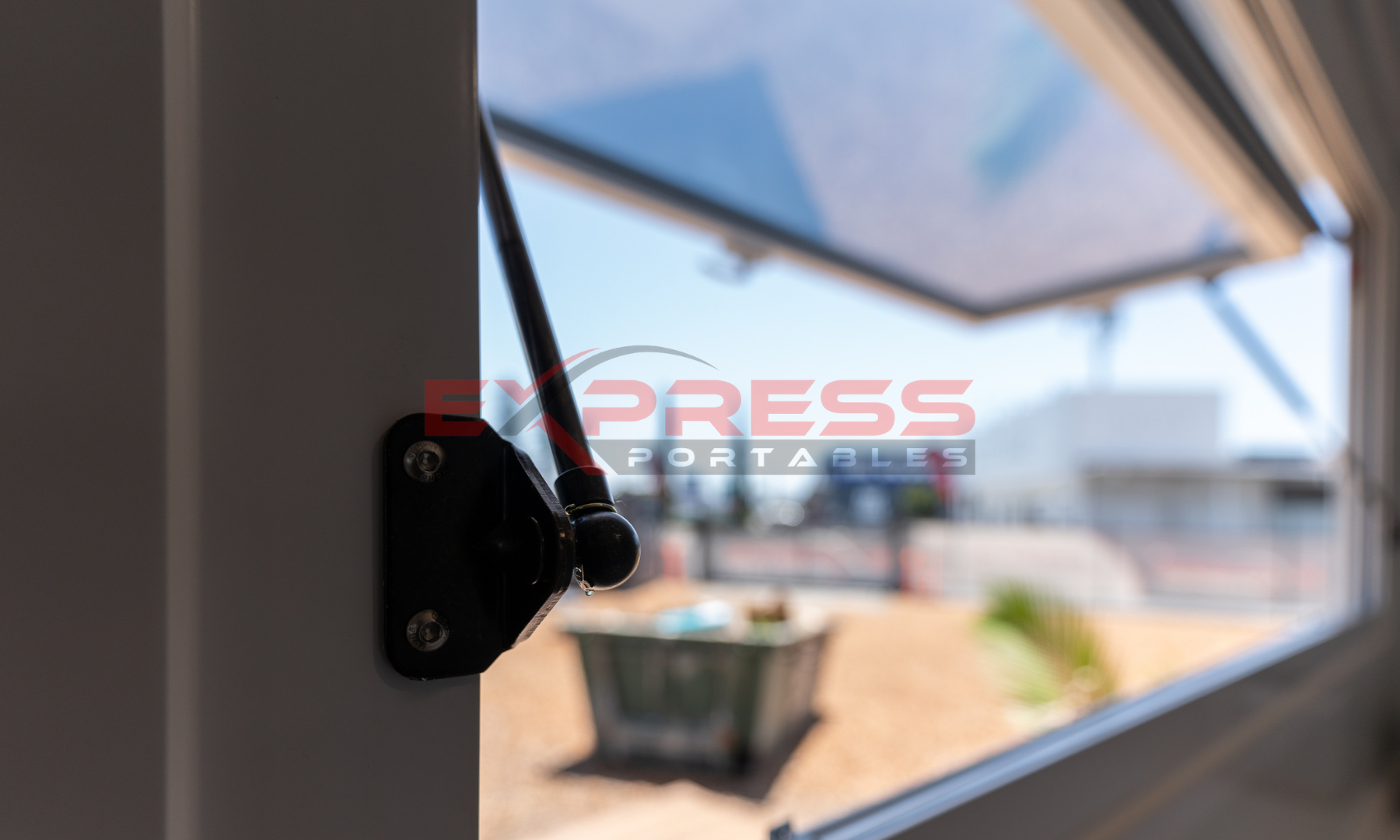

Double-glazed awning windows
Flyscreens
All windows come with Flyscreens
Doors
Entry

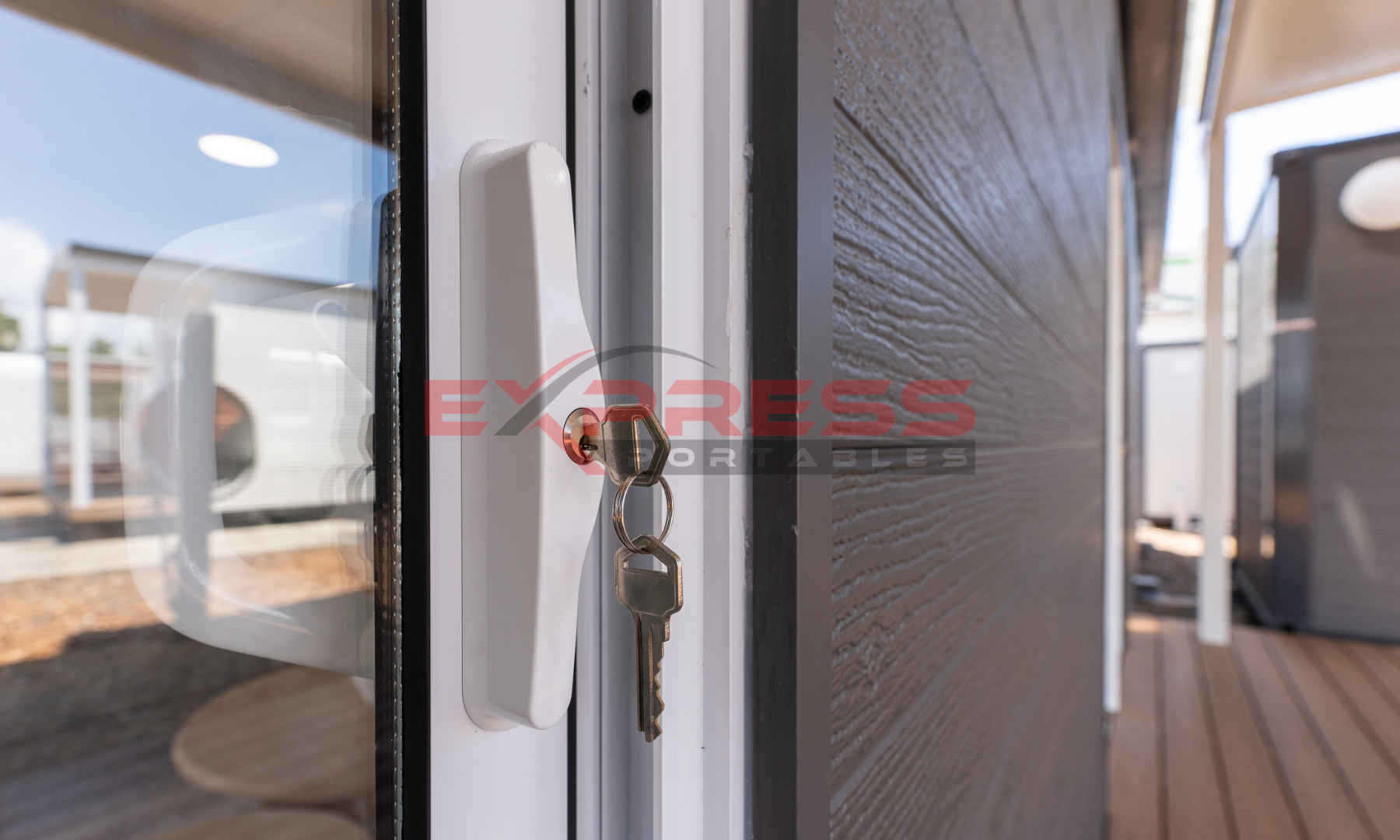

Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
General Overview
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS panels
Floor
Sub-floor - Magnesium concrete composite board – water, rot and insect resistant
Lighting
LED oyster lights supplied
Council Compliance
The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA)
Frame
Sub-floor Steel Chassis
Rectangular Hollow Section (RHS)
Steel Post
Square Hollow Section (SHS)
Steel Floor Bearer
Rectangular Hollow Section (RHS)
Steel Floor Joist
Rectangular Hollow Section (RHS)
Casting
Corner castings on each corner
Coating
Epoxy coated and painted in gloss

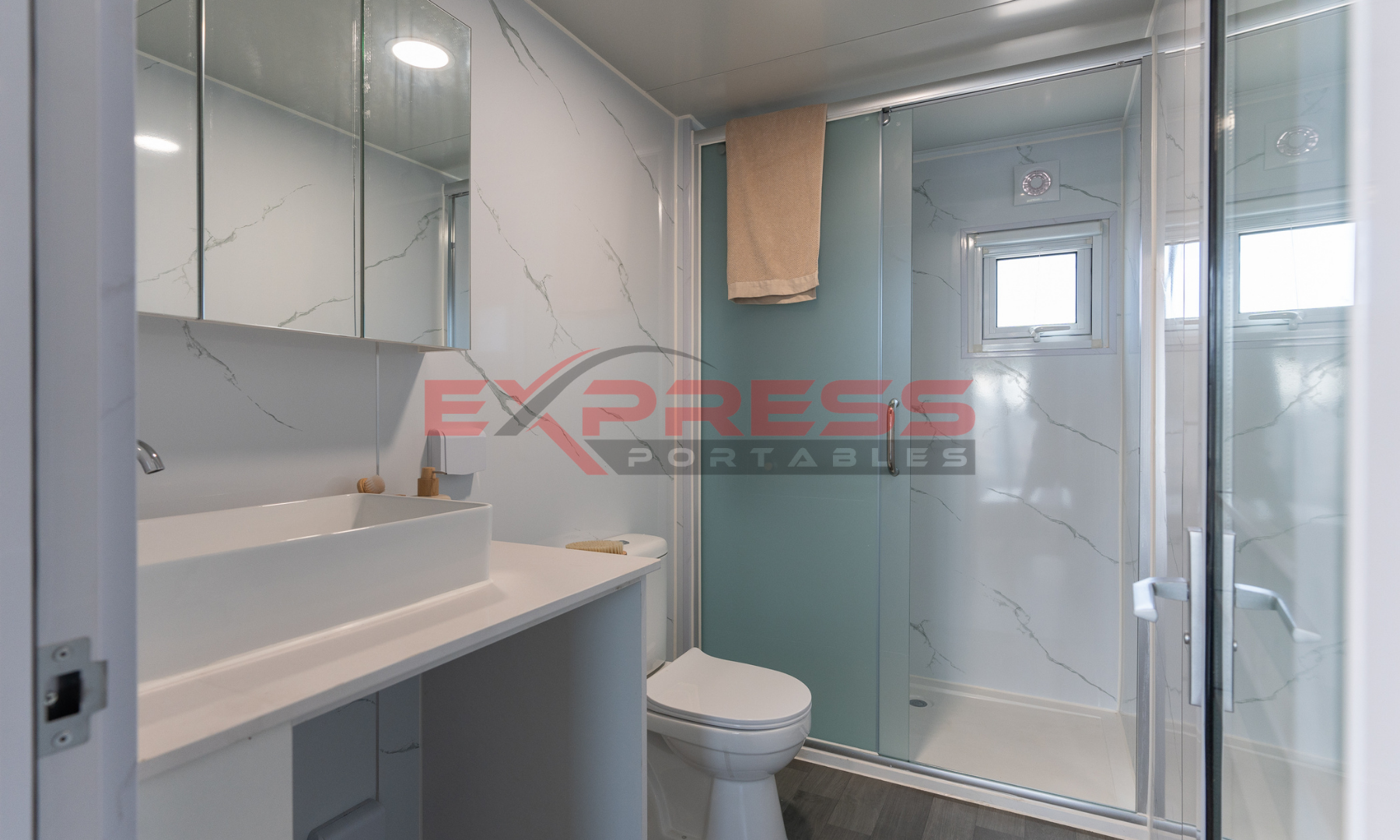

Bathroom
Flooring
Grey floor tiles
Shower
Full room width shower on acrylic shower base with a rain maker shower head
Shower Door
Toughened glass sliding door
Toilet
S-trap toilet with soft closing lid

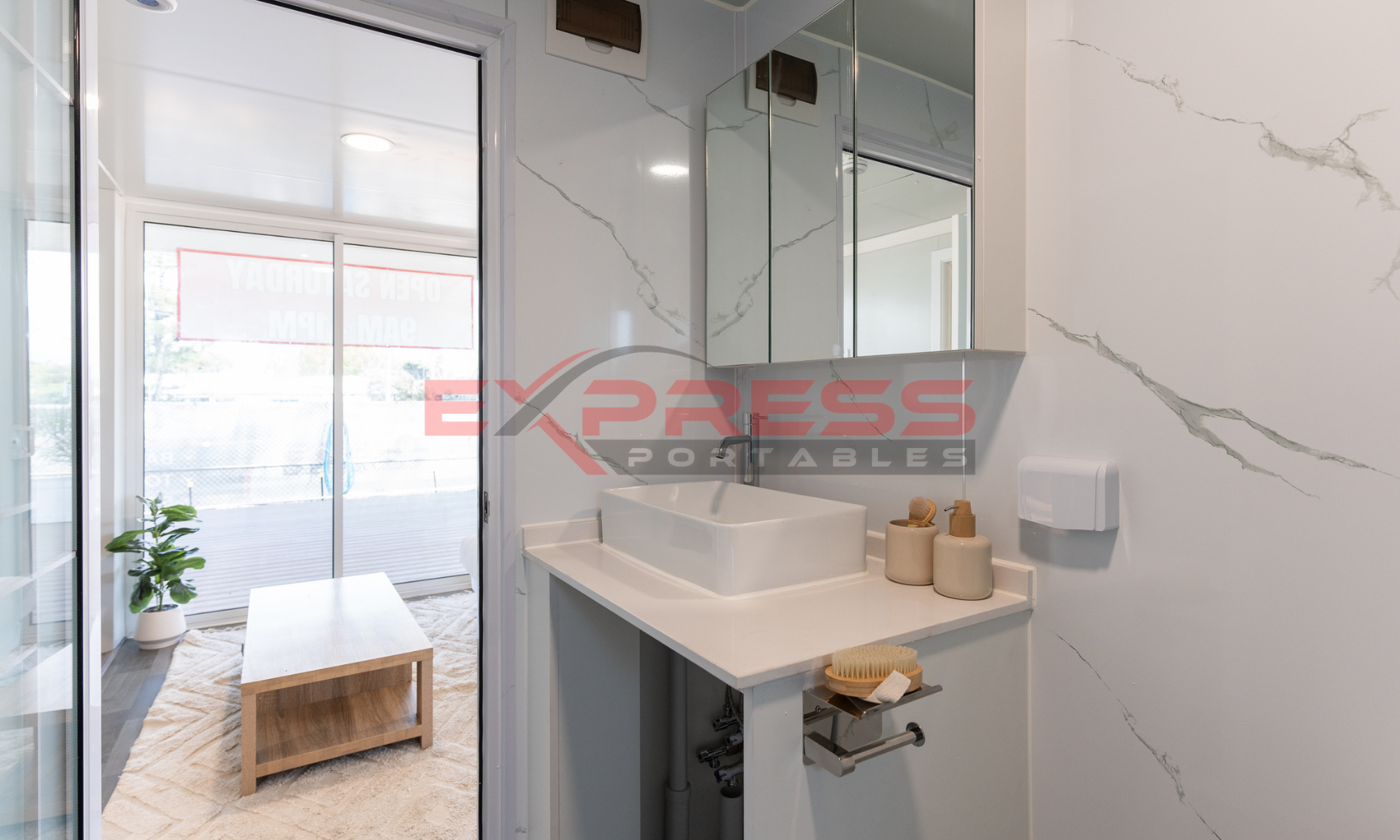

Vanity
Vanity with porcelain sink, chrome flick mixers
Wall
Marble look wall PVC wall lining
Installation
Instructions
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations
Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Interior Walls
50mm EPS panels with an off white finish
External Walls
With Cladding
60mm EPS panel walls & 15mm cladding
No Cladding
75mm EPS panel walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed awning windows
Flyscreens
All windows come with Flyscreens

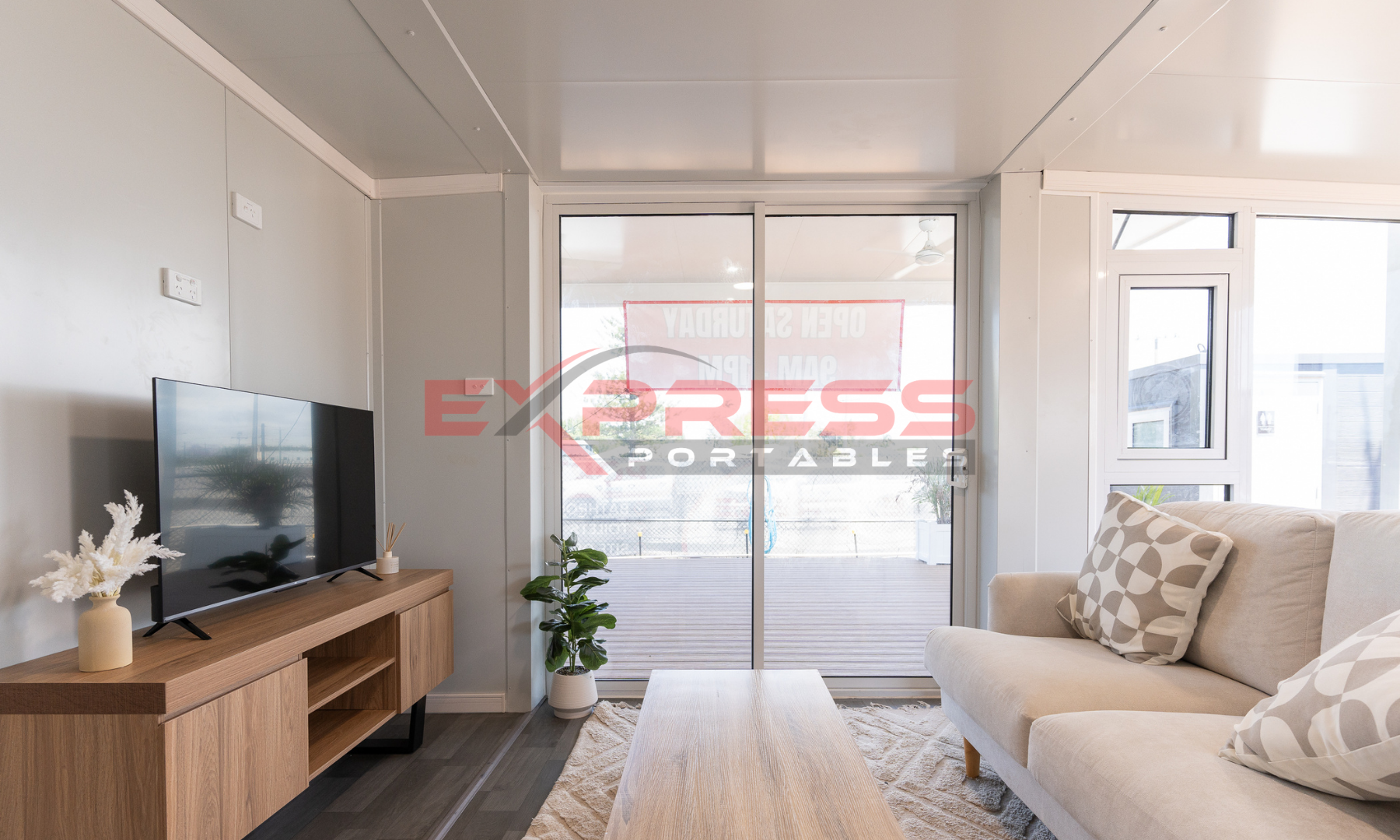

Doors

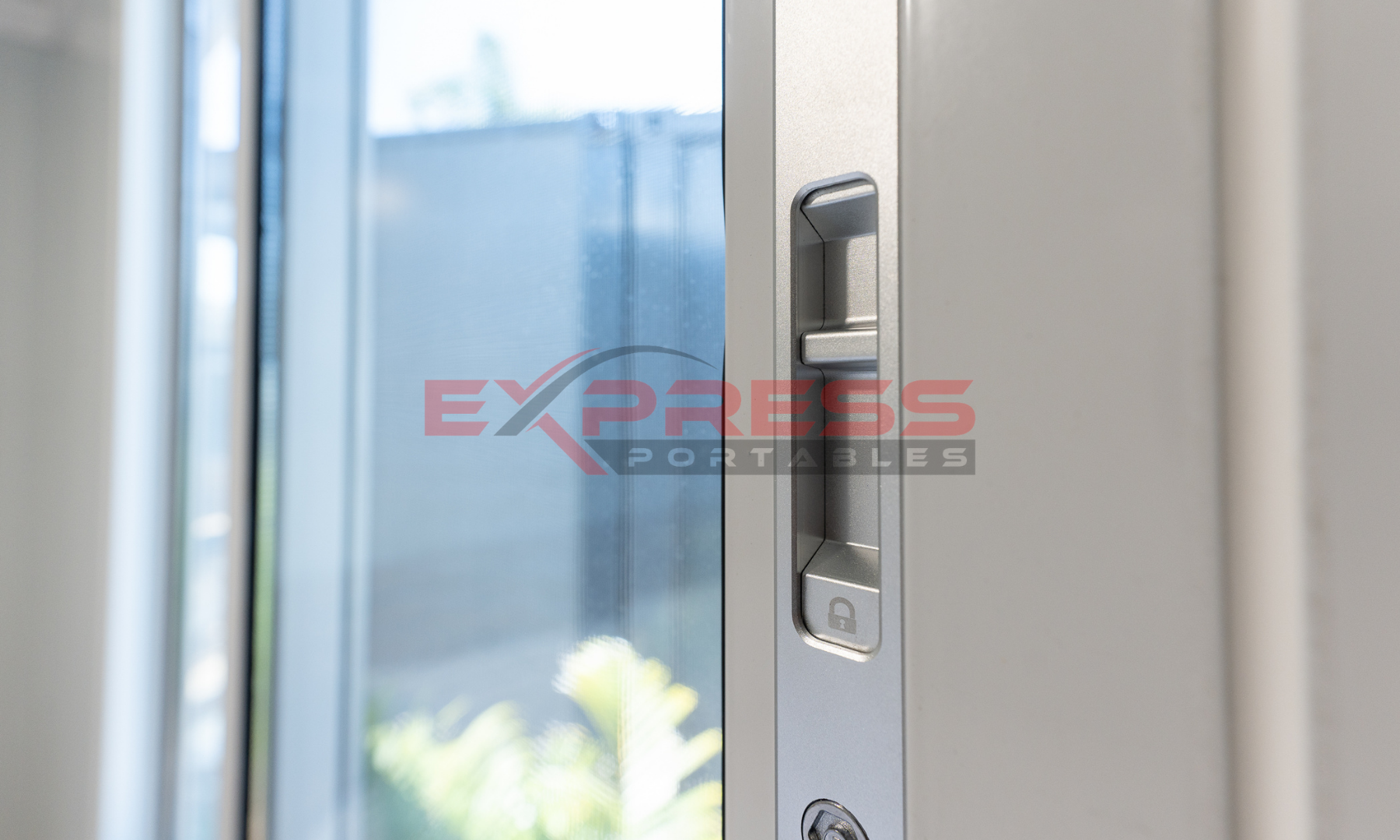

Entry
Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
Roof
Steel Plate
3mm steel plate over the main body
Exterior Panels
75mm EPS panels on outside folding roof panels
Flooring
Sub-floor
Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer
2mm vinyl timber pattern
Skirting
PVC cornice and skirting
Floor Trims
Powdercoated internal corner trims

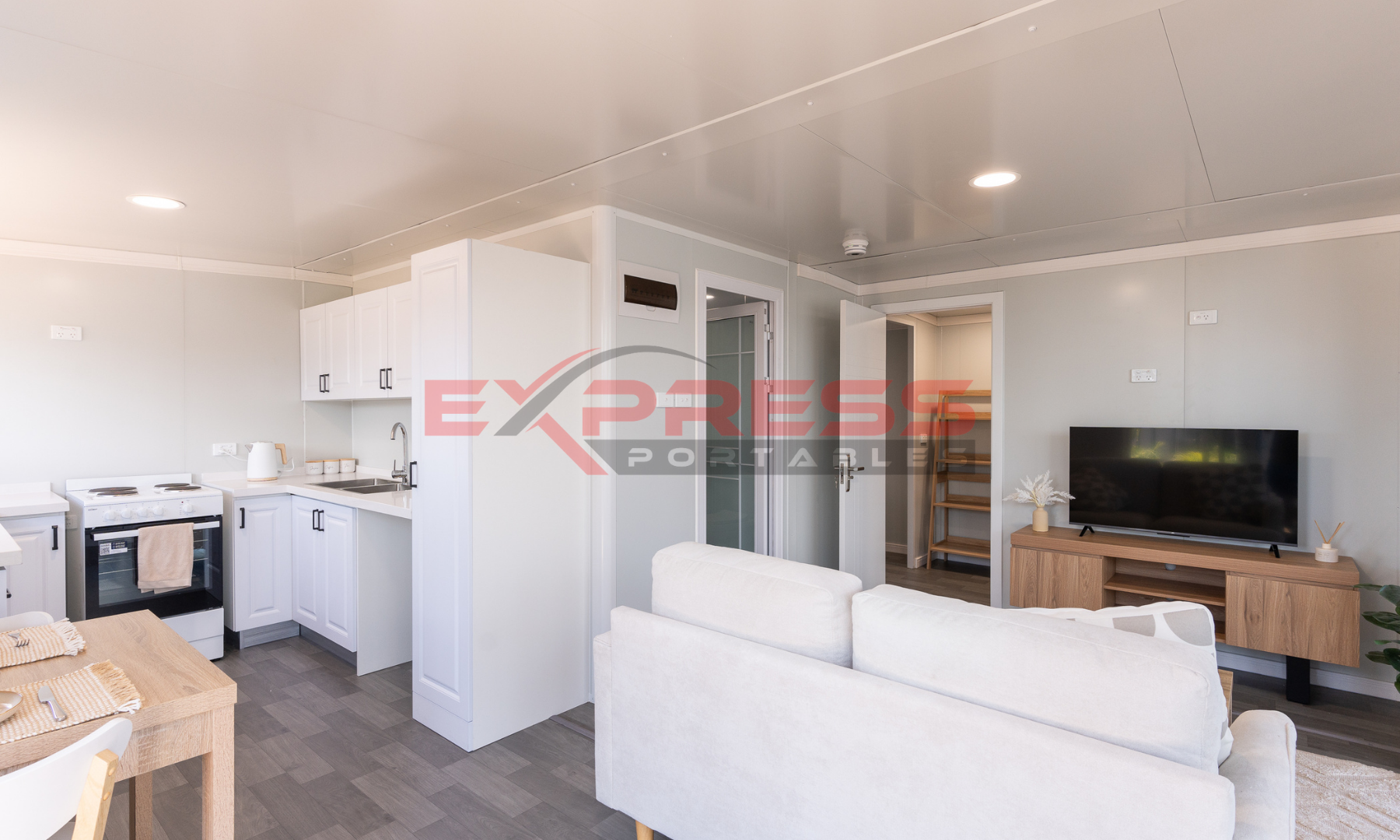

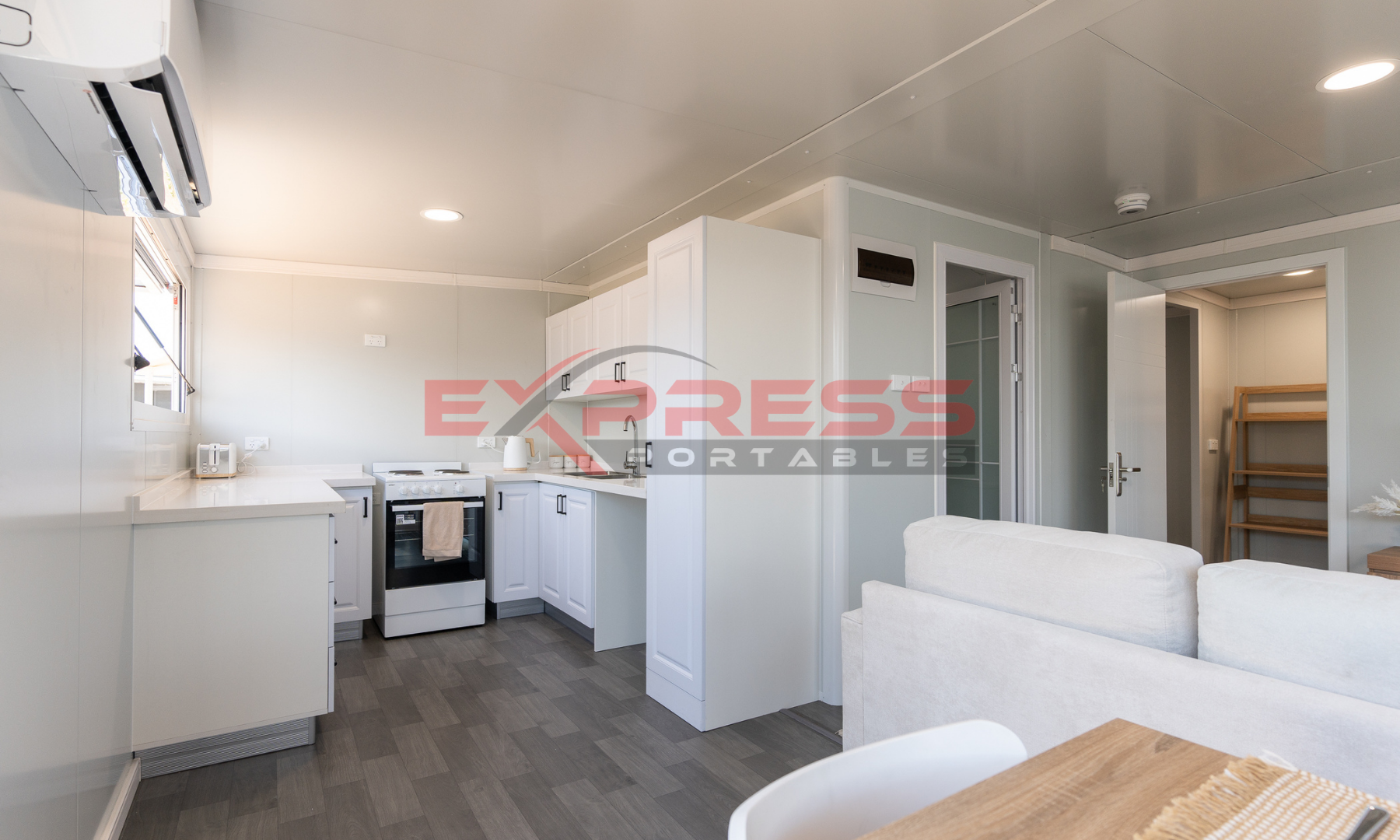

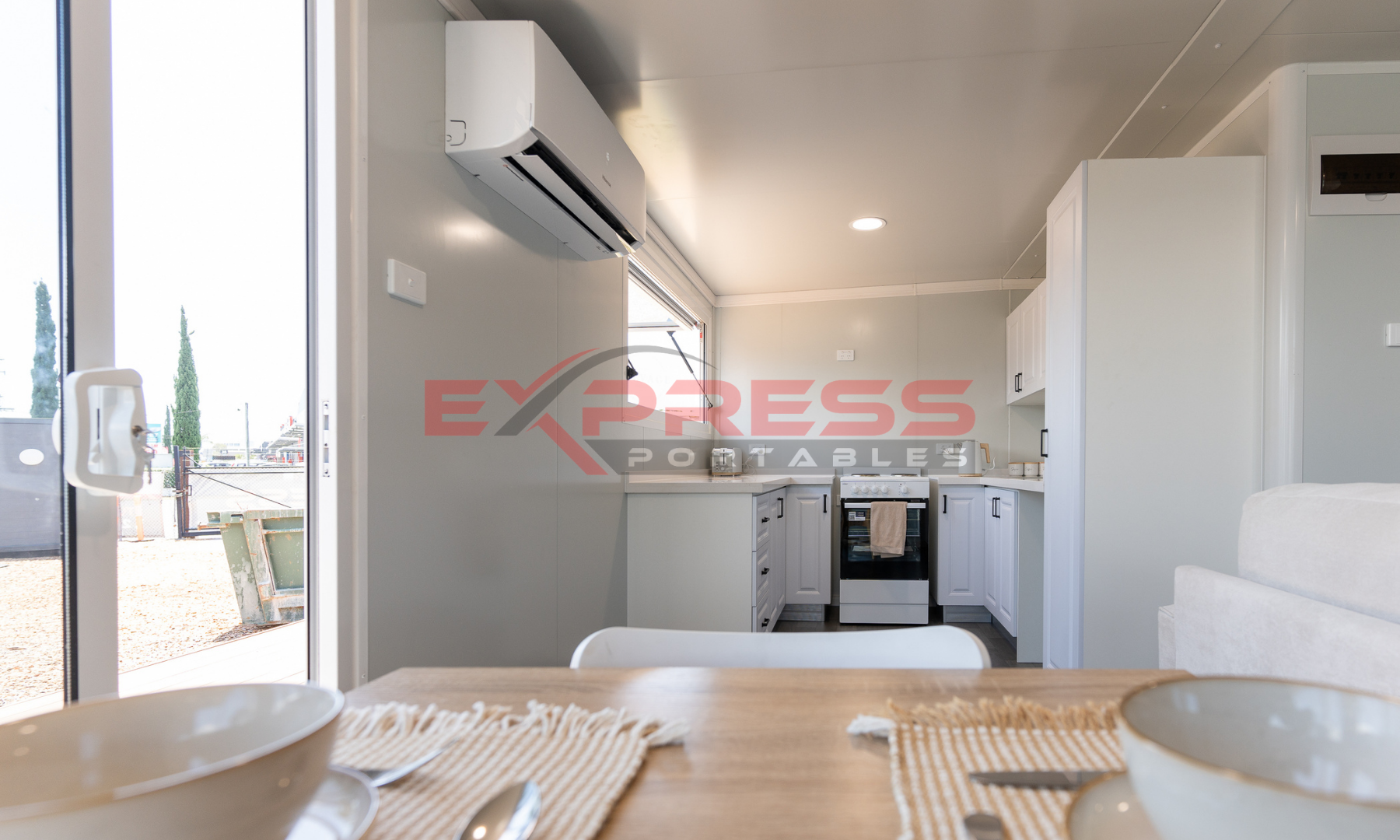

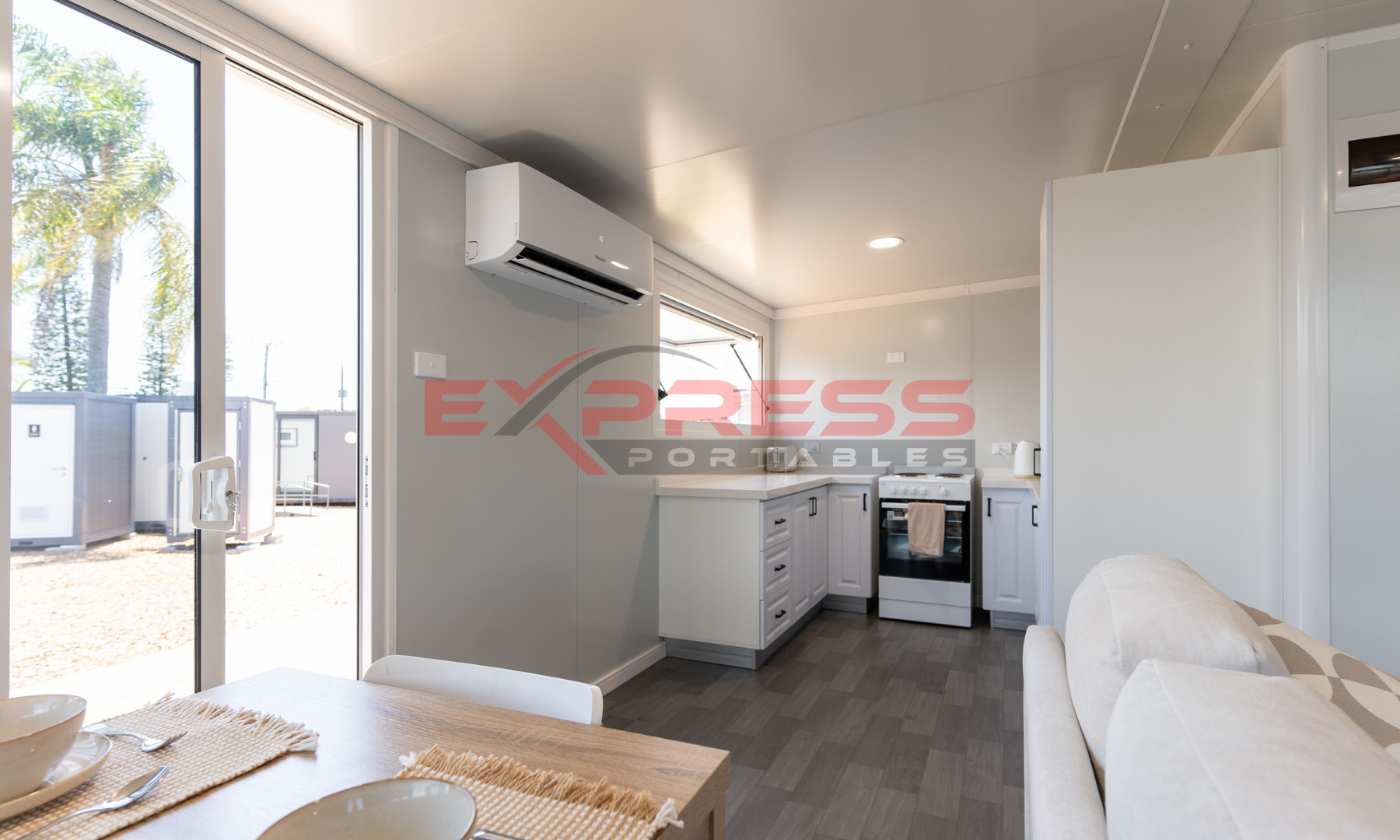

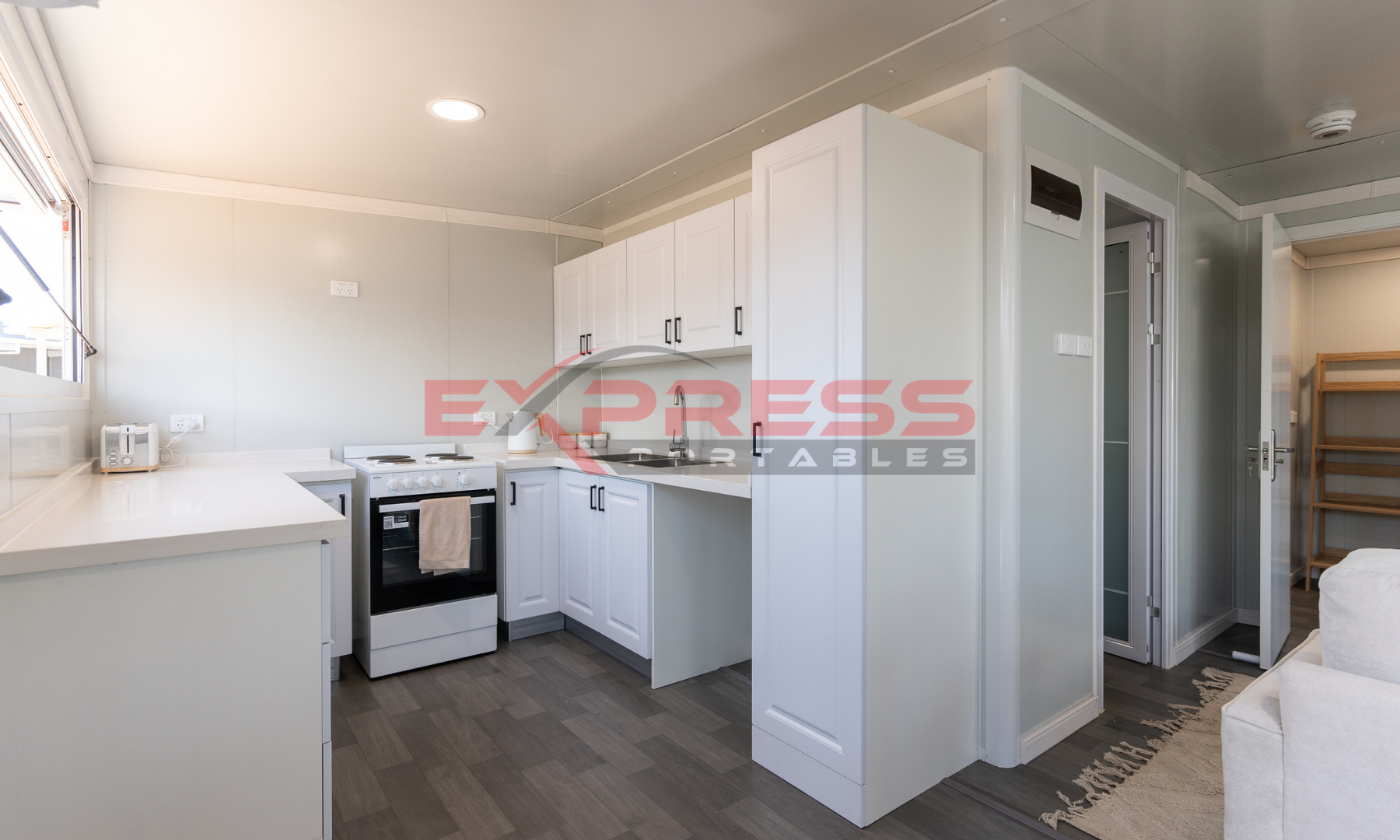

Kitchen

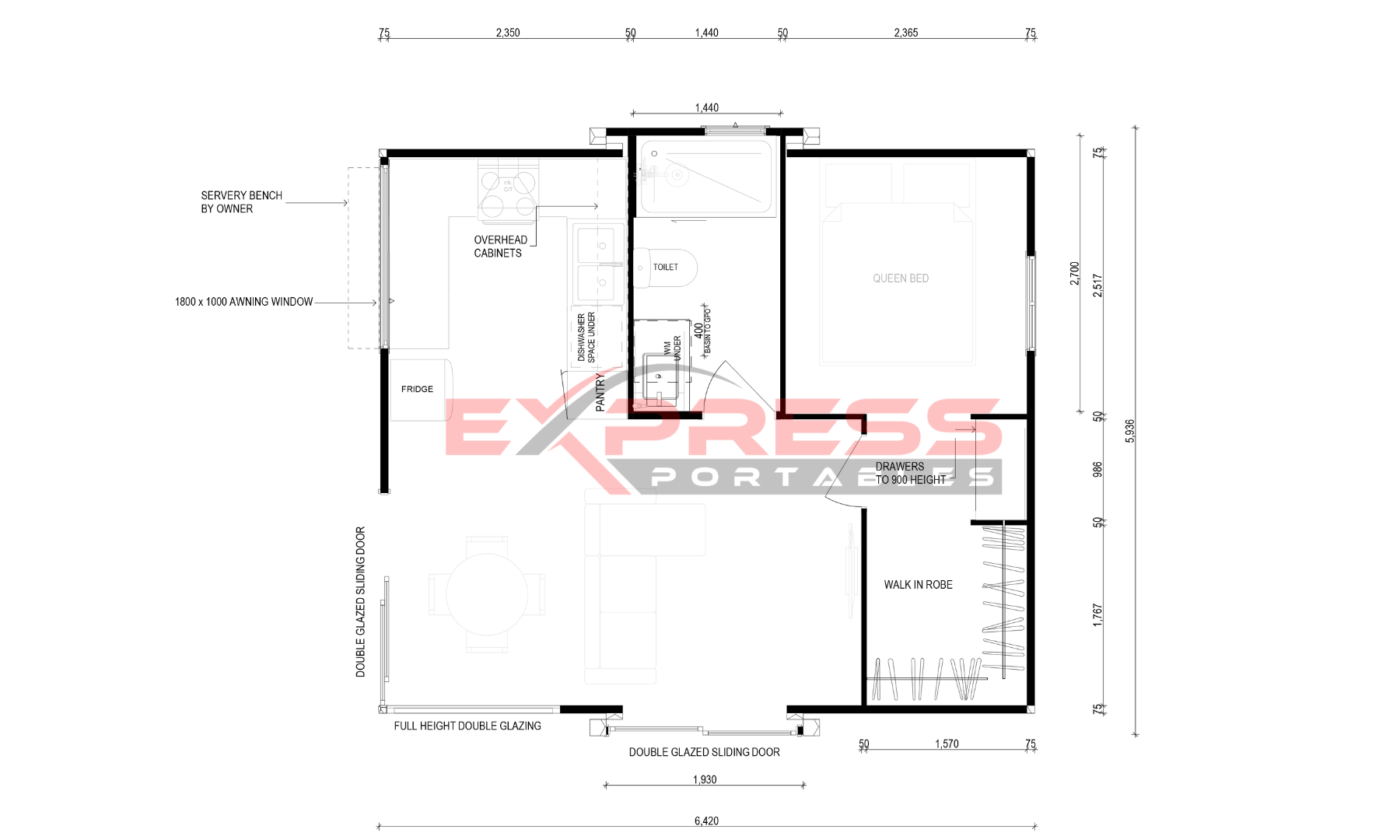

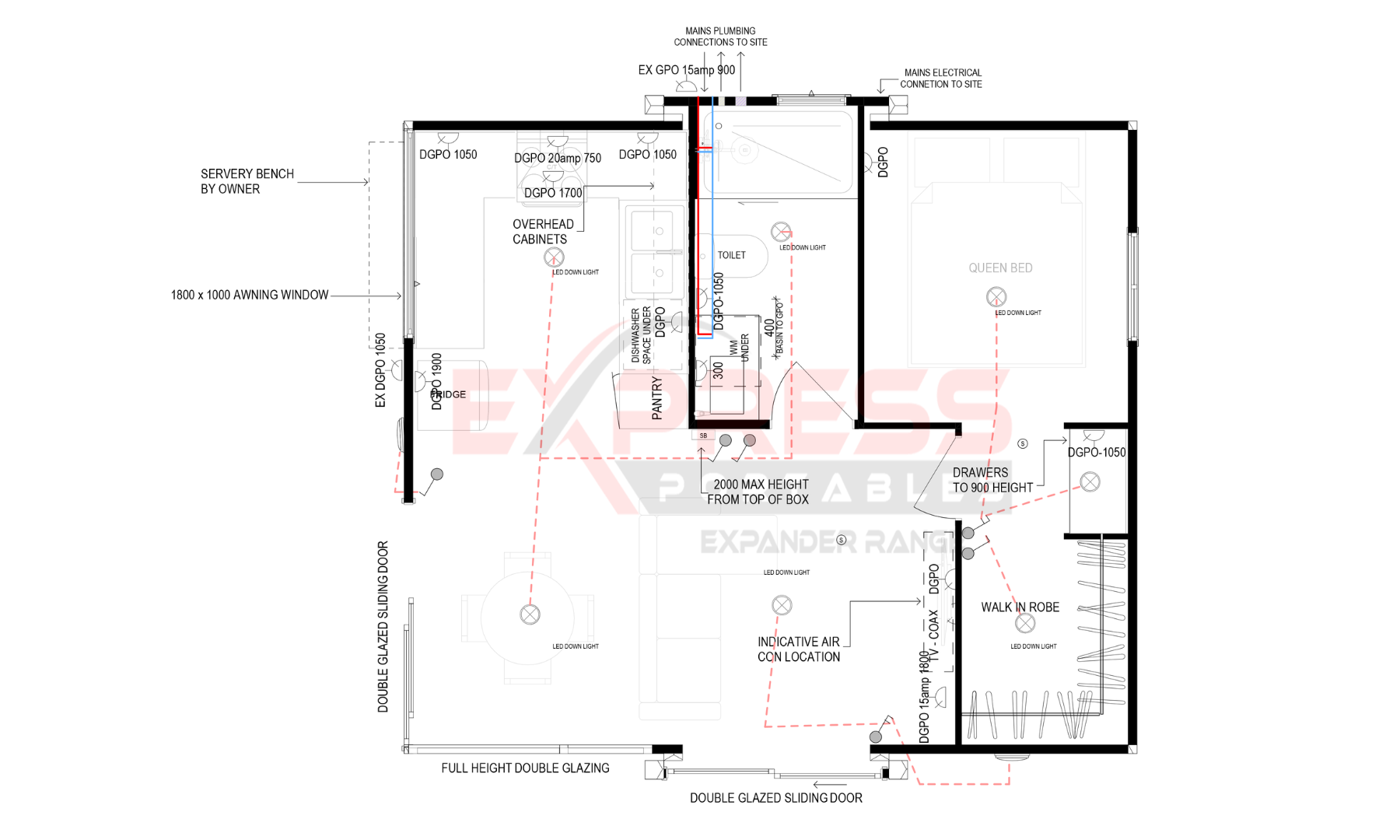

Plan
Kitchen plan provided

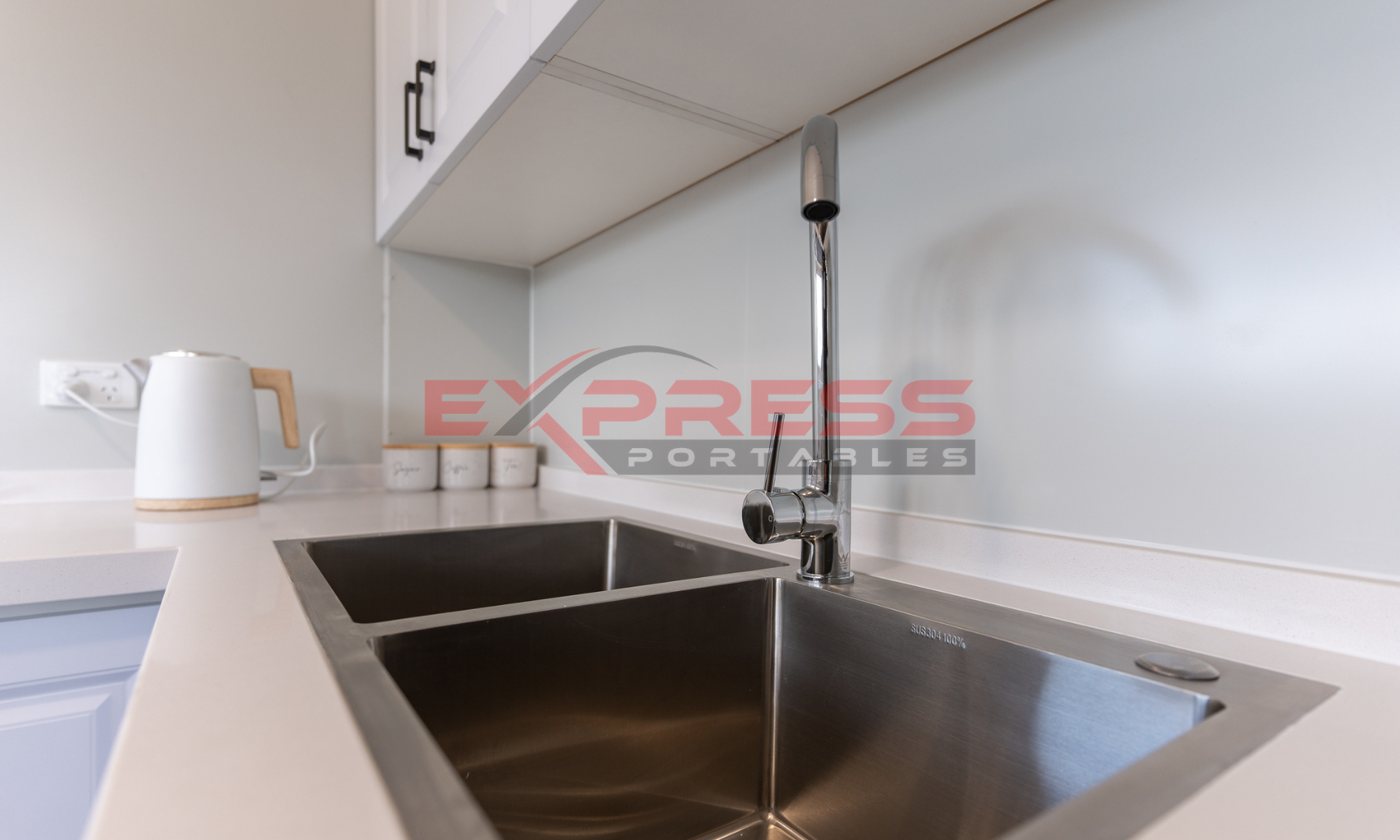

Sink
Double bowl stainless sink with flick mixer
Benchtop
Benchtop - Engineered stone with Zero Silica (certificate provided)
Provisional Space
Provisional space for dishwasher (620mm), freestanding cooker (650mm), rangehood (600mm), fridge (650mm)
Electrical
Power
All electrical points are prewired inside walls. Fit off of electrical points required after opening and installing, Aerial point provided for TV. Mains supply located at rear of expander
Lighting
All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building. LED oyster lights supplied
Smoke Alarm
Smoke alarm hardwired back to switchboard per habitable room (customer must install)
Plumbing
Water
The water pipes are penetrated through the floor only ready for the onsite plumber to connect.
The building must be installed a minimum 500mm above ground allowing enough access for a plumber to connect fittings.
Waste
The waste pipes (vanity, toilet, shower) are penetrated through the floor only ready for the onsite plumber to connect.
The building must be installed a minimum 500mm above ground allowing enough access for a plumber to connect fittings.
Sink & Mixer
Kitchen sink and mixer is to be connected when building is installed
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and could be conveniently installed in numerous Councils without requiring approval from the council
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
