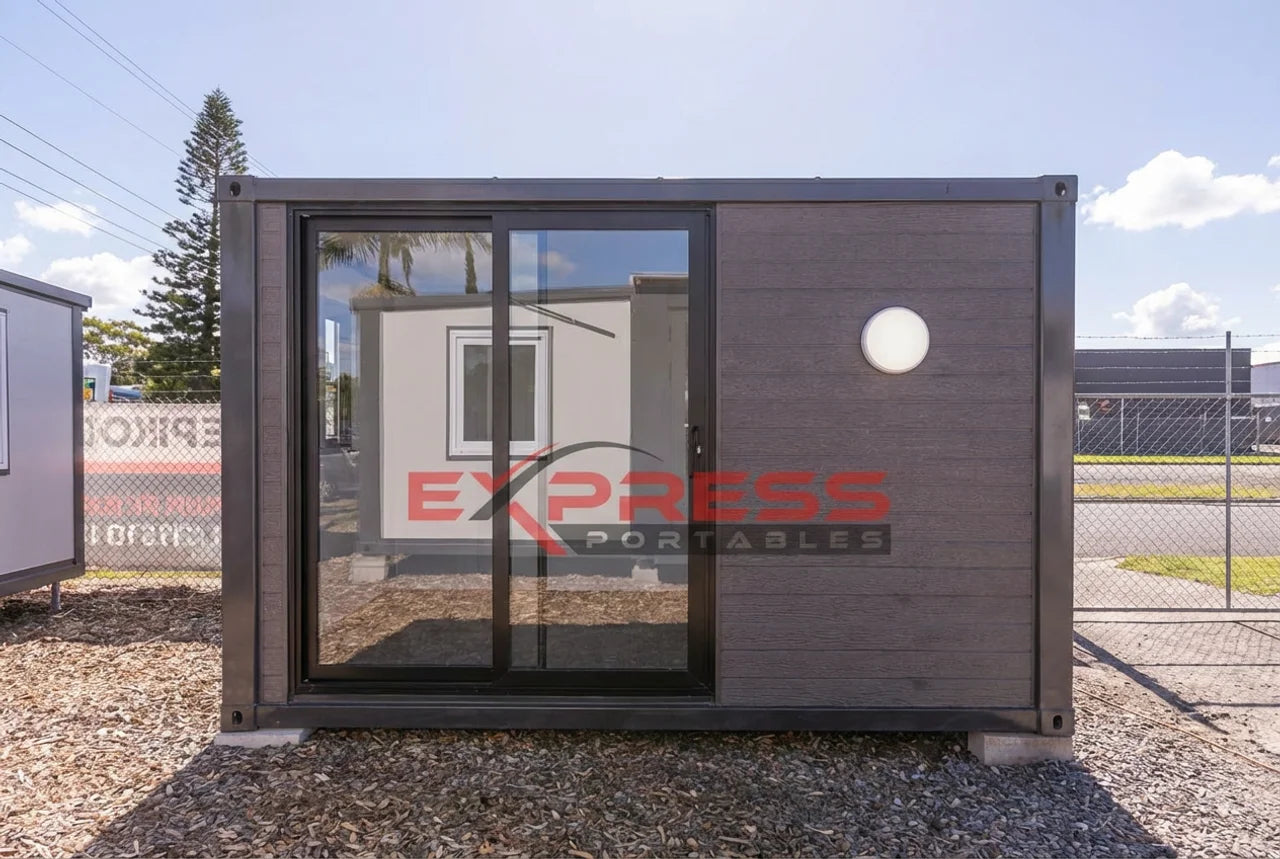

4m Cabin - Open Plan

4m Cabin - Open Plan

Regular price $15,000.00
Regular price
$15,000.00 (Incl. GST)
Sale price $15,000.00
(Incl. GST) Sale Sold out
Buy Now, Pay Later with Learn more
Cladding
A versatile open-plan portable building ideal for various purposes such as a home office, accommodation unit, or lunchroom.

Description

A versatile building constructed from structural steel and 75mm EPS panels. Built from the ground up with a magnesium subfloor concrete composite, topped with a 2mm vinyl timber pattern (available in either grey or brown). The 75mm EPS walls panels provide excellent insulation and structural integrity. For buildings ordered with cladding the EPS panels are reduced to 60mm thickness, with 15mm cladding, giving an overall thickness of 75mm.

Featuring double-glazed awning panels, offering panoramic views with pull-down blinds and flyscreens. The glass sliding entry door features a smooth gliding mechanism allows for effortless operation, enabling seamless access to the interior with just a gentle push or pull.

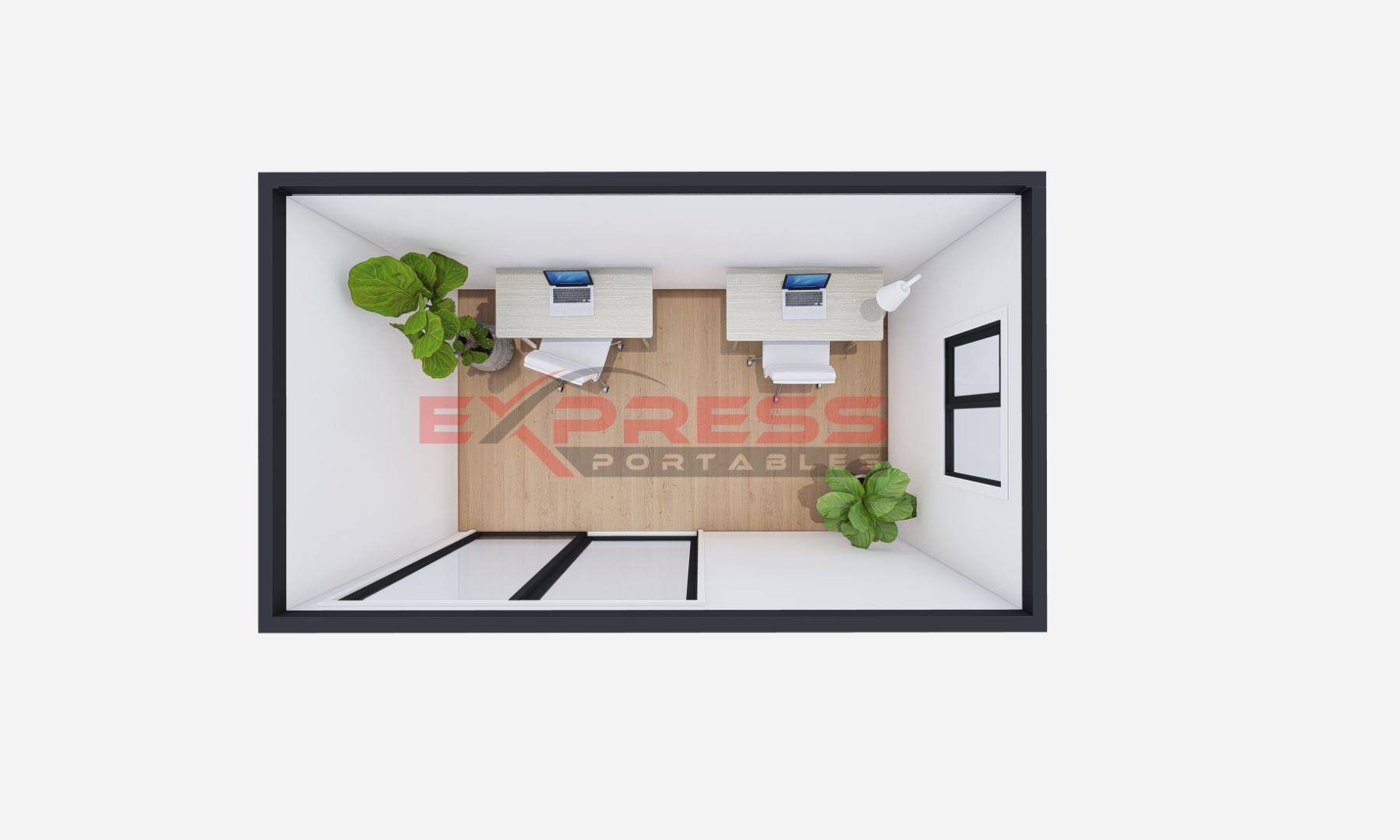

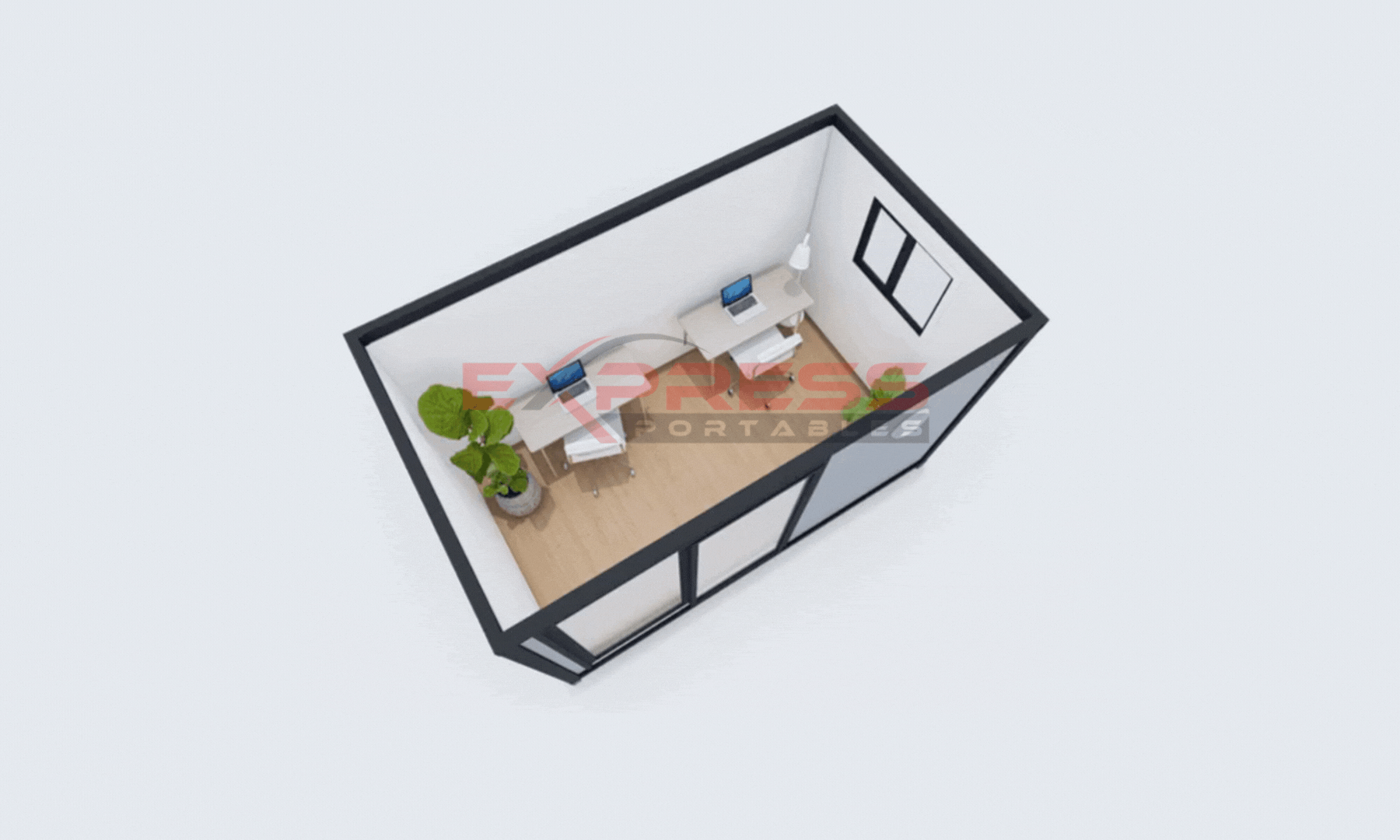

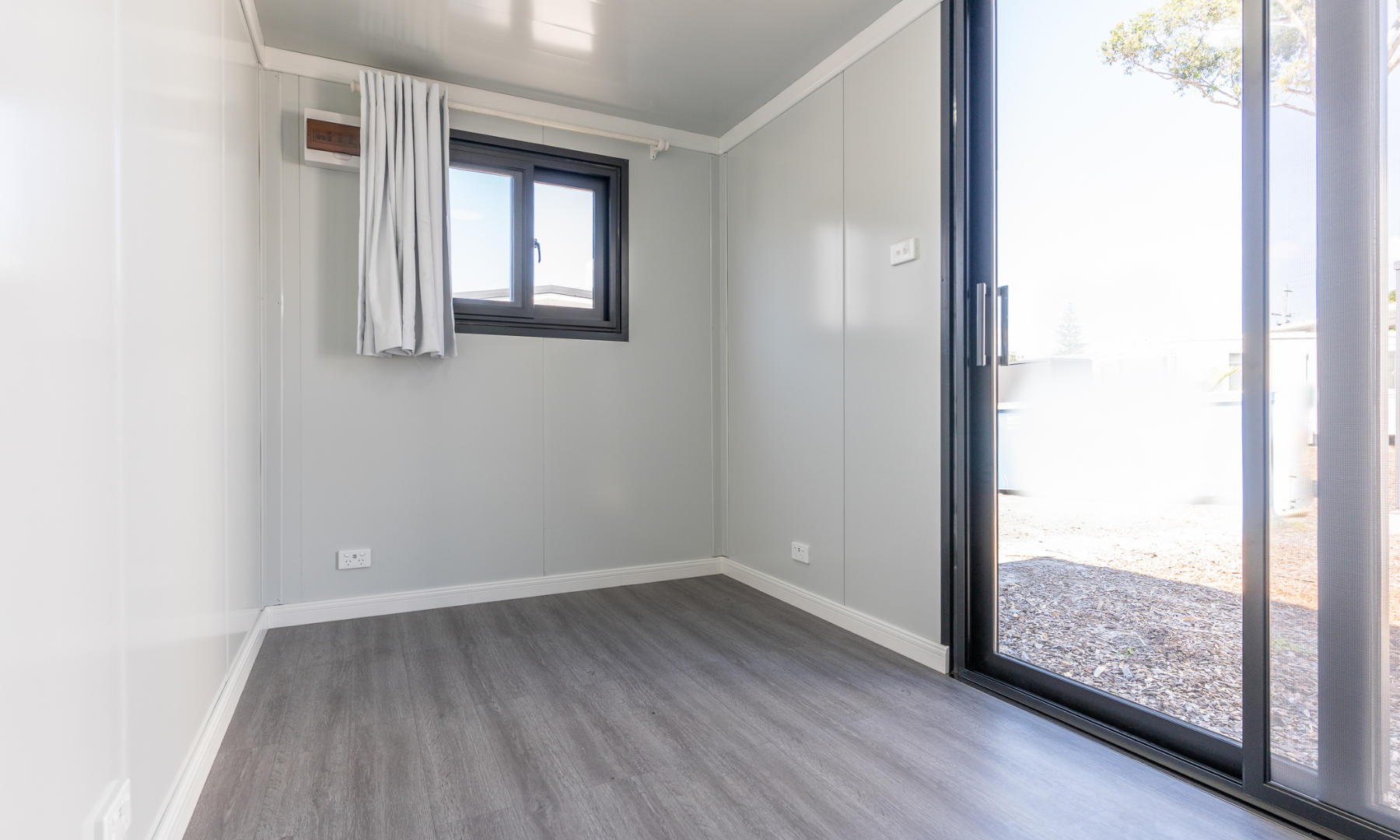

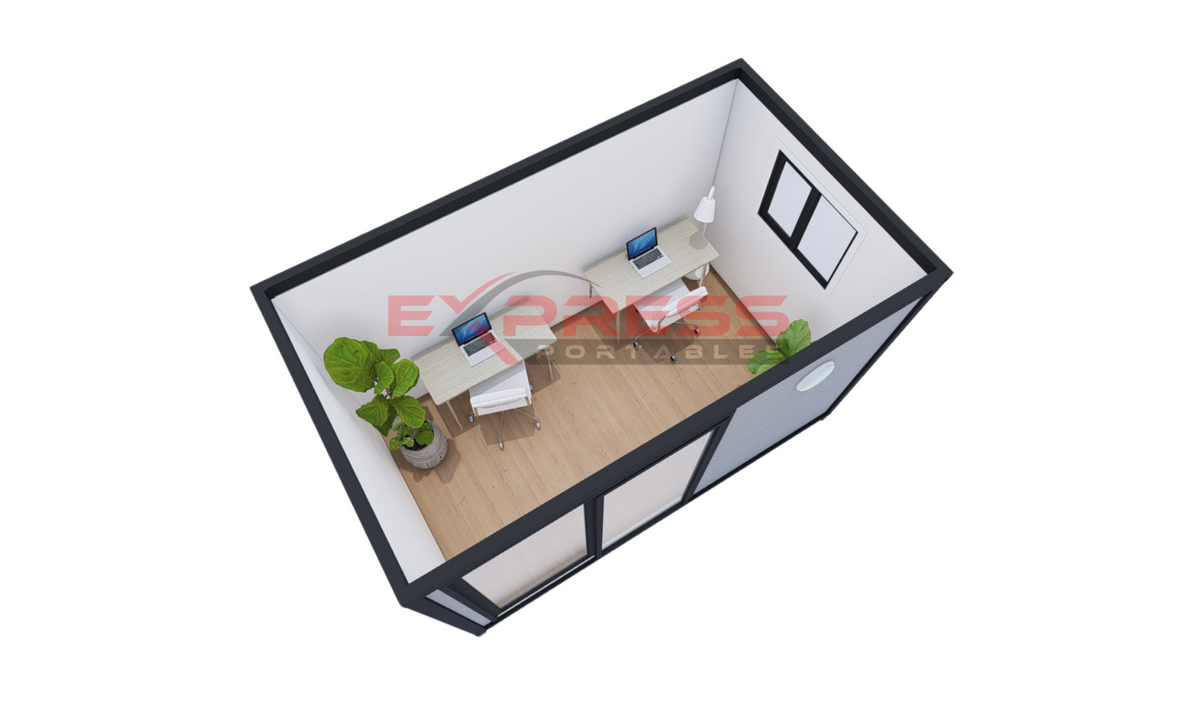

The open-plan option offers you the flexibility to design the interior according to your individual preferences. Whether you require extra accommodation, a personal workspace, or a lunchroom, this customisable layout allows you to adapt the space to suit your specific needs.

Dimensions

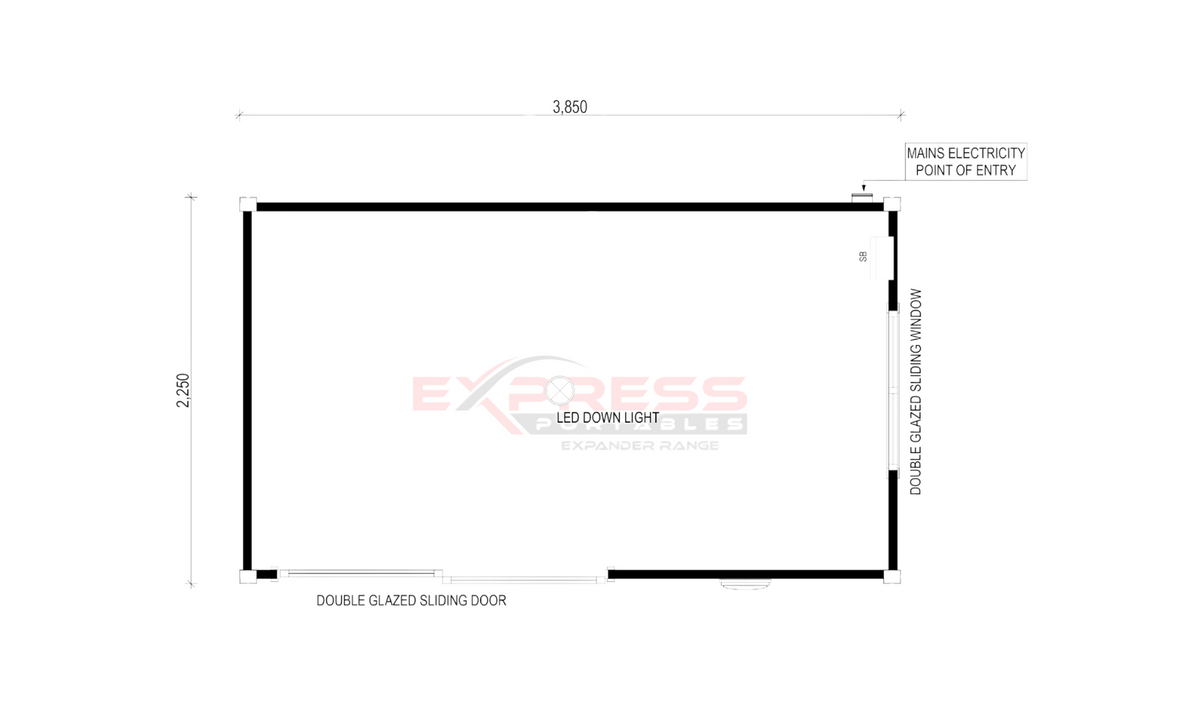

External: Length: 2.25m | Width: 3.85m | Height: 2.44m

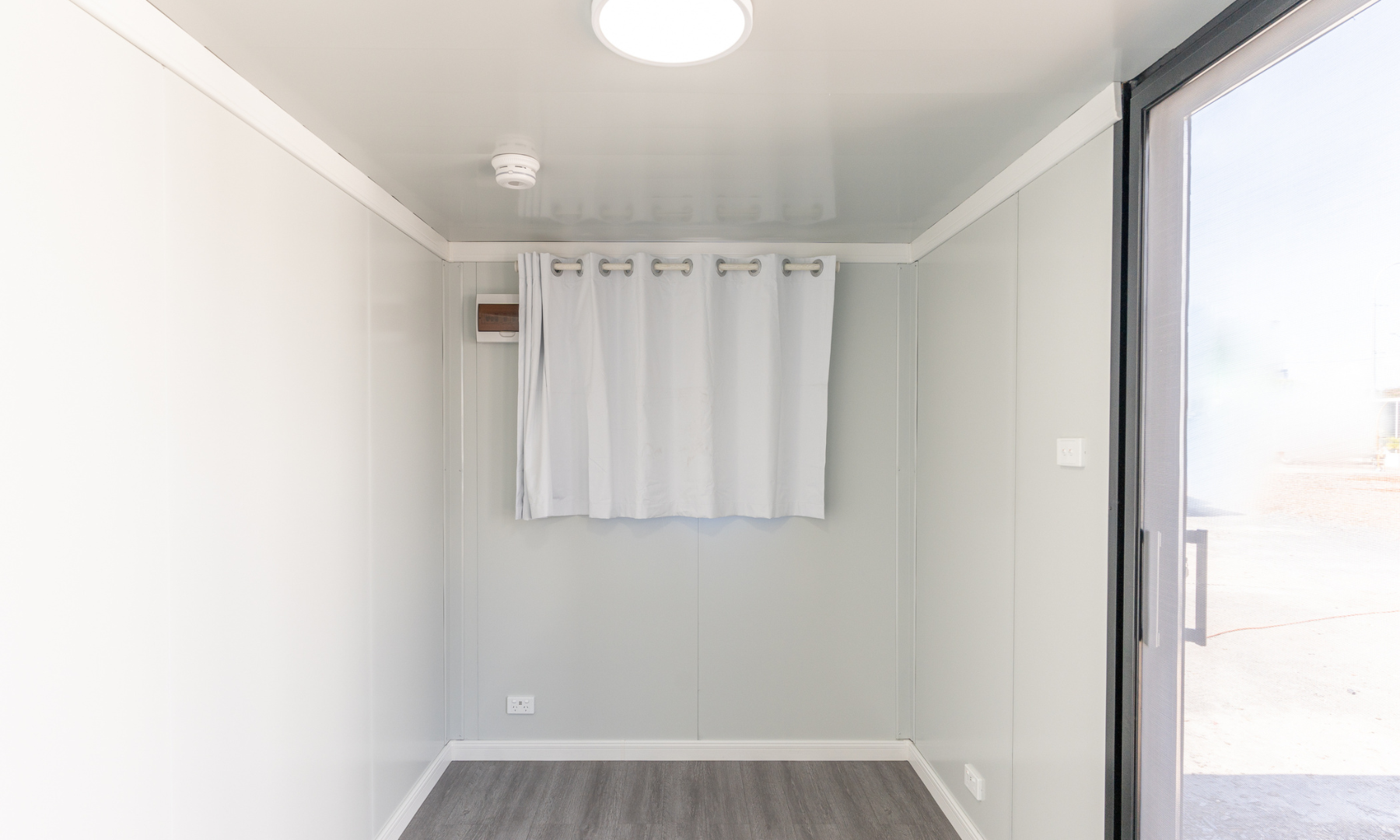

Internal: Length: 2.25m | Width: 3.85m | Height: 2.2m

Weight

1400kg

Ask a question

View full details

Key Features

Steel Frame

Featuring a steel frame ensuring structural integrity and stability. Engineered to withstand harsh weather conditions and the rigors of transportation, the steel frame provides a secure foundation for the entire structure.

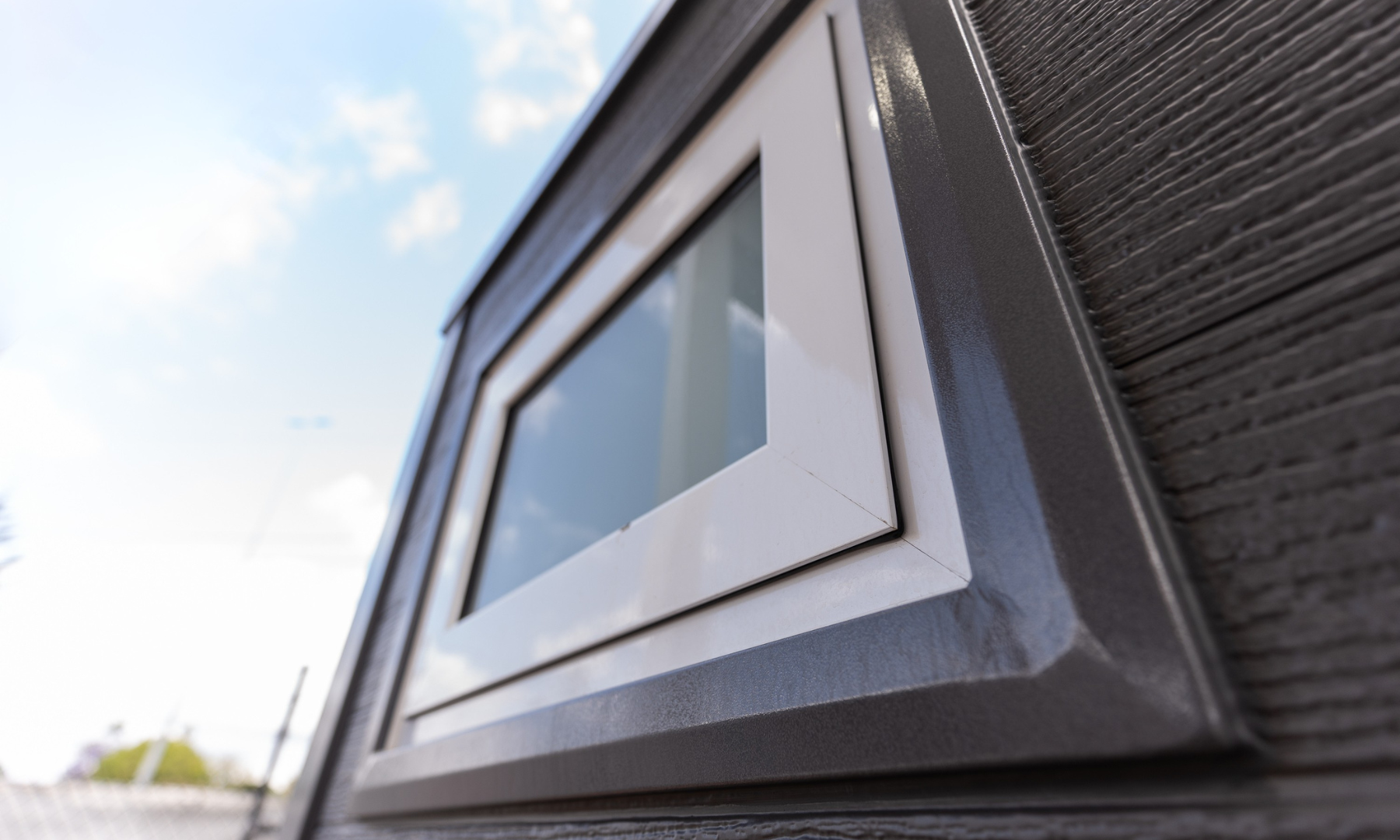

Double-Glazed

The inclusion of double-glazed windows offers improved insulation and noise reduction, enhancing overall comfort. Despite the cabin's compact size, these windows provide durability and energy efficiency.

Specifications

General Overview

Entry Door Glass entry sliding door
Windows Double-glazed awning window

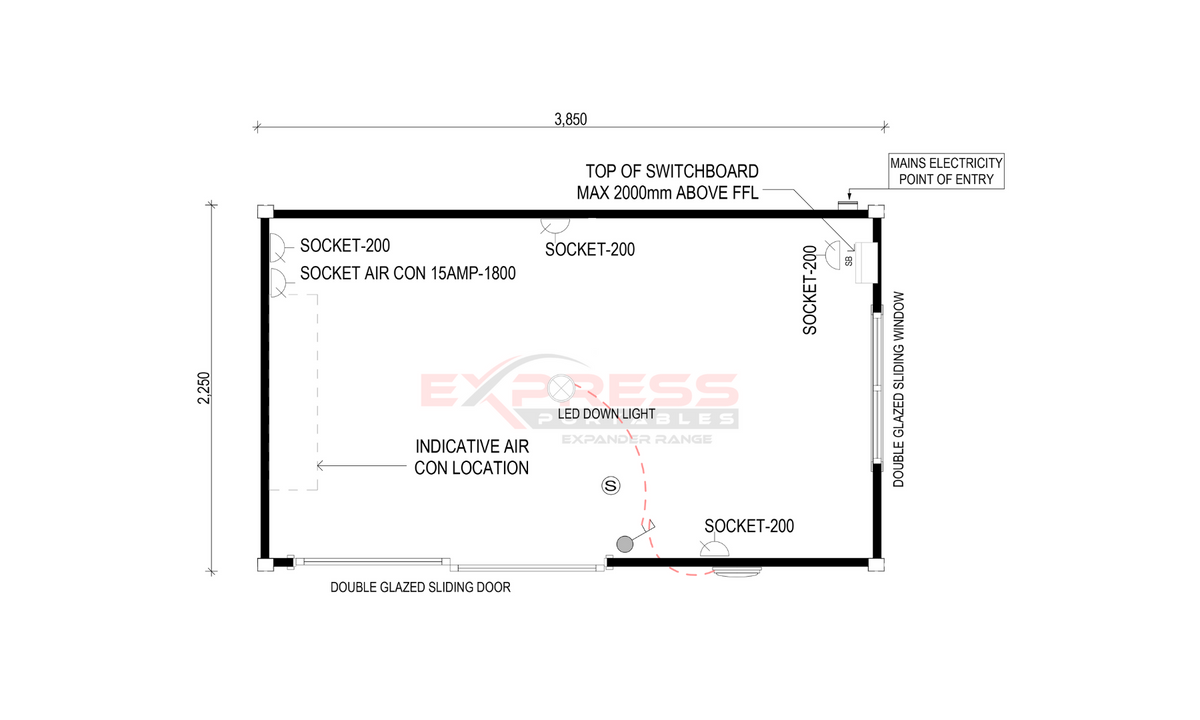

Electrical AS/NZ electrical cable, power points & switchboard (Qualified Electrician Required)
Frame Structural steel frame with steel floor joists
Roof Glass-wool insulation, galvanised & painted steel
Wall 75mm EPS panels
Floor Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Walls

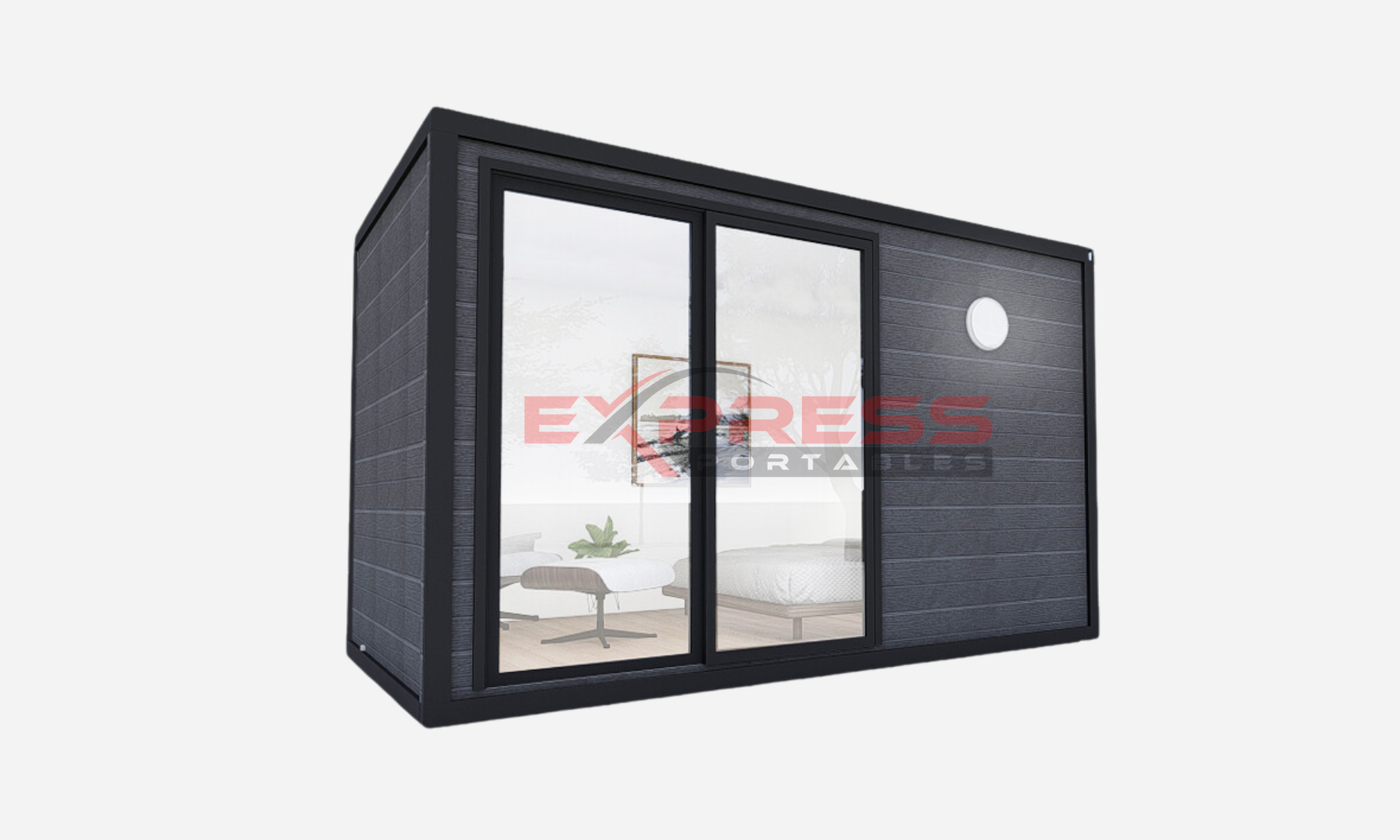

Cladding 60mm EPS Panel Walls & 15mm Cladding

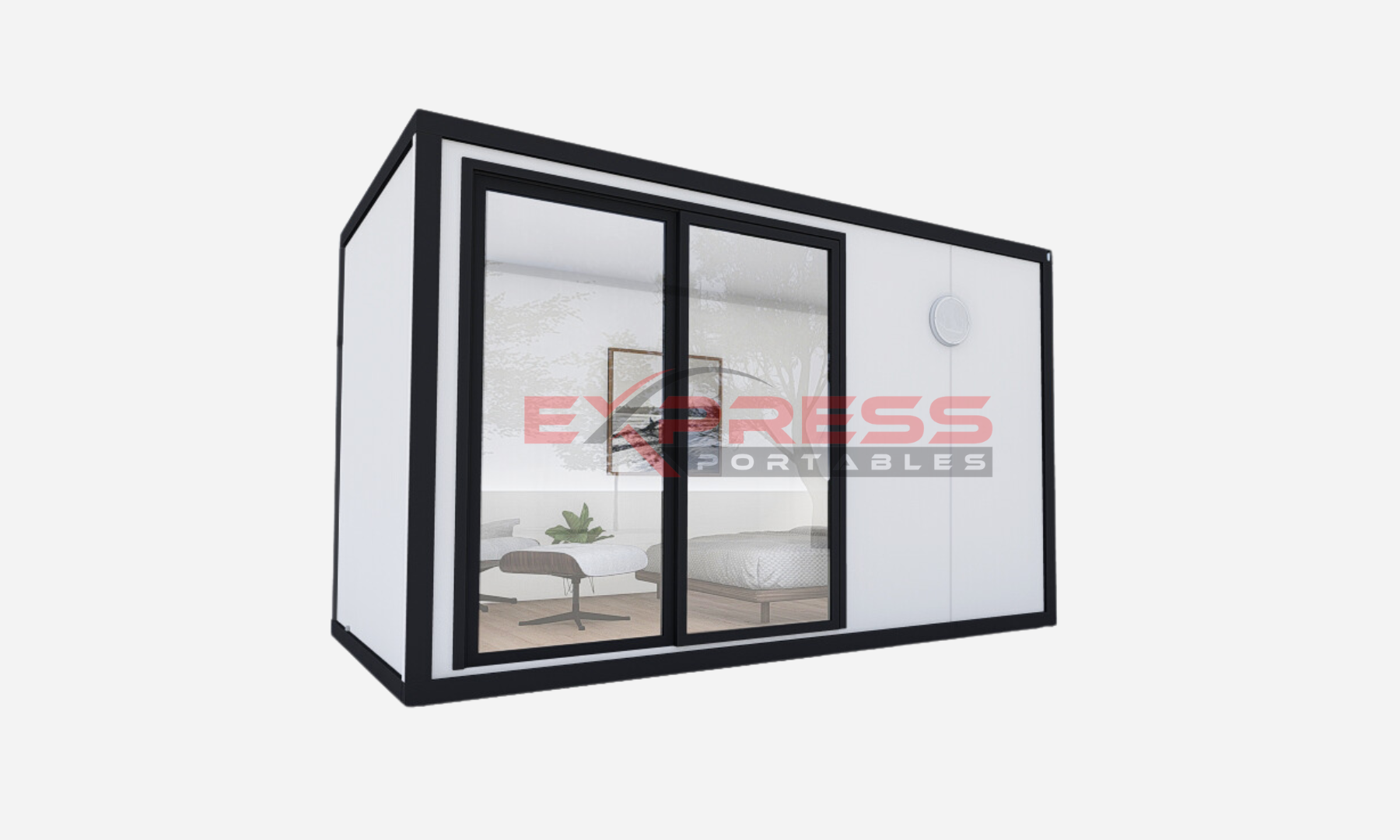

No Cladding 75mm EPS Panel Wall

Windows

Frames Aluminium frames
Type Double-glazed awning window
Blinds & Flyscreens Pull down blinds & flyscreens

Doors

Entry Glass entry sliding door

General Overview

Entry Door Glass entry sliding door
Windows Double-glazed awning window
Electrical AS/NZ electrical cable, power points & switchboard (Qualified Electrician Required)
Frame Structural steel frame with steel floor joists
Roof Glass-wool insulation, galvanised & painted steel
Wall 75mm EPS panels
Floor Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Installation

Instructions Instructions provided
DIY The Cabin is a customer DIY installation, Express Portables will supply only
Footing Plans Footing Plans supplied by Express Portables. Level site prepared and/or footings prepared by customer
Electrical & Plumbing The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work

Transport

Crane Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid/Semi-Trailer Customer is required to organise a forklift unload or crane unload

Walls

Cladding 60mm EPS Panel Walls & 15mm Cladding
No Cladding 75mm EPS Panel Wall

Windows

Frames Aluminium frames
Type Double-glazed awning window
Blinds & Flyscreens Pull down blinds & flyscreens

Doors

Entry Glass entry sliding door

Roof

Interior Roof Steel sheet roof with rockwool insulation
Exterior Panel 75mm EPS Panels

Flooring

Sub-Floor 18mm Magnesium subfloor concrete composite – water, rot and insect resistant.
Top Layer 2mm vinyl timber pattern - Grey or Brown
Skirting PVC cornice and skirting

Electrical

Power Mains electrical cable terminated on rear wall ready for connection to site
Lighting LED downlights pre-installed and wired
Smoke Alarm Smoke alarm hardwired back to switchboard (customer to install)

Council Compliance

Council Approval Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates Structural engineering and plumbing certificates are not provided with the purchase
