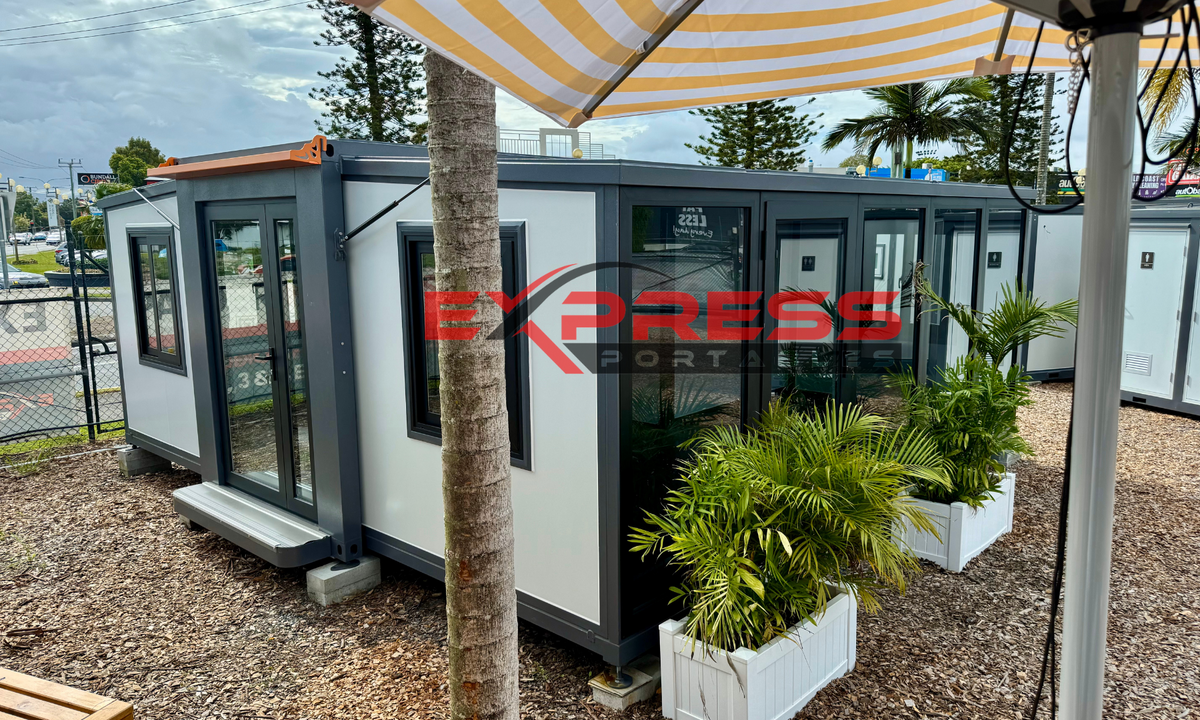

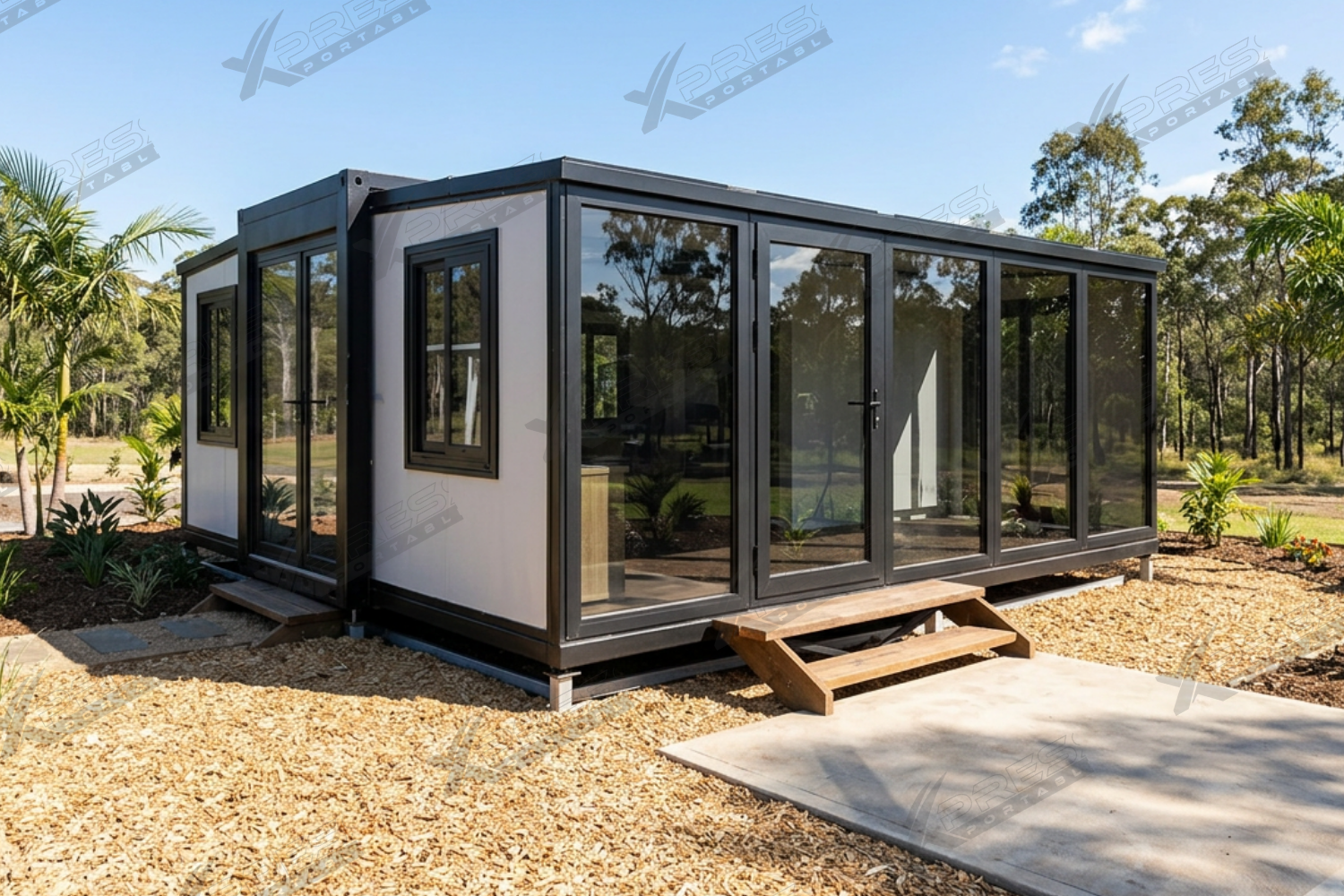

A 6m x 6m expandable container home that is delivered pre-fabricated and ready to be unfolded and installed. Featuring a full double-glazing glass side option supported by a sleek black aluminium frame.

Description

The 35m² portable Expander Open Glass Front has been designed to offer a spacious, stylish, and cost-effective open plan space.

Key Features

Please note: that ongoing product improvements may result in slight variations between the images on our website and the actual product including colours.

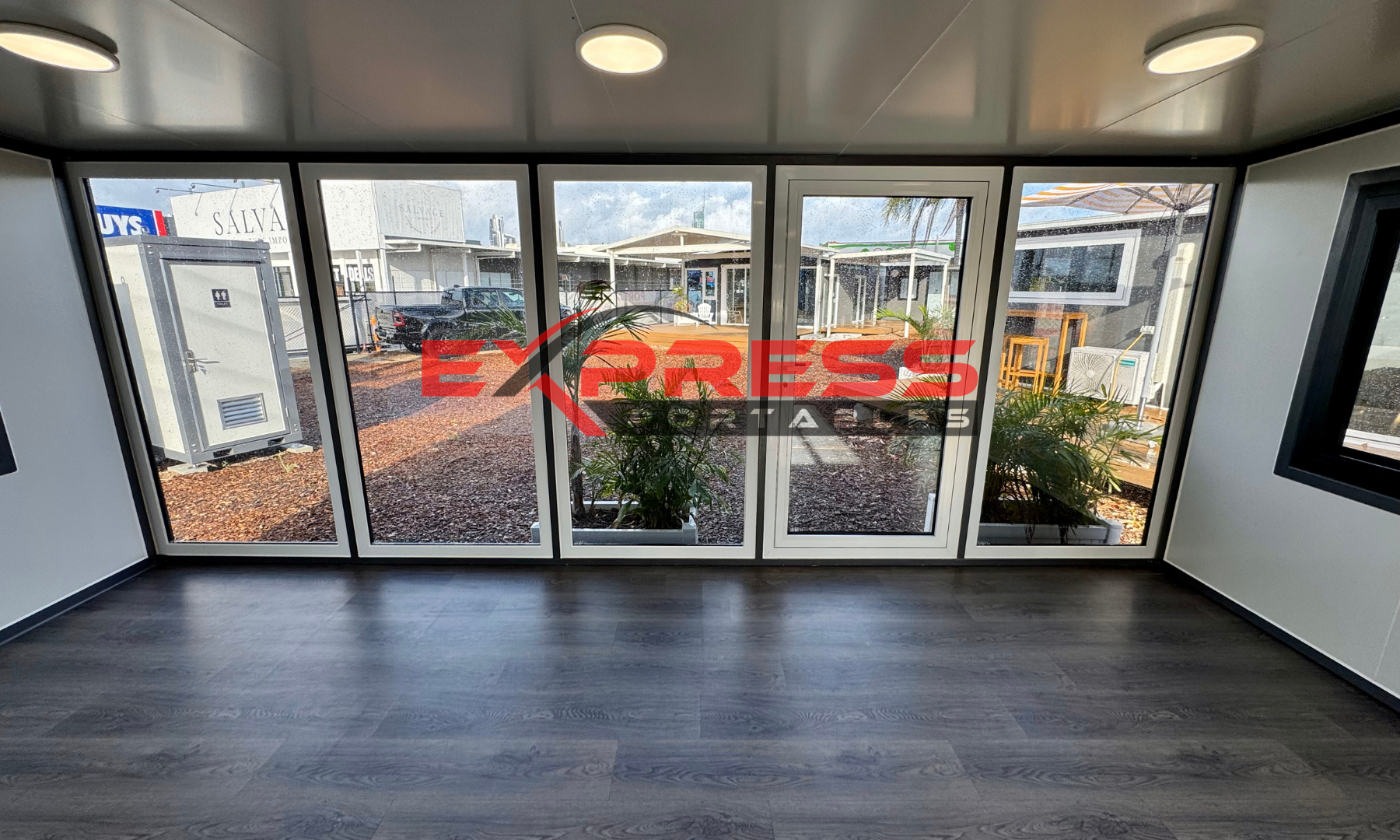

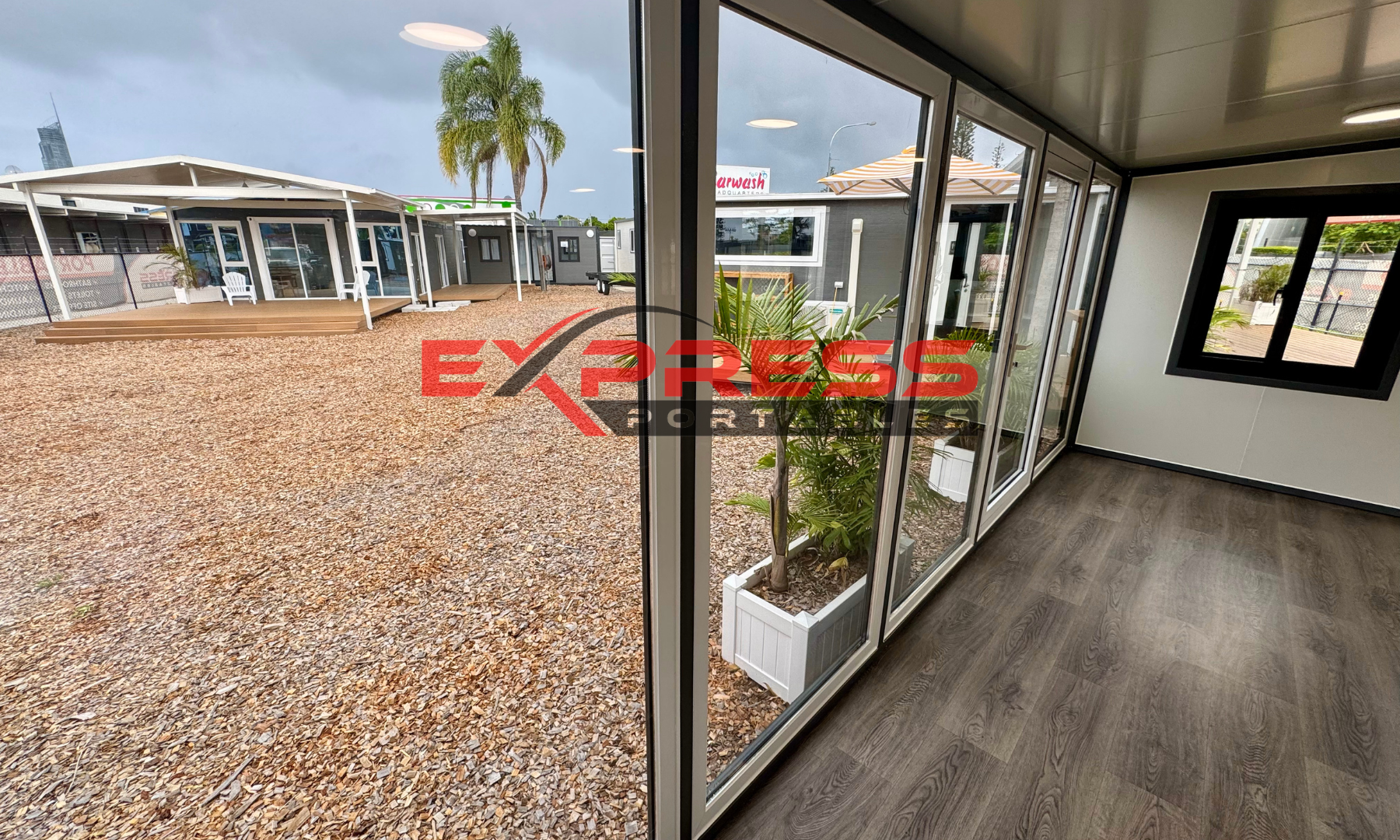

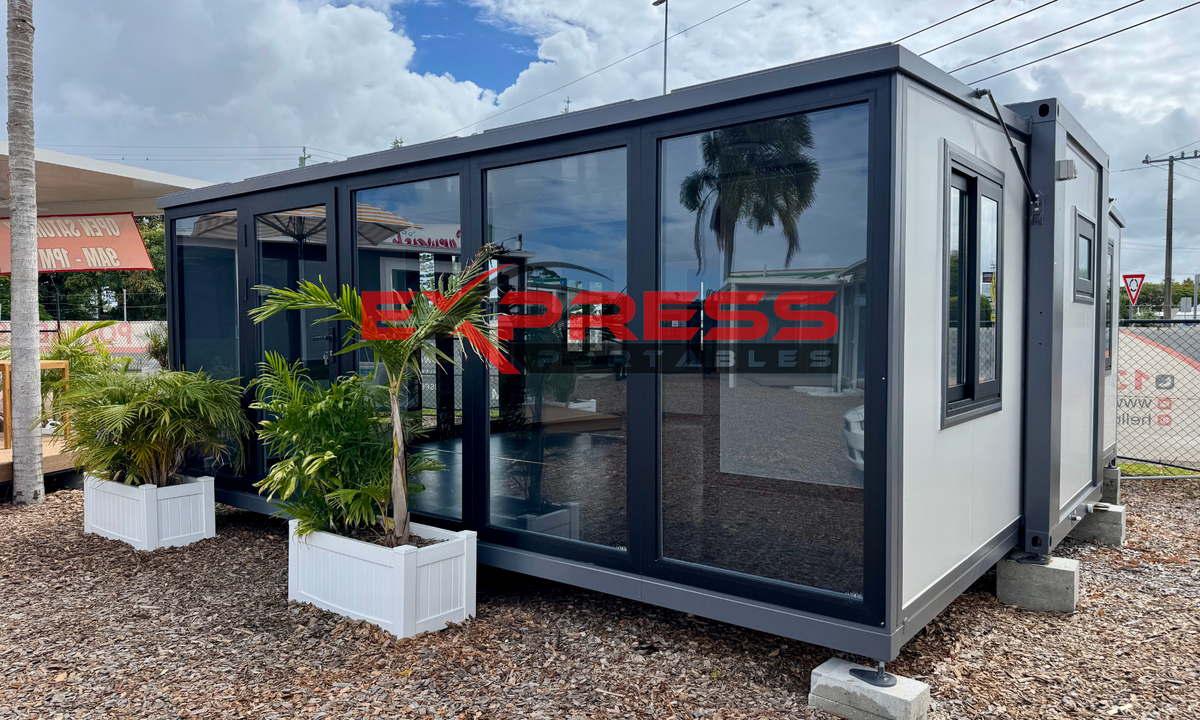

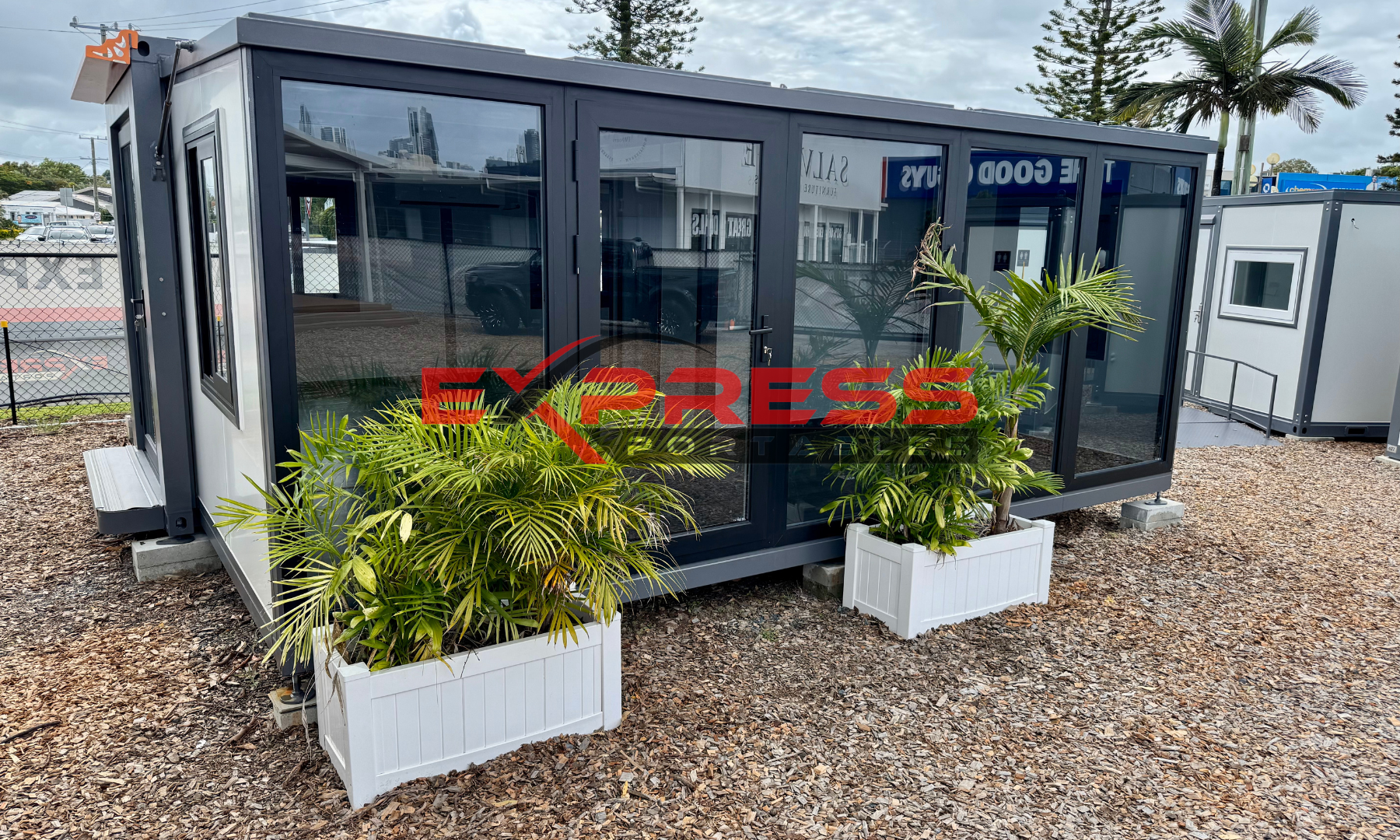

Glass Side: Creating a bright, airy environment, making the space feel larger and more inviting. The transparent design also allows for clear views of the surrounding area, connecting the interior with the outdoors. Additionally, the glass side wall adds a modern, stylish aesthetic to the building, while maintaining privacy and security with the appropriate glazing options.

Steel Frame: The Expander boasts a sturdy steel frame, skilfully coated in a stylish black epoxy finish. This not only ensures remarkable durability but also adds a dash of modern sophistication. It's the ideal blend of strength and style, seamlessly fused together.

Flooring: The flooring system combines 3mm anti-slip, wear-resistant soft PVC with a 20mm fireproof board sub-floor for a safe, durable and easy-to-maintain finish.

Insulation: The Expander has smart roofing and walls with modern 50mm EPS panels to keep it cosy. With double glazed windows and doors, it saves energy, making your living space comfortable and efficient all year round.

Gas struts are also attached to the roof of the folded building, assisting with the unfolding process. These gas struts can then be removed once the building has been unfolded.

Colours: Black Epoxy Steel Frame, Black Aluminium Windows and Black Frame Door.

***Internal dimensions on showroom models and floor plans displayed on our website are subject to minor variations due to updates in manufacturing and structural requirements. Please refer to your factory plans for final internal dimensions. Factory plans can be provided after deposits have been received***

Dimensions

External: Length: 5.85m | Width: 6.12m | Height: 2.5m

Weight

Approx | 3250kg

Ask a question

View full details

Key Features

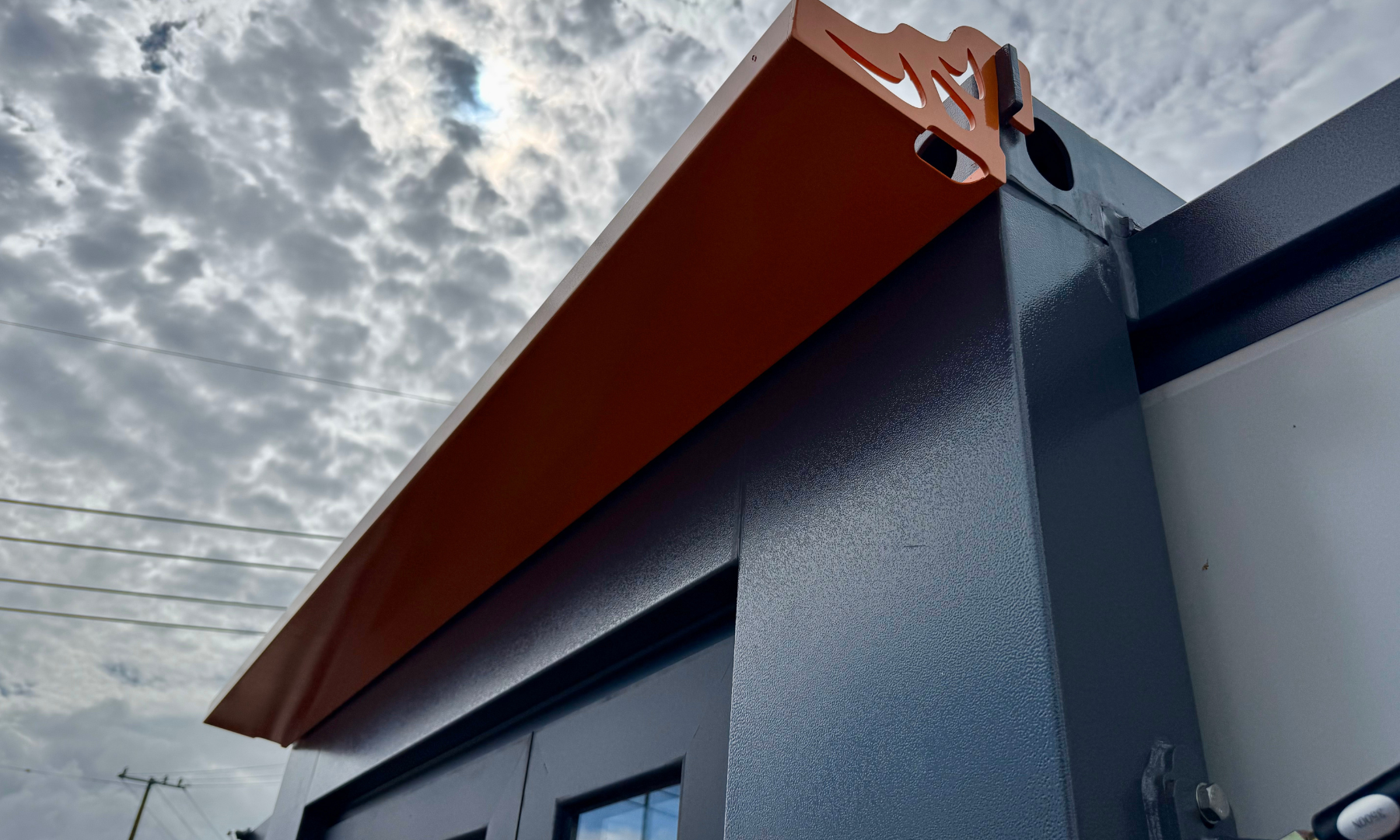

Rain Sill

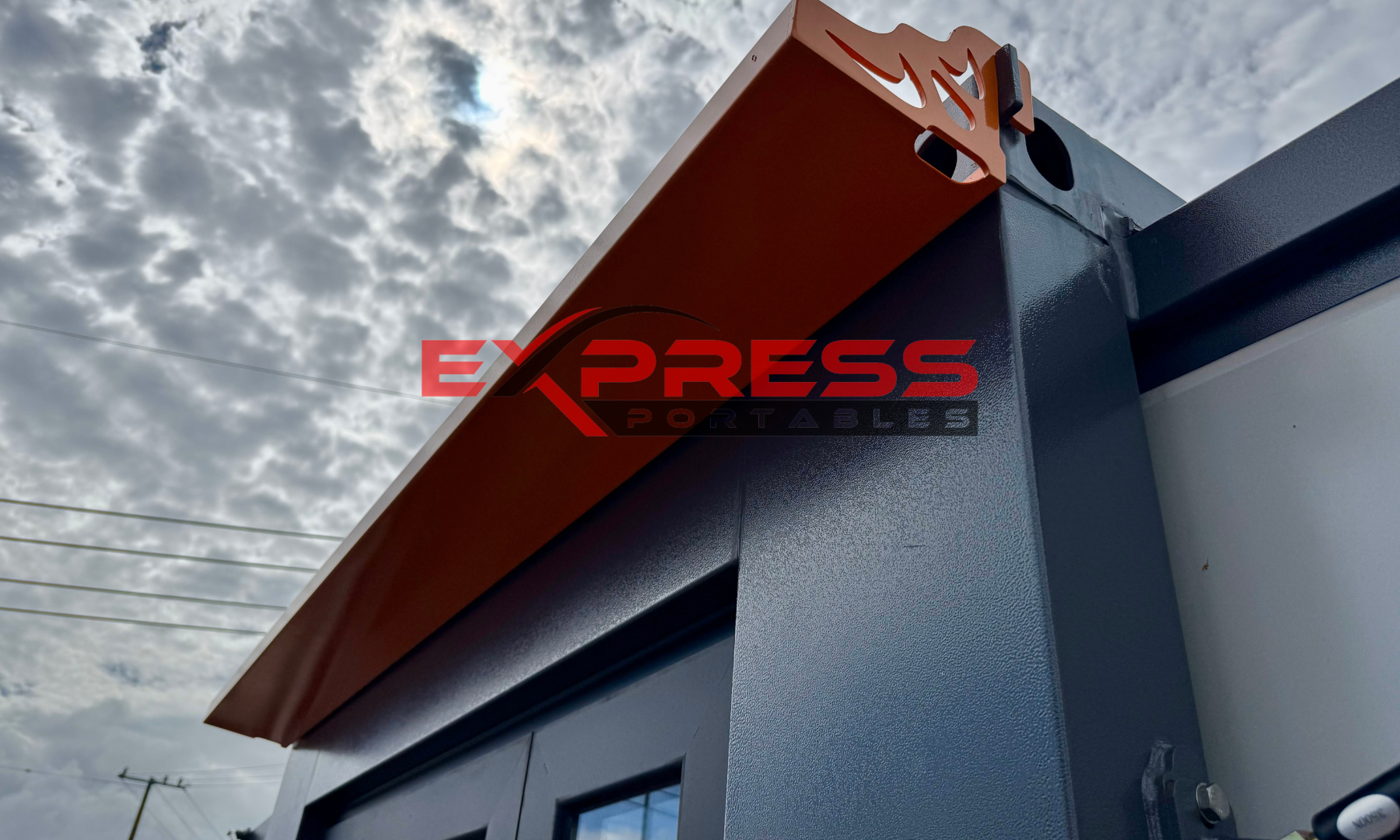

The entry door is equipped with a rain sill to prevent rainwater from dripping into the interior. This feature directs water away from the doorframe, ensuring that it doesn't seep inside or cause damage to the flooring or walls.

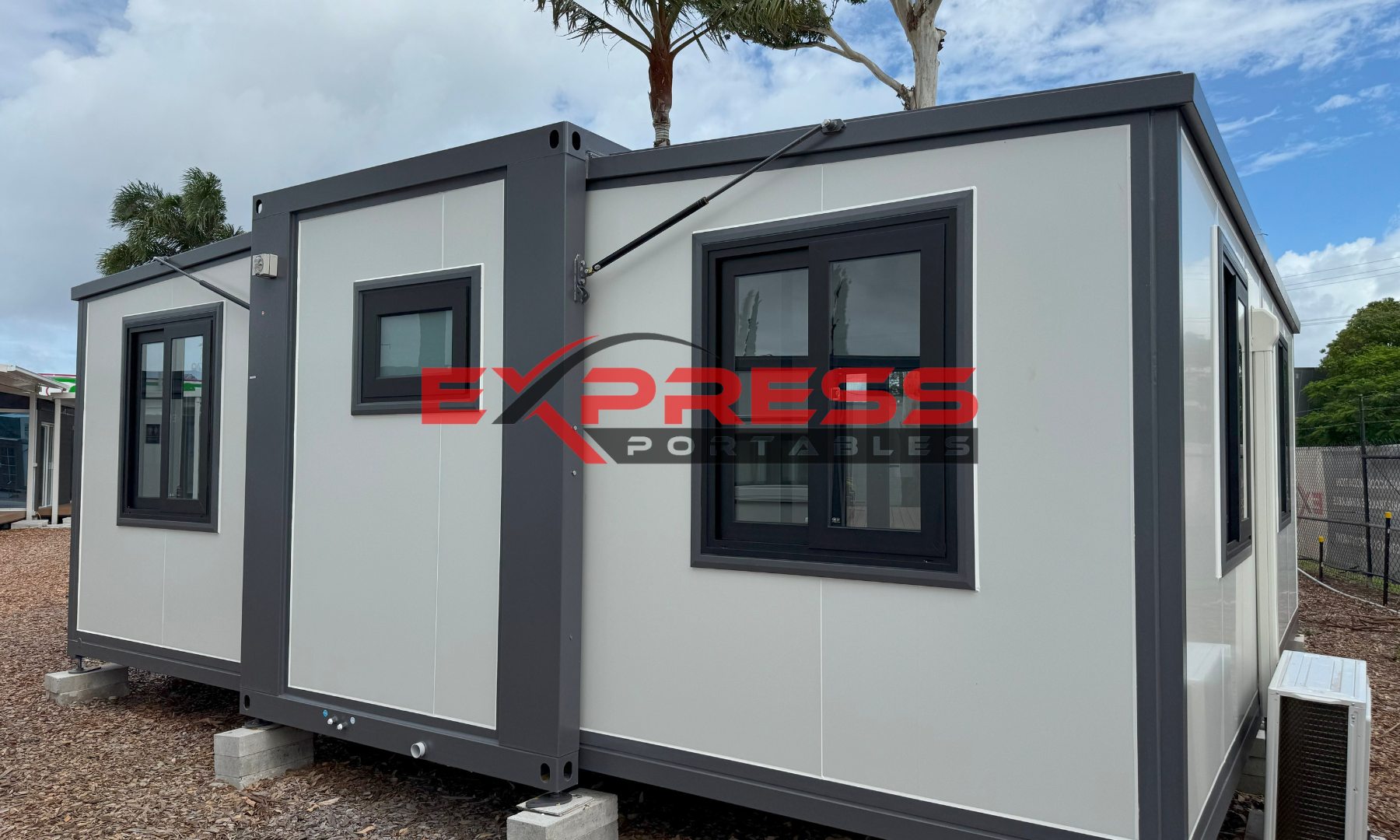

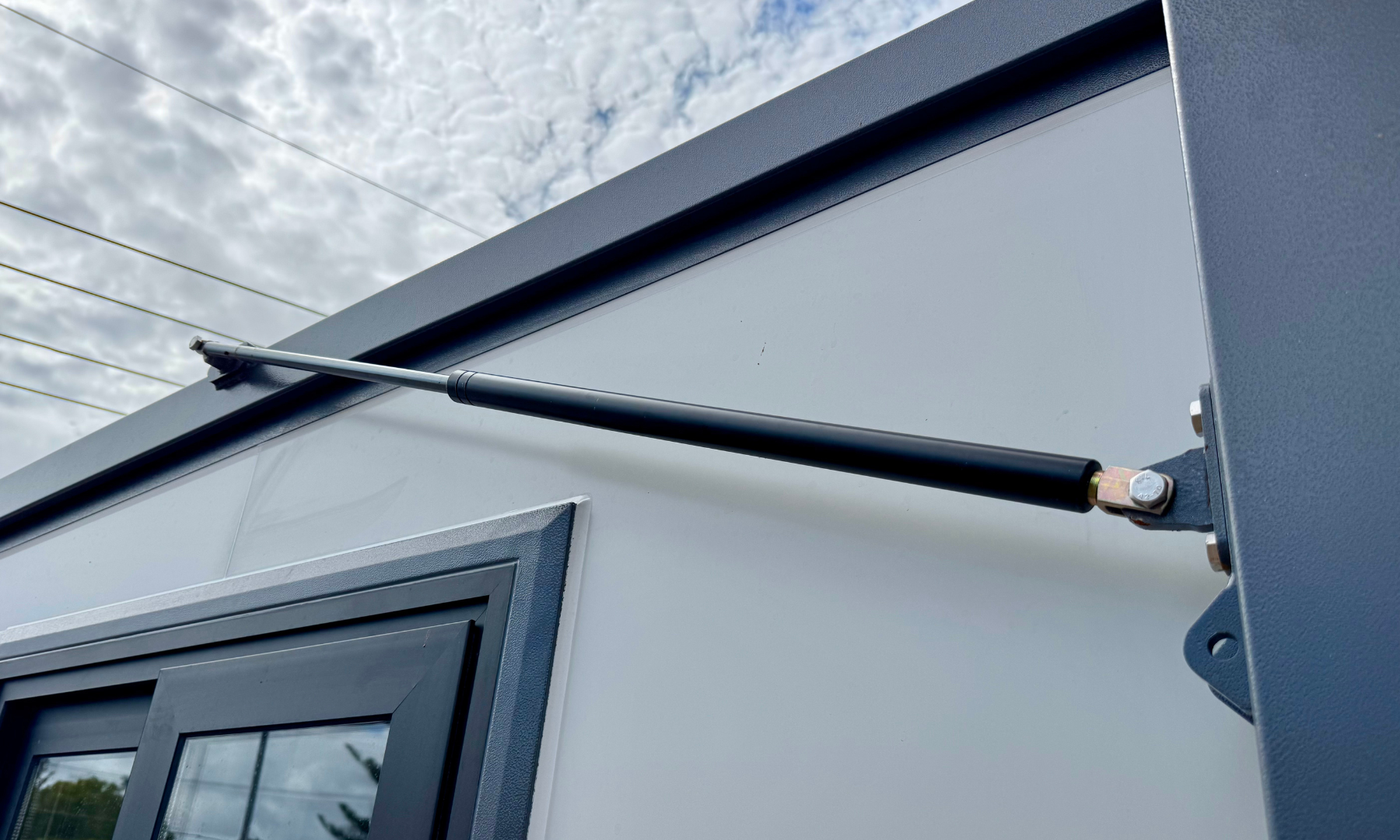

Gas Struts

Gas struts provide smooth, controlled movement, reducing the effort required to open and close heavy sections of the building. They enhance convenience and safety by ensuring that the panels stay securely in place when open, preventing accidental slamming or damage.

Non-migratory Cable

Pre-wired system using non-migratory sheathing to prevent cable degradation caused by reactions with insulated panels. Purple sheathing ensures material stability. All electrical components comply with EESS certification standards.

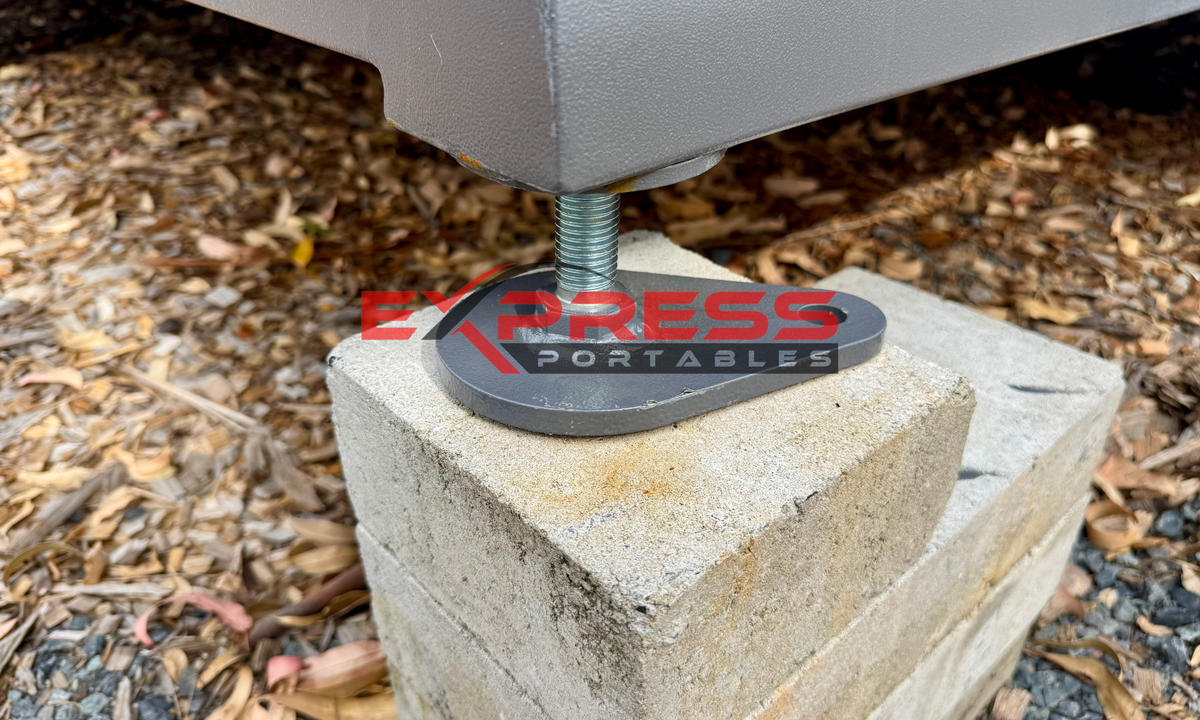

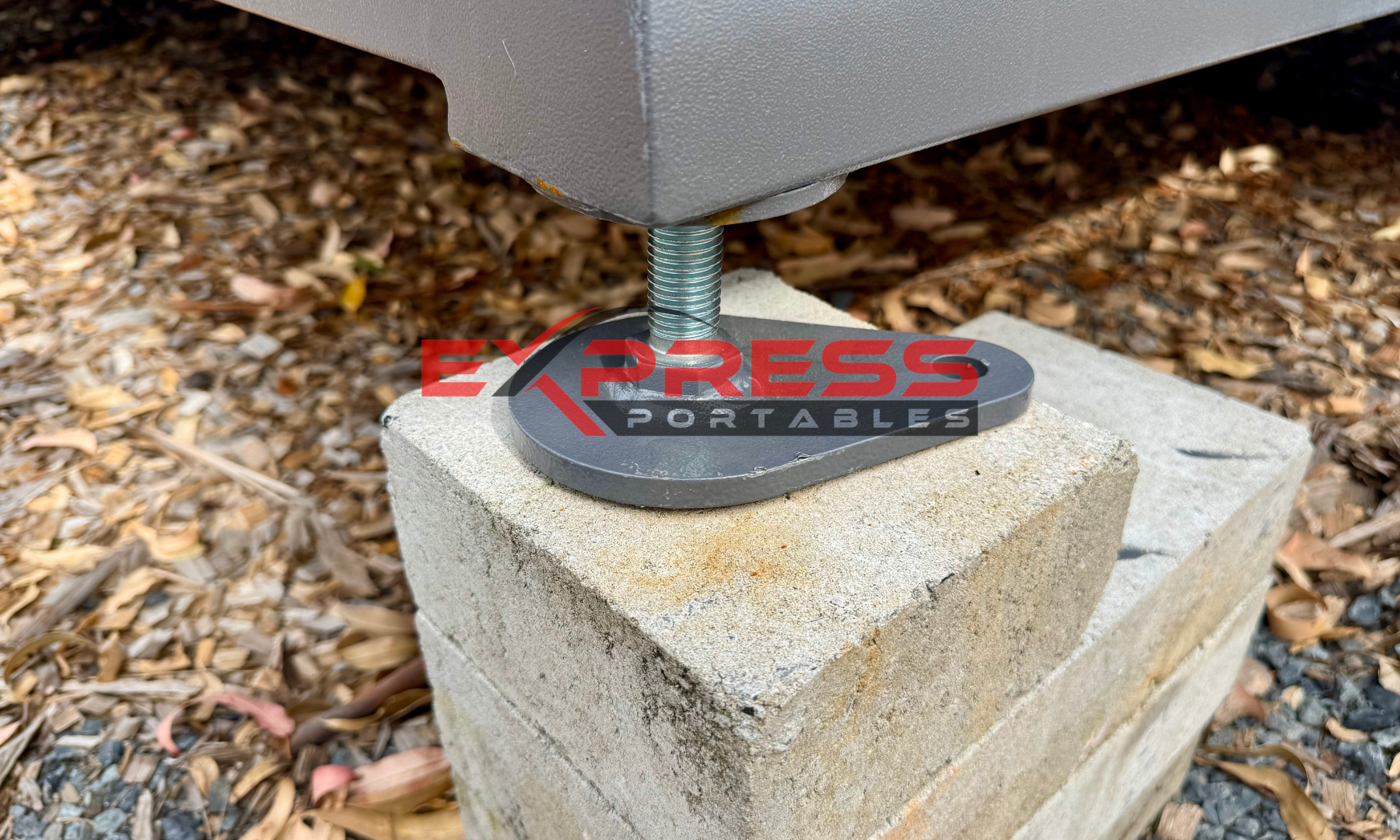

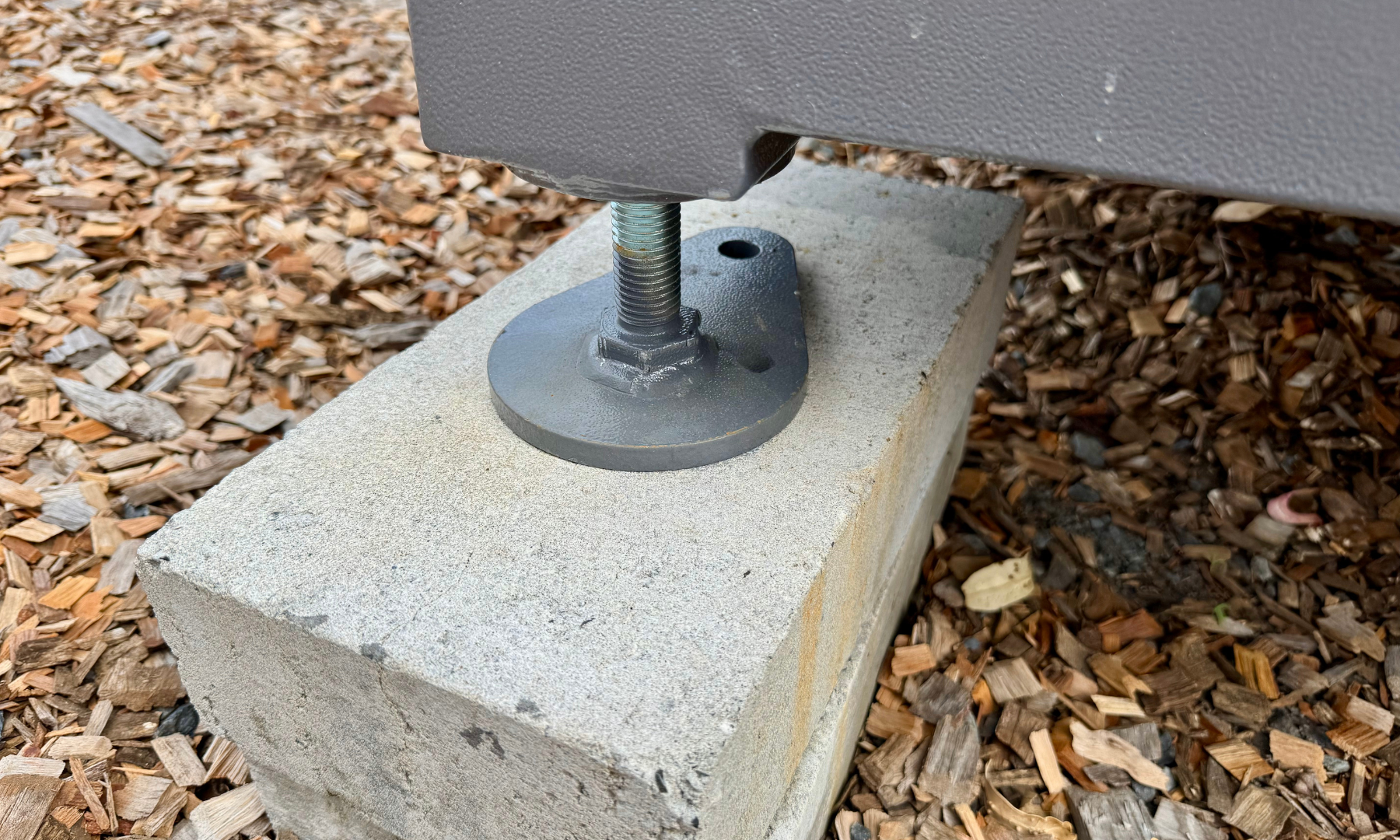

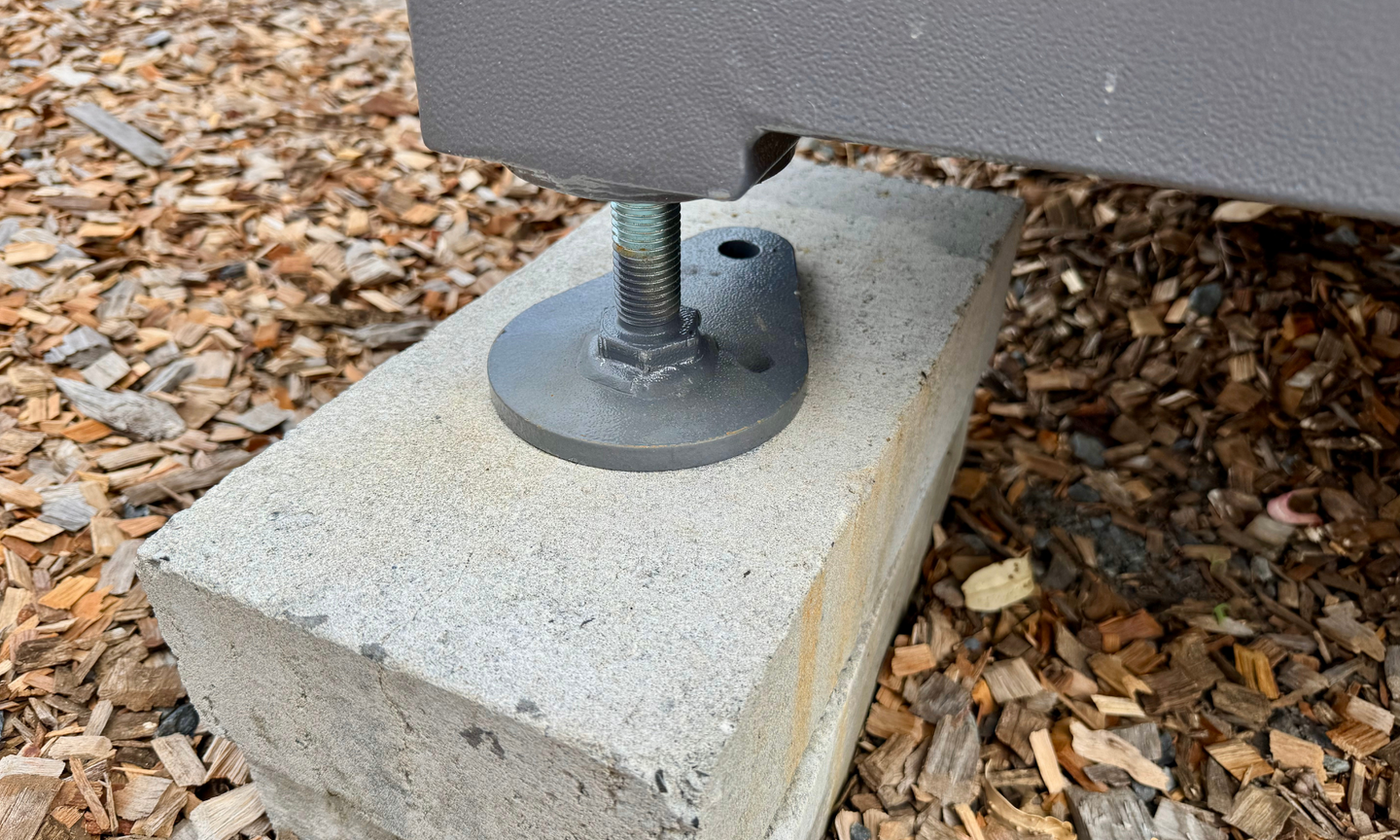

Adjustable Feet

The building features adjustable feet allowing for easy levelling and stabilisation on uneven surfaces. These feet can be raised or lowered to ensure the structure is properly aligned, providing a secure and balanced foundation.

Specifications

General

Entry Door Lockable aluminium entry door
Windows Aluminium double-glazed windows
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Glass-wool insulation, galvanised & painted steel
Walls 50mm EPS Panels
Floor Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Frame

Sub-Floor Steel Chassis 150x100 Rectangular Hollow Section (RHS)
Steel Post 150x150 Square Hollow Section (SHS)
Steel Floor Bearer 70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist 50x30 Rectangular Hollow Section (RHS)
Coating Expoxy coated and painted in gloss

Installation

Instructions Unfolding instructions and video provided for the Expander
DIY Express Portable Expanders are customer DIY installations
Footing Plans Footing Plans supplied by Express Portables
Electrical & Plumbing The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work

Transport

Crane Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/ Semi-Trailer Customer is required to organise a forklift unload or crane unload

Internal Walls

Interior Walls 50mm EPS Panel with an off white finish

External Walls

Walls 50mm EPS Panel Walls
Entry Lockable entry door

Roof

Gas Struts Gas struts installed to assist with opening roof
Exterior Panels 50mm EPS panels on outside folding roof panels with a 3mm plate over the main body

Flooring

Sub-Floor 3mm anti-slip and wear-resistant soft PVC floor and 20mm fireproof board
Top Layer 2mm vinyl timber pattern - Grey or Brown

Electrical

PowerPoints PowerPoints installed to the centre body only
Lighting Lights installed to the centre body only
Switchboard 240v switchboard is installed

Council Compliance

Council Approval Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates Structural engineering and plumbing certificates are not provided with the purchase

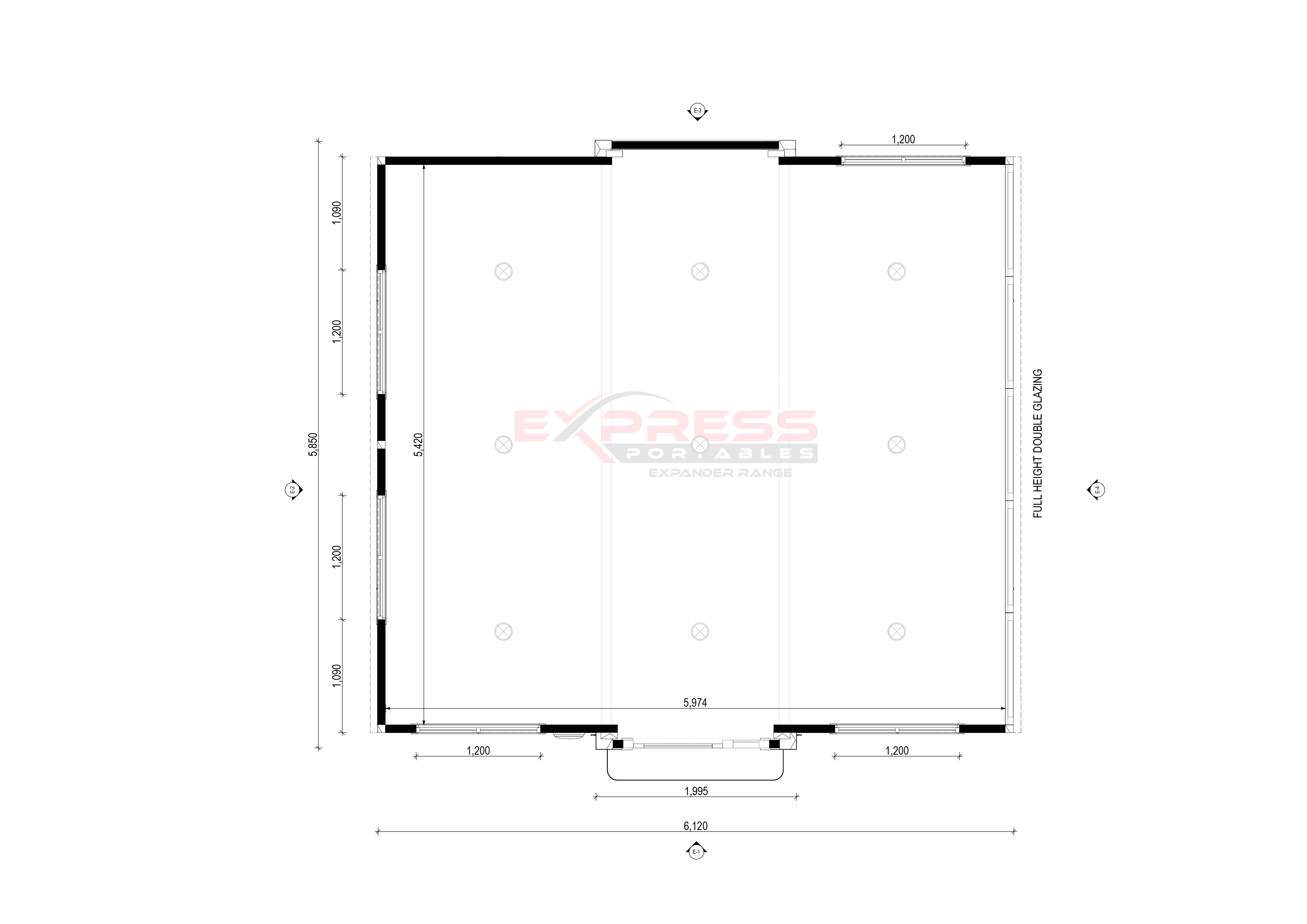

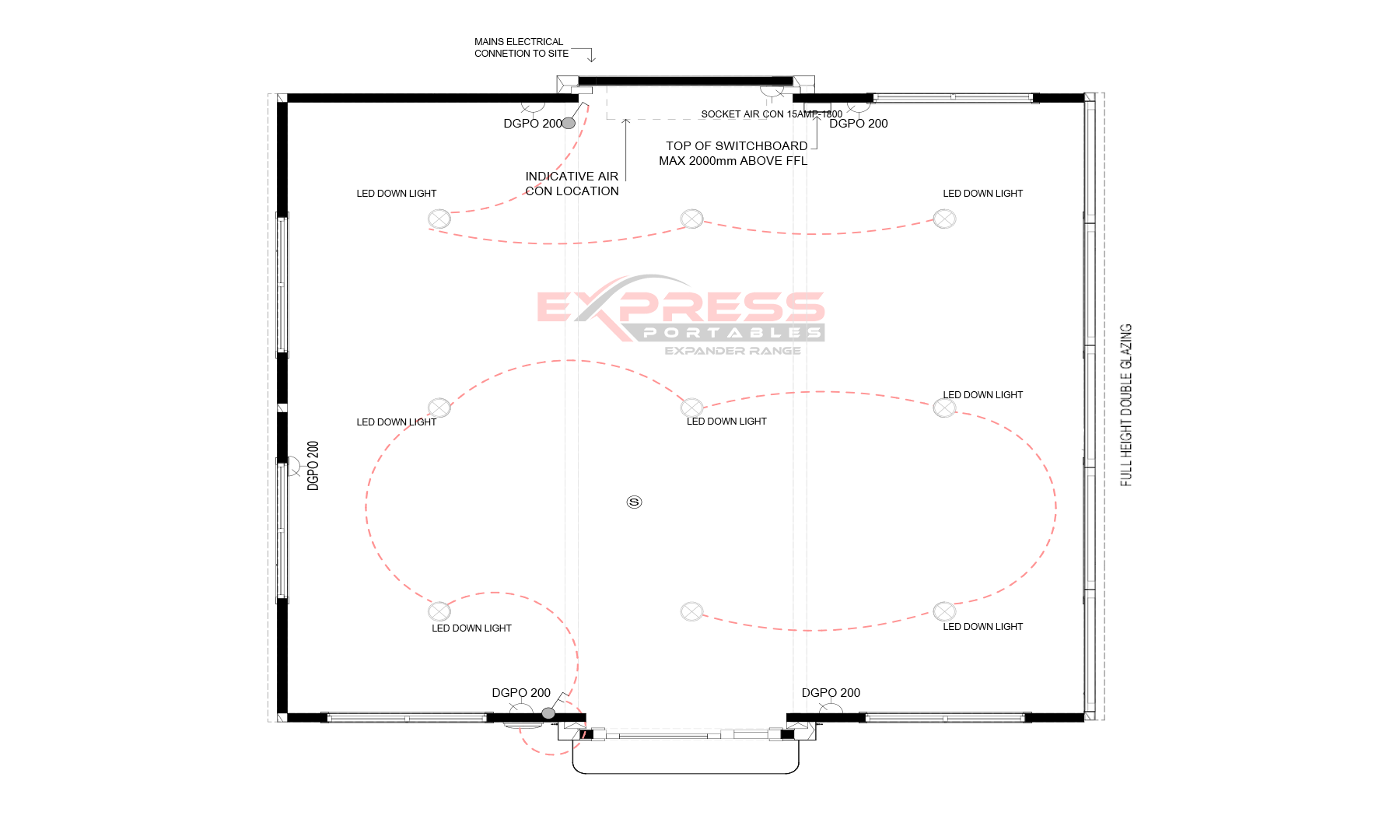

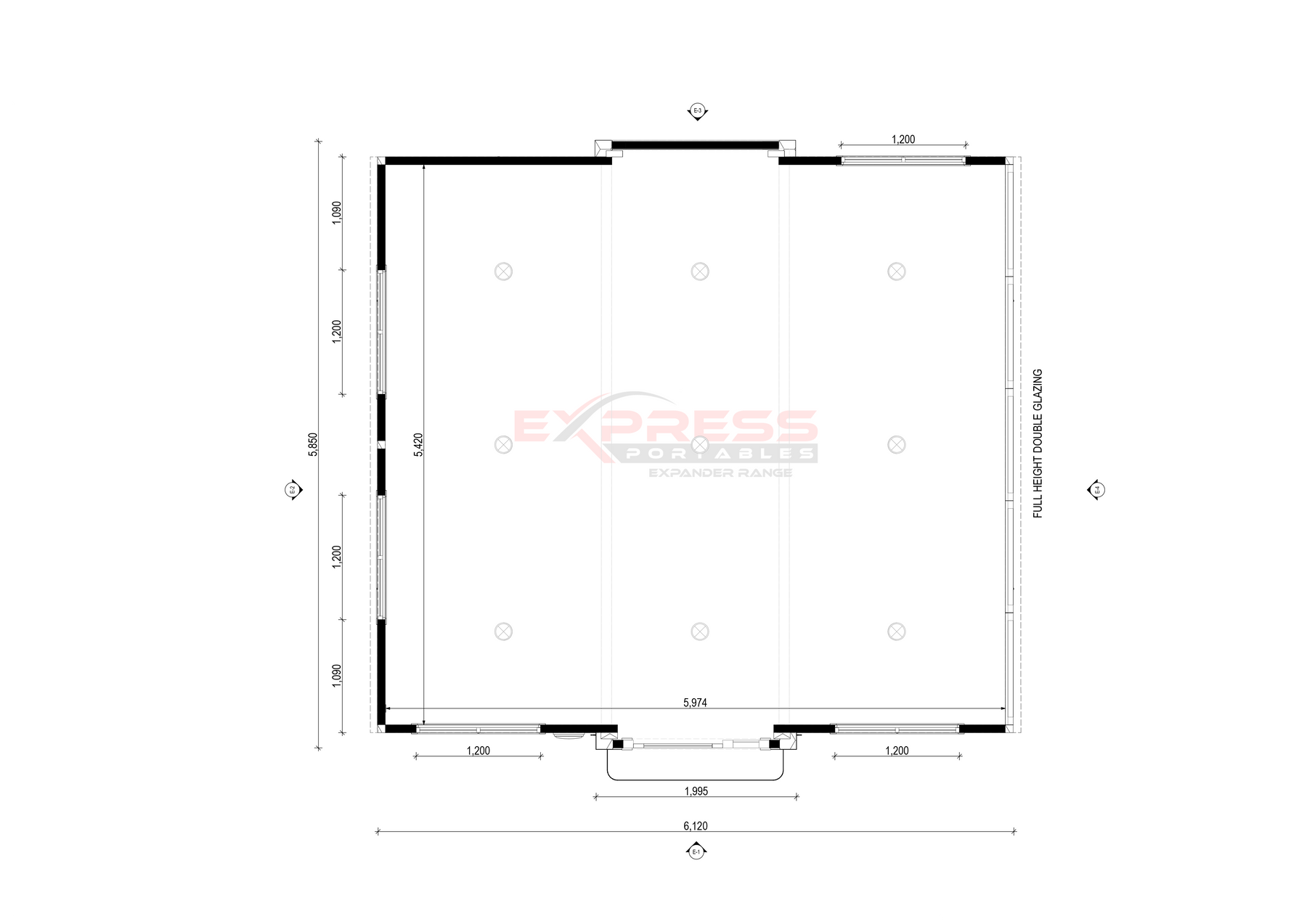

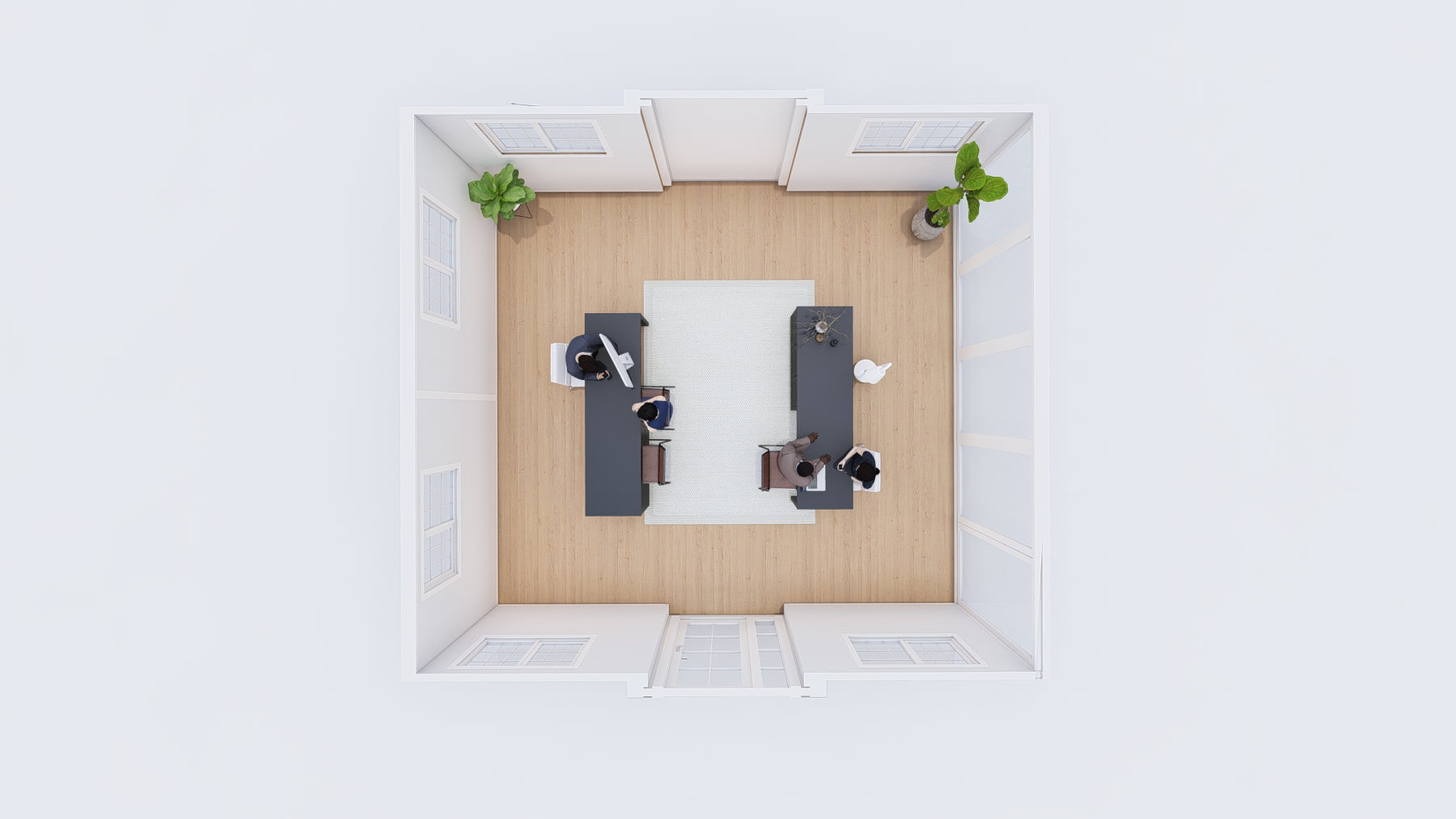

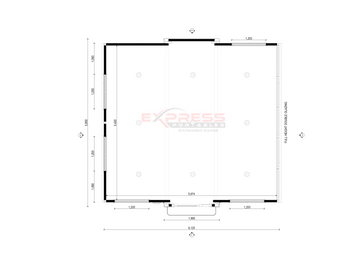

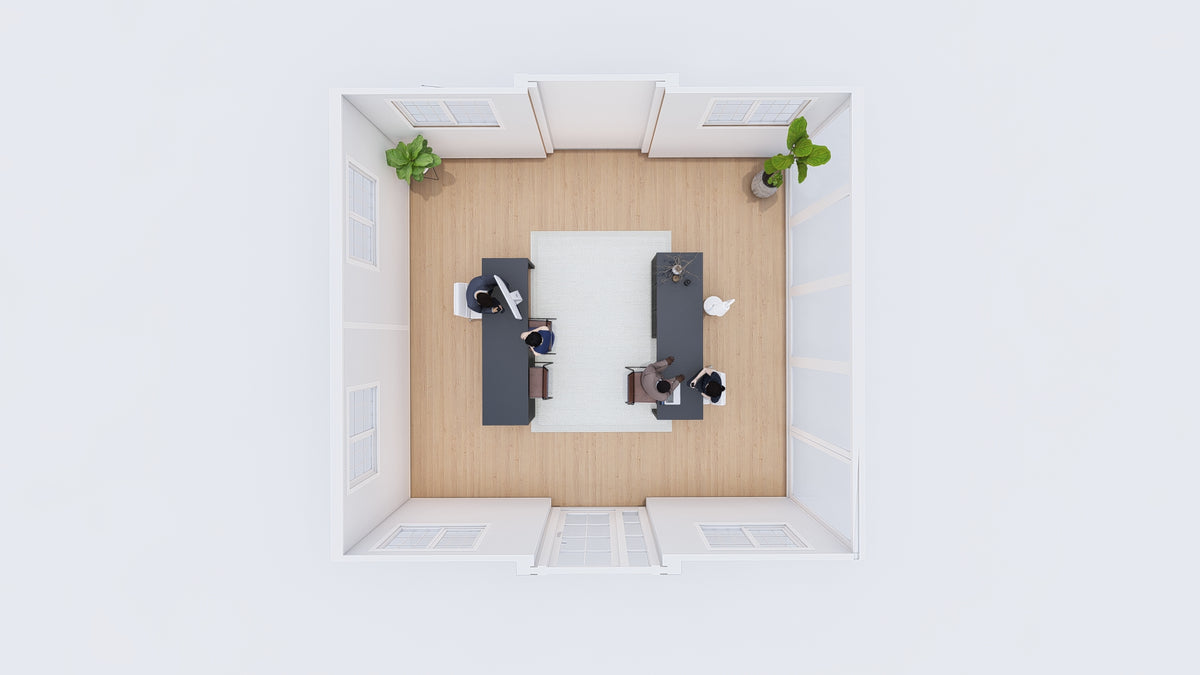

Floor & Electrical Plans
