Description
Description

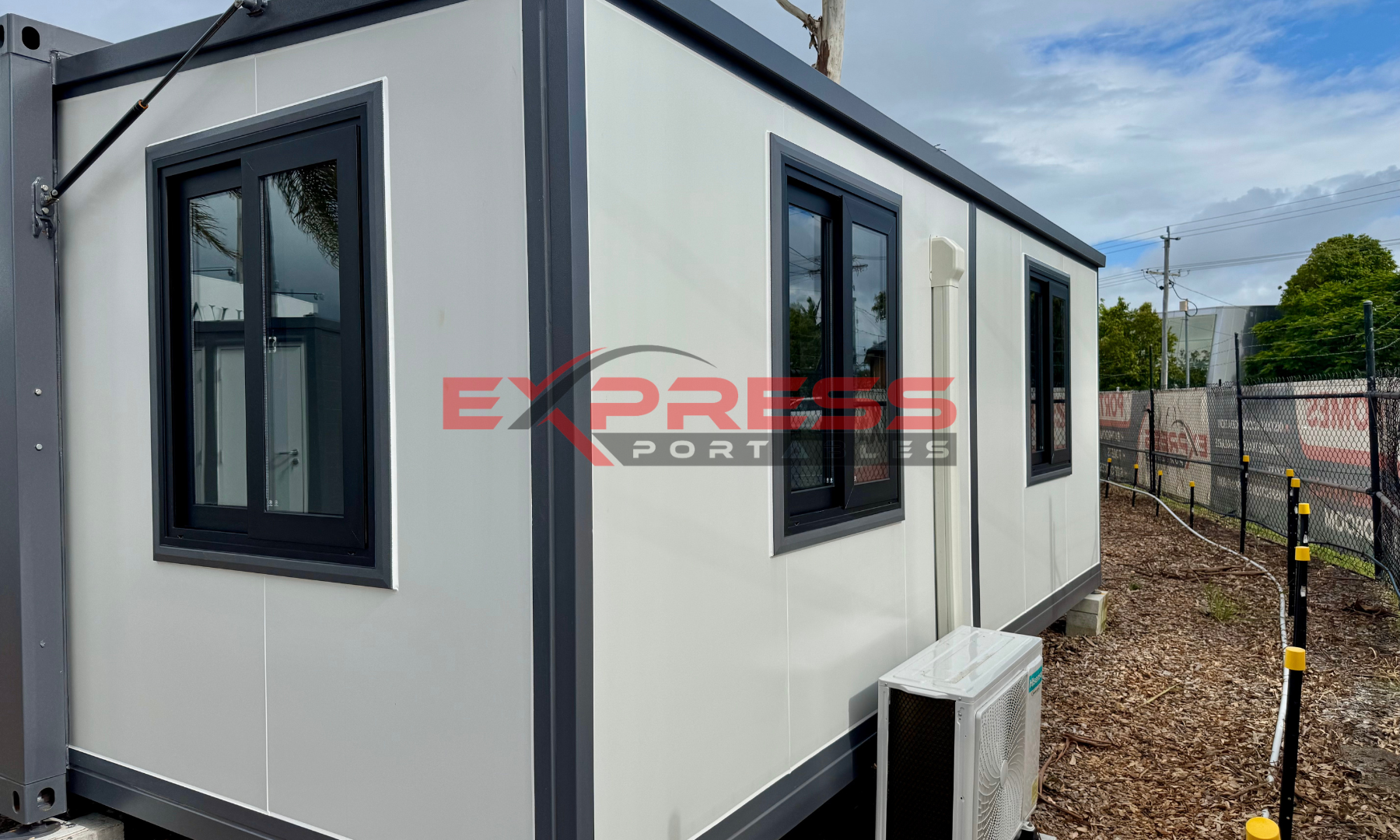

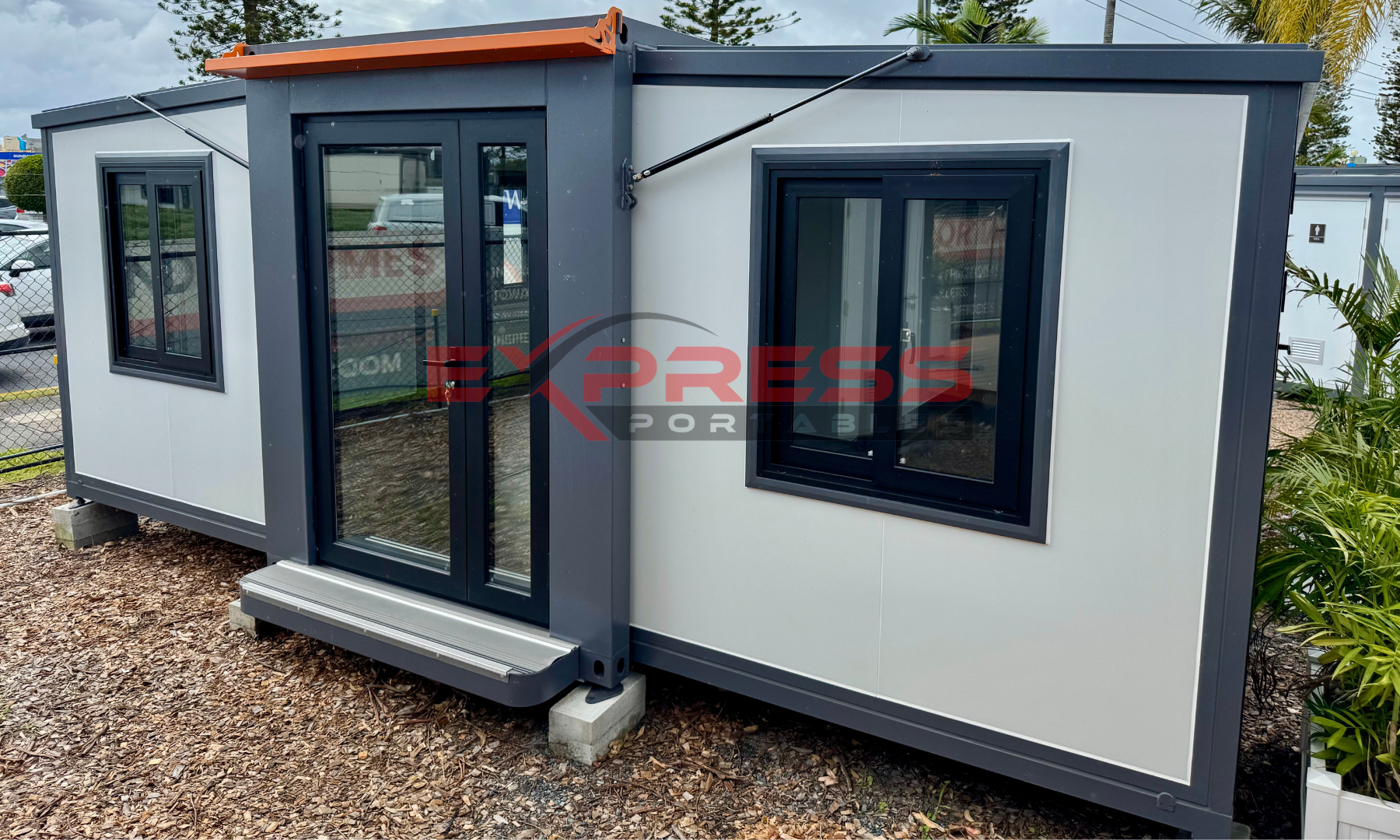

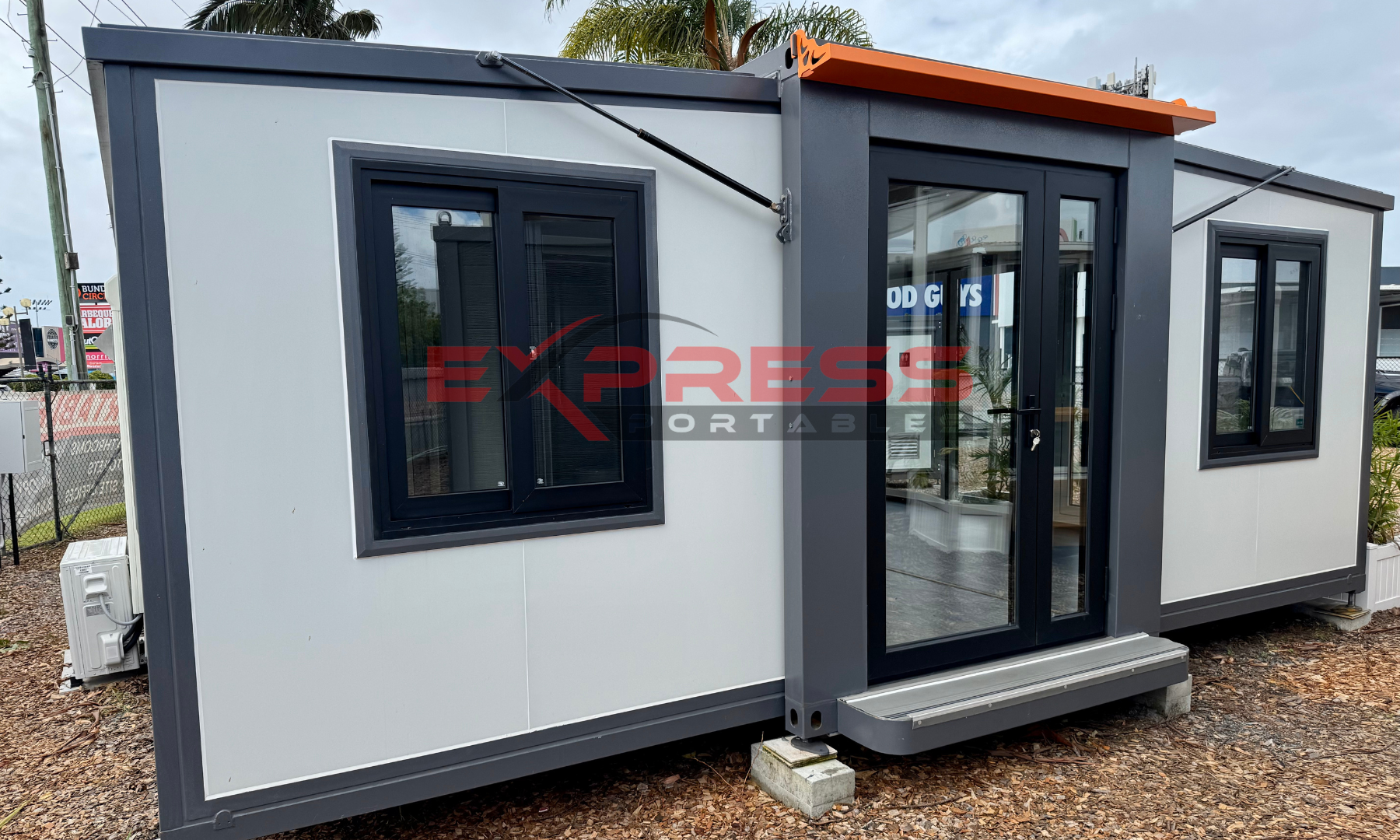

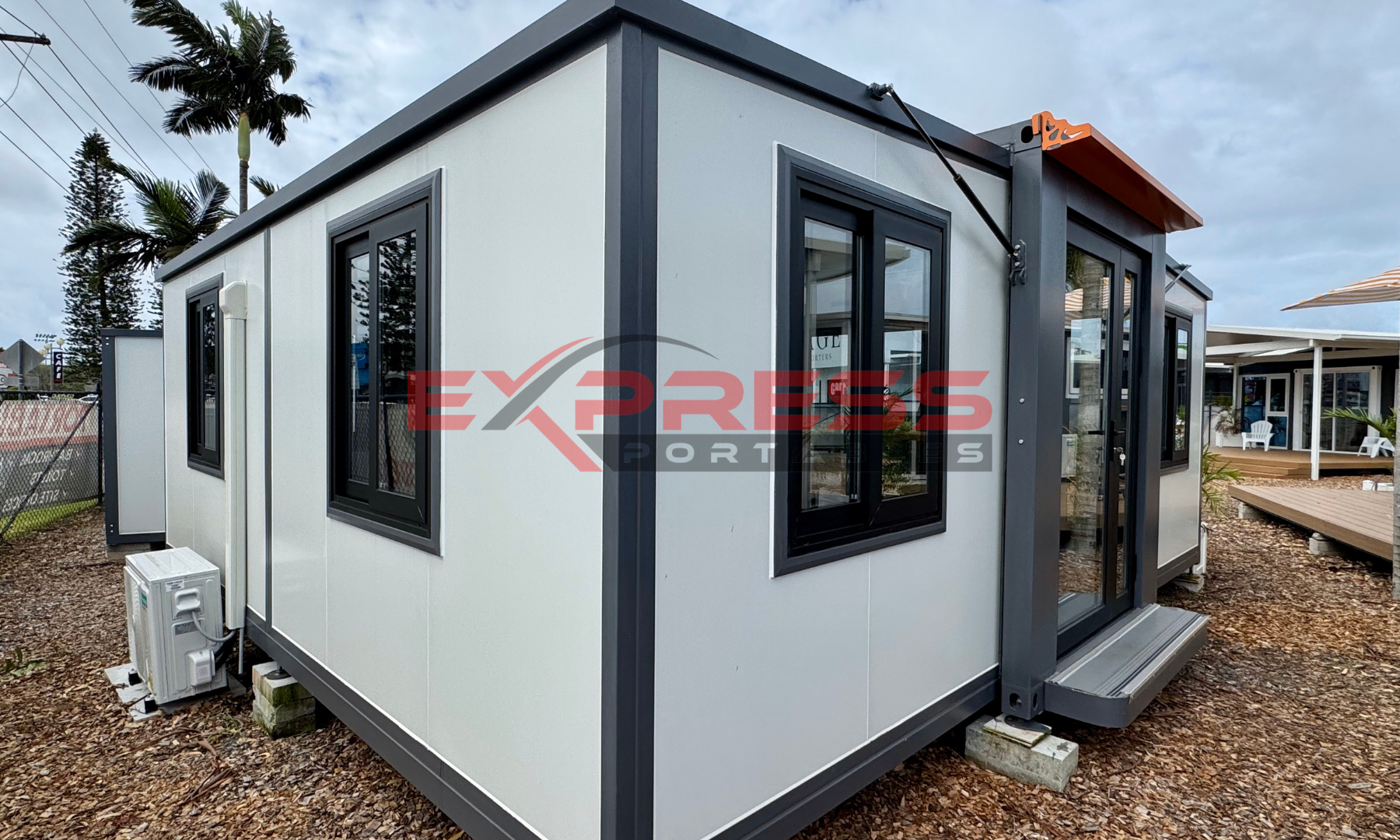

The 35m² Portable Expander has been constructed using a structural steel frame which has been epoxy treated & acrylic painted (dark grey) to help protect against corrosion. The sub-floor is a 16mm magnesium concrete composite which is water, rot, and insect resistant, topped with with a 2mm vinyl timber pattern available in either grey or brown, adding both aesthetic charm and practicality to the flooring.

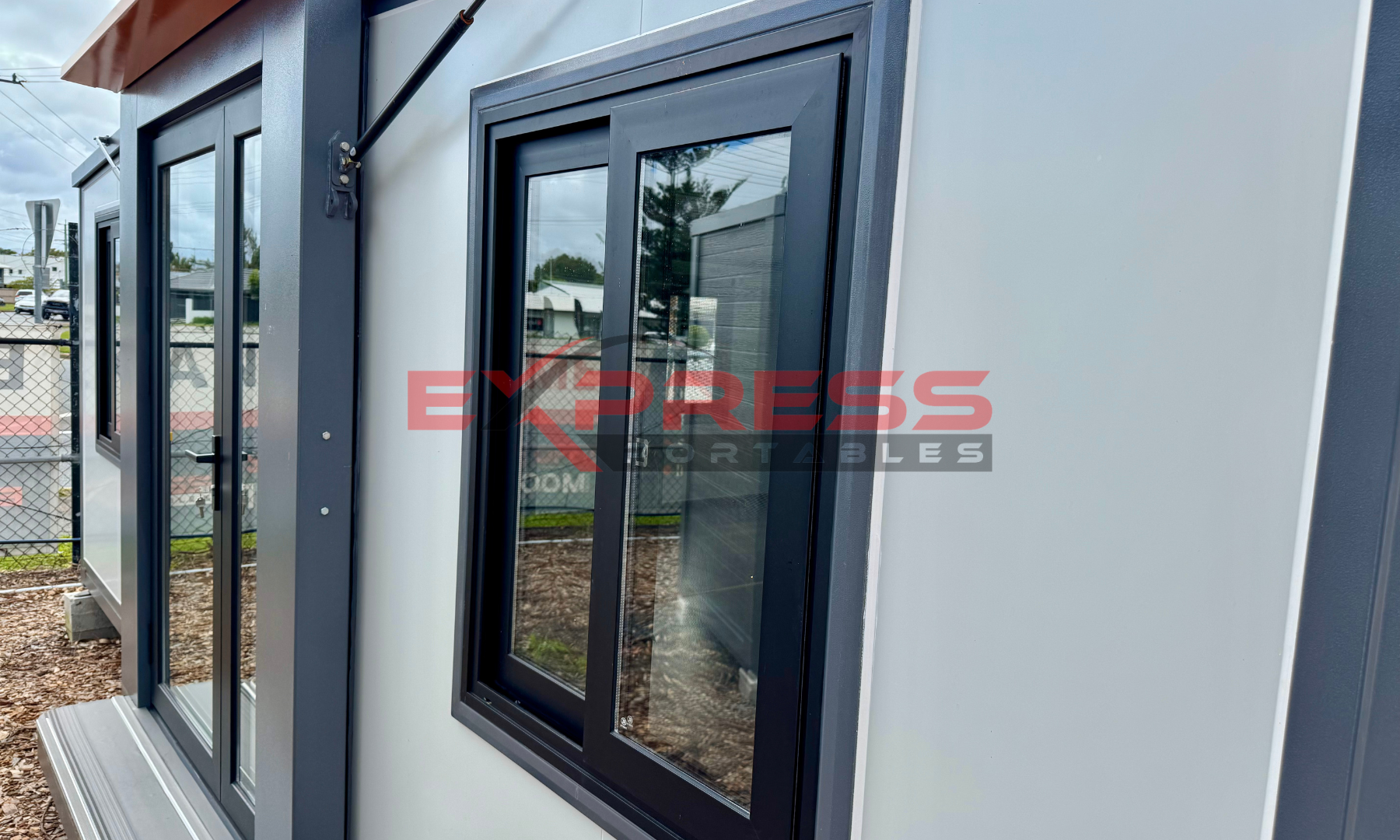

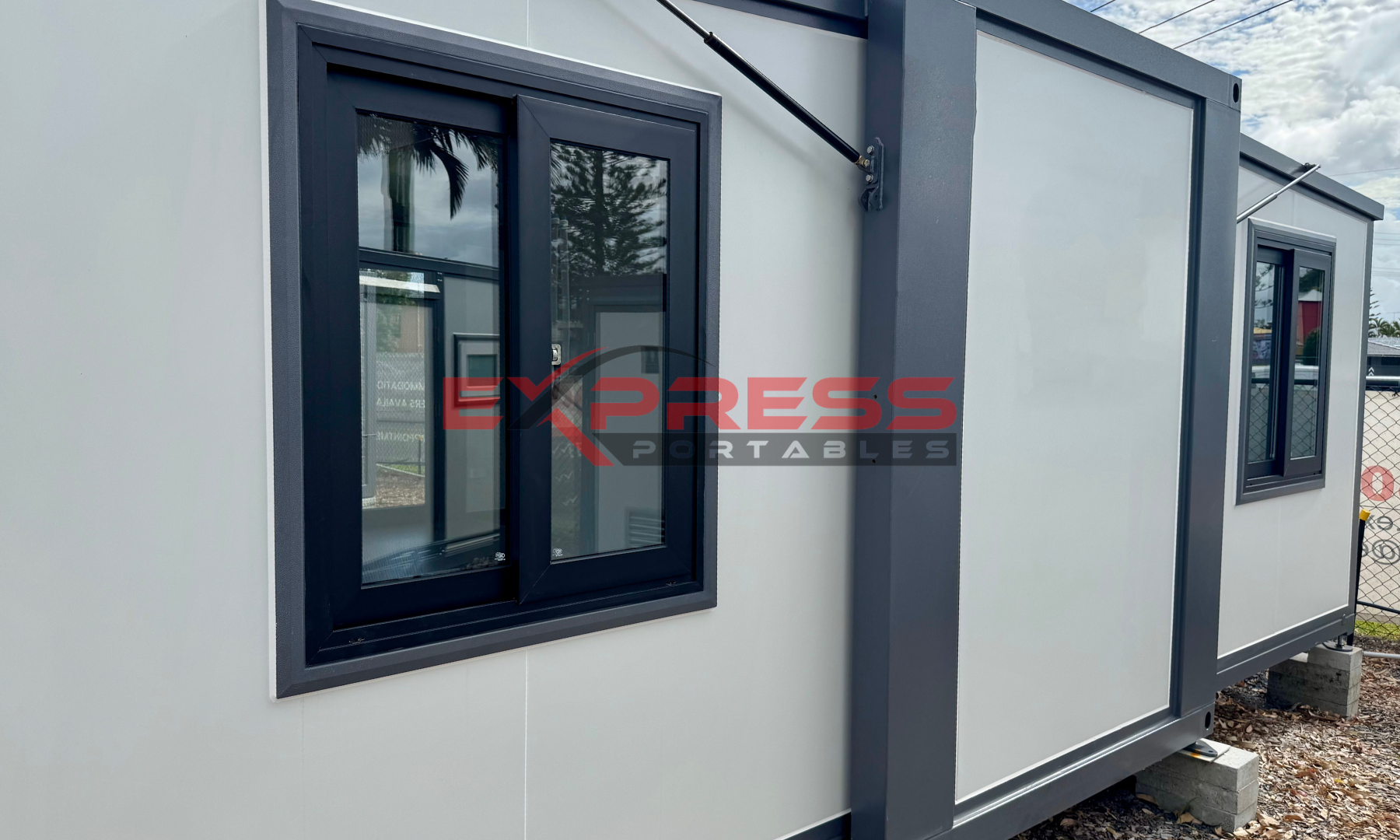

The walls are manufactured using 50mm Expanded Polystyrene (EPS) panels with an off-white finish on the interior. Built in to the EPS panel walls are double-glazed windows with a decorative cottage feature, supported by aluminium frames with sliding PVC panes. The glass side option consists of 5 fixed double-glazing panels in a black aluminium frame.

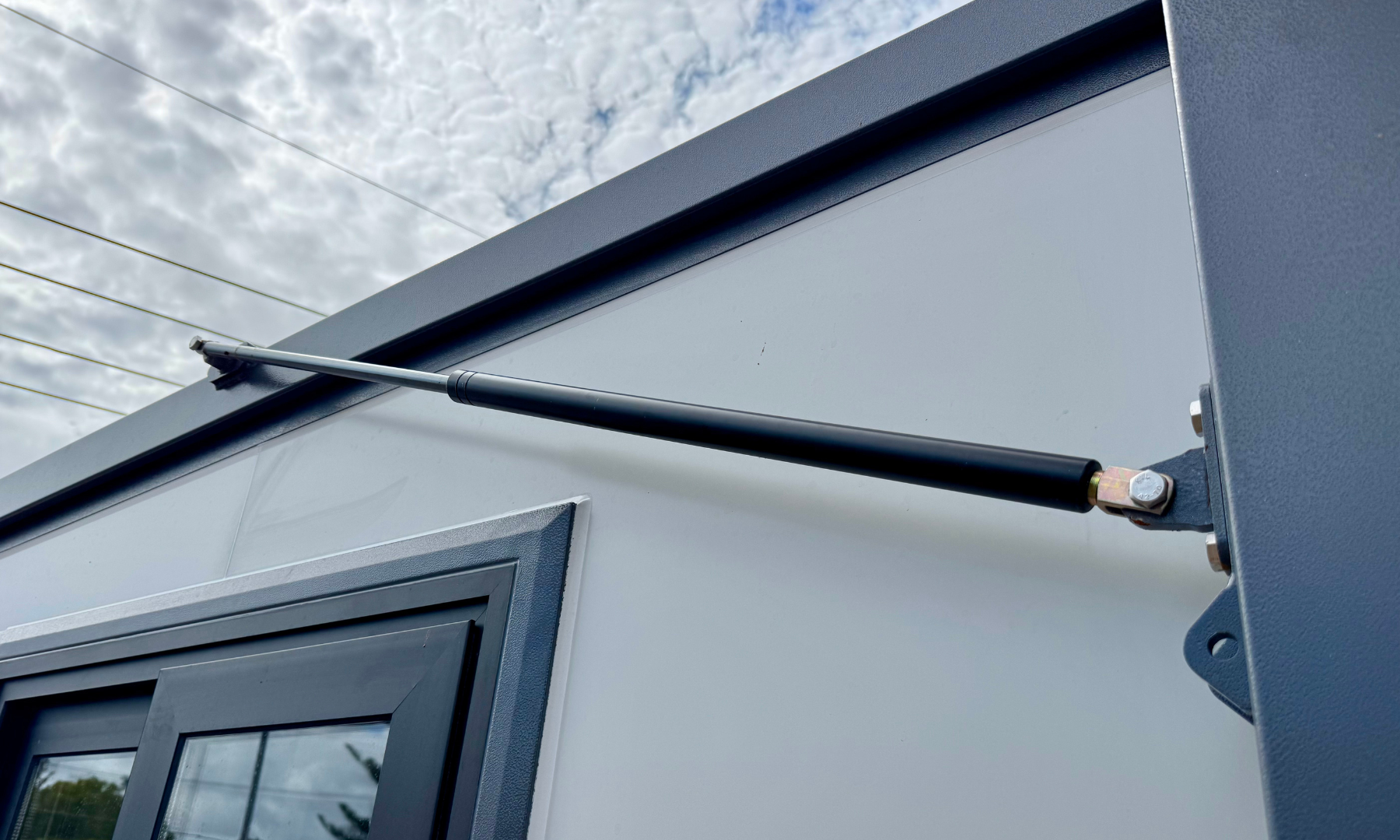

Please Note: Gas struts are also attached to the roof of the folded building, assisting with the unfolding process. These gas struts can then be removed once the building has been unfolded.
Dimensions
Dimensions
Weight
Weight
Ask a question
Ask a question

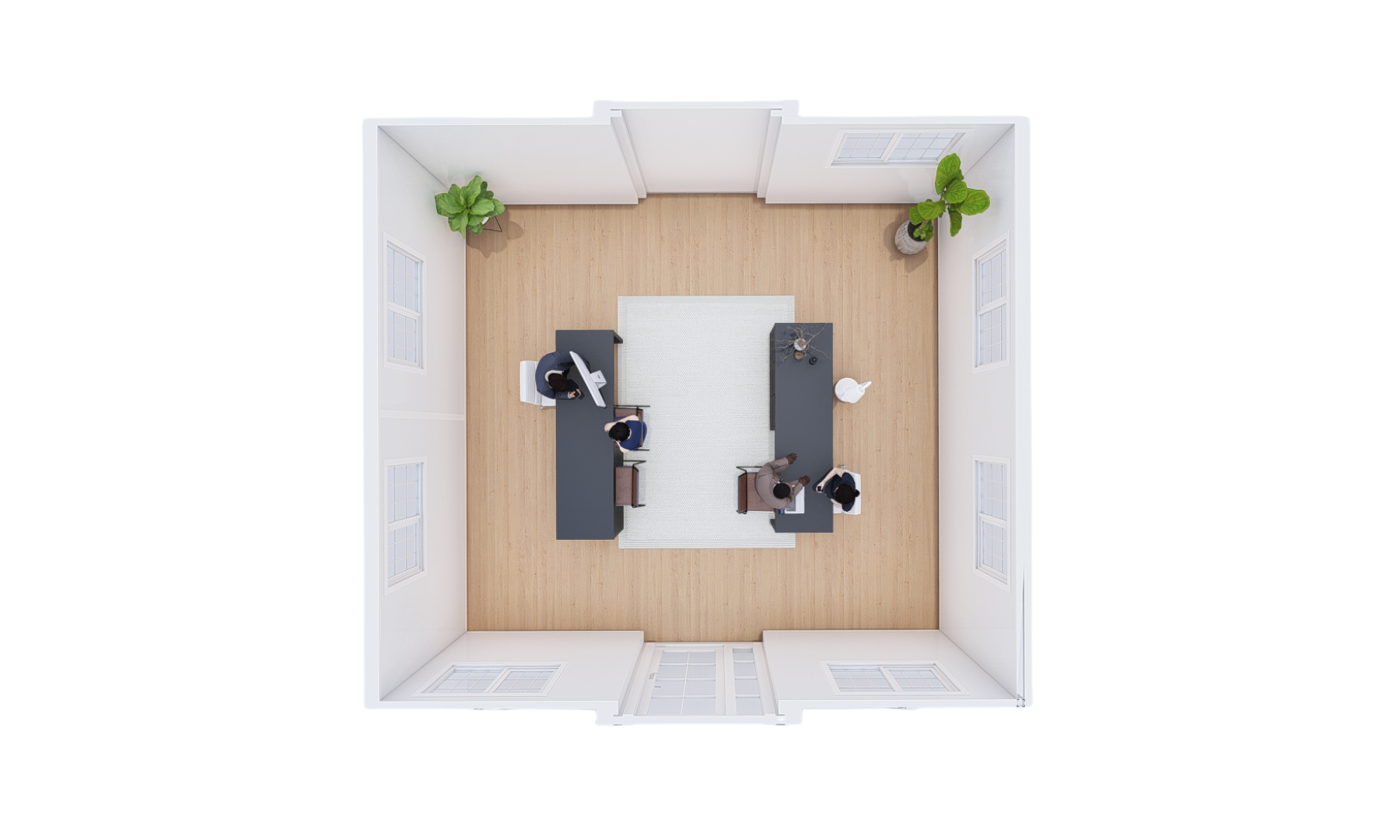

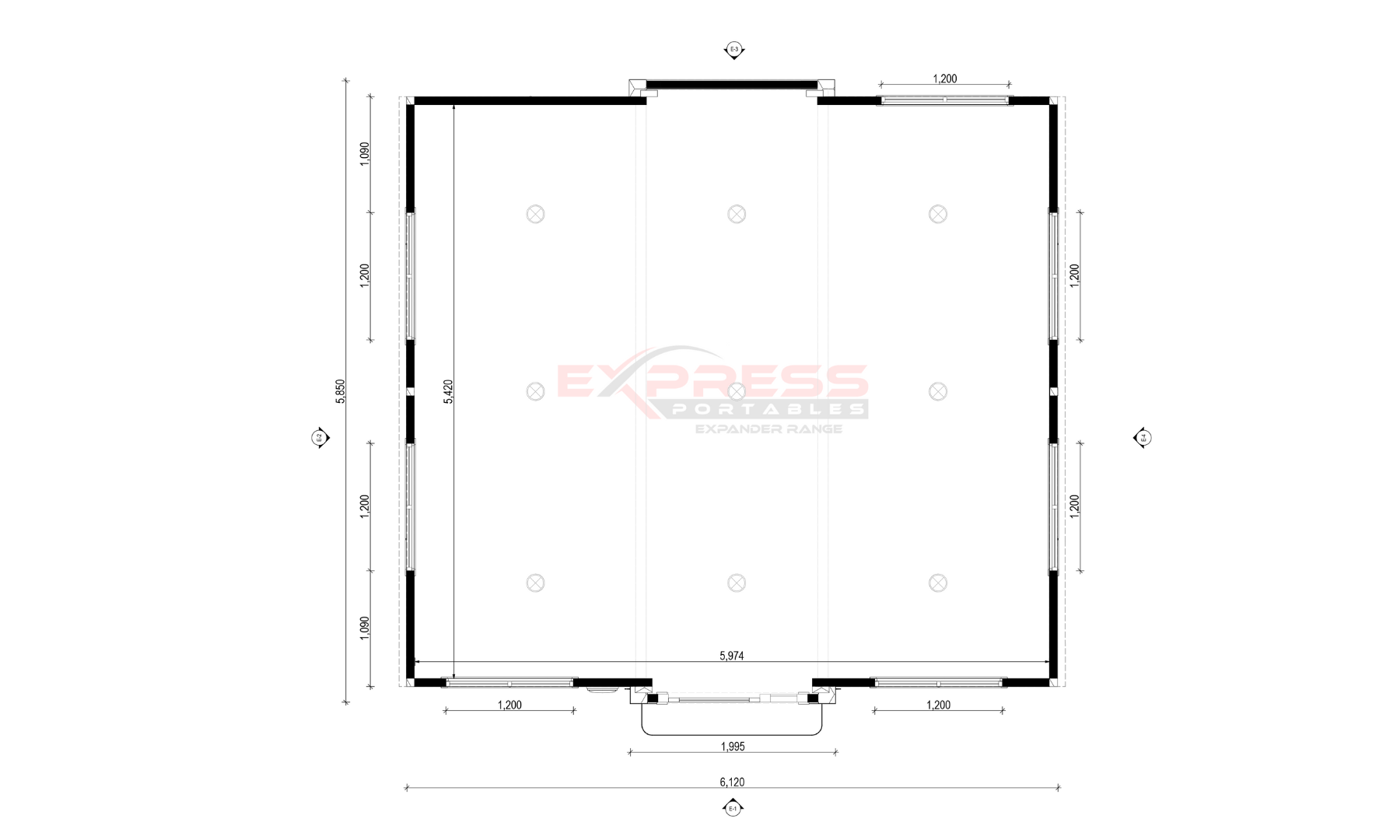

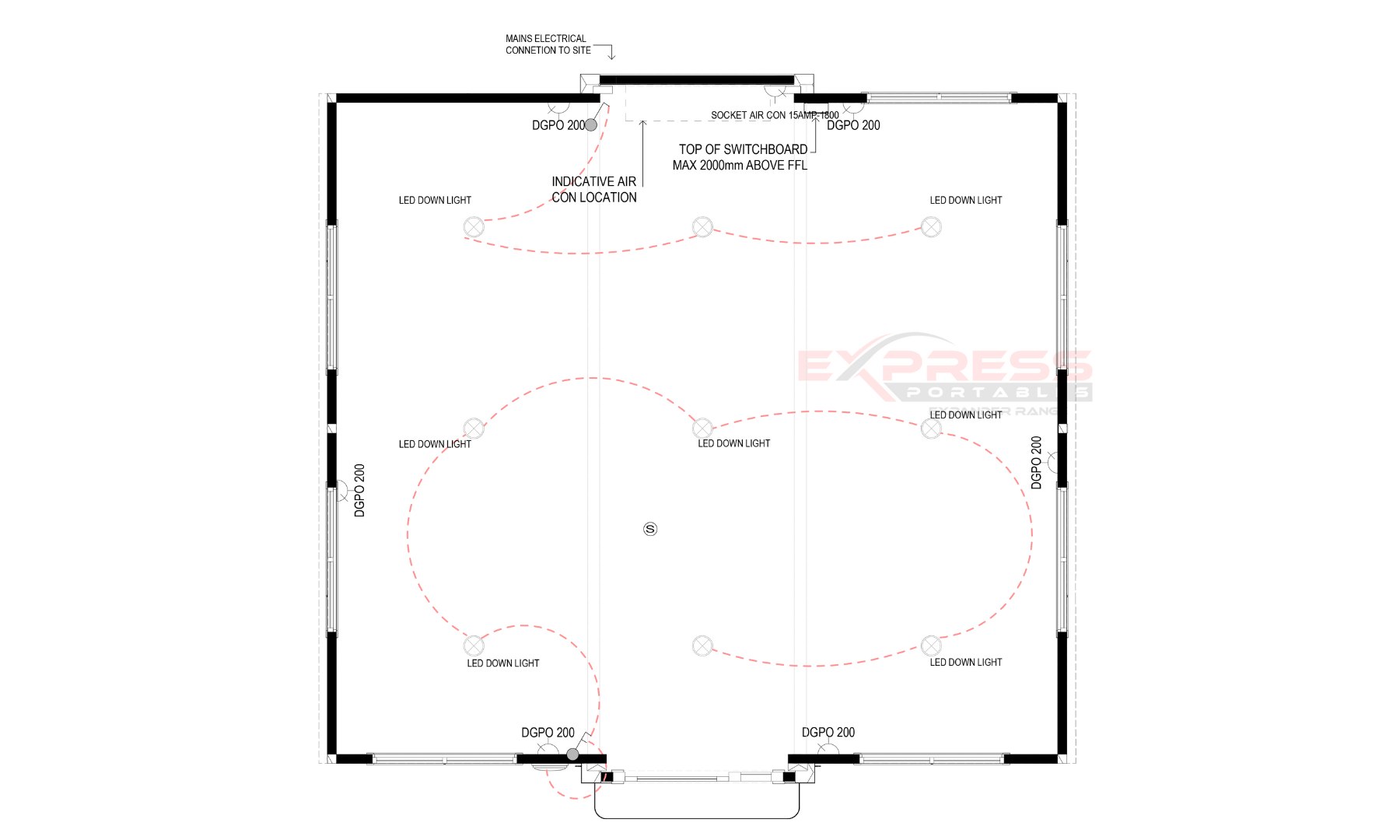

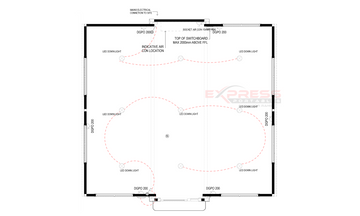

Floor & Electrical Plans
Specifications
General

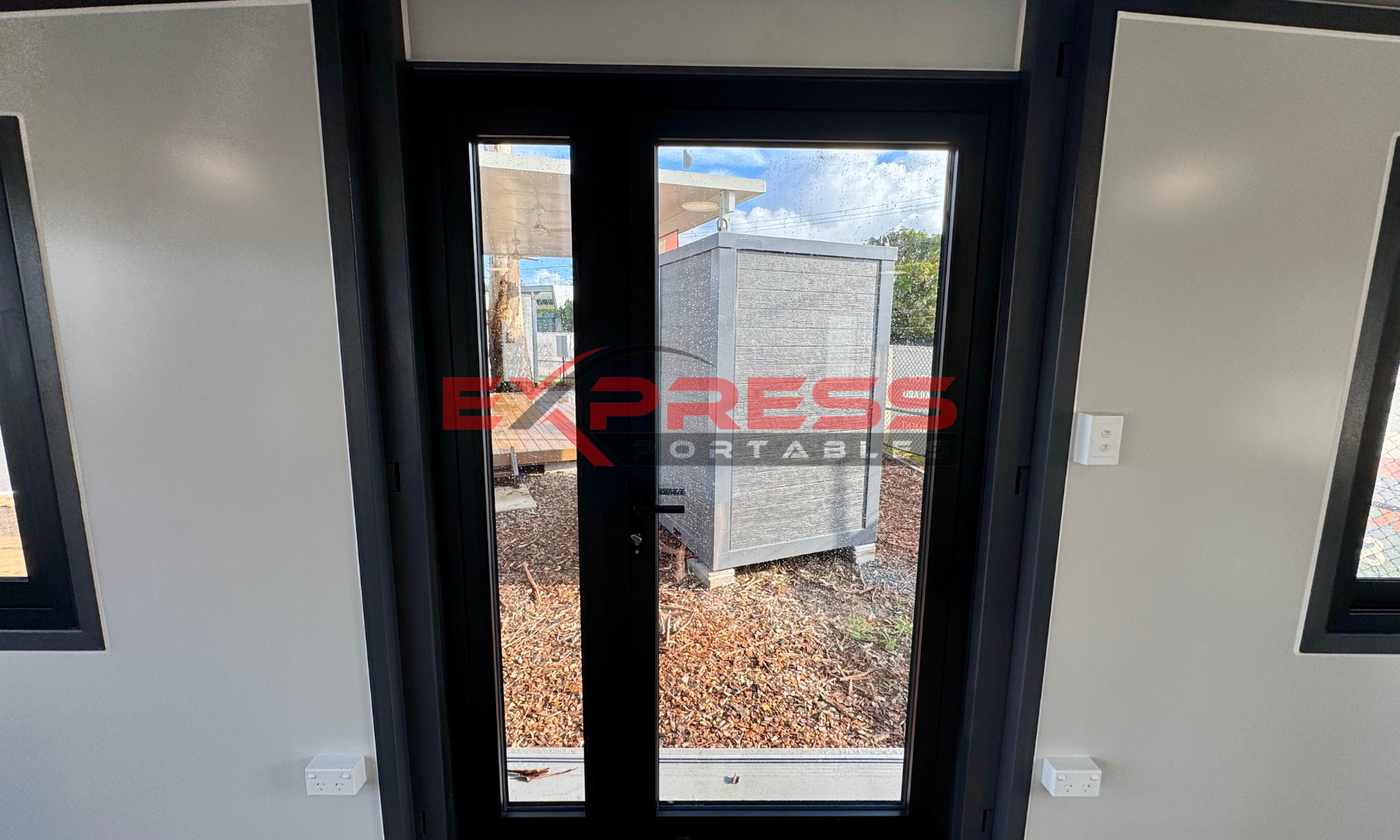

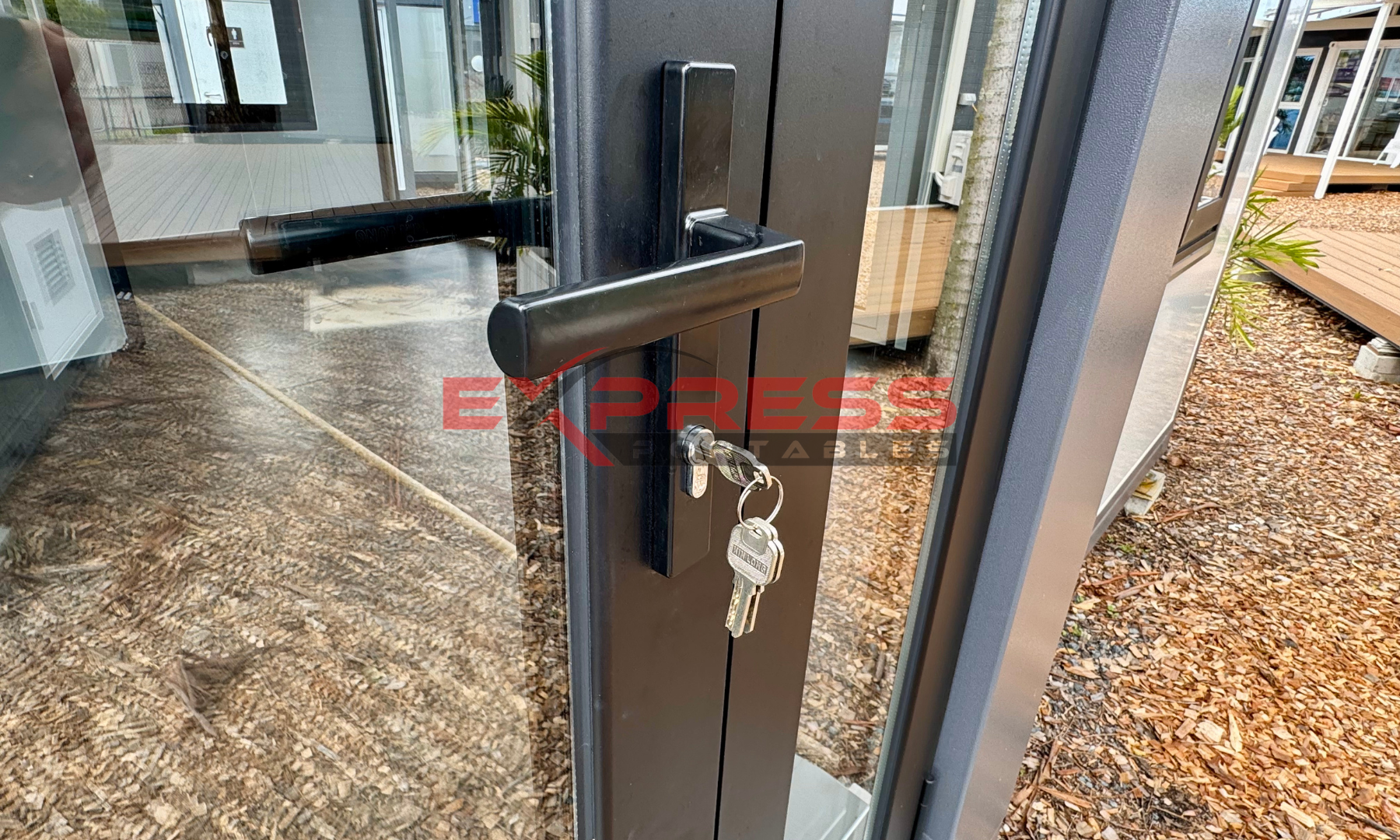

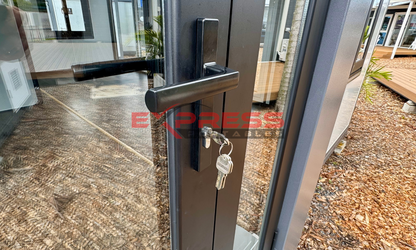

Entry Door

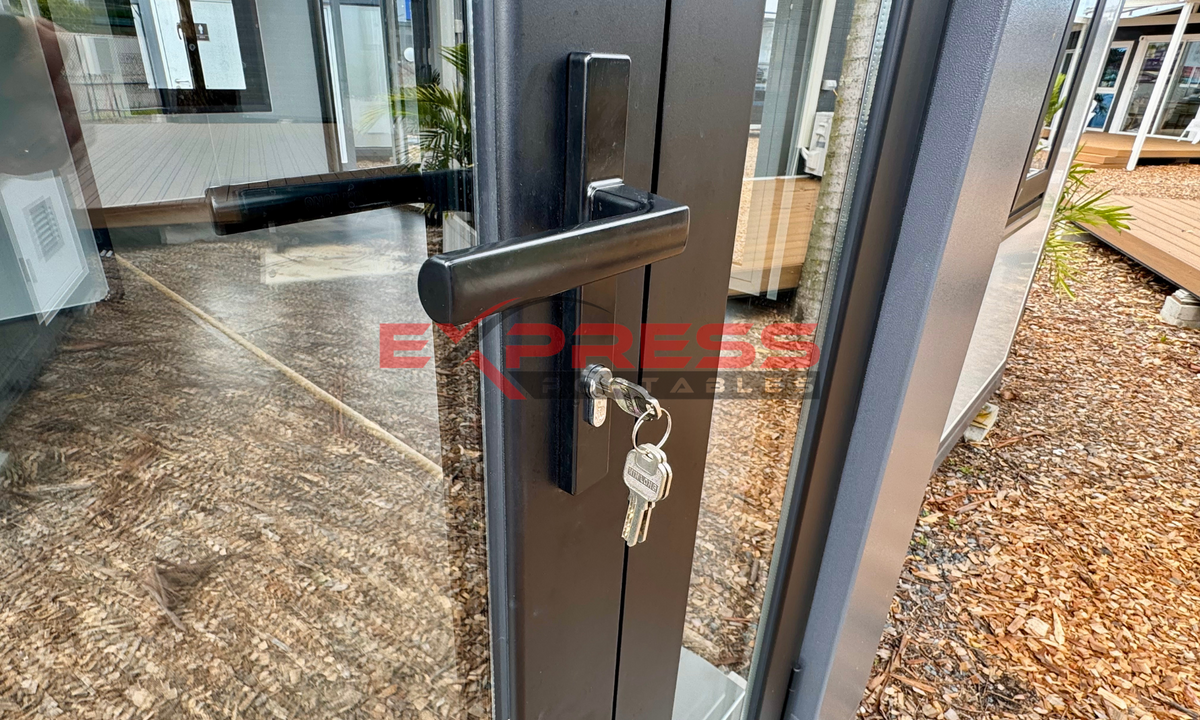

Sliding glass and lockable aluminium entry door

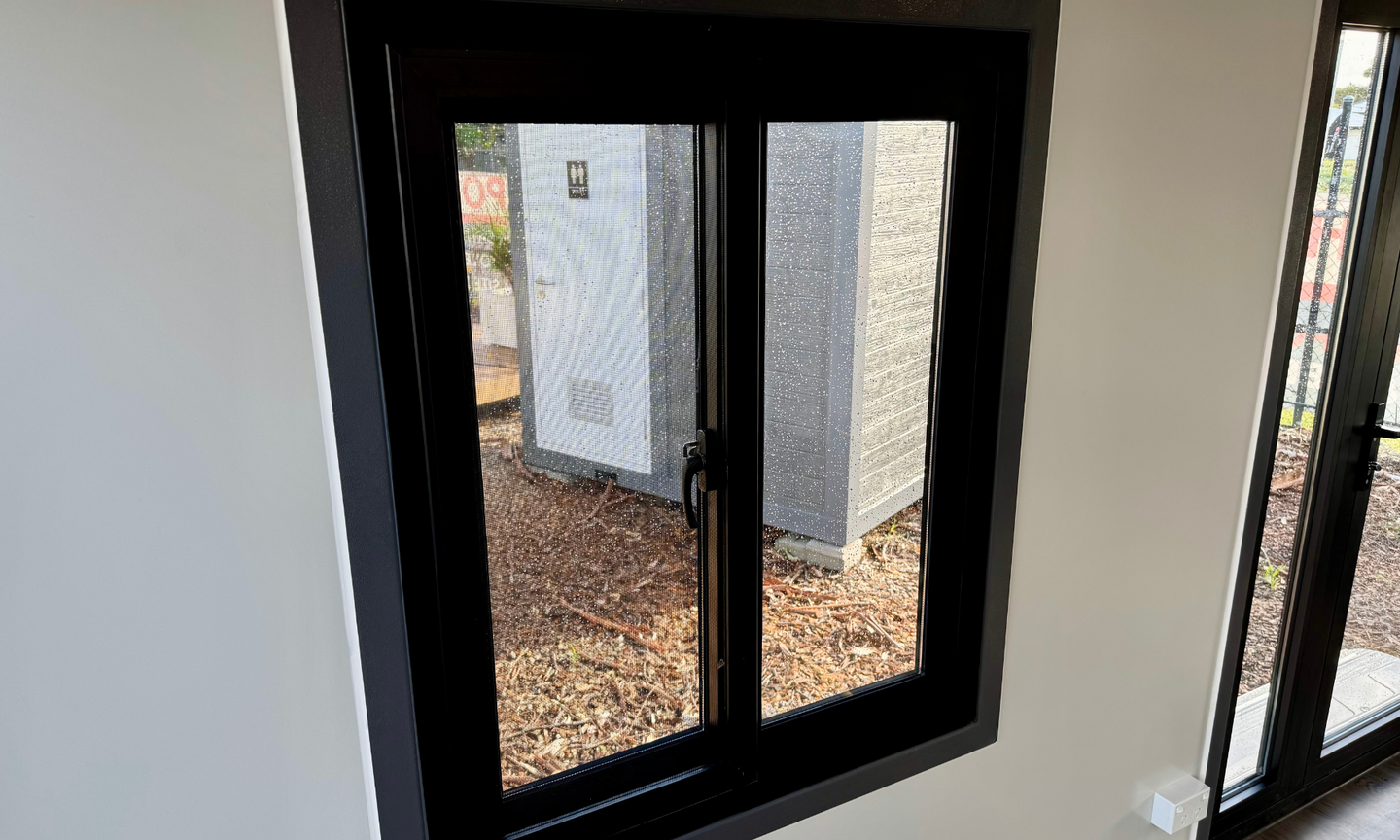

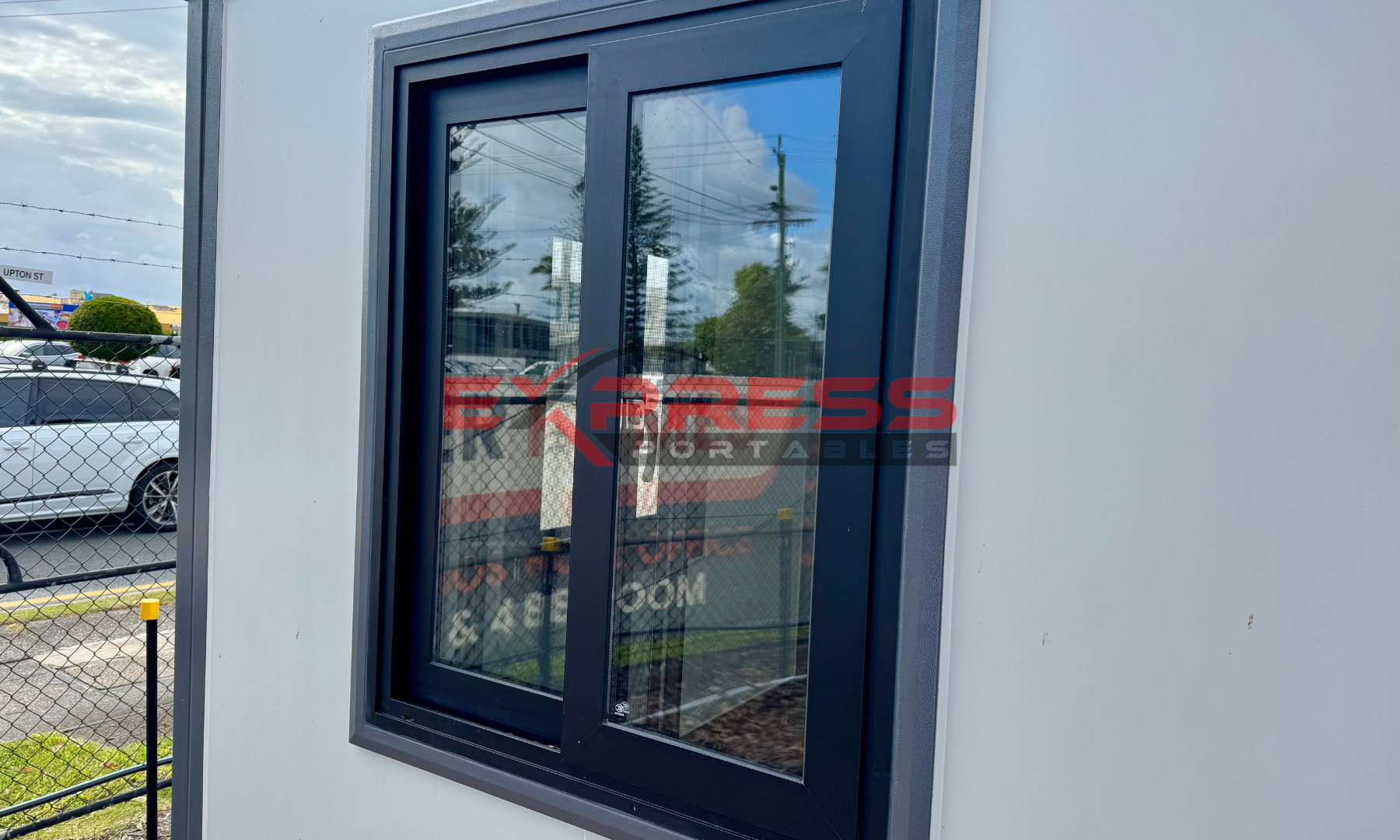

Windows
Aluminium double-glazed windows with PVC Panes
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS Panels with option of glass side wall
Floor
Water & insect resistant magnesium concrete composite

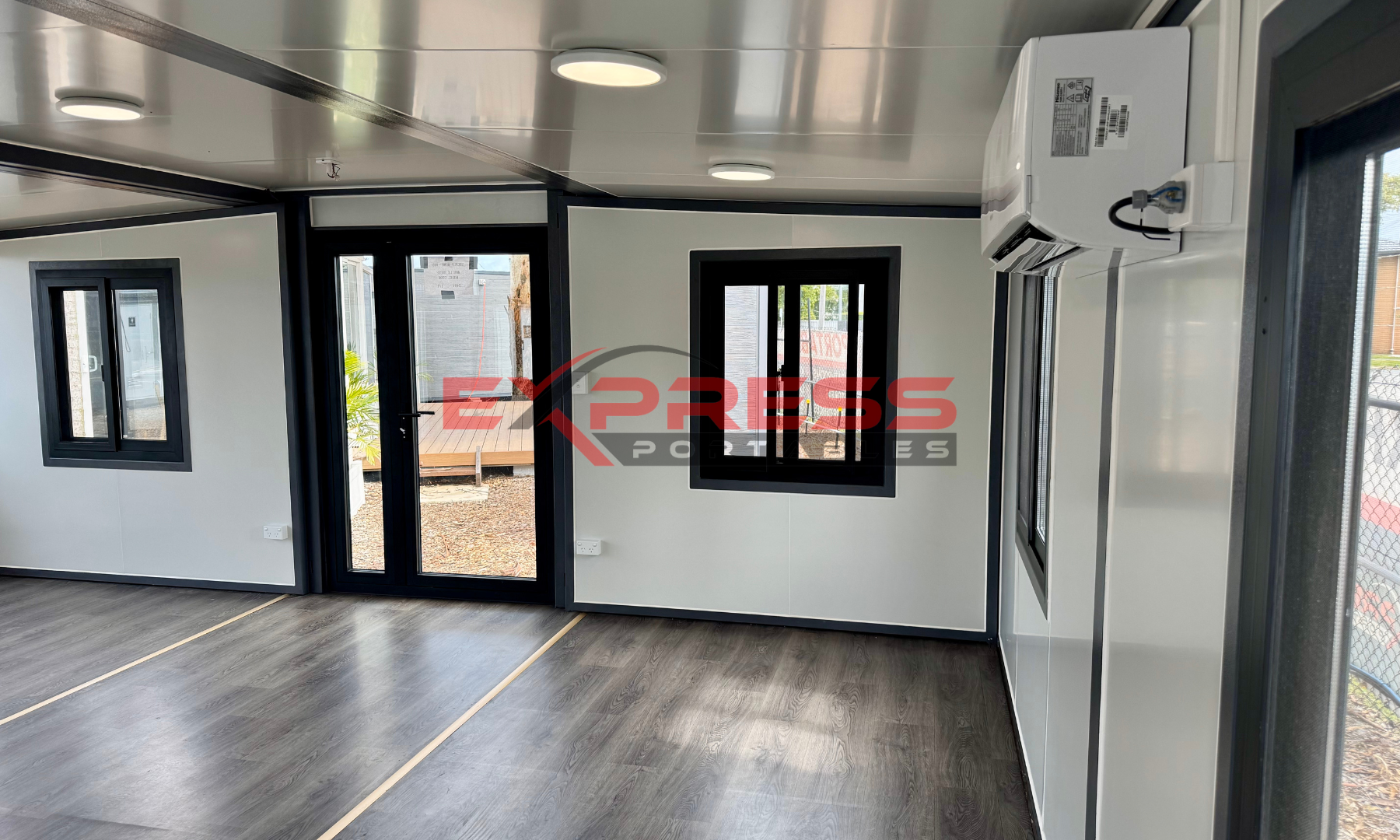

Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Entry
Sliding glass and lockable aluminium entry door
General
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with PVC Panes
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS Panels with option of glass side wall
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Frame
Sub-Floor Steel Chassis
150x100 Rectangular Hollow Section (RHS)
Steel Post
150x150 Square Hollow Section (SHS)
Steel Floor Bearer
70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist
50x30 Rectangular Hollow Section (RHS)
Coating
Expoxy coated and painted in gloss
Installation
Instructions
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations

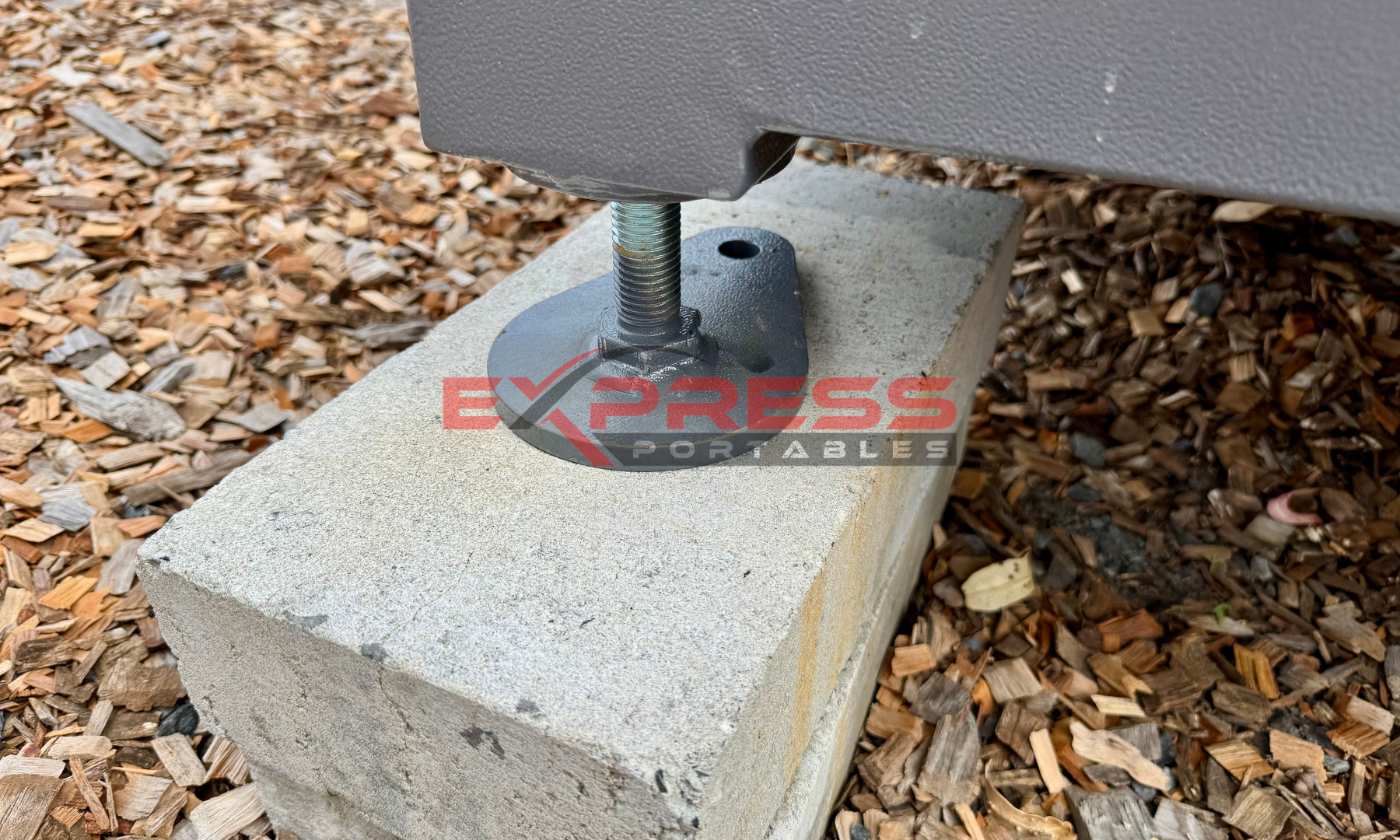

Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/ Semi-Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Interior Walls
50mm EPS Panel with an off white finish
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Entry
Sliding glass and lockable aluminium entry door
Roof
Gas Struts
Gas struts installed to assist with opening roof
Exterior Panels
50mm EPS panels on outside folding roof panels with a 3mm plate over the main body
Flooring
Sub-Floor
Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer

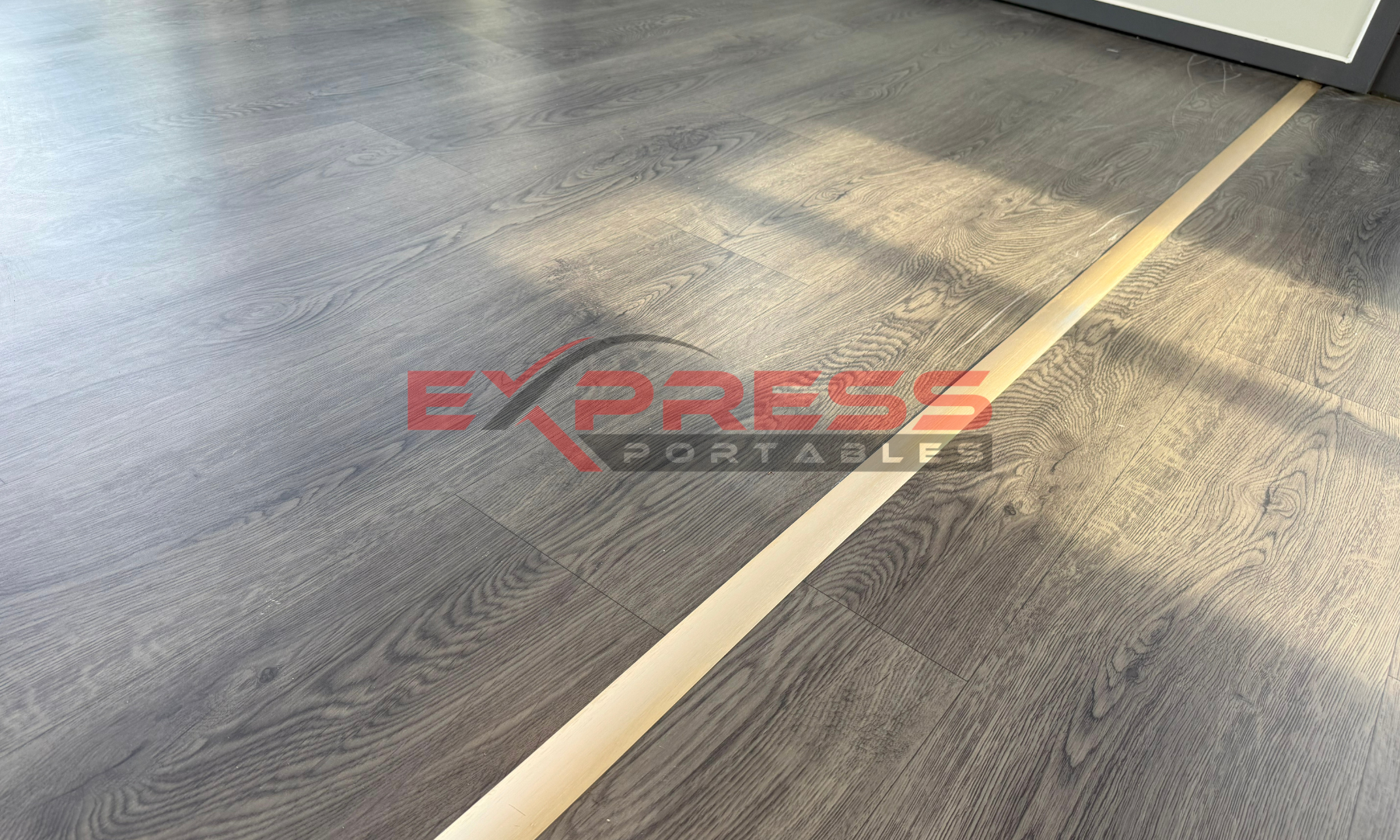

2mm vinyl timber pattern - Grey or Brown
Electrical
PowerPoints
PowerPoints installed to the centre body only
Lighting
Lights installed to the centre body only
Switchboard
240v switchboard is installed
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
