Specifications
General Overview
Entry Door
Lockable glass entry door
Windows
Aluminium framed windows
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame and posts
Roof
Glass-wool insulation, galvanised & painted steel
Walls
50mm EPS Panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows with sliding PVC panes (pre-installed on folding panels)
Glass
Double-glazed windows
Type
Decorative cottage feature windows
Doors
Entry
Sliding glass and lockable aluminium entry door
Locks
Locks on all doors
Bathroom
Privacy glass bathroom door
General Overview
Entry Door
Lockable glass entry door
Windows
Aluminium framed windows
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame and posts
Roof
Glass-wool insulation, galvanised & painted steel
Walls
50mm EPS Panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Frame
Sub-Floor Steel Chassis
150x100 Rectangular Hollow Section (RHS)
Steel Post
150x150 Square Hollow Section (SHS)
Steel Floor Bearer
70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist
50x30 Rectangular Hollow Section (RHS)
Castings
Corner castings on each corner (x4)
Coating
Expoxy coated and painted in gloss
Bathroom
Shower
Oversize shower with ABS base and glass sliding door
Toilet
Modern porcelain toilet with soft close seat
Sink
Porcelain hand basin with chrome mixer
Vanity
Porcelain vanity basin with shaving cabinet mirror storage
Walls
Decorative marble effect bathroom wall panels
Awning Window
Double glazed awning window with blind
Exhaust Fan
Located on back wall
Installation
Instructions
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations
Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt- Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Internal Walls
50mm EPS Panel with an off white finish
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows with sliding PVC panes (pre-installed on folding panels)
Glass
Double-glazed windows
Type
Decorative cottage feature windows
Doors
Entry
Sliding glass and lockable aluminium entry door
Locks
Locks on all doors
Bathroom
Privacy glass bathroom door
Flooring
Sub-Floor
Magnesium subfloor concrete composite – water, rot and insect resistant.
Top Layer
2mm vinyl timber pattern - Grey or Brown
Kitchen
Shape
L-shape kitchen installed
Window
Splashback window
Sink
Stainless steel double sink with mixer tap
Benchtop
White engineered stone benchtop
Provisional Space
Provisional space for fridge & free-standing cooker (not included)
Electrical
PowerPoints & Lights
240v prewired electrical power points, lights and switches

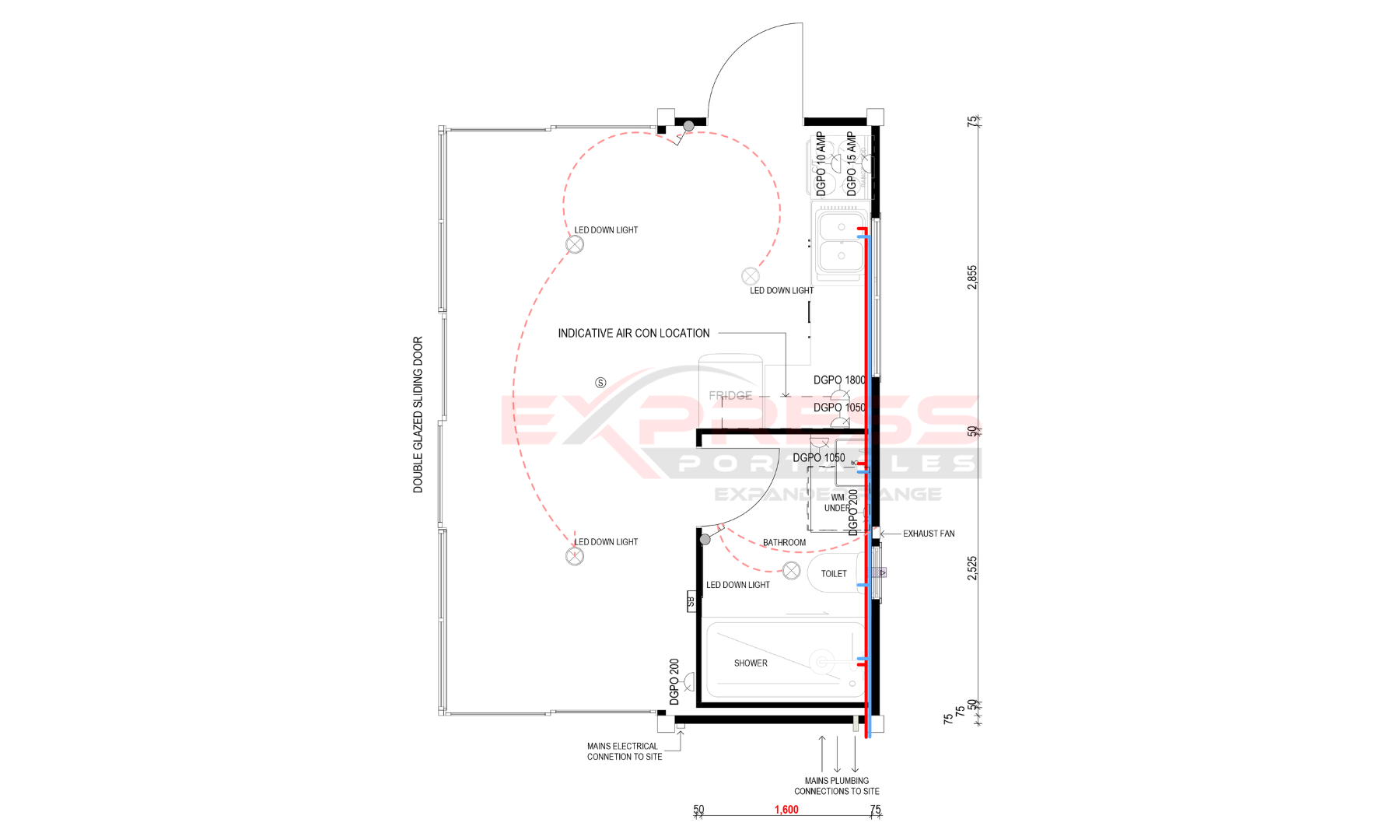

Electrical Plan
Electrical layout provided
Switchboard
Switchboard is located inside the building with site connection inlet provided on the rear wall of the building
Plumbing
Overview
Bathroom is pre-plumbed
Water, Waste & Sewer
Water, waste and sewer connection points are conveniently located outside on the rear wall
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
