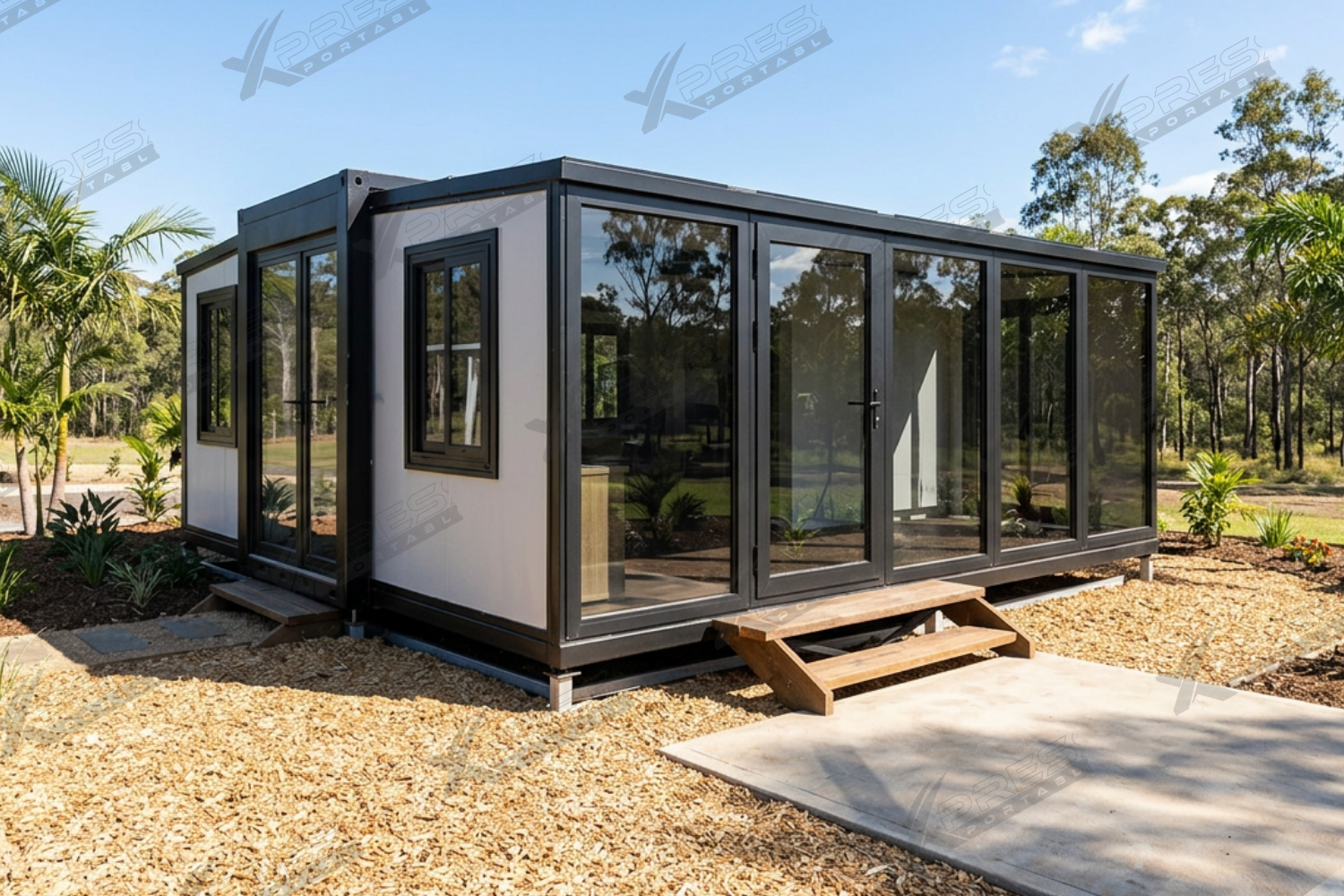

35m² Portable Expander - Middle Bathroom (Glass Side)

35m² Portable Expander - Middle Bathroom (Glass Side)

Regular price $25,900.00
Regular price
$25,900.00 (Incl. GST)
Sale price $25,900.00
(Incl. GST) Sale Sold out
Buy Now, Pay Later with Learn more

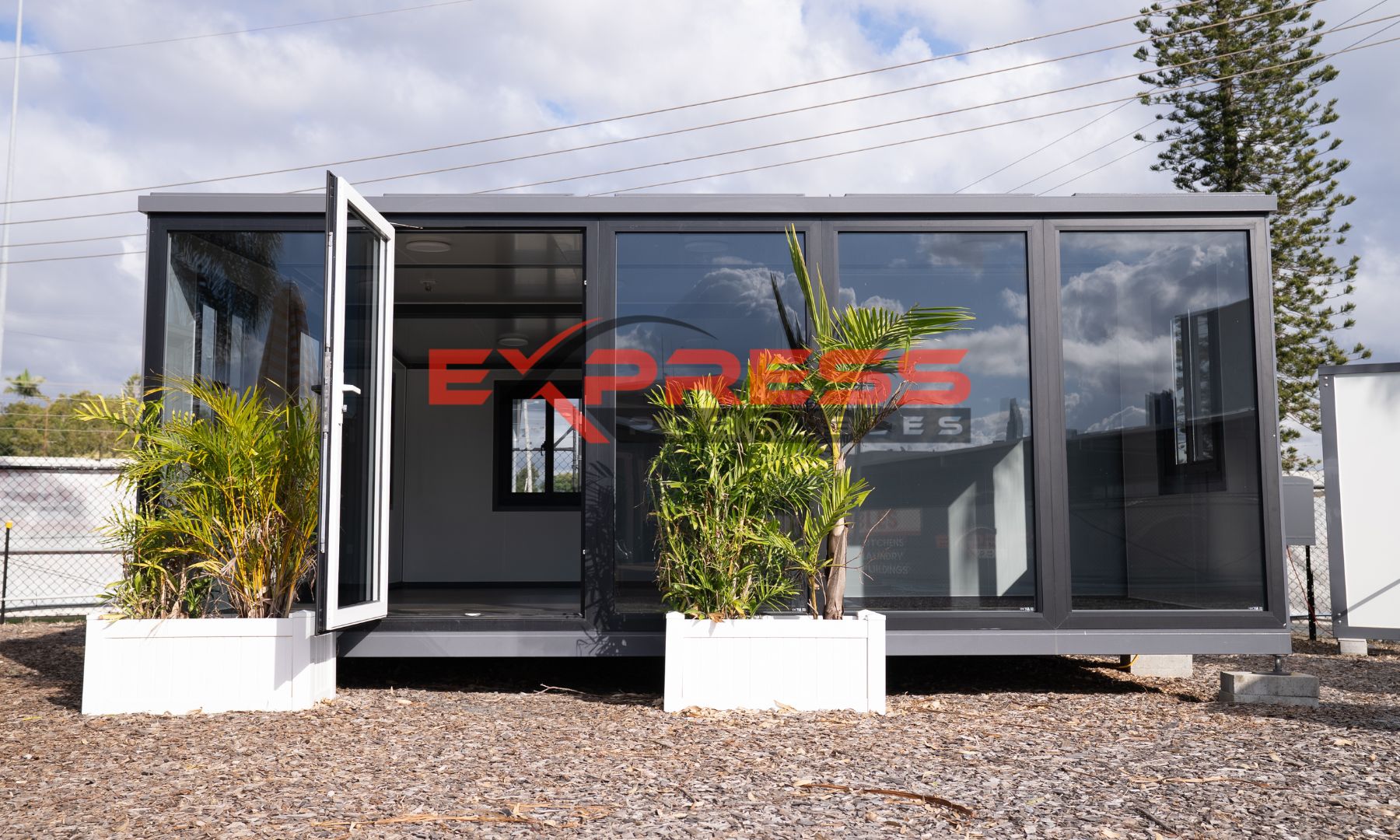

A 6m x 6m expander that is delivered pre-fabricated and ready to be unfolded and installed. Featuring a glass side wall with an entry door.

Description

The 35m² portable Expander has been designed to offer a spacious, stylish, and cost-effective open plan space, complete with a bathroom installed ready to use. The Expander also features a glass side with a glass door, allowing natural light to flood the interior, creating an airy and welcoming atmosphere.

Key Features:

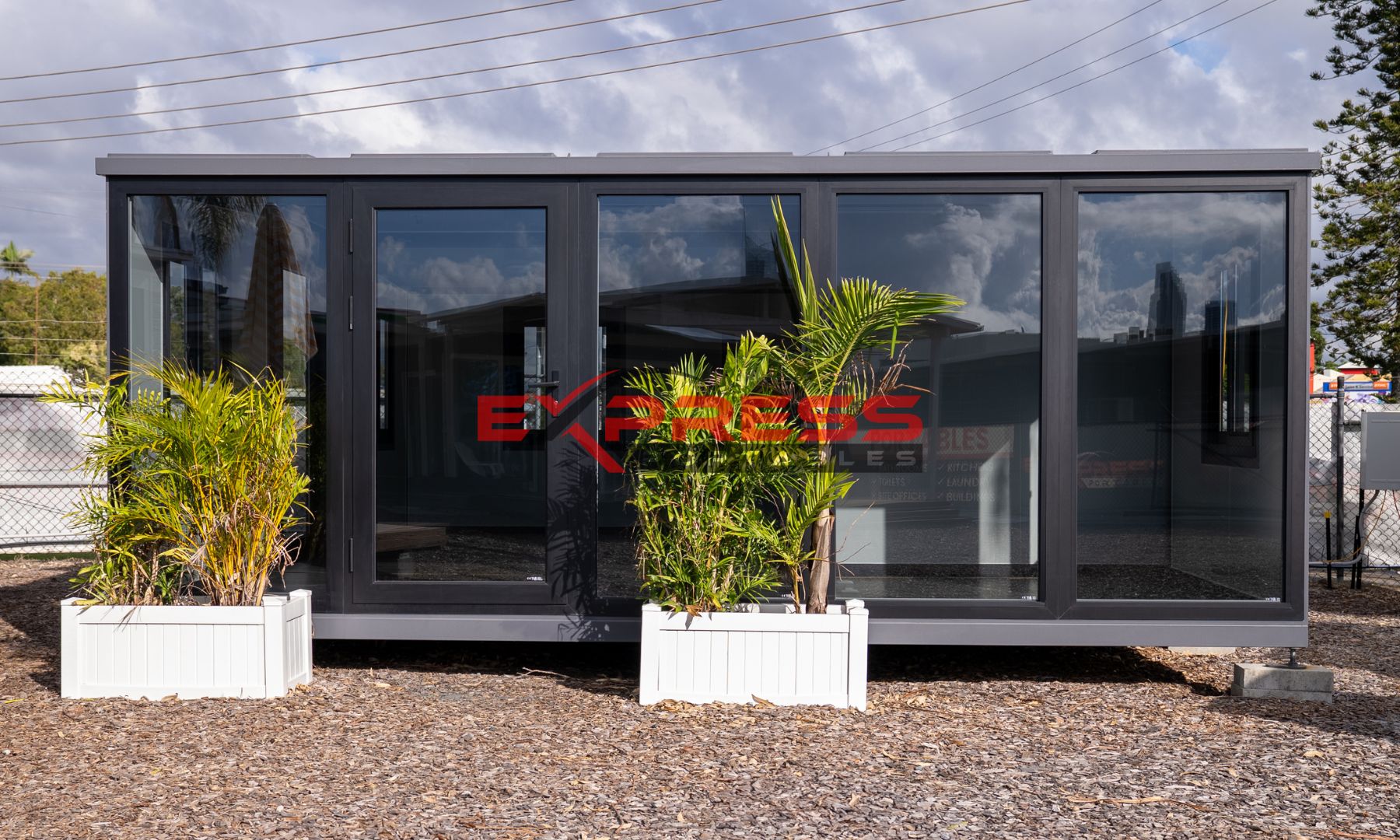

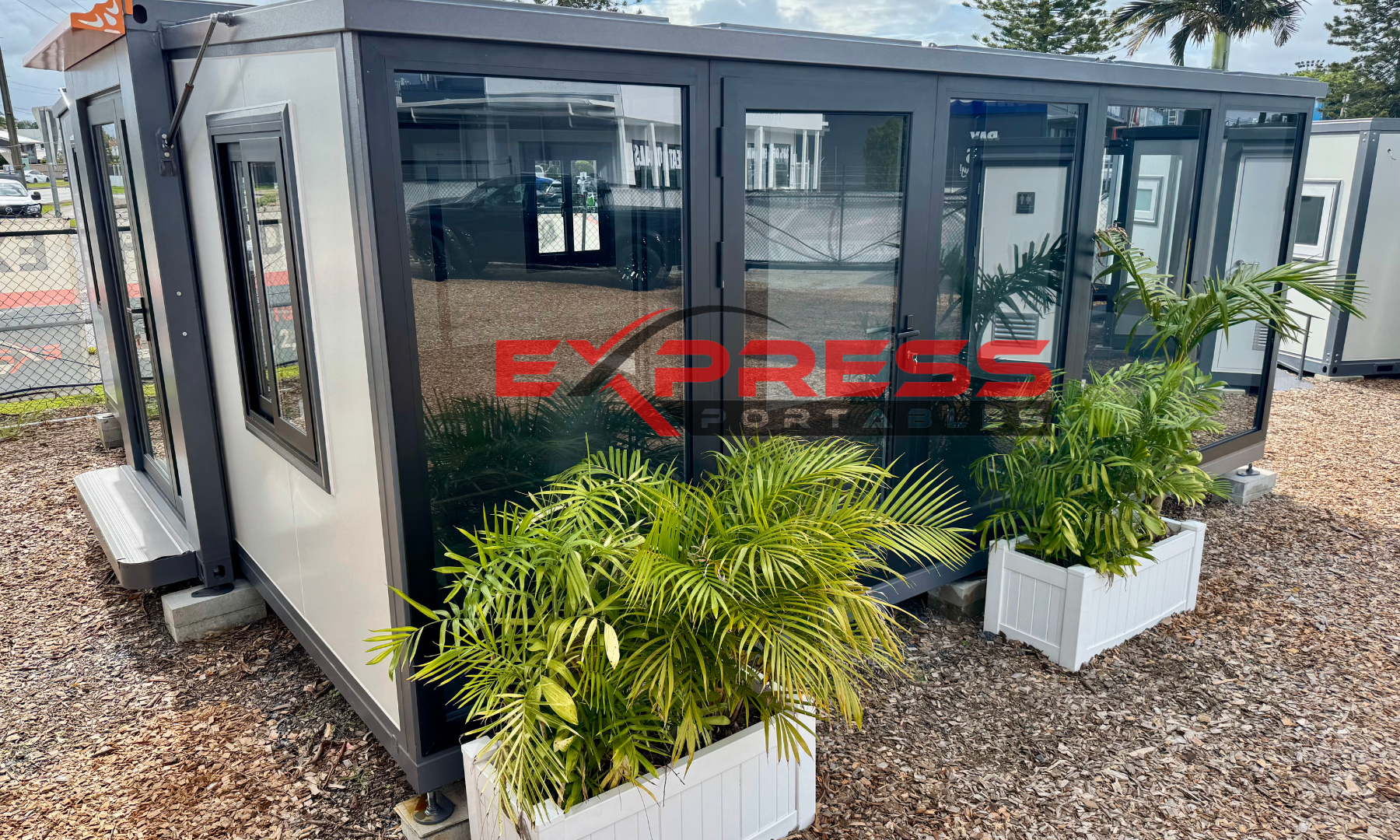

Glass Side:

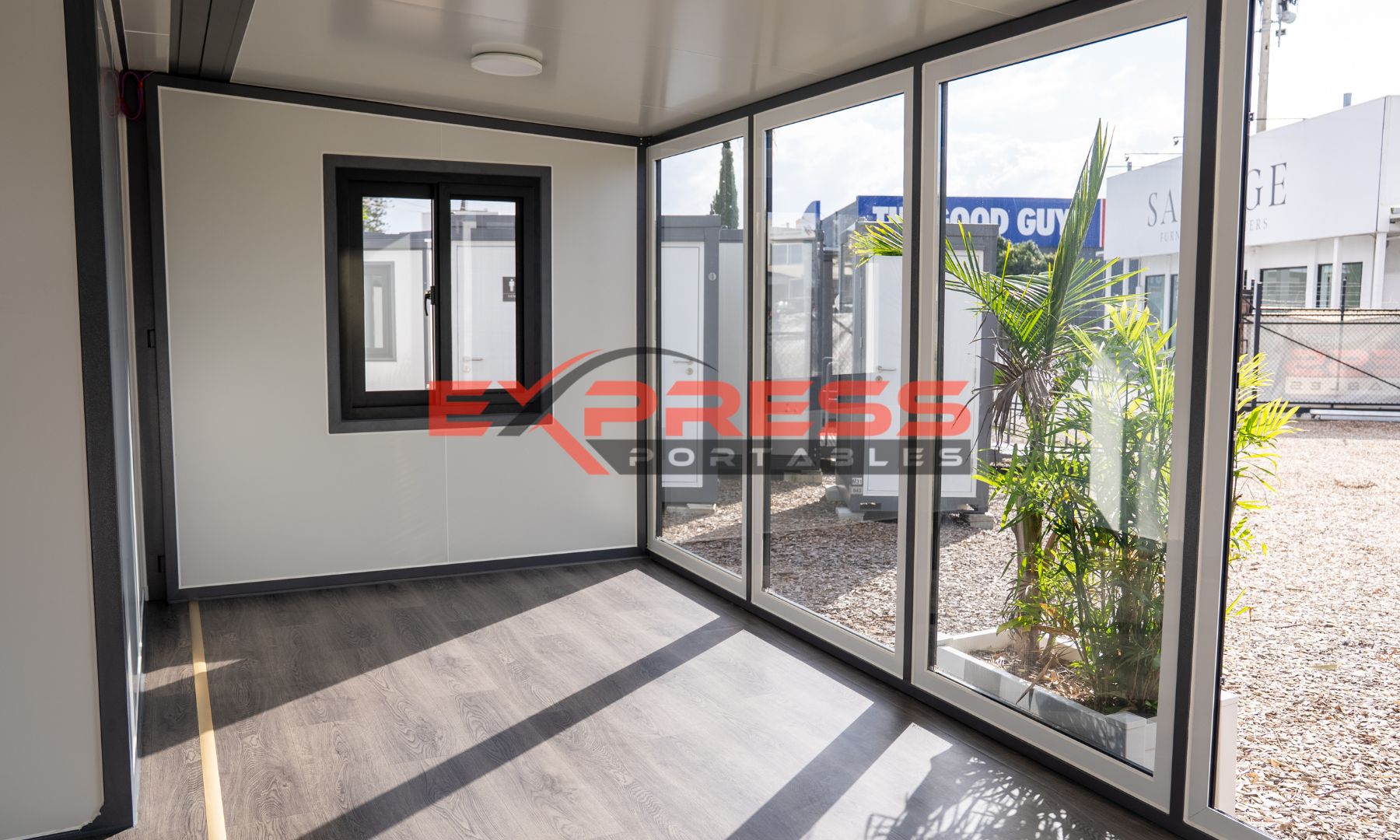

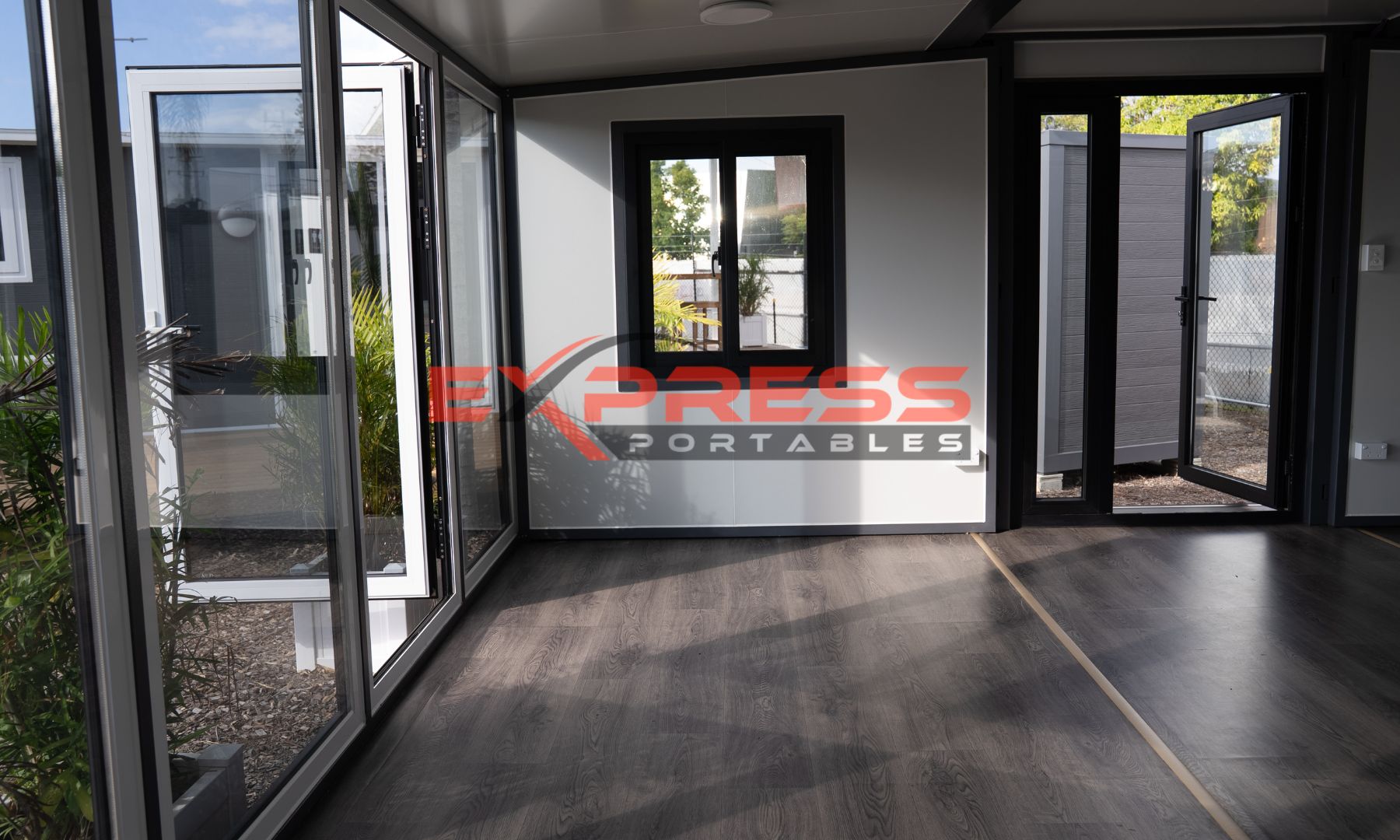

Creating a bright, airy environment, making the space feel larger and more inviting. The transparent design also allows for clear views of the surrounding area, connecting the interior with the outdoors. Additionally, the glass side wall adds a modern, stylish aesthetic to the building, while maintaining privacy and security with the appropriate glazing options.

Steel Frame: The Expander boasts a sturdy steel frame, skilfully coated in a stylish dark grey epoxy finish. This not only ensures remarkable durability but also adds a dash of modern sophistication. It's the ideal blend of strength and style, seamlessly fused together.

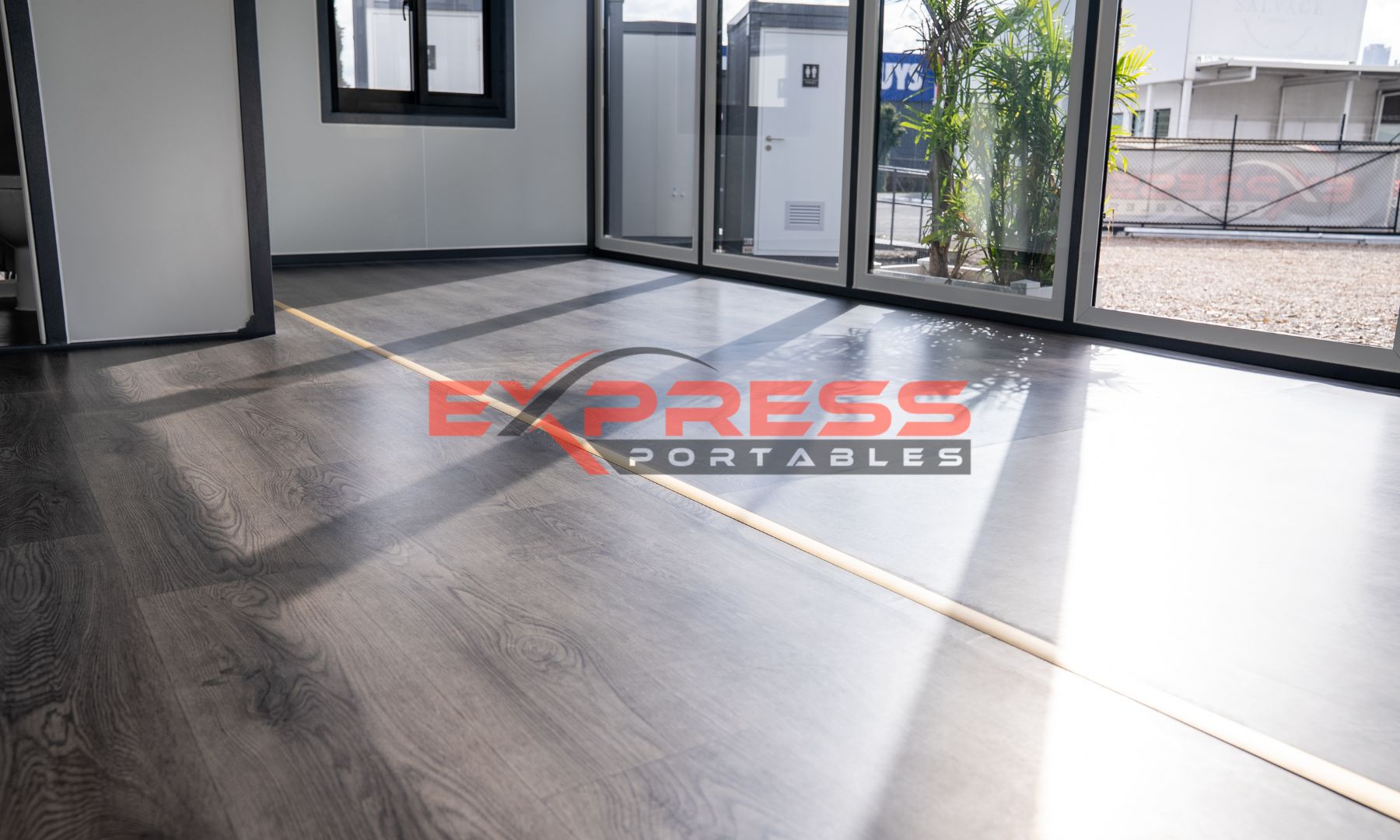

Flooring: The sub-floor of the portable building is carefully assembled using a 16mm glass magnesium board, recognized for its outstanding fire resistance, thermal insulation, and acoustic properties. There's also a durable and visually appealing 2mm wear-resistant vinyl floor covering.

Insulation: The Expander has smart roofing and walls with modern 50mm EPS panels to keep it cosy. With double glazed windows and doors, it saves energy, making your living space comfortable and efficient all year round.



Dimensions

External: Length: 5.85m | Width: 6.12m | Height: 2.5m

Weight

Approx | 4000kg

Ask a question

View full details

Key Features

Gas Struts

Gas struts provide smooth, controlled movement, reducing the effort required to open and close heavy sections of the building. They enhance convenience and safety by ensuring that the panels stay securely in place when open, preventing accidental slamming or damage.

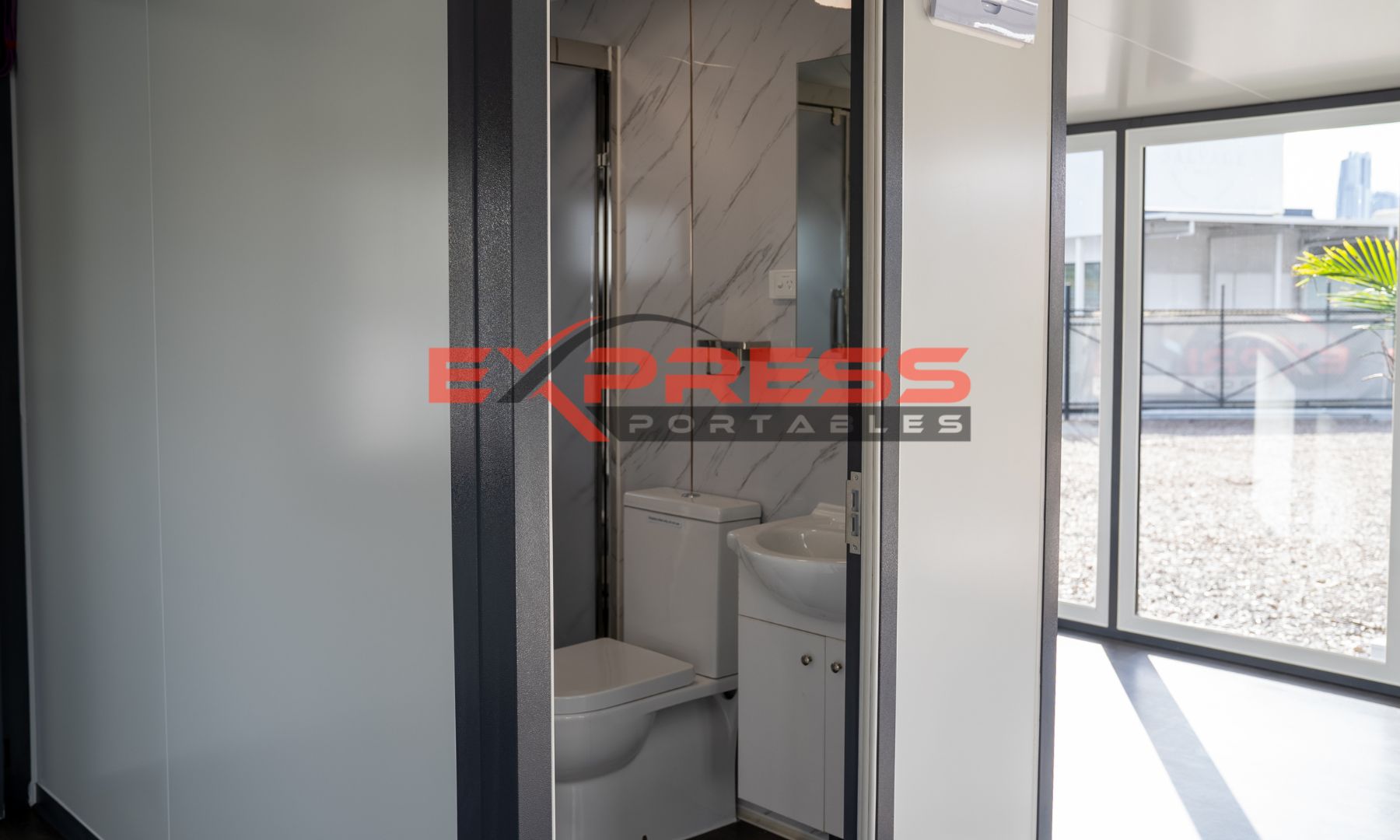

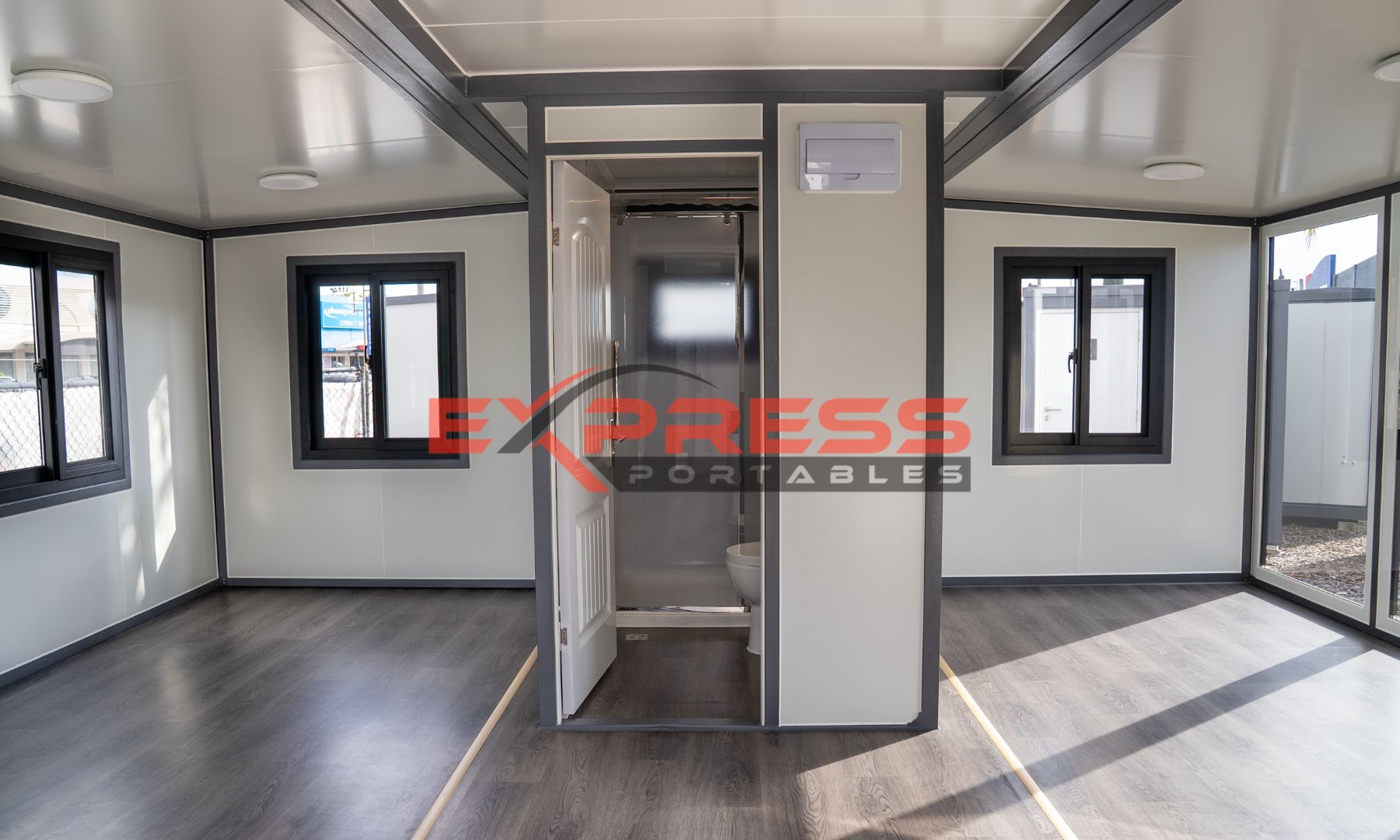

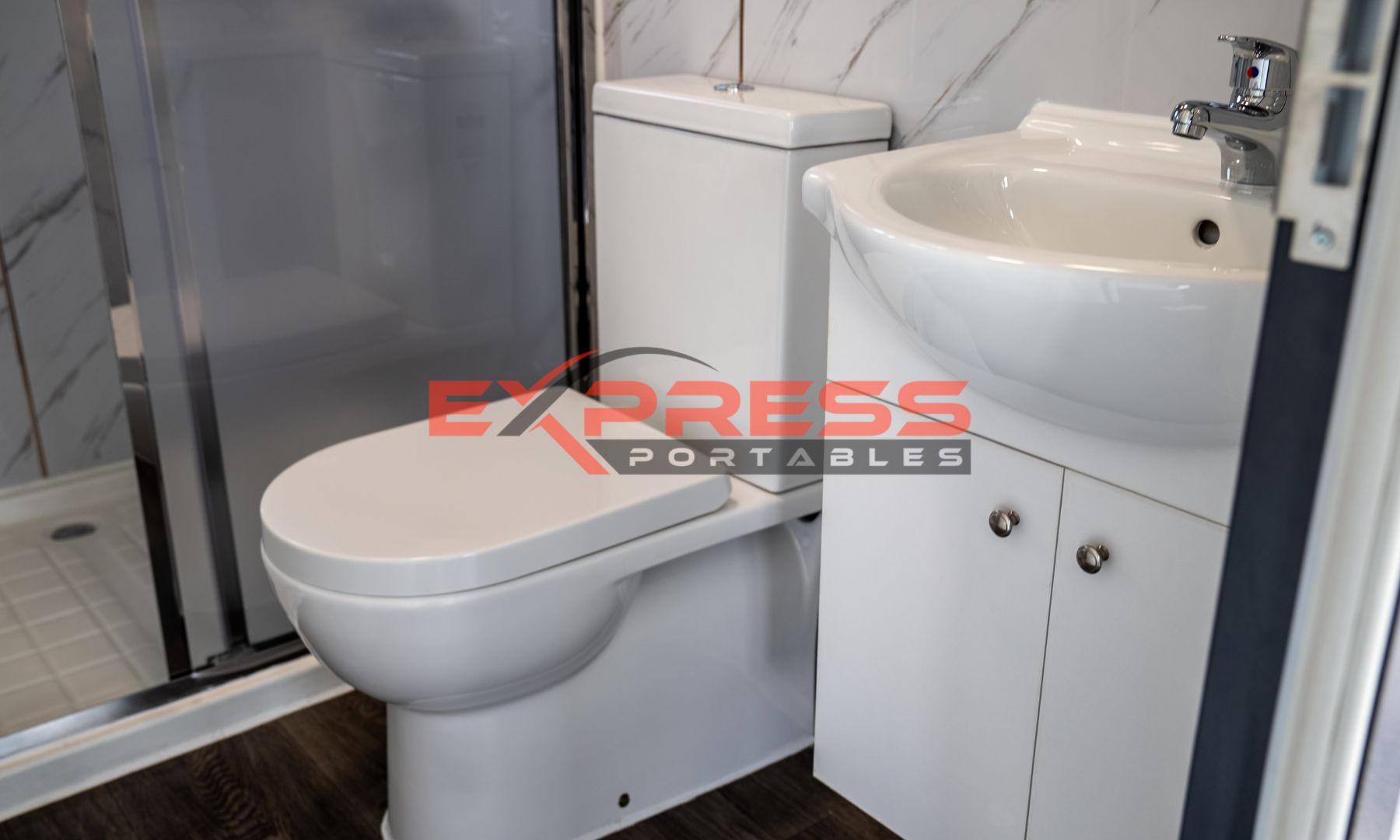

Complete Bathroom

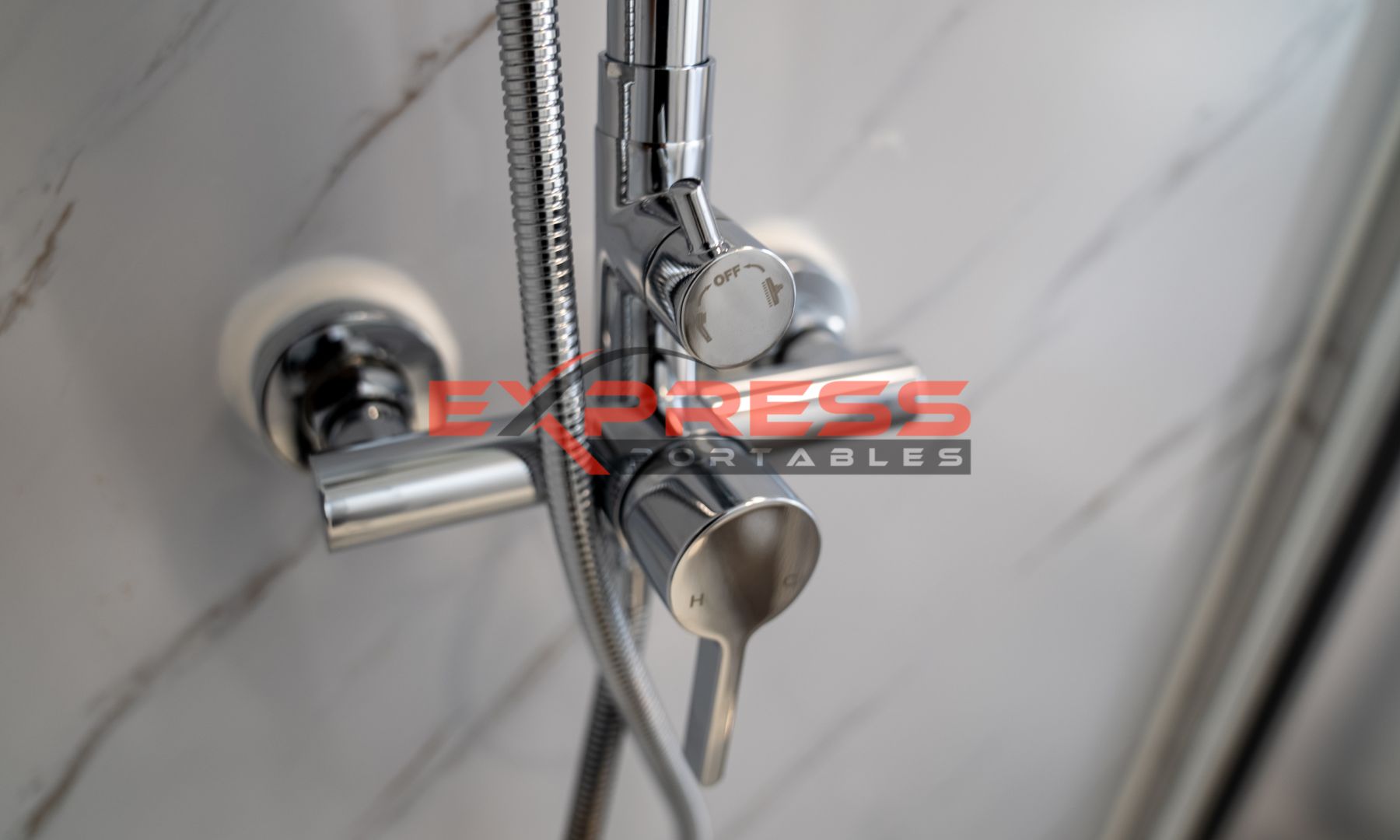

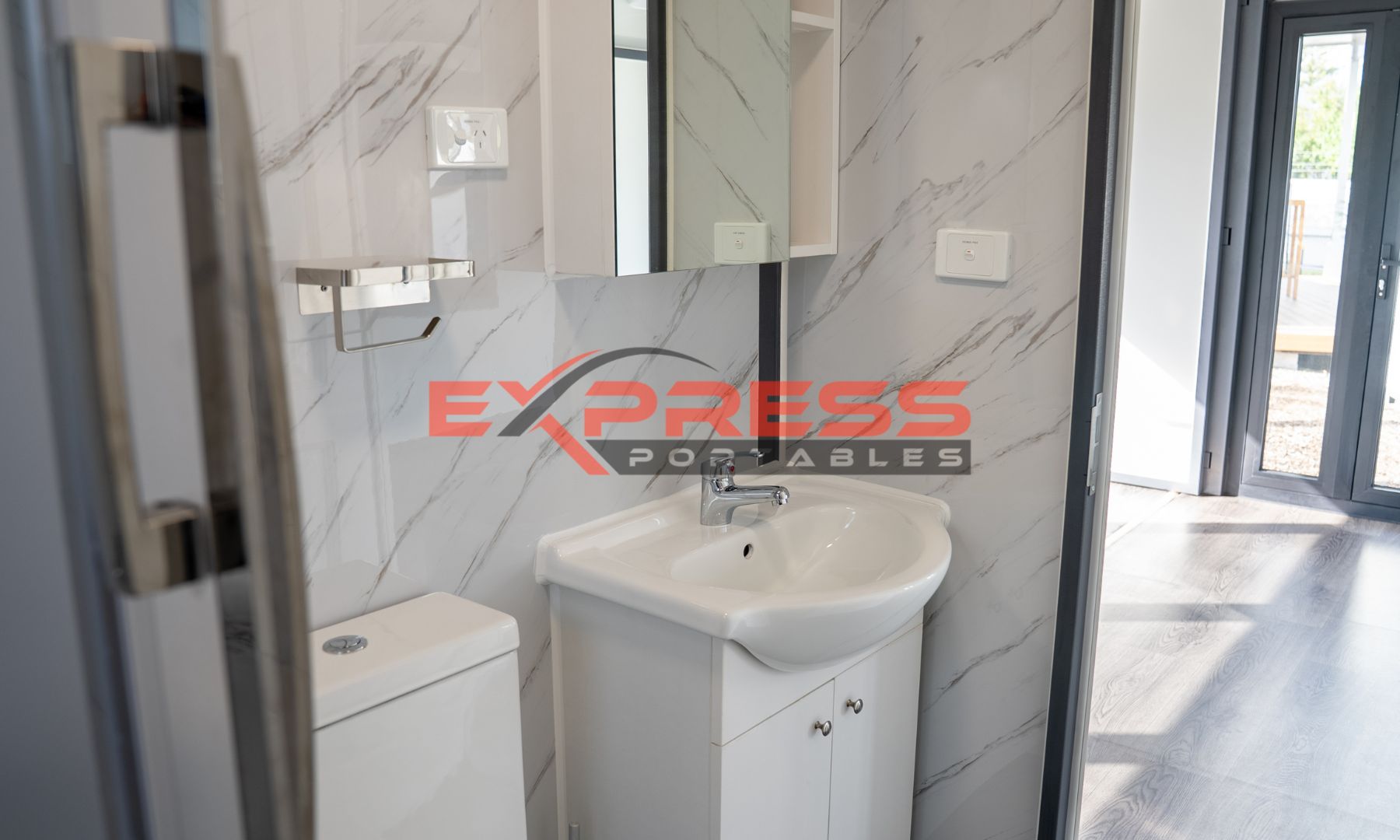

The building comes with a fully equipped bathroom, including a vanity, toilet, and full-width shower. However, the building will need to be fitted of by a qualified plumber.

Non-Migratory Cable

Non-migratory cables are designed to prevent the migration of materials, such as insulating substances, especially under extreme conditions like fire or environmental stress. This feature is crucial for enhancing fire safety, as it prevents the spread of hazardous fumes, flames, or toxic substances in the event of a fire. All our electrical parts are registered with the Electrical Equipment Safety Scheme (EESS).

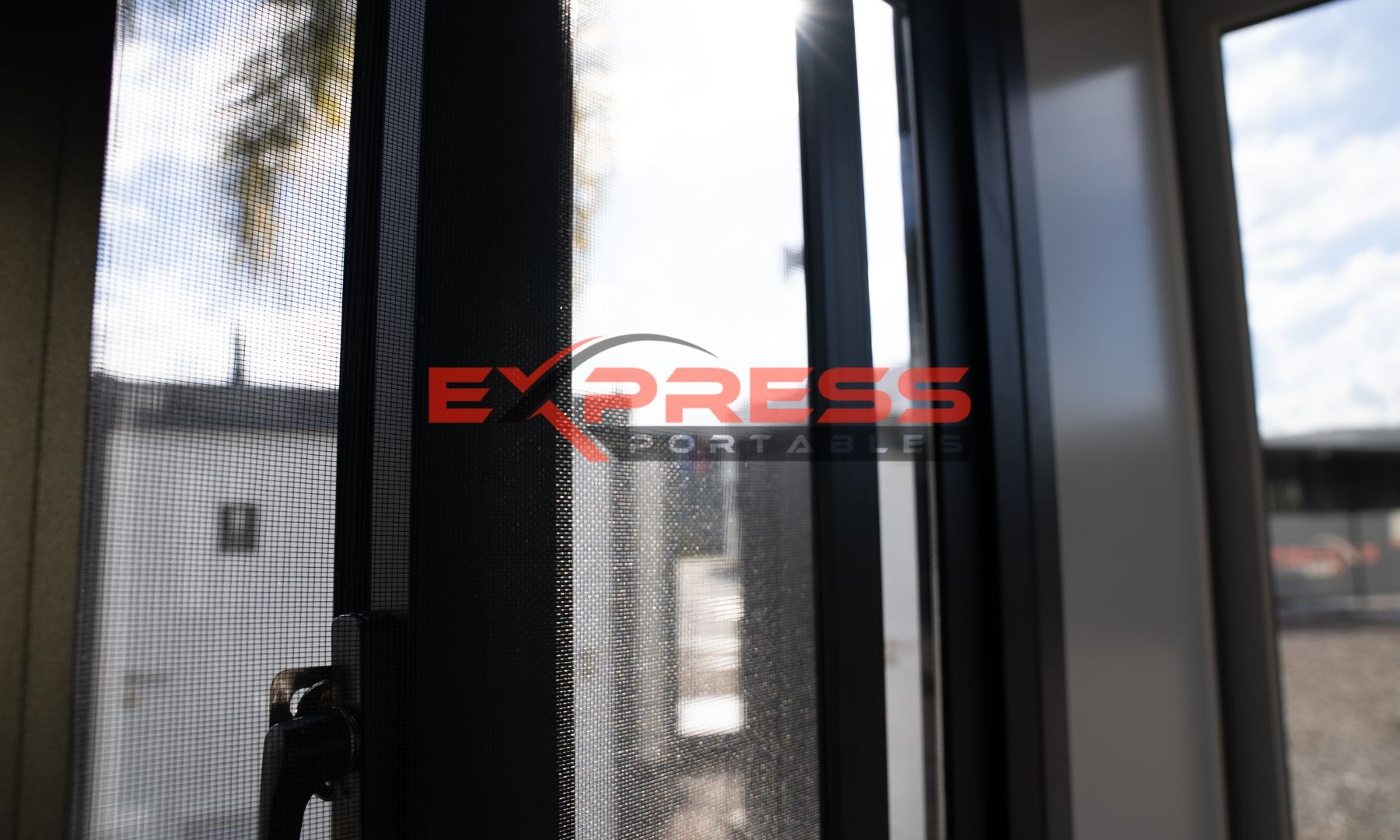

Aluminium Fly Screens

The building comes with aluminium flyscreens, providing an effective solution for keeping insects out while allowing fresh air to circulate. Lightweight and durable, these flyscreens are designed to fit securely over windows and vents, offering long-lasting protection with minimal maintenance

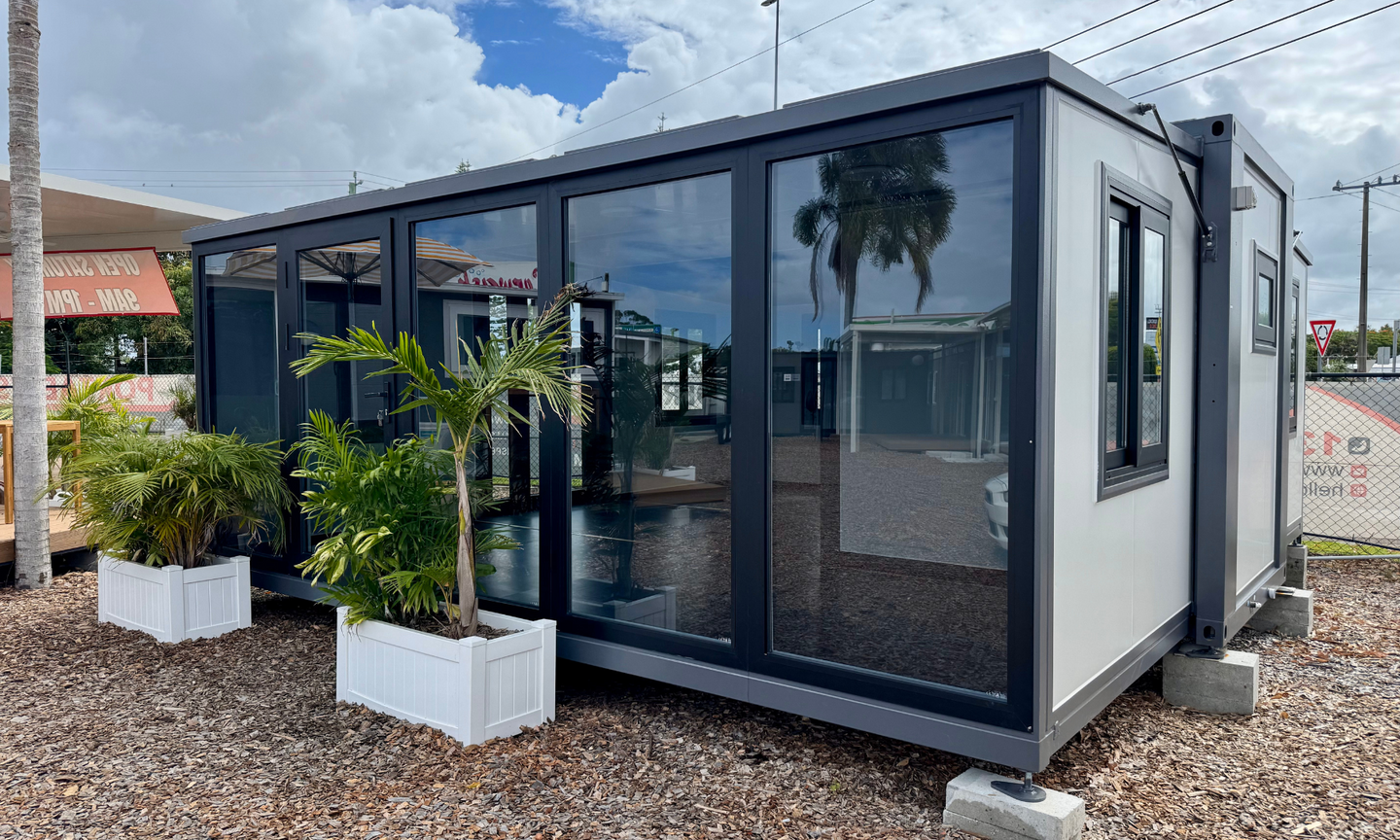

Double Glazed Glass Wall

Creates a bright, airy environment, making the space feel larger and more inviting. The transparent design also allows for clear views of the surrounding area, connecting the interior with the outdoors. Additionally, the glass side wall adds a modern, stylish aesthetic to the building, while maintaining privacy and security with the appropriate glazing options.

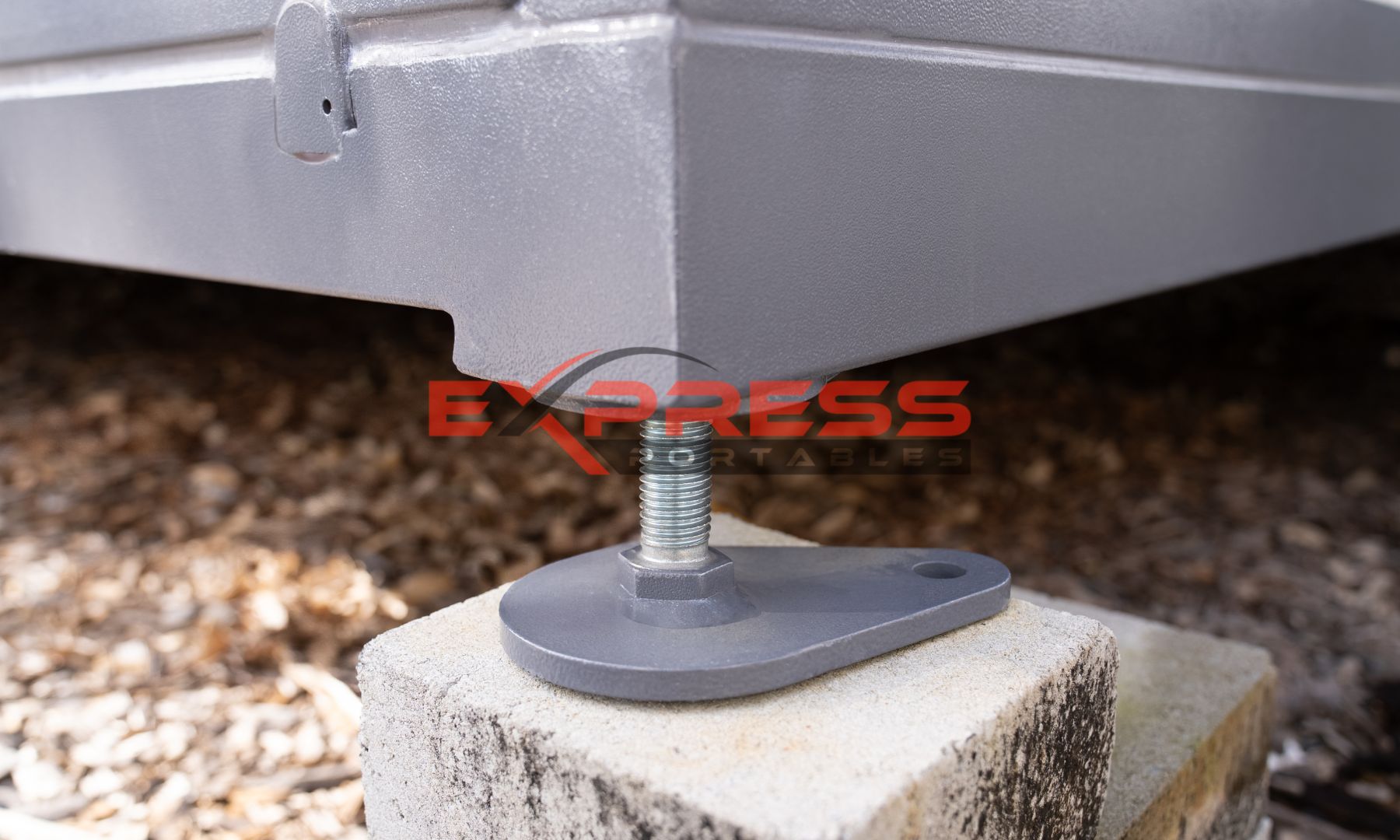

Adjustable Feet

The building features adjustable feet allowing for easy levelling and stabilisation on uneven surfaces. These feet can be raised or lowered to ensure the structure is properly aligned, providing a secure and balanced foundation.

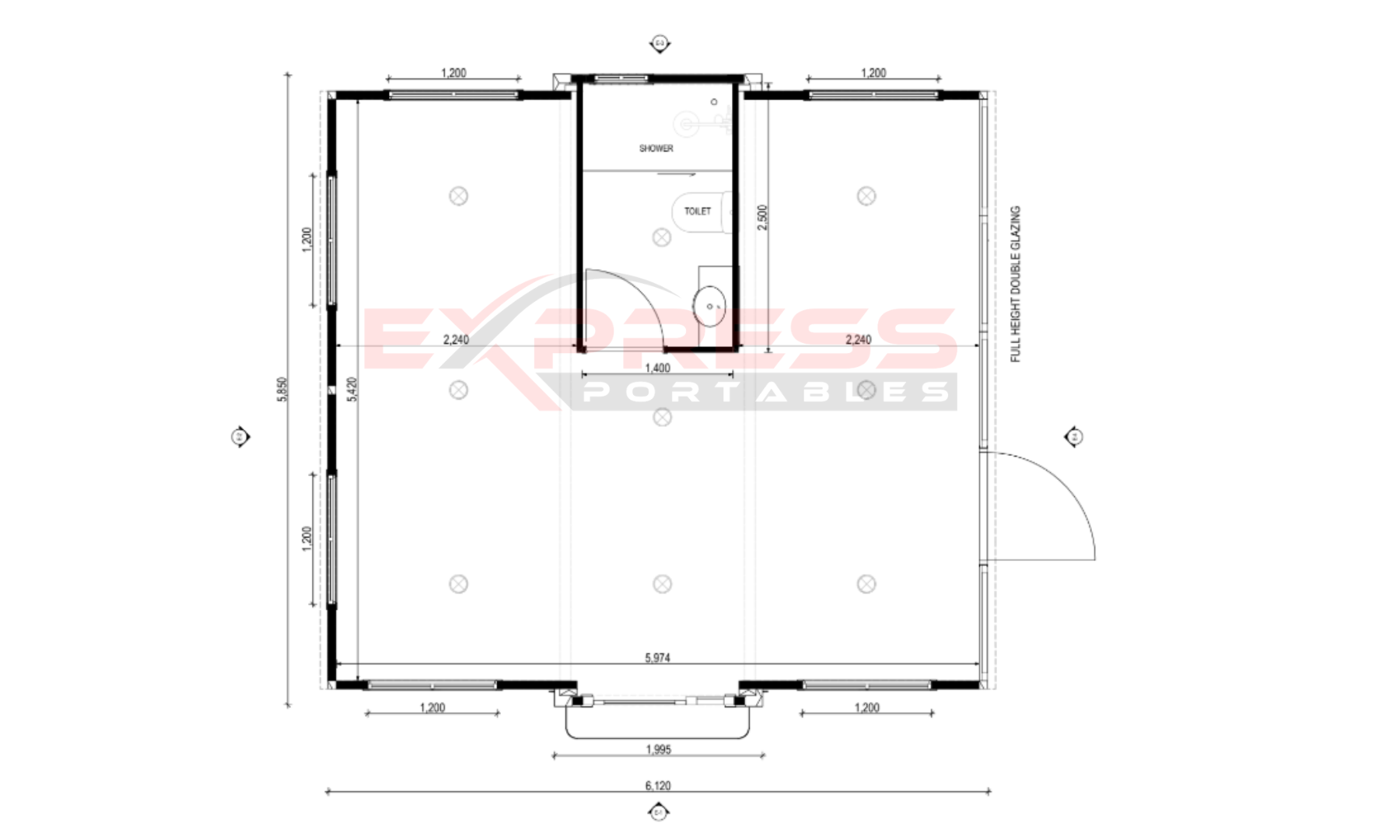

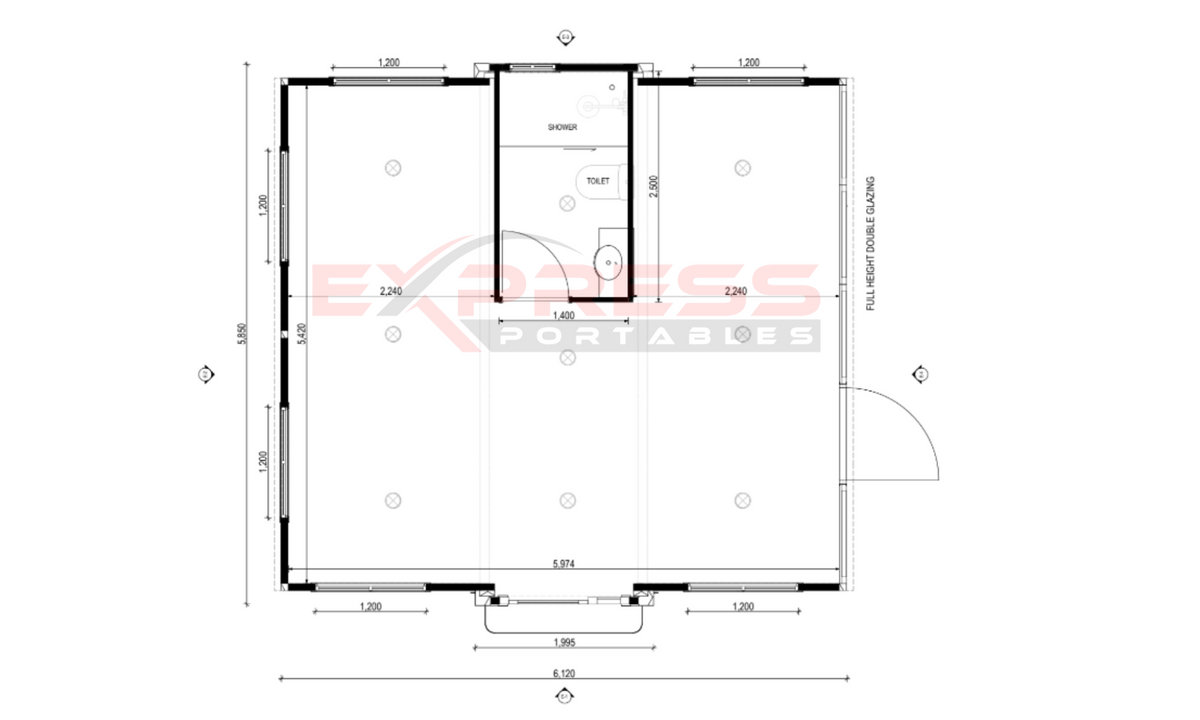

Floor & Electrical Plans

Specifications

General

Entry Door Sliding glass and lockable aluminium entry door
Windows Aluminium double-glazed windows
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Glass-wool insulation, galvanised & painted steel
Walls 50mm EPS Panels & Glass Side Panels
Flooring Water & insect resistant magnesium concrete composite

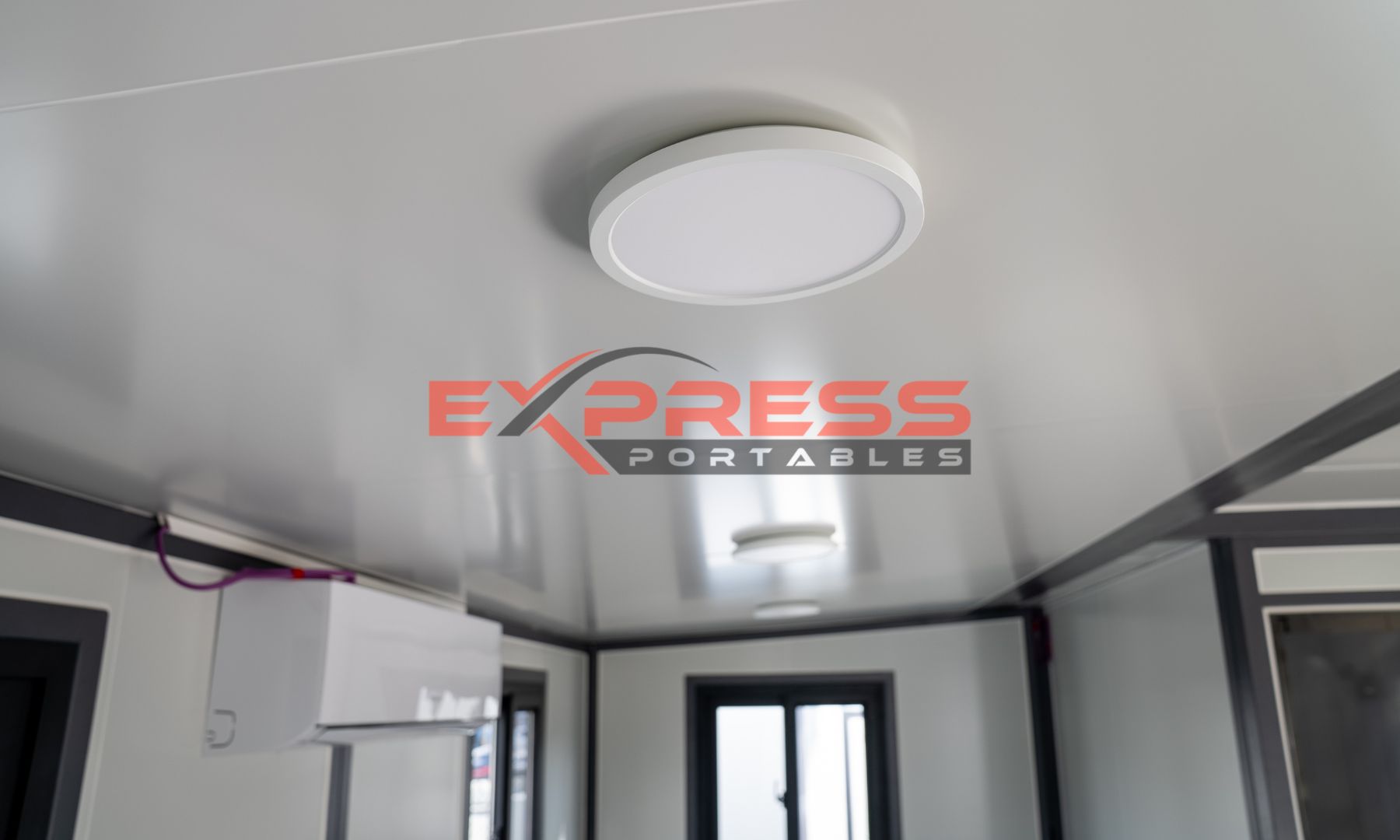

Lighting LED oyster lights supplied
Council Compliance Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Exterior Walls

Walls 50mm EPS Panel Walls

Windows

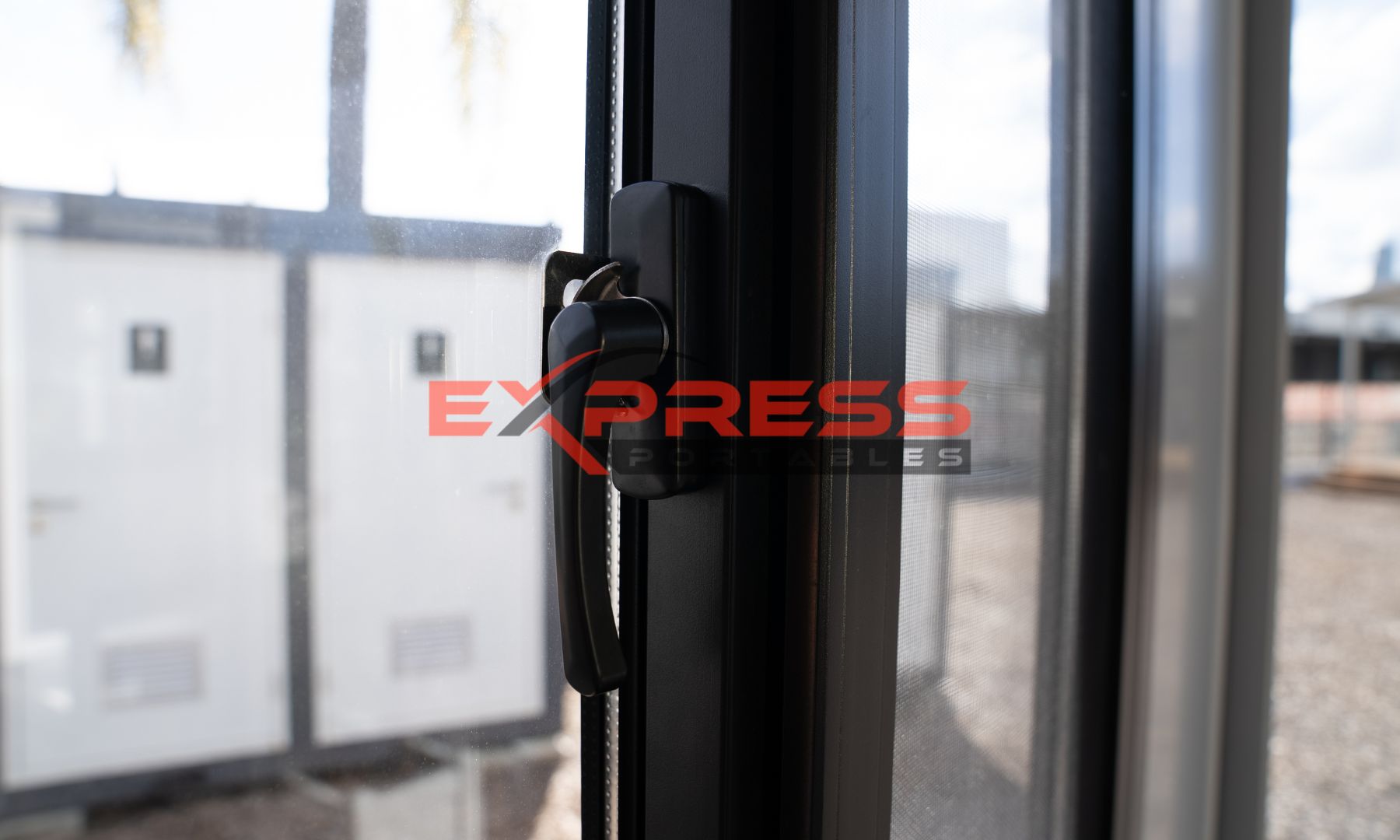

Frames Aluminium framed windows
Glass Double-glazed windows
Type Decorative cottage feature windows

Doors

Entry Sliding glass and lockable aluminium entry door
Bathroom Lockable Door

General

Entry Door Sliding glass and lockable aluminium entry door
Windows Aluminium double-glazed windows
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Glass-wool insulation, galvanised & painted steel
Walls 50mm EPS Panels & Glass Side Panels
Flooring Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Frame

Sub-Floor Steel Chassis 150x100 Rectangular Hollow Section (RHS)
Steel Post 150x150 Square Hollow Section (SHS)
Steel Floor Bearer 70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist 50x30 Rectangular Hollow Section (RHS)
Coating Expoxy coated and painted in gloss

Installation

Instructions Unfolding instructions and video provided for the Expander
DIY Express Portable Expanders are customer DIY installations
Footings Plan Footing Plans supplied by Express Portables
Electrical & Plumbing The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work

Transport

Crane Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer Customer is required to organise a forklift unload or crane unload

Internal Walls

Interior Walls 50mm EPS Panel with an off white finish

Exterior Walls

Walls 50mm EPS Panel Walls

Windows

Frames Aluminium framed windows
Glass Double-glazed windows
Type Decorative cottage feature windows

Doors

Entry Sliding glass and lockable aluminium entry door
Bathroom Lockable Door

Roof

Gas Struts Gas struts installed to assist with opening roof
Exterior Panels 50mm EPS panels on outside folding roof panels with a 3mm steel plate over the main body

Flooring

Sub-Floor Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer 2mm vinyl timber pattern - Grey or Brown

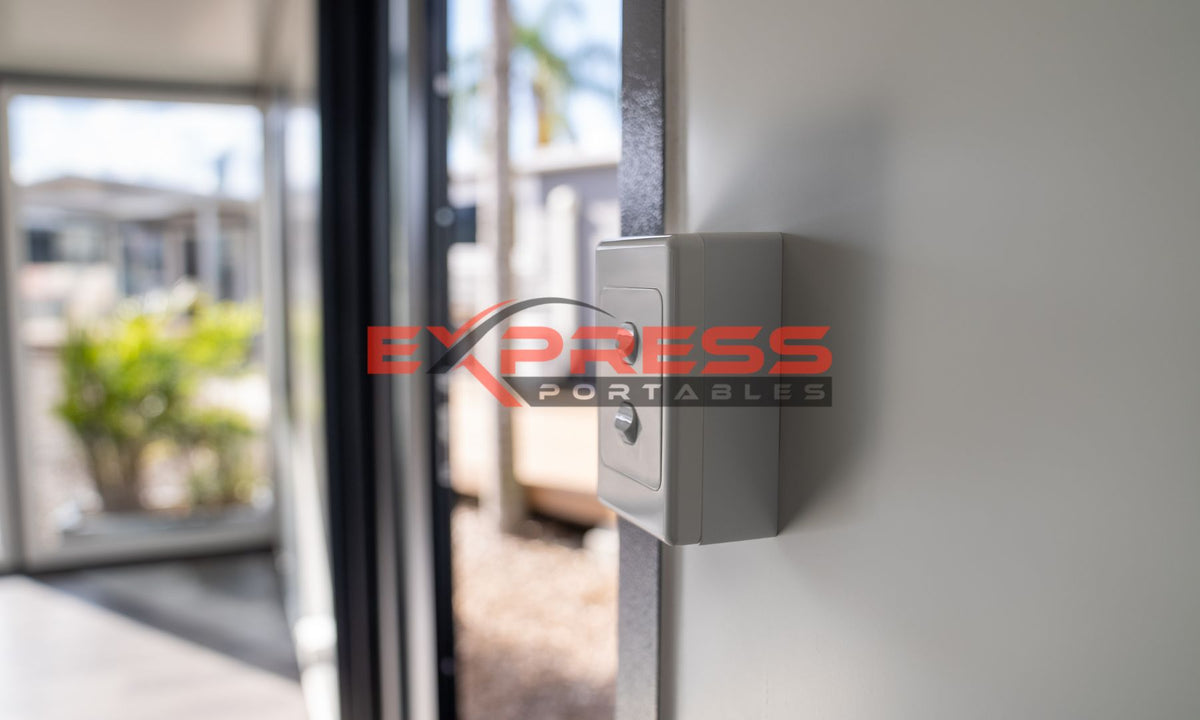

Electrical

Power points Power points installed to the centre body only
Lighting Lights installed to the centre body only
Switchboard 240v switchboard is installed

Plumbing

Overview No plumbing is installed when the building is delivered, this includes – sewer, grey waste, hot and cold water pipes.
Qualified Plumber A qualified plumber is to complete the installation after the building is opened
Water & Waste Subfloor clearance required under the bathroom for the plumber to install water and waste pipes

Council Compliance

Council Approval Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates Structural engineering and plumbing certificates are not provided with the purchase
