4m Designer Spacee

Features:

• Floor-to-ceiling double glazed glass walls
• Full bathroom with separate shower, toilet & vanity
• Architectural Designer finish with WPC exterior screening
• Delivered fully assembled - crane ready installation
• Easy installation

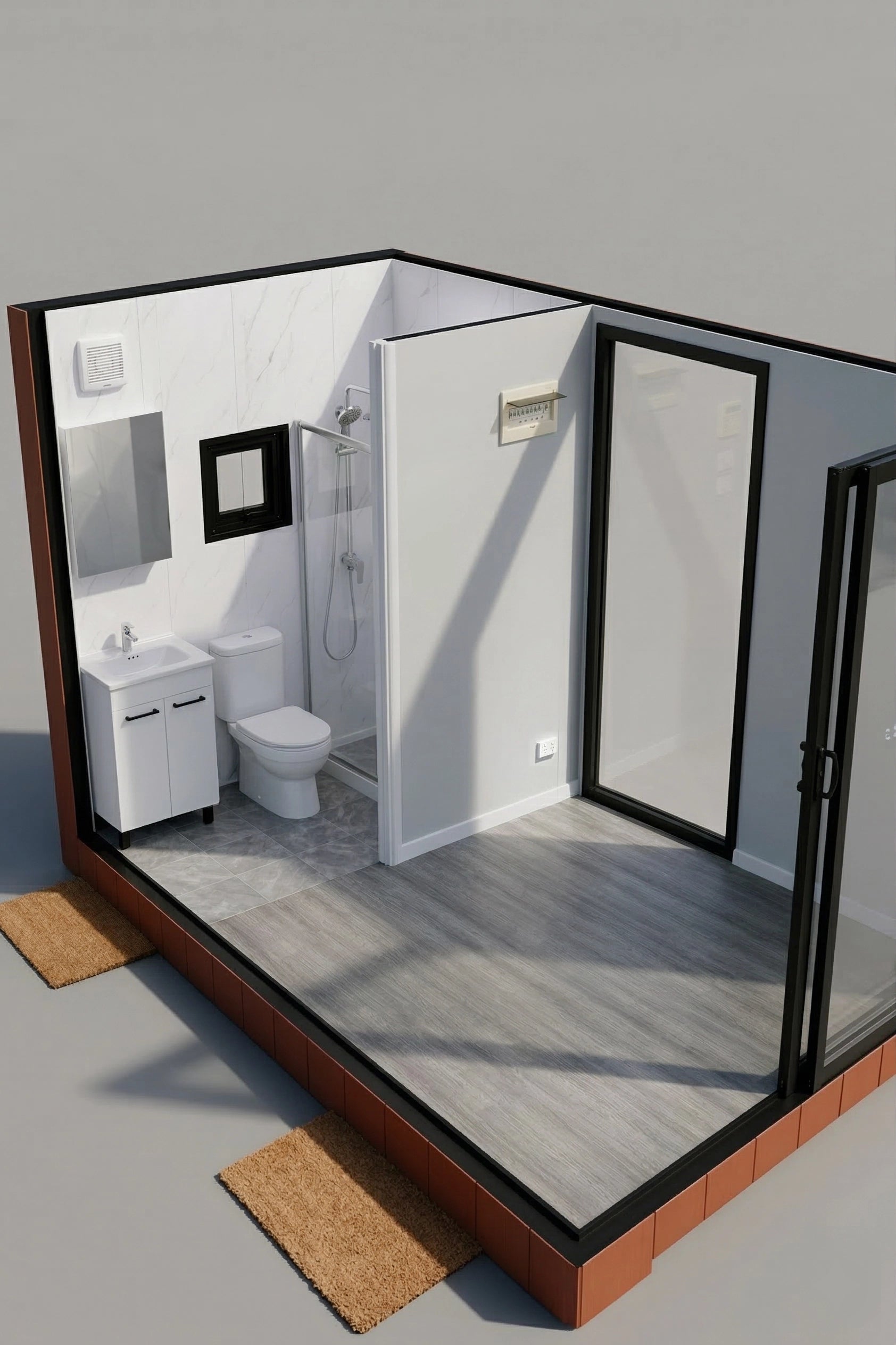

Unlike the original Spacee, the Designer range includes square internal walls, floor-to-ceiling glazing and a full bathroom layout.

Description:

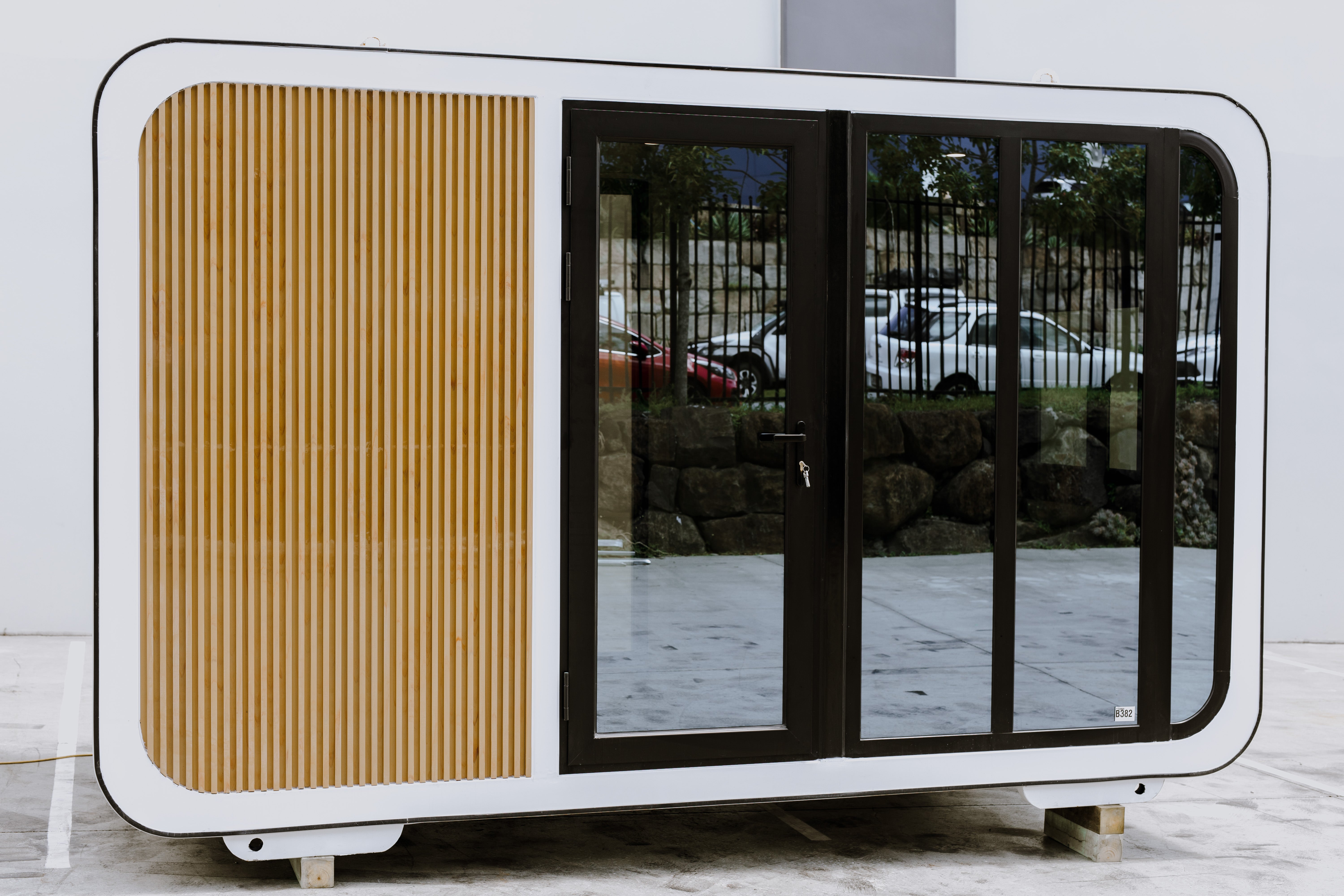

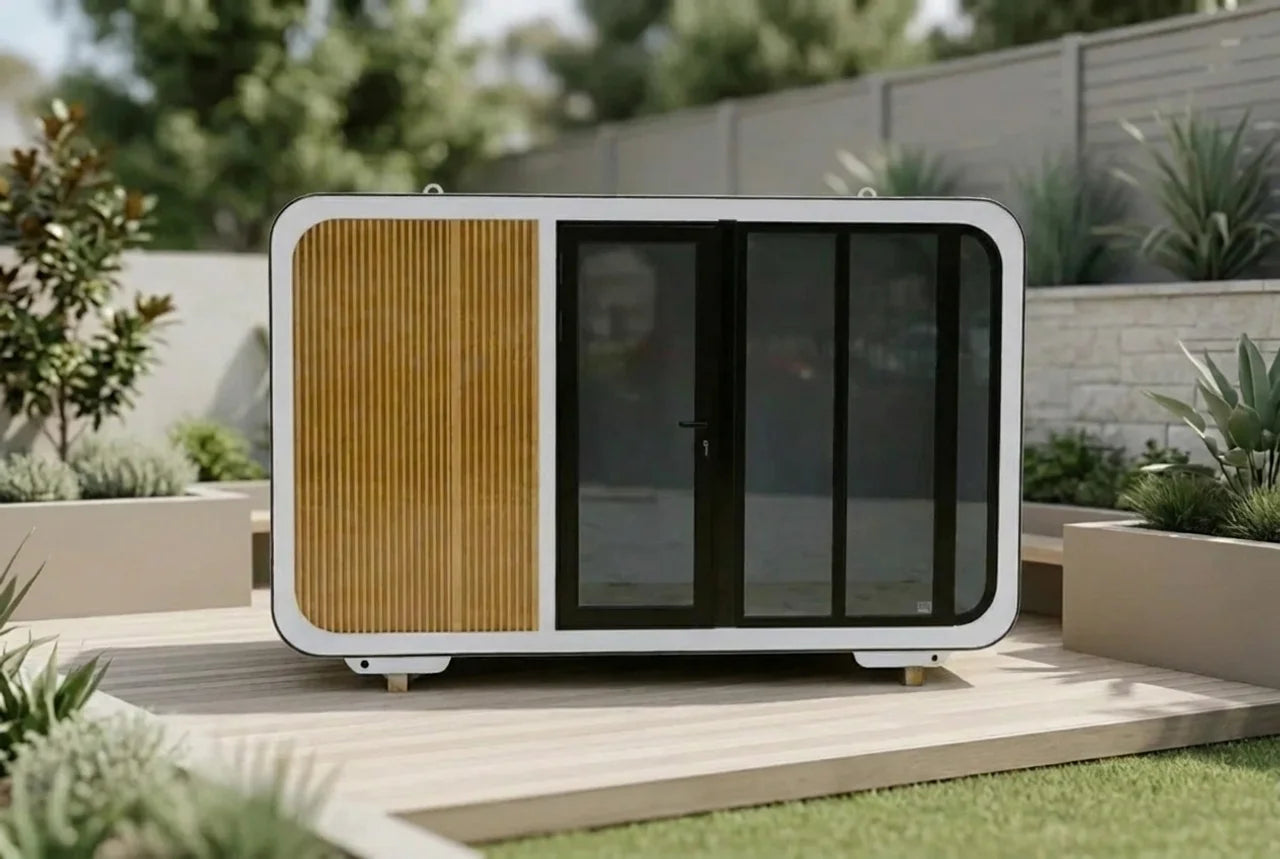

The 4m Designer Spacee is a refined evolution of the original Spacee pod.

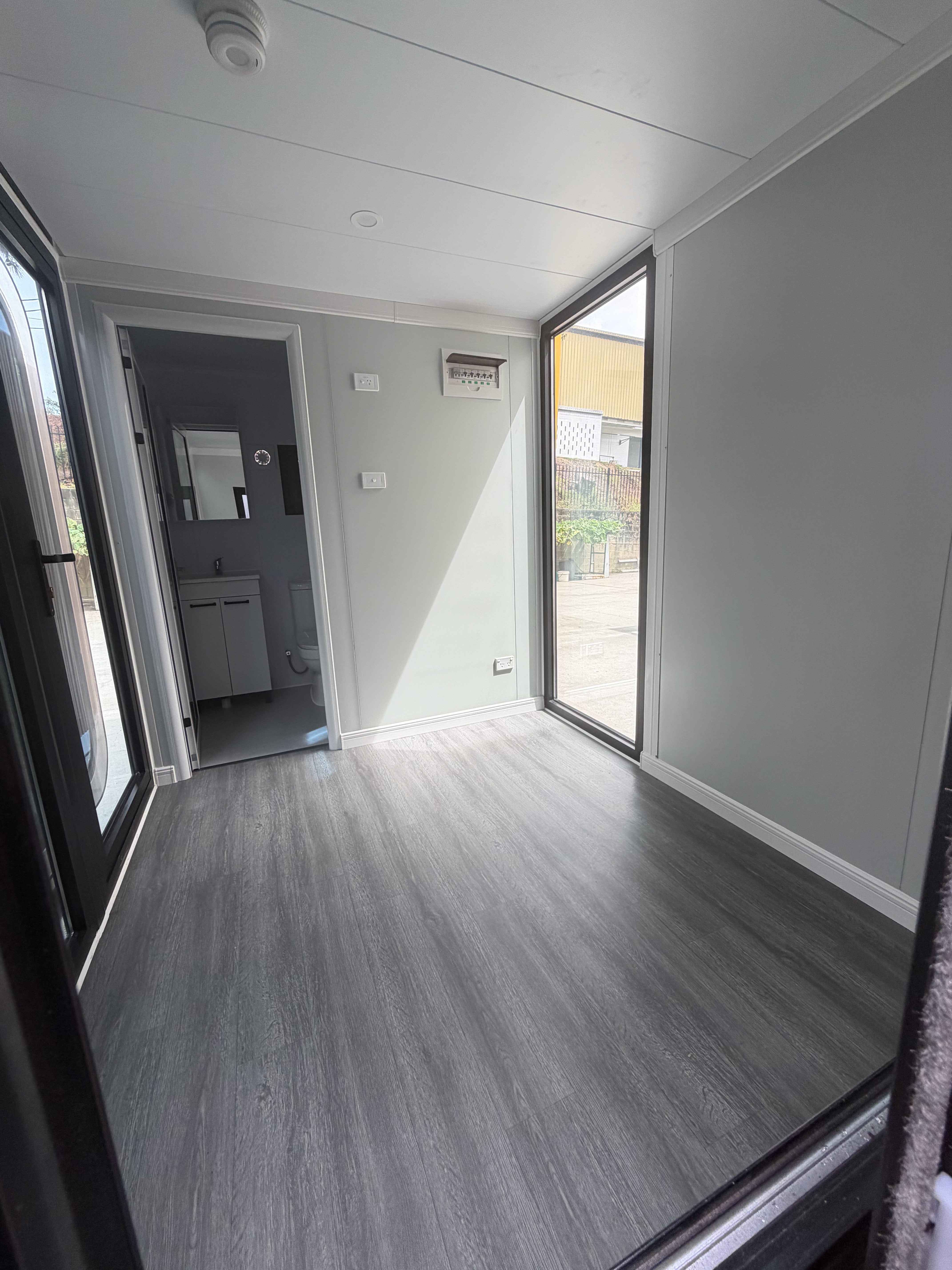

Designed with architectural intent, this model replaces curved internal walls with clean square wall to floor junctions, allowing furniture to sit flush and maximising usable floor space. Floor-to-ceiling double-glazed glass on both ends creates natural light, openness and visual impact rarely seen in modular pods of this size.

One of the standout upgrades in the Designer range is the full-size bathroom layout. Instead of a combined wet bathroom like those in the original Spacee, the Designer Spacee features a separate shower, toilet and vanity, creating a far more functional and comfortable space for everyday use. Premium finishes such as marble-look wall panels, a dual shower system and tiled flooring elevate the bathroom beyond typical modular accommodation.

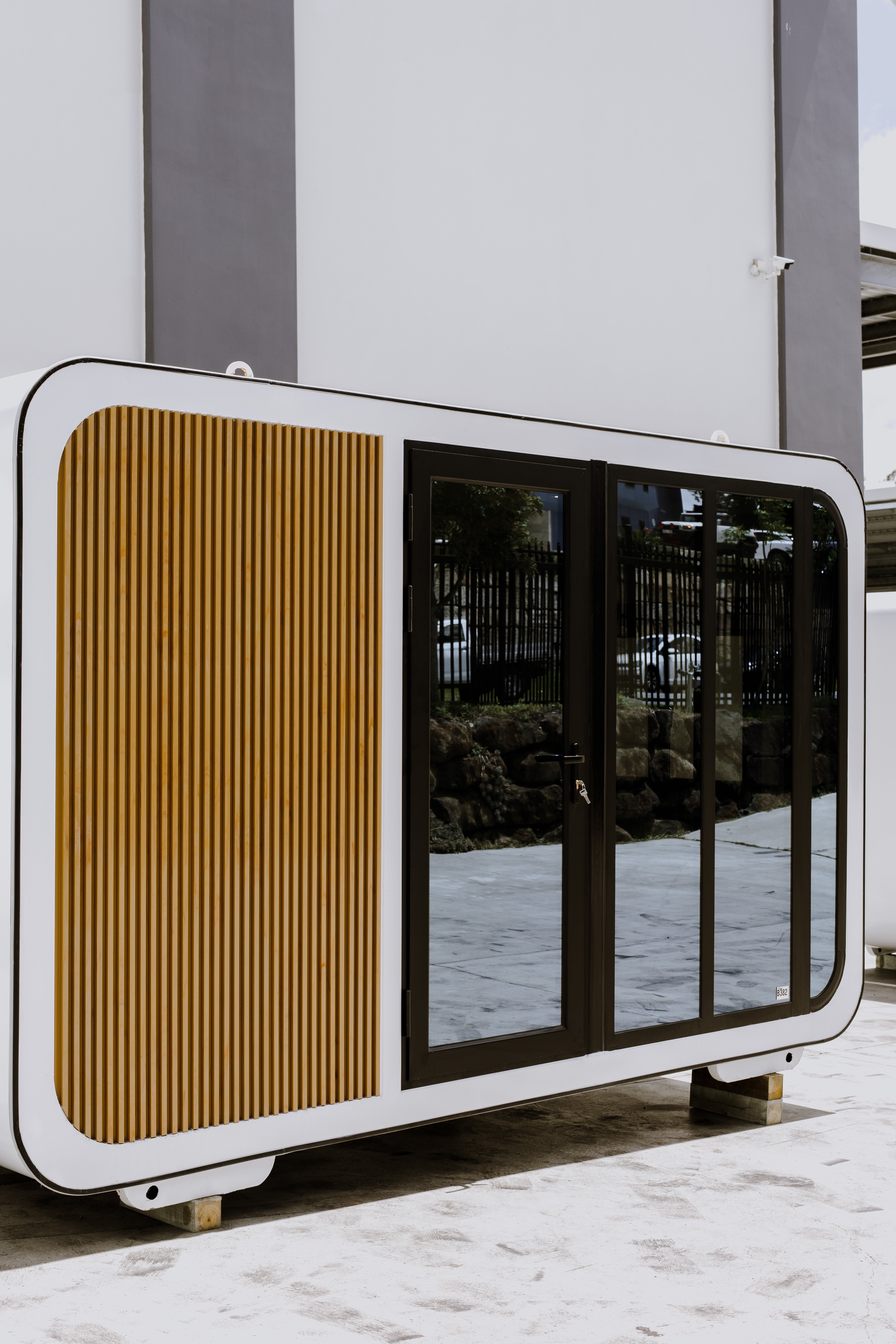

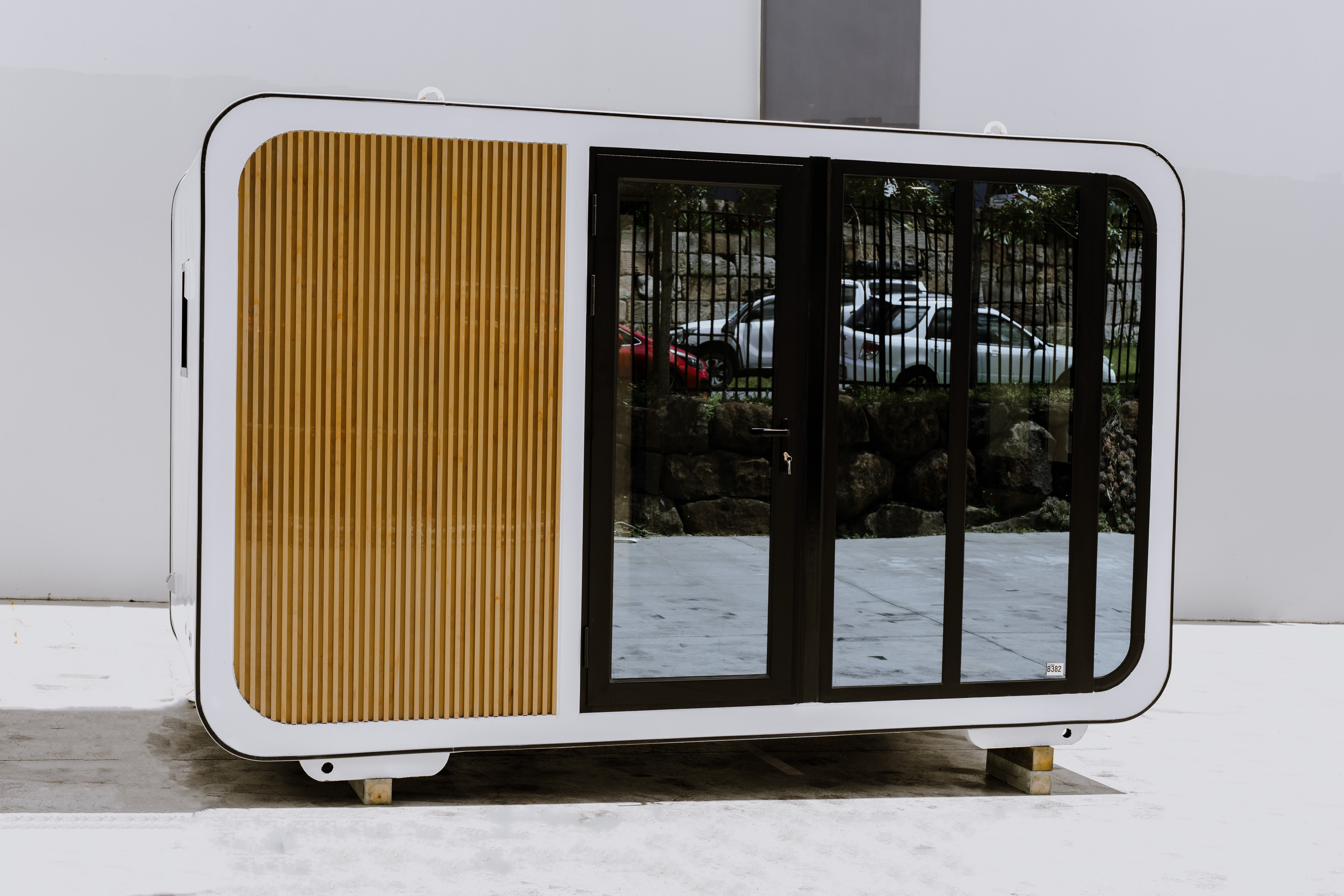

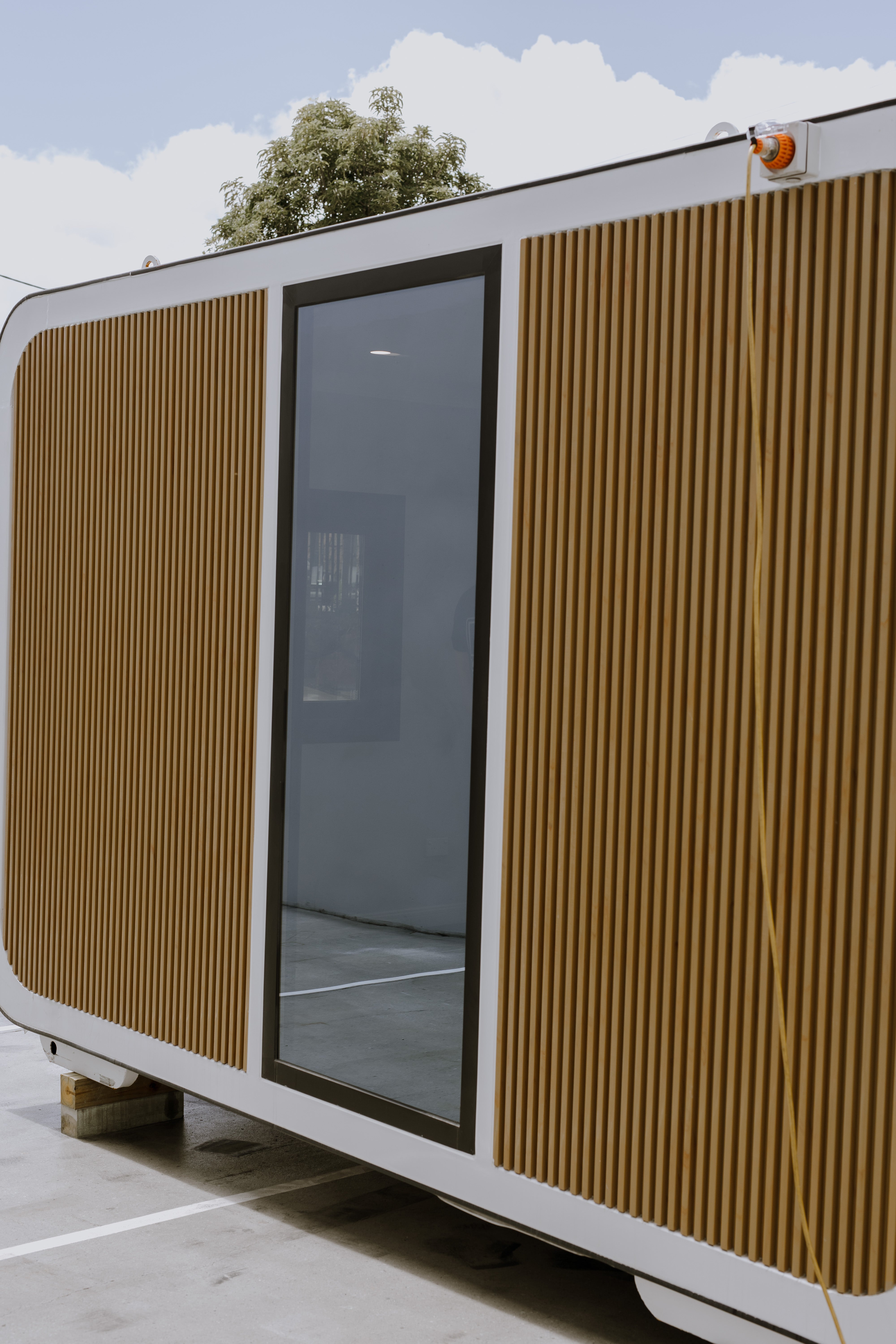

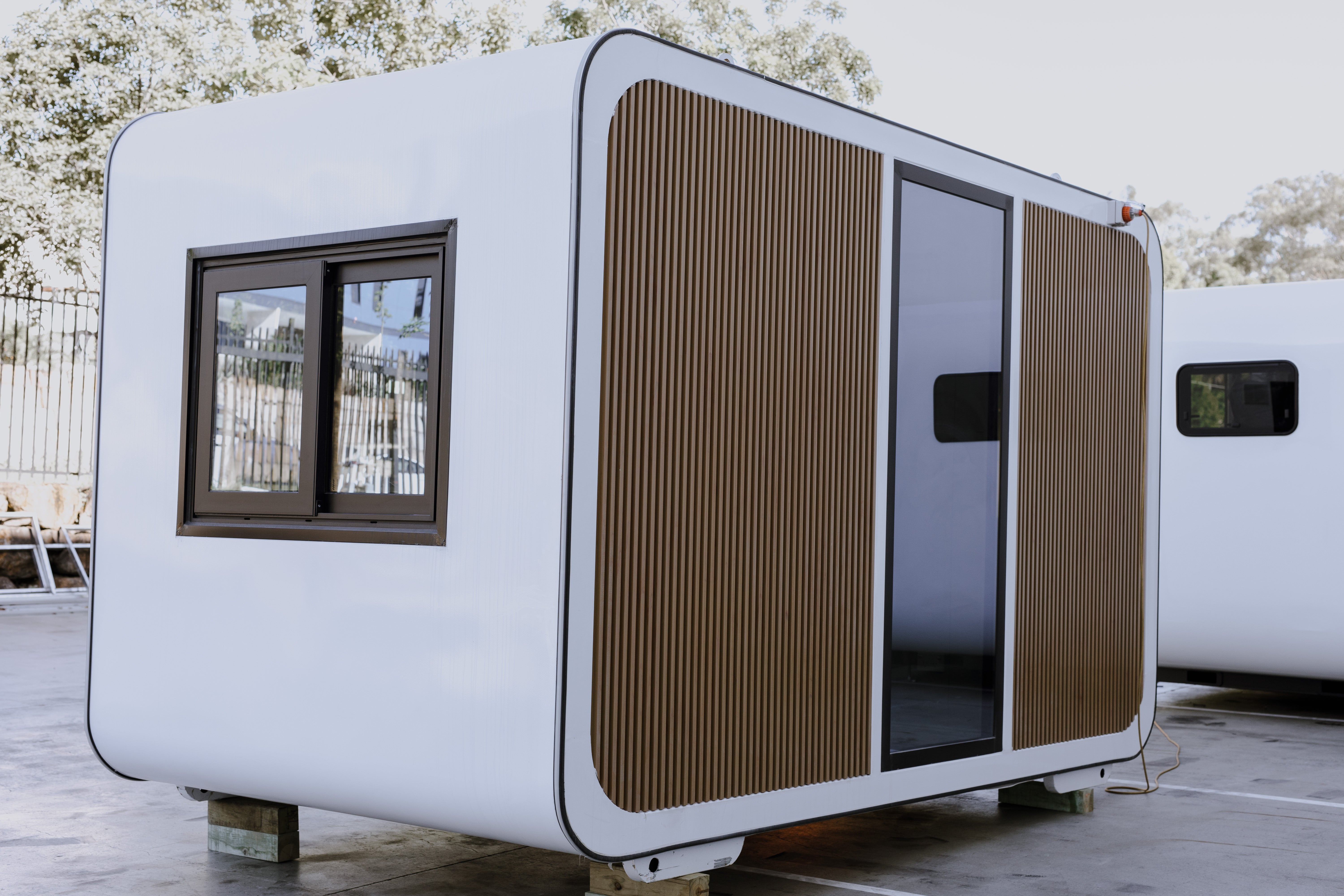

The exterior features a gloss white fibreglass shell paired with black aluminium framing and architectural WPC decorative screening included as standard. The screens are available in brown or black, with black typically selected to complement the window and door framing.

Compact in footprint. Premium in execution.

The Designer range is built for those wanting more than a standard portable solution.

Structure & Construction

• Welded engineered steel frame
• EPS insulated sandwich panel wall system
• Square floor-to-wall junction (allows furniture to sit flush against walls)
• Roof-mounted crane lifting point
• Reinforced pod feet with tie-down provisions (footing plan supplied)

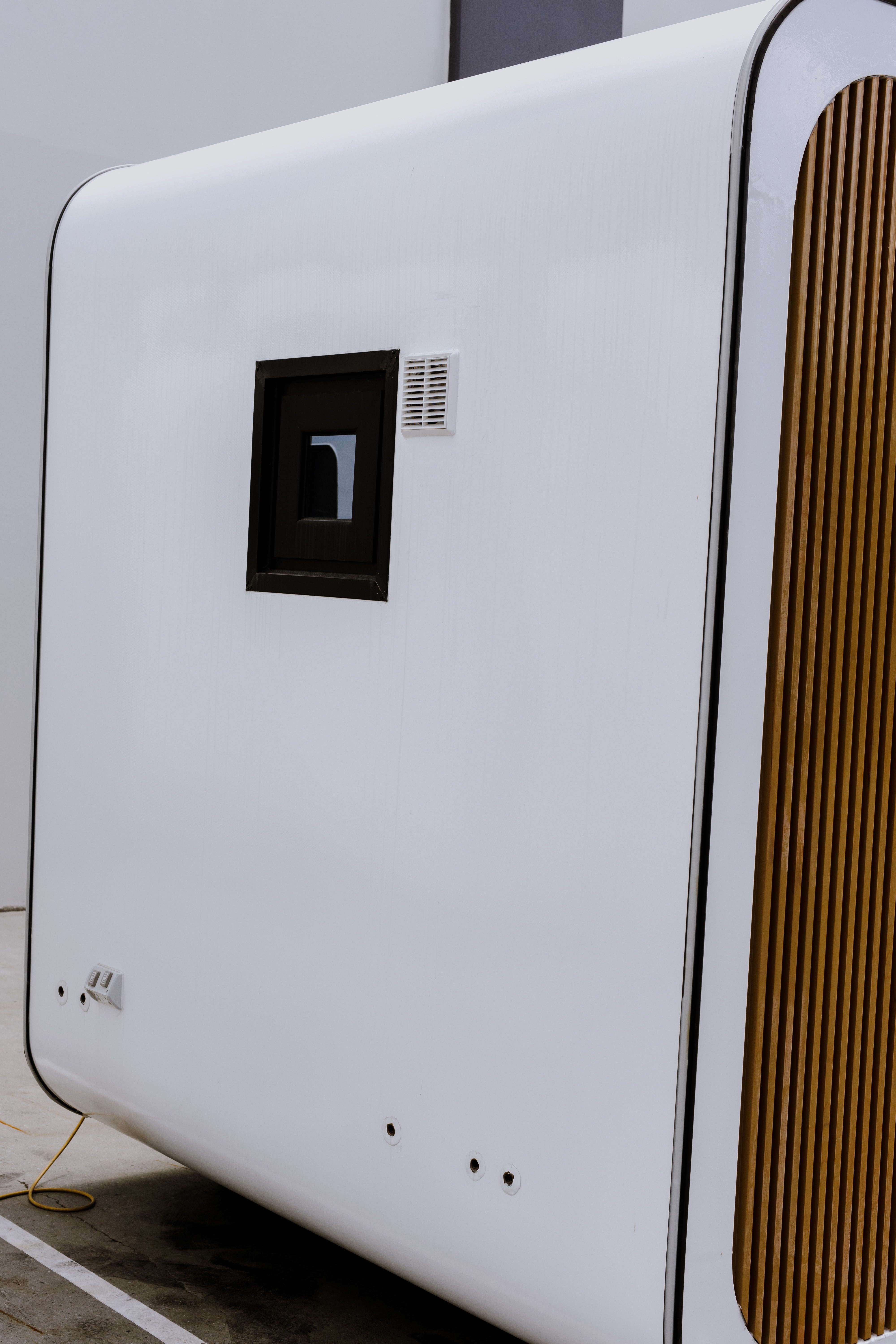

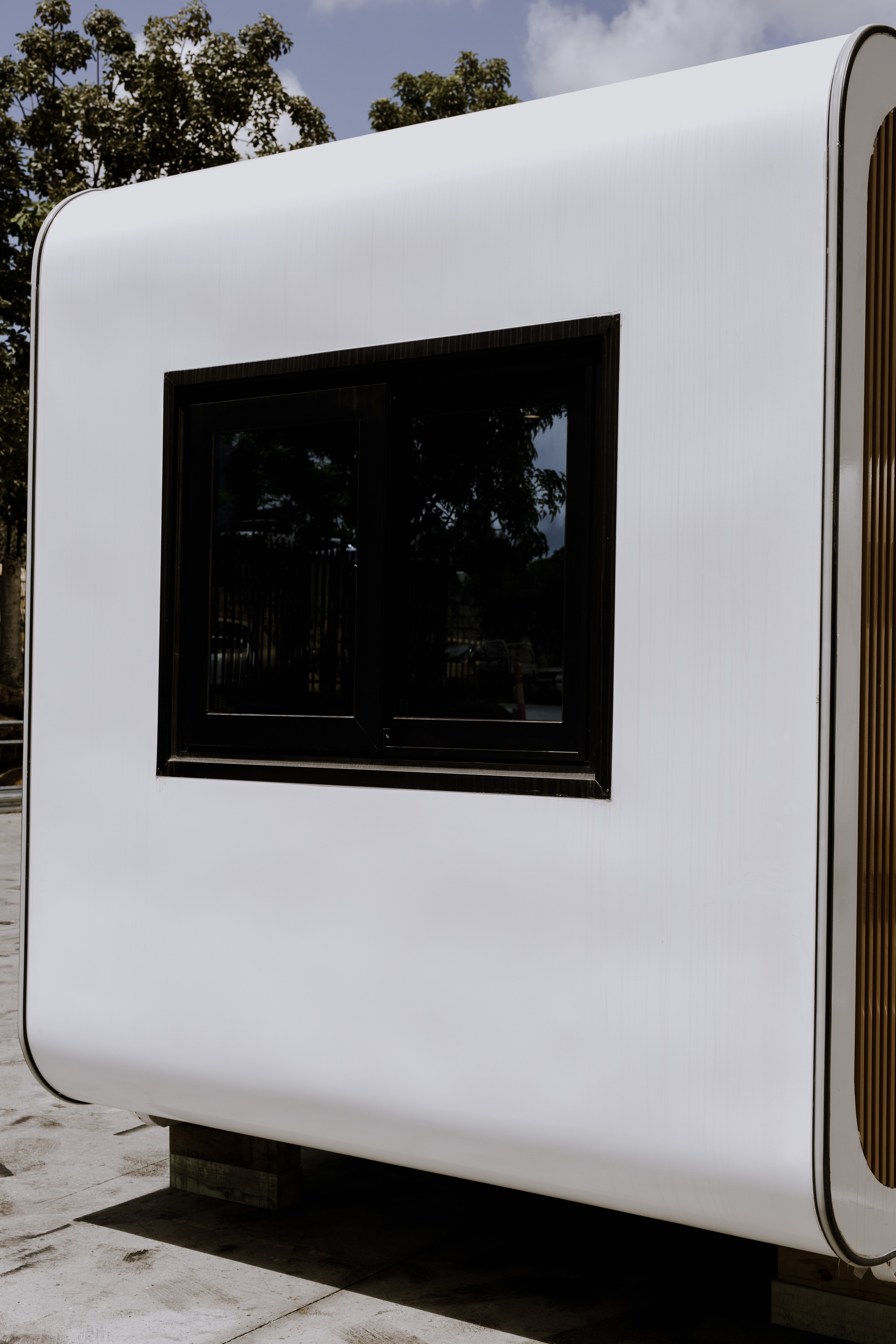

• Gloss white fibreglass exterior shell

Exterior & Glazing

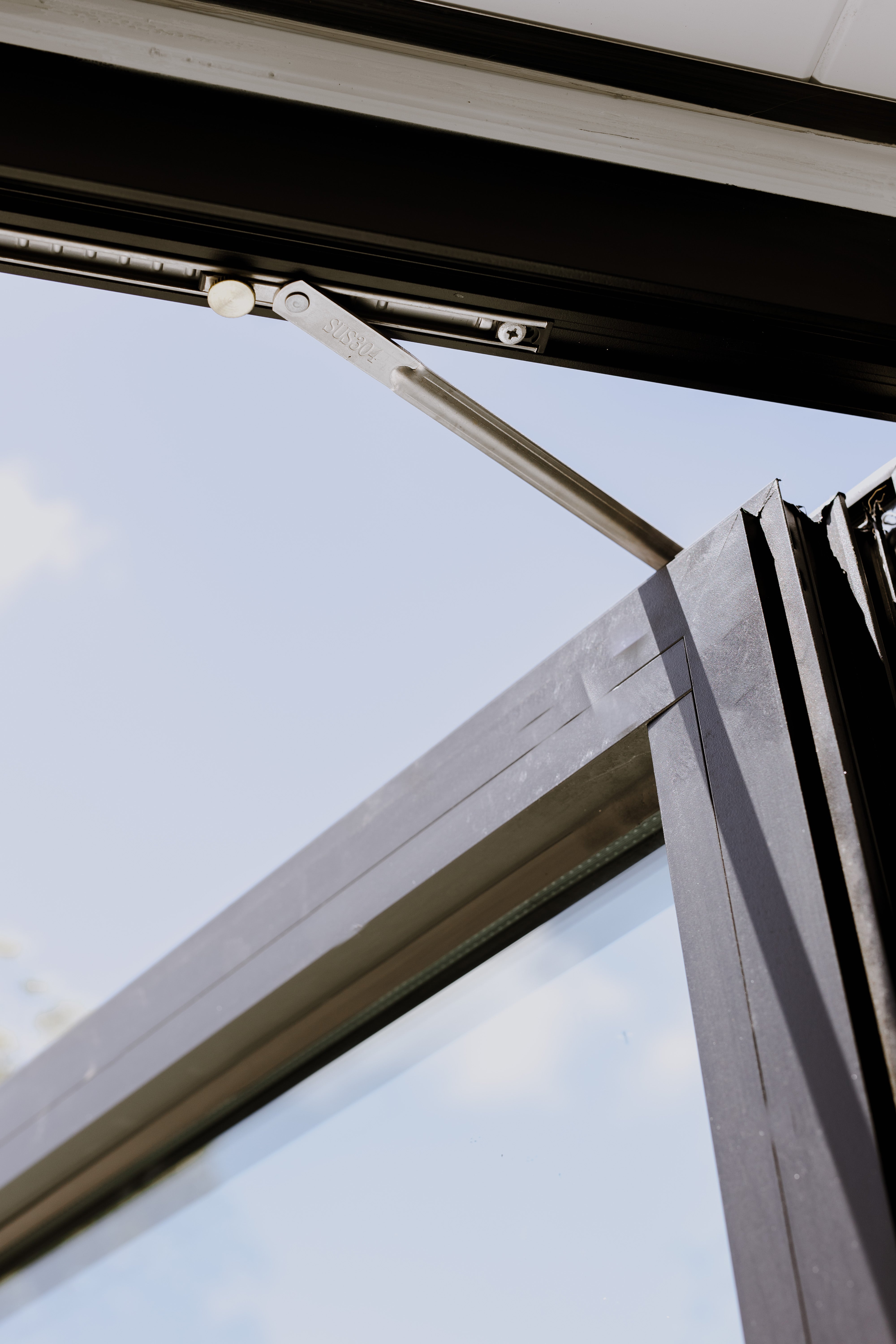

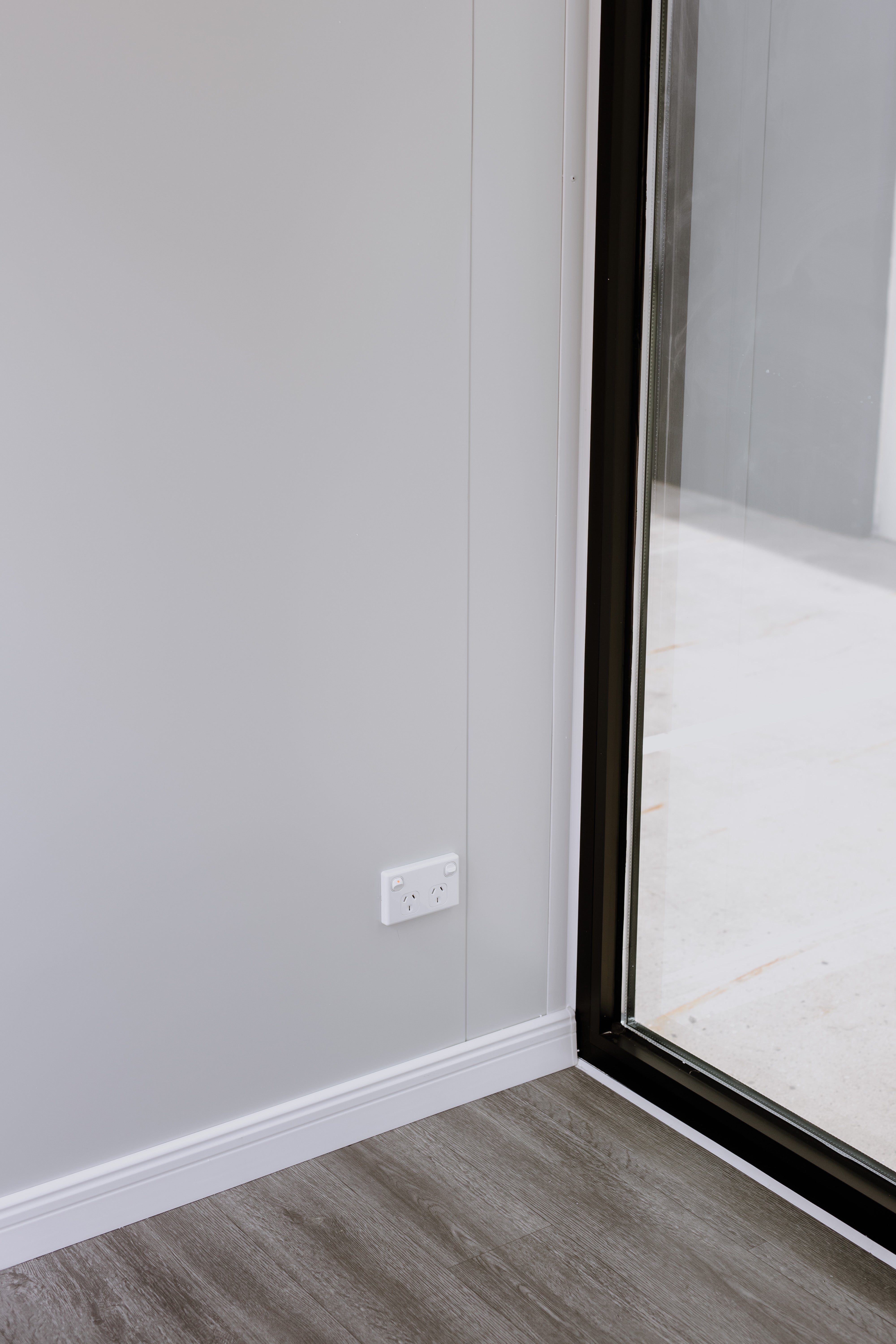

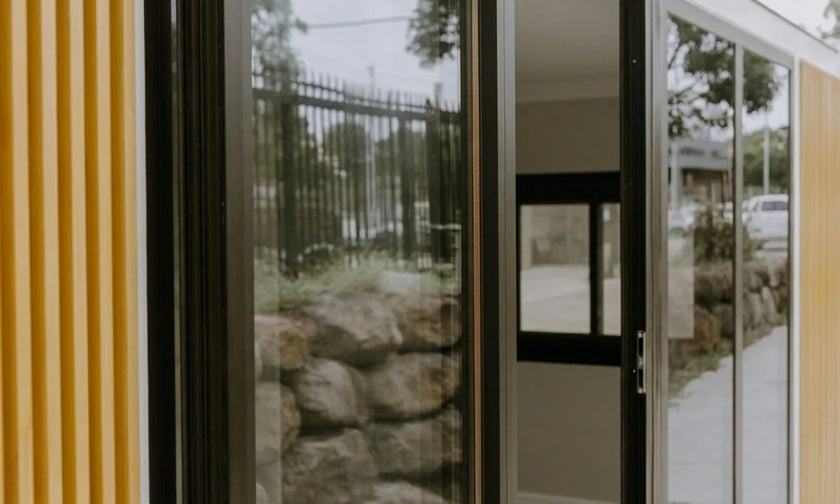

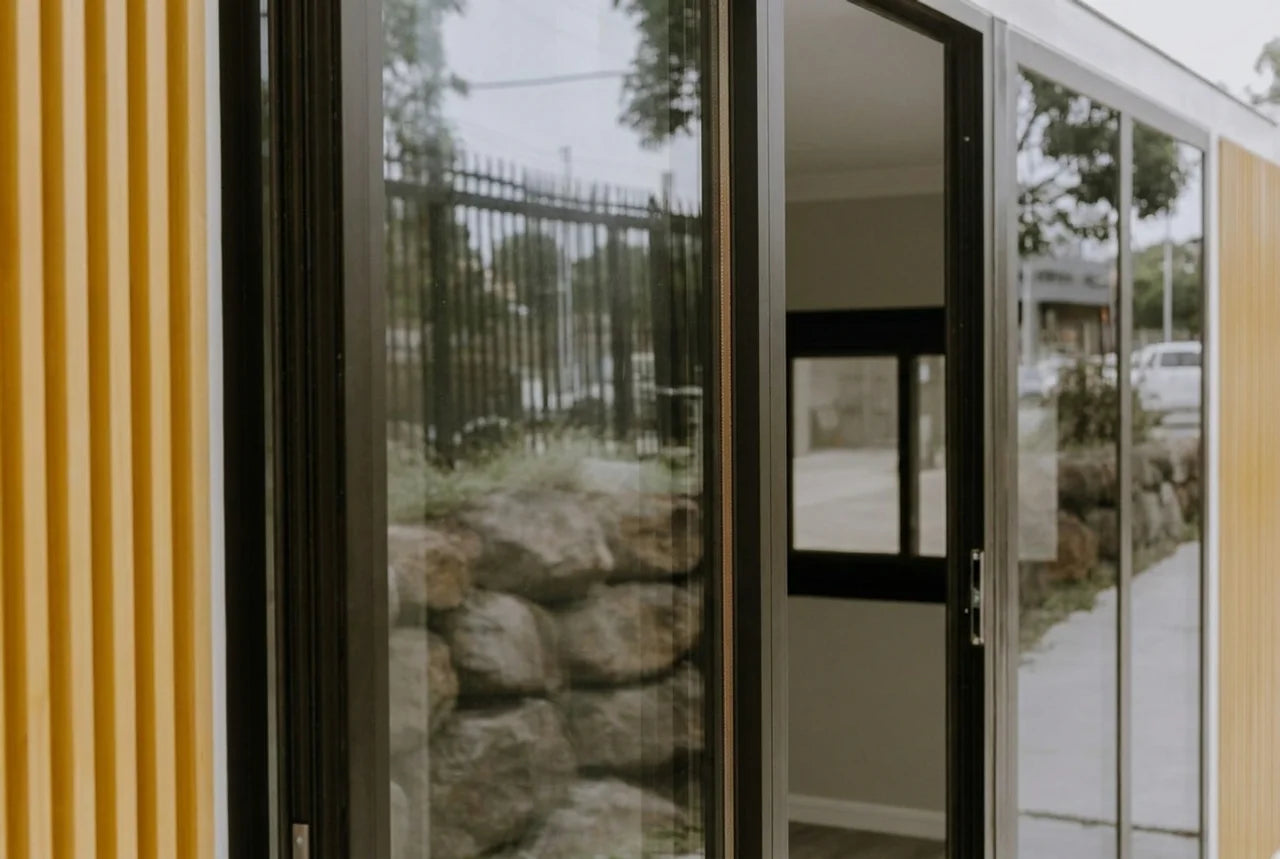

• Floor-to-ceiling double-glazed glass walls to front and rear

AS/NZS compliant glazing in black aluminium frames
• Reflective mirror privacy film applied to external glazing

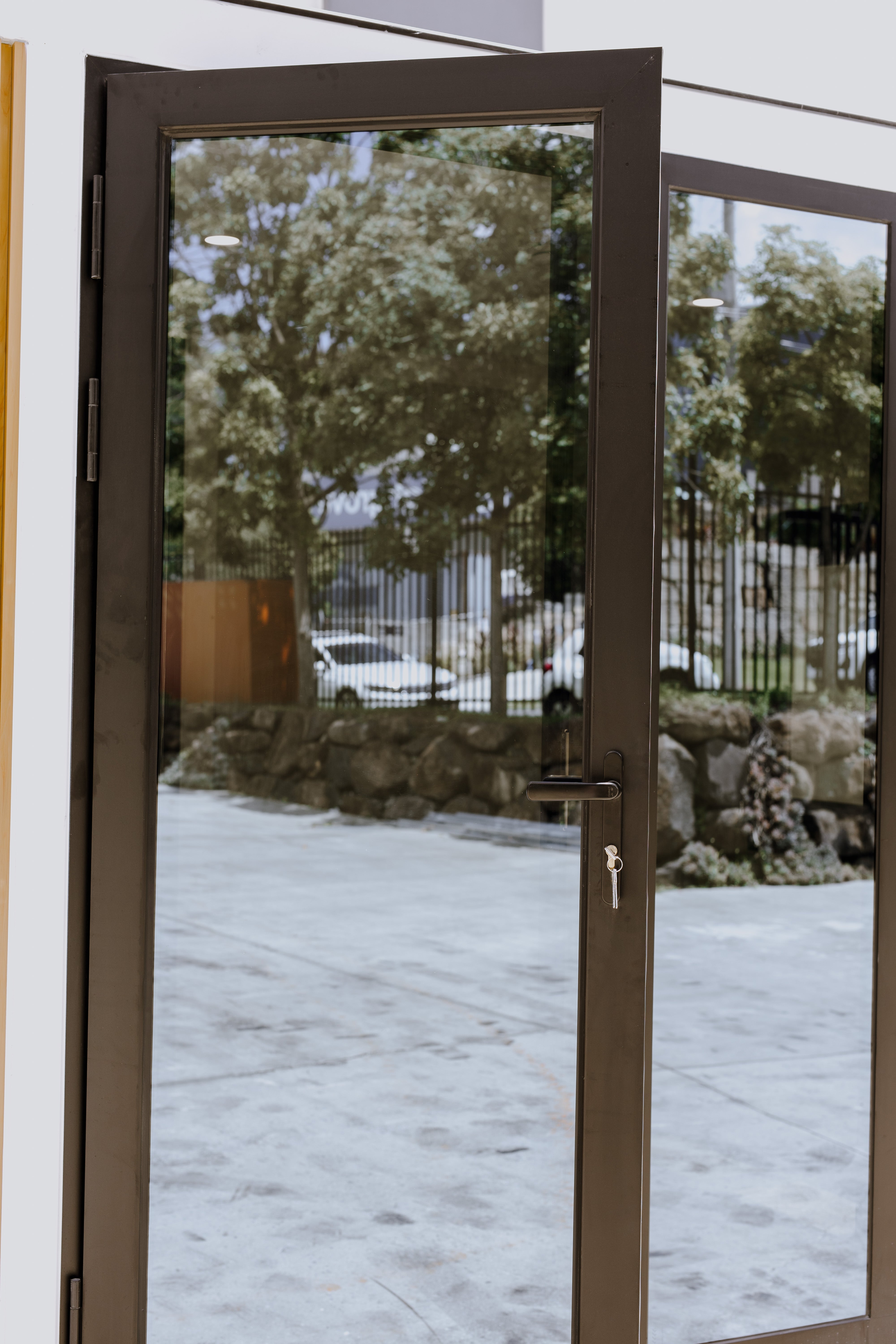

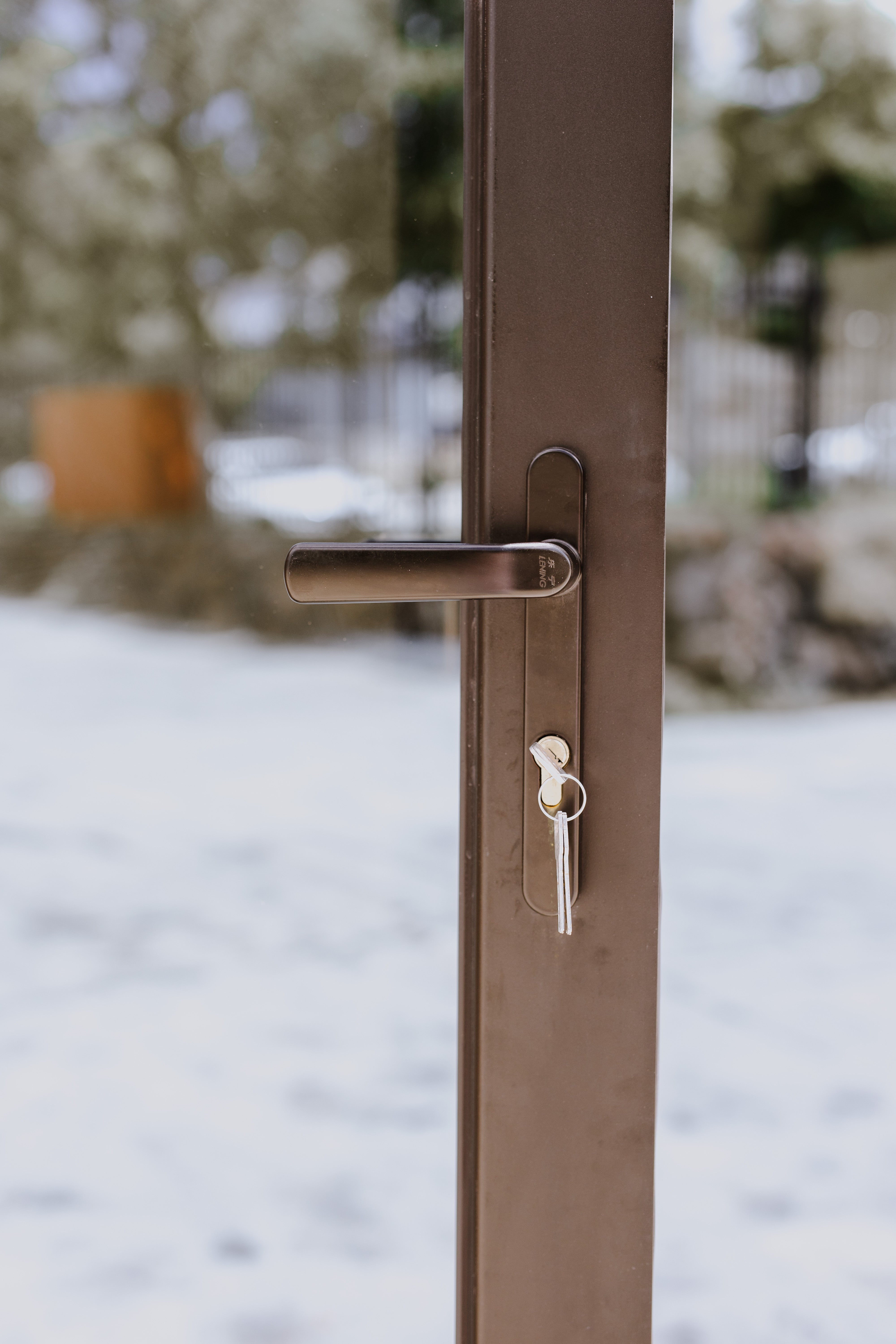

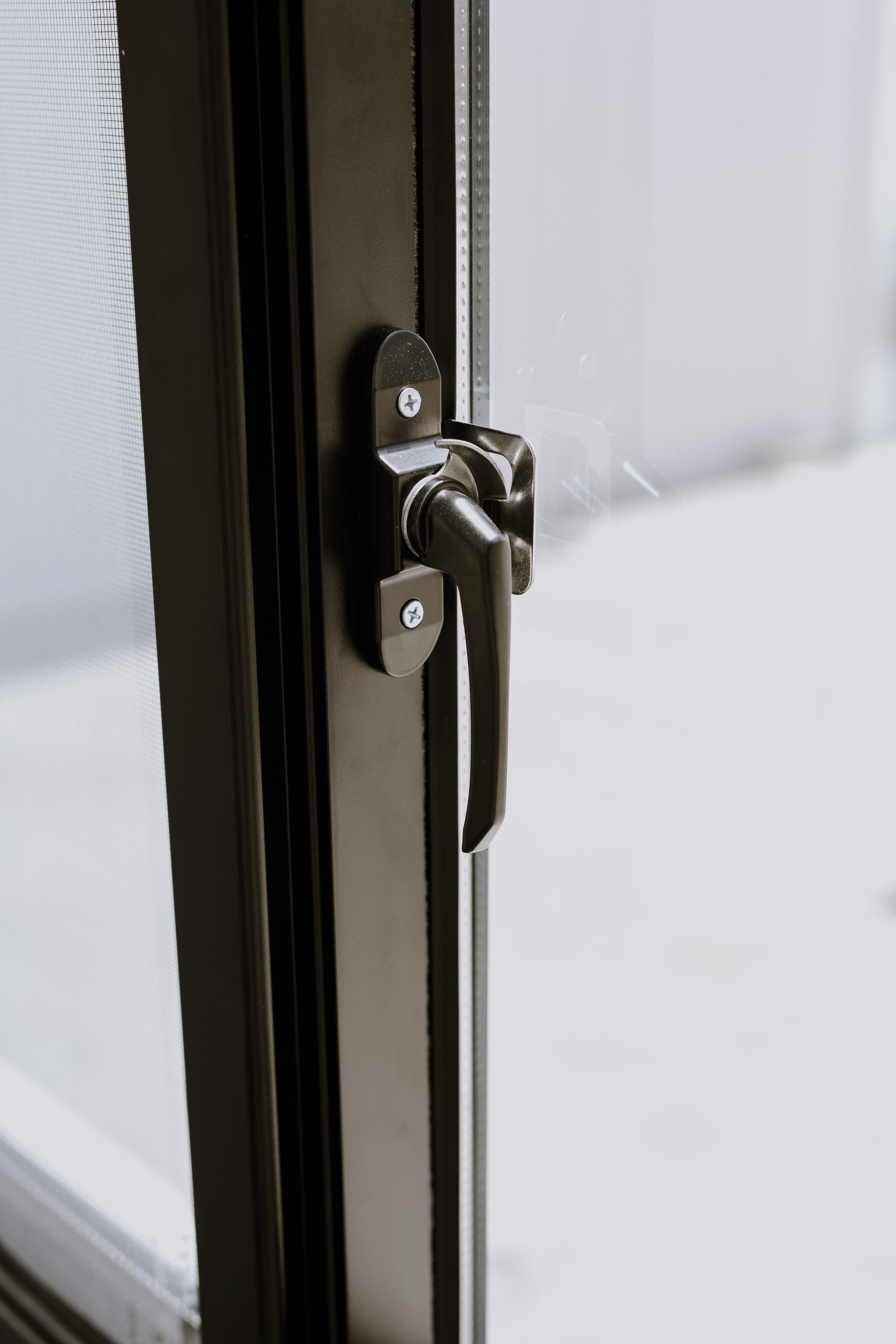

• Secure glass entry door with Euro lock and high-security multi-point locking

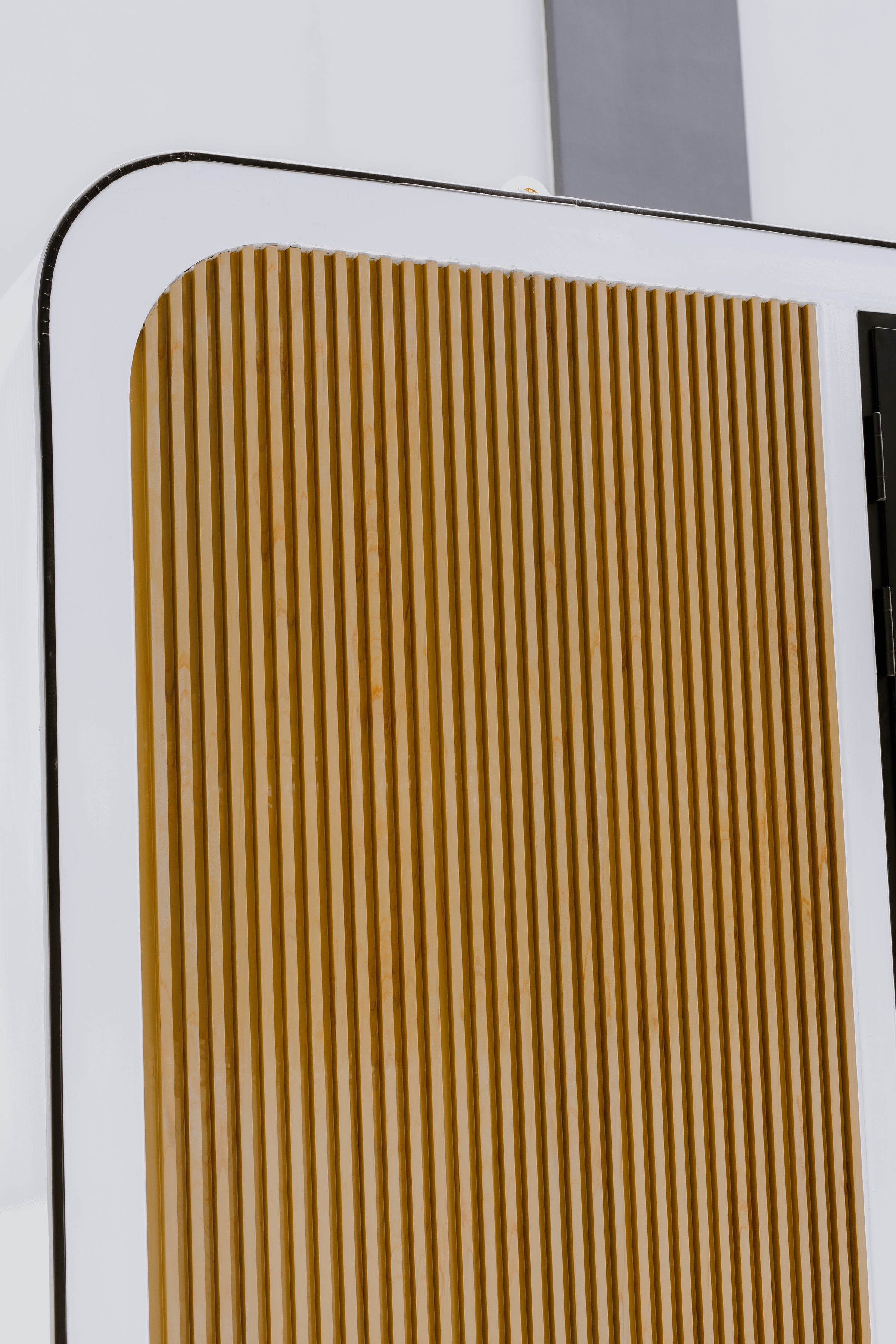

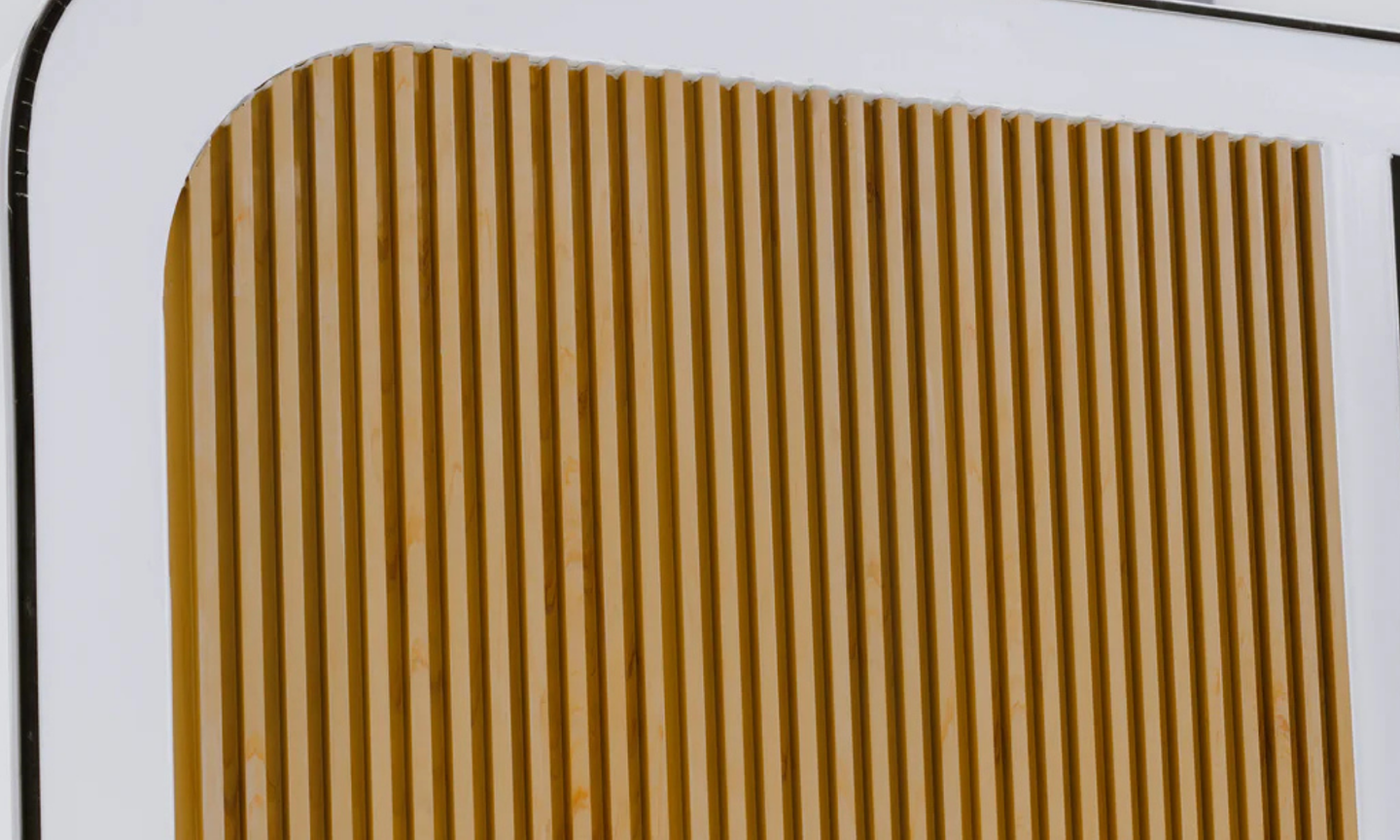

• Wood-Plastic Composite (WPC) decorative screens included as standard
(Brown or black colour options available)

Interior Finishes

• Timber-look grey vinyl flooring

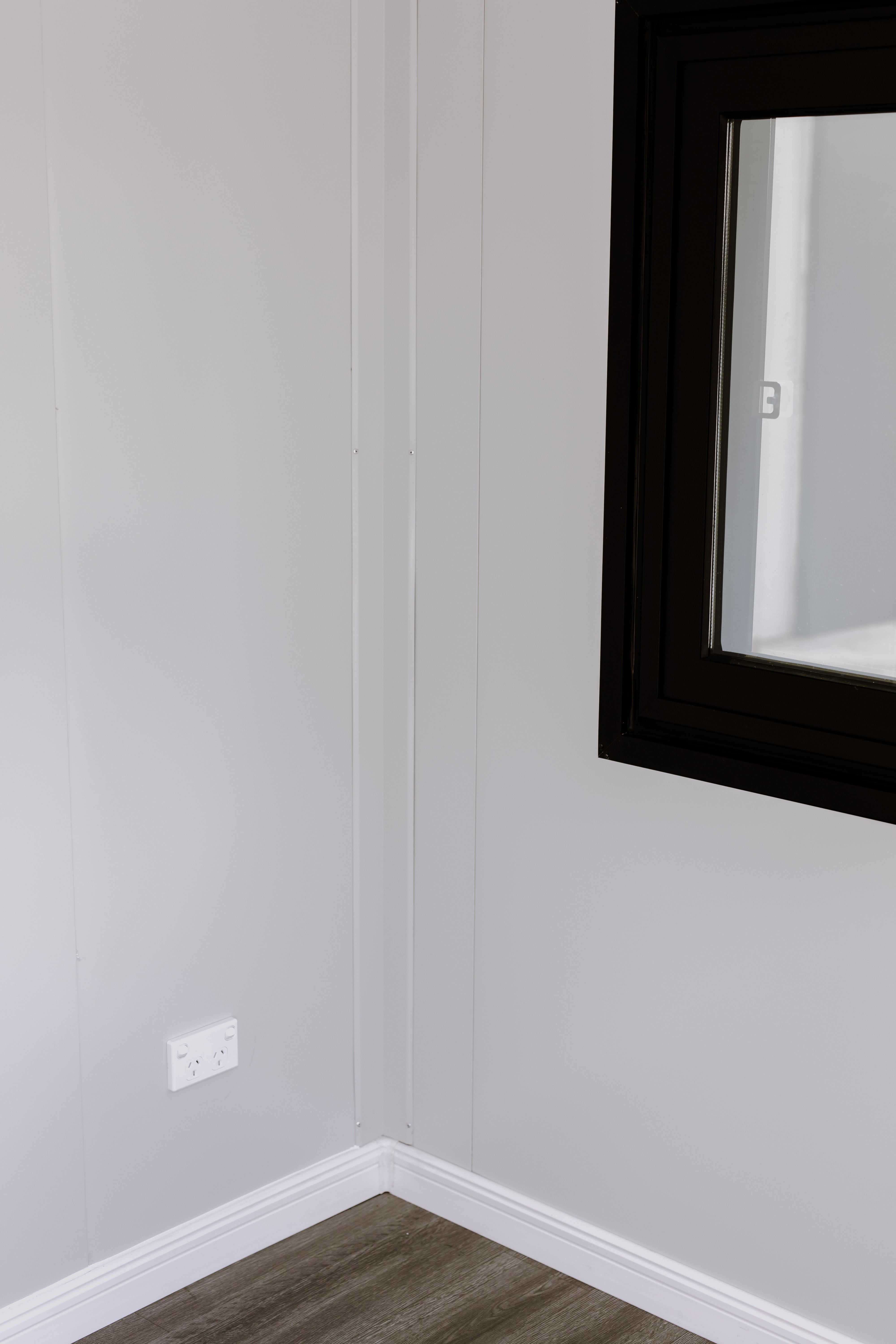

• Clean square internal wall finish (Designer range feature)
• Formed internal wall linings

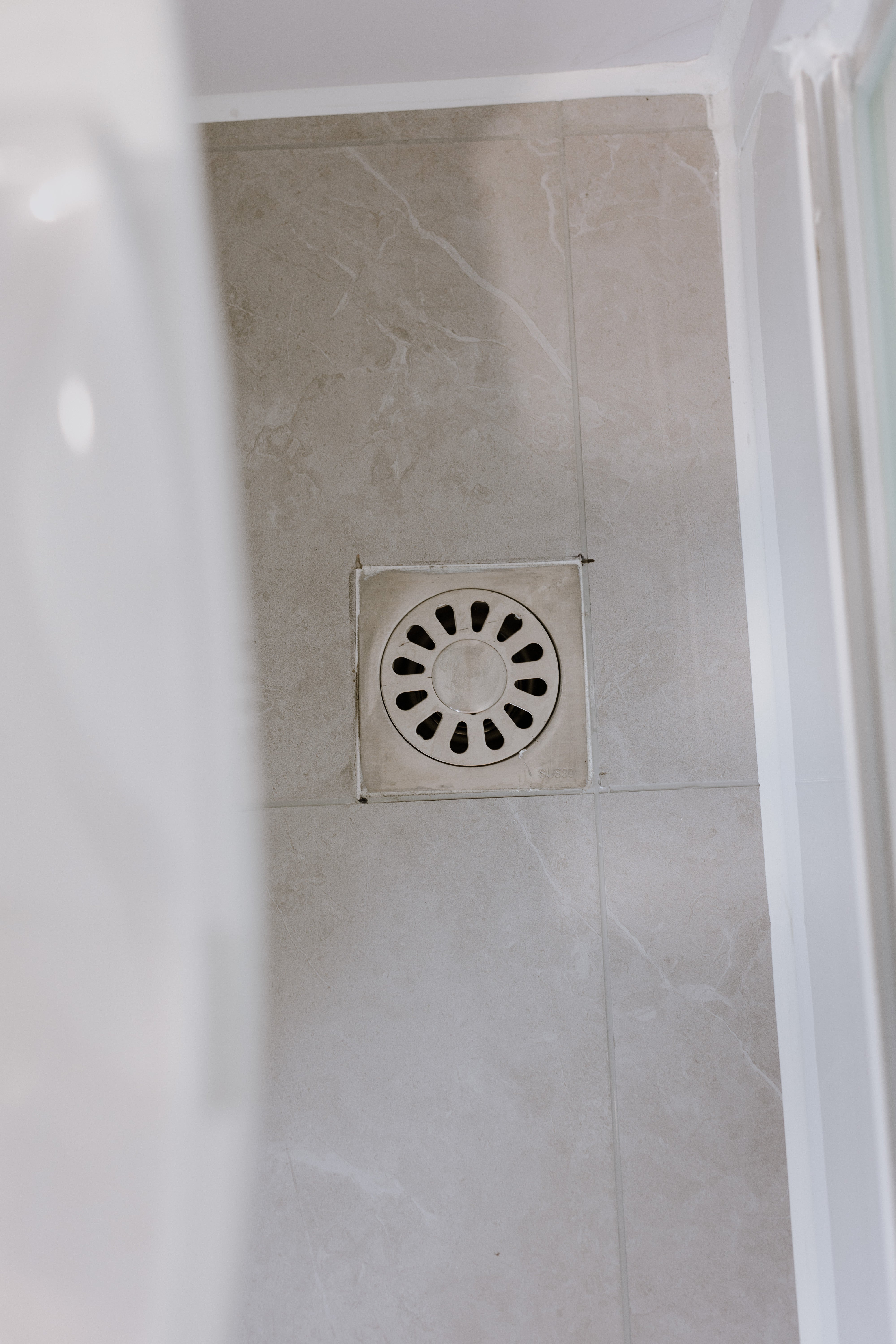

• Tiled bathroom floor
• Marble-look wall panels in bathroom

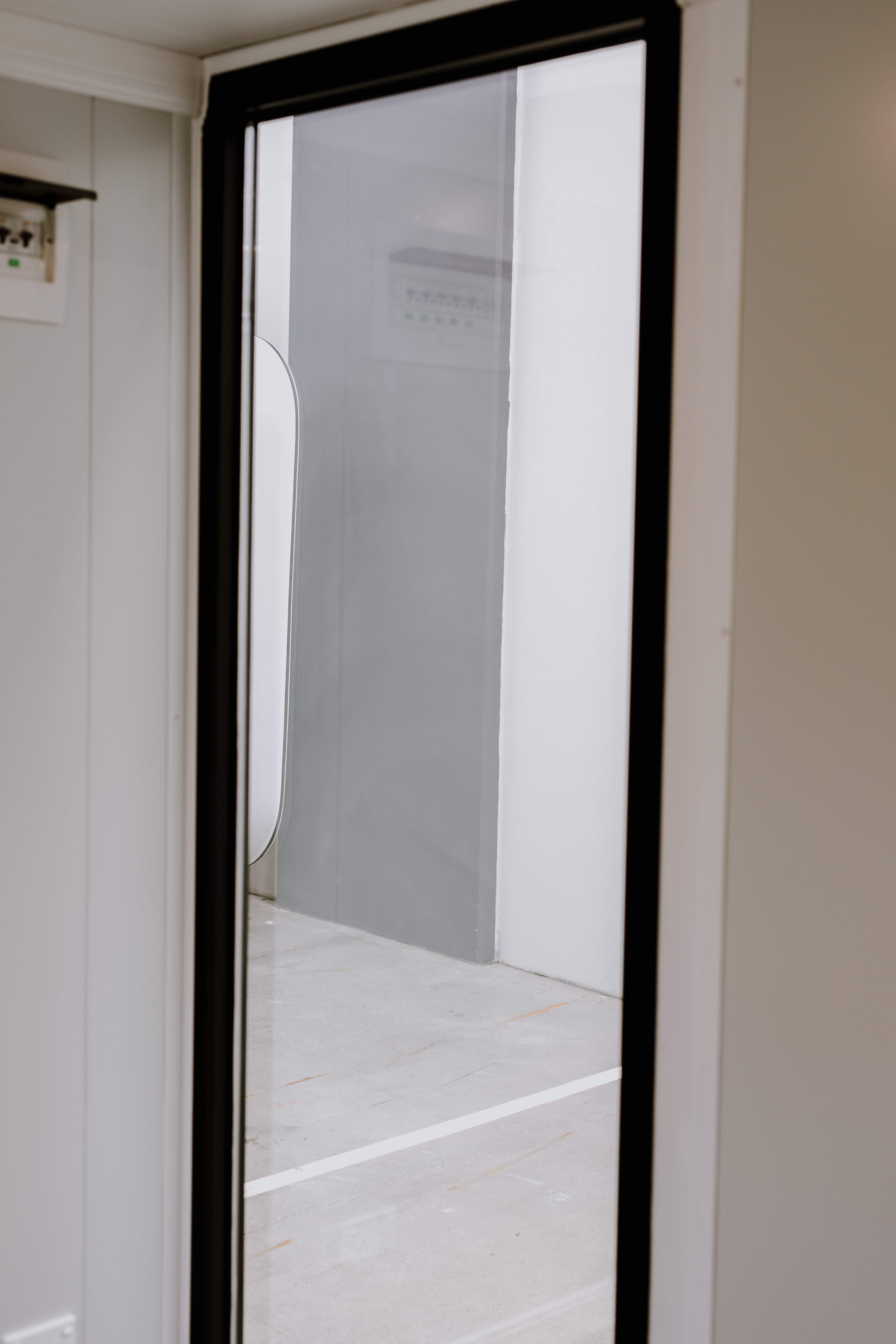

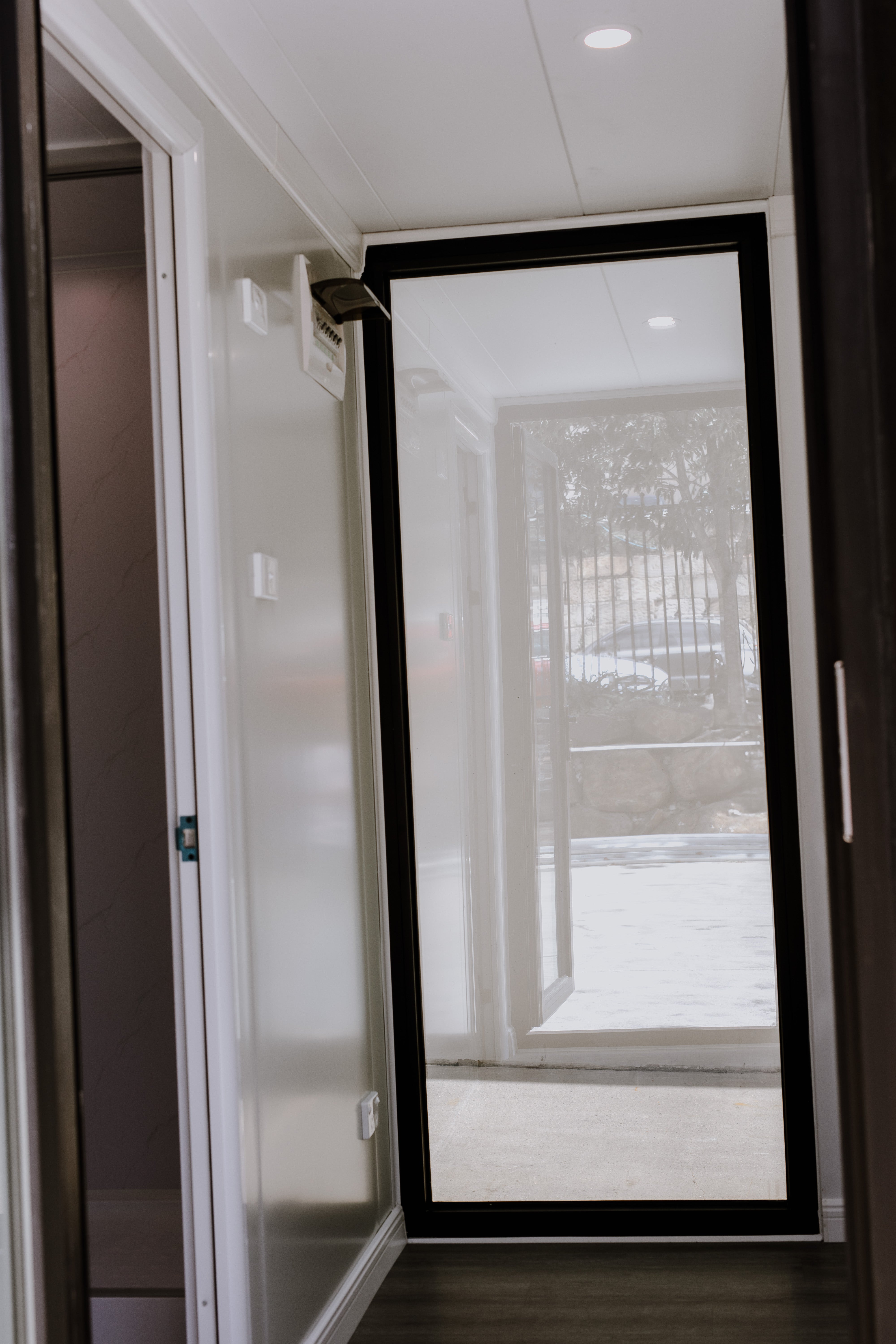

• Frosted bathroom entry door

Bathroom

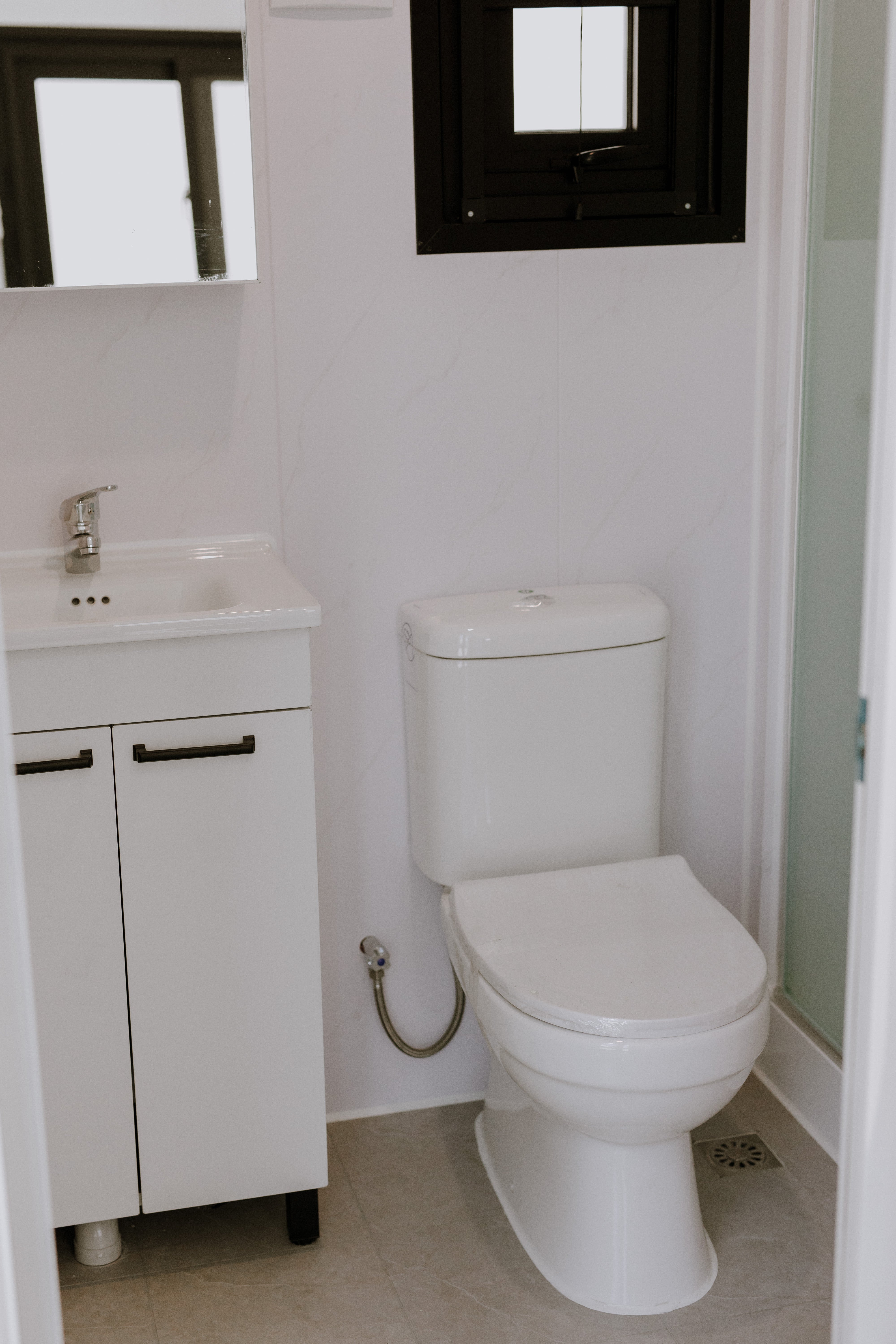

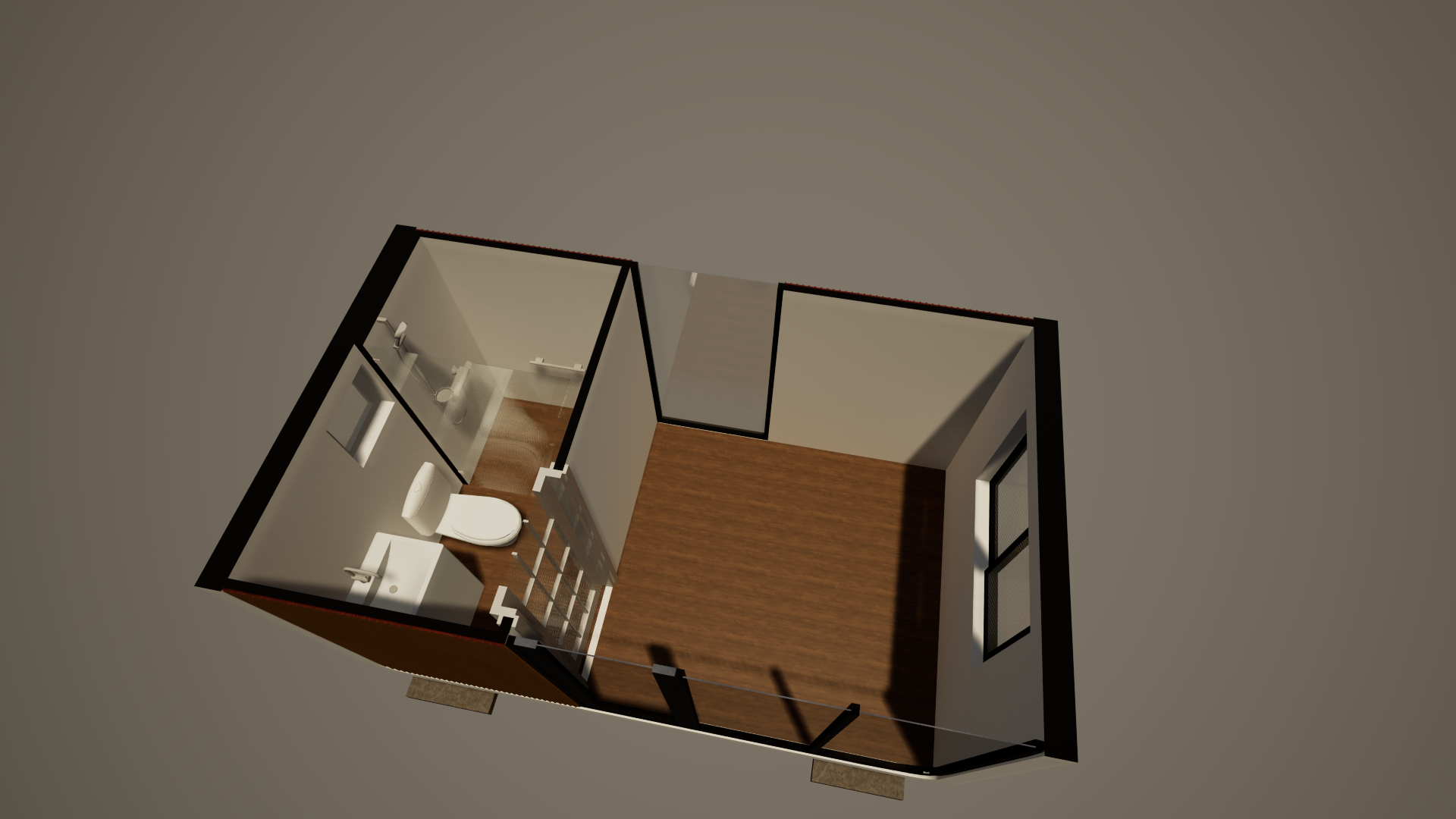

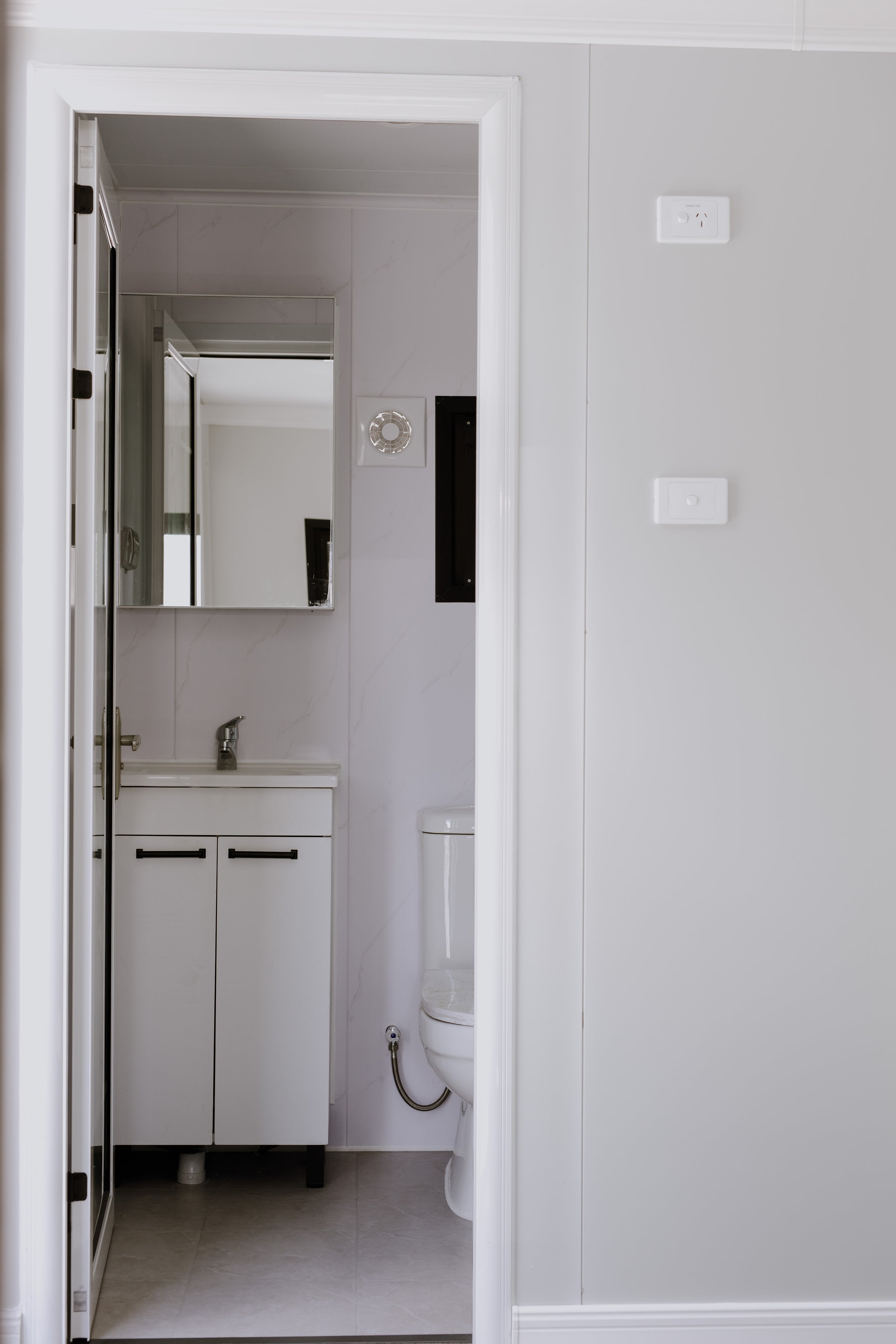

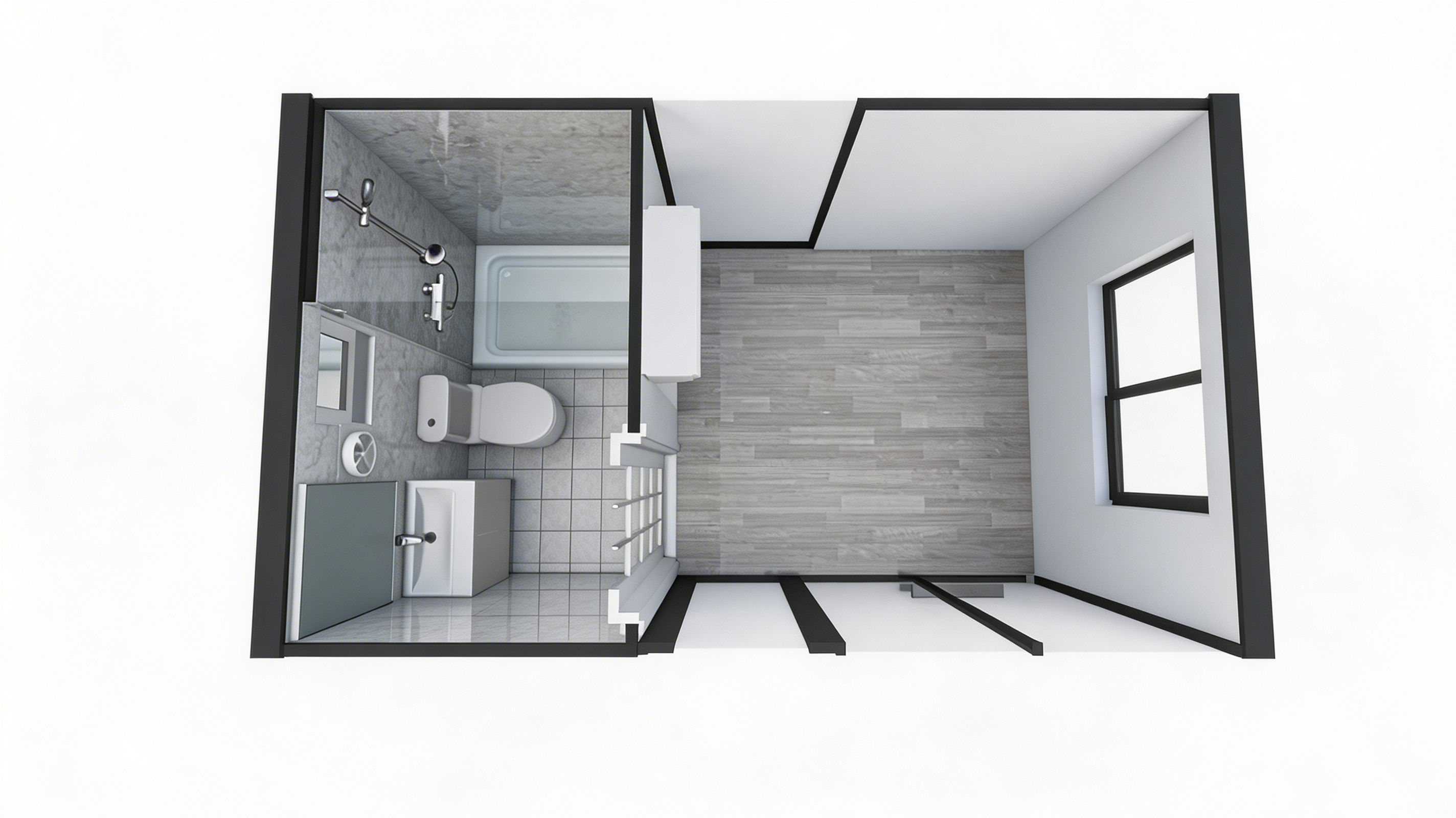

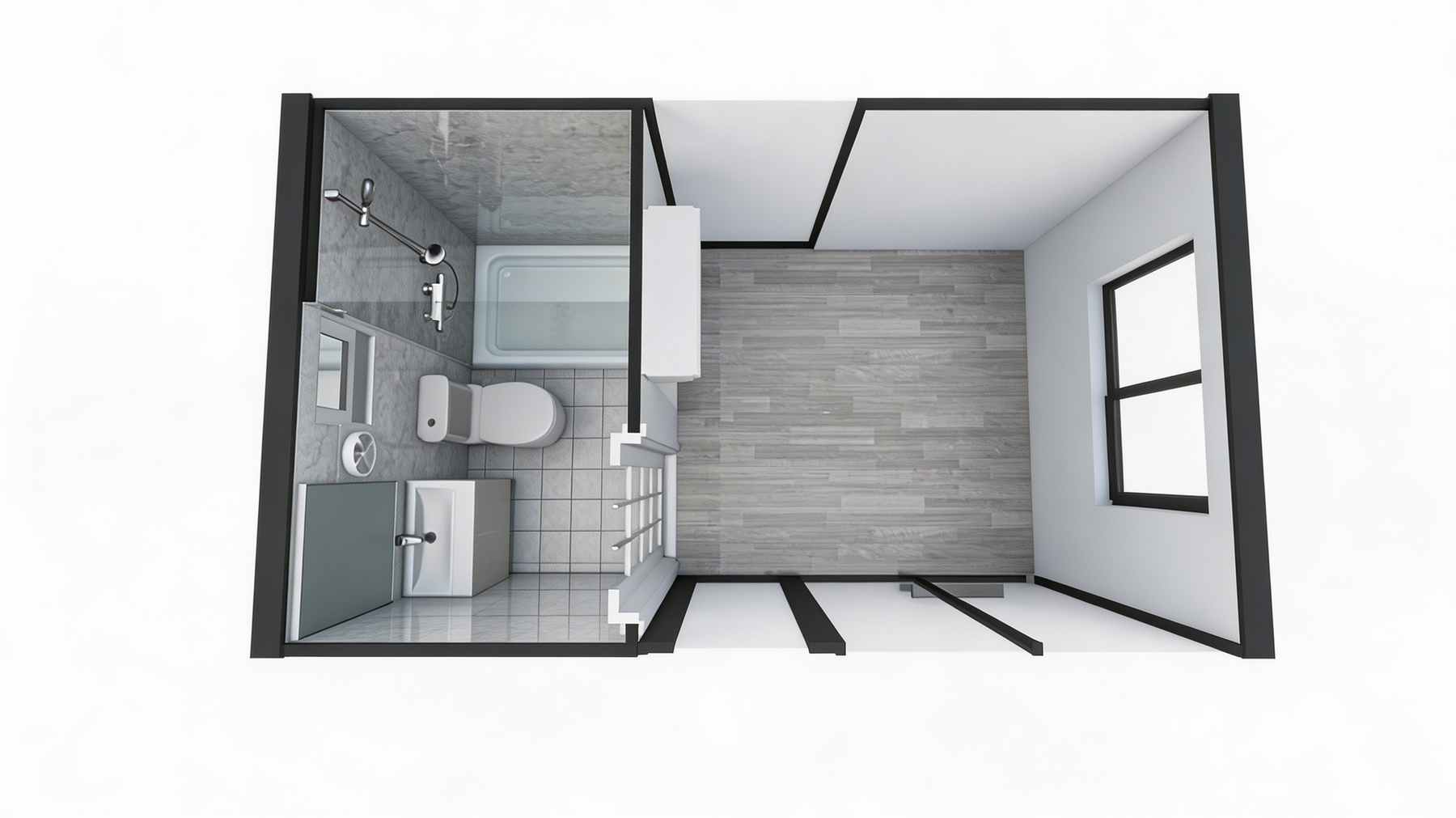

• Full bathroom layout with separate shower, toilet and vanity
• Porcelain toilet (WELS marked)

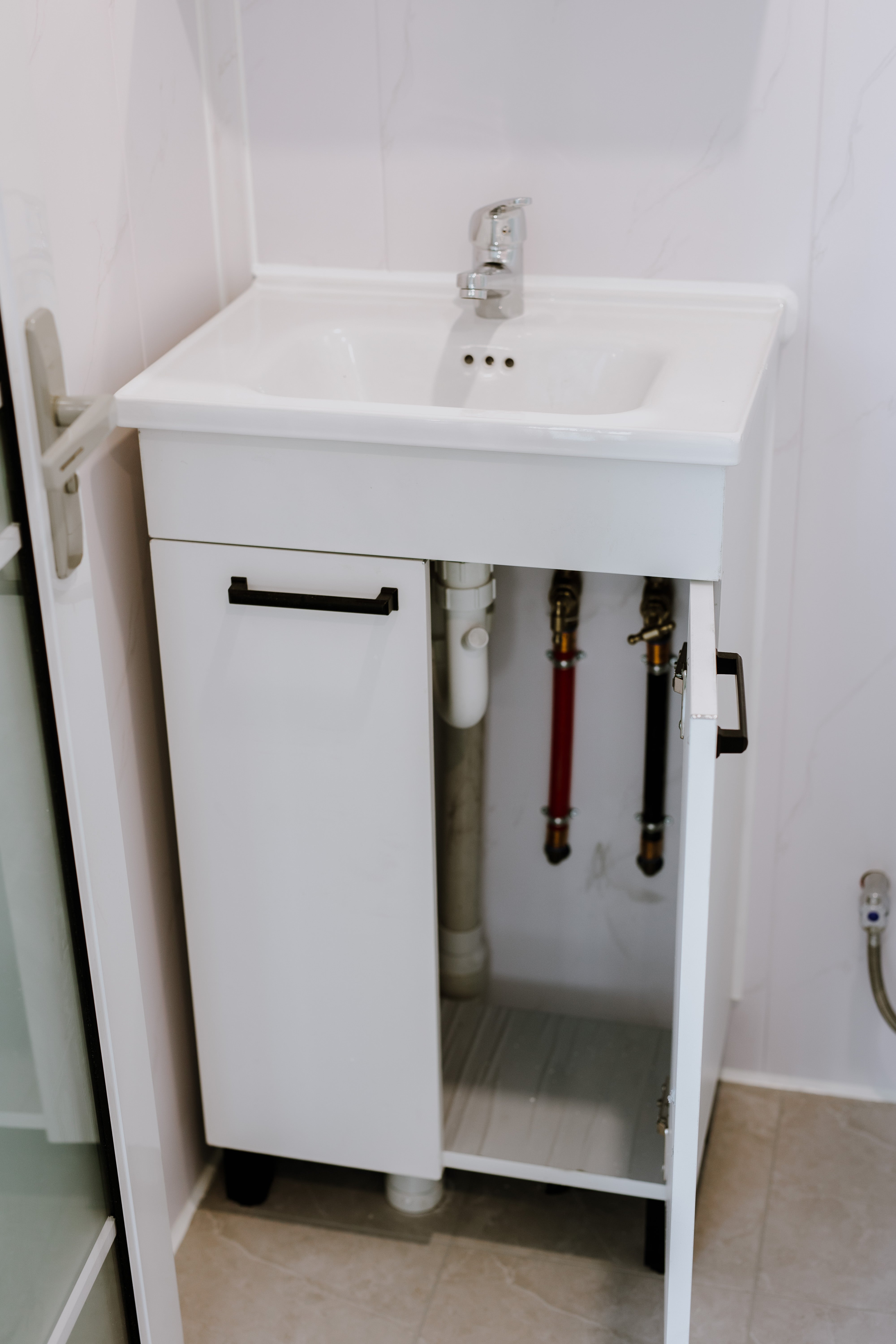

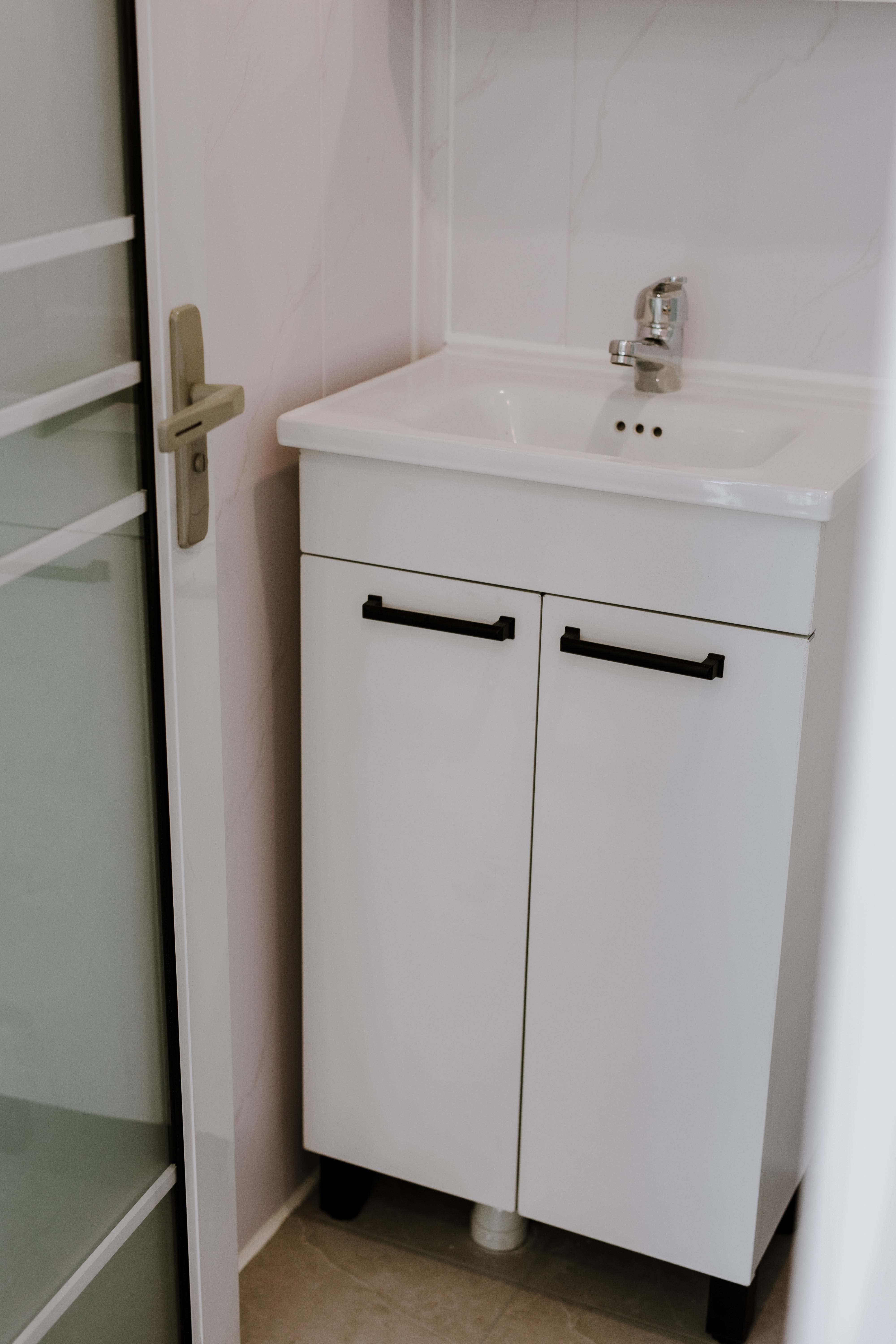

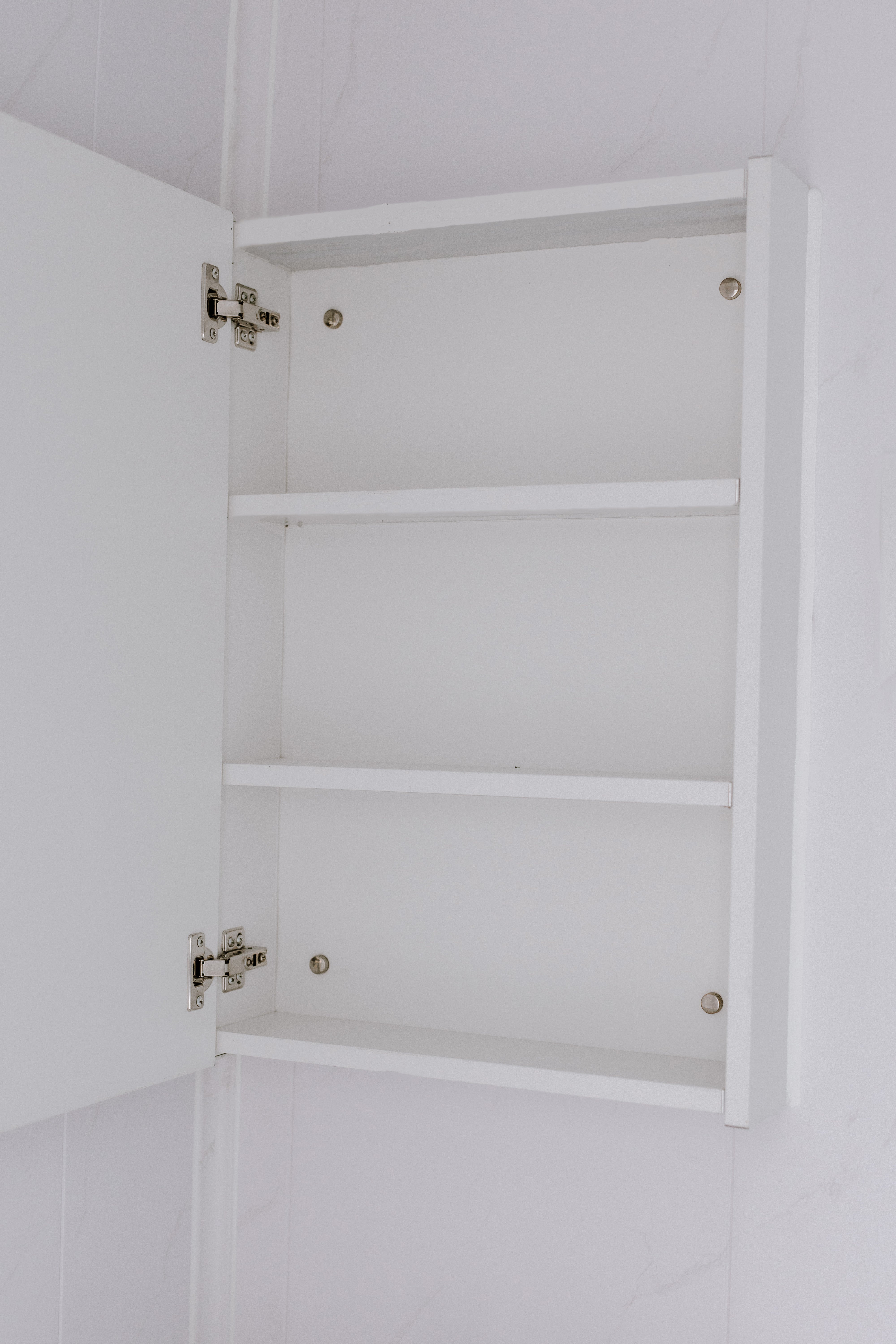

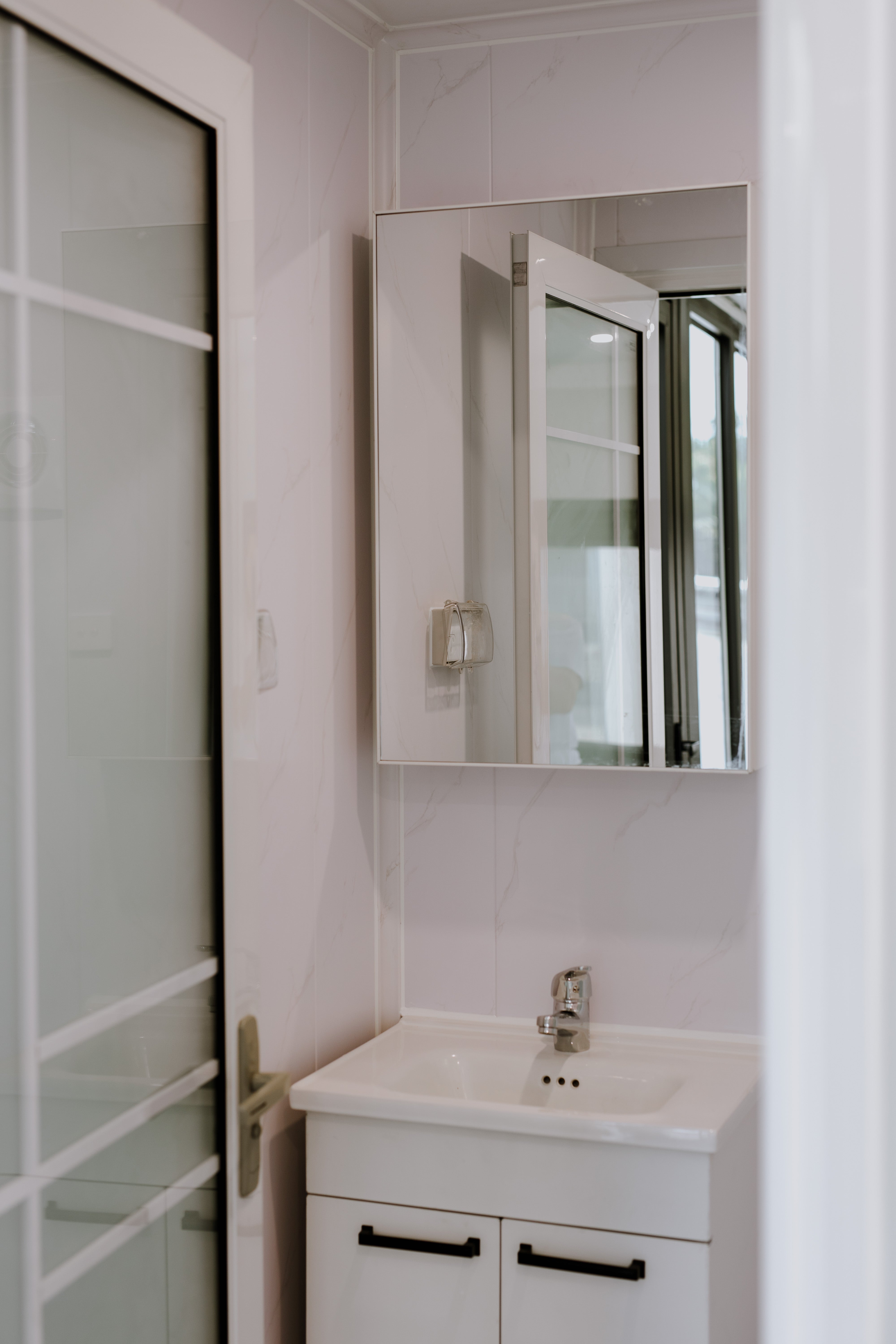

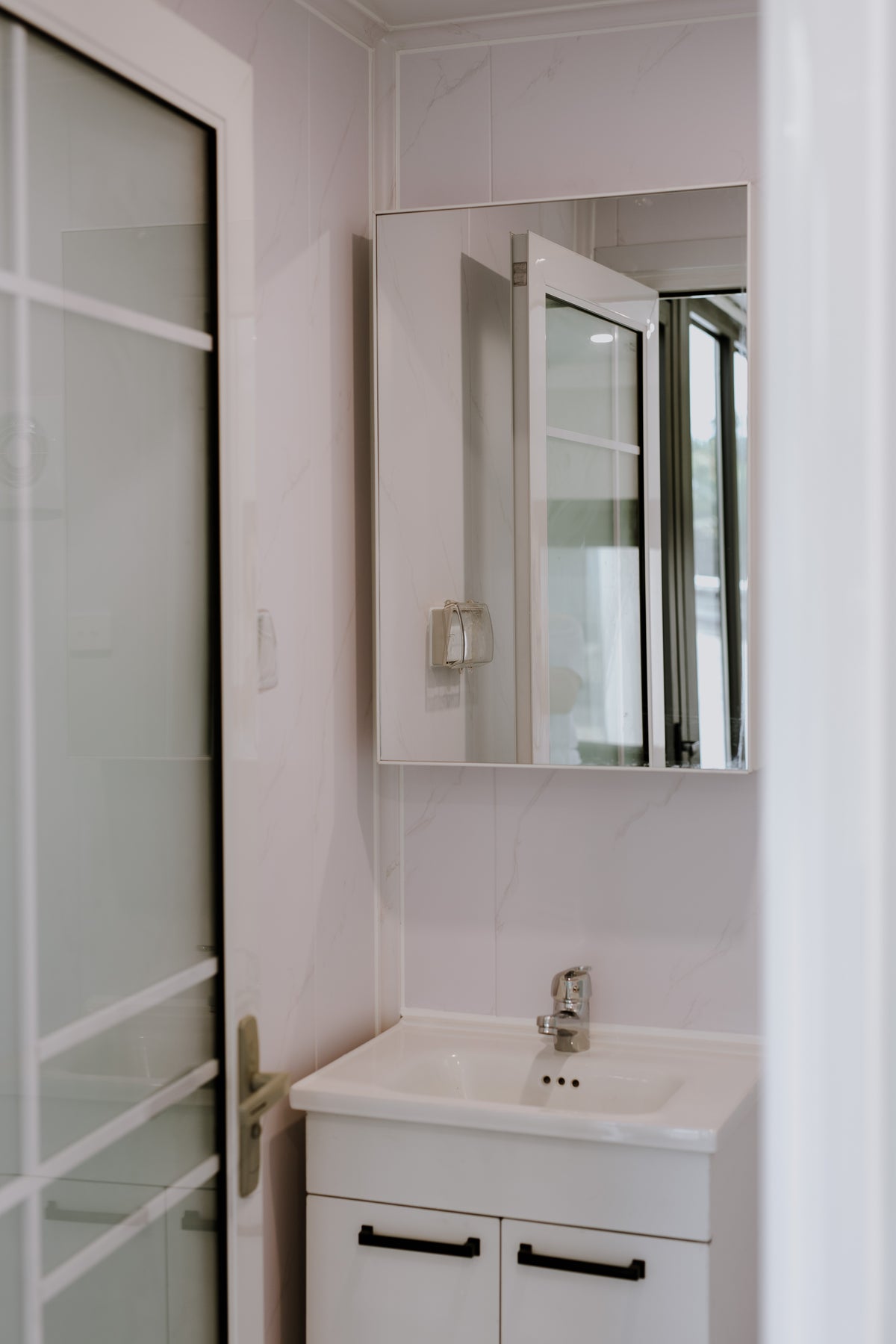

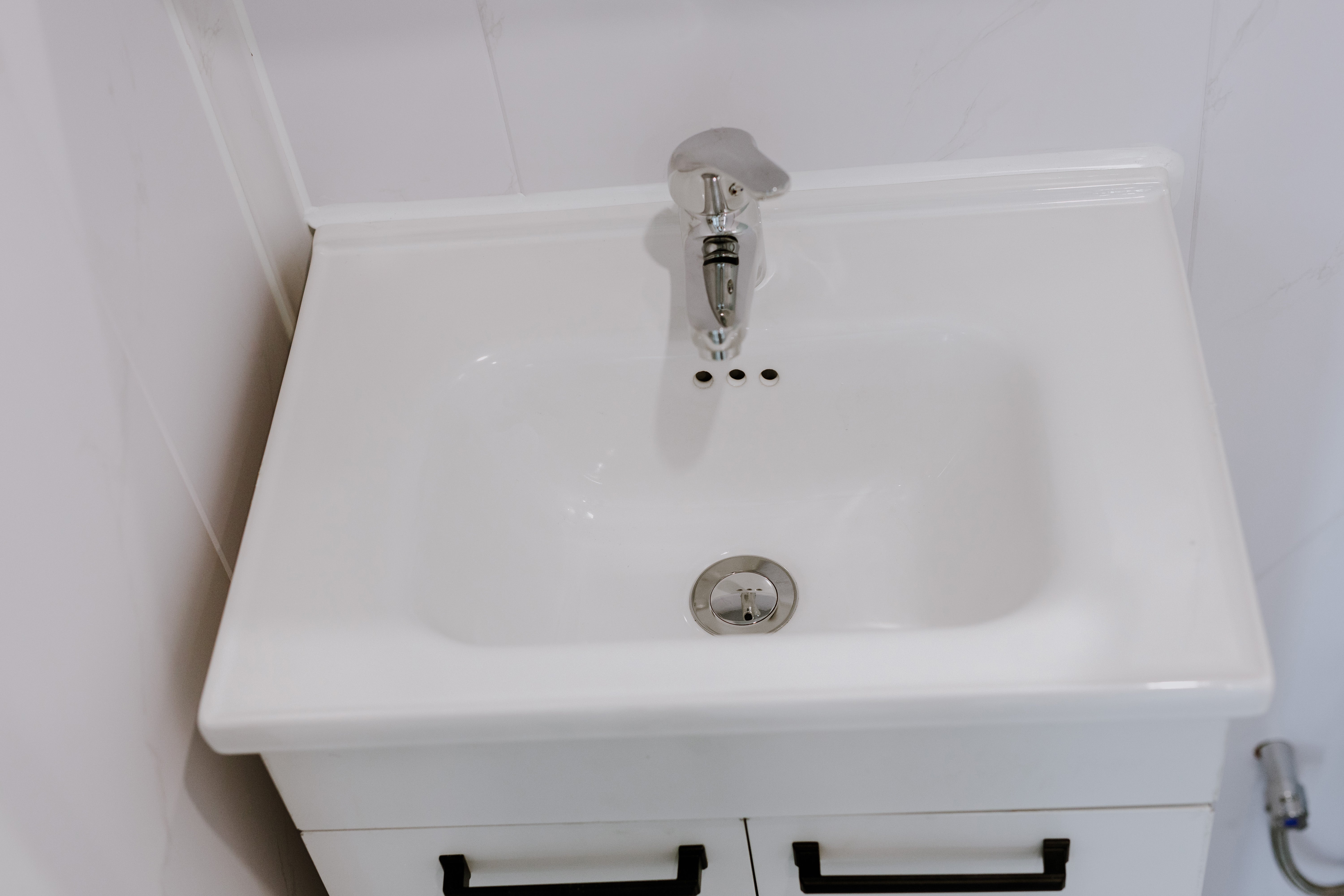

• Vanity with mirrored cabinet

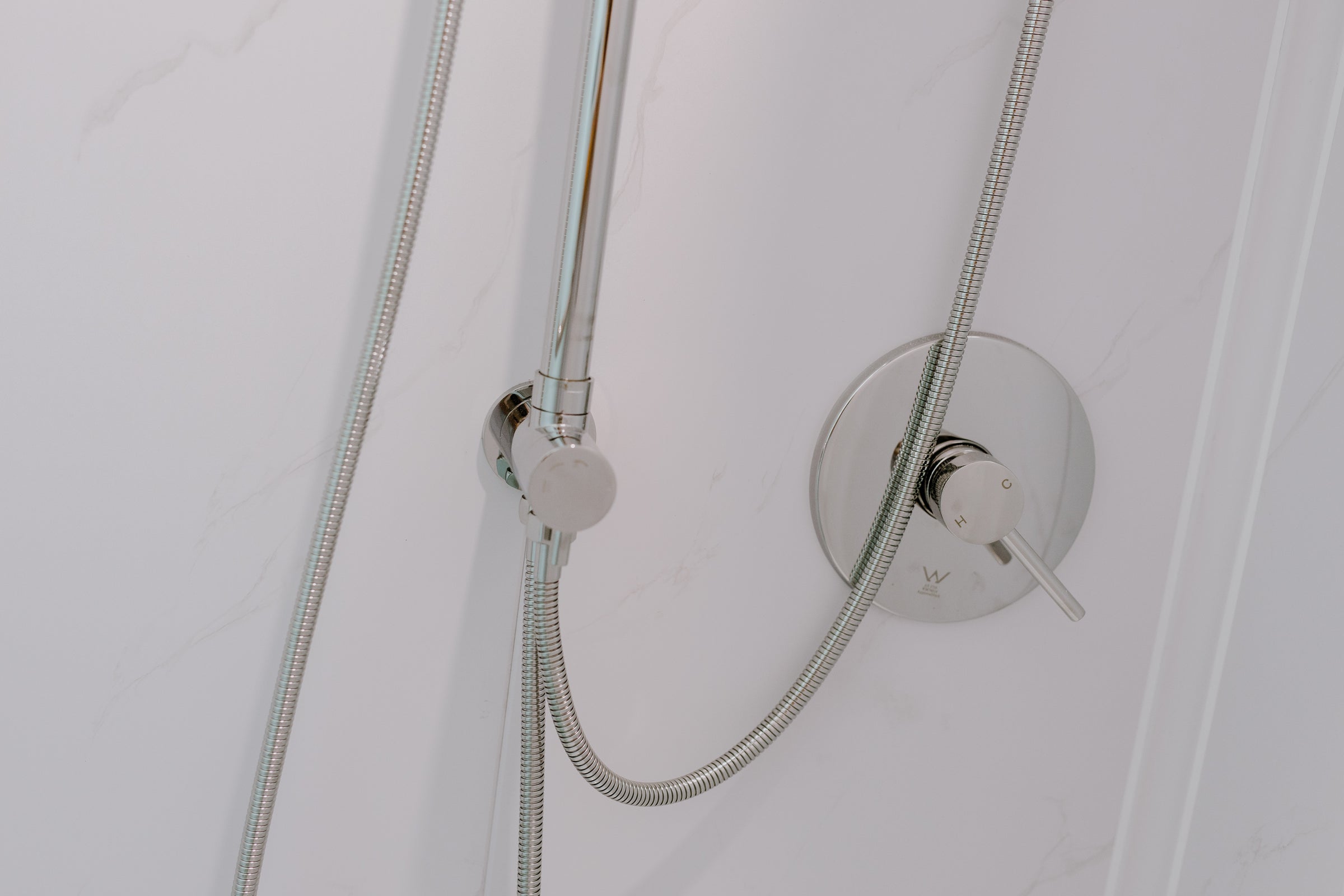

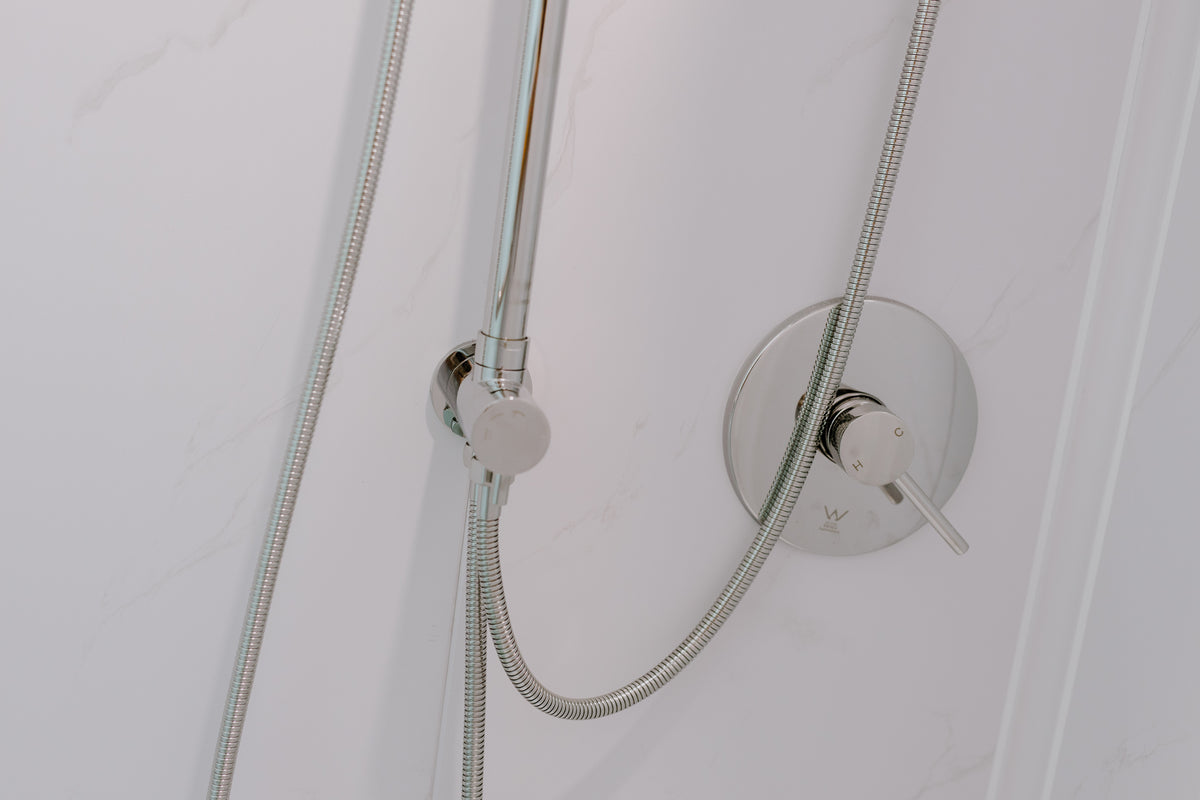

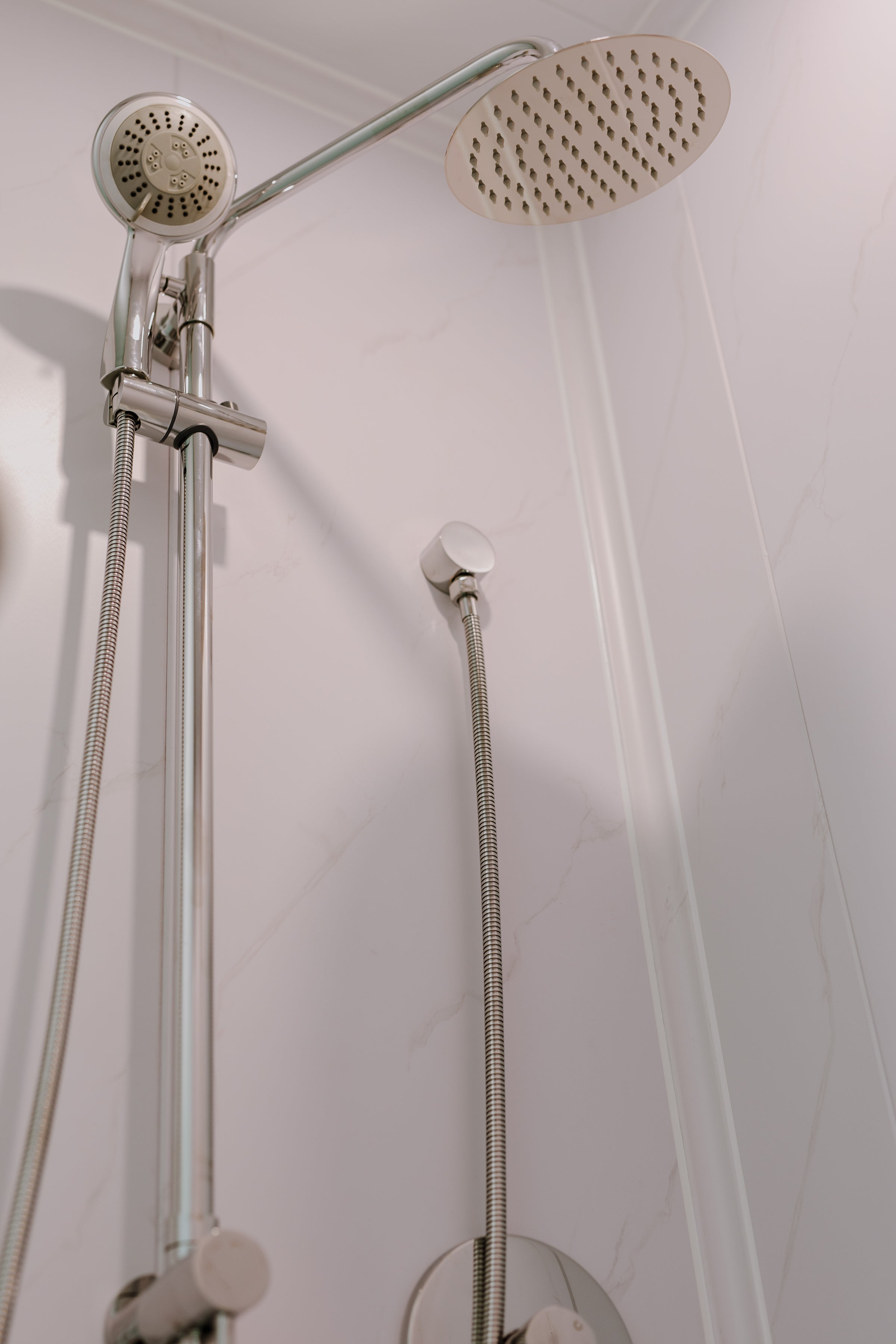

• Dual shower system (rain head + handpiece with chrome mixer)

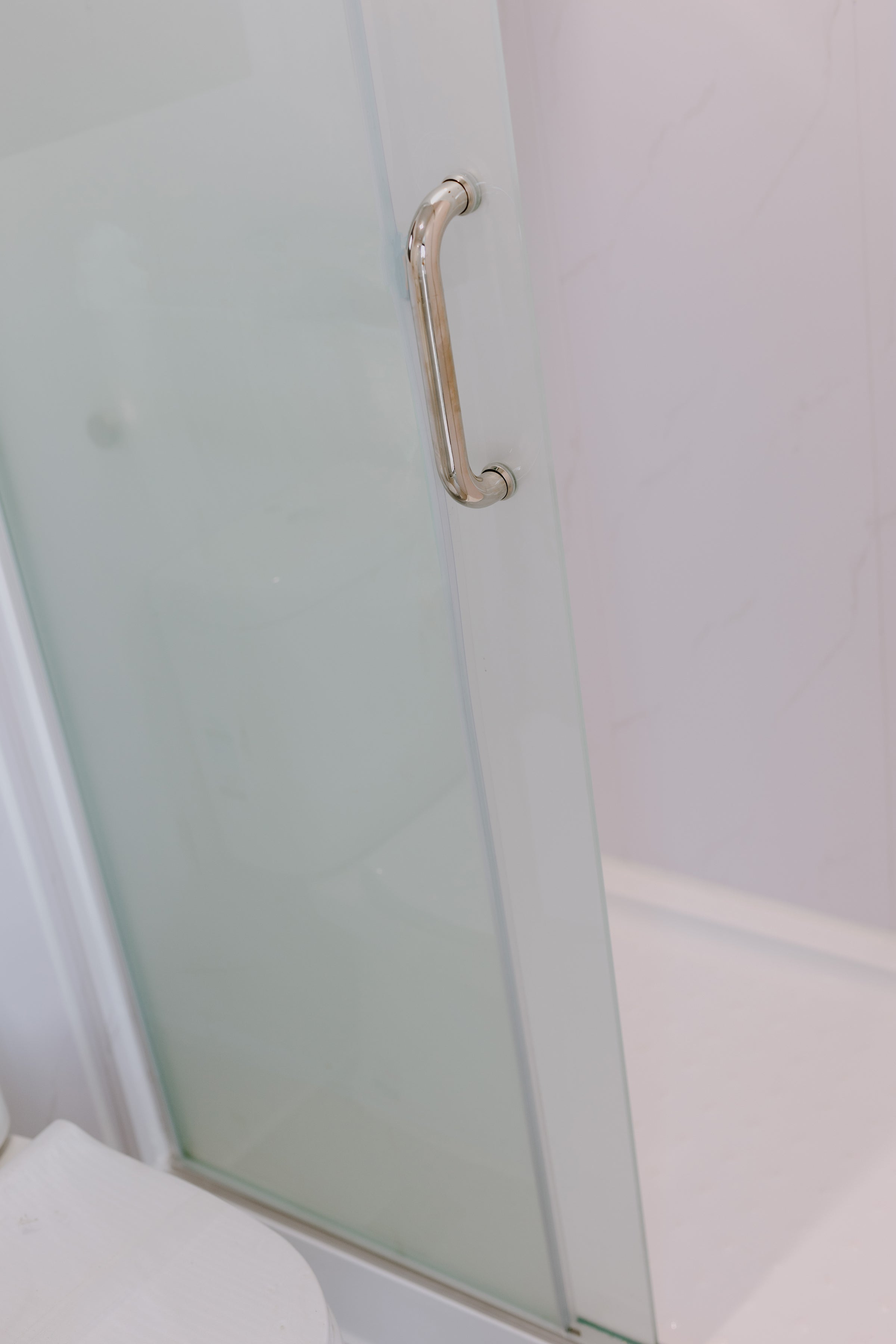

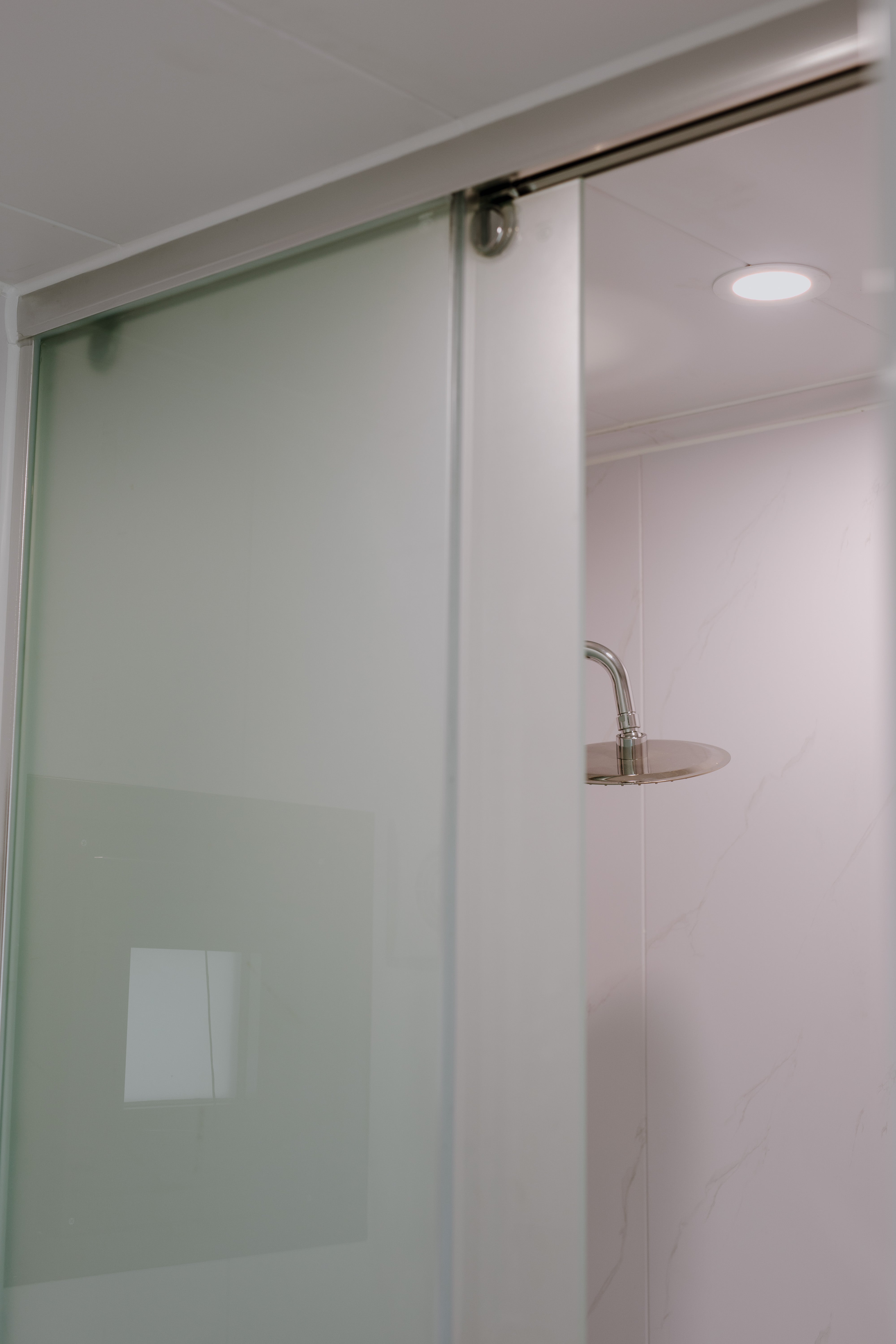

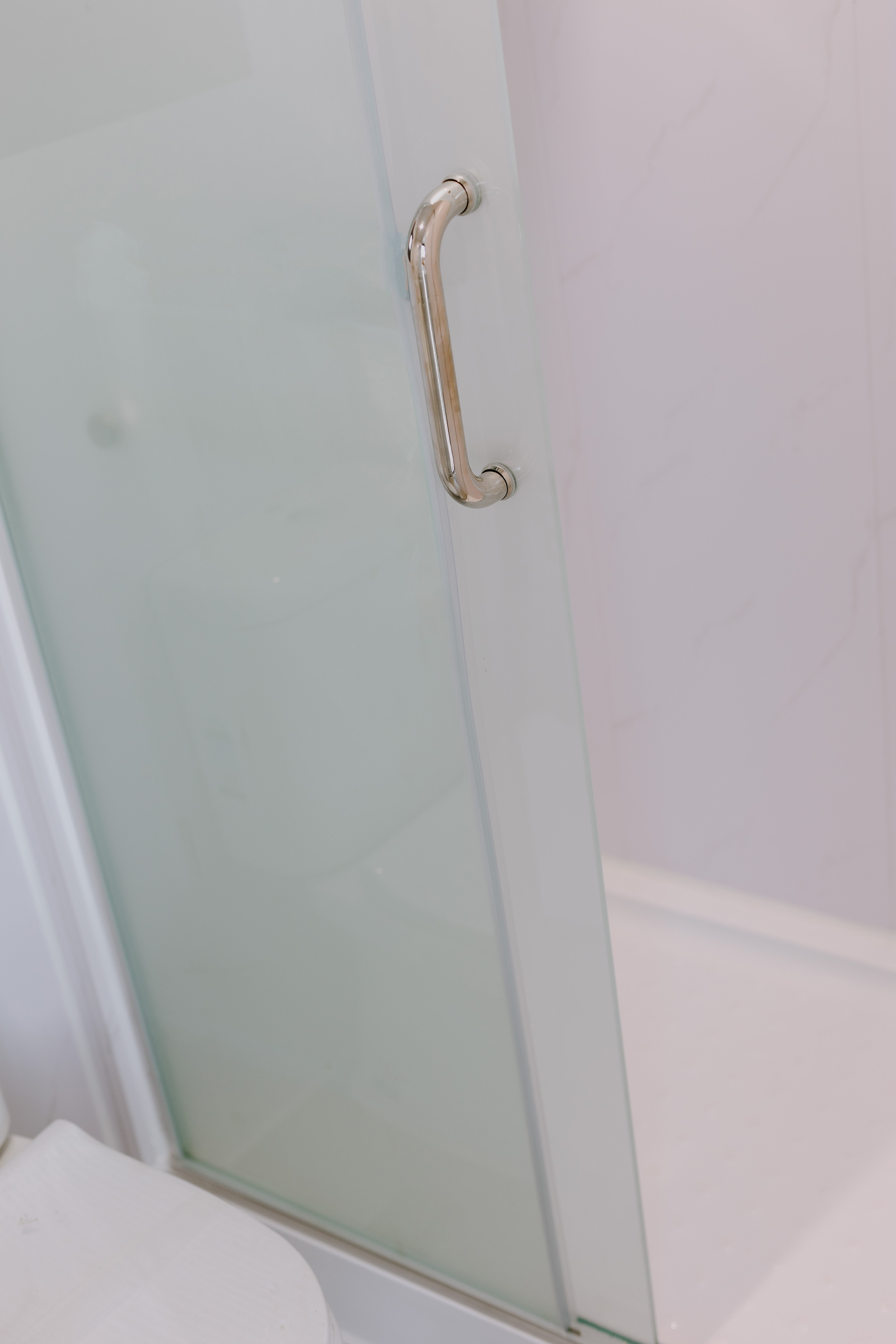

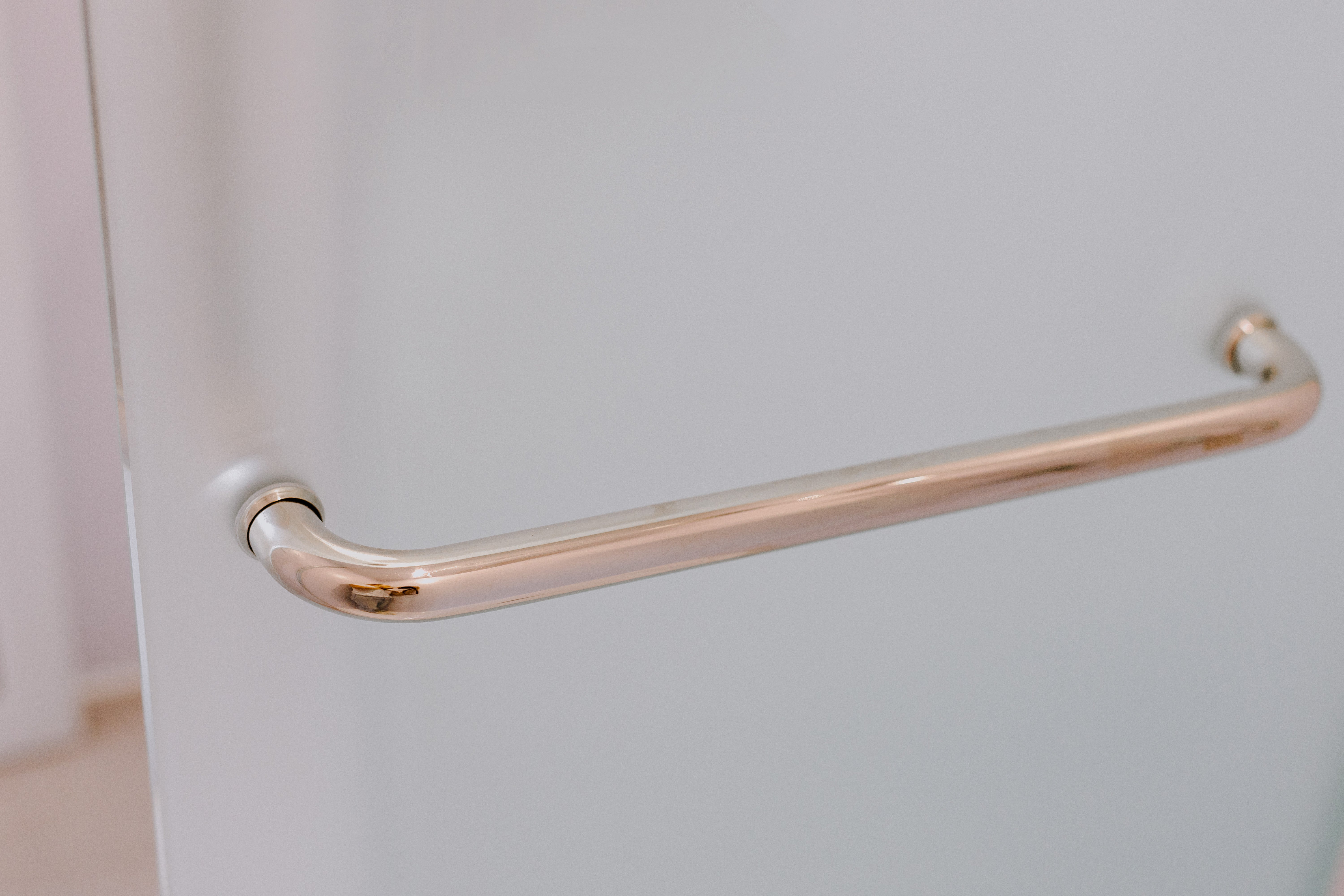

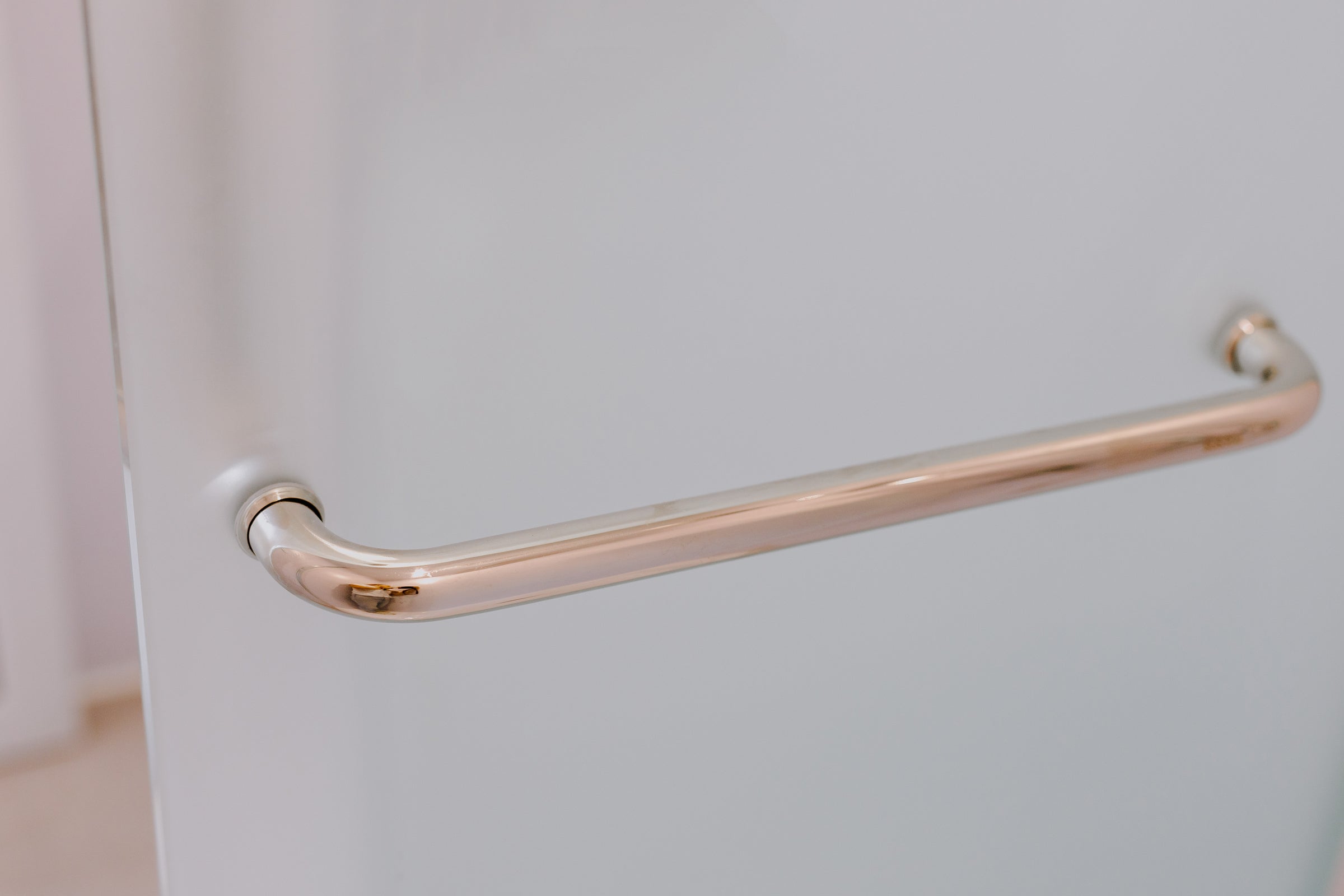

• Tempered glass sliding shower screen

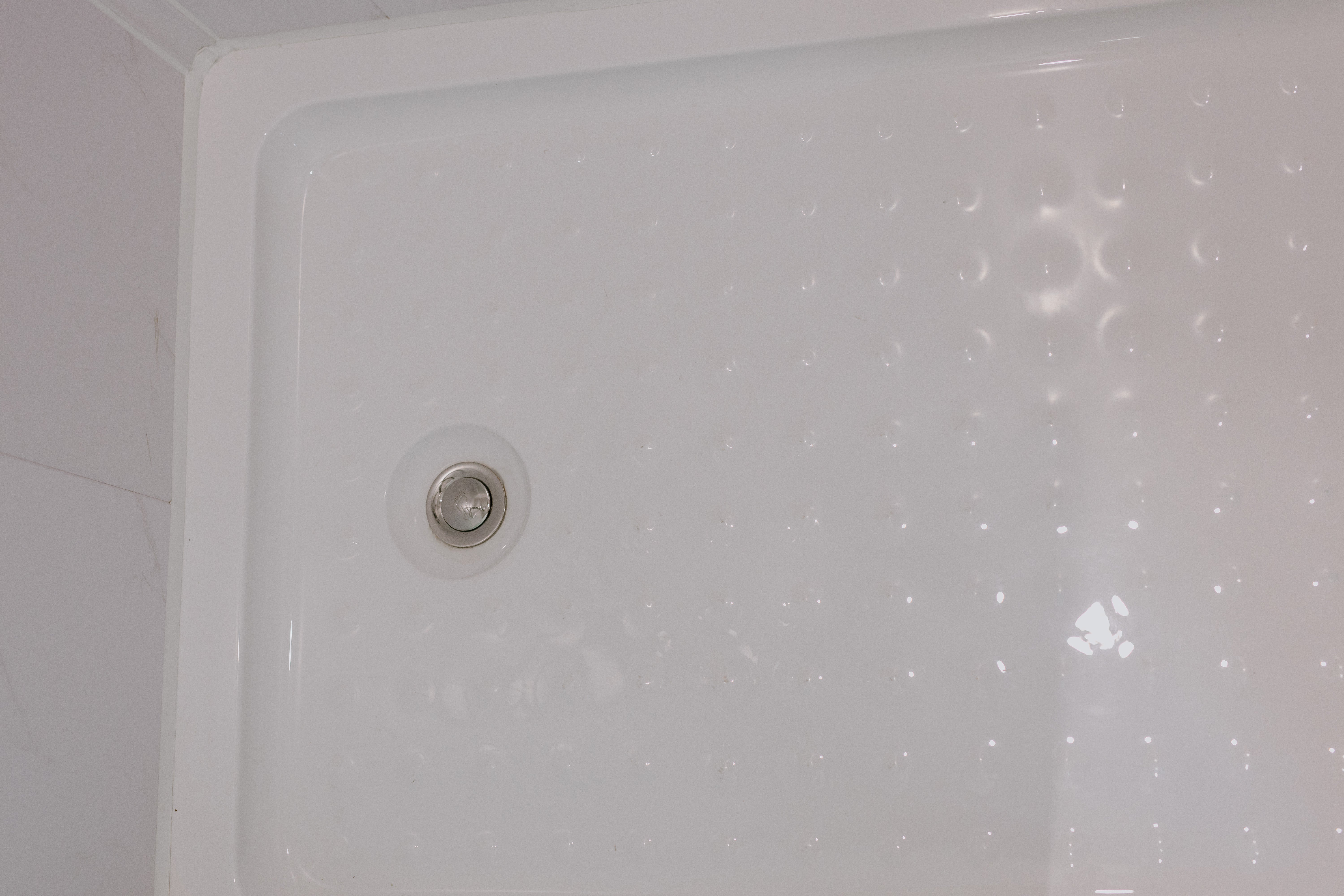

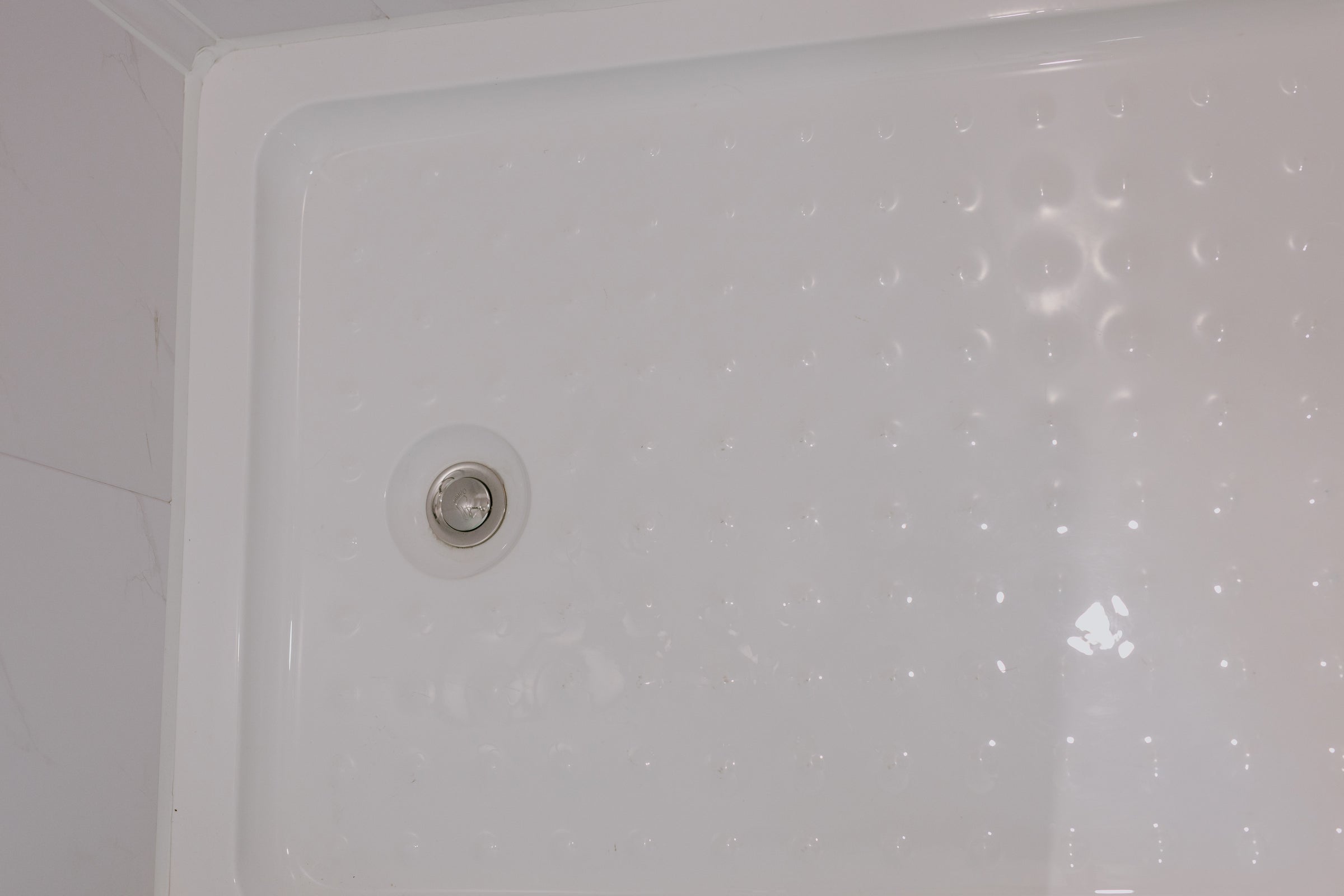

• Acrylic shower base

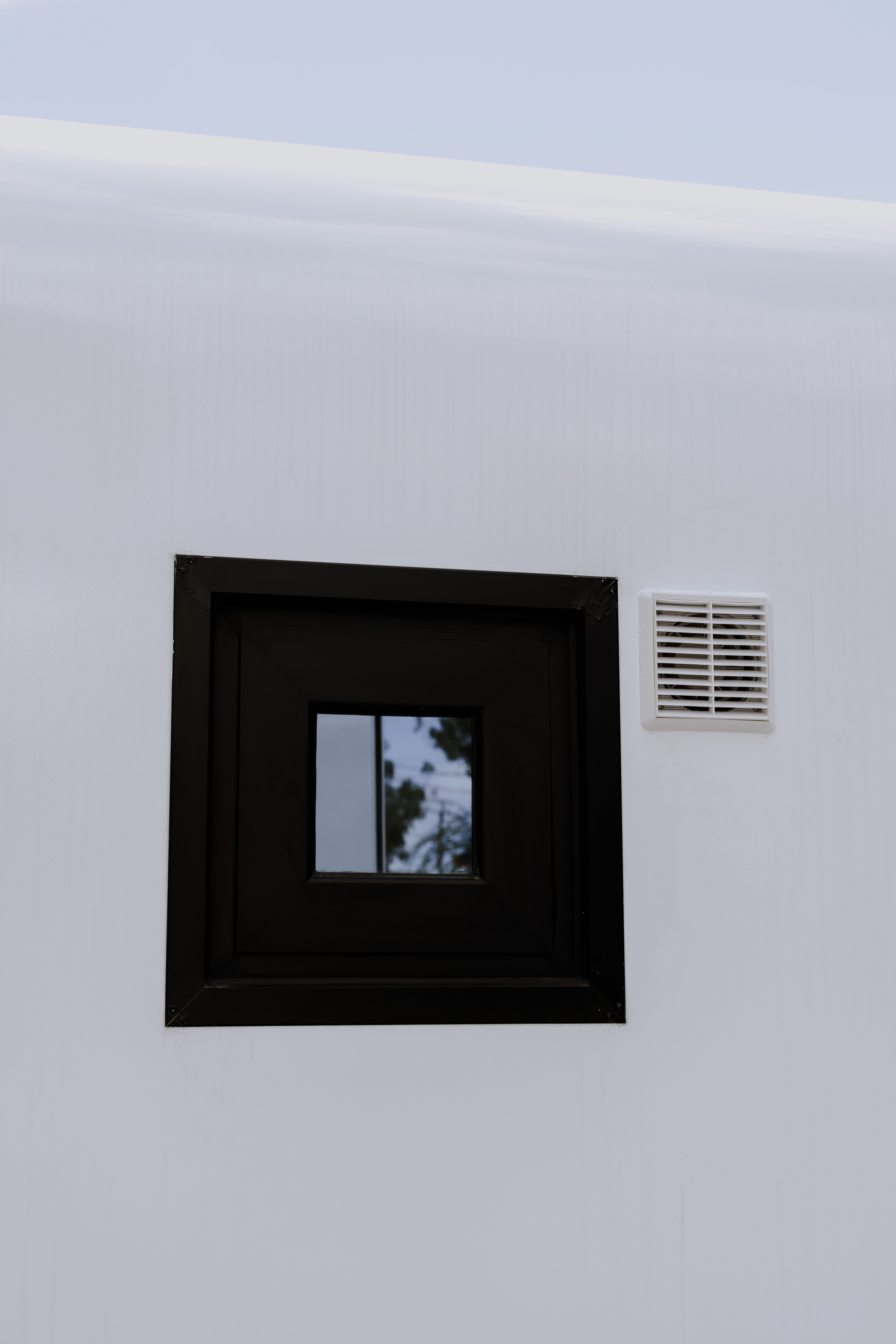

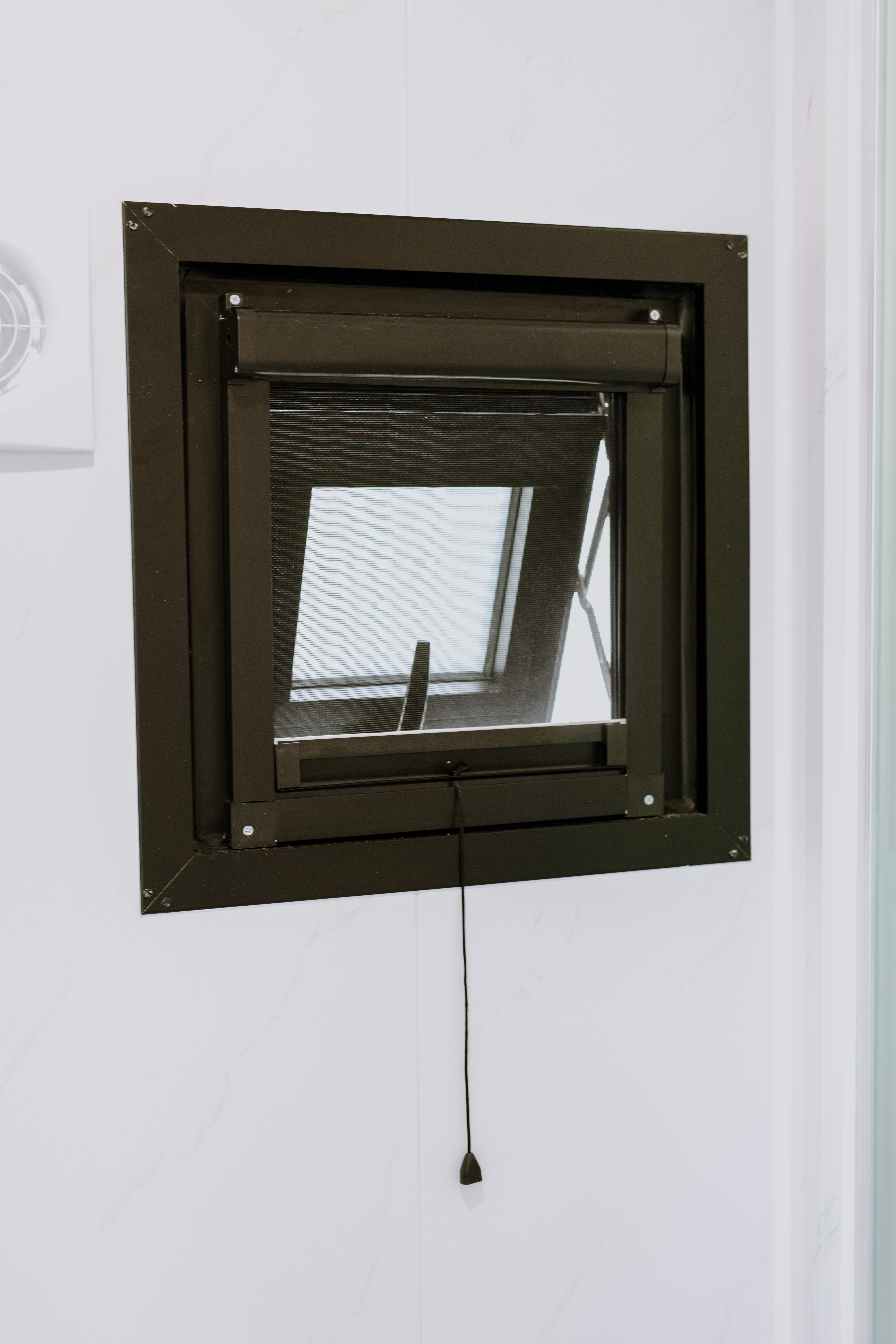

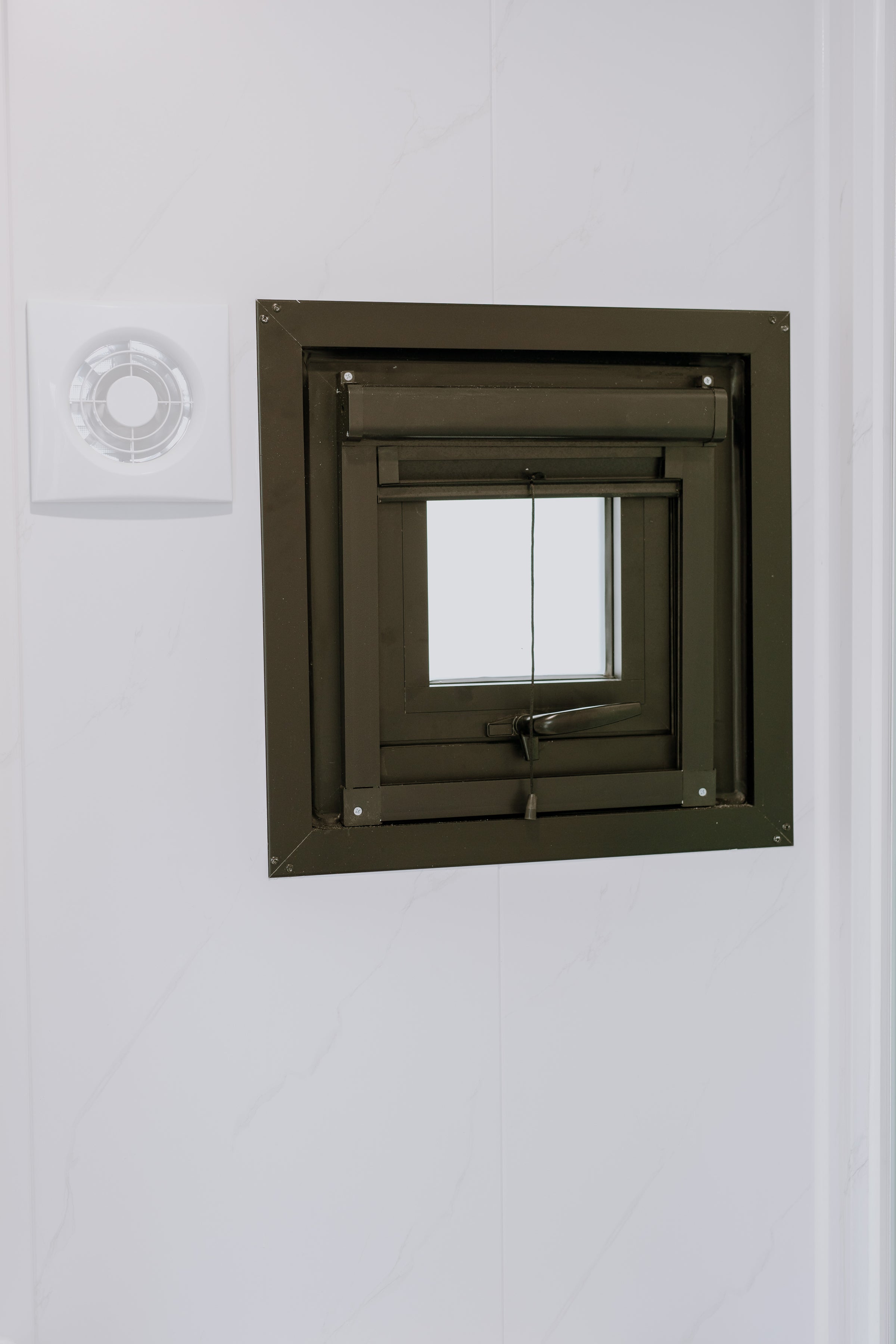

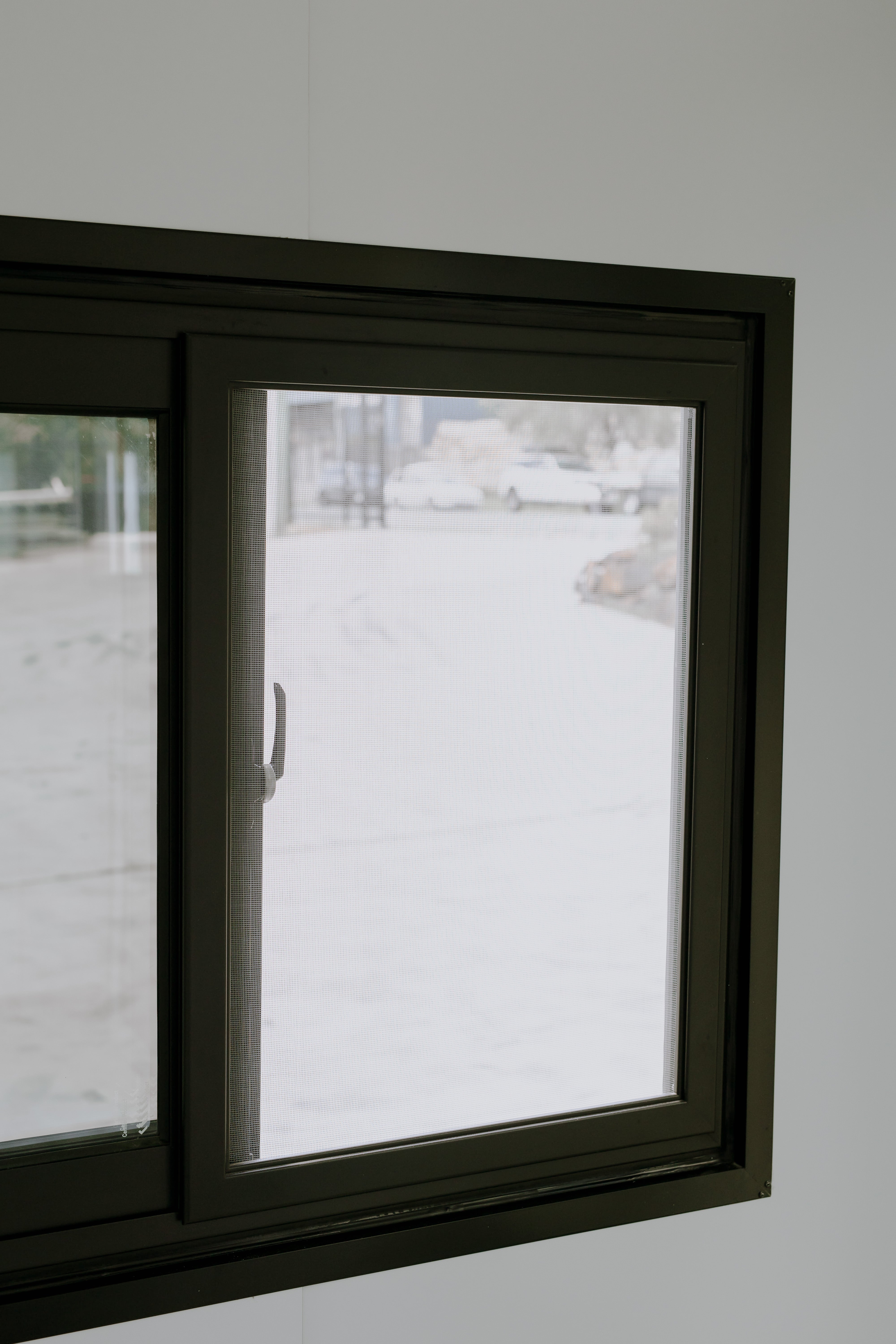

• Window with flyscreen
• Exhaust fan

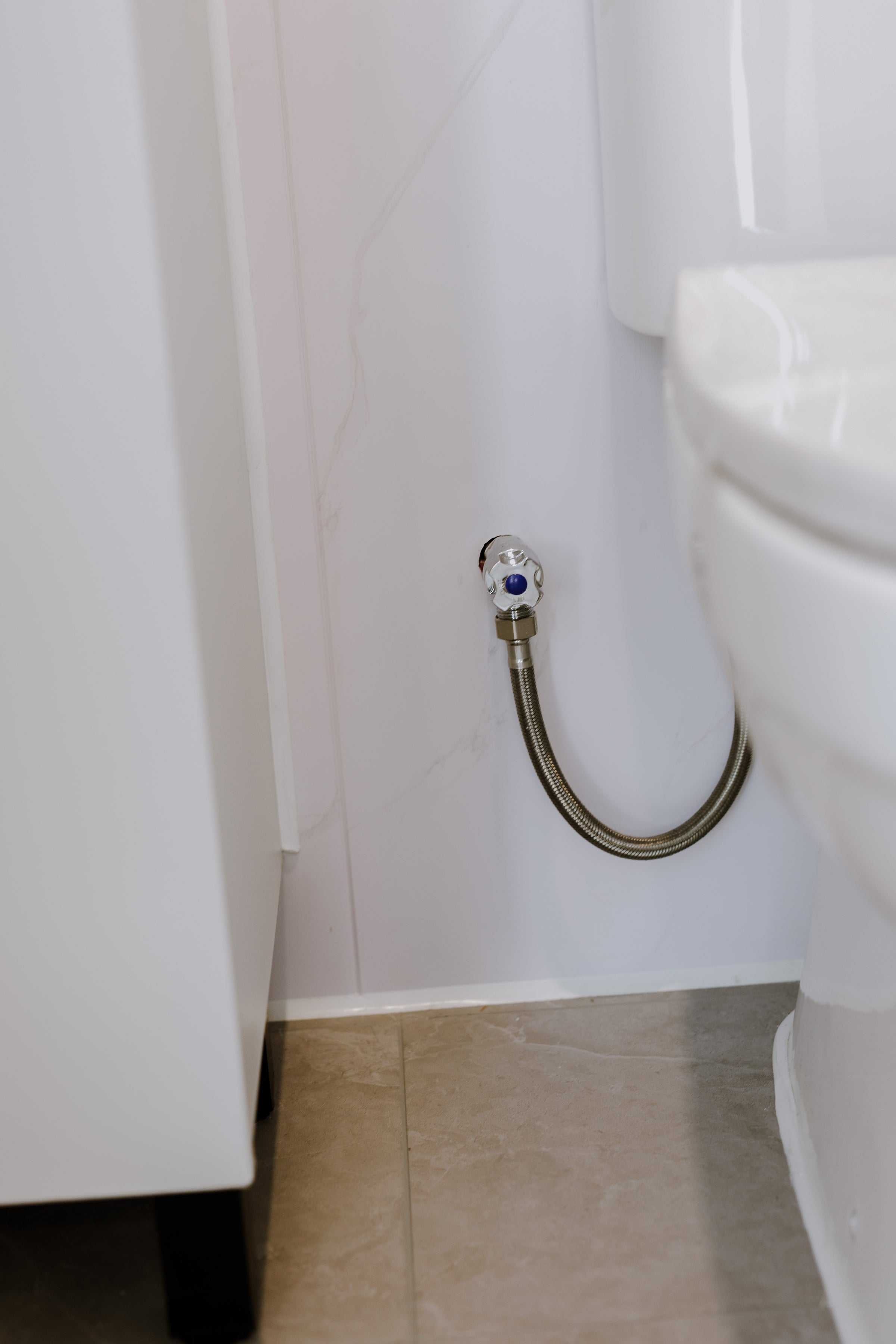

• AS/NZS marked plumbing pipes and fittings

Note: Access beneath pod is required to connect shower and toilet waste.

Plumbing

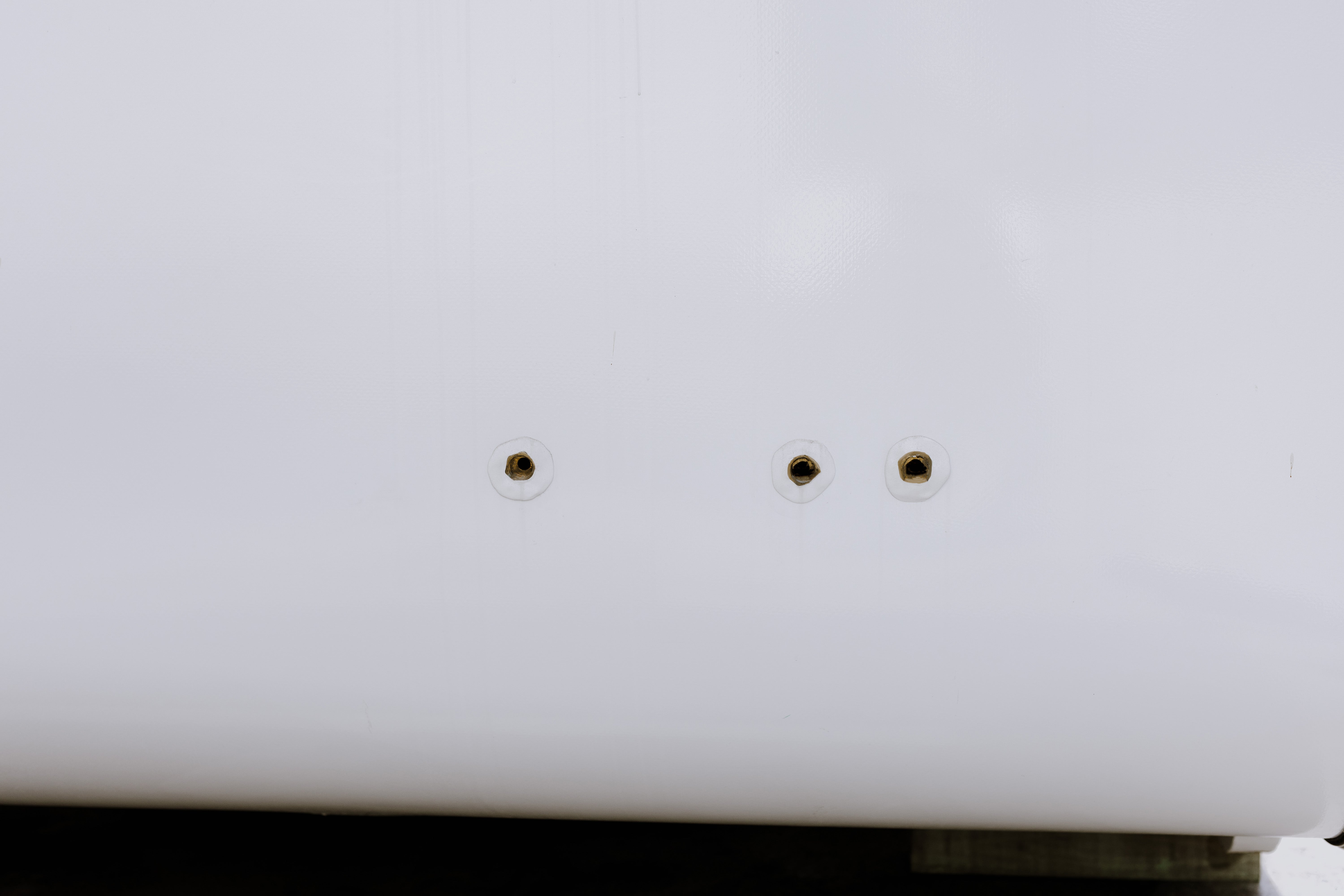

• Single-piece brass wall/floor penetration fitting
• No concealed pipework within structure
• Designed for straightforward on-site connection

Electrical

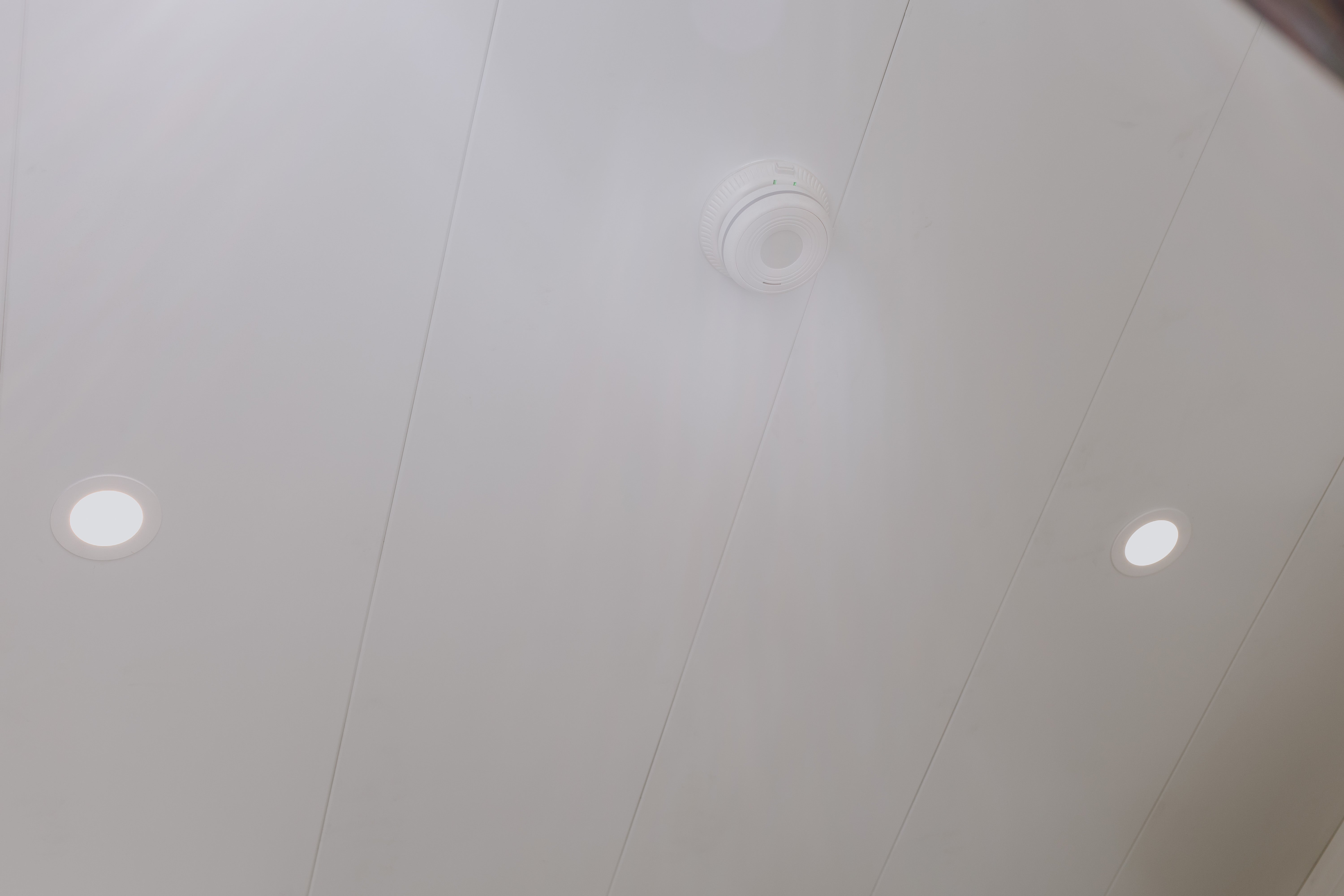

• LED ceiling lighting

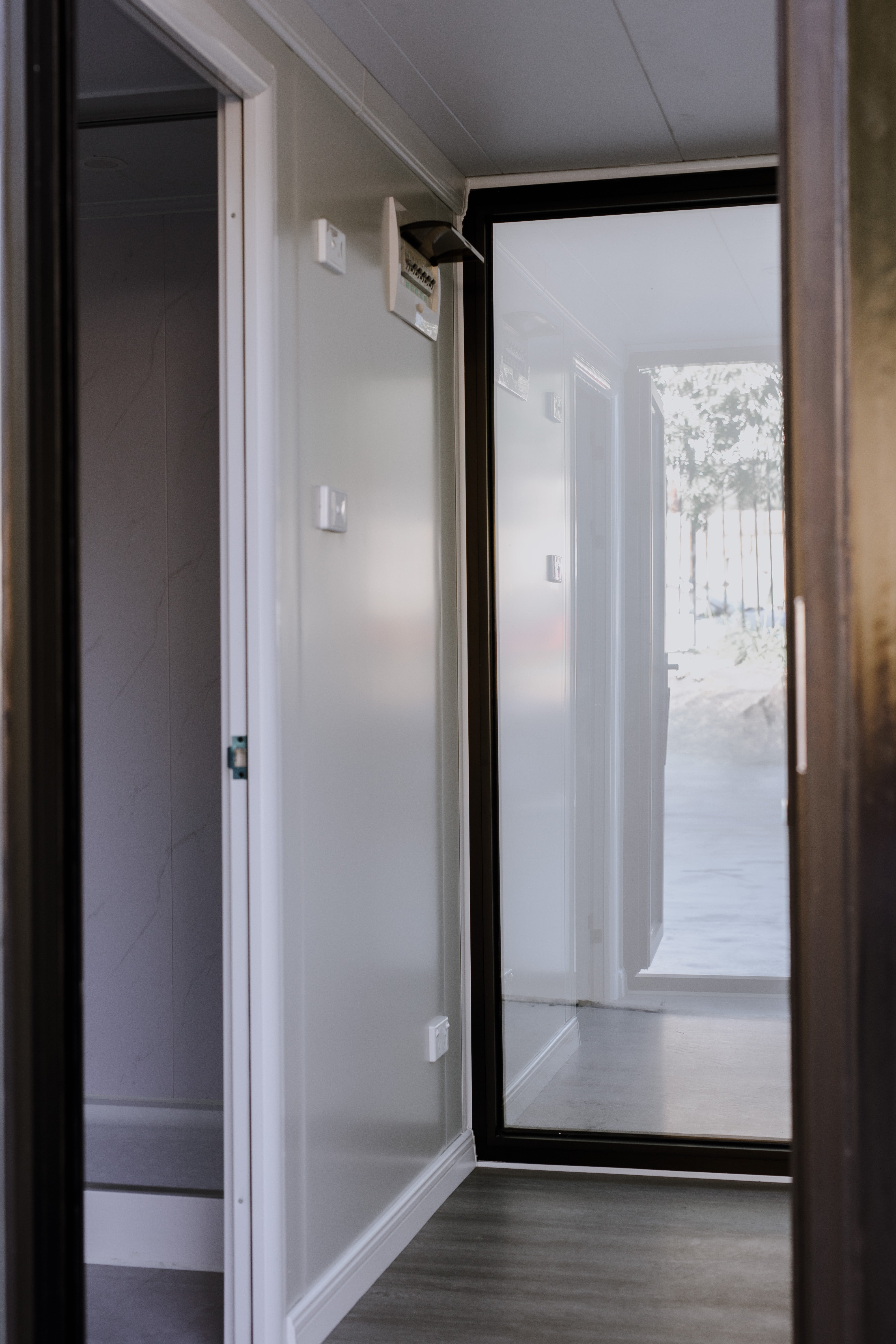

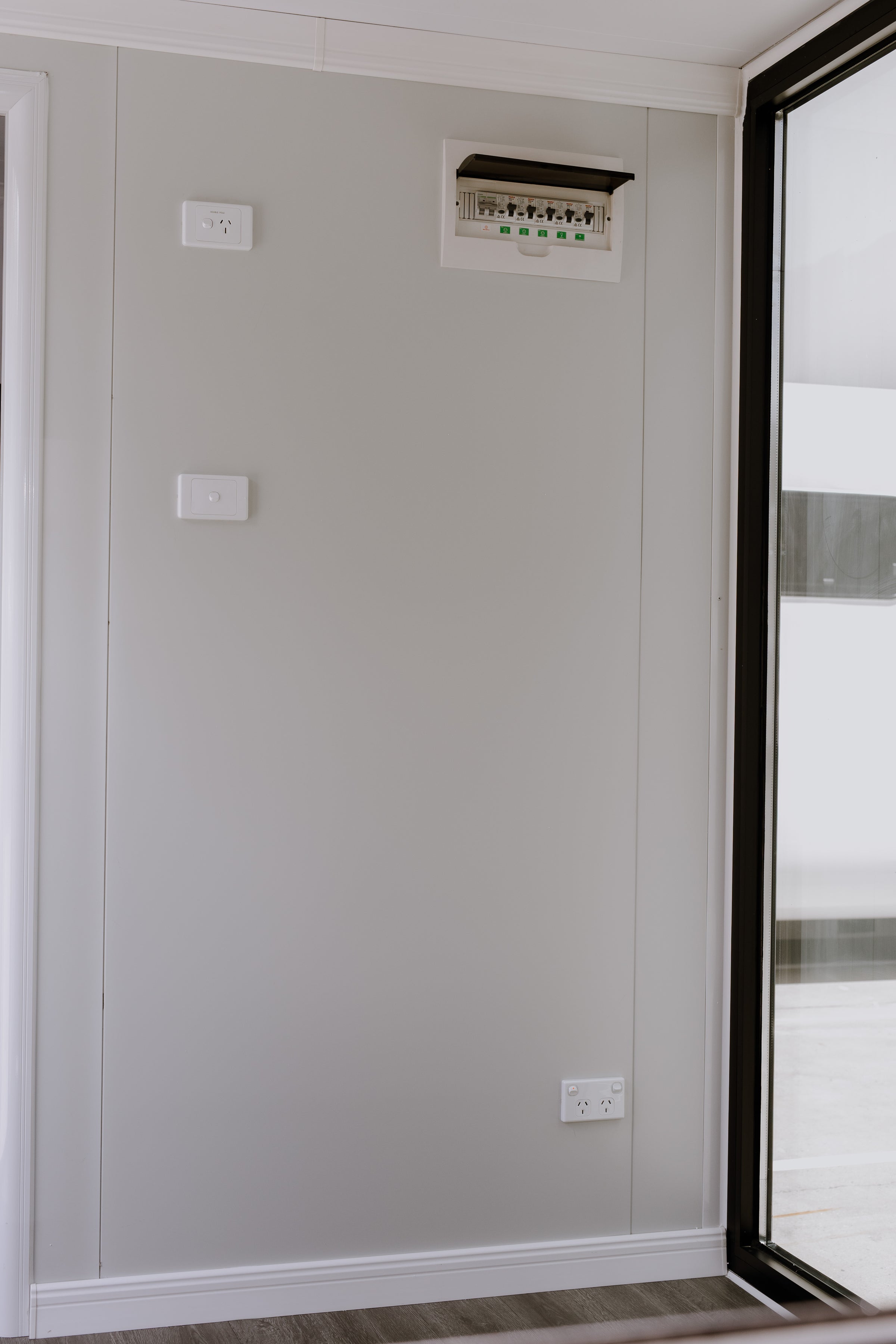

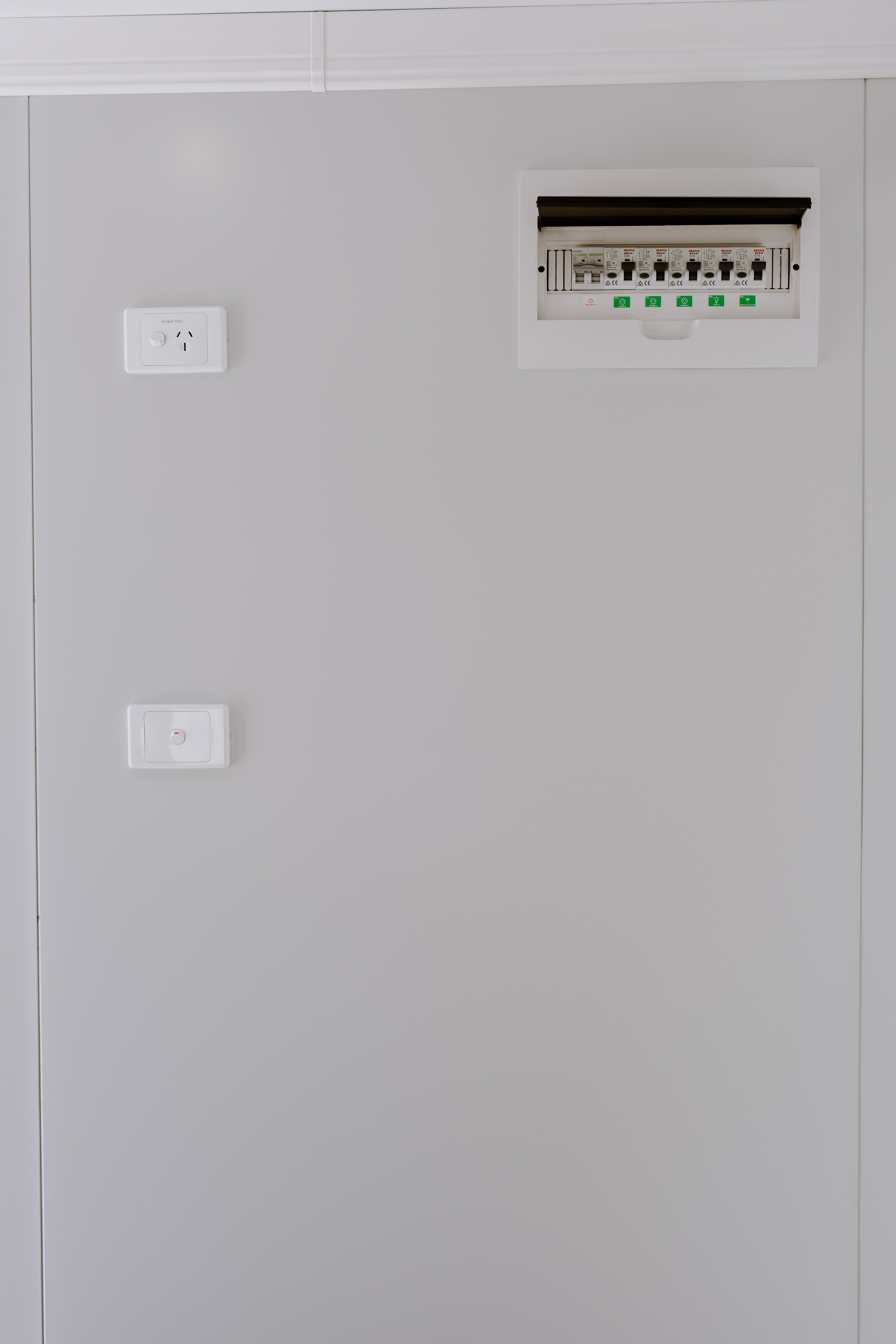

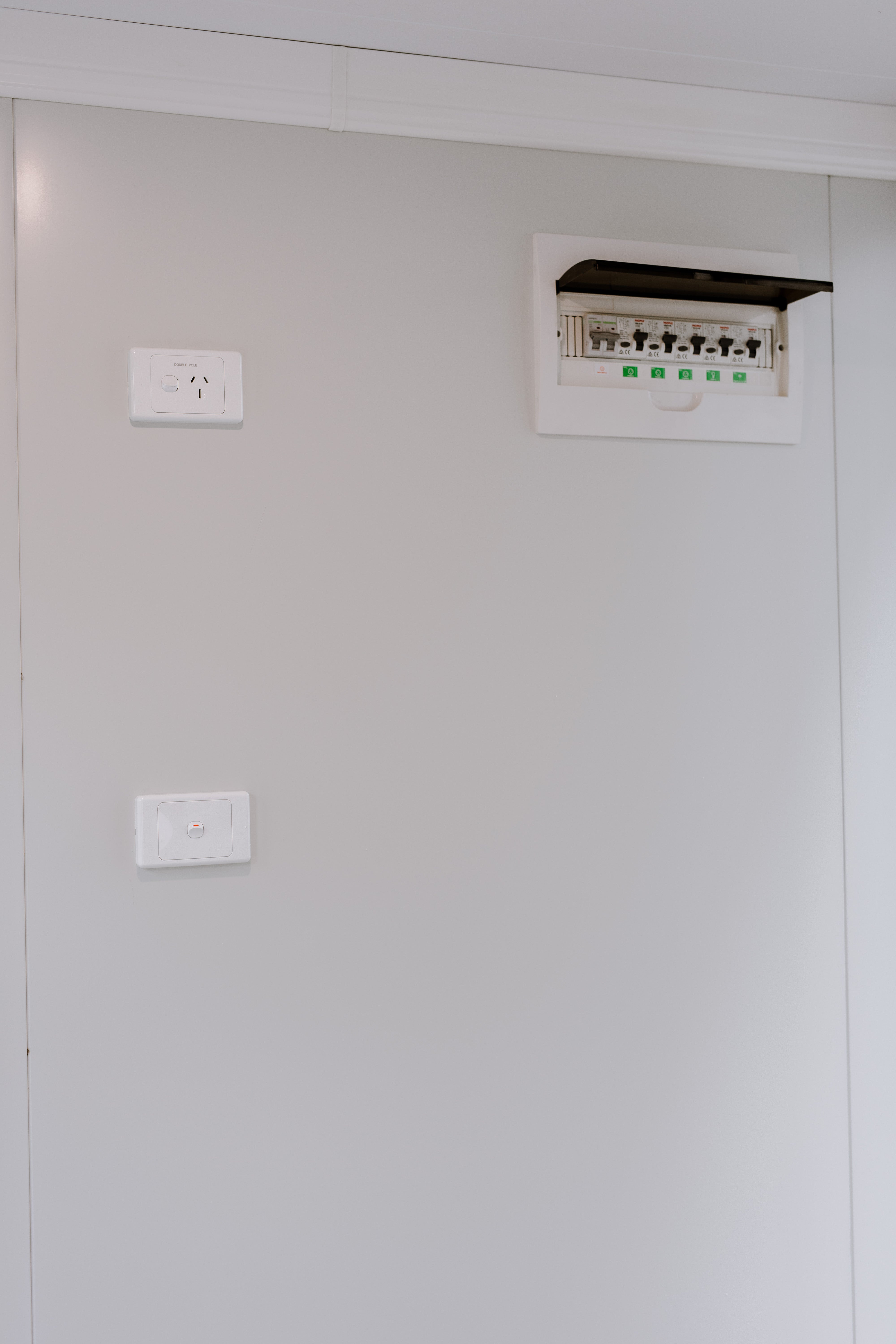

• Interior switchboard with circuit breakers

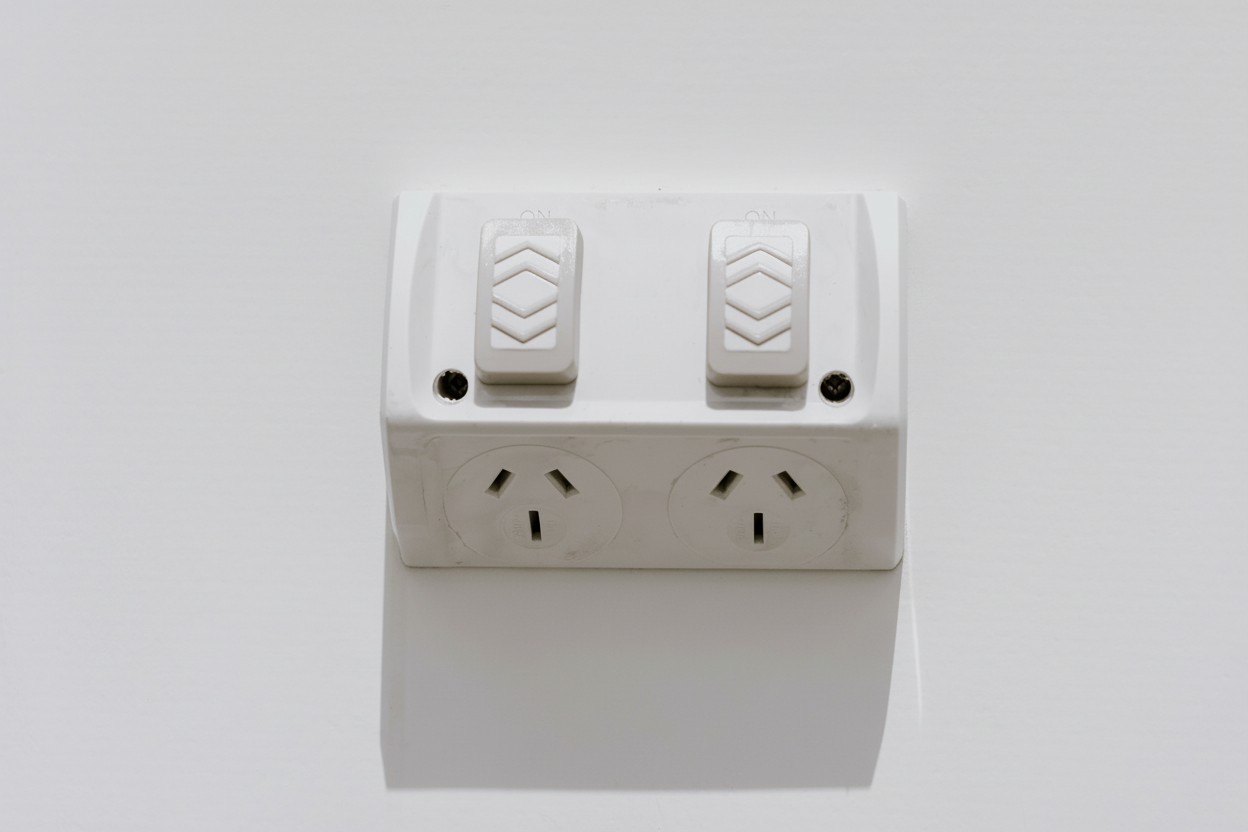

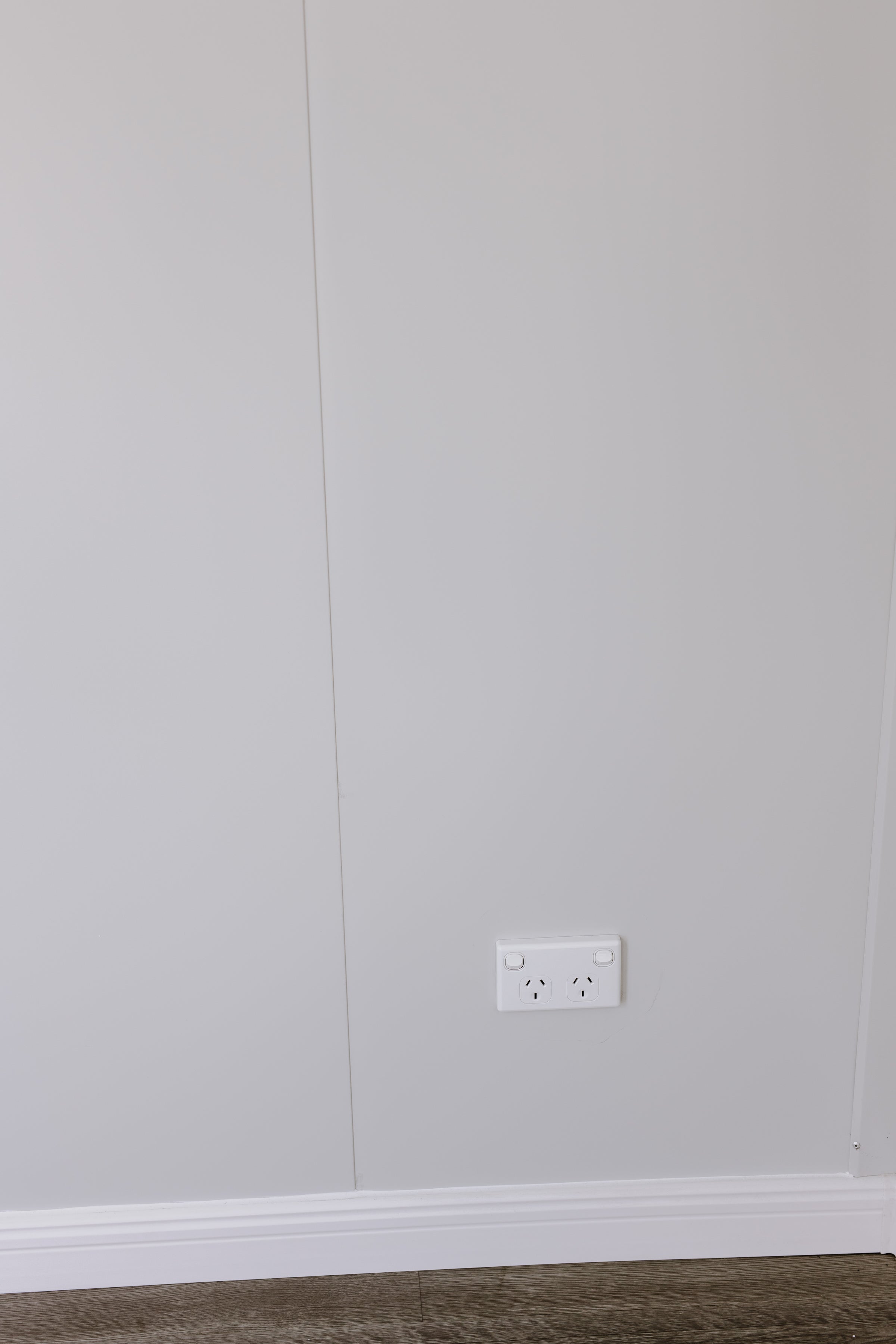

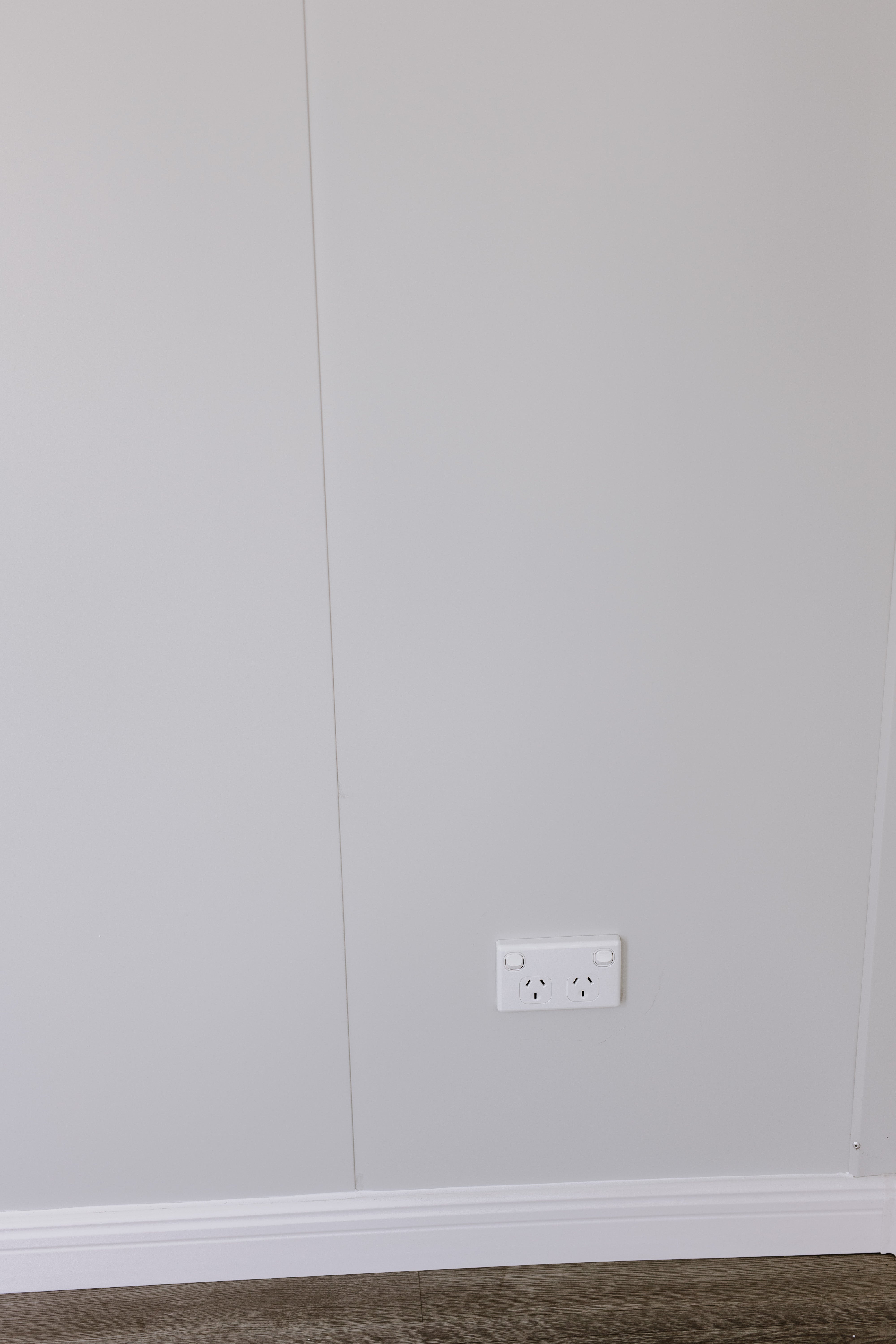

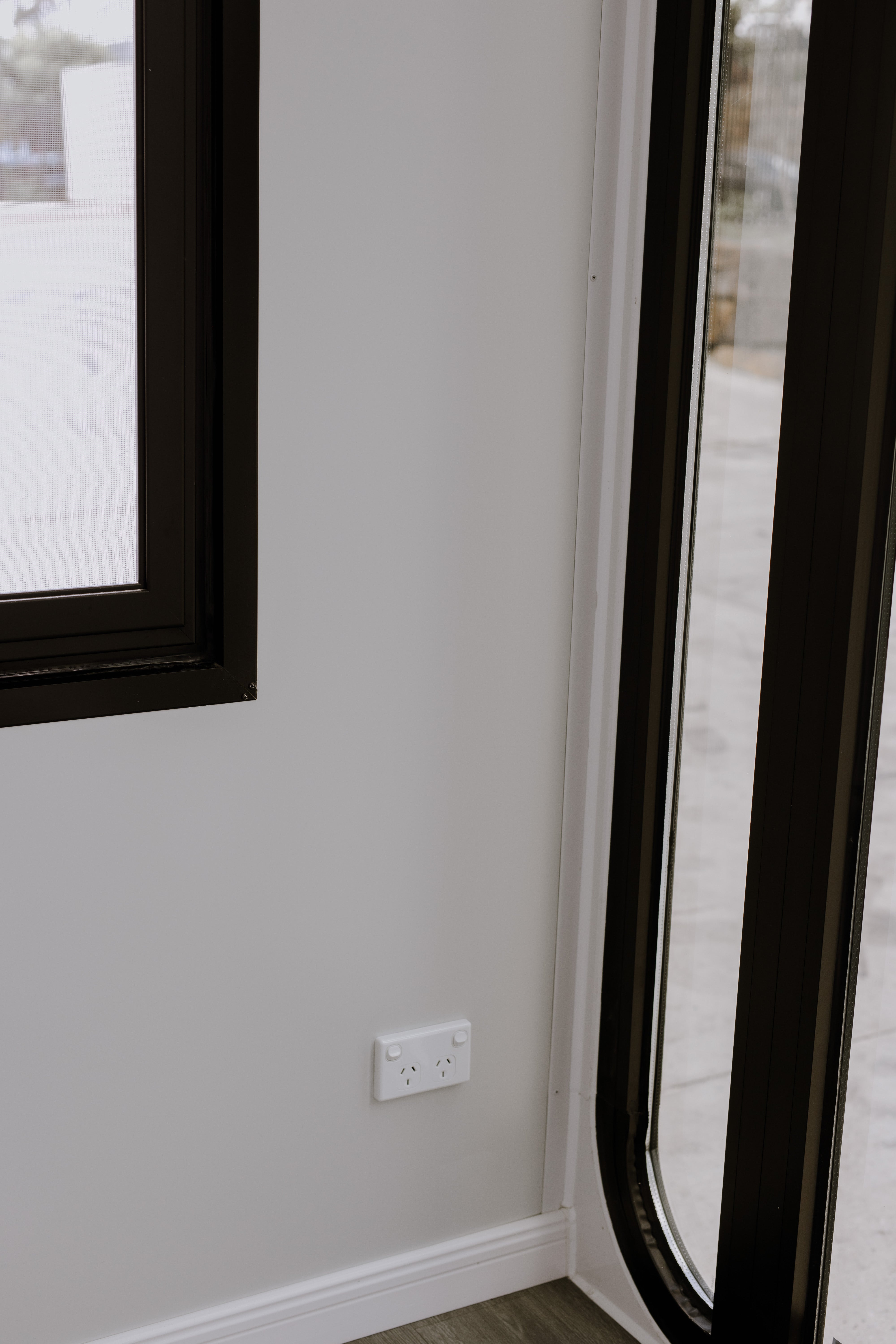

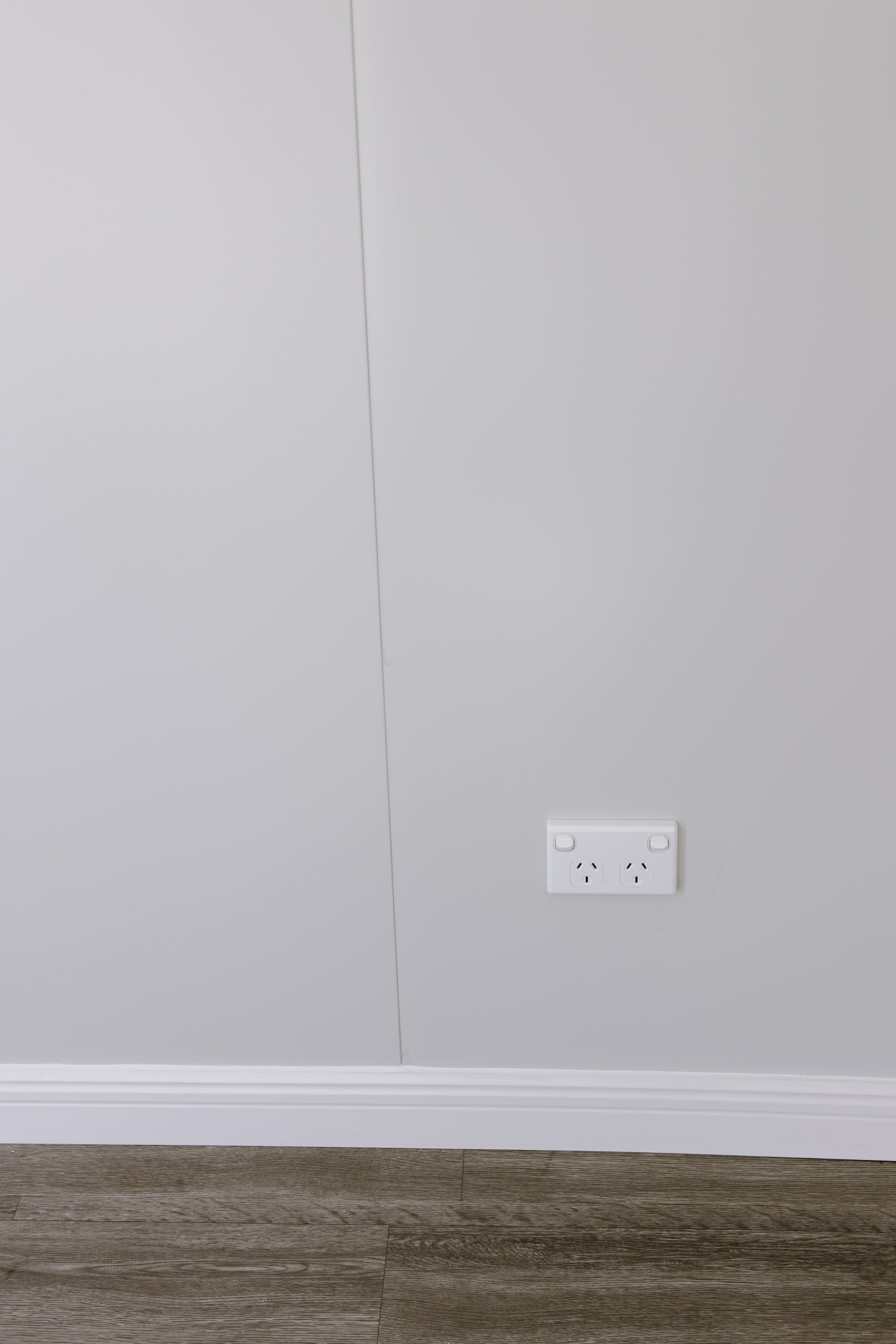

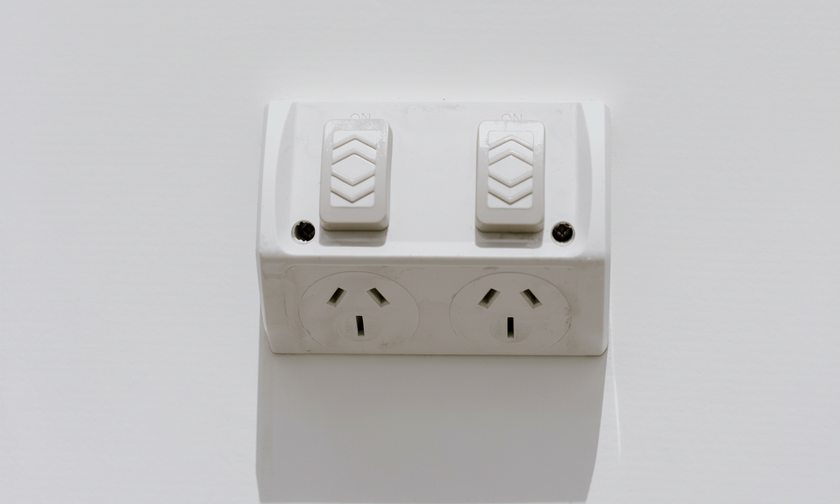

• Double pole power outlets throughout
• 15amp internal outlet for air-conditioning unit

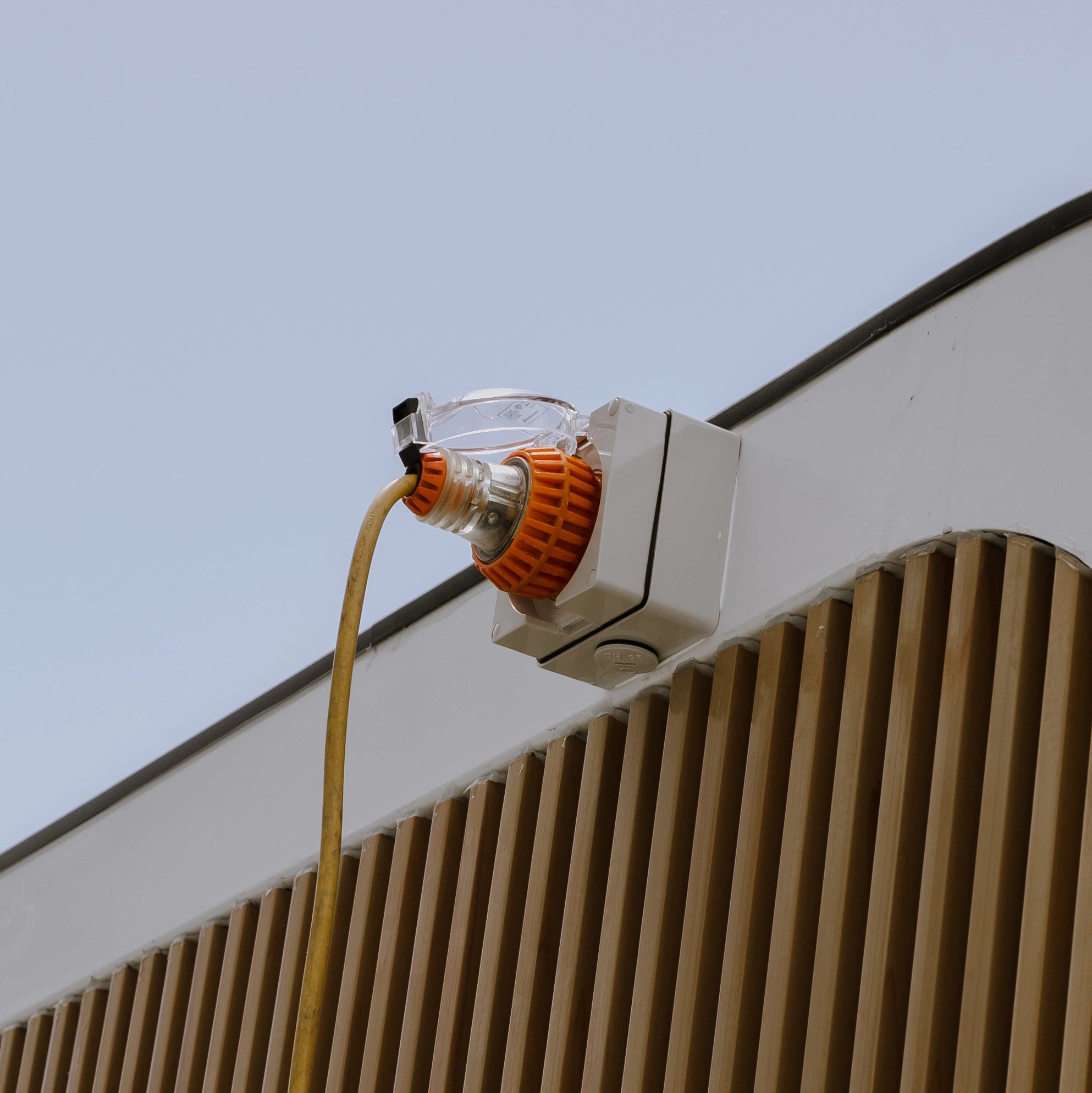

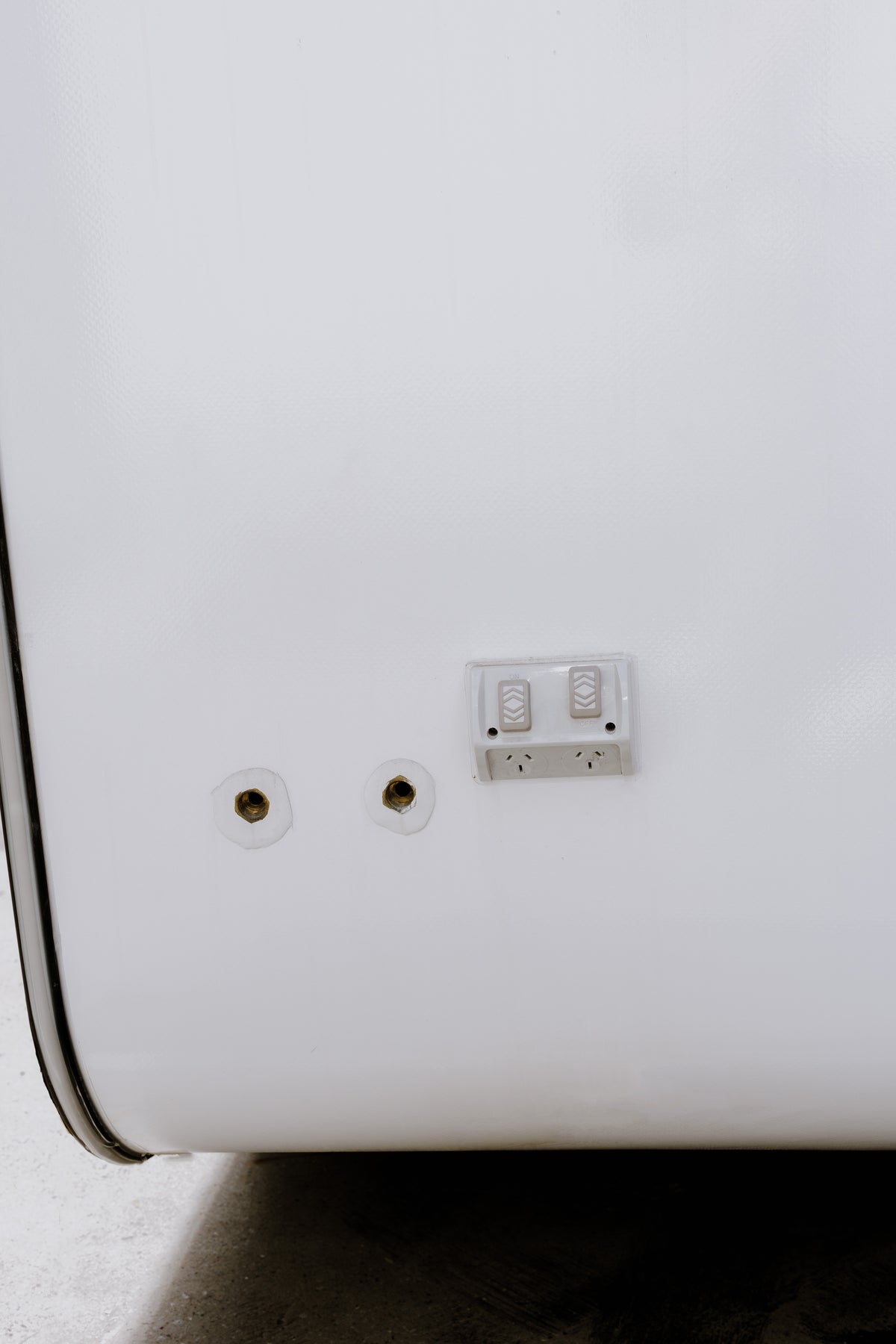

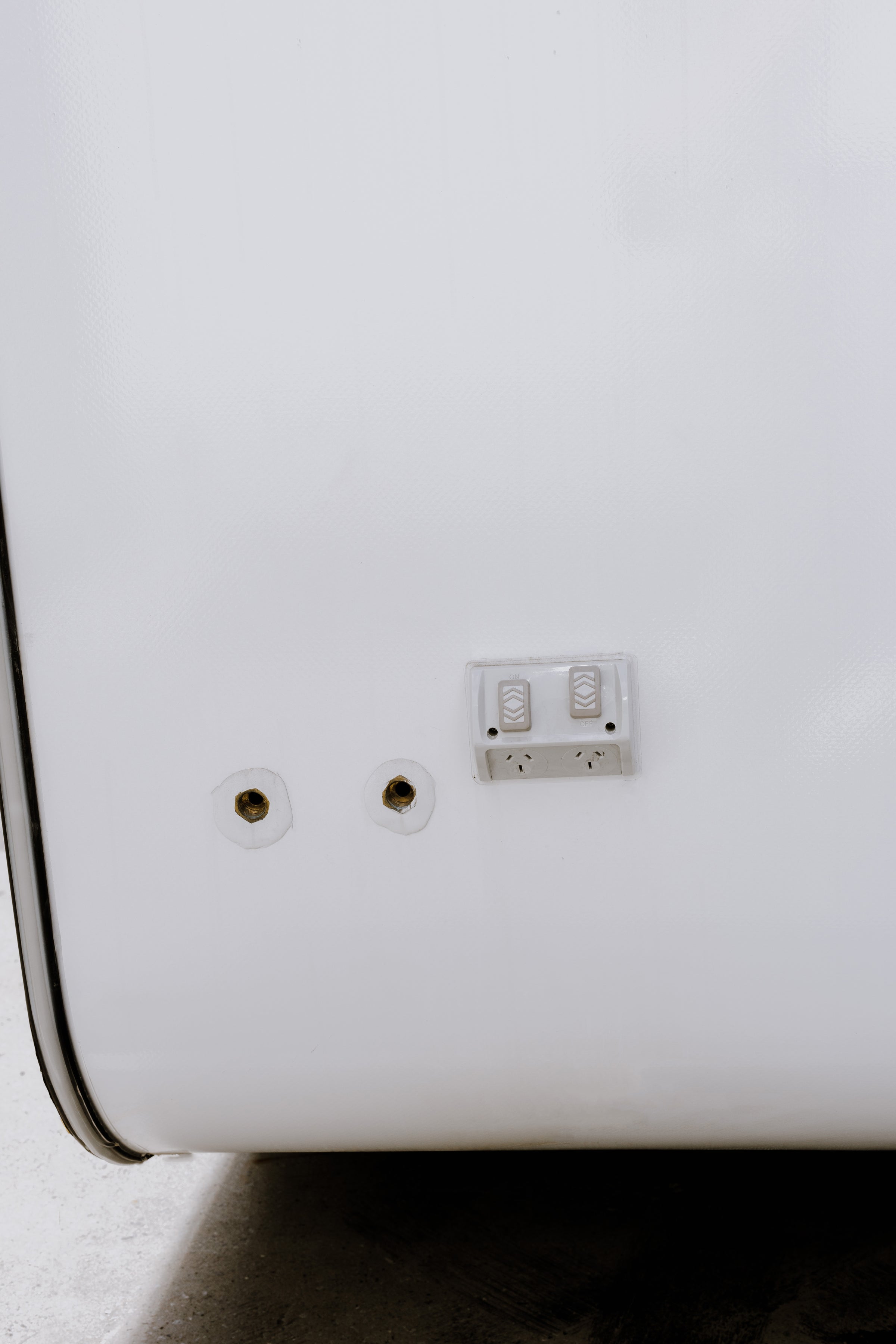

• 15amp external outlet for hot water system

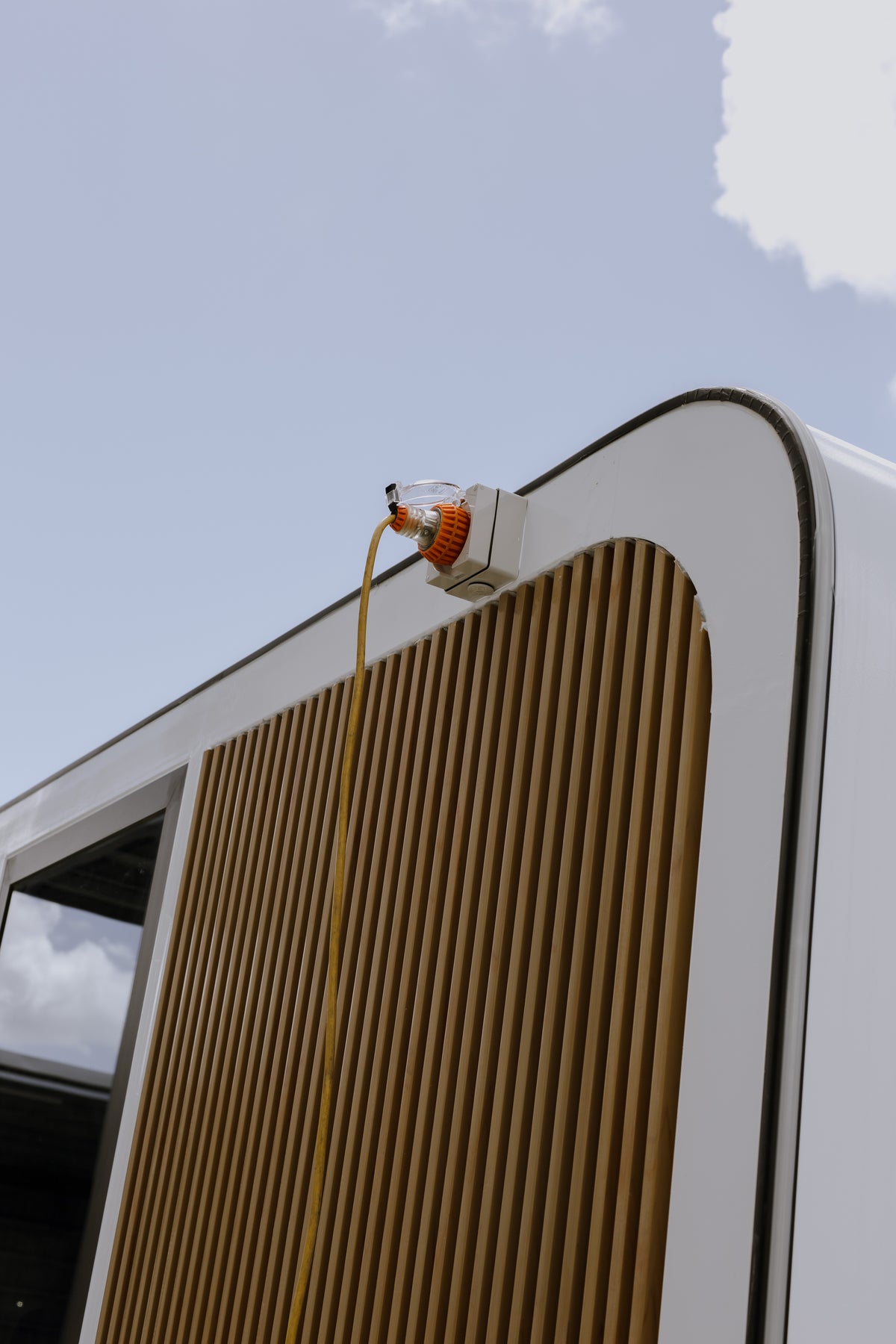

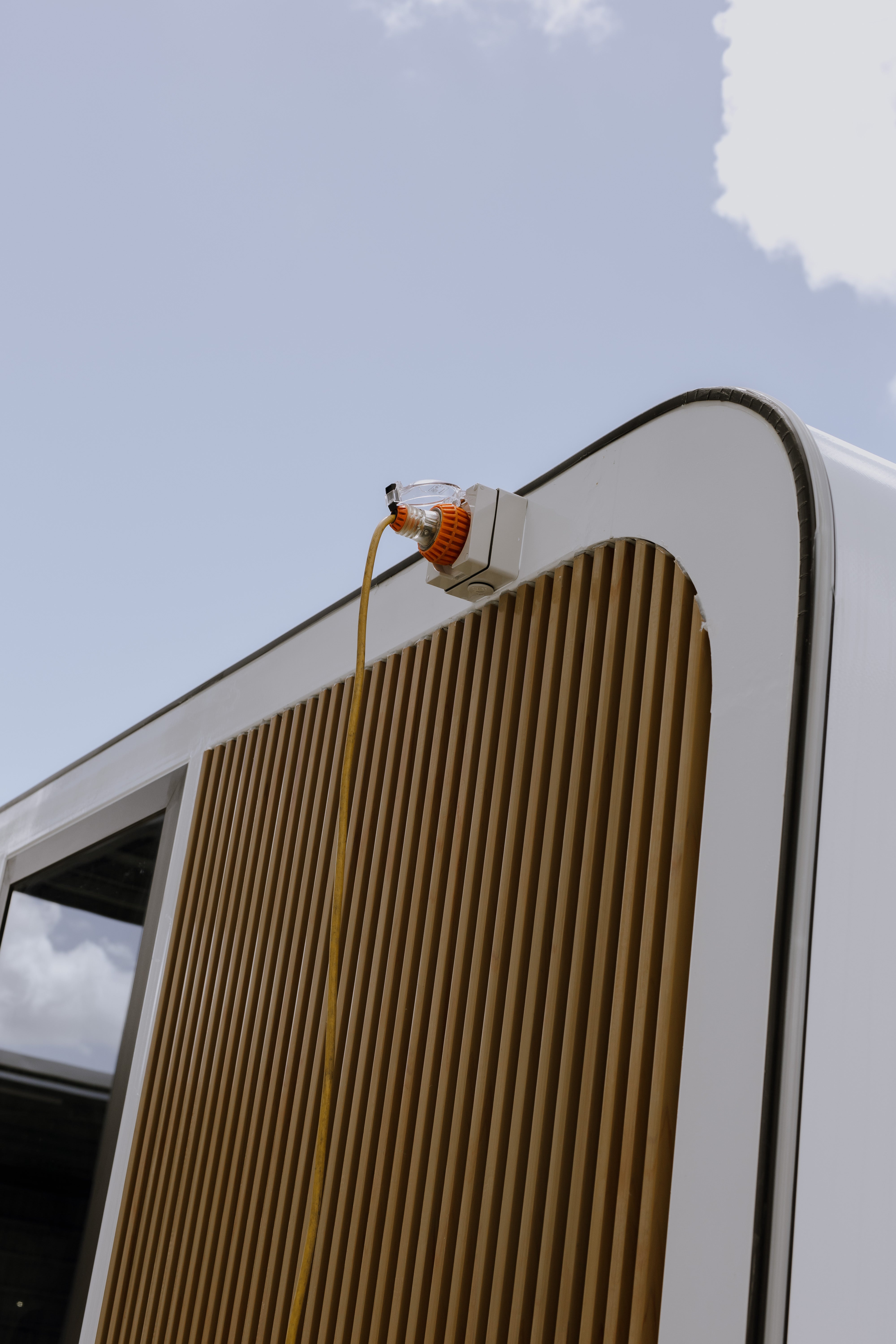

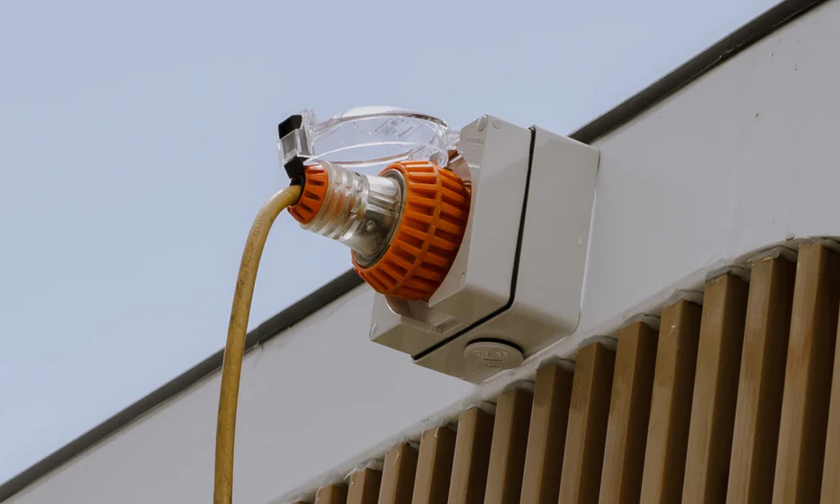

• Rear mains power supply cable
• Purple non-migratory cabling compliant with AS/NZS
• Smoke alarm installed

Note: 15amp power supply recommended (subject to appliance usage).

Insulation

• EPS insulated wall and ceiling panels
• Engineered steel frame structure
• Gloss white fibreglass exterior with WPC cladding

Transport & Installation

• Delivered via crane truck (self-unload)
• Alternatively rigid or semi-trailer (customer unload via crane or forklift)
• Tilt tray unloading not recommended due to full-height glazing

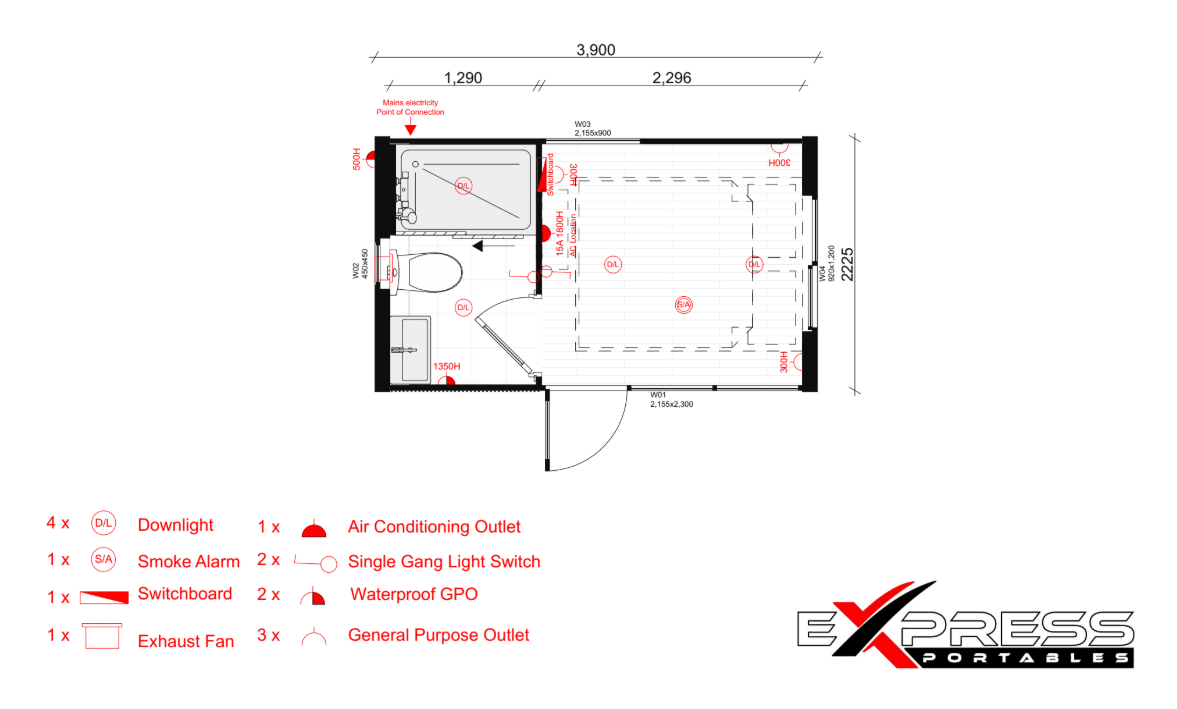

Length: 3850mm
Width: 2230mm
Height: 2550mm

Approx | 1450kg
