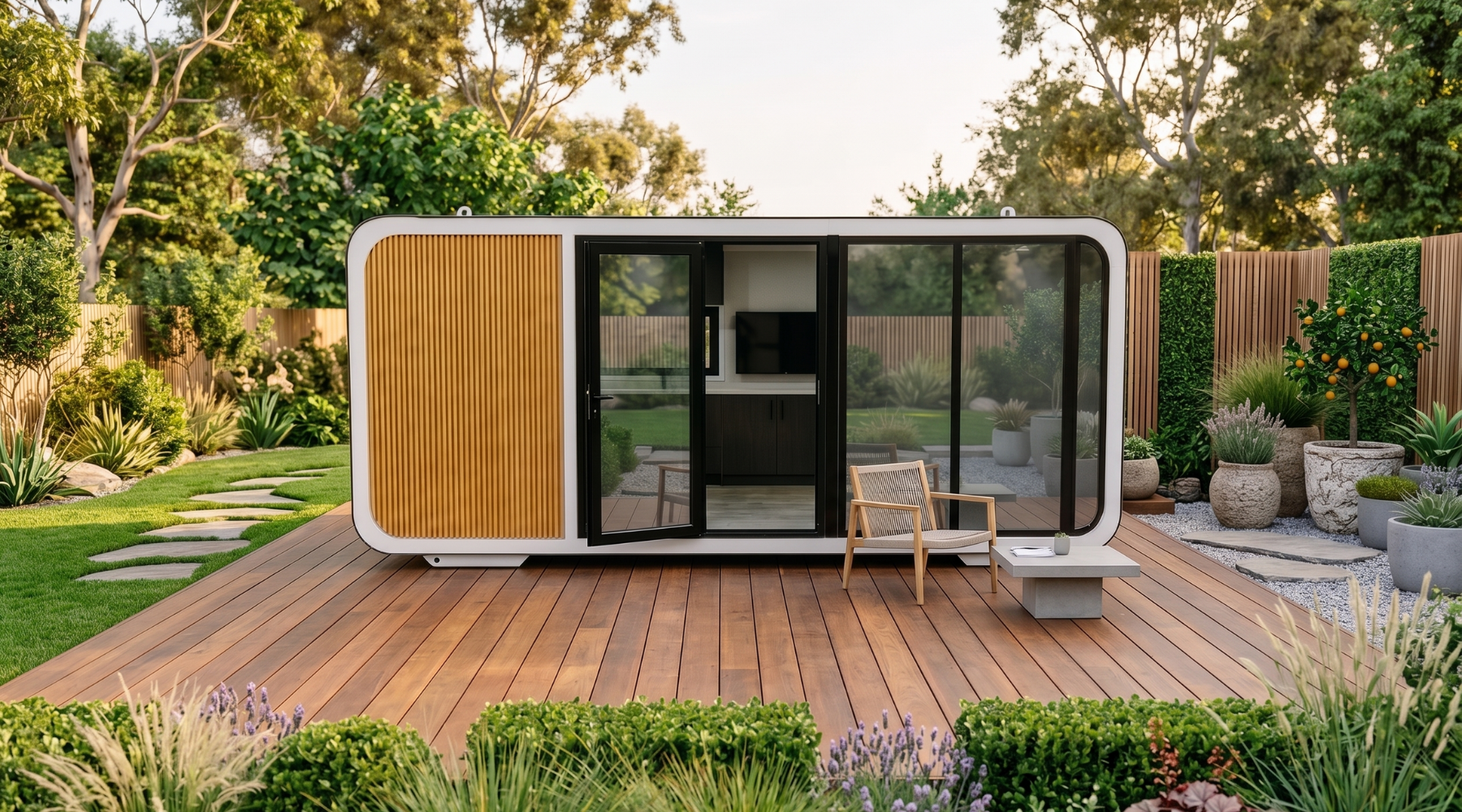

6m Designer Spacee

Key Features:

• Floor-to-ceiling double glazed glass walls
• Full bathroom with separate shower, toilet & vanity
• Kitchen with silica-free stone benchtop
• Architectural Designer finish with exterior WPC screening
• Delivered fully assembled - crane ready installation

Description:

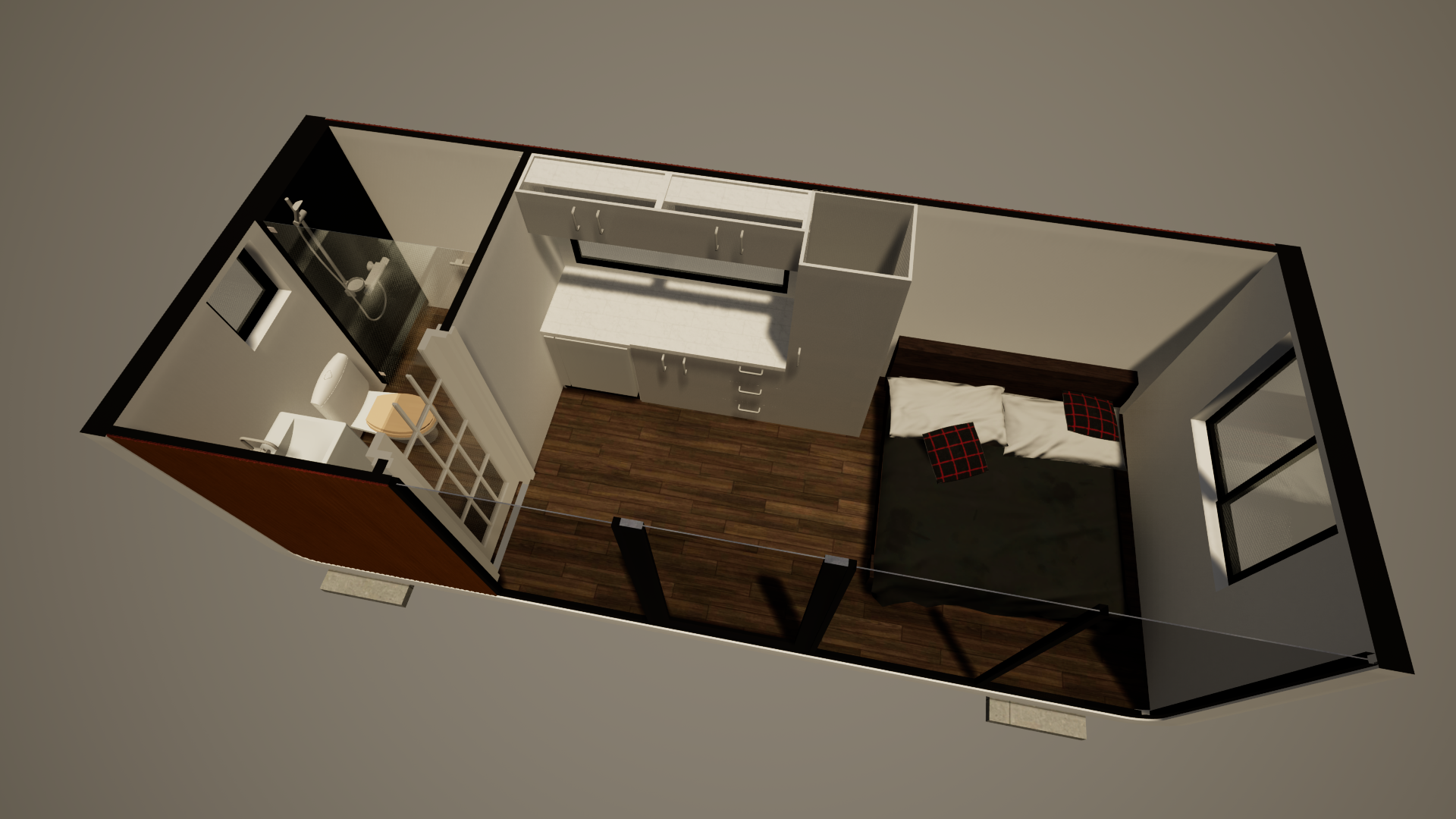

The 6m Designer Spacee combines the architectural styling of the Designer range with fully self-contained accommodation.

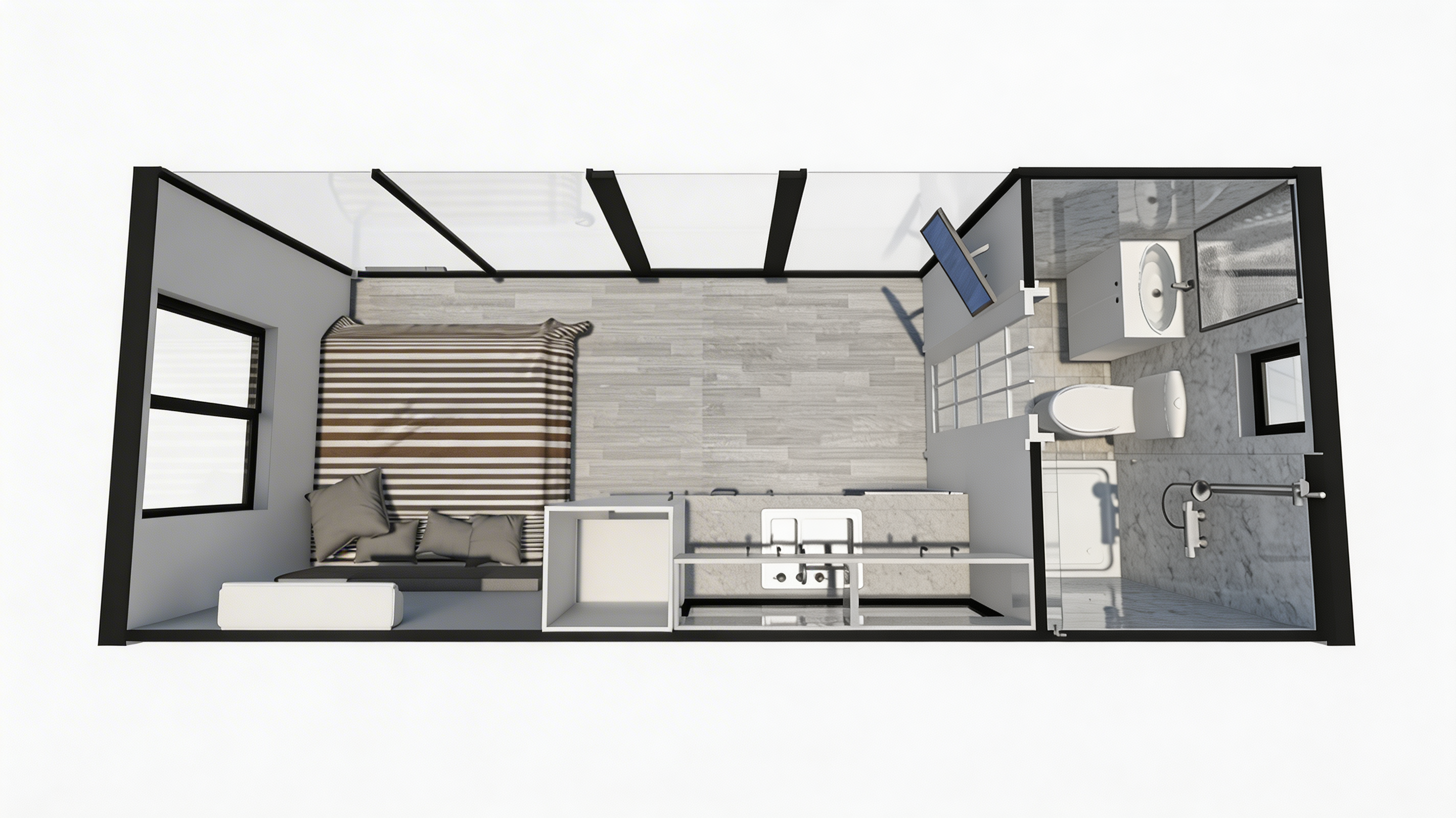

Unlike smaller studio-style pods, this model integrates both a complete kitchen and a full internal bathroom, allowing it to function as independent accommodation. One of the standout upgrades in the Designer range is the full-size bathroom layout. Instead of a combined wet bathroom like those found in caravans or some compact modular buildings, the Designer

Spacee features a separate shower, toilet and vanity, creating a far more comfortable and practical space for everyday use.

The kitchen is designed for practical living, featuring a silica-free stone benchtop, stainless steel sink with pull-out mixer and generous cabinetry storage, with provision under the bench for a fridge or front-load washing machine.

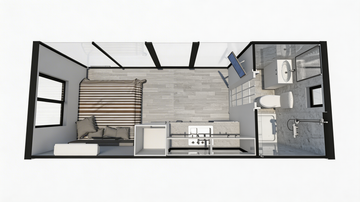

Floor-to-ceiling double-glazed glass walls enhance natural light and openness, while square internal wall junctions allow furniture to sit flush and maximise usable floor area. Whether used as guest accommodation, rural housing, staff quarters, consulting suites or premium backyard living, the 6m Designer Spacee delivers a balance of functionality and modern architectural design.

Structure & Construction

• Welded engineered steel frame
• EPS insulated sandwich panel wall system

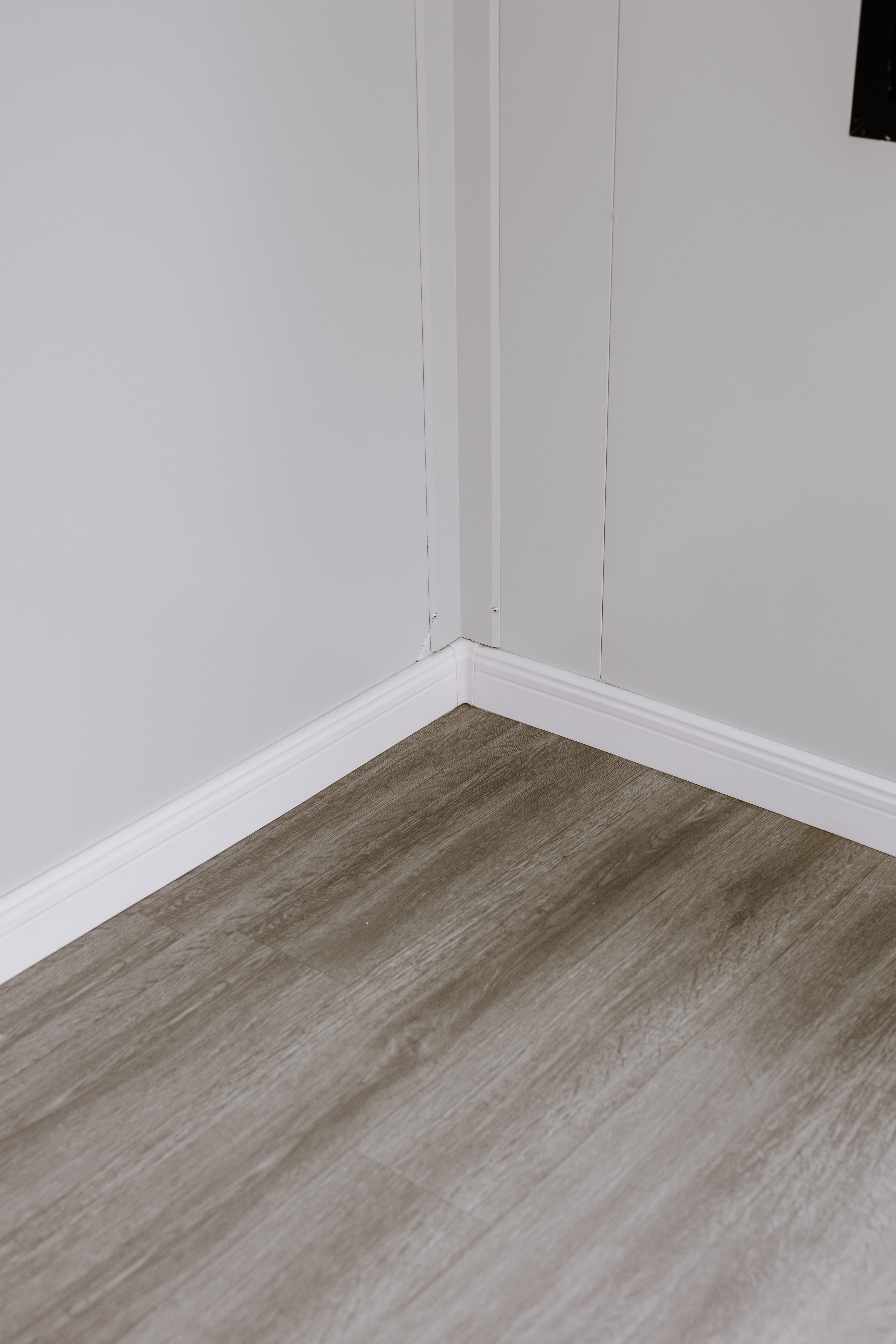

• Square floor-to-wall junction (allows furniture to sit flush)
• Roof-mounted crane lifting point
• Reinforced pod feet with tie-down provisions (footing plan supplied)

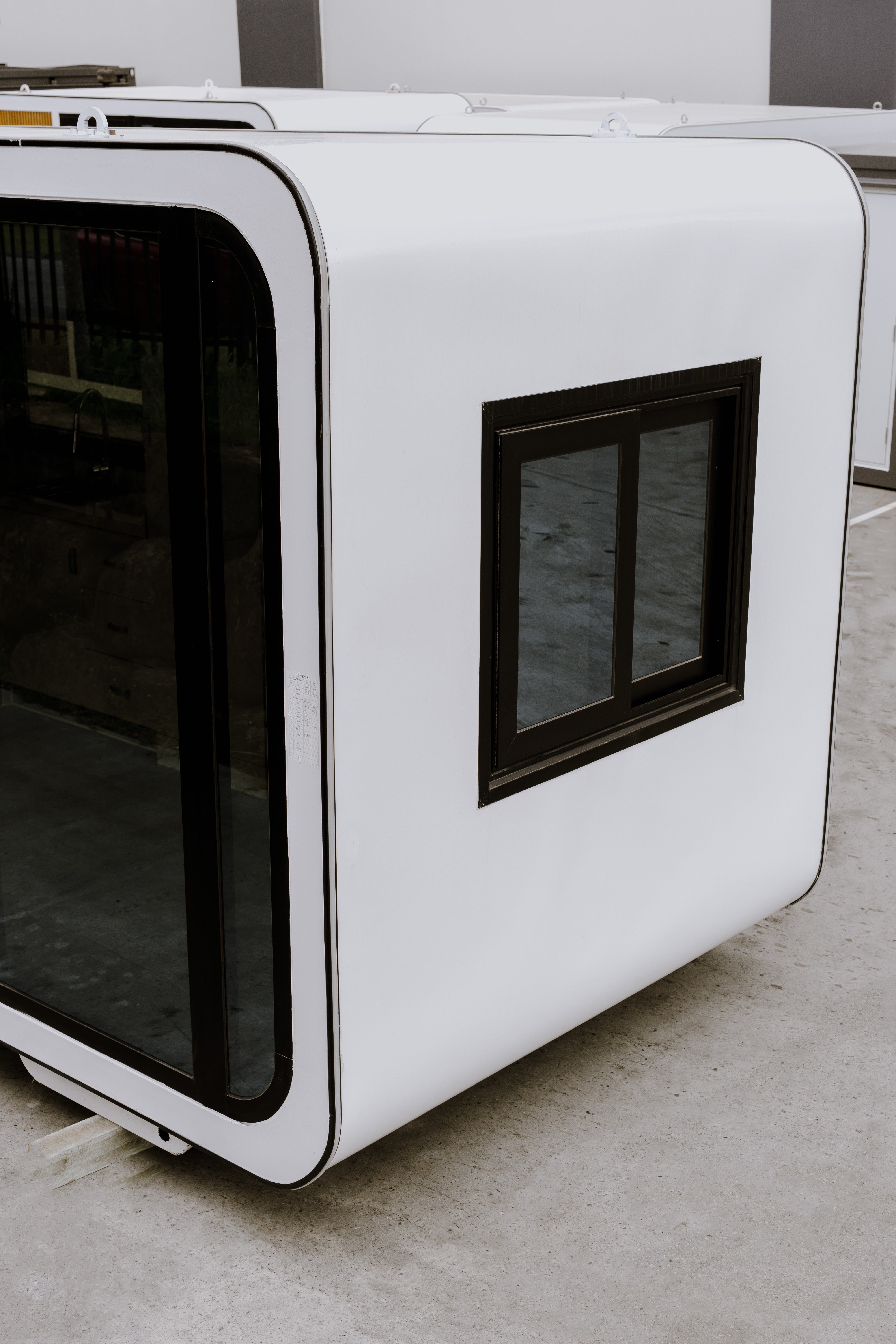

• Gloss white fibreglass exterior shell

Exterior & Glazing

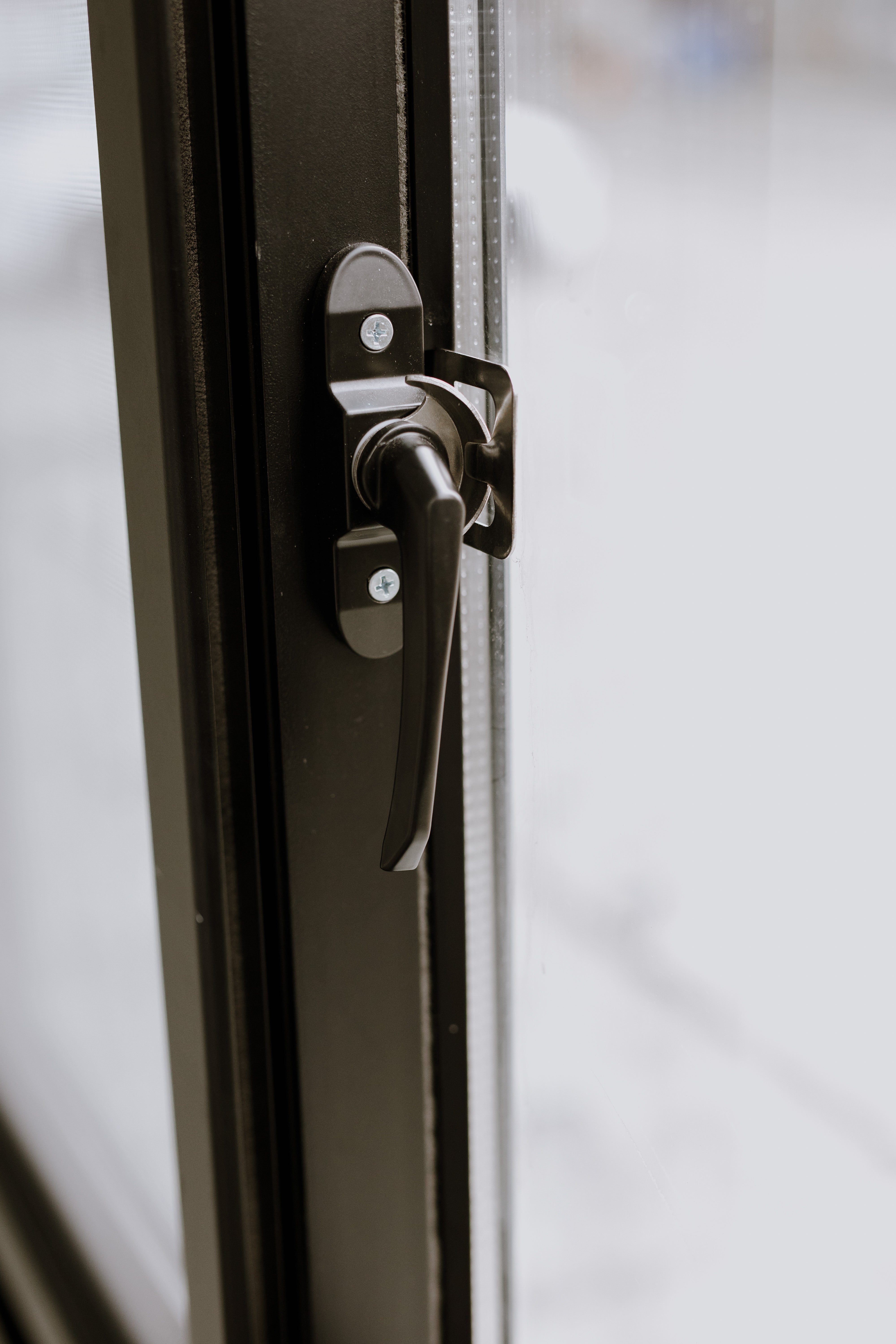

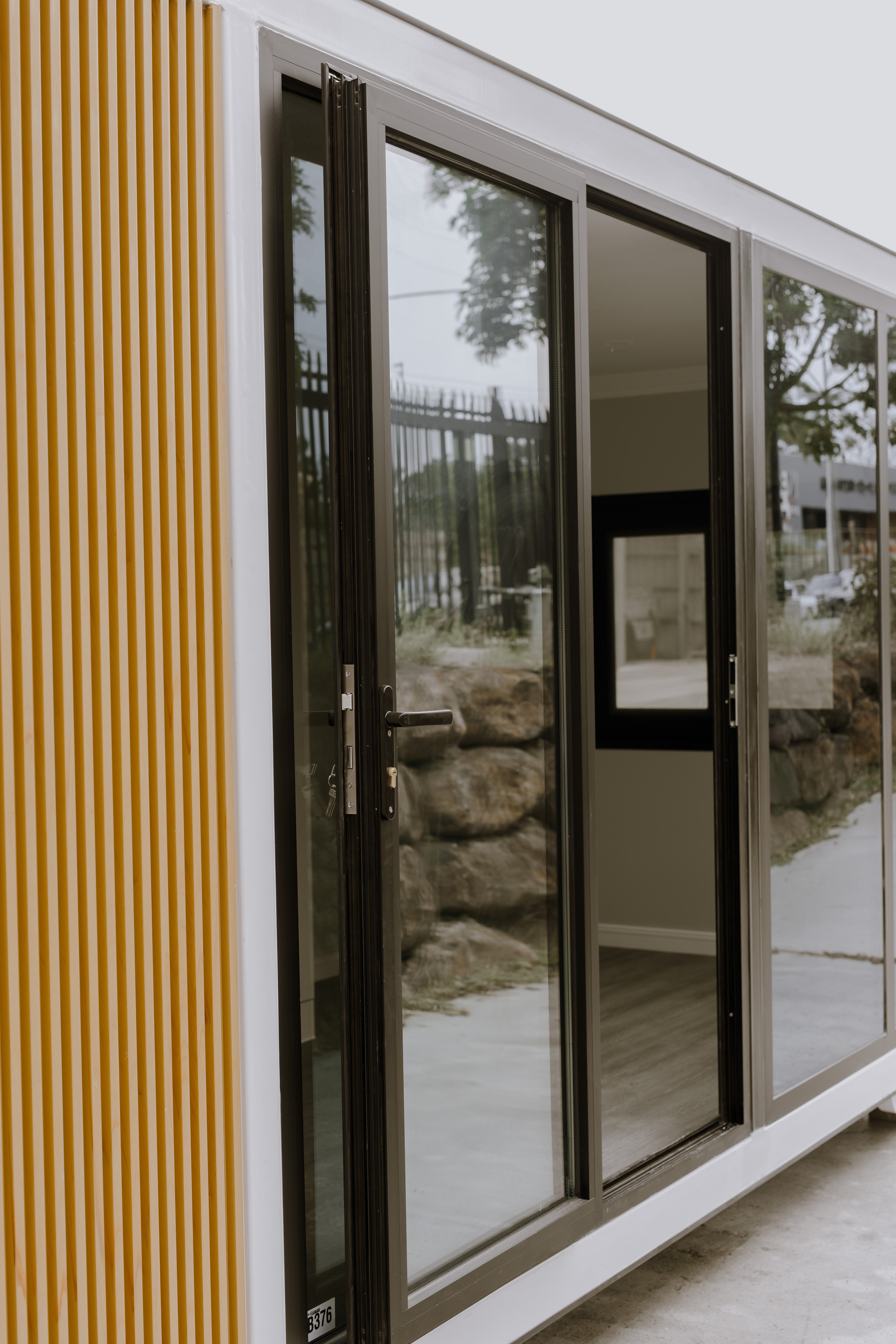

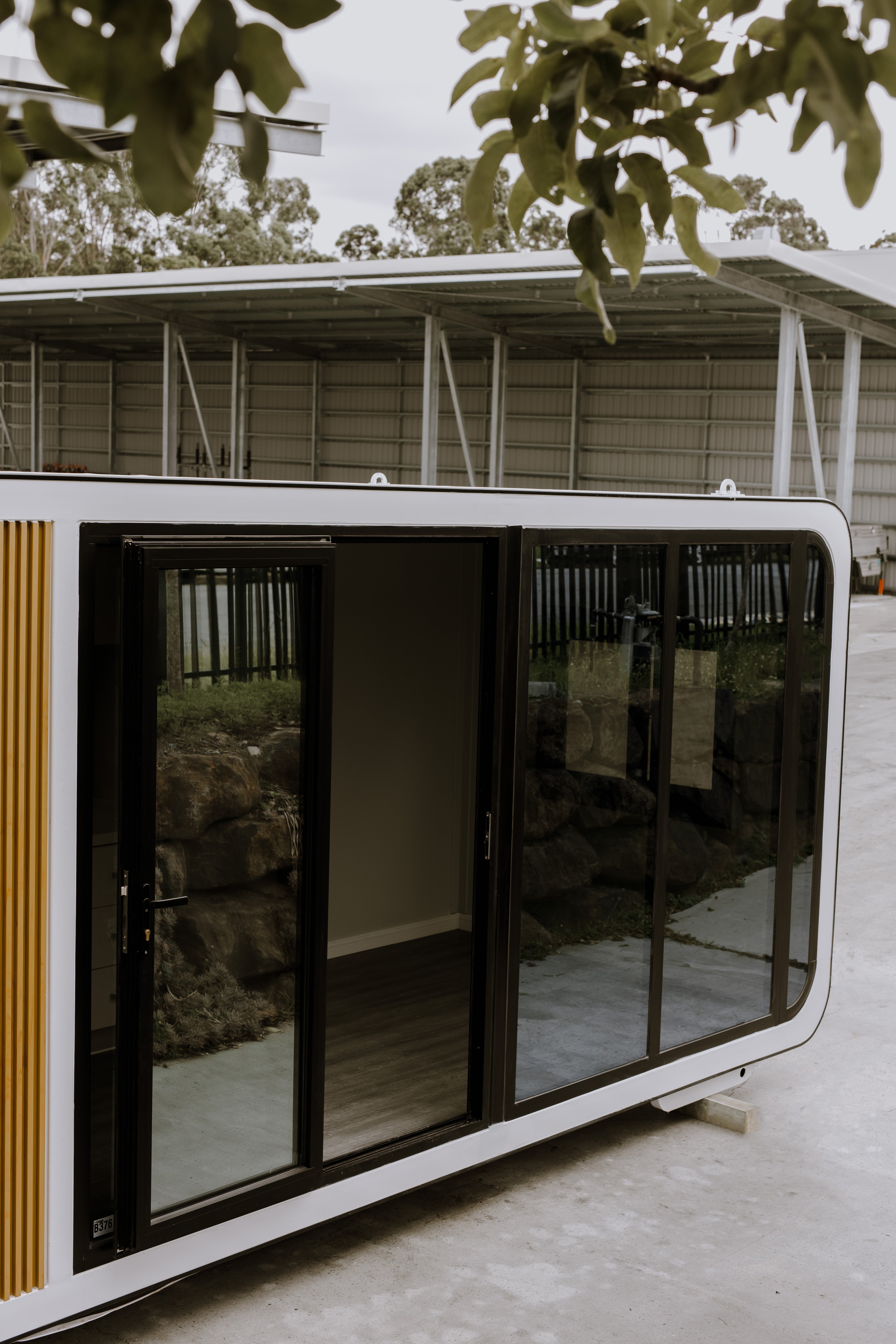

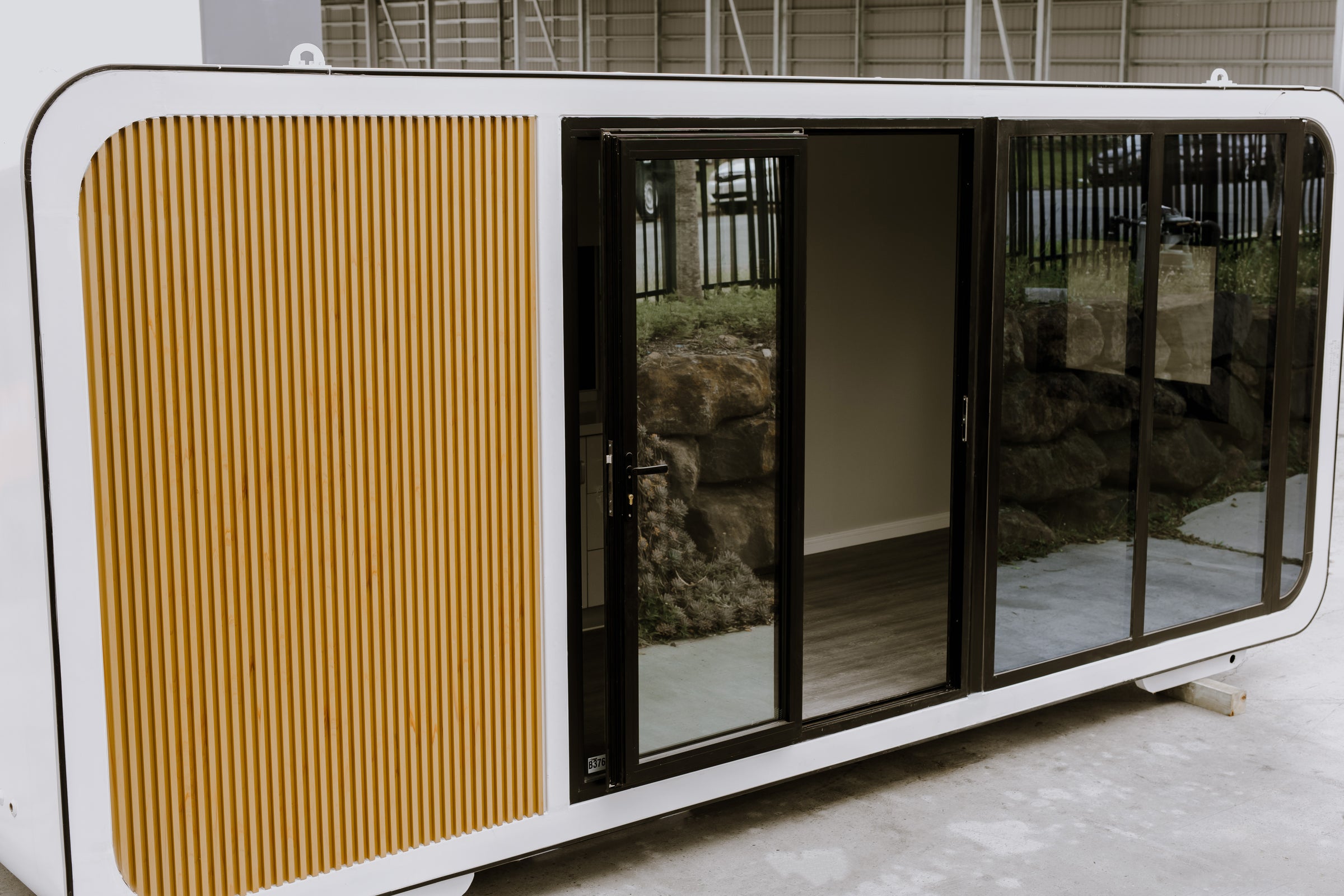

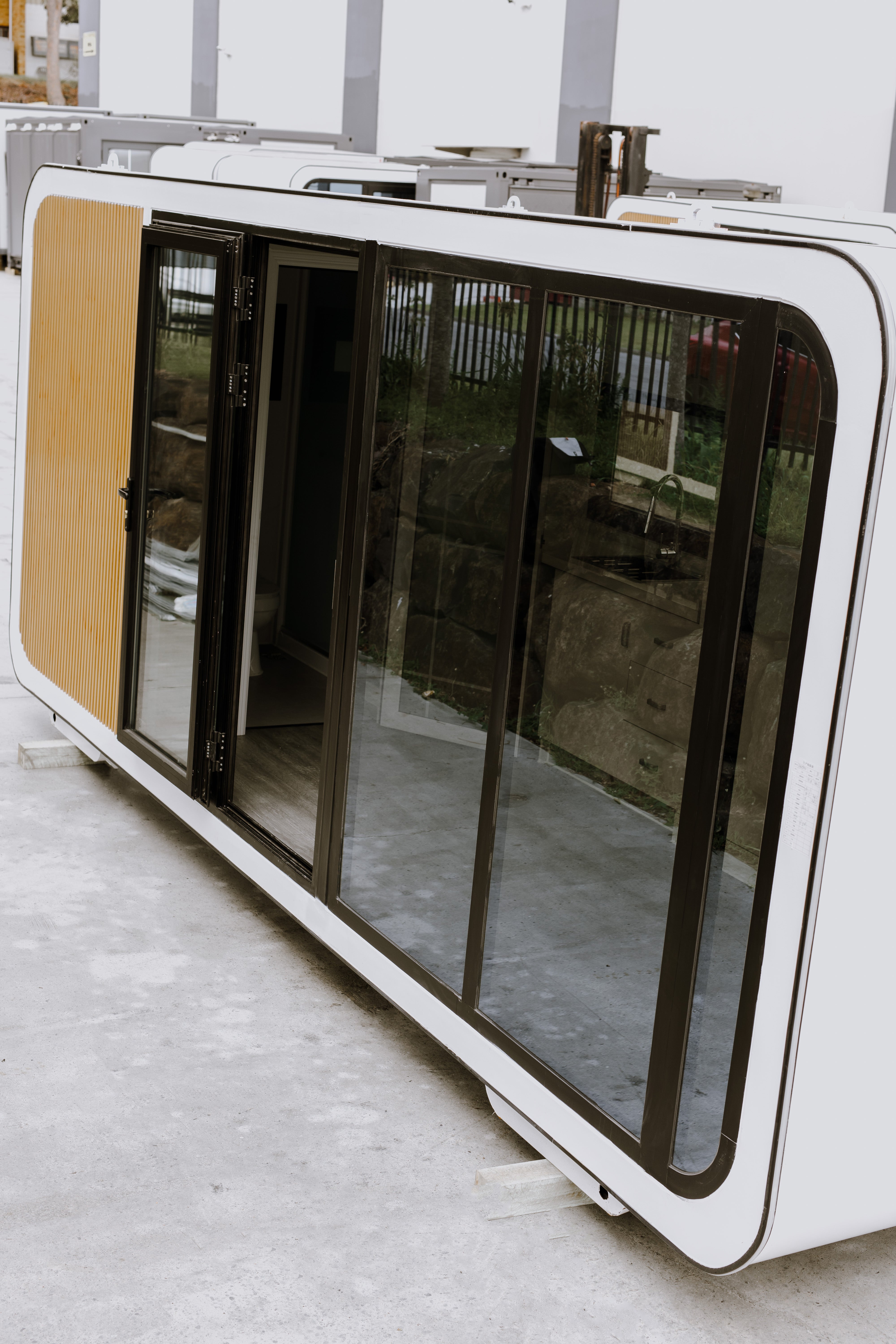

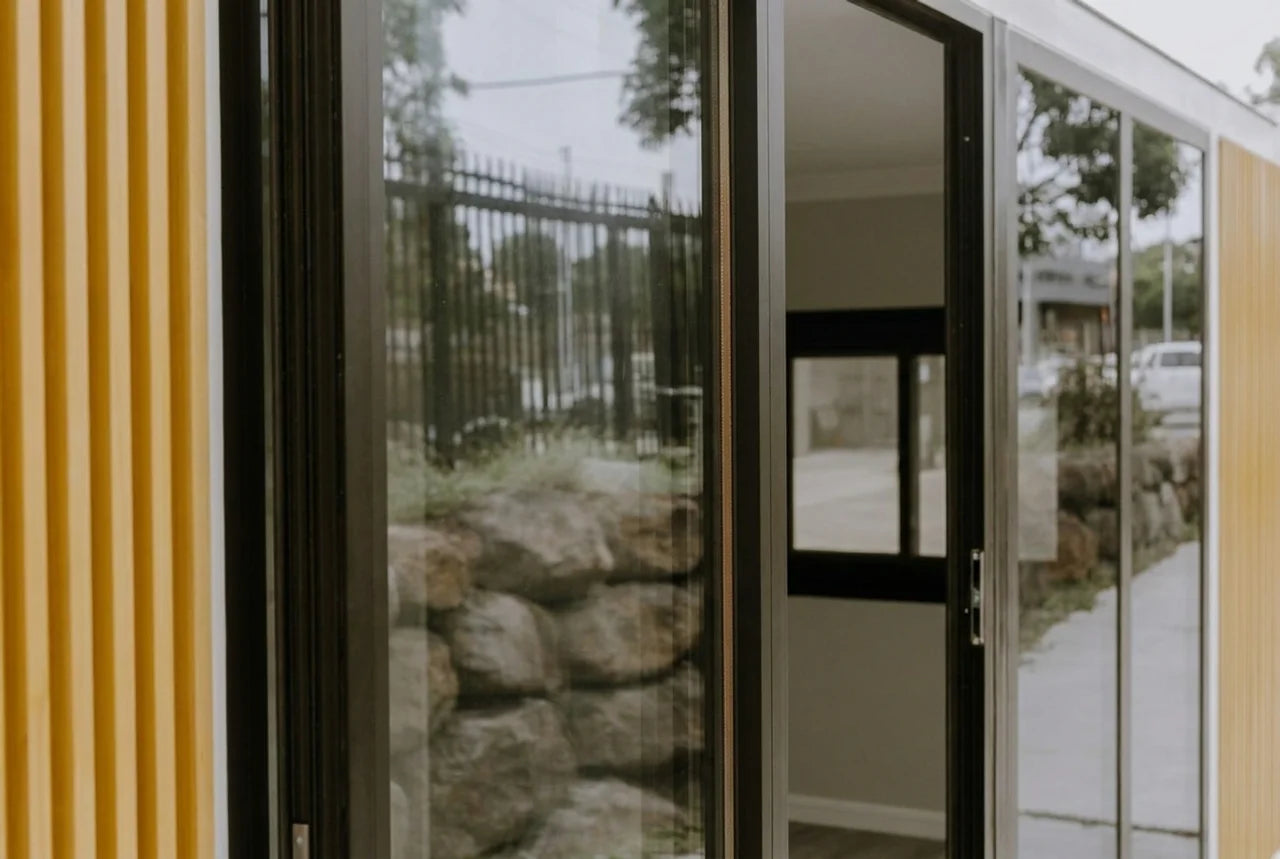

• Floor-to-ceiling double-glazed glass walls to front and rear

AS/NZS compliant glazing in black aluminium frames
• Reflective mirror privacy film applied to external glazing

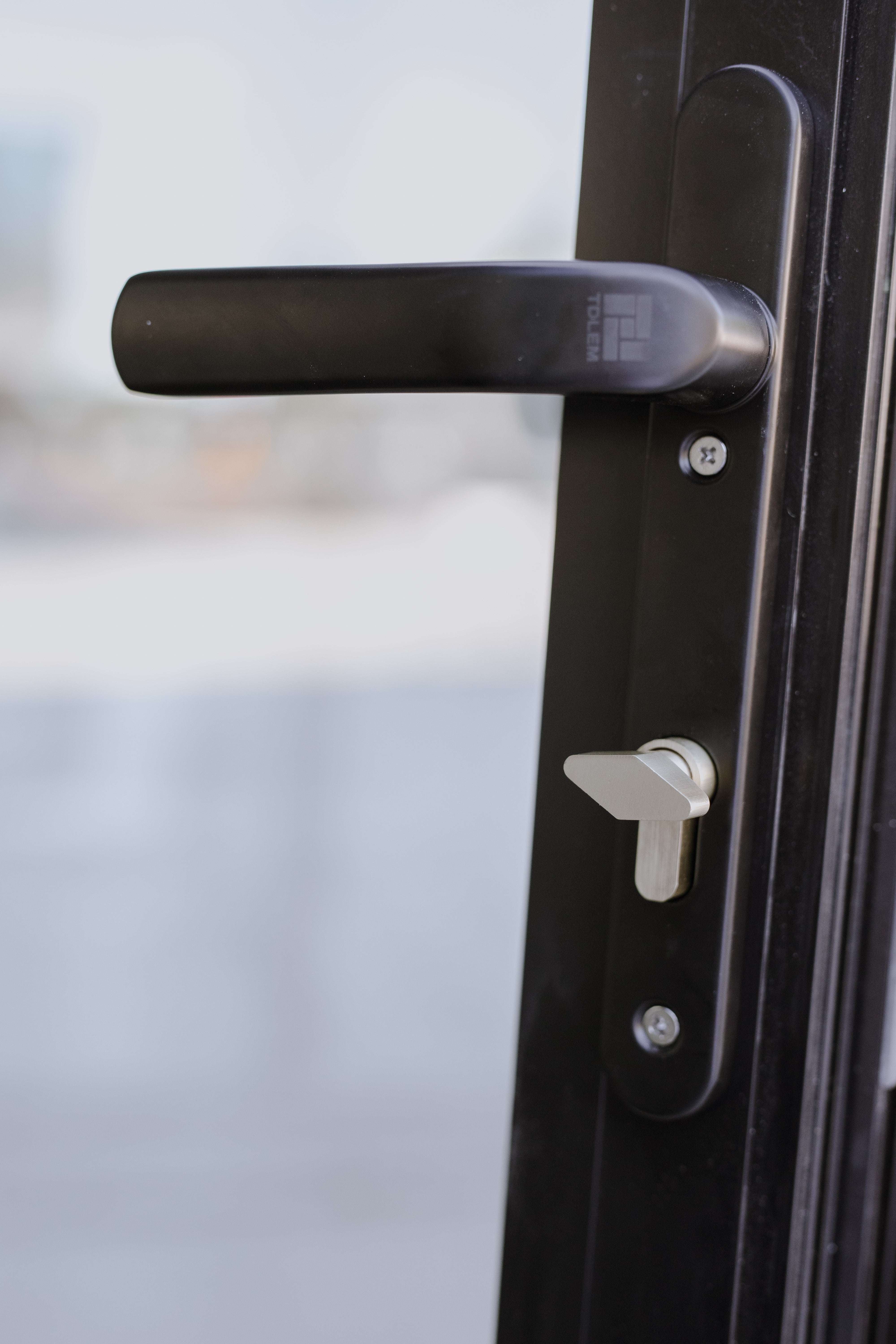

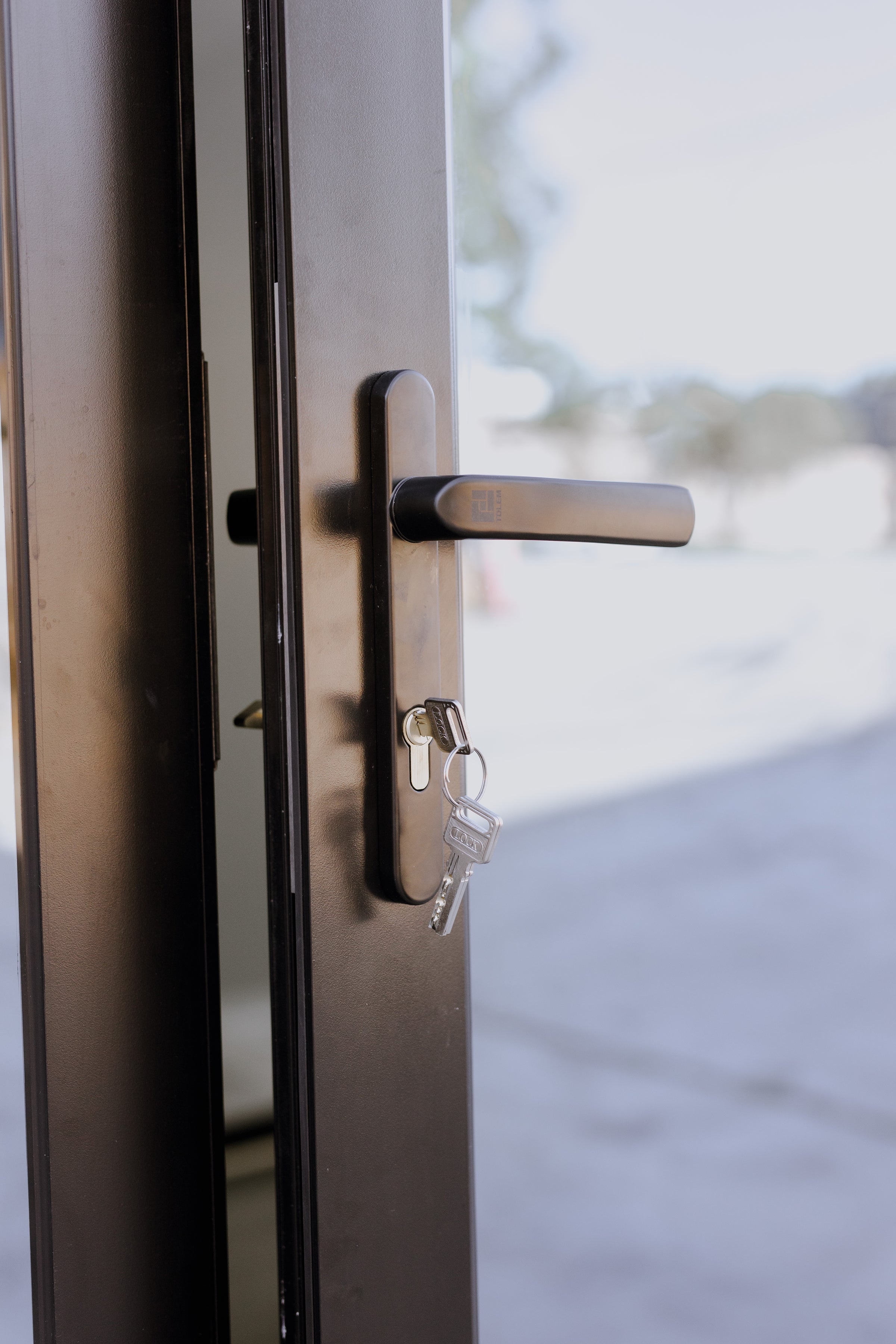

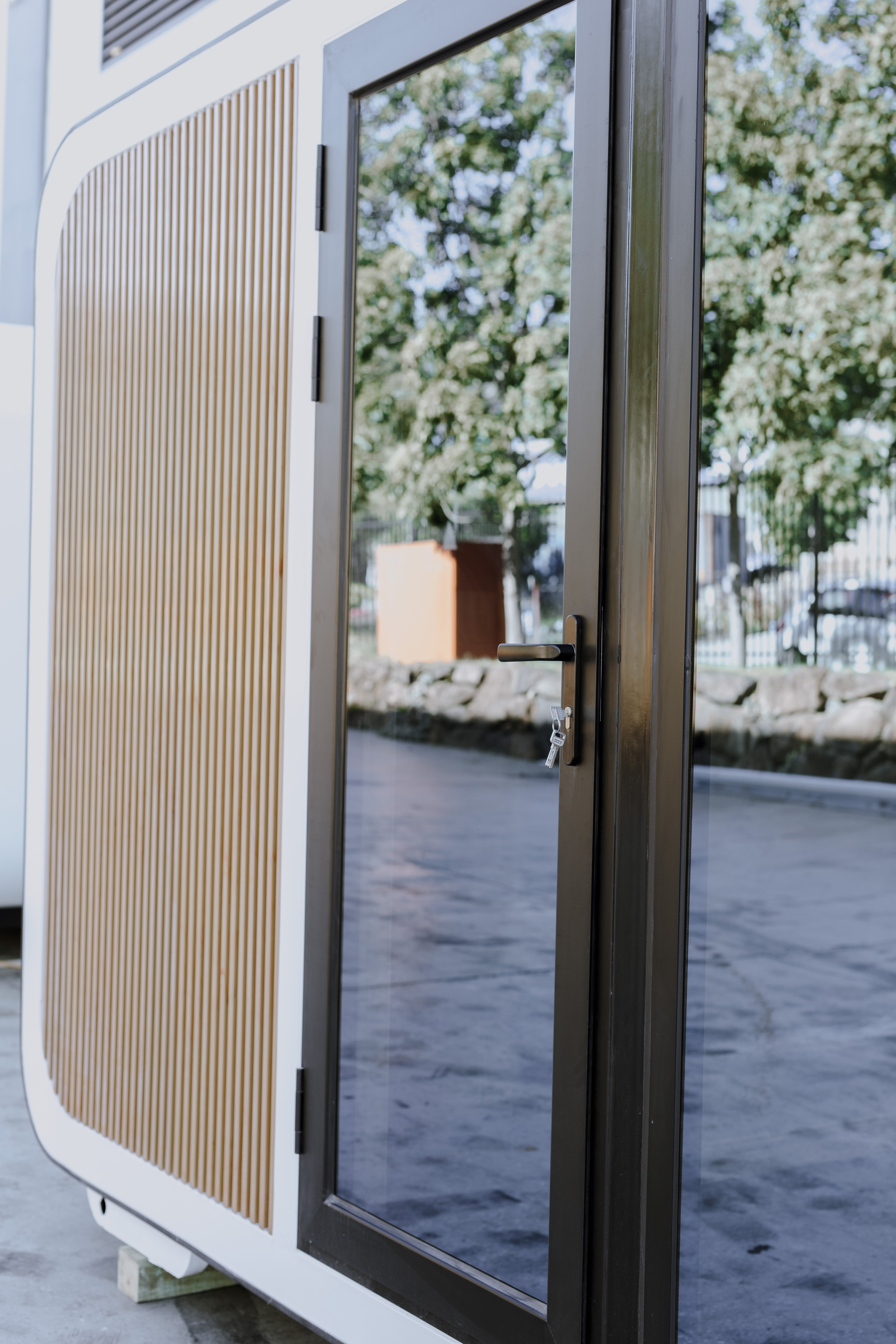

• Secure glass entry door with Euro lock and high-security multi-point locking

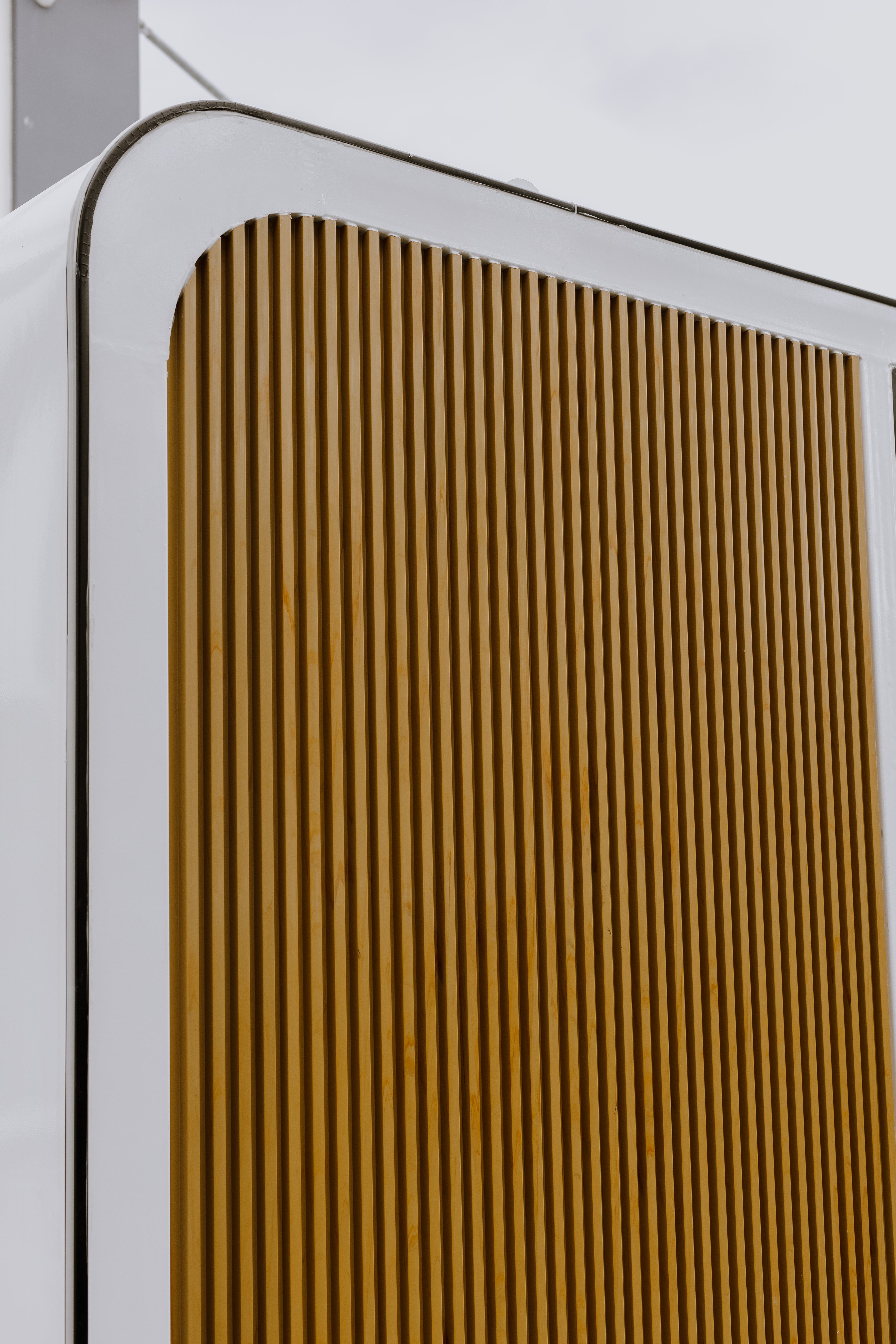

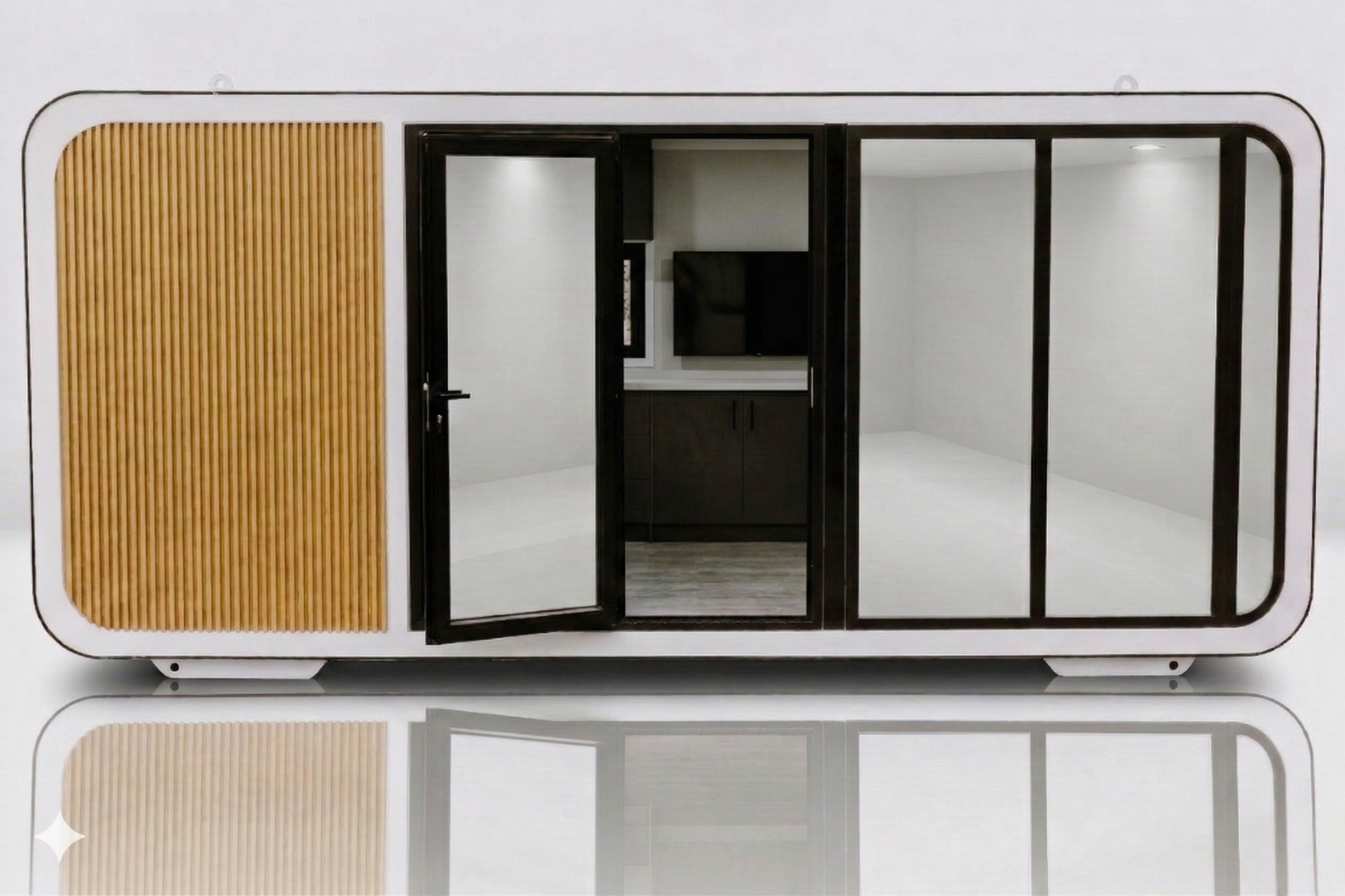

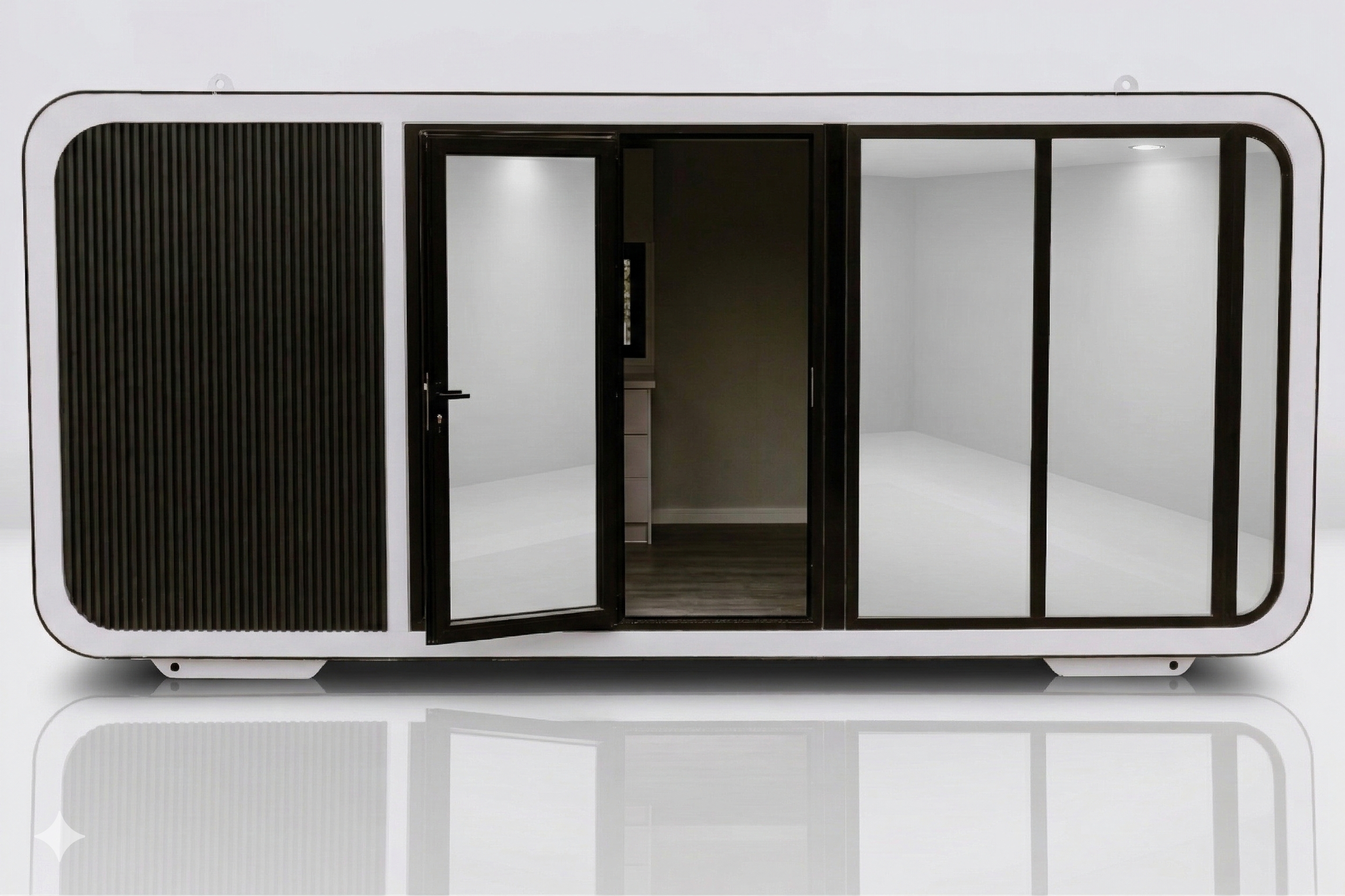

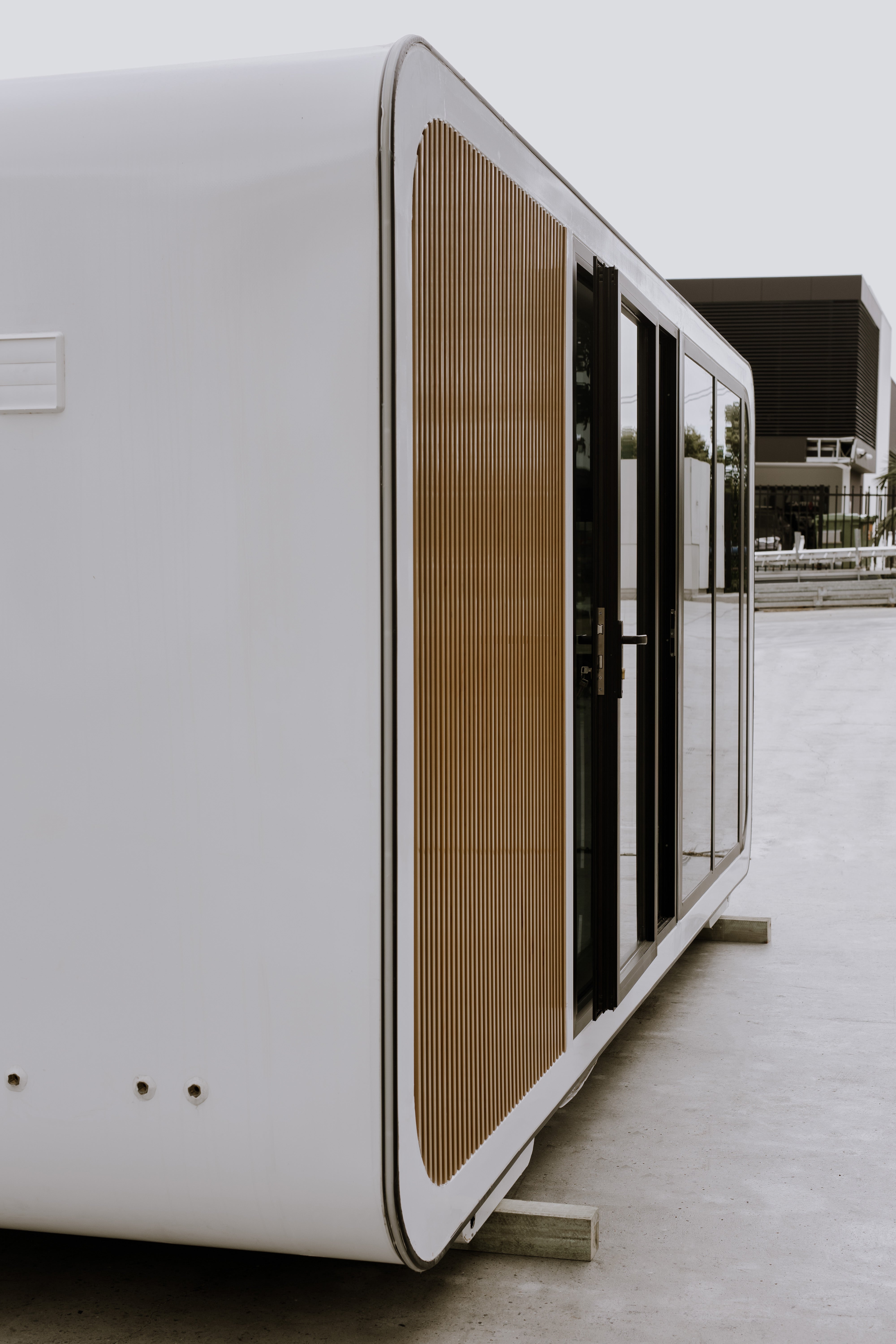

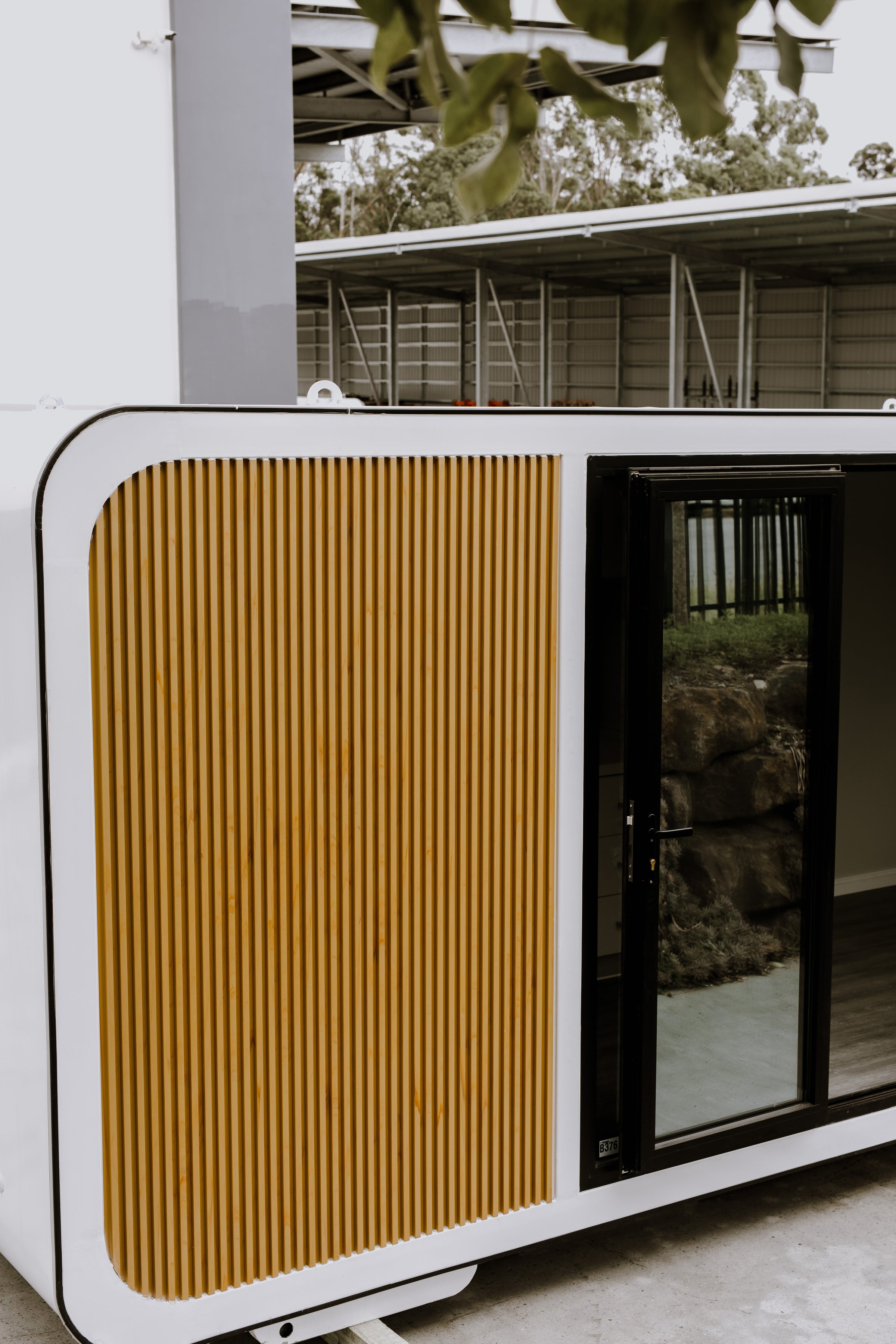

• Wood-Plastic Composite (WPC) decorative screens included as standard
(Brown or black colour options available)

Interior Finishes

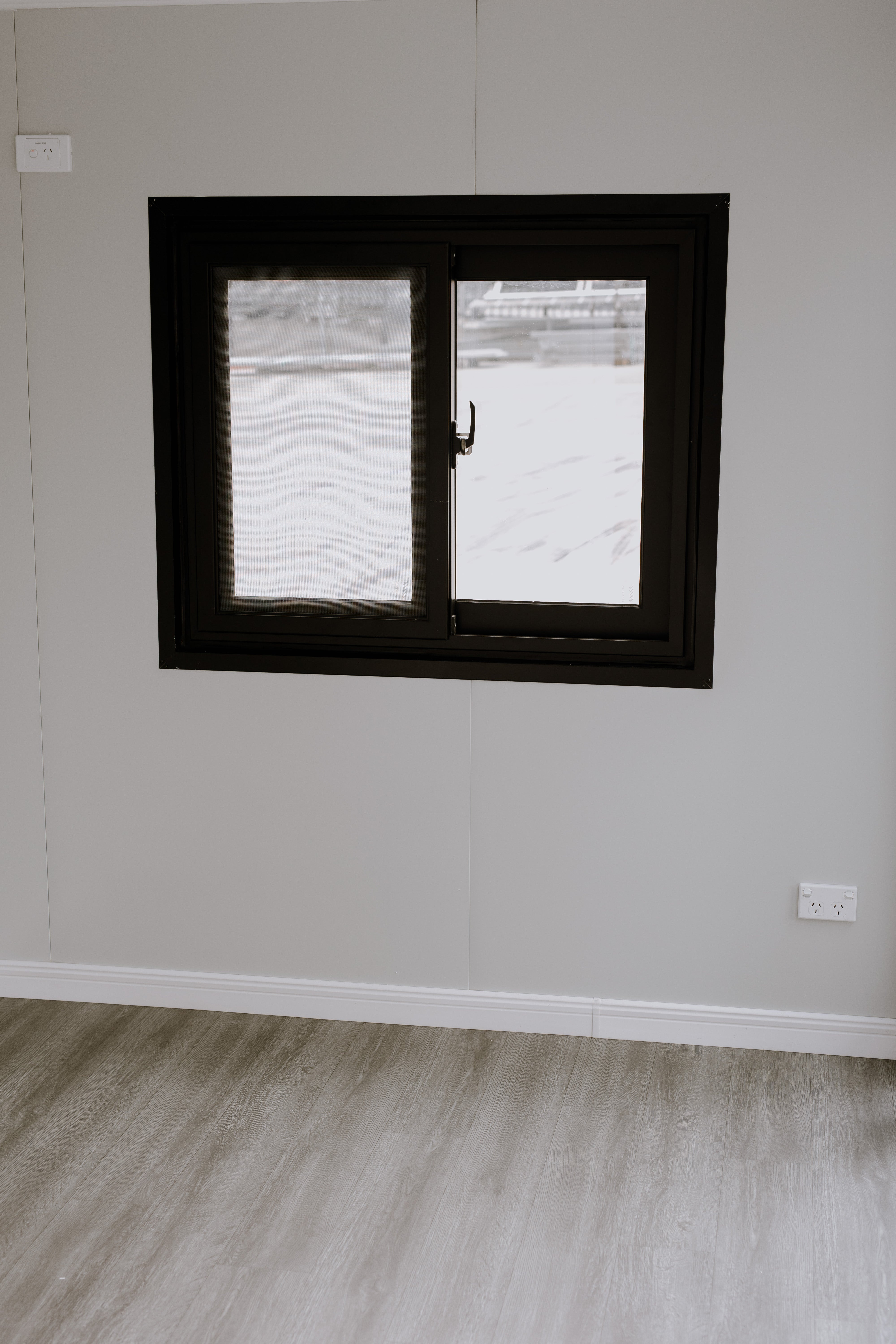

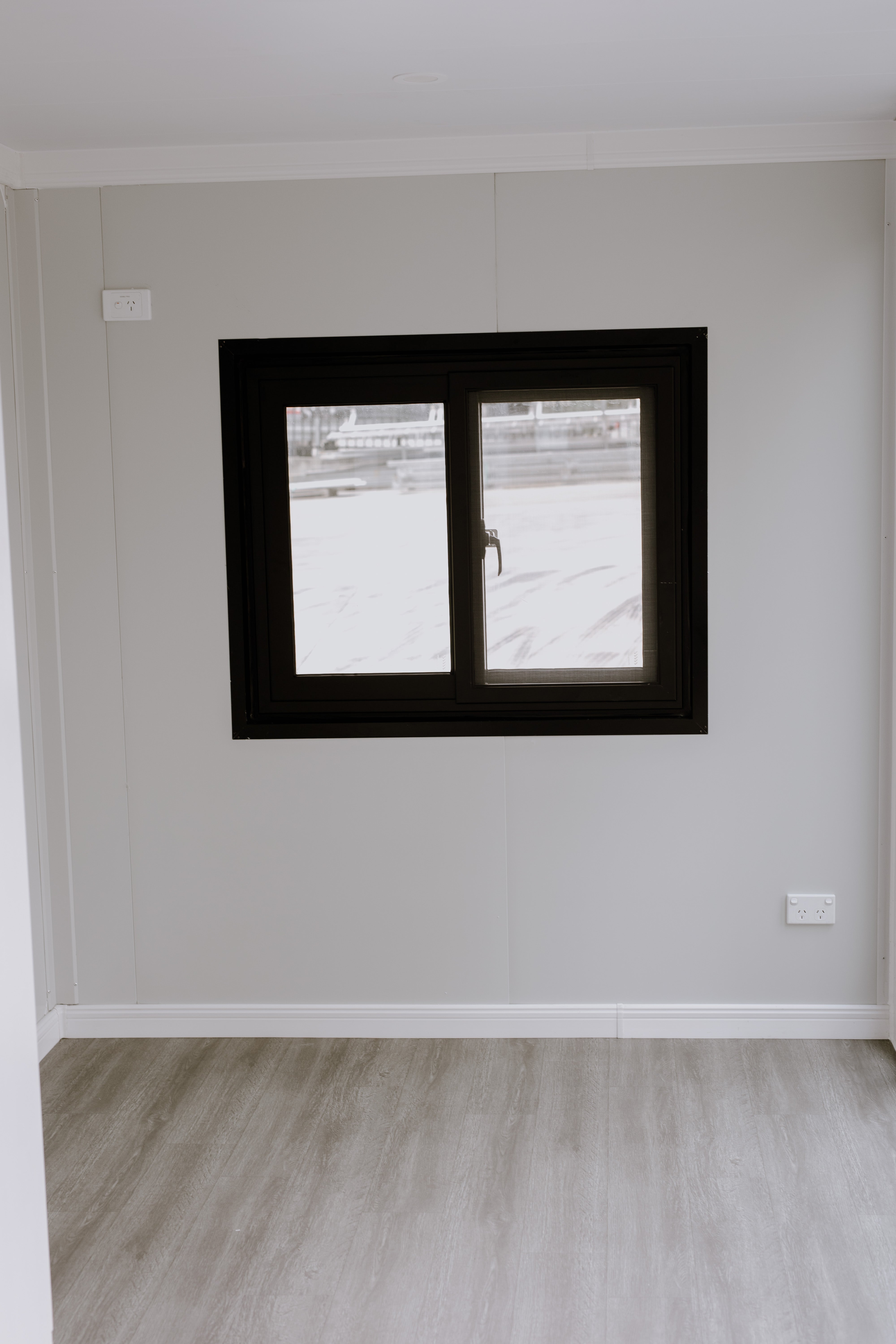

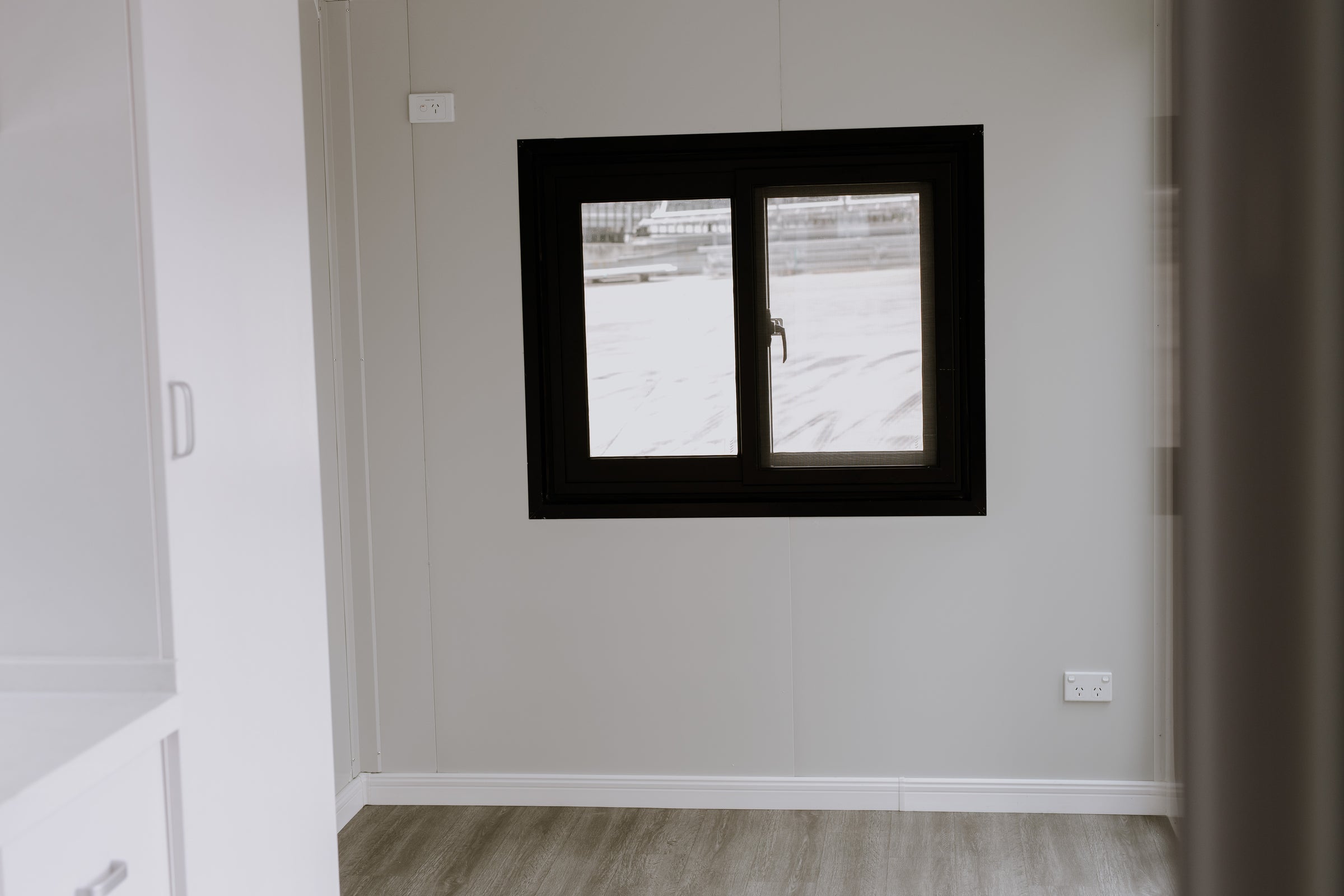

• Timber-look grey vinyl flooring
• Clean square internal wall finish (Designer range feature)
• Formed internal wall linings
• Tiled bathroom floor
• Marble-look wall panels in bathroom

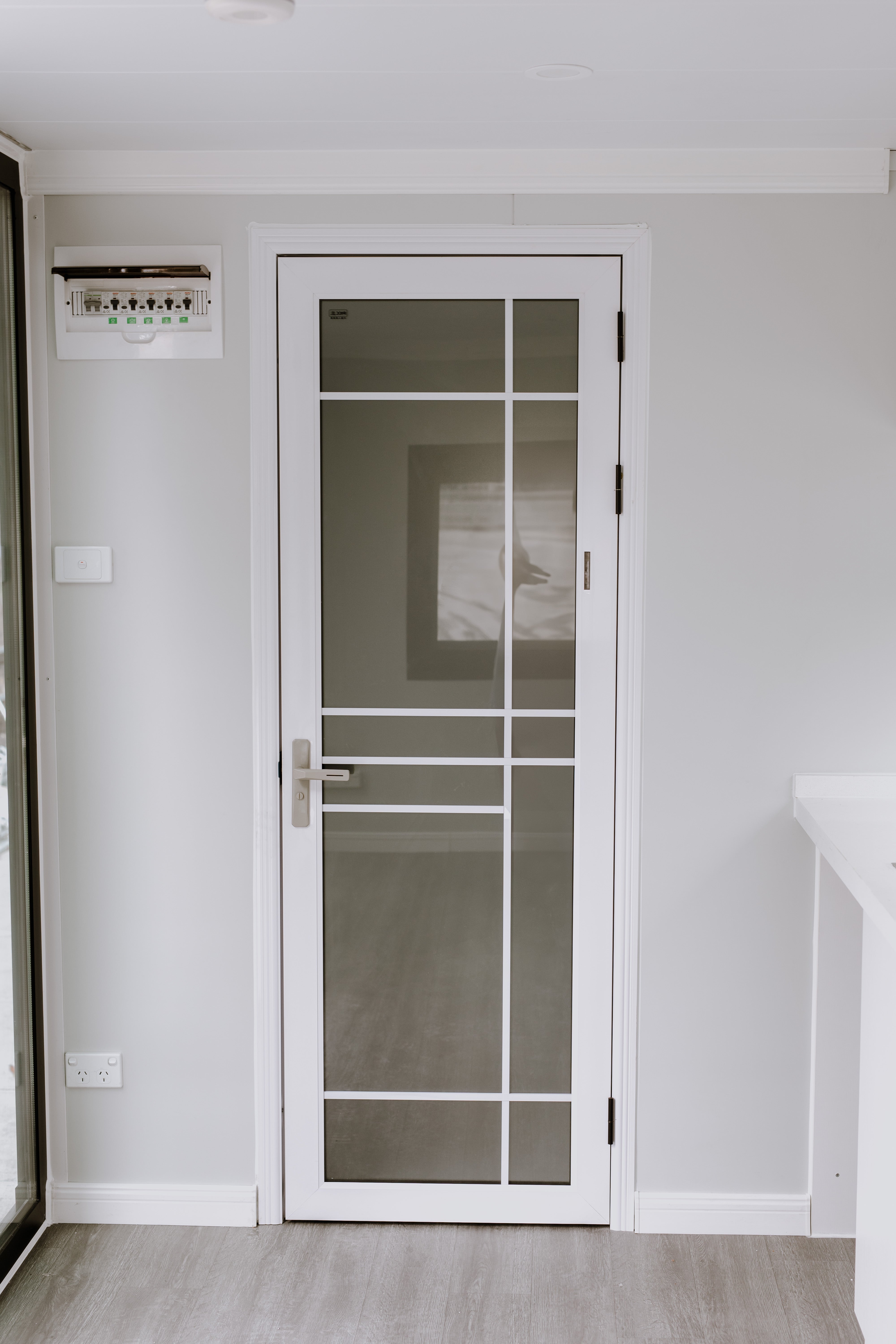

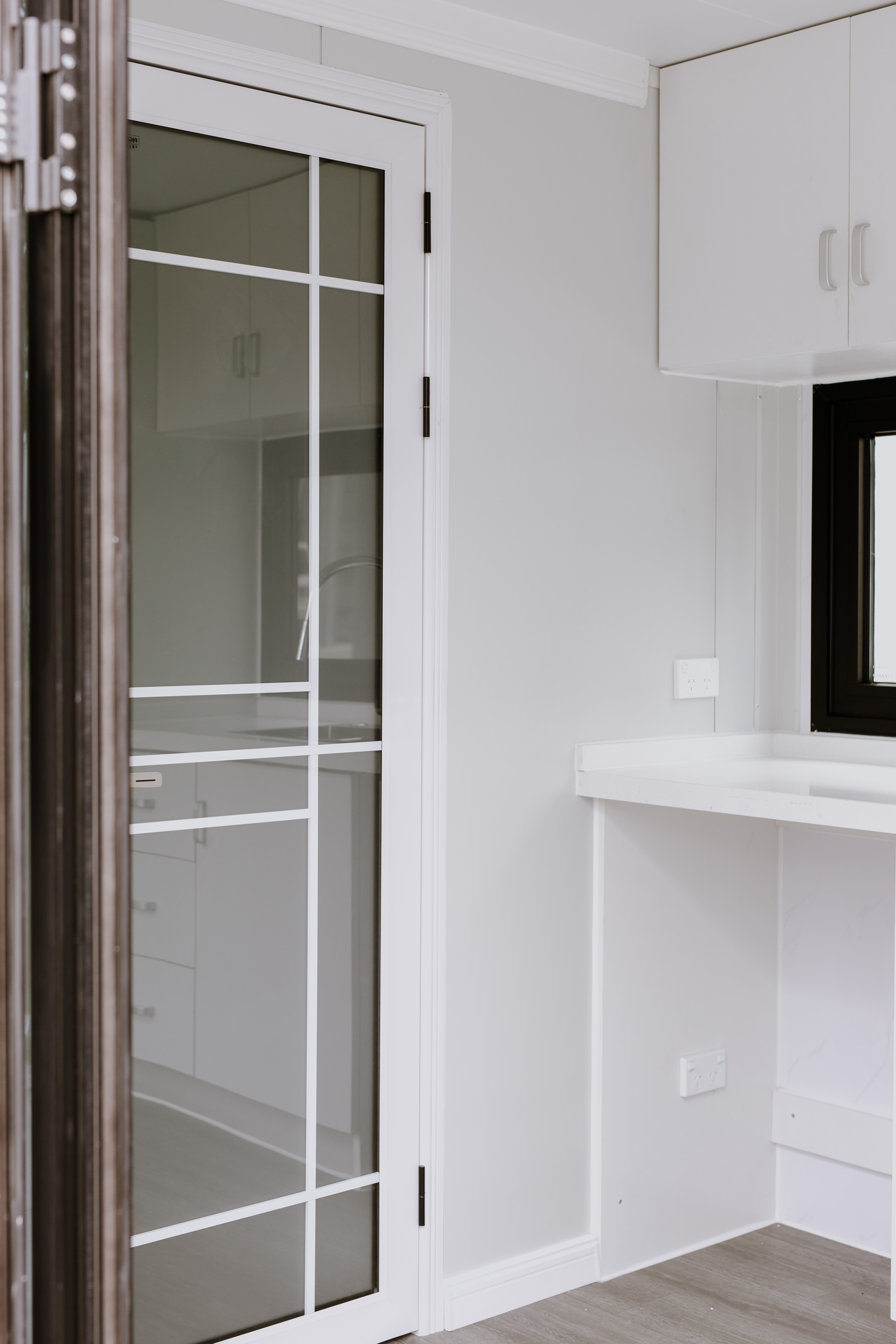

• Frosted bathroom entry door

Kitchen

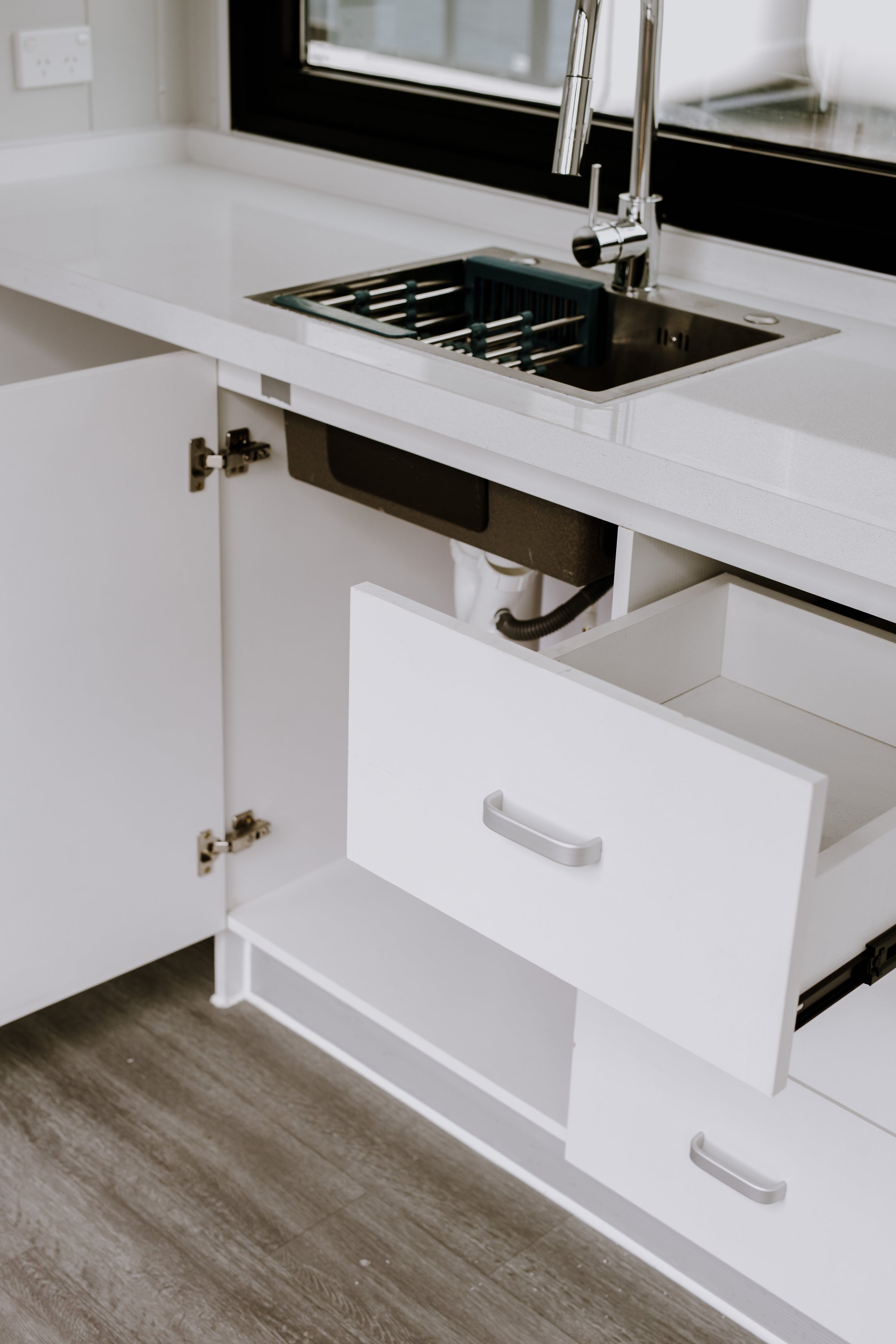

• Silica-free stone benchtop

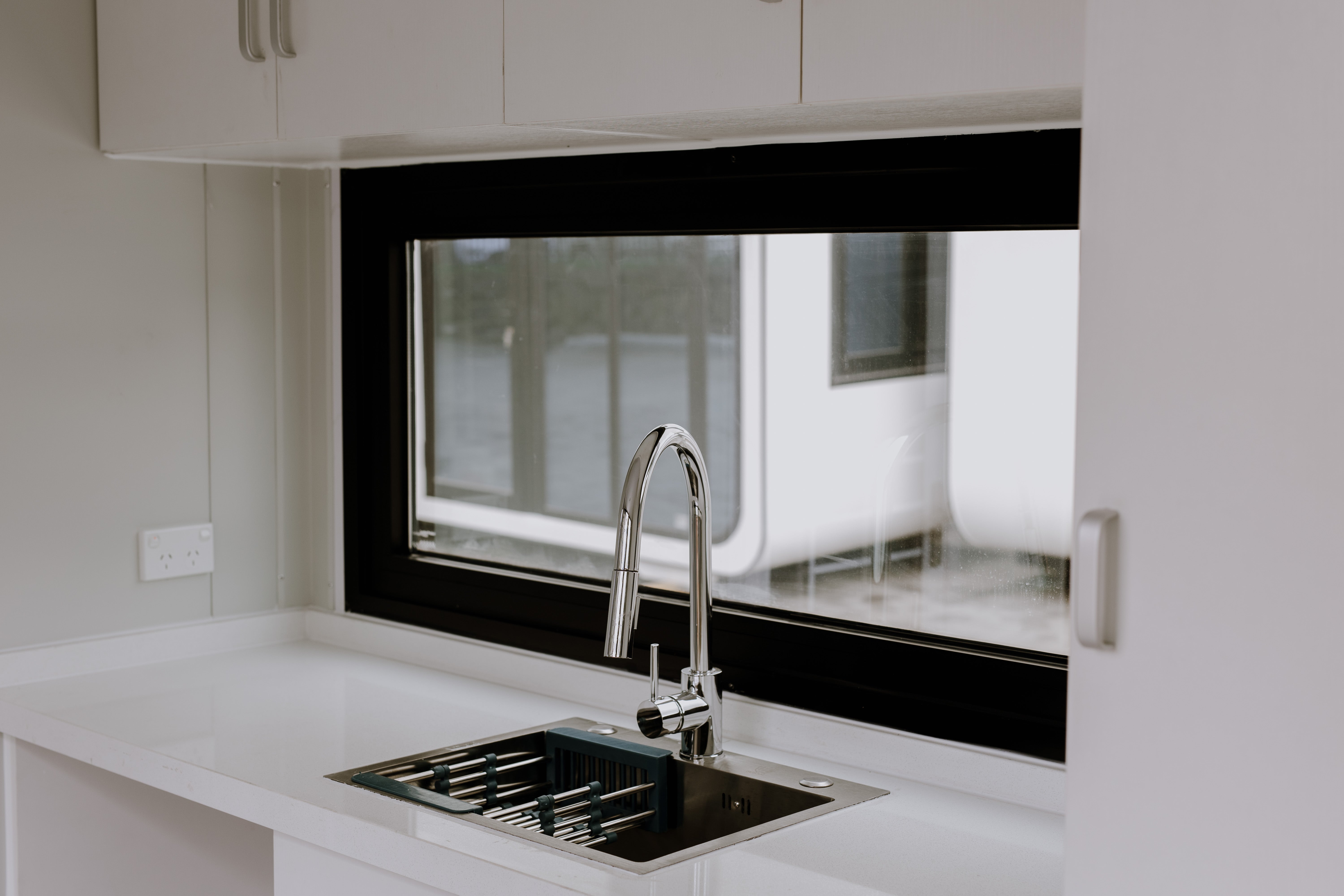

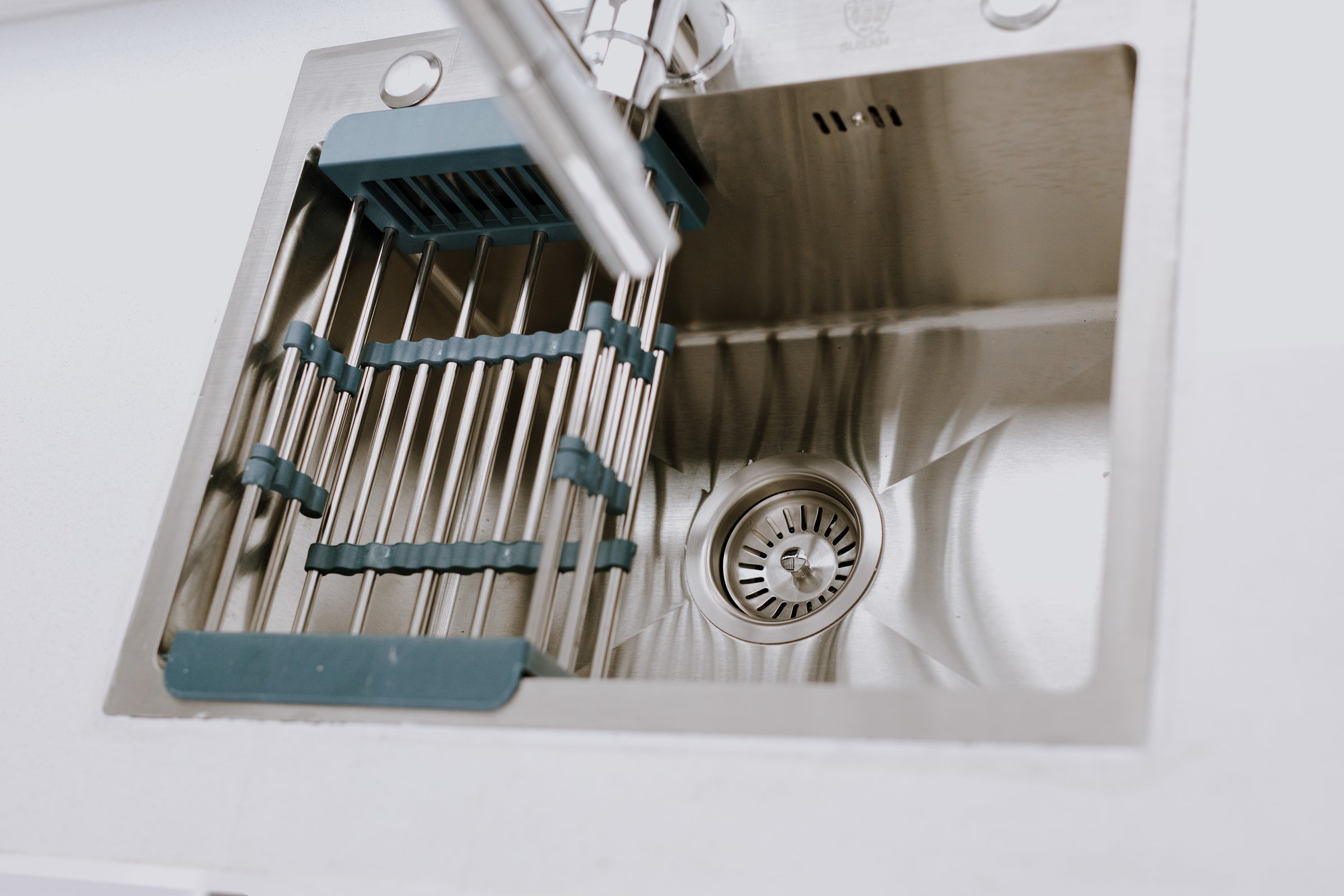

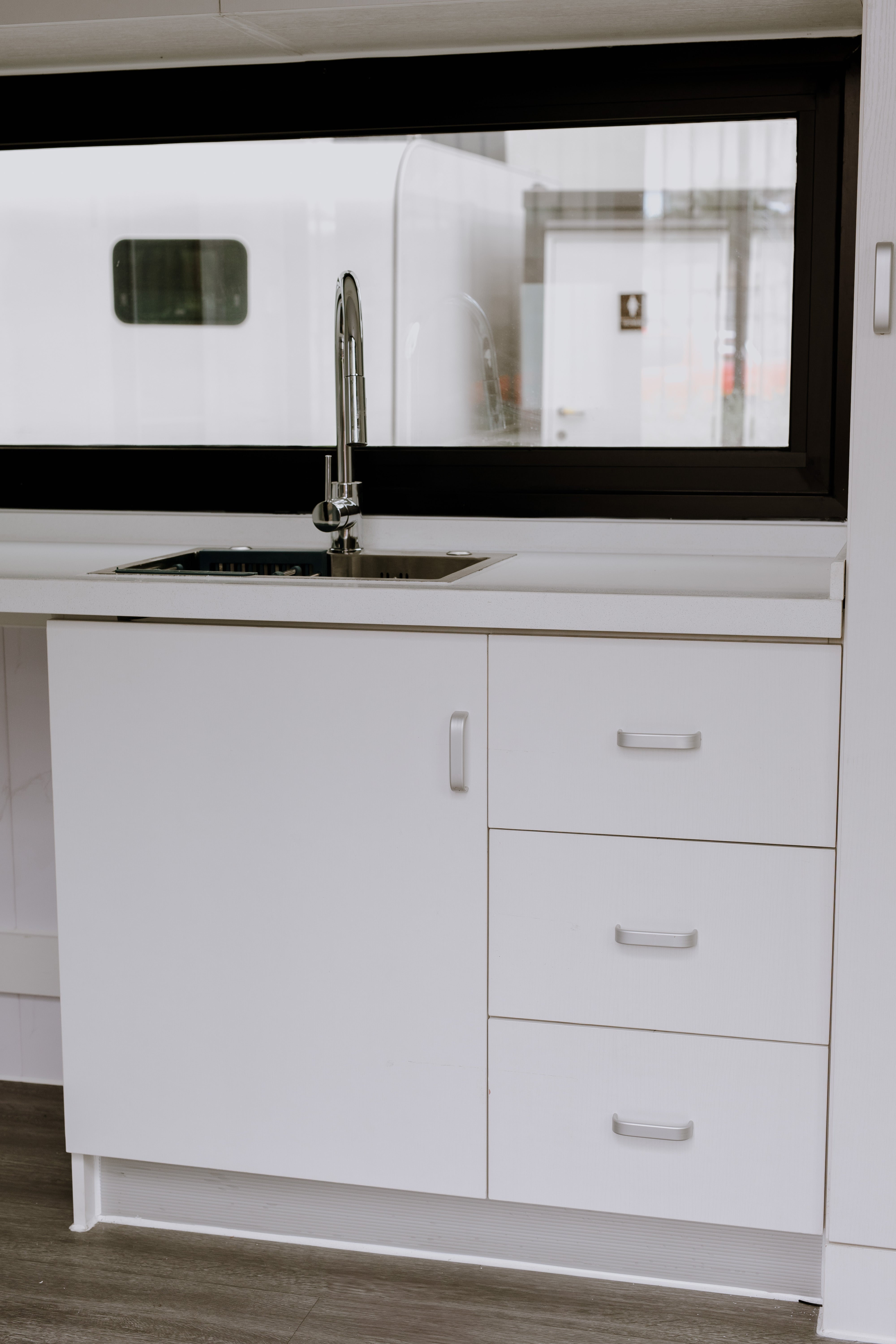

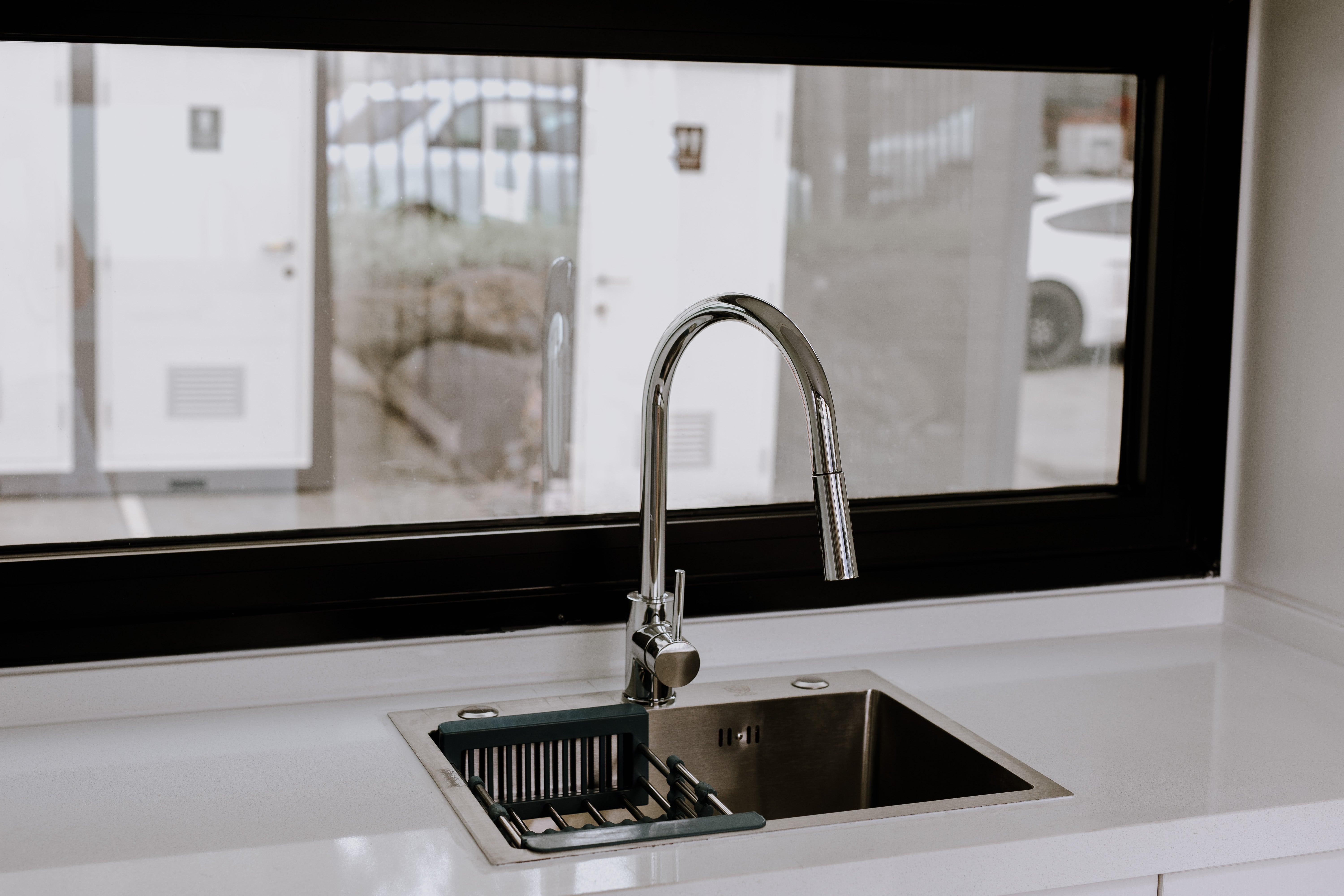

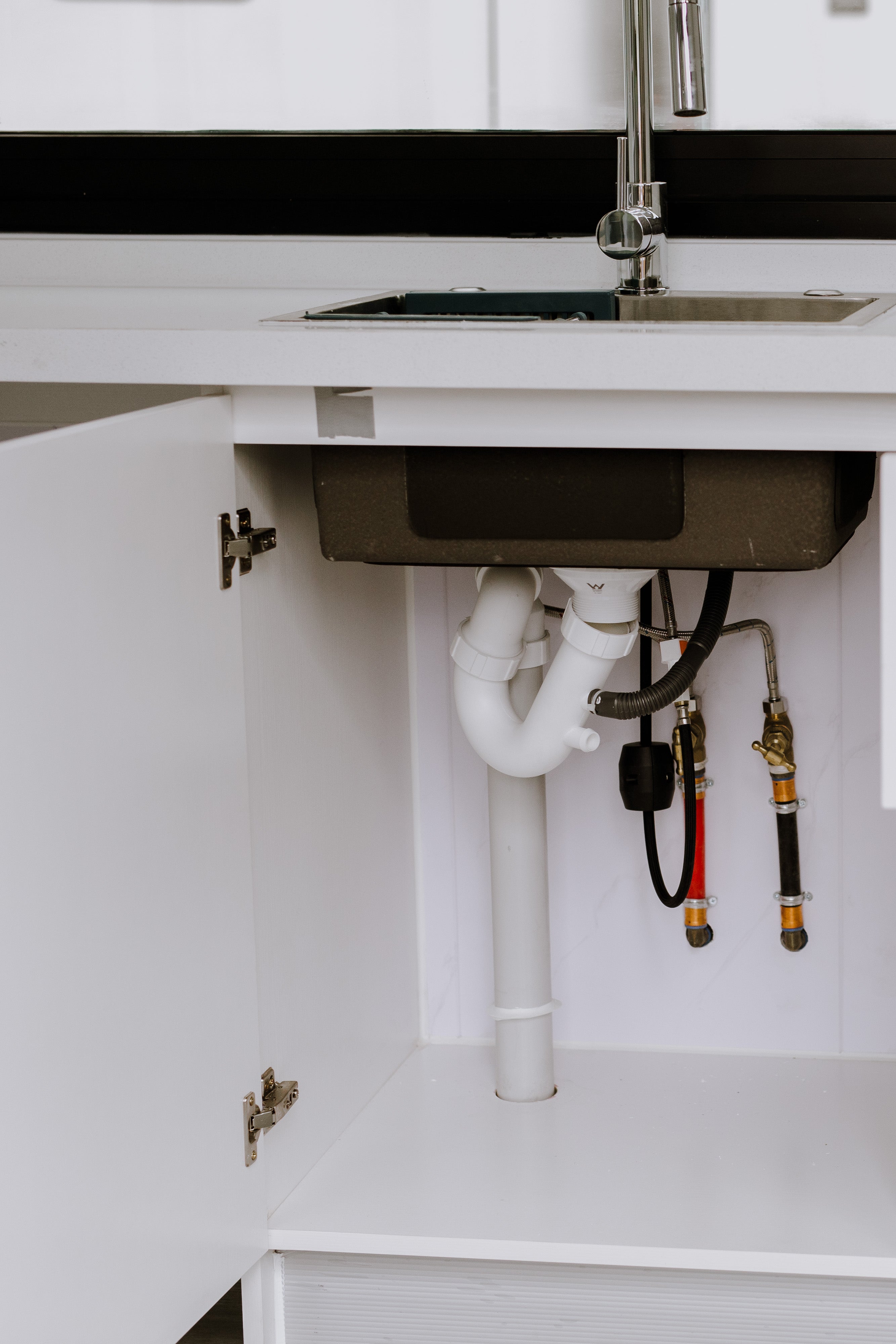

• Stainless steel sink with chrome pull-out mixer

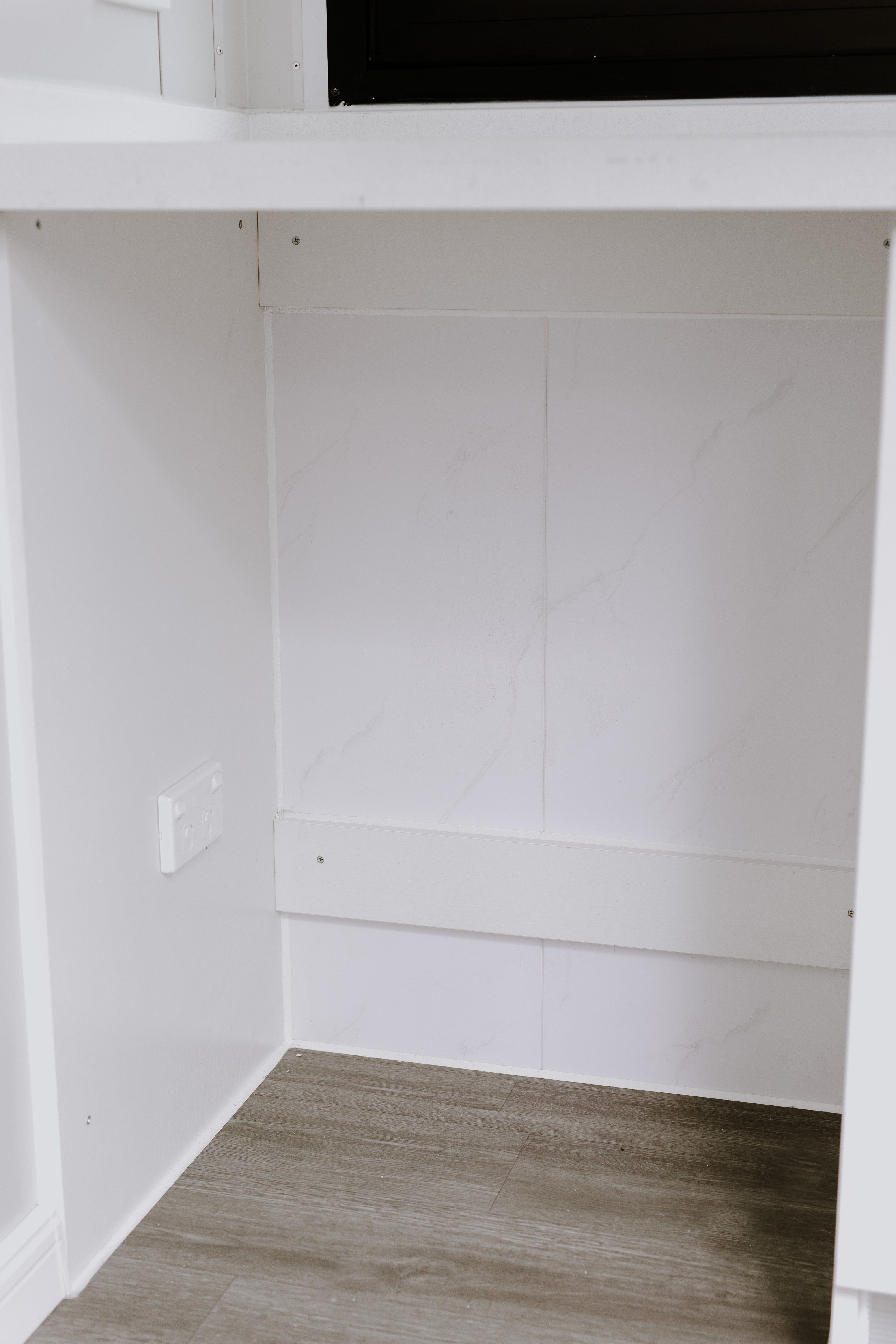

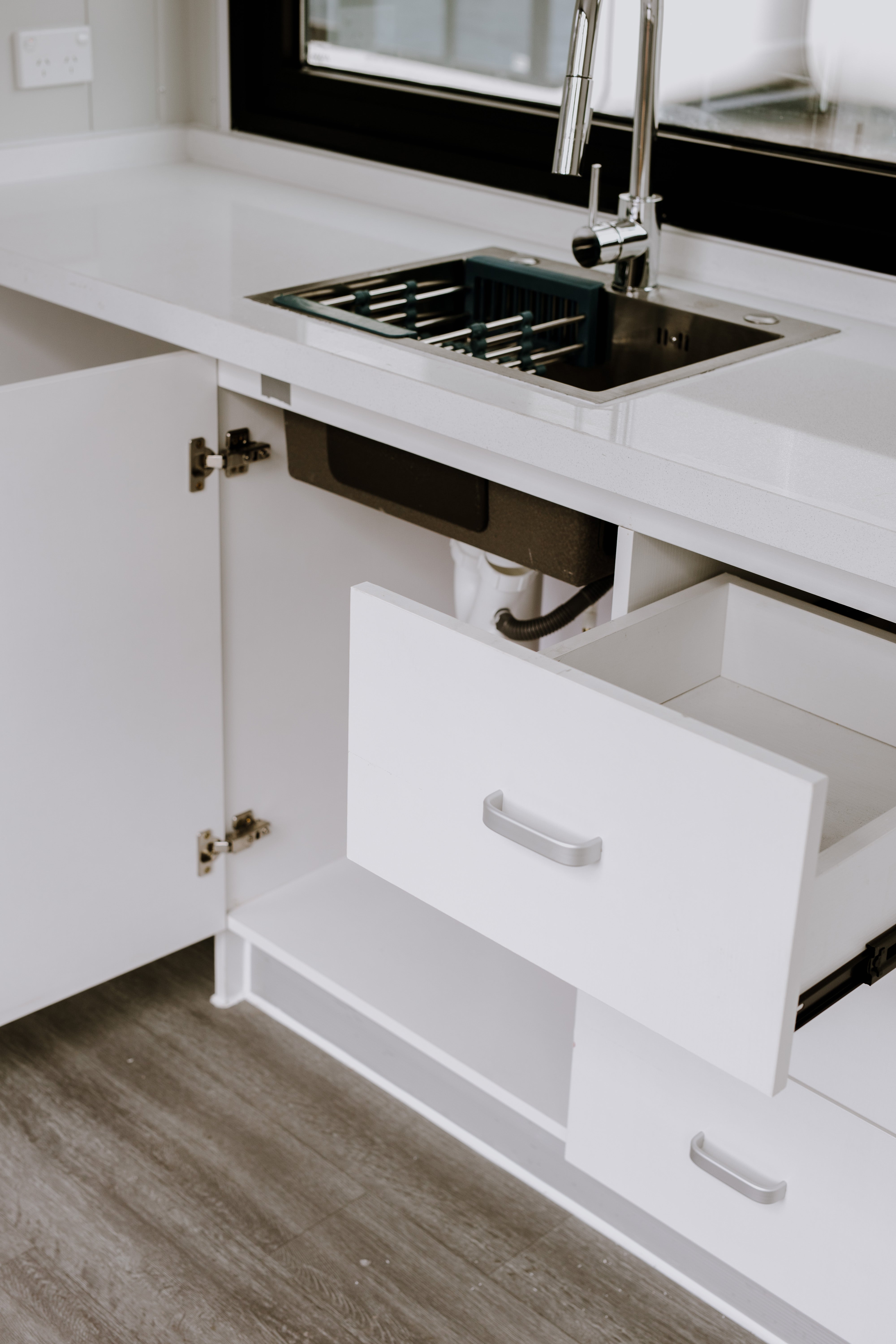

• Under-bench provision for fridge or front-load washing machine

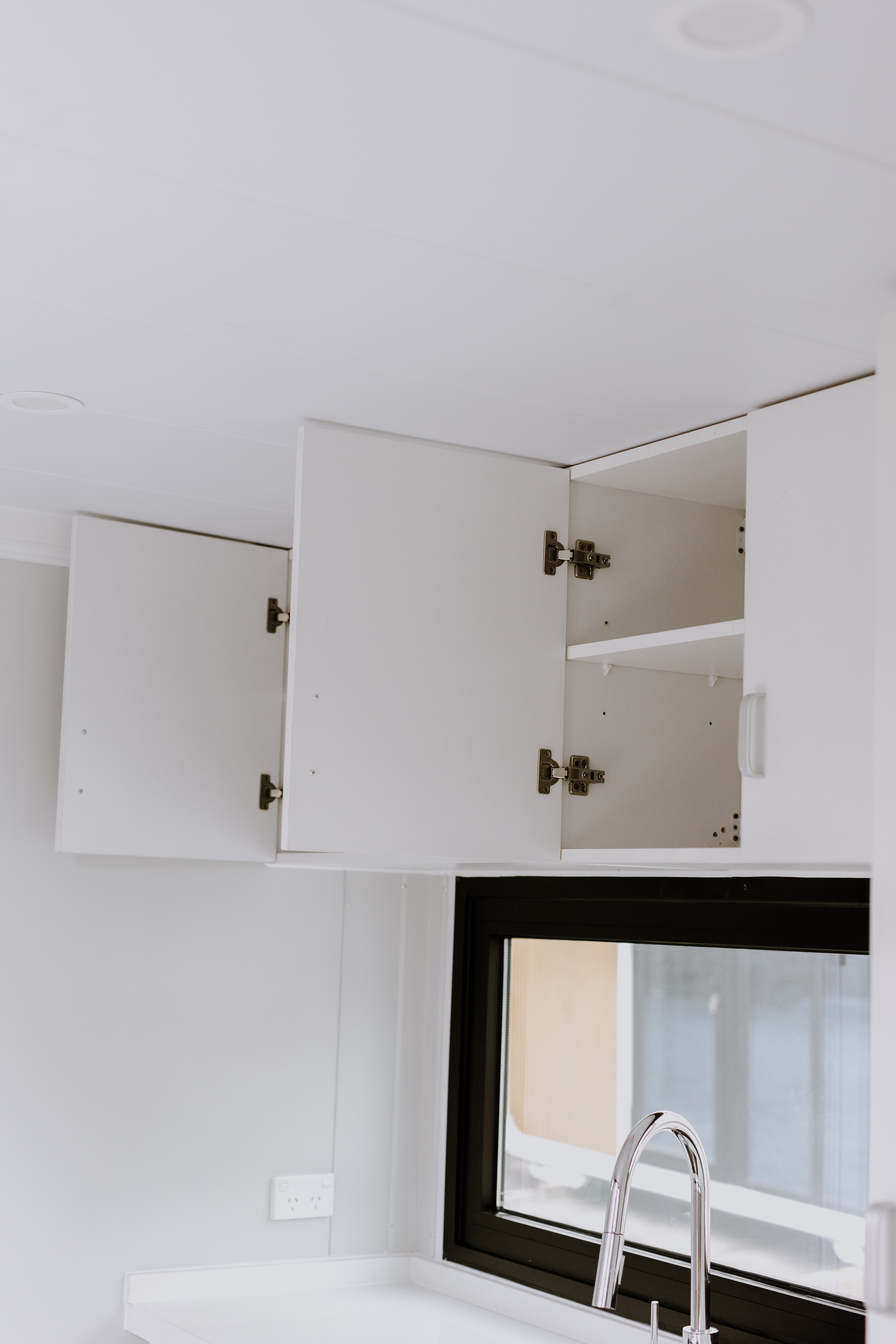

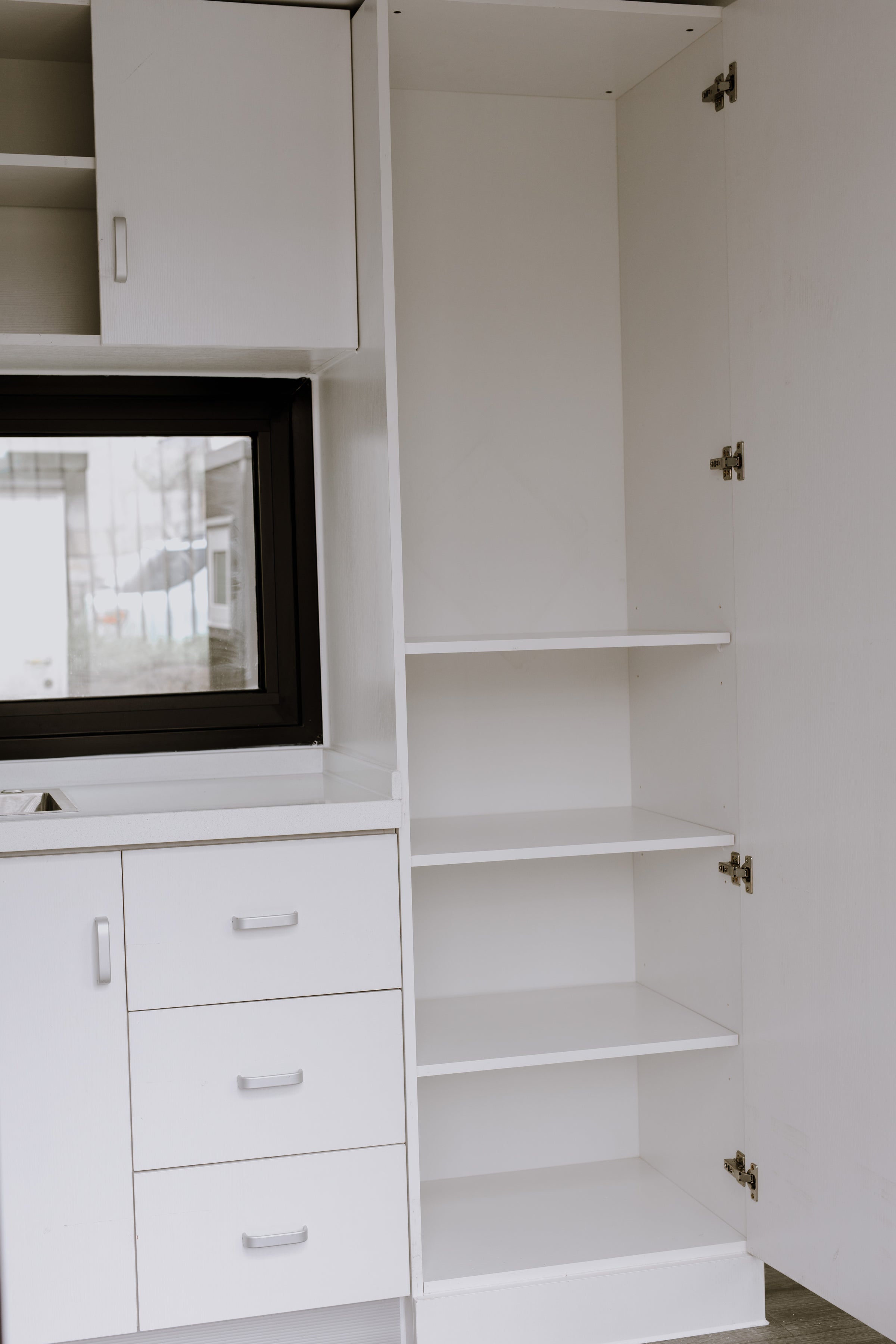

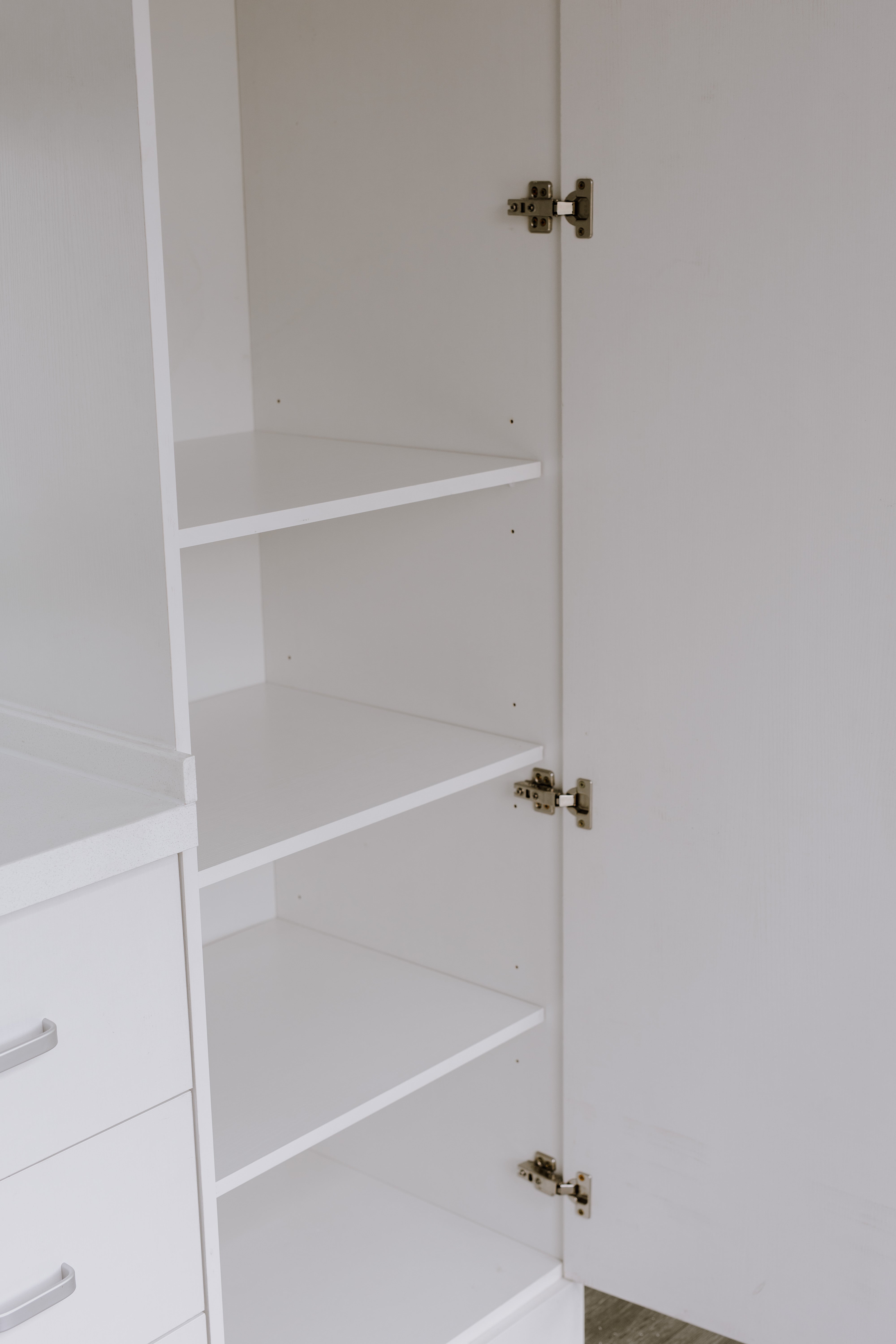

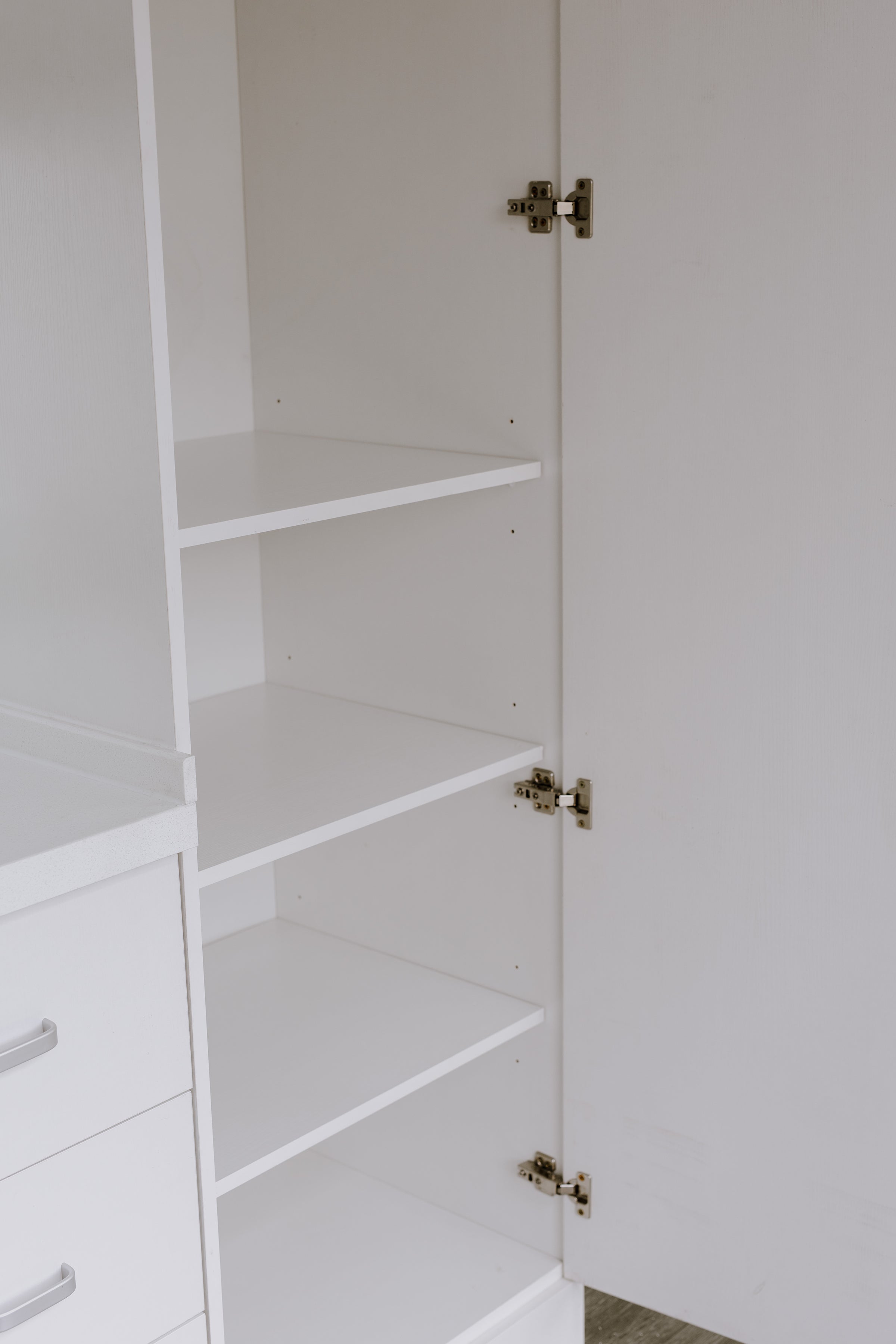

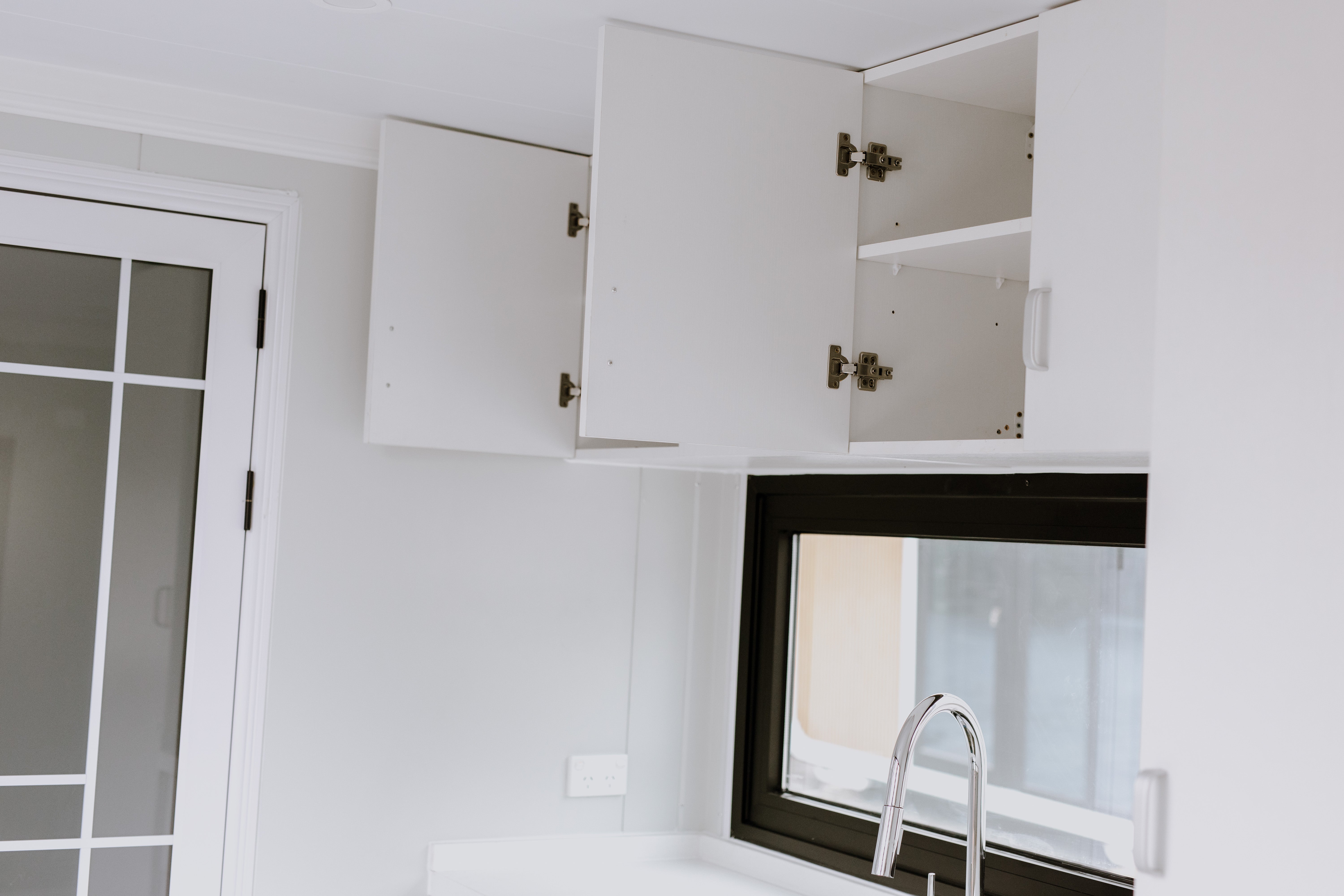

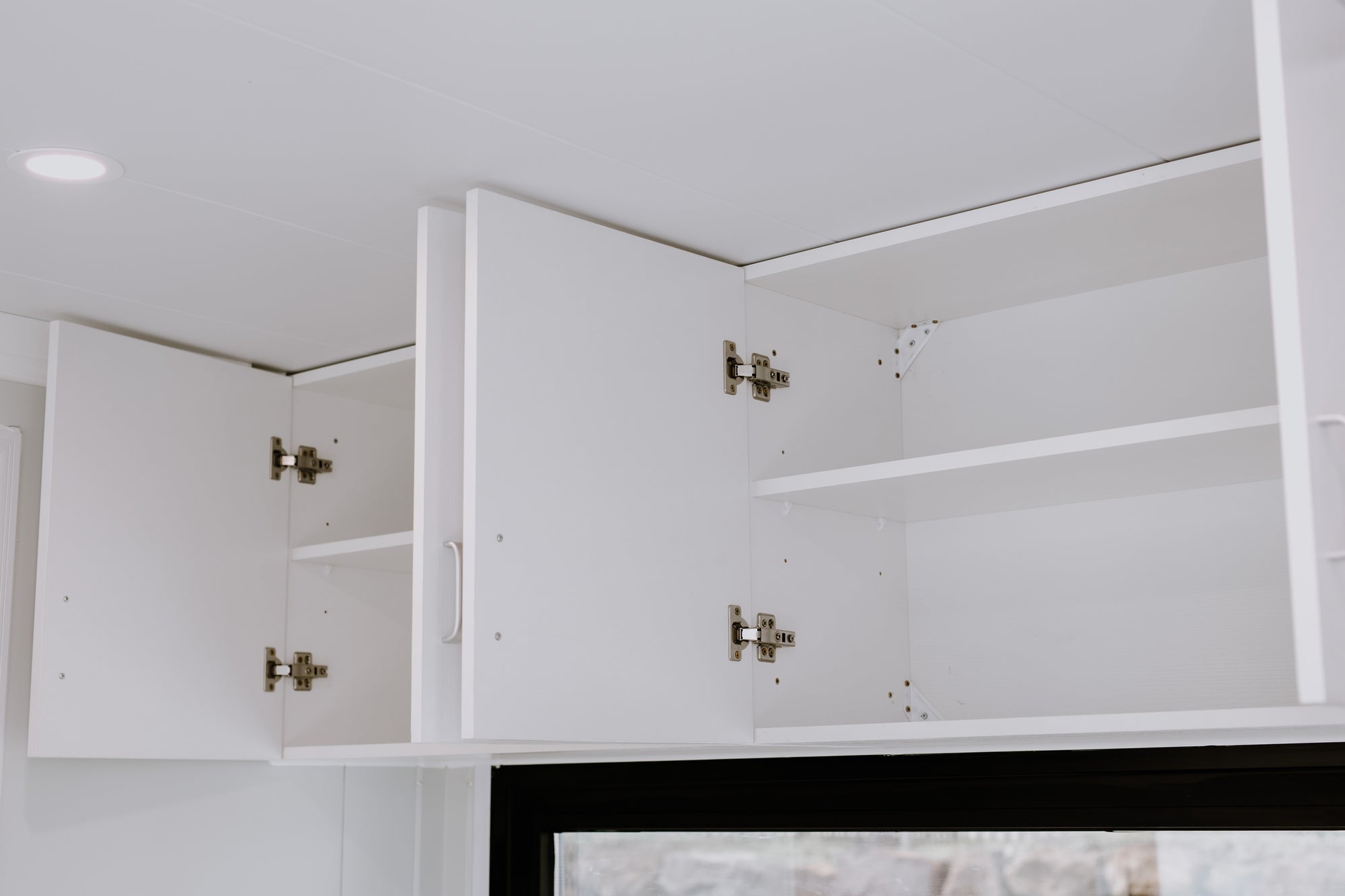

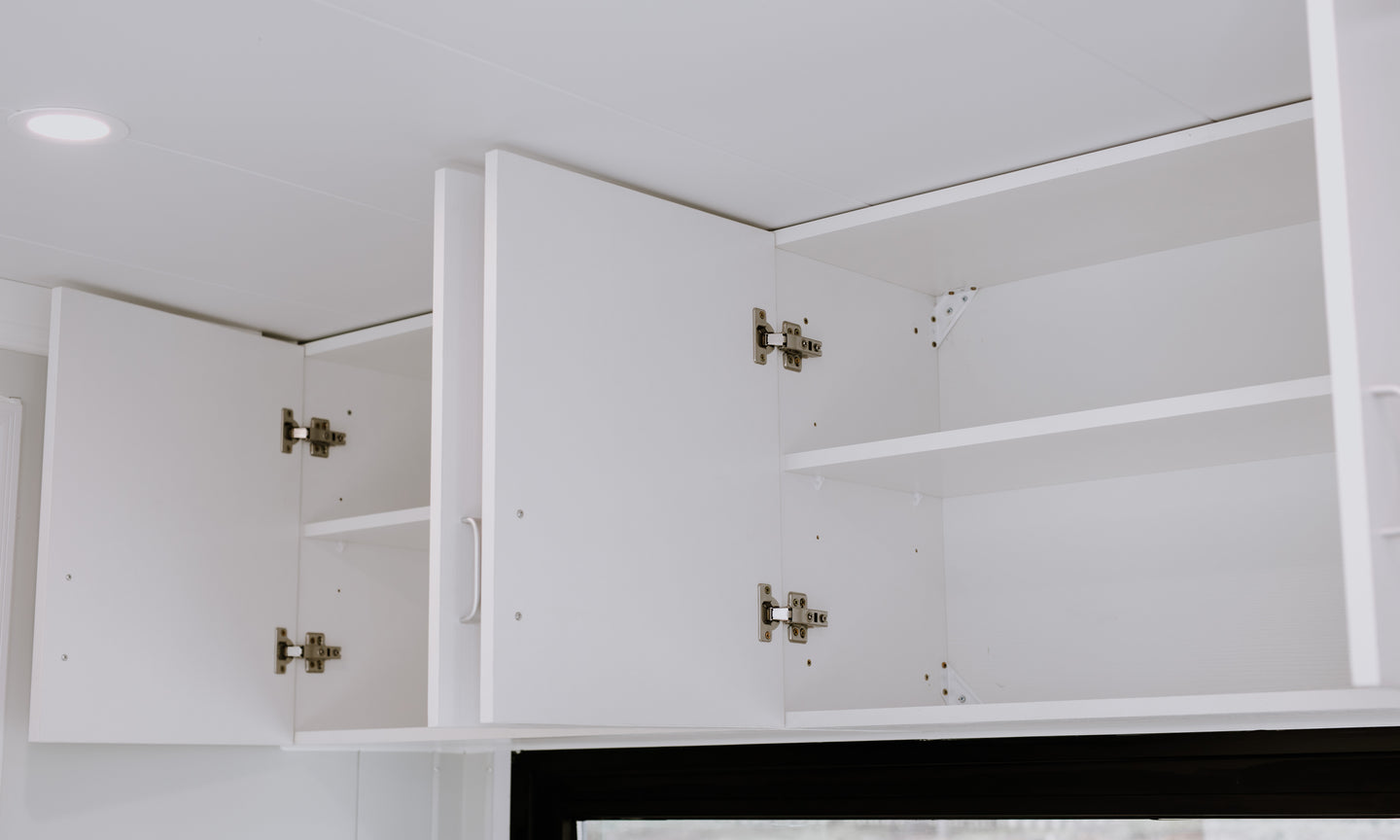

• Extensive cabinetry storage

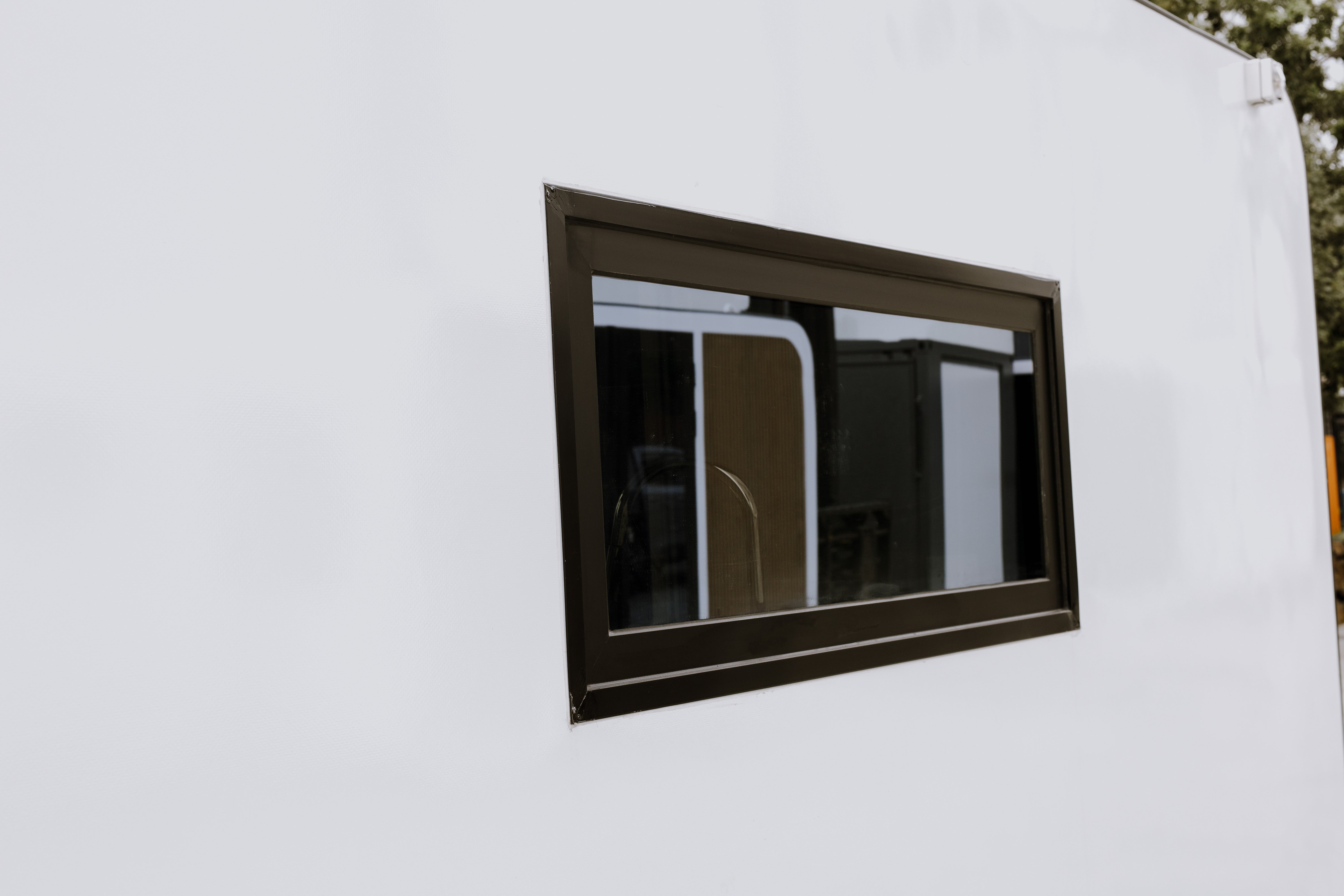

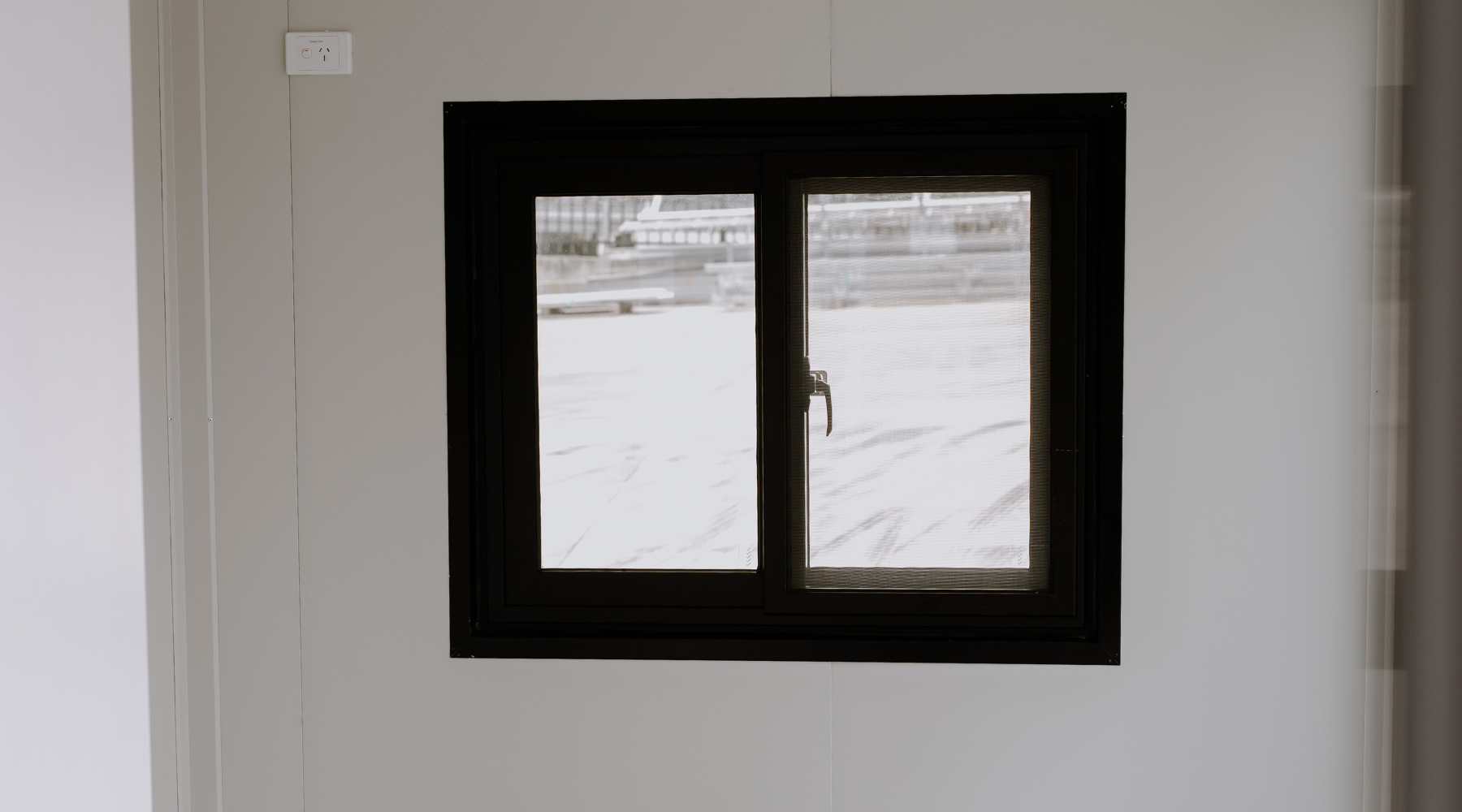

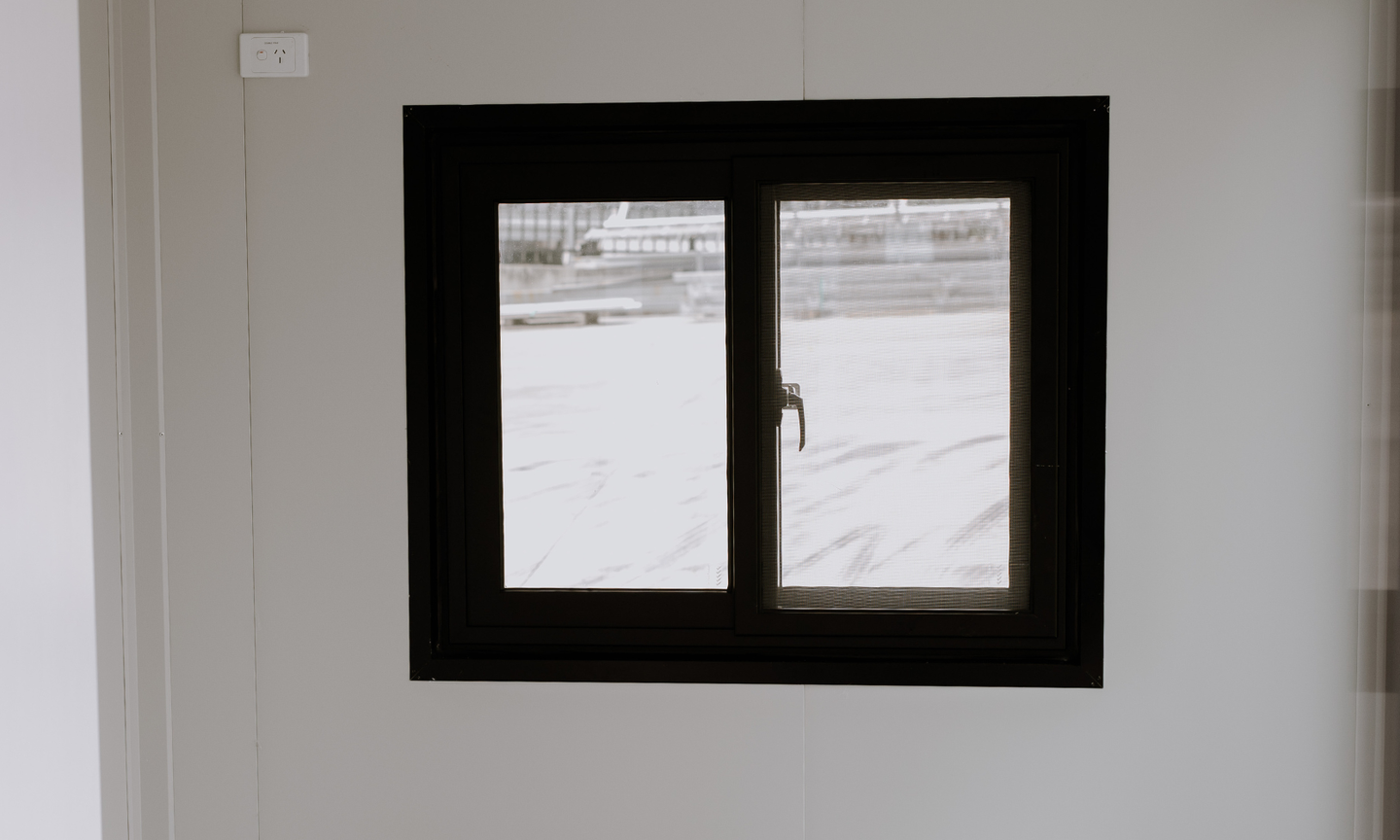

• Splashback window for natural light and ventilation

Bathroom

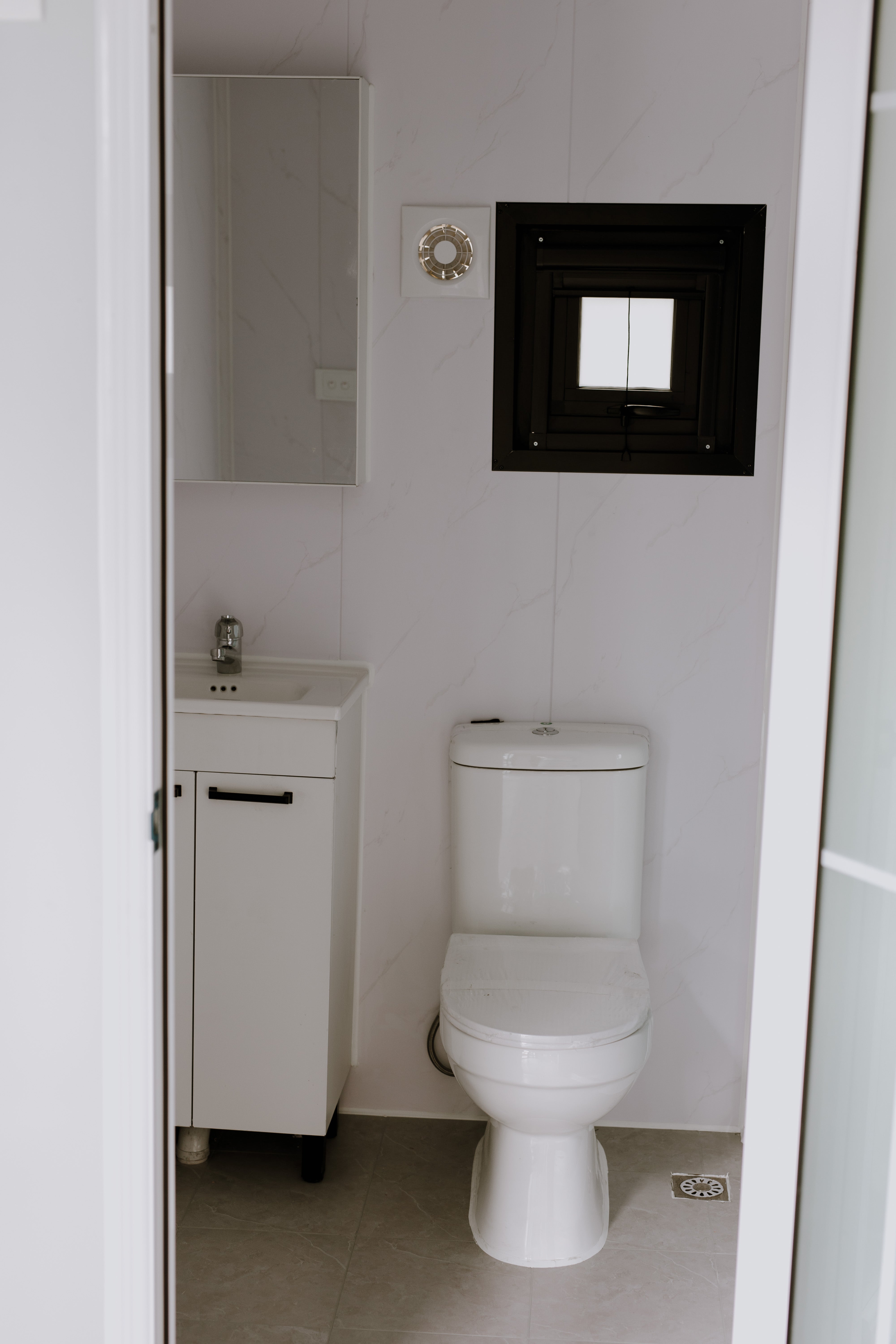

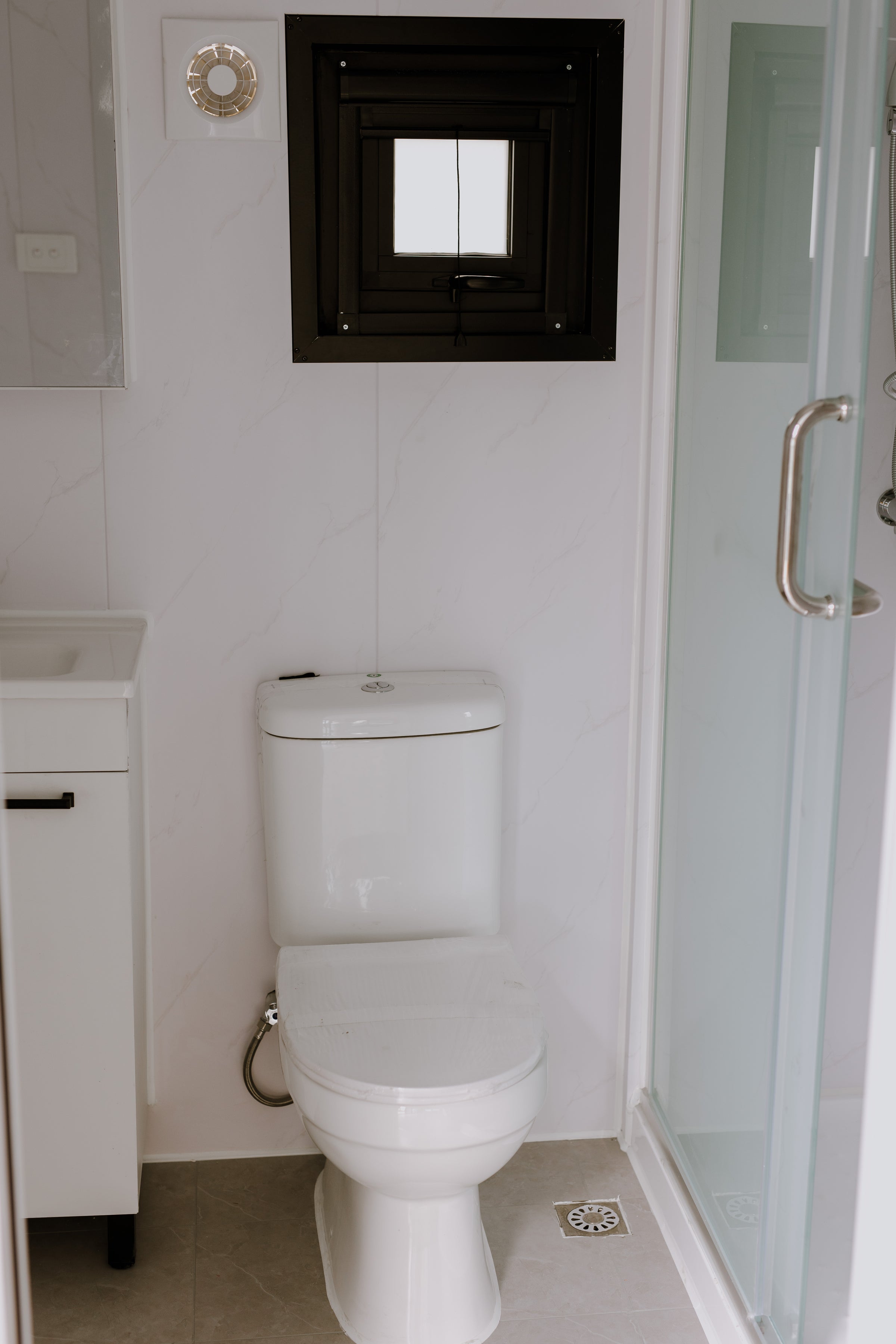

• Full bathroom layout with separate shower, toilet and vanity
• Porcelain toilet (WELS marked)

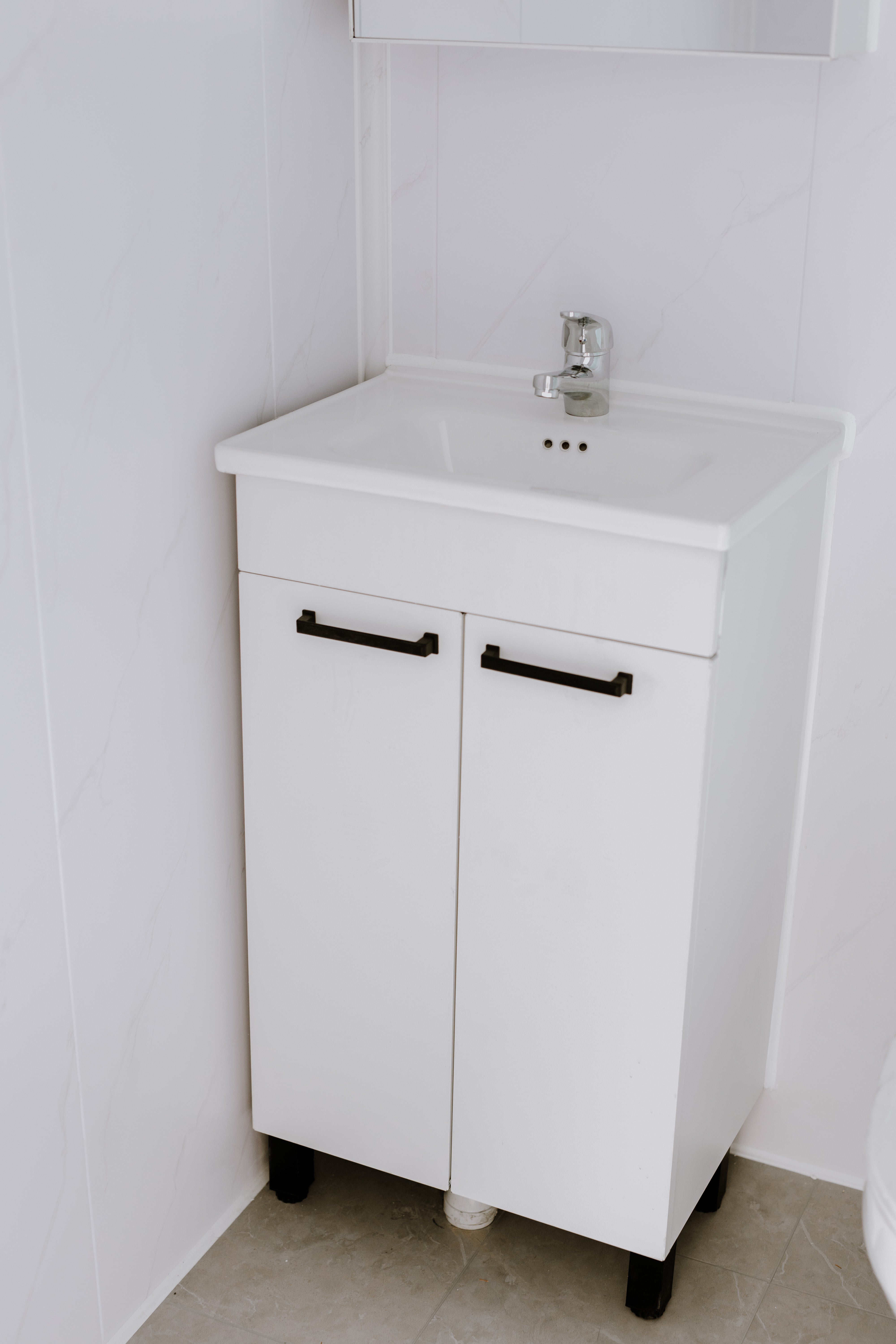

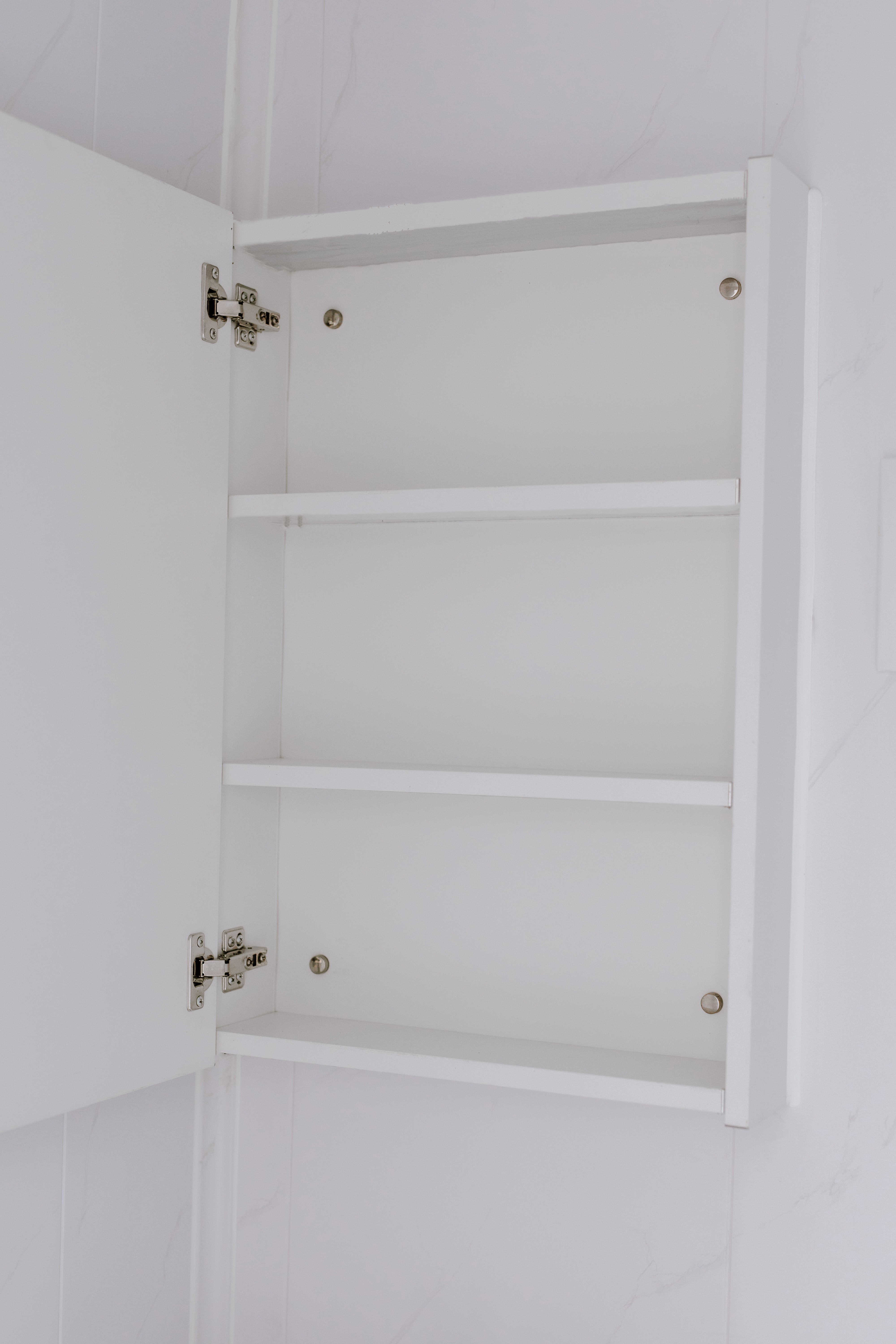

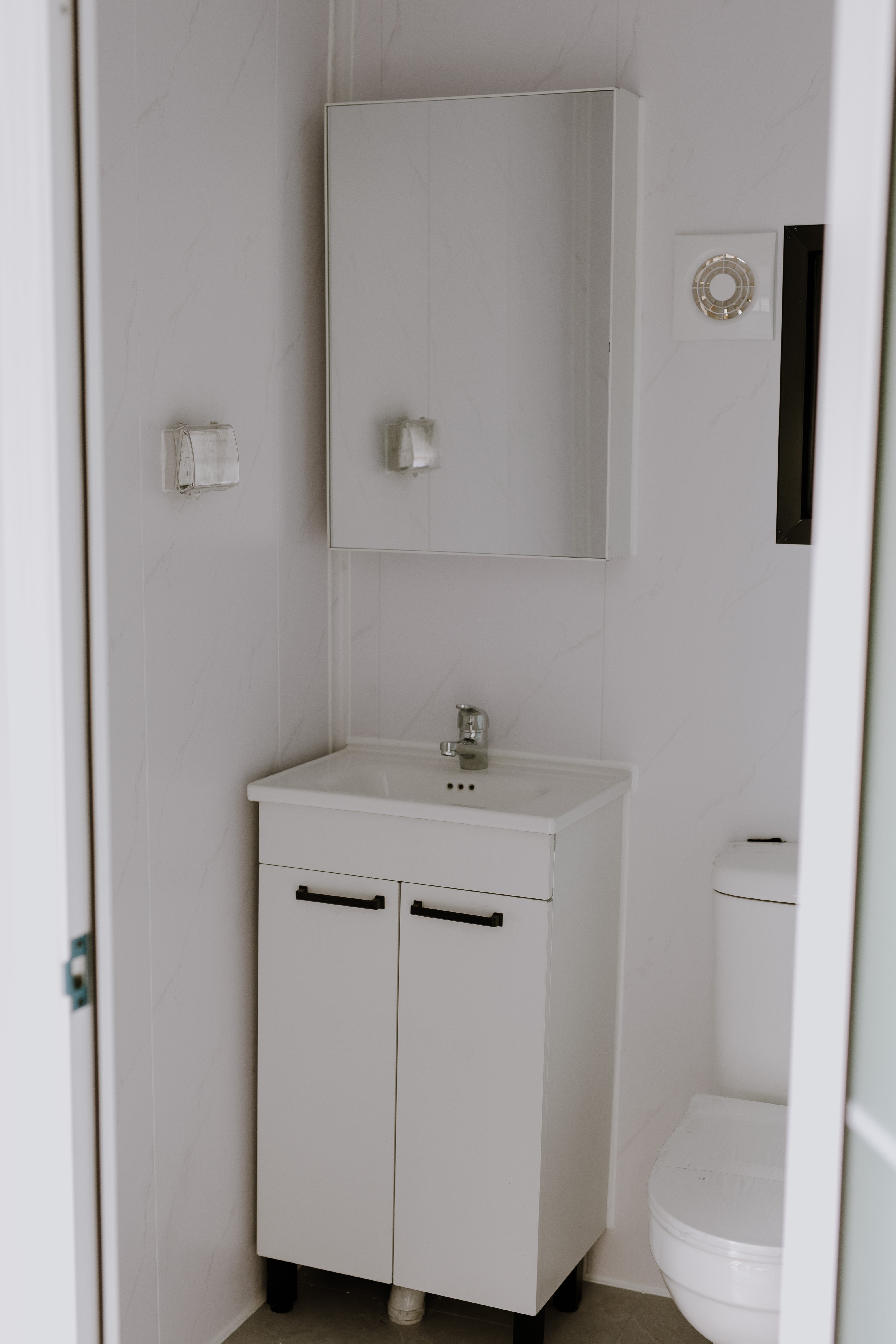

• Vanity with mirrored cabinet

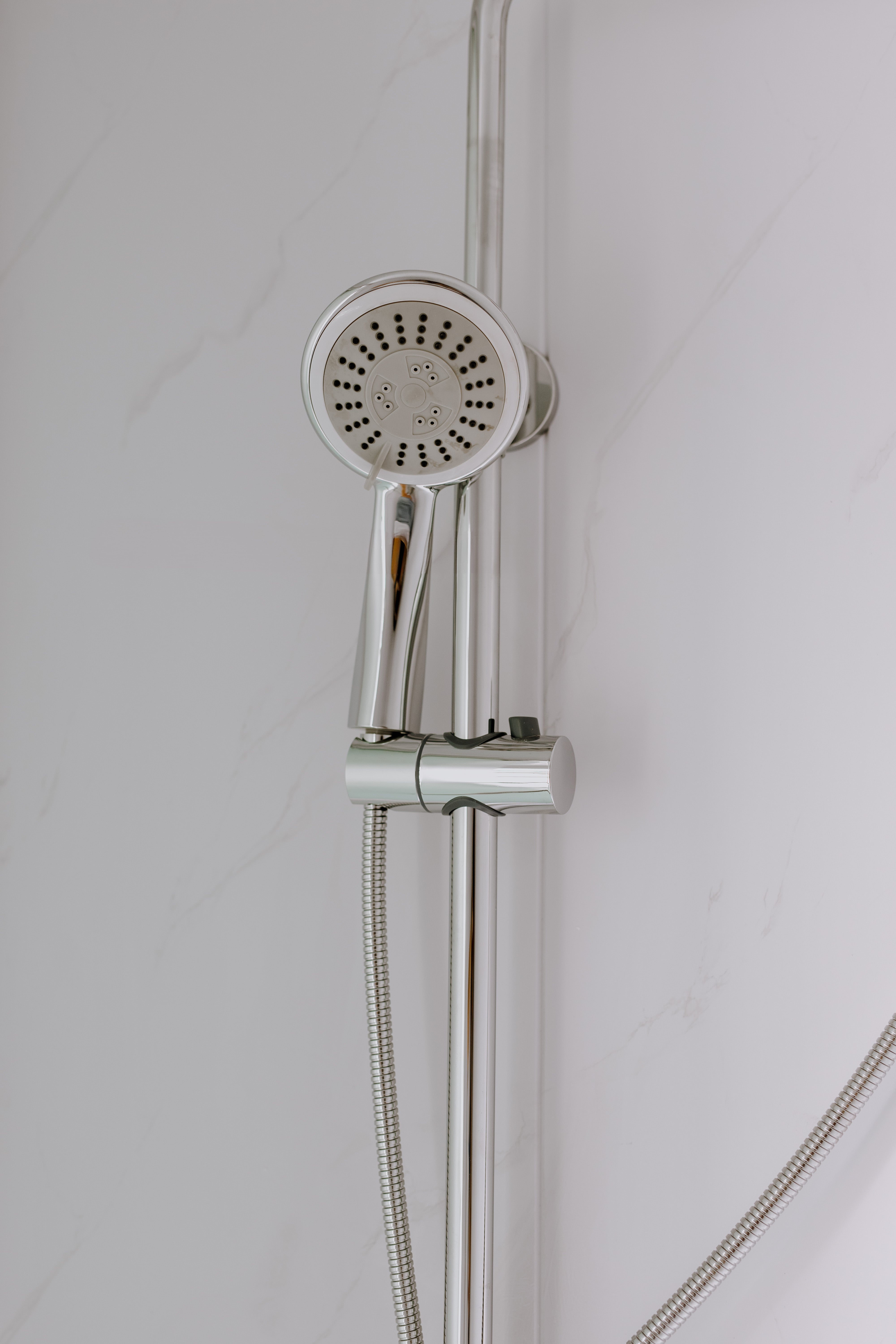

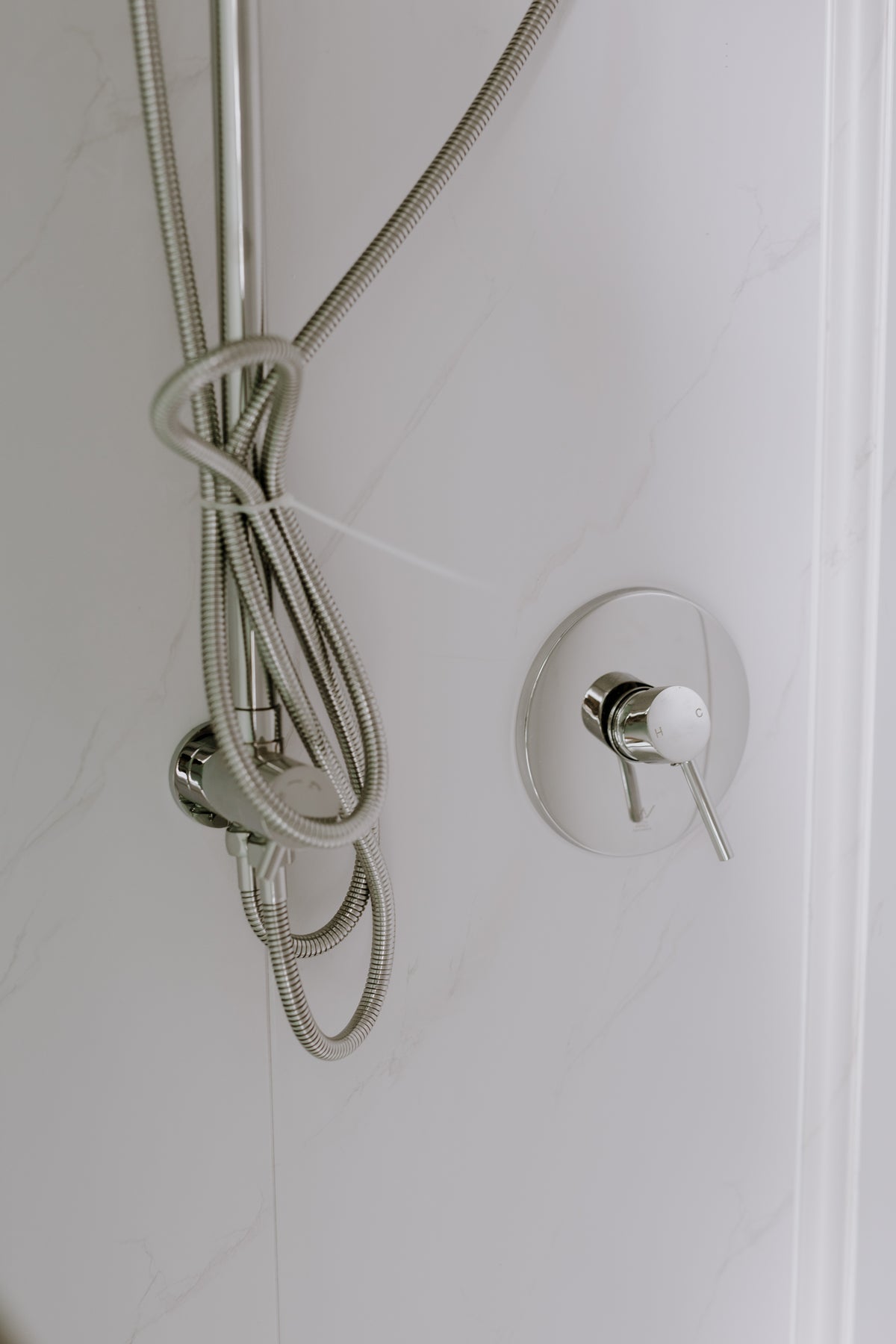

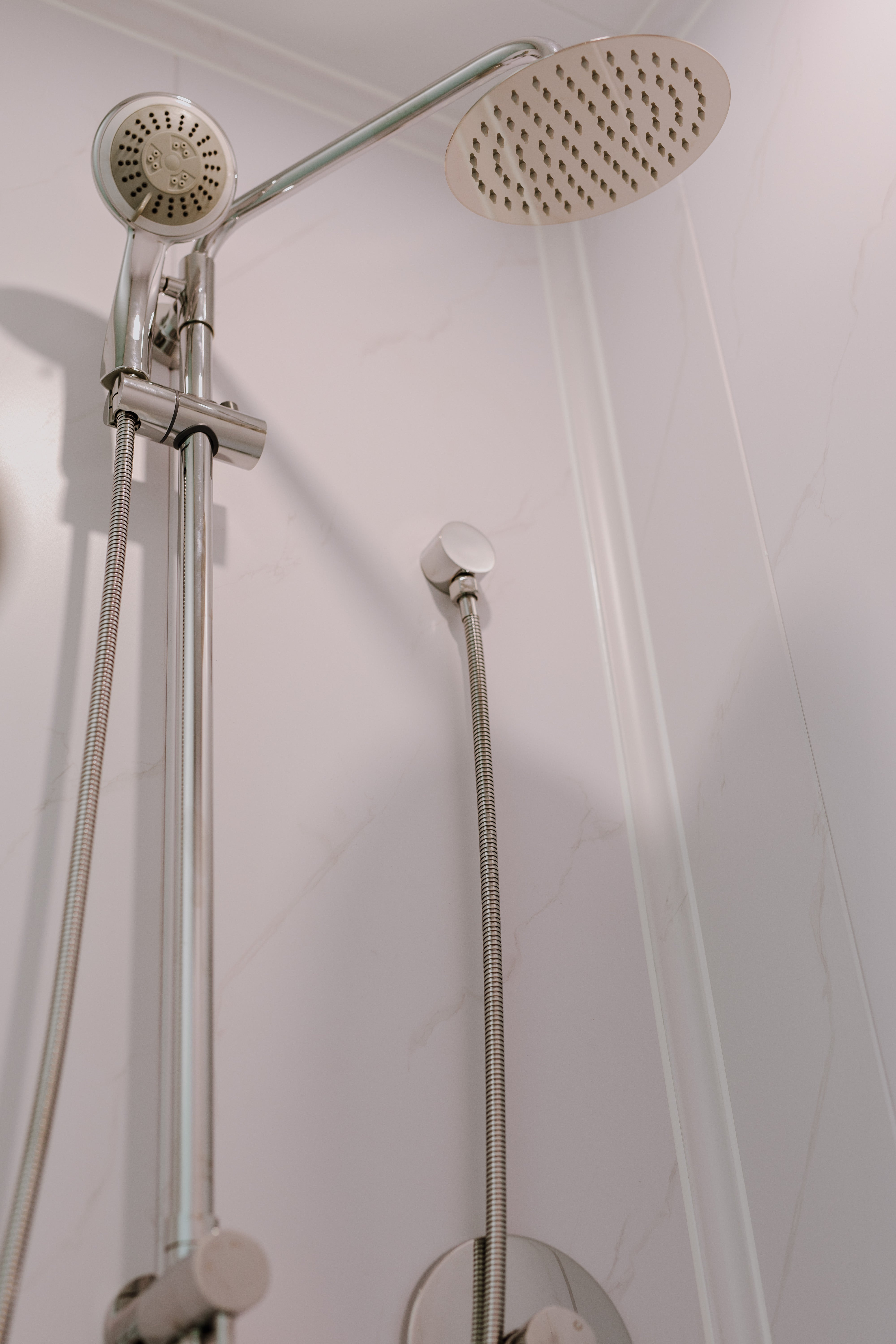

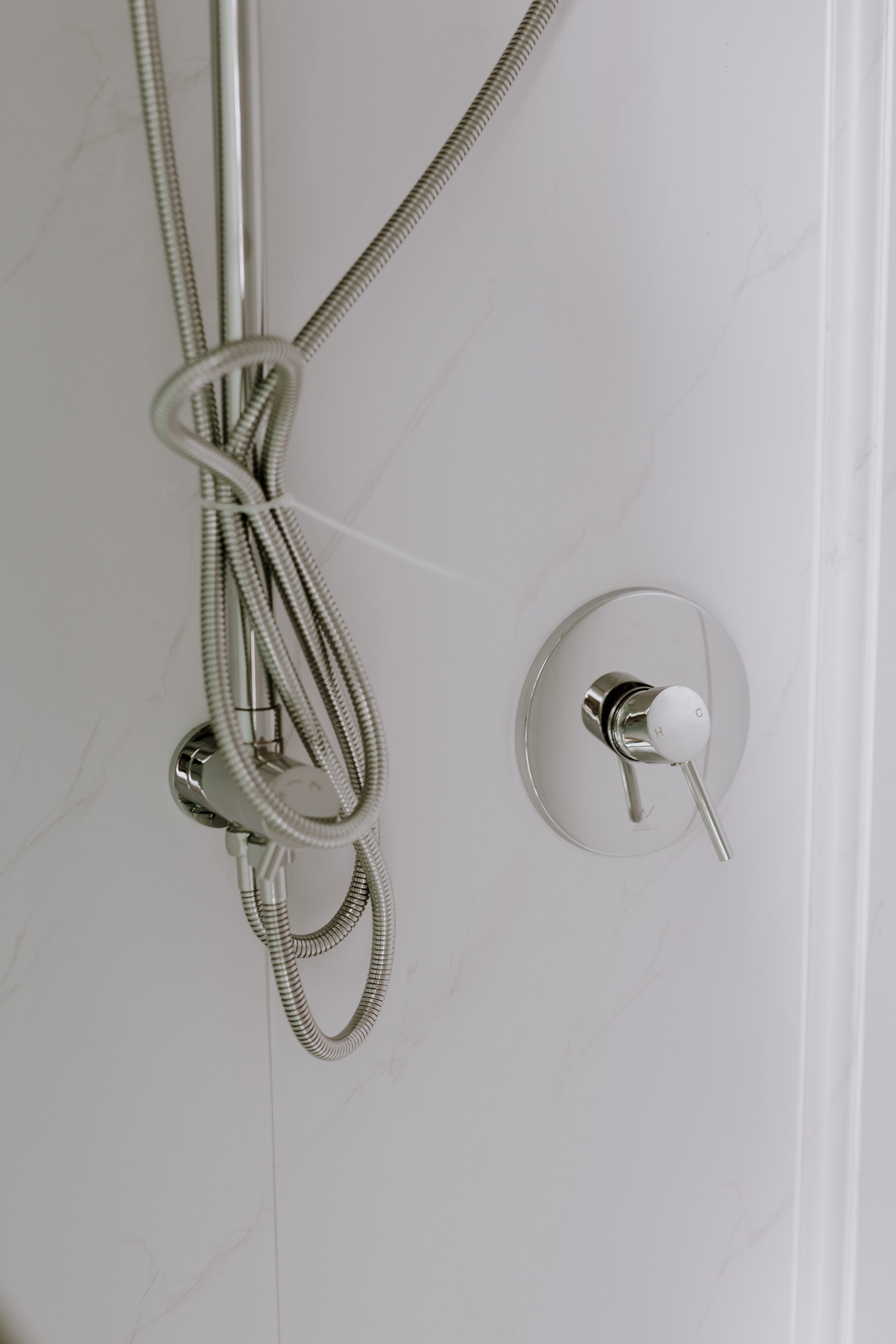

• Dual shower system (rain head + handpiece with chrome mixer)

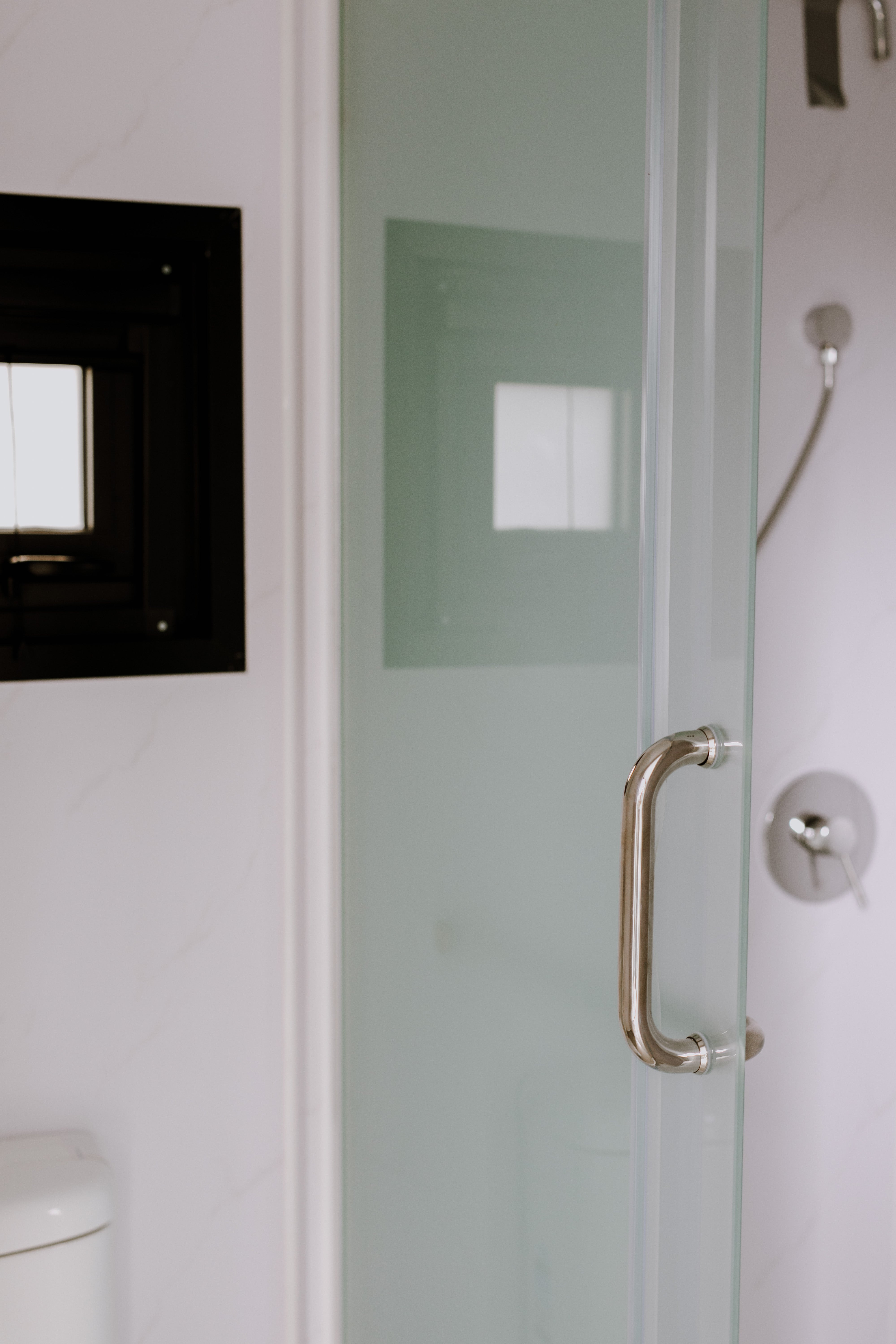

• Tempered glass sliding shower screen

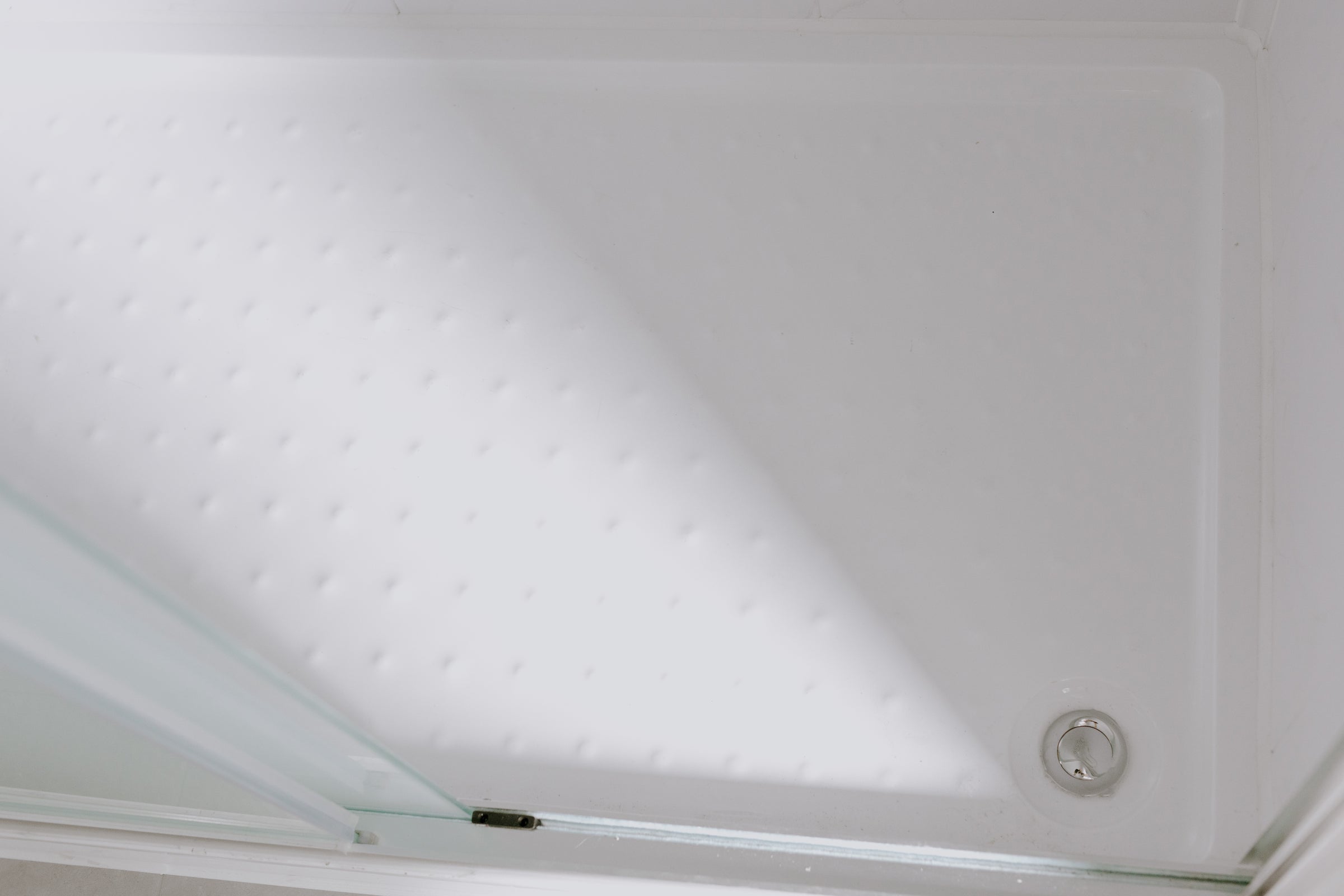

• Acrylic shower base

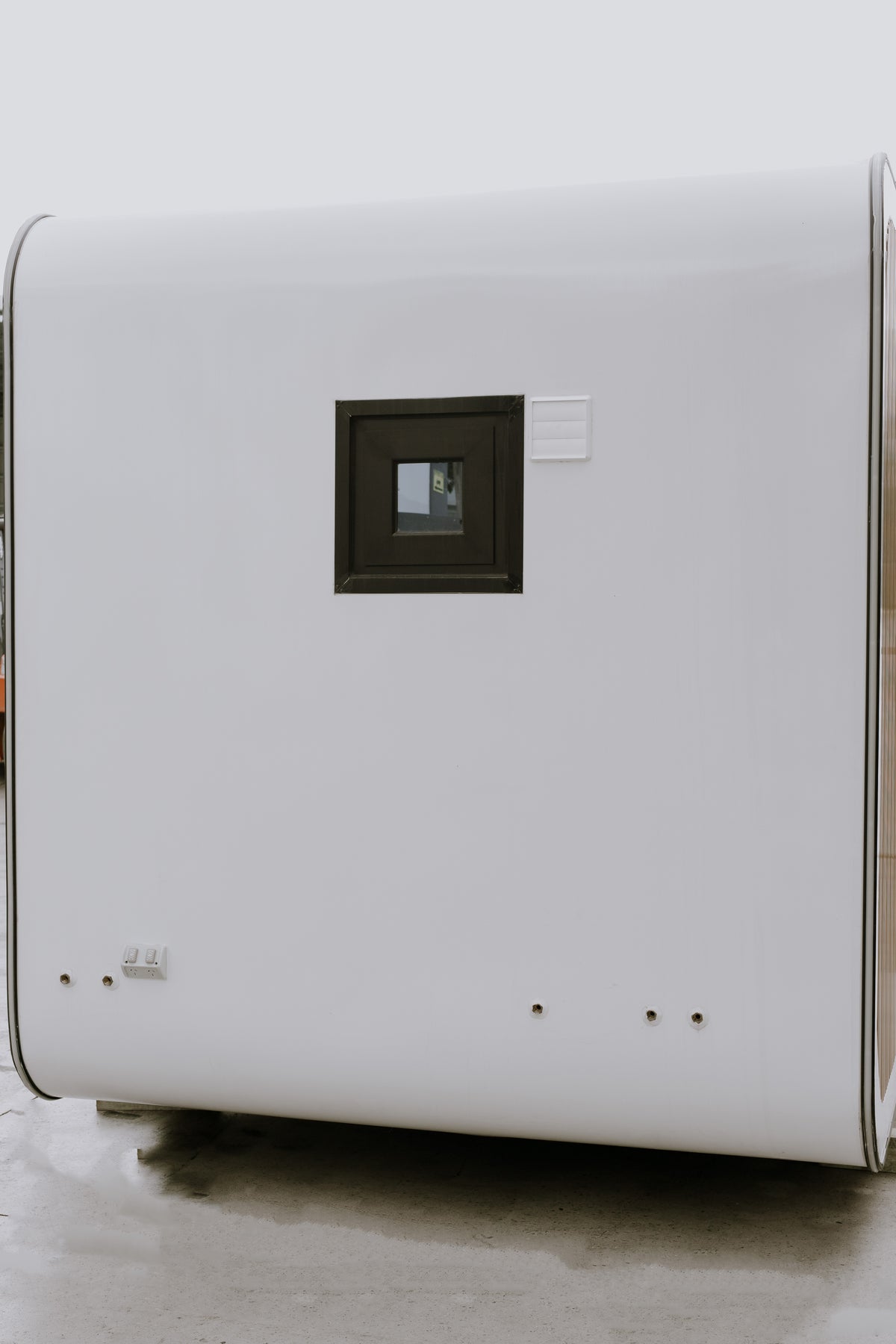

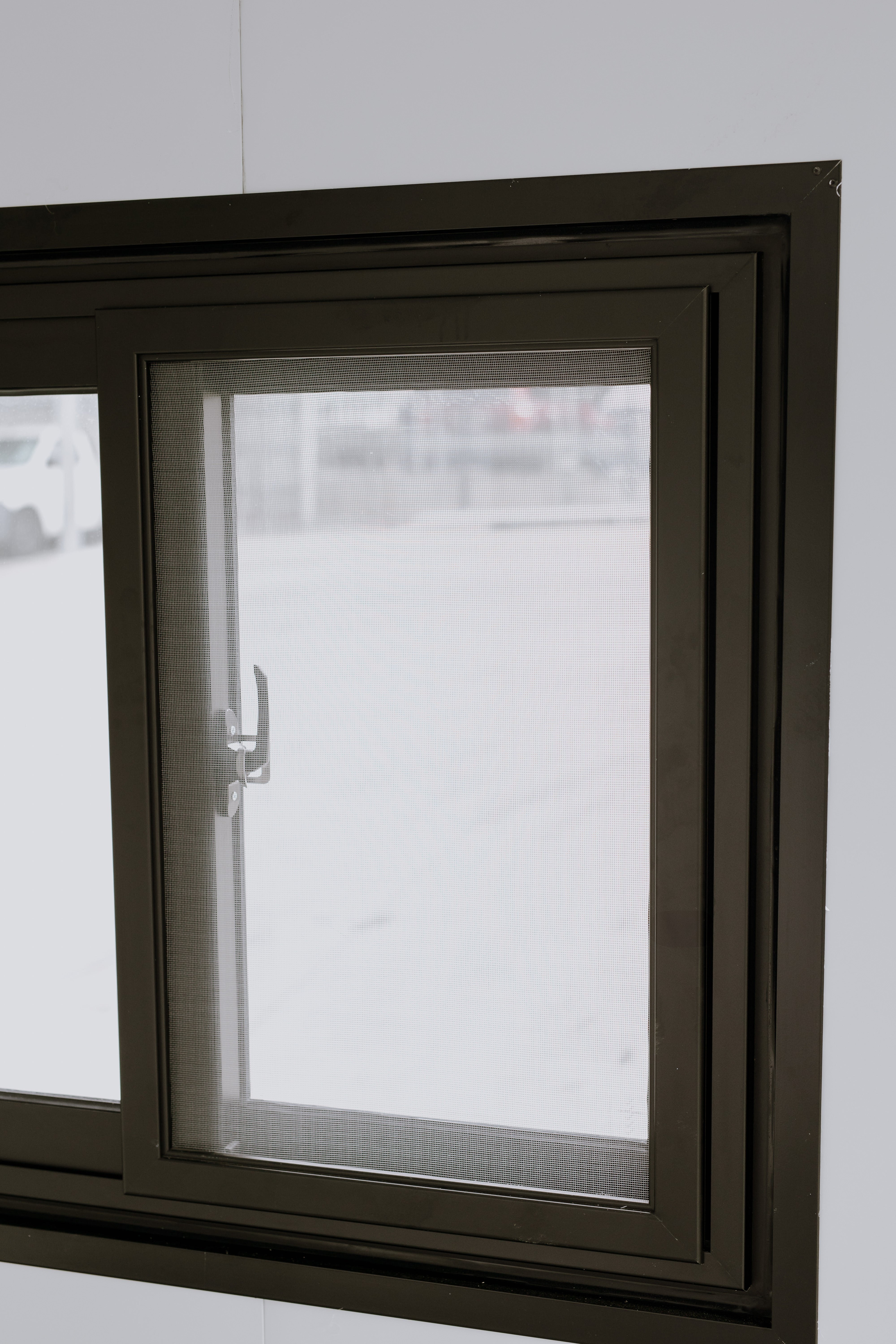

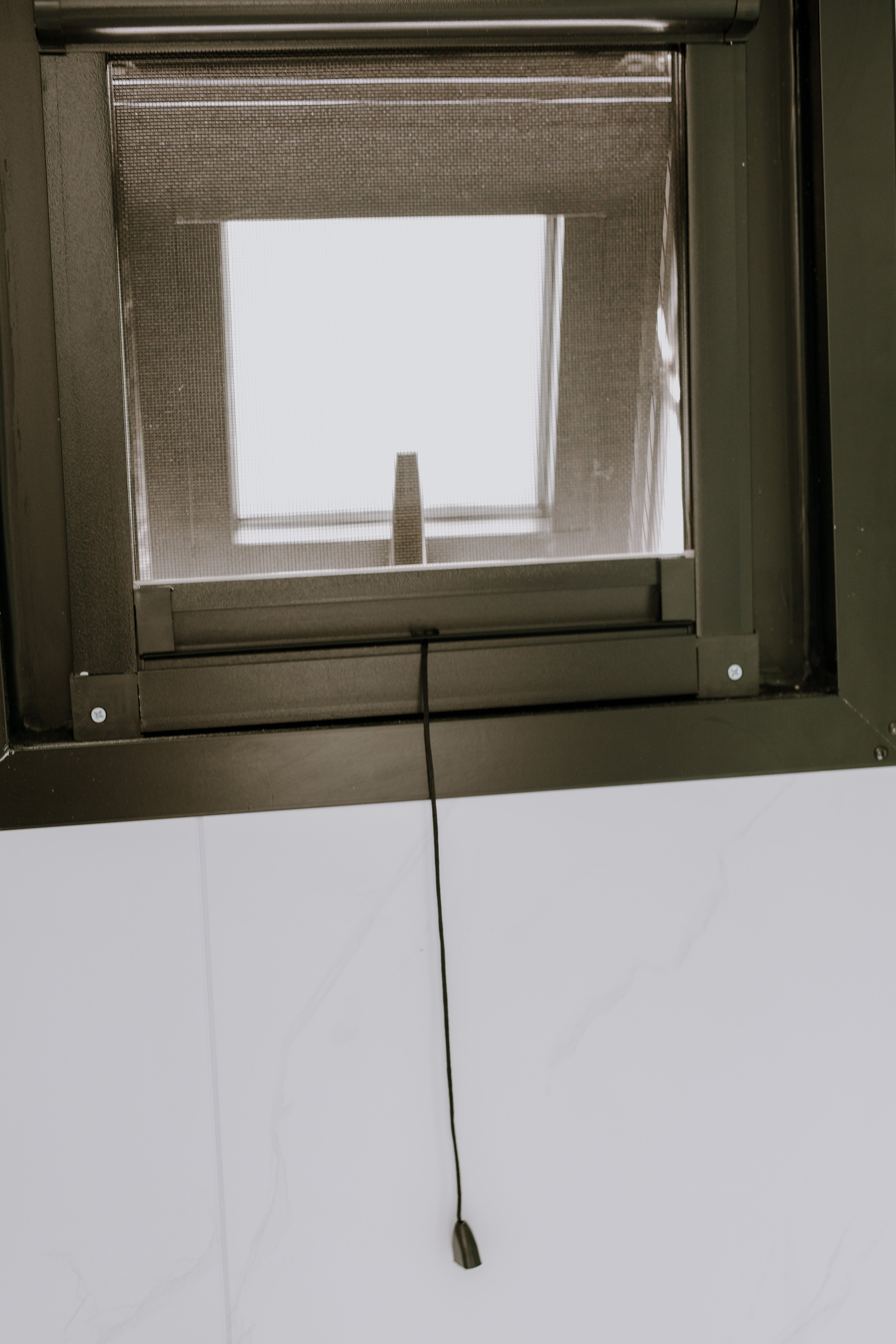

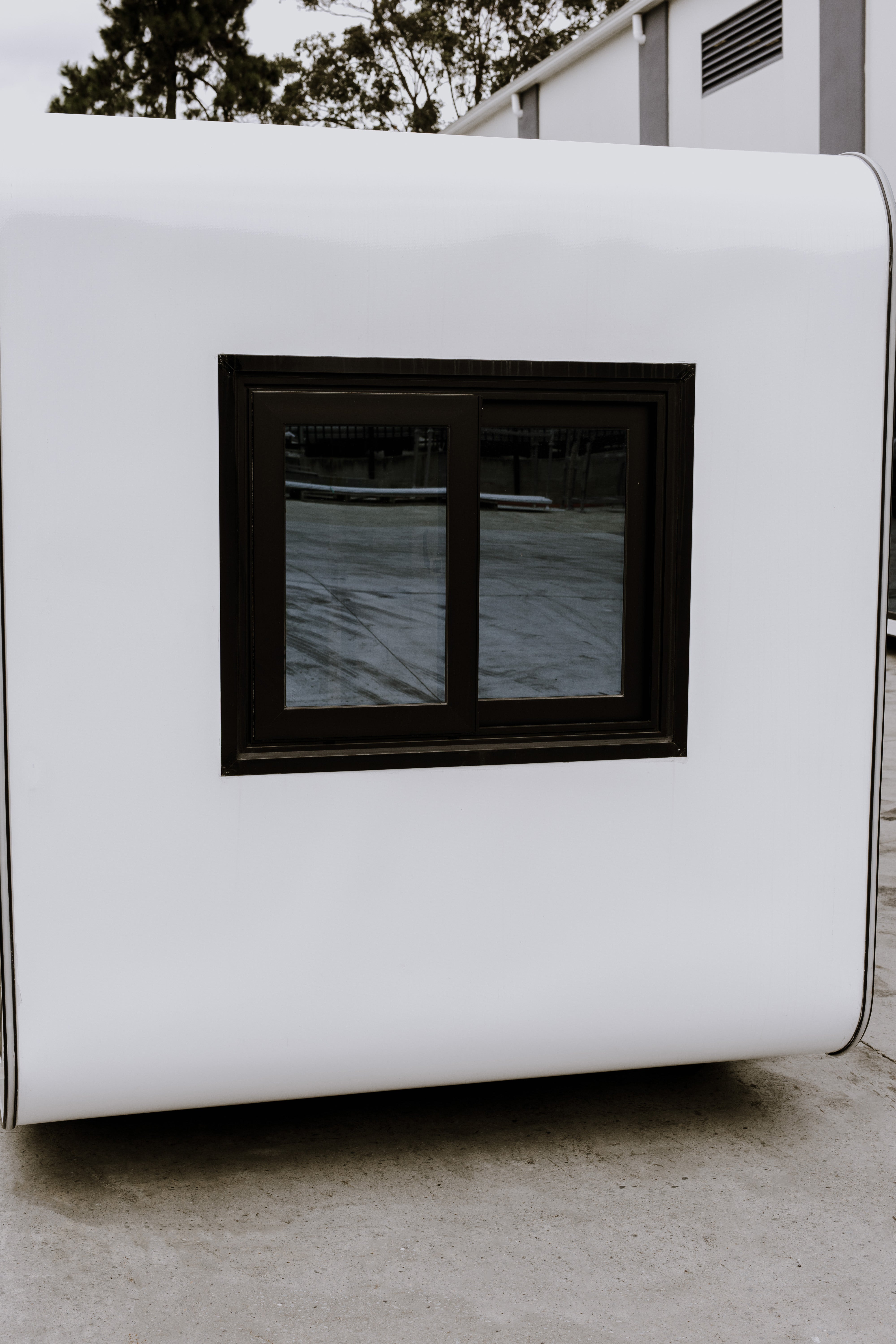

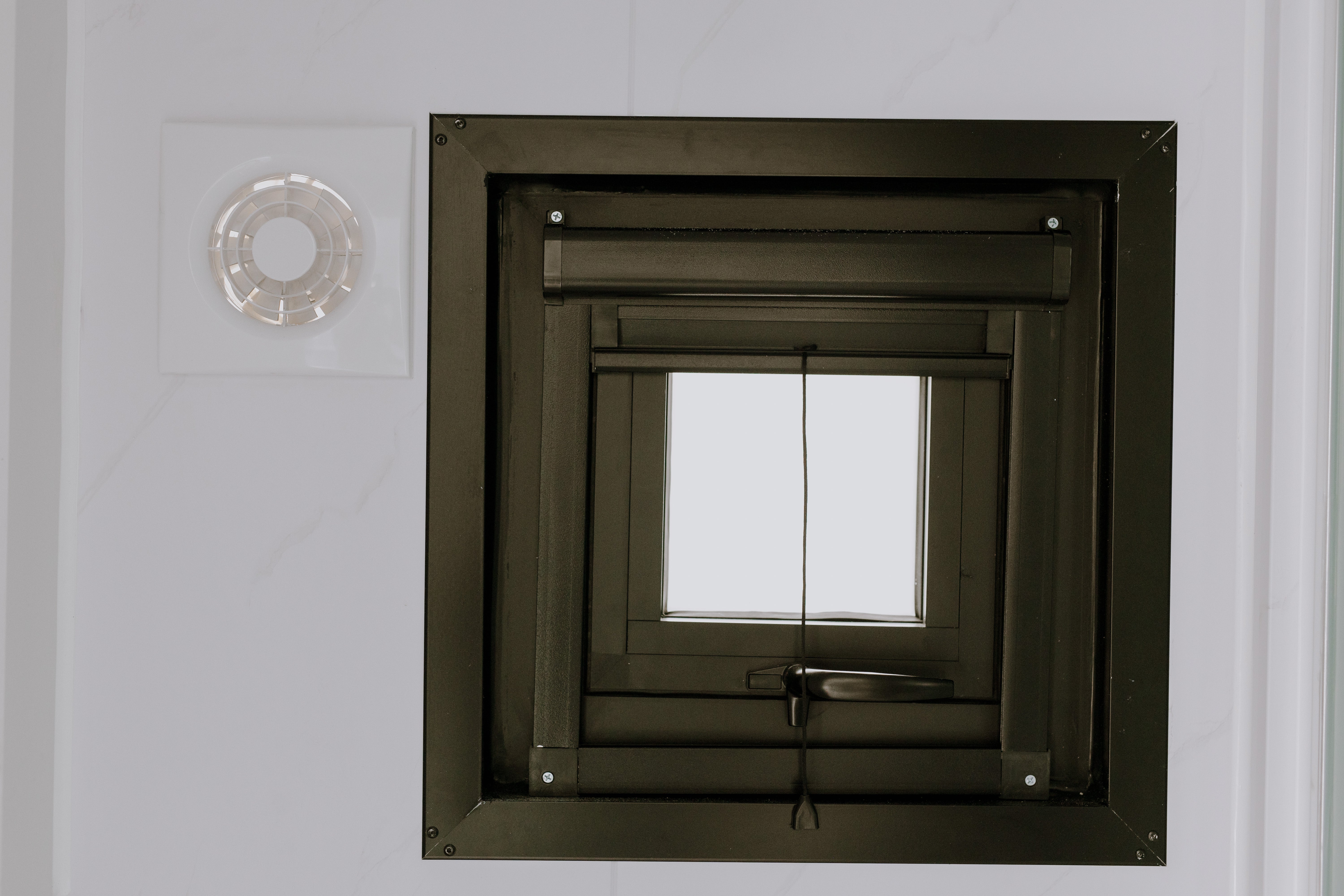

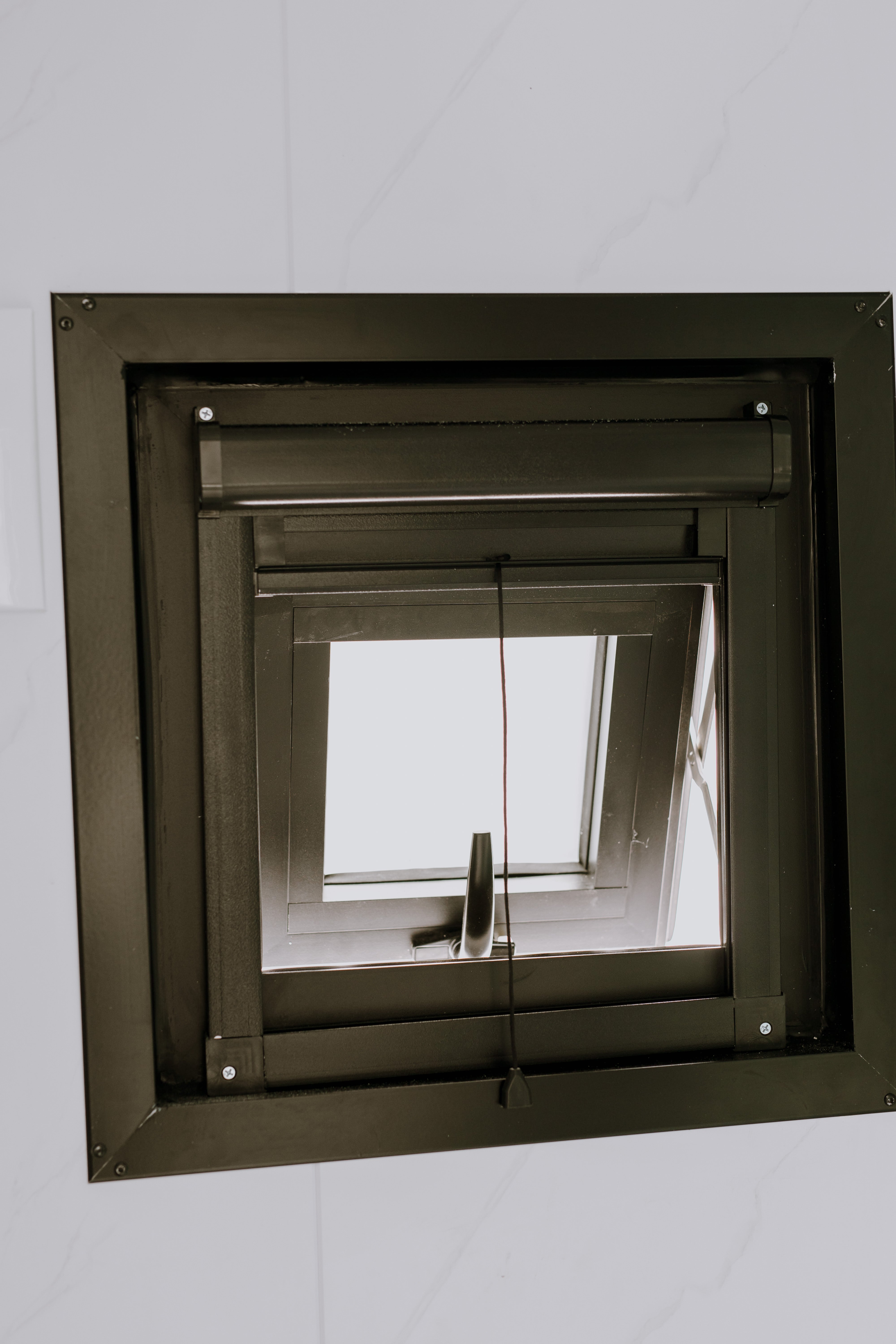

• Window with flyscreen
• Exhaust fan
• AS/NZS marked plumbing pipes and fittings

Note: Access beneath pod is required to connect shower and toilet waste.

Plumbing

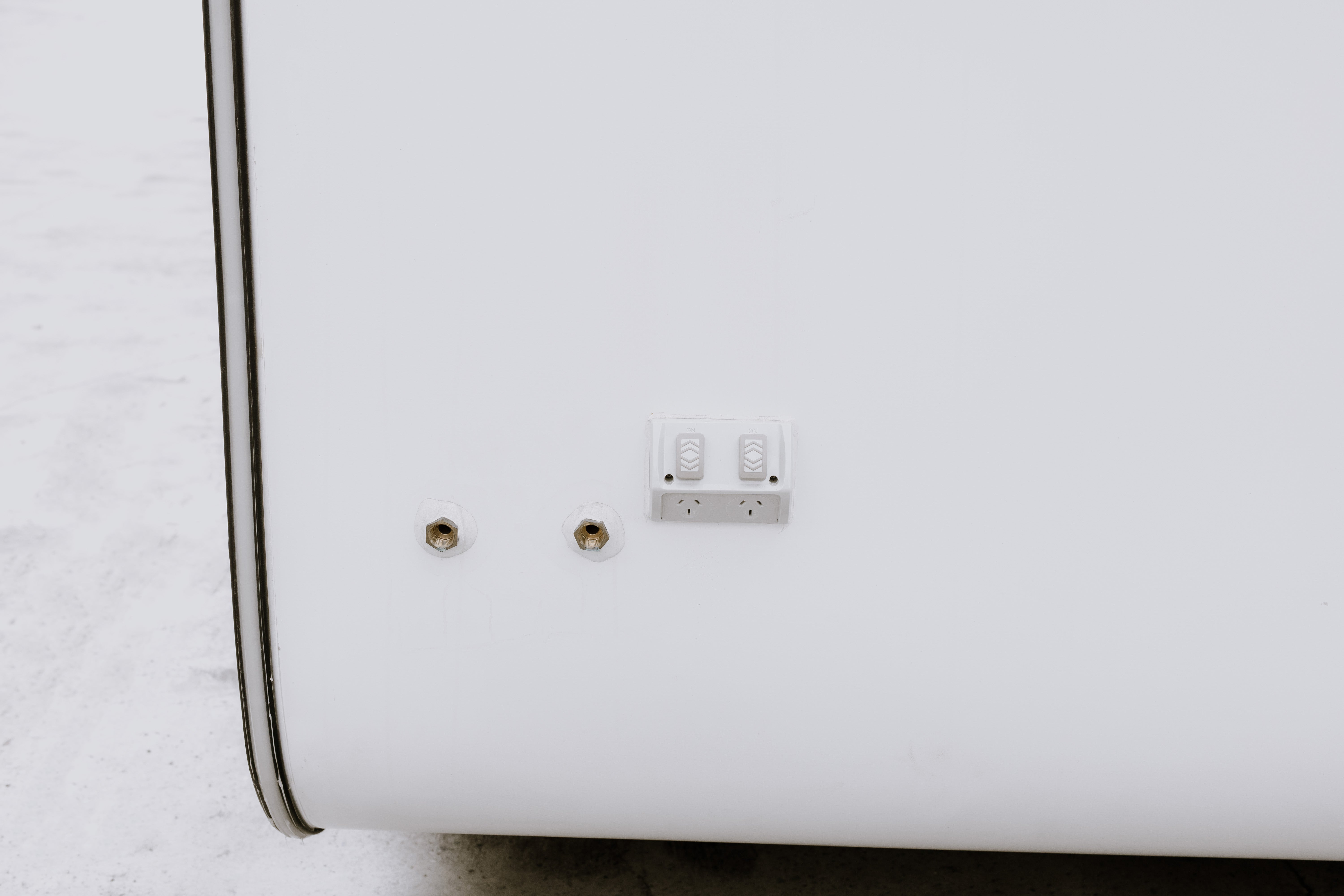

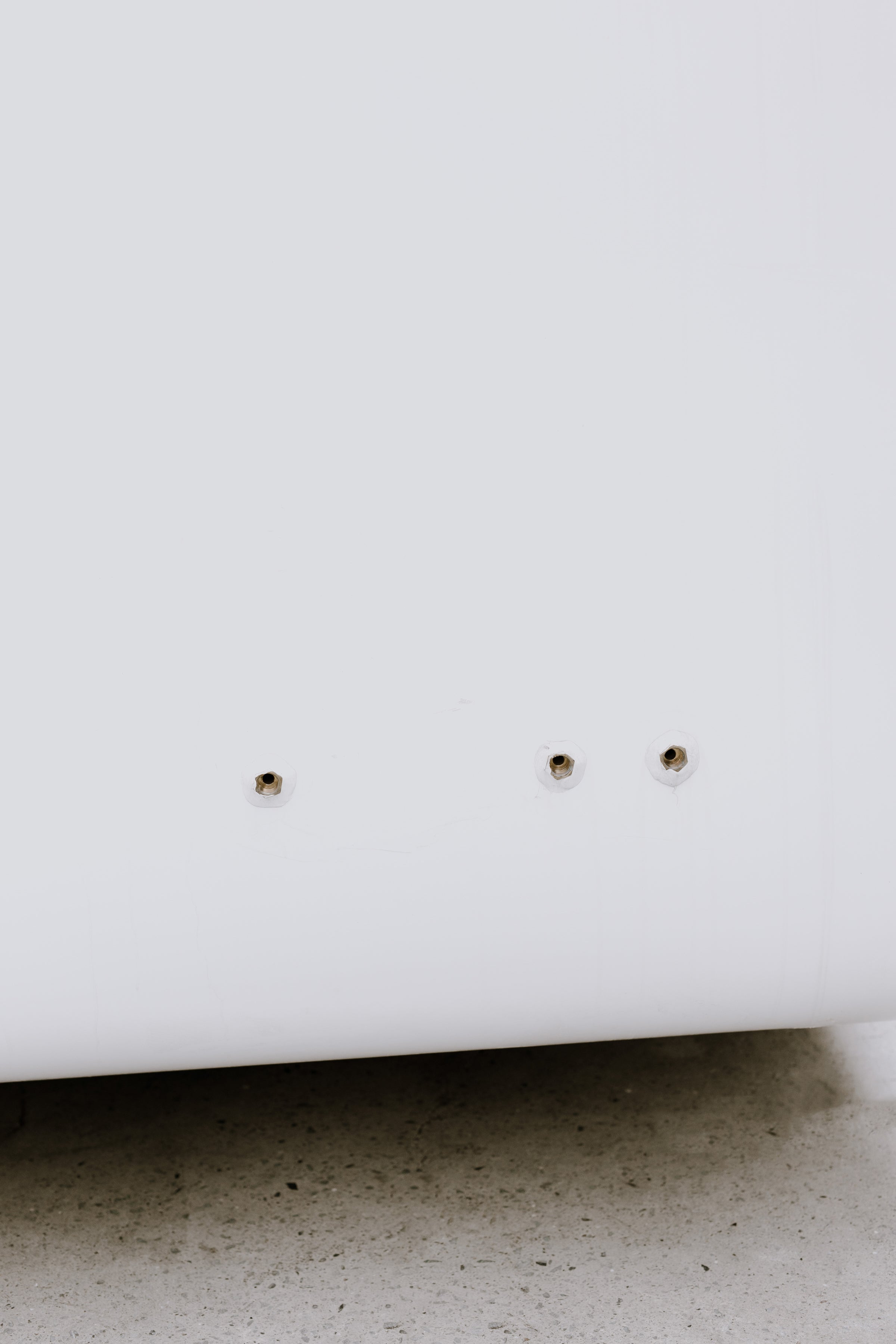

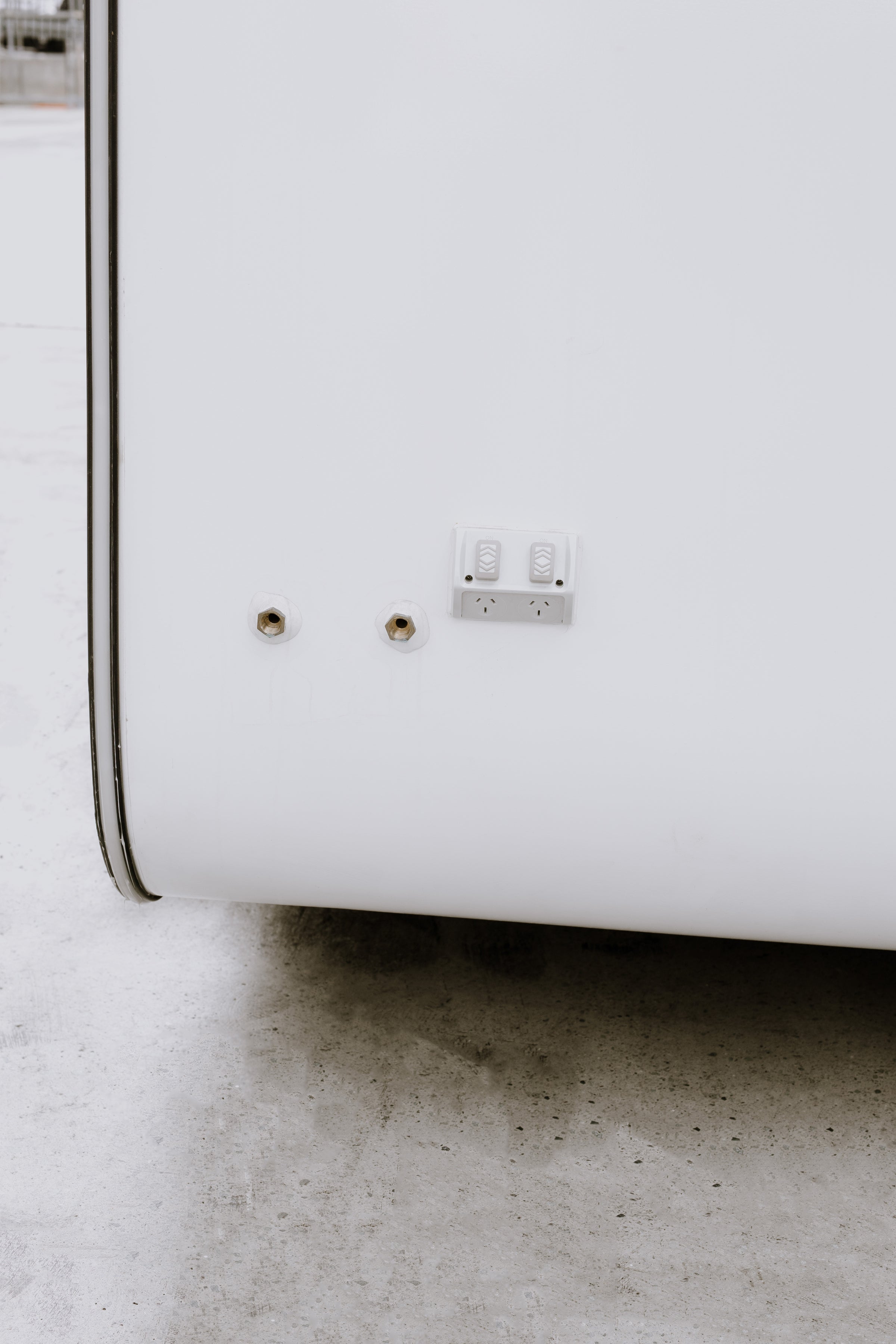

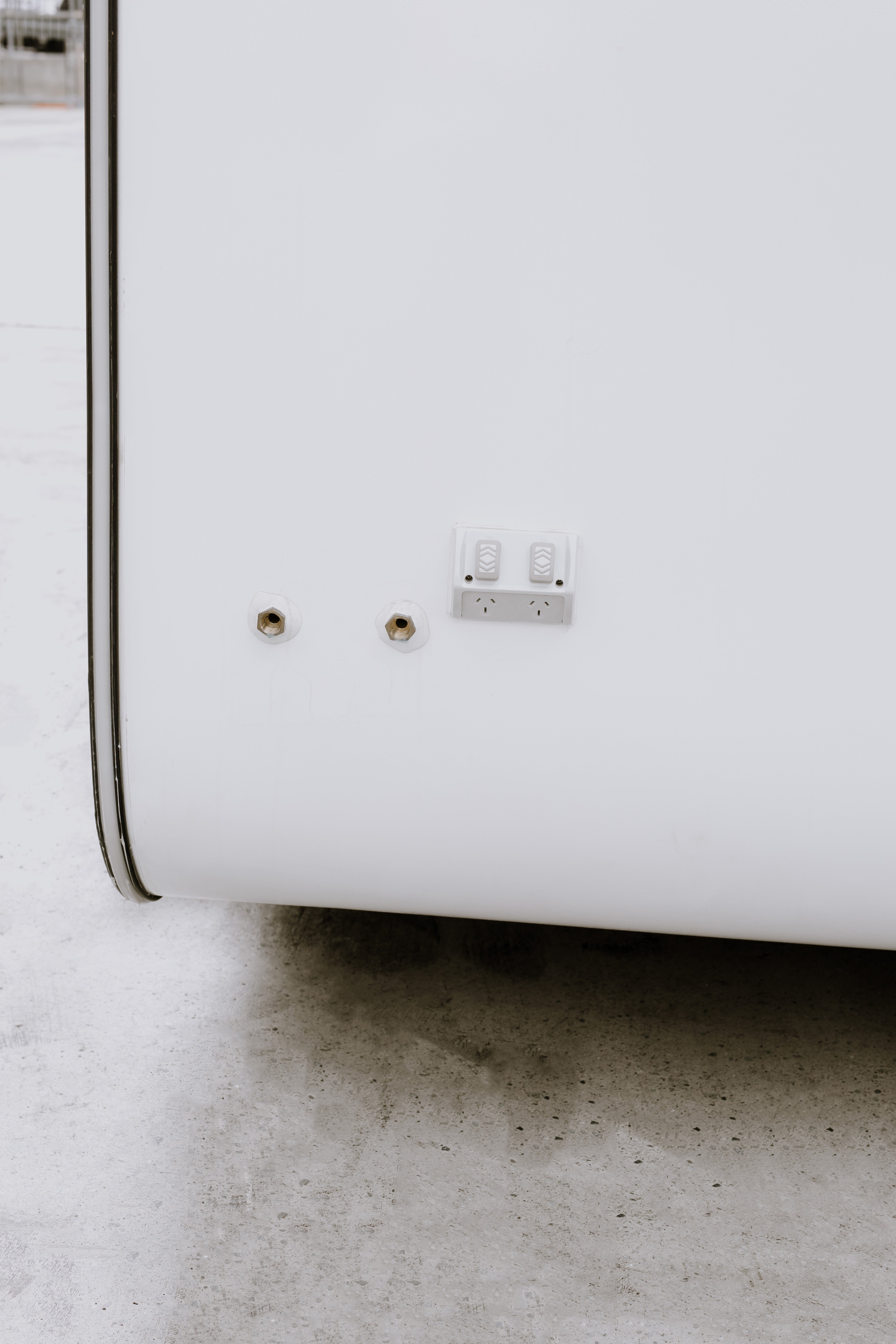

• Single-piece brass wall/floor penetration fitting
• No concealed pipework within structure
• Designed for straightforward on-site connection

Electrical

• LED ceiling lighting

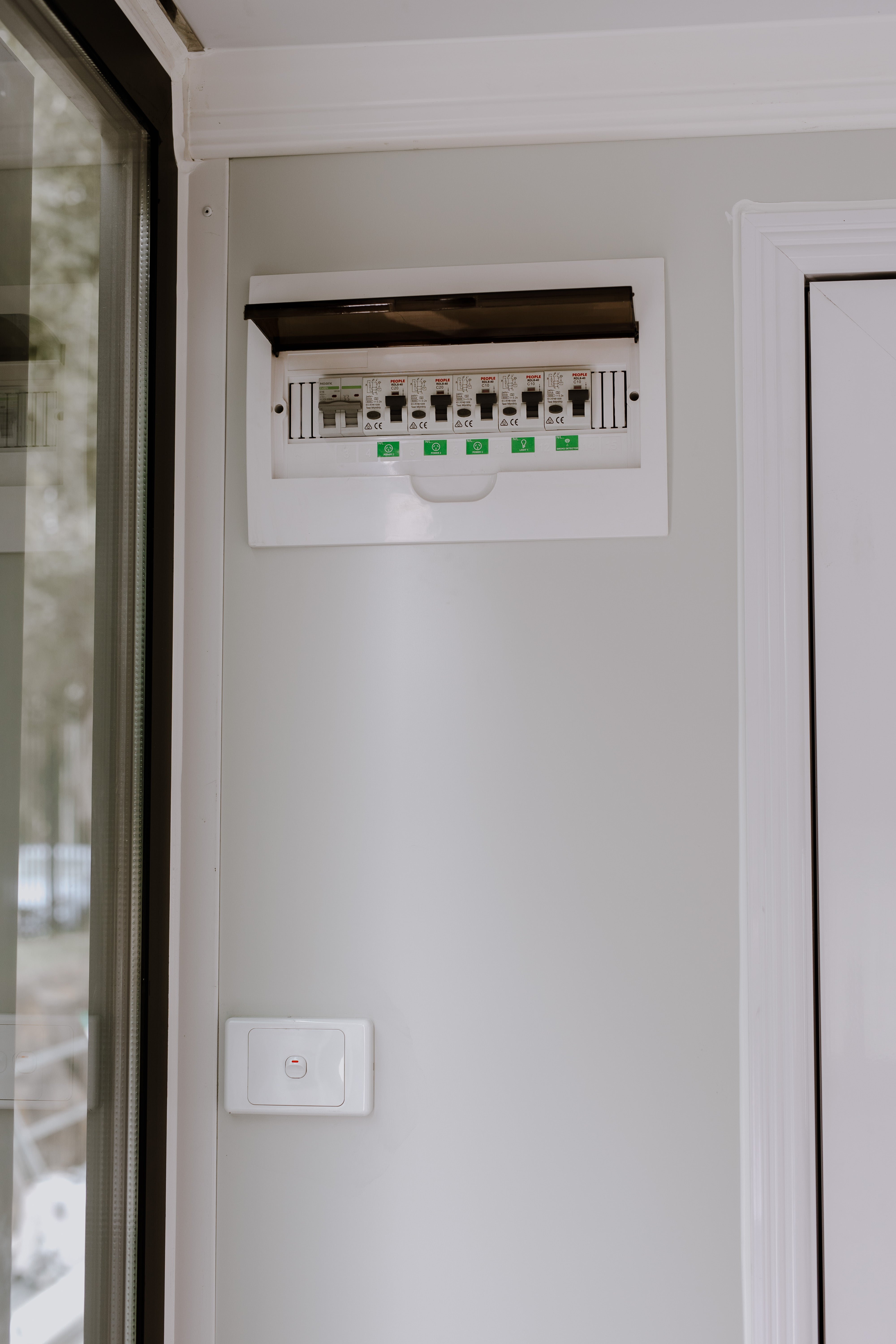

• Interior switchboard with circuit breakers

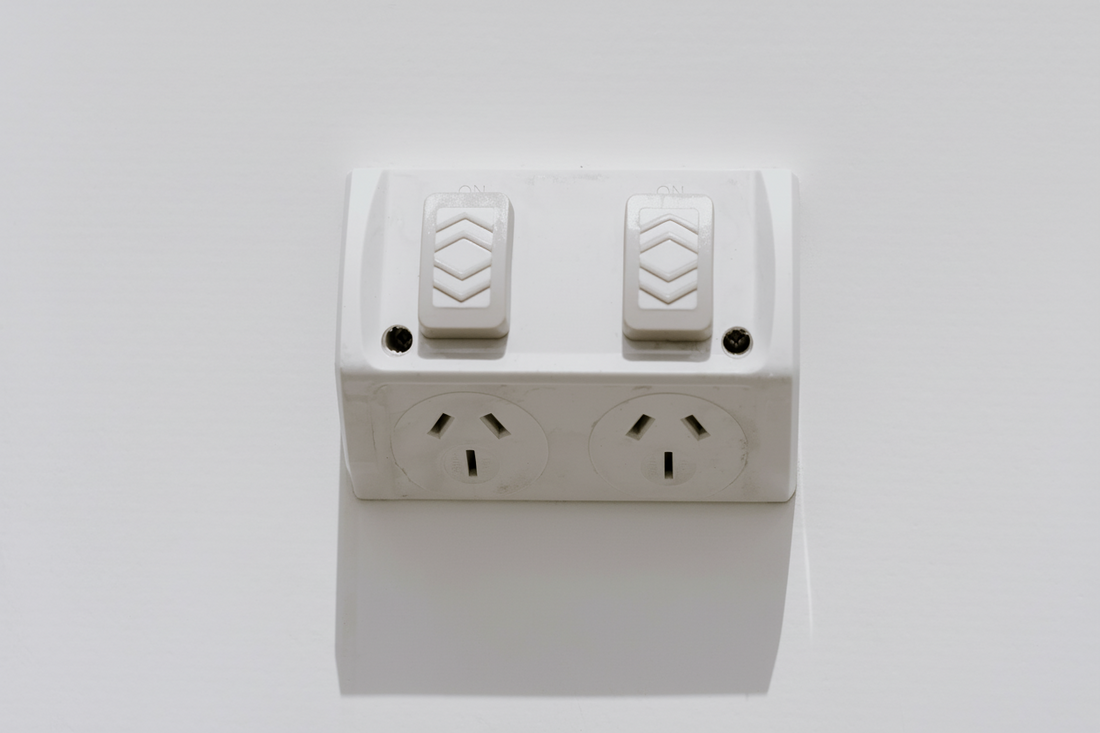

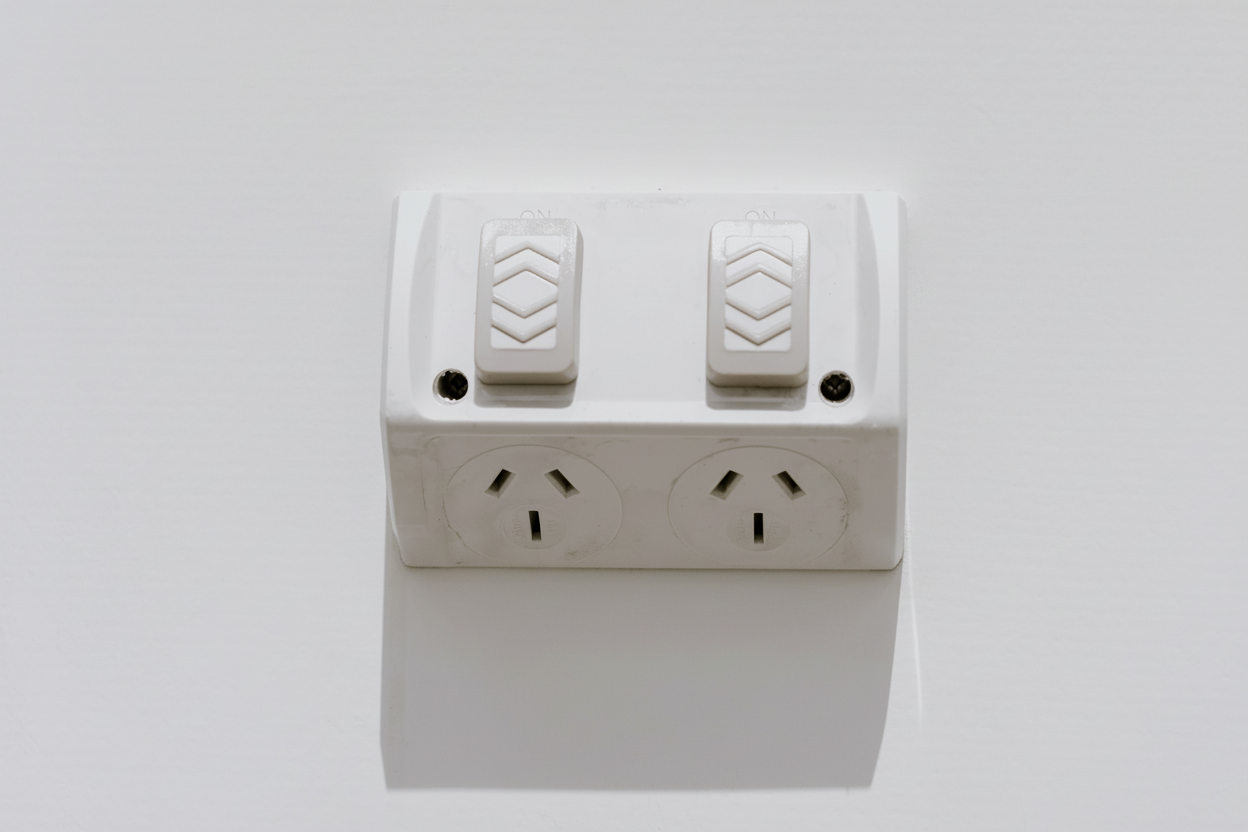

• Double pole power outlets throughout
• 15amp internal outlet for air-conditioning unit

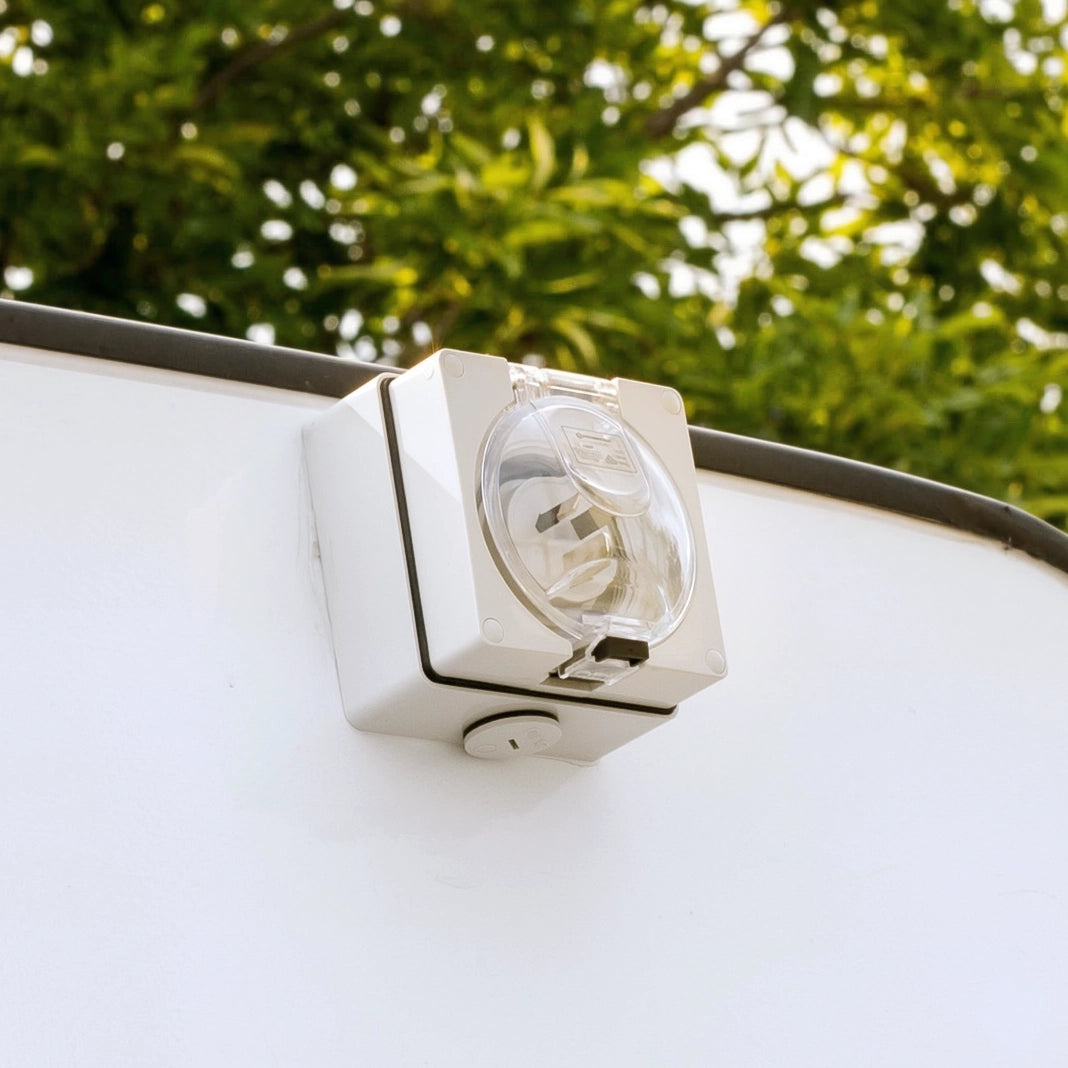

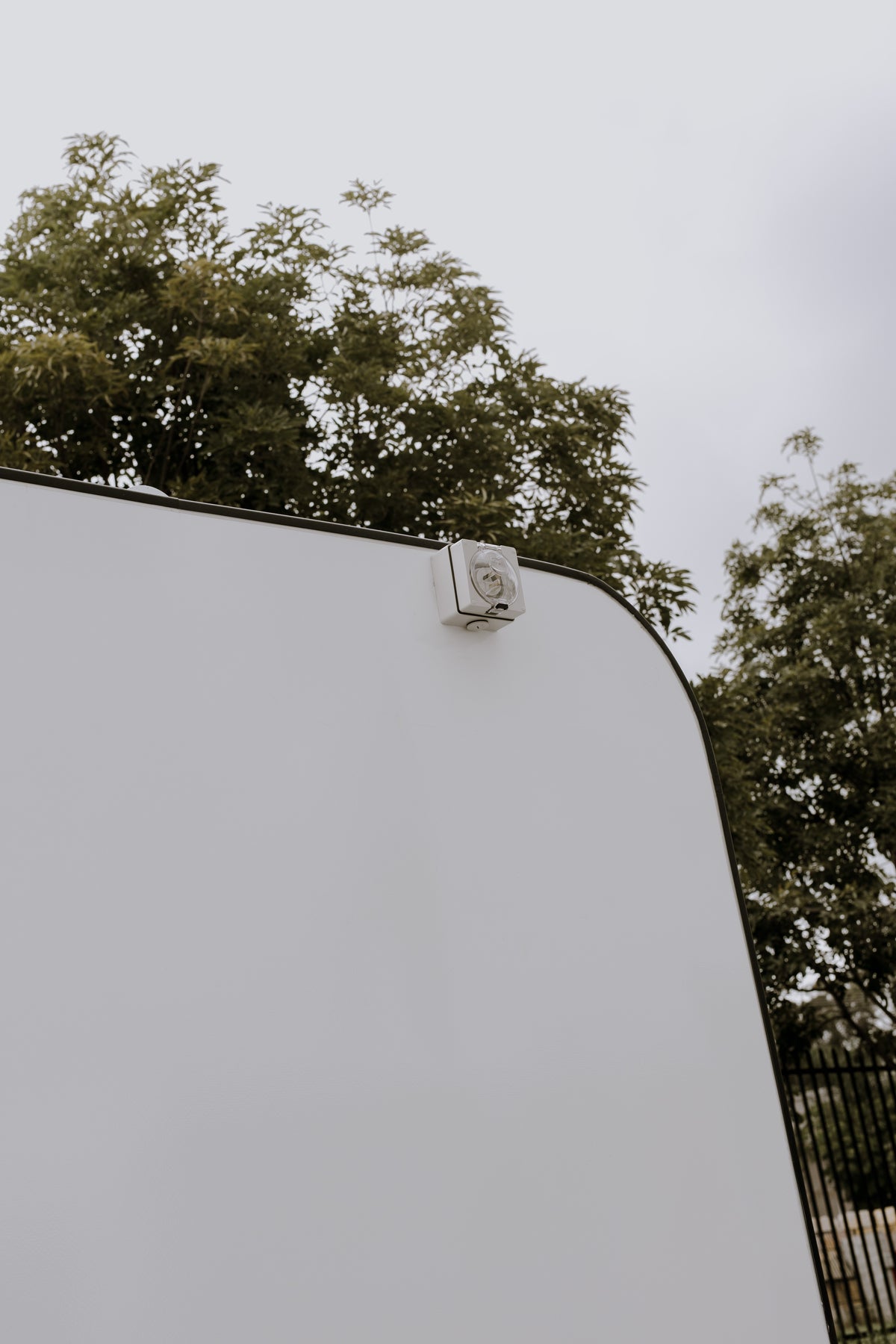

• 15amp external outlet for hot water system

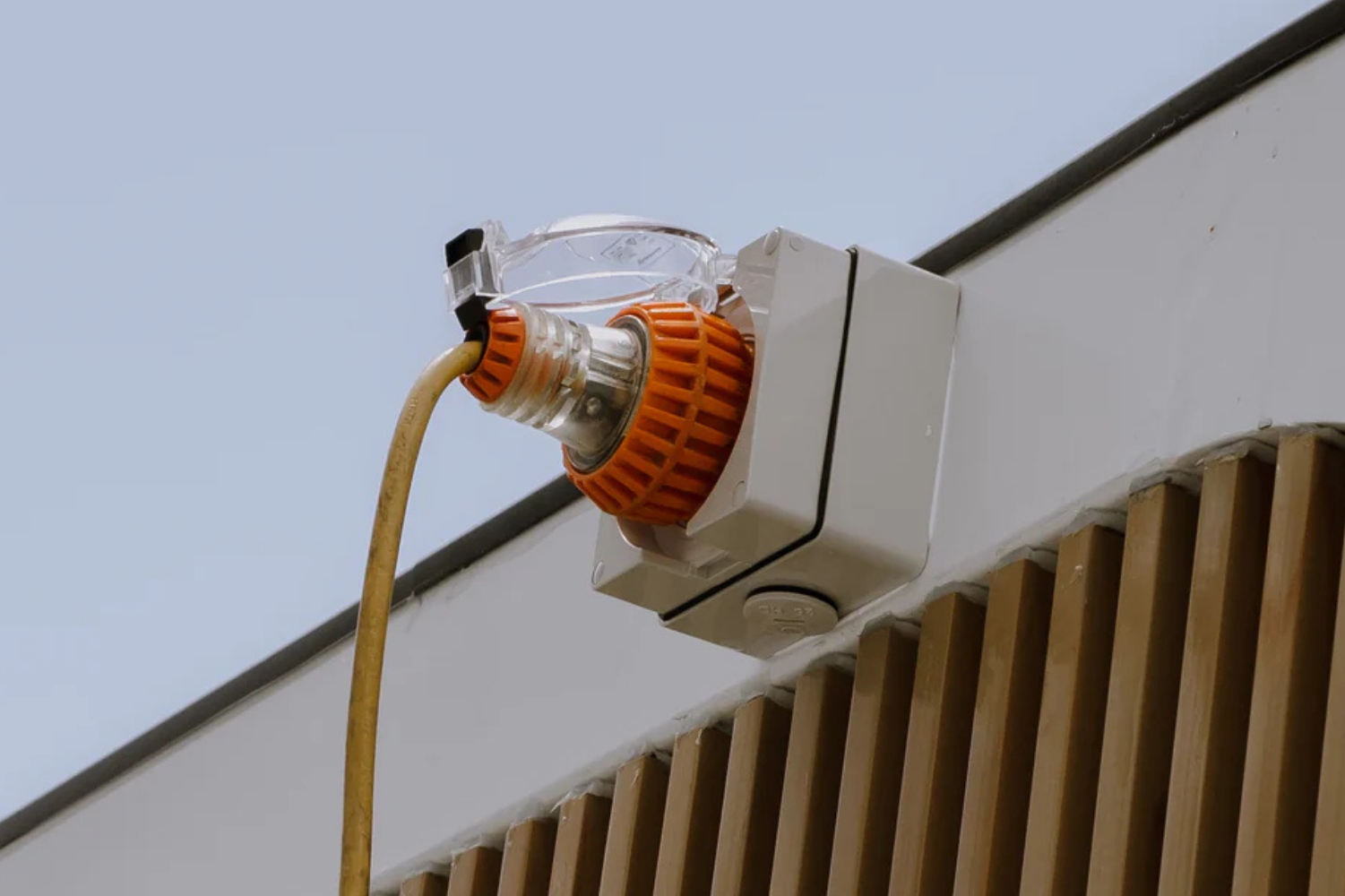

• Rear mains power supply cable
• Purple non-migratory cabling compliant with AS/NZS
• Smoke alarm installed

Note: 15amp power supply recommended (subject to appliance usage).

Insulation

• EPS insulated wall and ceiling panels
• Engineered steel frame structure
• Gloss white fibreglass exterior with WPC cladding

Transport & Installation

• Delivered via crane truck (self-unload)
• Alternatively rigid or semi-trailer (customer unload via crane or forklift)
• Tilt tray unloading not recommended due to full-height glazing

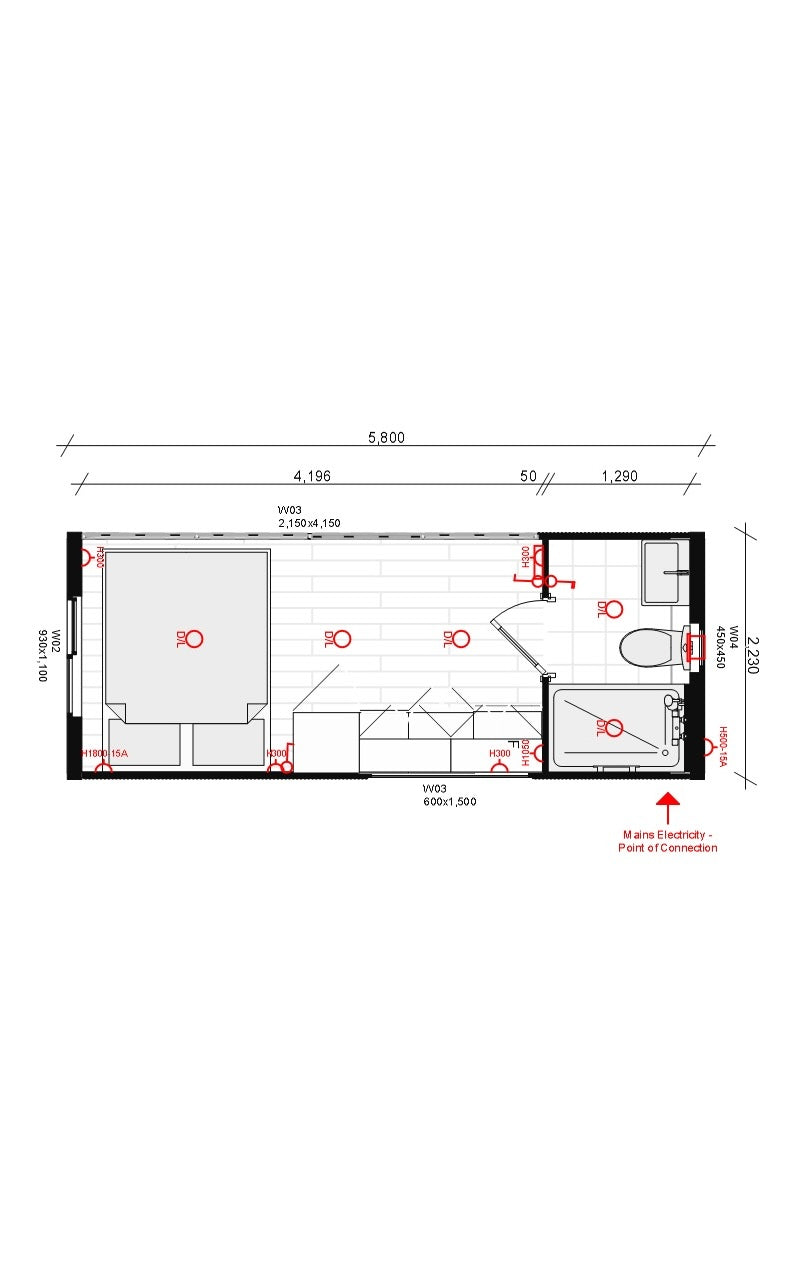

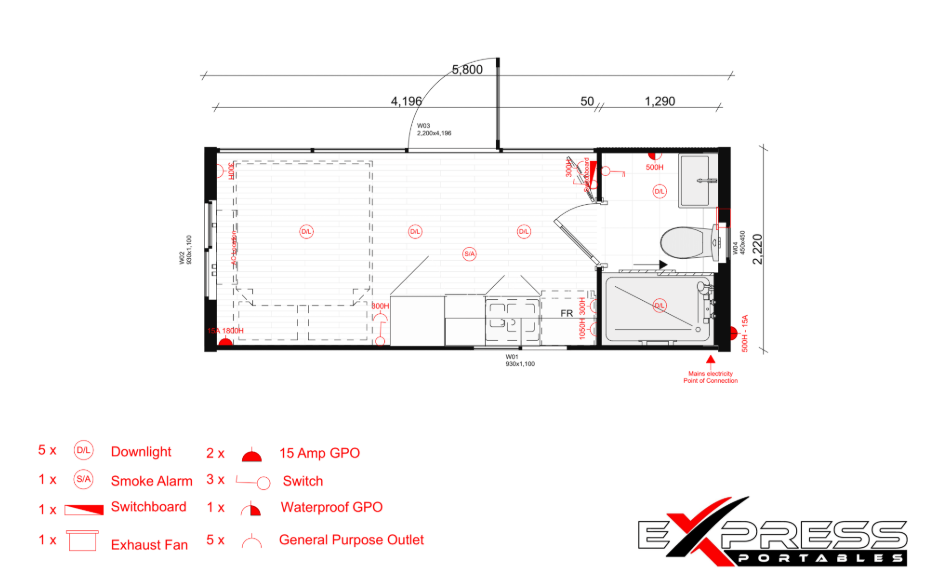

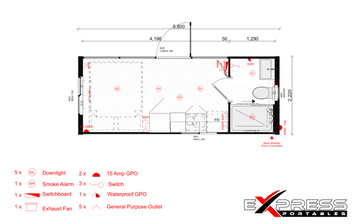

Length: 5850mm
Width: 2230mm
Height: 2550mm

Approx | 2250kg
