Specifications
General Overview
Entry Door
Sliding glass and lockable entry door
Windows
Aluminium framed windows
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame and posts
Roof
Glass-wool insulation, galvanised & painted steel
Walls
50mm EPS Panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
External Walls
60mm EPS Panel Walls & 15mm Cladding
With Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed windows with flyscreens
Glass
5mm thickness
Doors
Entry
Sliding glass and lockable aluminium entry door
Locks
Locks on all doors
Bathroom
Privacy glass bathroom door
General Overview
Entry Door
Sliding glass and lockable entry door
Windows
Aluminium framed windows
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Structural steel frame and posts
Roof
Glass-wool insulation, galvanised & painted steel
Walls
50mm EPS Panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Frame
Sub-Floor Steel Chassis
150x100 Rectangular Hollow Section (RHS)
Steel Post
150x150 Square Hollow Section (SHS)
Steel Floor Bearer
70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist
50x30 Rectangular Hollow Section (RHS)
Castings
Corner castings on each corner (x4)
Coating
Epoxy coated and painted in gloss
Bathroom

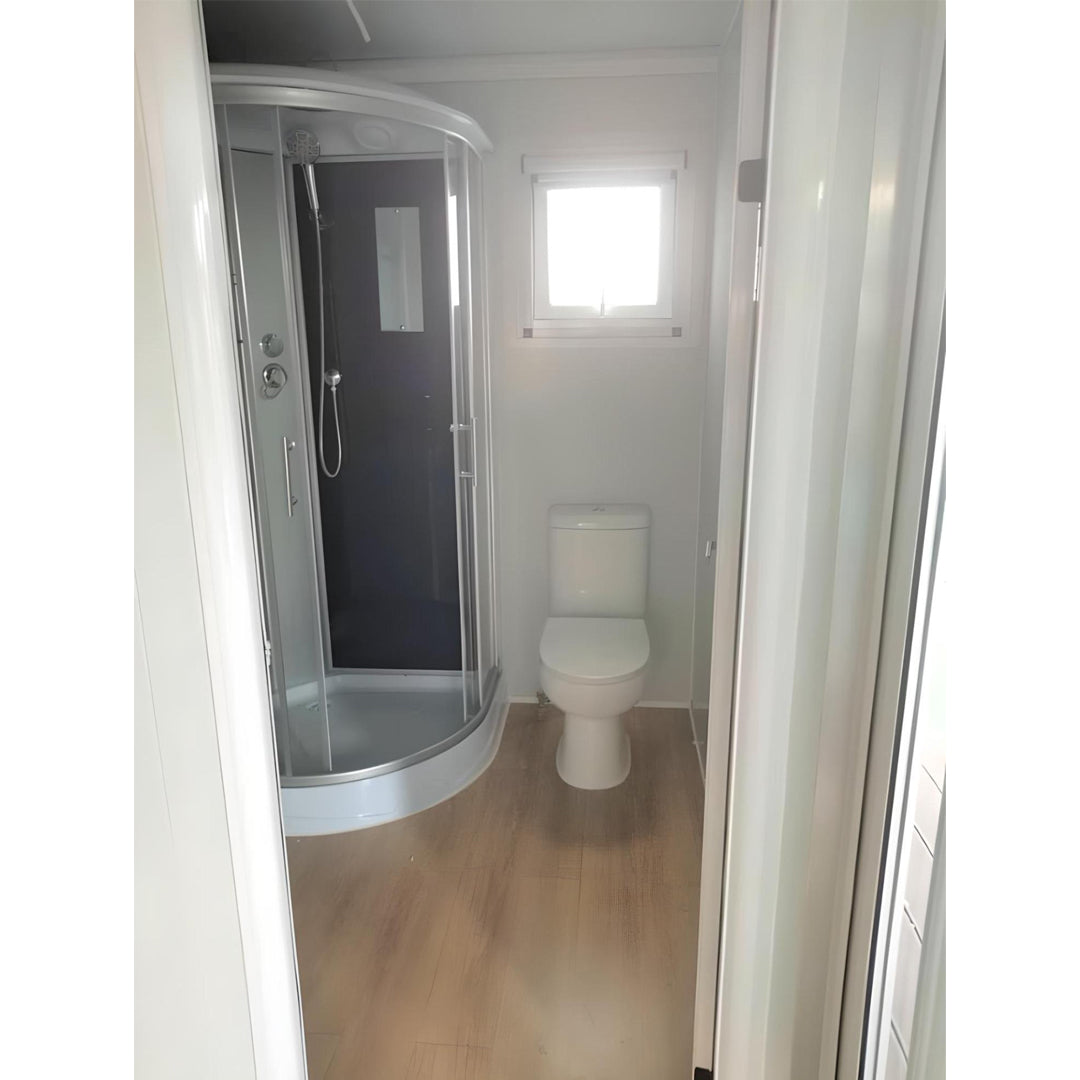

Shower
Corner shower enclosure with rain maker shower head with hand piece
Tiles
Grey floor tiles
Toilet
S trap toilet with soft closing lid

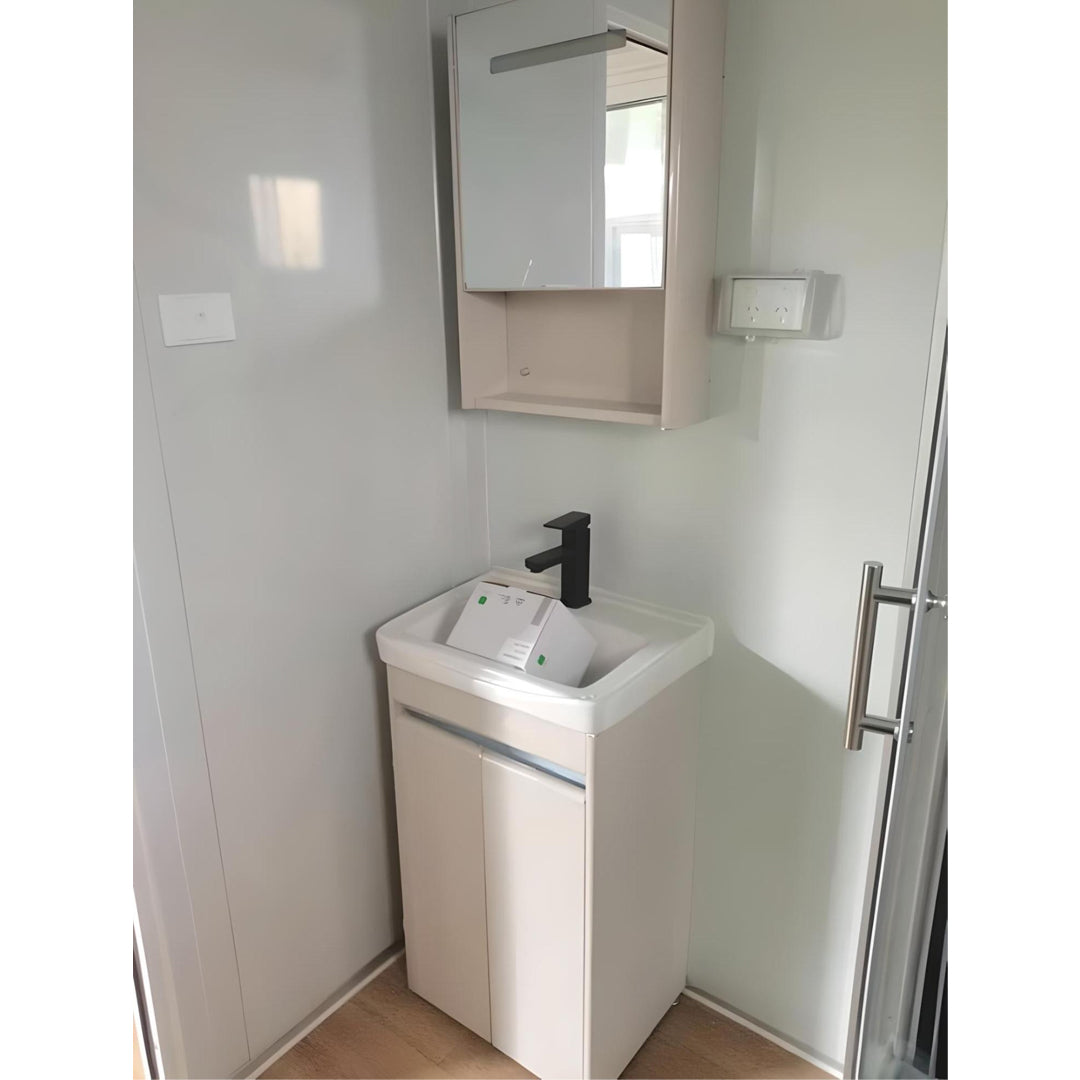

Vanity
Vanity with porcelain sink, chrome flick mixers
Sink
Porcelain hand basin with chrome mixer
Provisional Space
Washing machine provisional space under vanity
Walls
Marble look wall PVC wall lining
Installation
DIY
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations
Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Interior Walls
50mm EPS Panel with an off white finish
External Walls
60mm EPS Panel Walls & 15mm Cladding
With Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed windows with flyscreens
Glass
5mm thickness

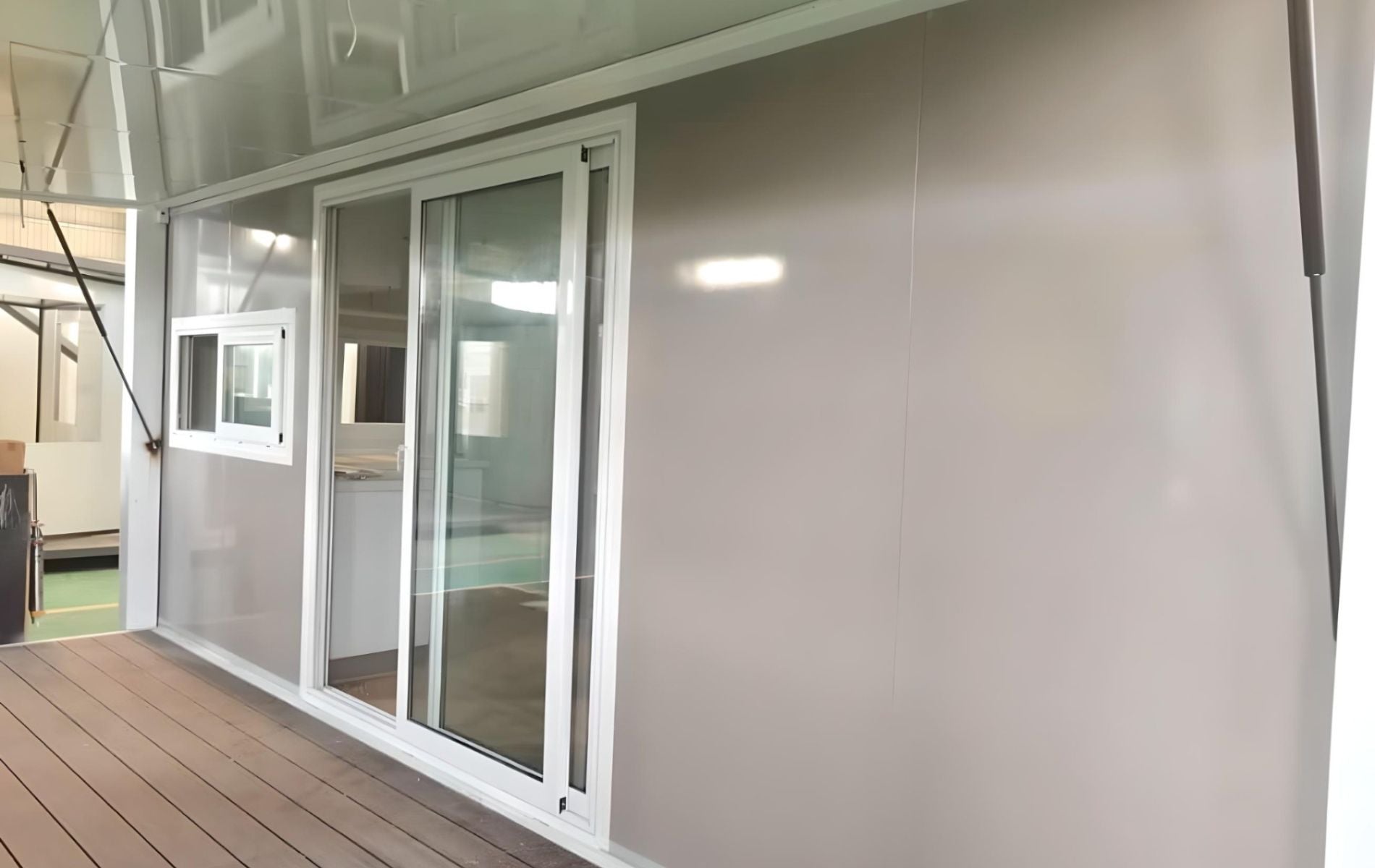

Doors

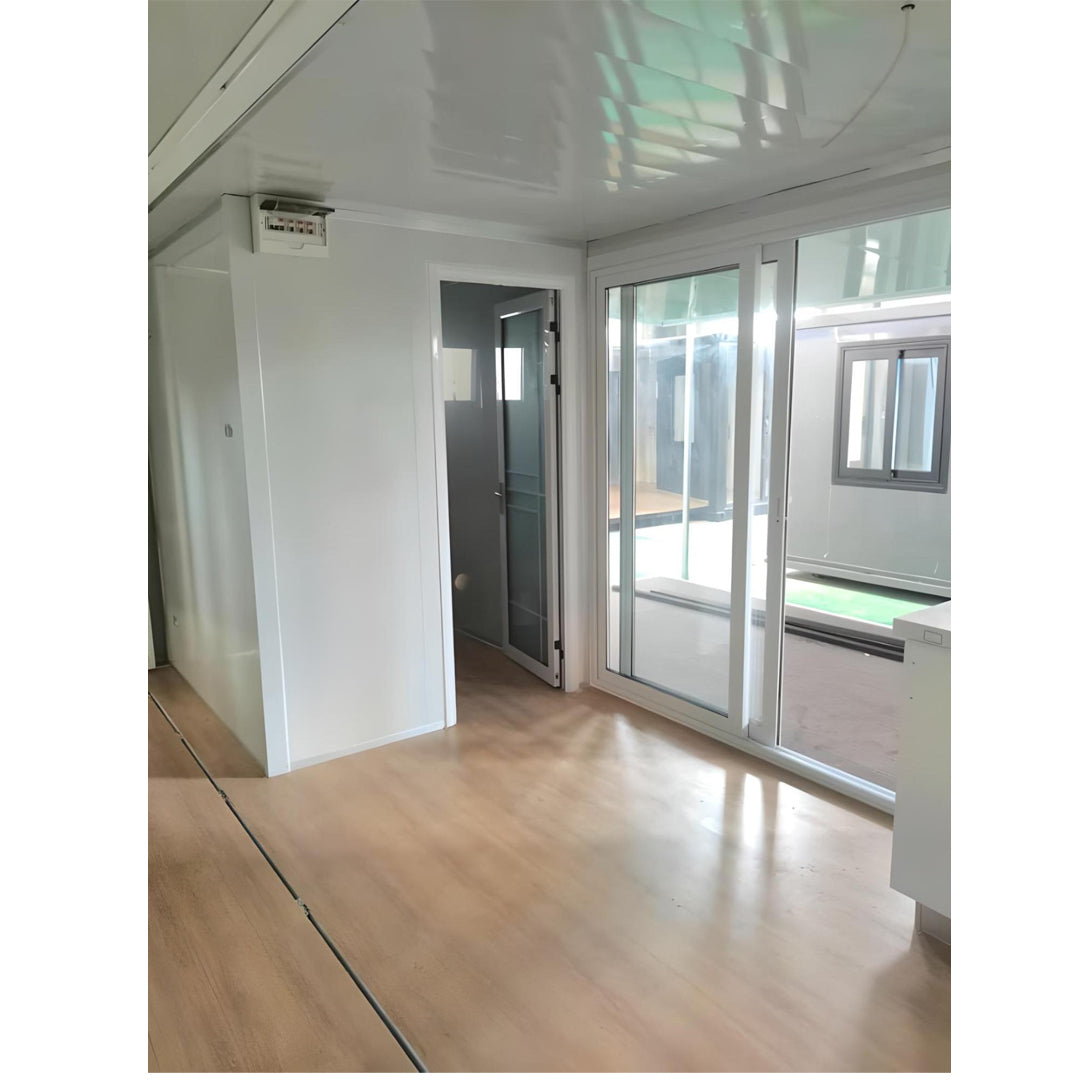

Entry
Sliding glass and lockable aluminium entry door
Locks
Locks on all doors
Bathroom
Privacy glass bathroom door
Roof
Steel Plate
3mm steel plate over the main body section of roof
Exterior Panels
75mm EPS panels on outside folding roof panels

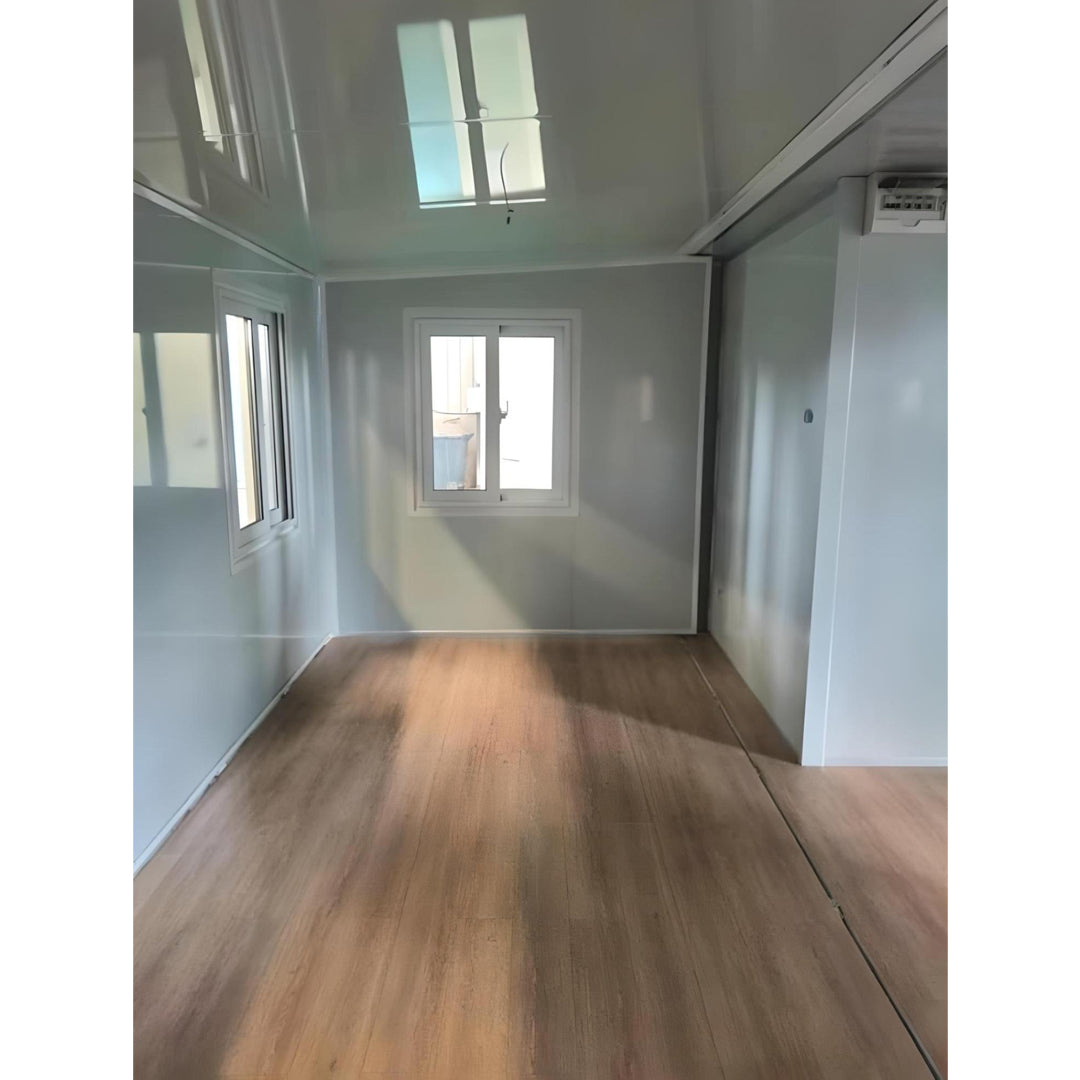

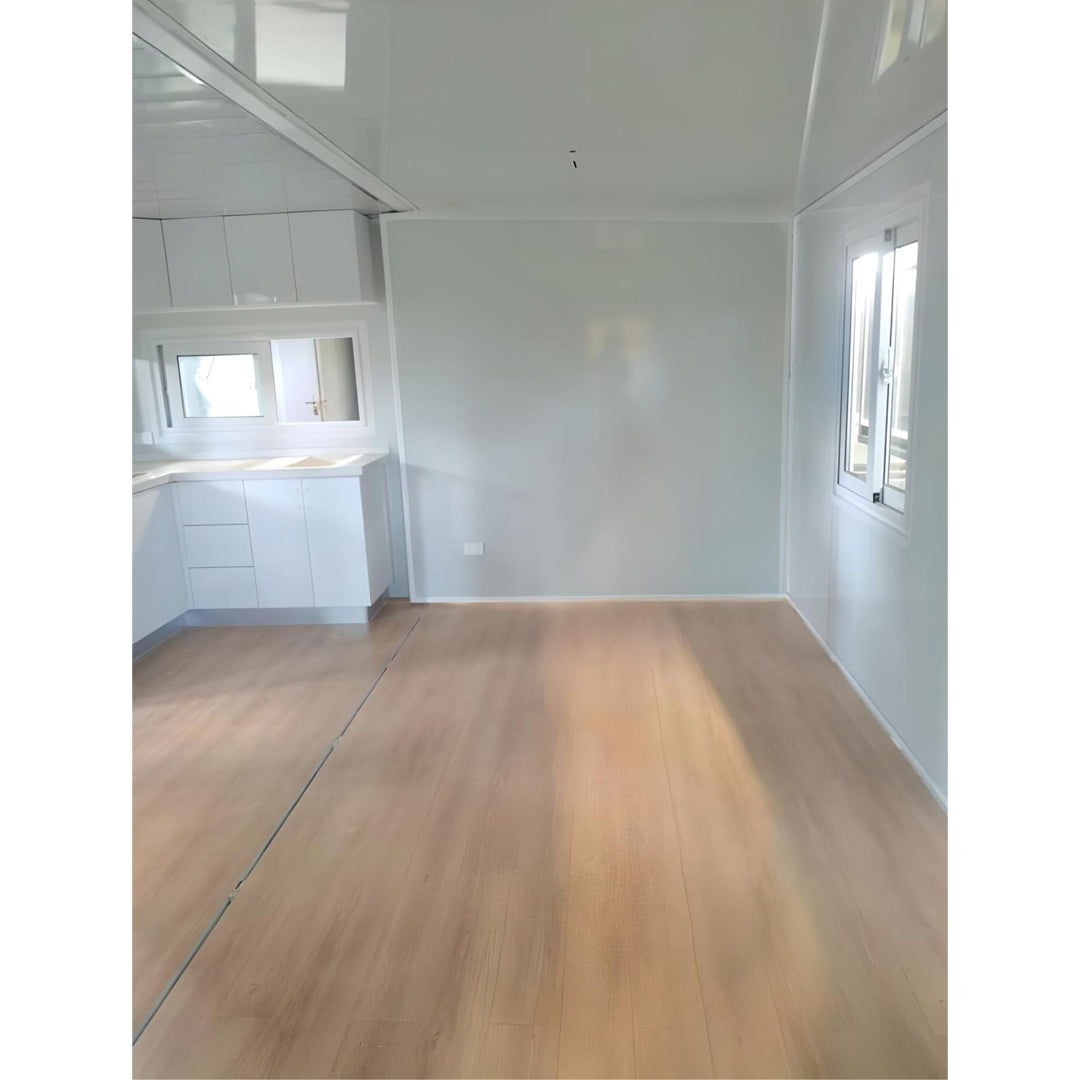

Flooring
Sub-Floor
Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer
2mm vinyl timber pattern - Grey or Brown

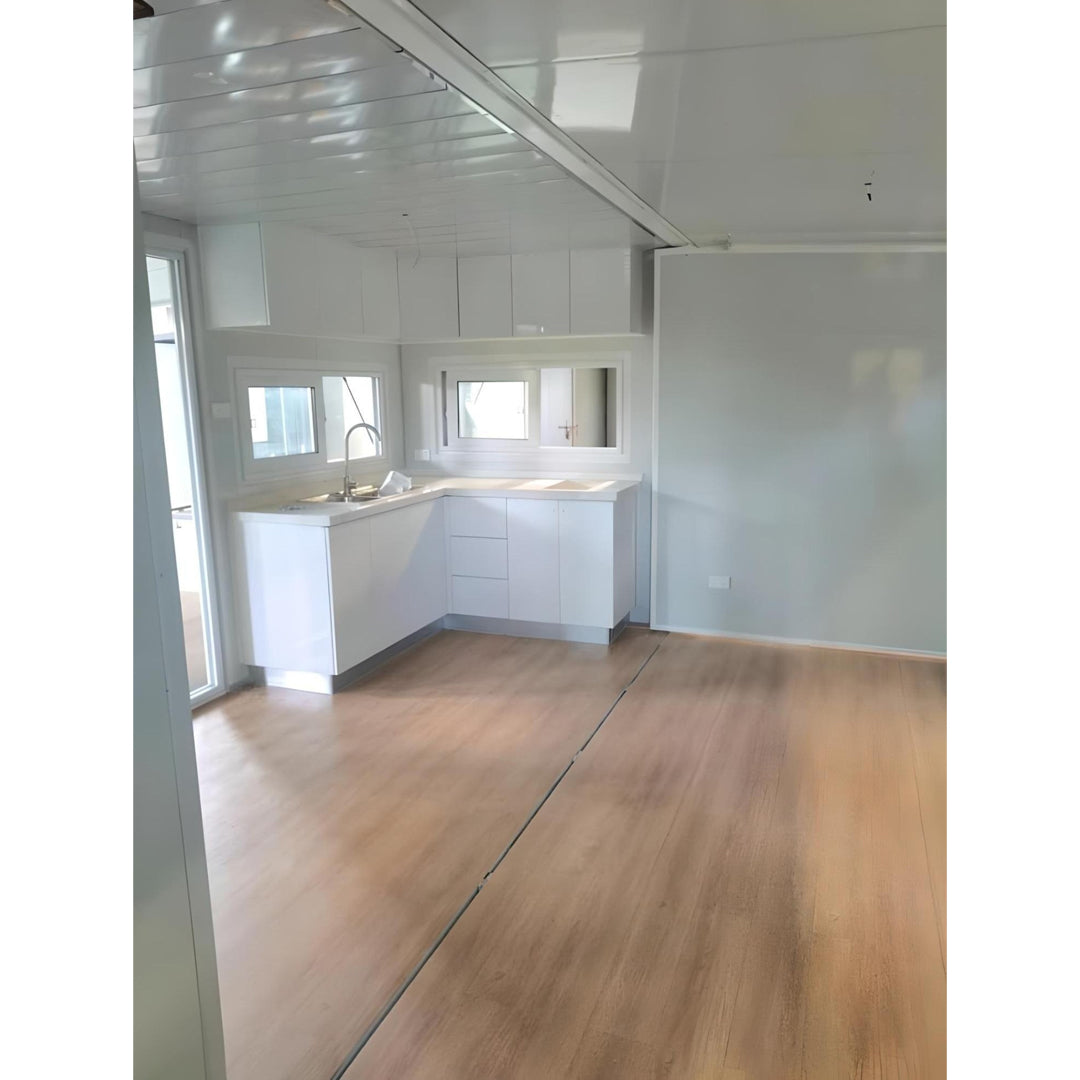

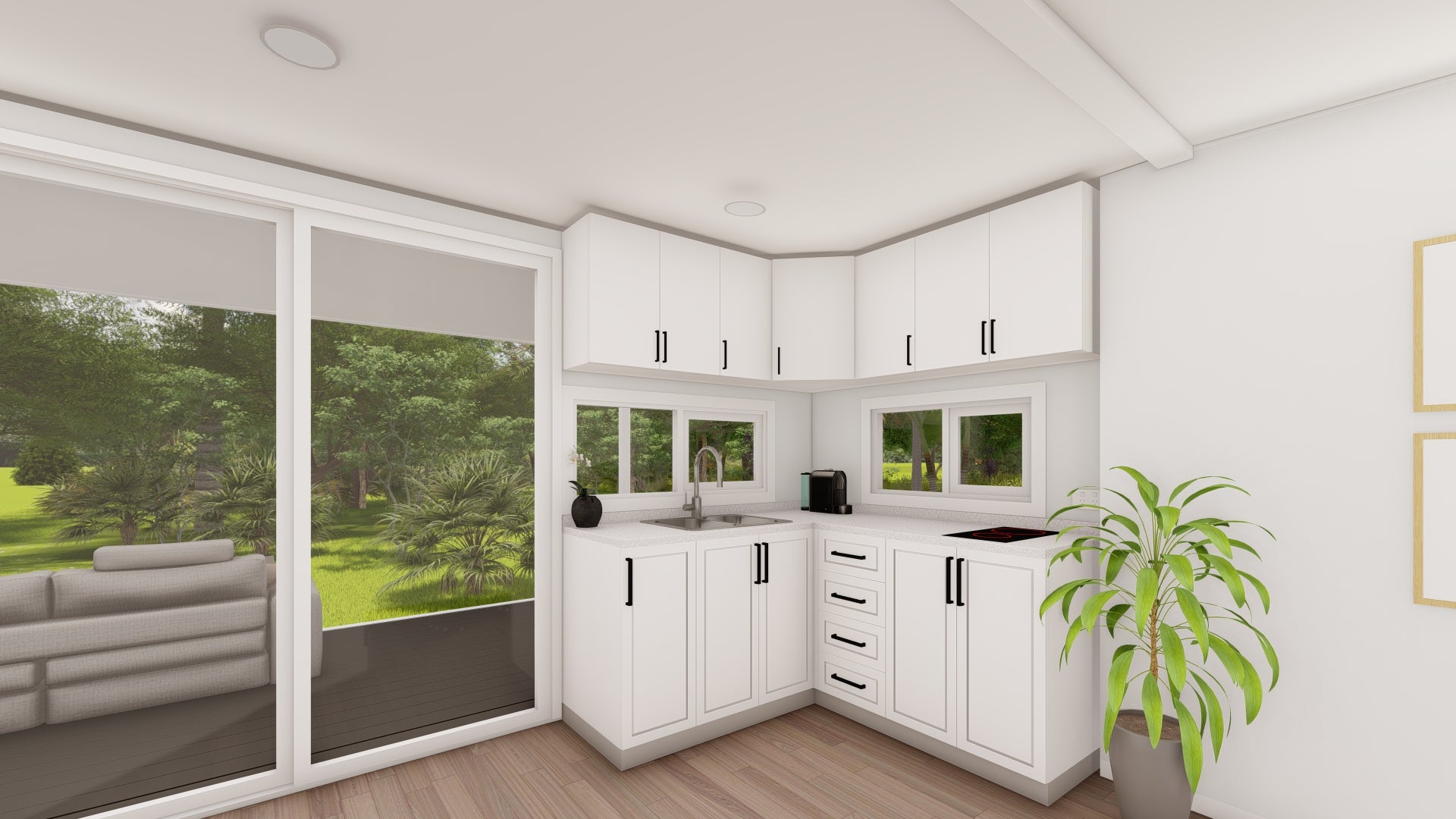

Kitchen
Cabinetry
Soft closing hinges and over head cabinetry
Sink
Double bowl stainless sink with flick mixer
Benchtop
20mm white Quartz stone bench top
Provisional Space
Provisional space for fridge & free-standing cooker (not included)
Electrical
Power
All electrical points are prewired inside walls. Fit off of electrical points required after opening and installing, Aerial point provided for TV. Mains supply located at rear of expander
Lighting
All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building. LED oyster lights supplied
Smoke Alarm
Smoke alarm hardwired back to switchboard per habitable room (customer must install)
Plumbing
Overview
Bathroom is pre-plumbed
Water, Waste & Sewer
Water, waste and sewer connection points are conveniently located outside on the rear wall
Sink & Mixer
Connections located on outside wall
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
