Key Features:

Insulated Sandwich Panel Roof (75mm): Enjoy year-round comfort with our innovative 75mm sandwich panel roof, providing insulation to regulate temperature and create a cosy atmosphere beneath your patio. Ideal for shelter and protection against the elements.

Barge Capping (75mm): Enhance the aesthetic appeal and weatherproofing of your patio with the 75mm barge capping. This feature adds a sleek finish to the edges of the roof, ensuring durability and protection against the elements.

Hi Front Quad Gutter (150mm): Efficiently manage rainwater with the 150mm Hi Front Quad Gutter, designed for optimal water drainage. This gutter system not only serves a functional purpose but also contributes to the overall polished look of your patio.

Patio Beams with End Caps: Structural integrity meets elegance with our sturdy patio beams, complete with end caps. These beams provide robust support while adding a touch of sophistication to your outdoor space.

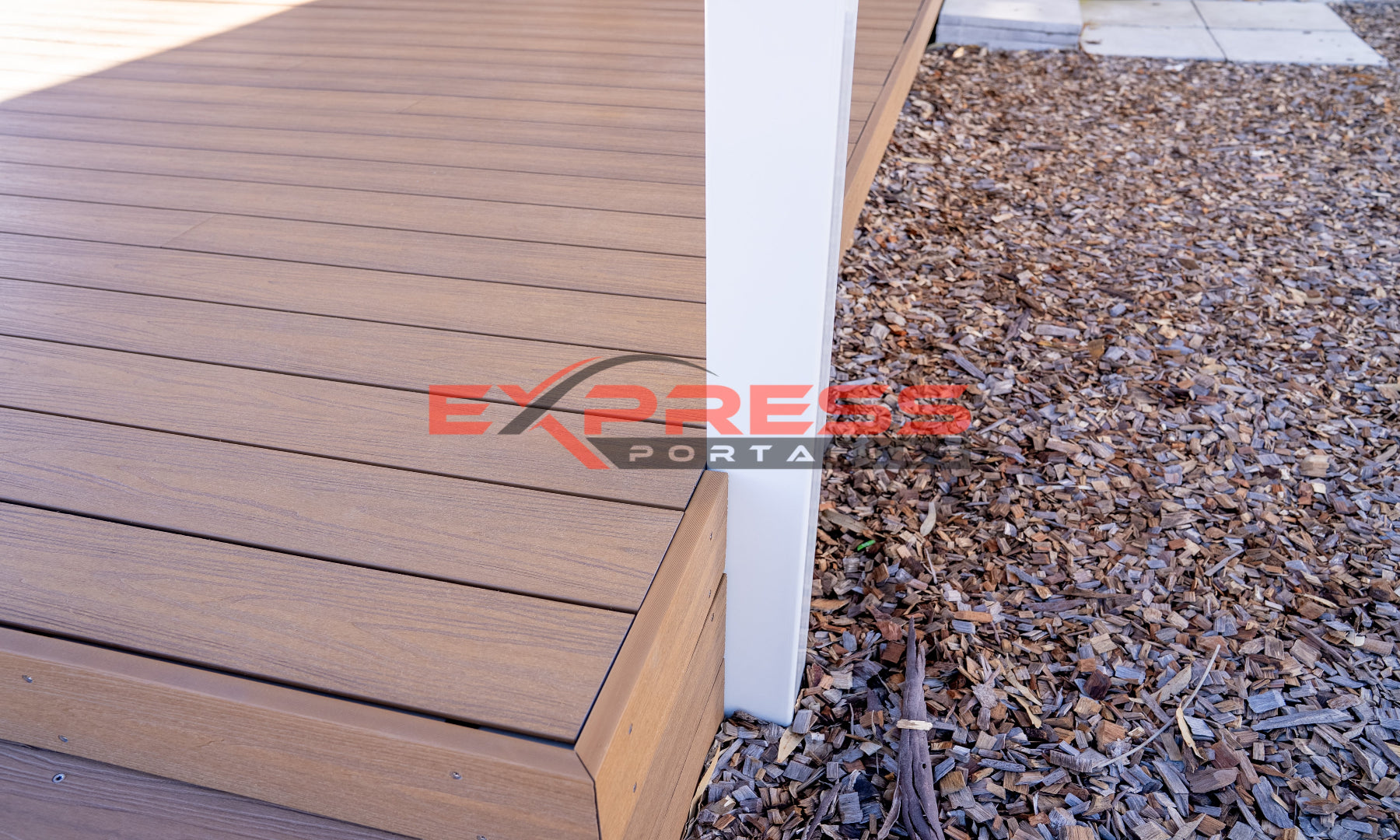

Powder-Coated Structural Posts (90x90): Ensure stability and longevity with our powder-coated 90x90 structural posts. These posts are not only structurally sound but also add a visually appealing element to your patio, complementing the overall design.

Coloured Fixings: Elevate the aesthetics of your patio with coloured Tek screws, pop rivets, and beam bolts. These fixings not only secure the structure but also contribute to a seamless, cohesive appearance, ensuring attention to detail in every aspect.

Please note:

• Electrical components are not included.
• Decks are sold separately.
• Patio installer or tradesman highly recommended to complete install (this is not a DIY installation)

Patio Kit includes:

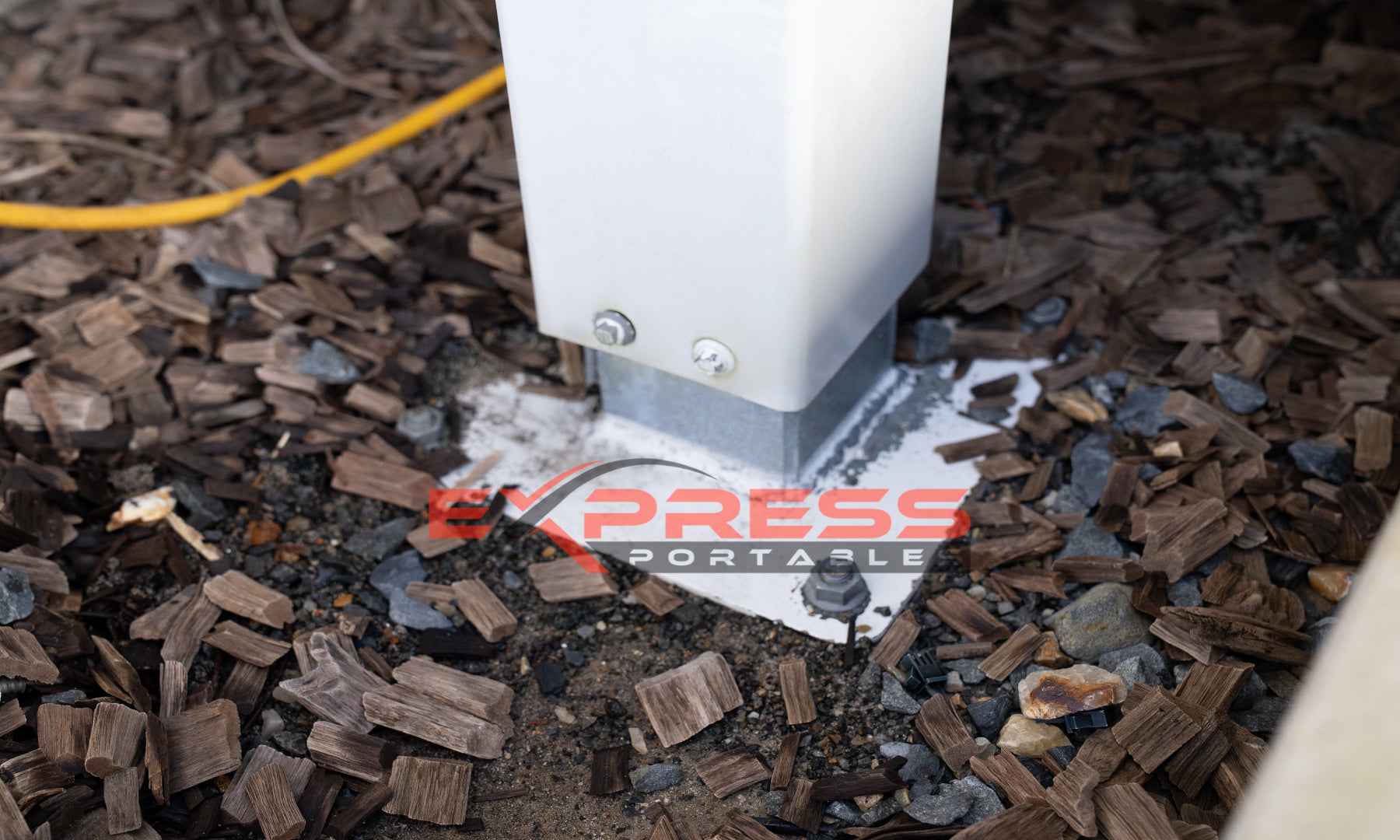

Posts 90x90 powder coated incl post kits
75mm EPS roof panel thickness. Smooth underside sheet / corrugated roof sheet
Fascia Flashing
Apron Flashing
Ridge Cap Flashing
Gutters
150mm High Front Quad Gutter
150mm Quad Gutter End Caps
150mm Quad Gutter Brackets
90mm Uni Dropper
Beam 150x65 powder coated
150x65 - Beam Endcap powder coated
Screws (Steel) Neo Washers Cyclone Plates
Rivets 1/8
Teks 10/16
Teks 13/25

*Post and Beam colours other than white will incur a $600 powder coating fee.
