24m² Expander Building Open Plan - Flat Roof 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Portable Expandable Home 24m2 Portable Expandable Home 24m2 Portable Expander 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan 24m2 Expander Building Open Plan

24m2 Expander Building Open Plan

24m2 Expander Building Open Plan

$19,750.00 AUD
$19,750.00 AUD $20,250.00 AUD
Sale Sold out
GST included.
SAVE $500 AUD
Apply for finance
Buy Now, Pay Later with Learn more

Cladding

Cladding

Air Conditioning

Air Conditioning

Hot Water

Hot Water

Trailer

Trailer

Description

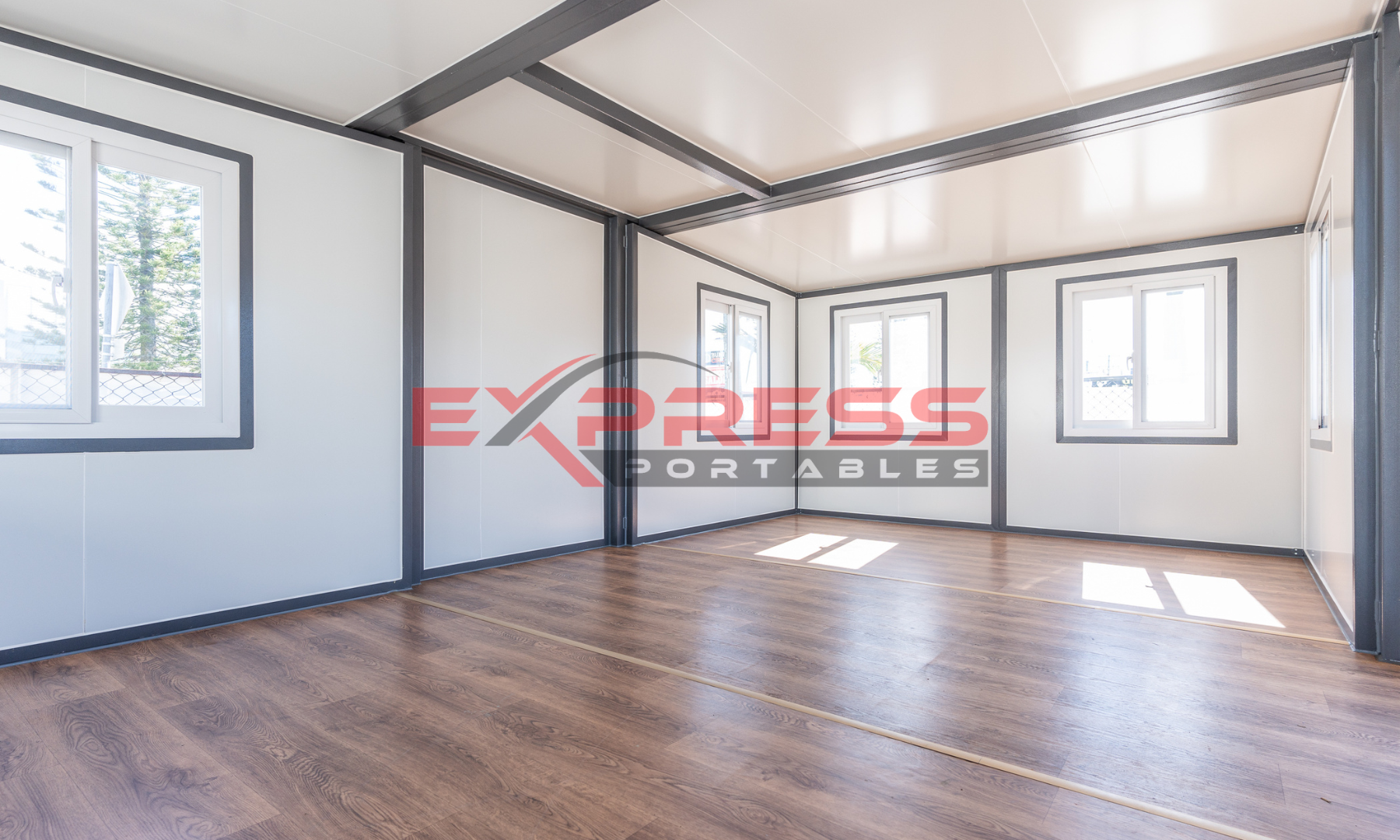

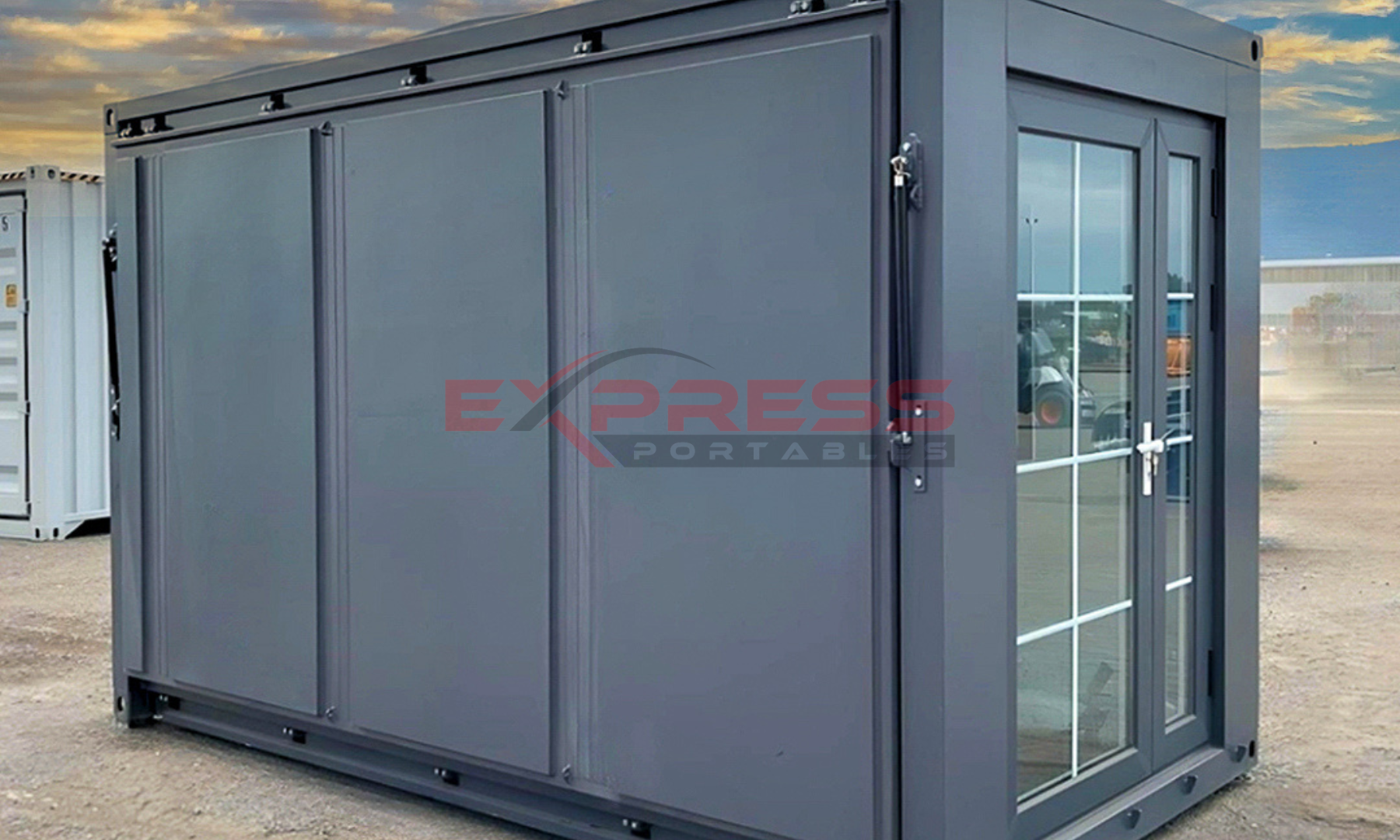

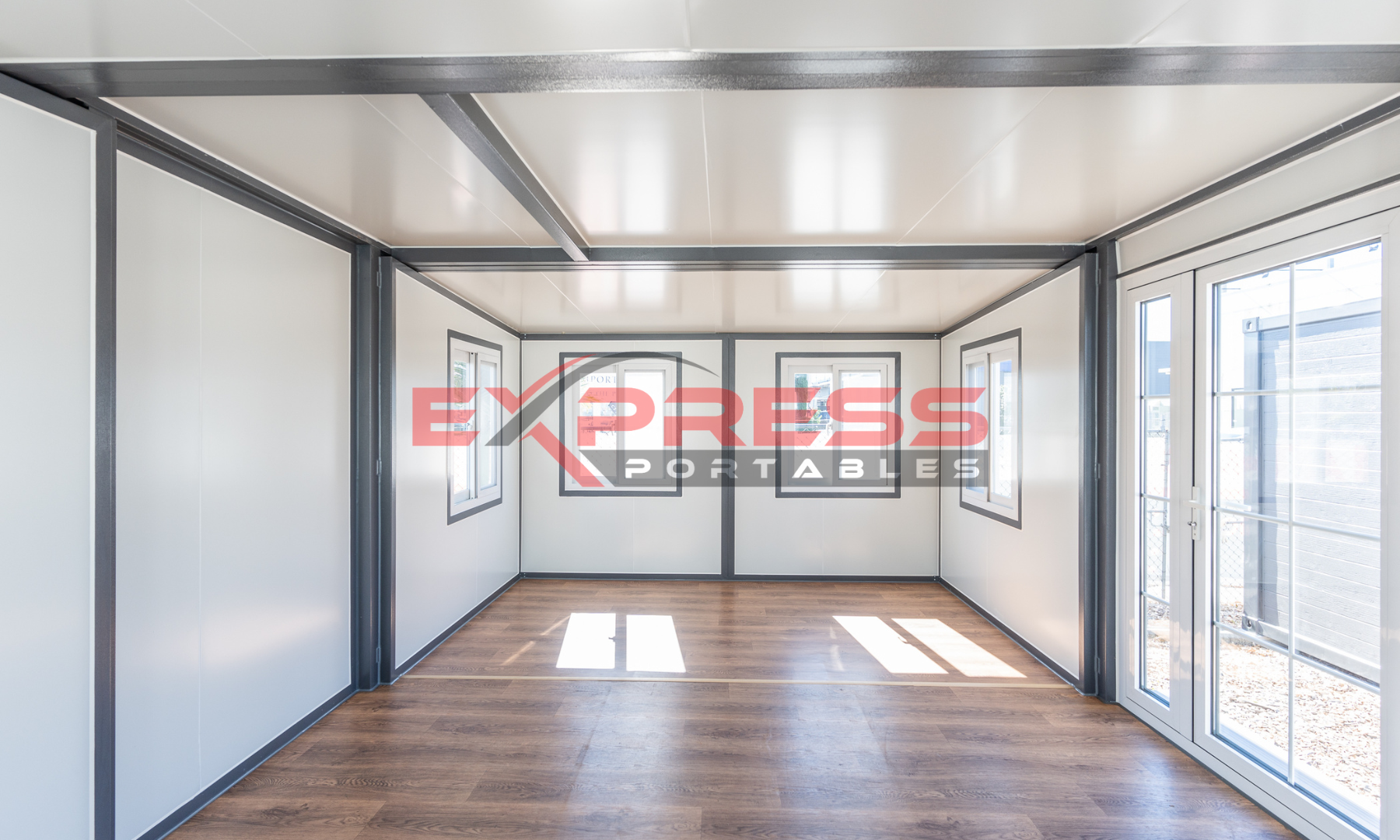

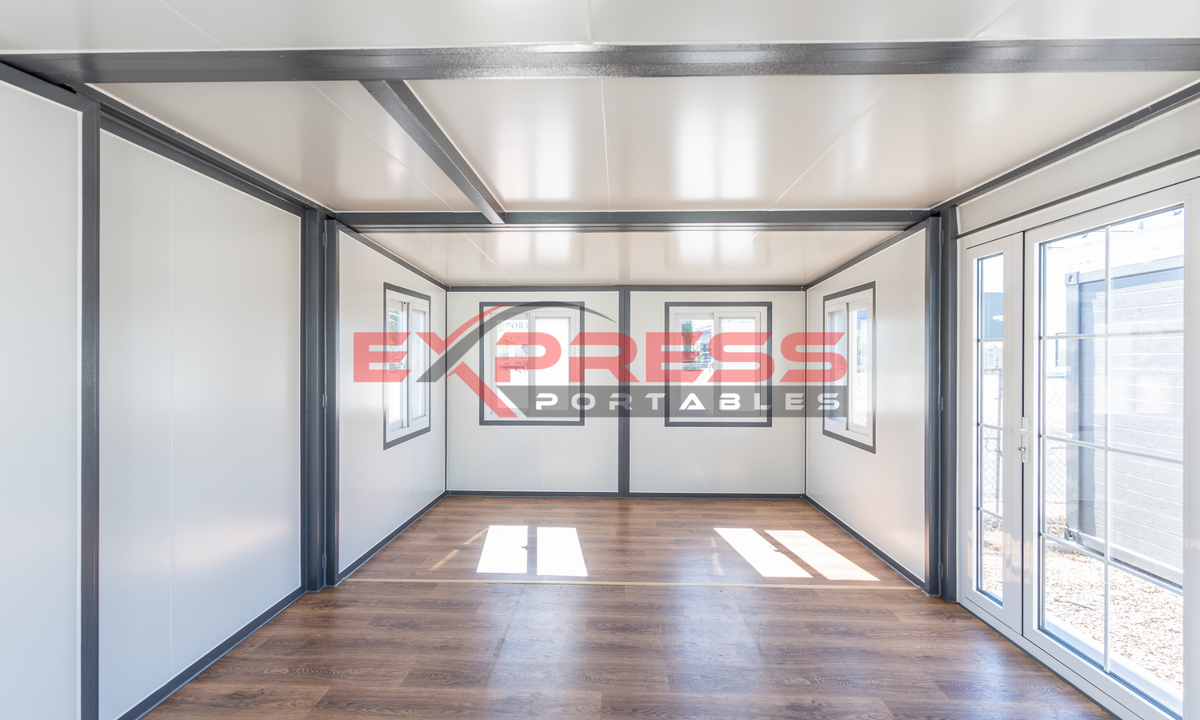

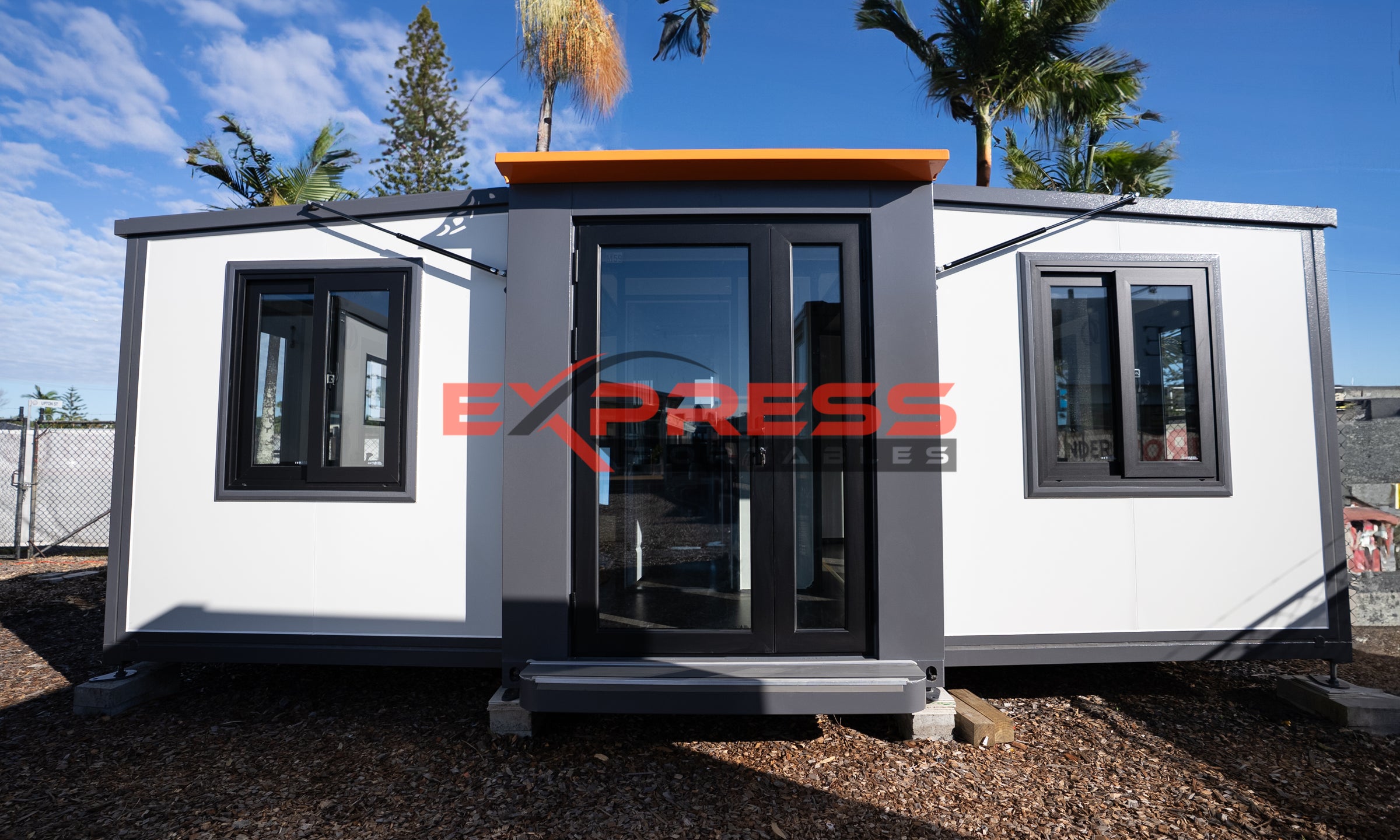

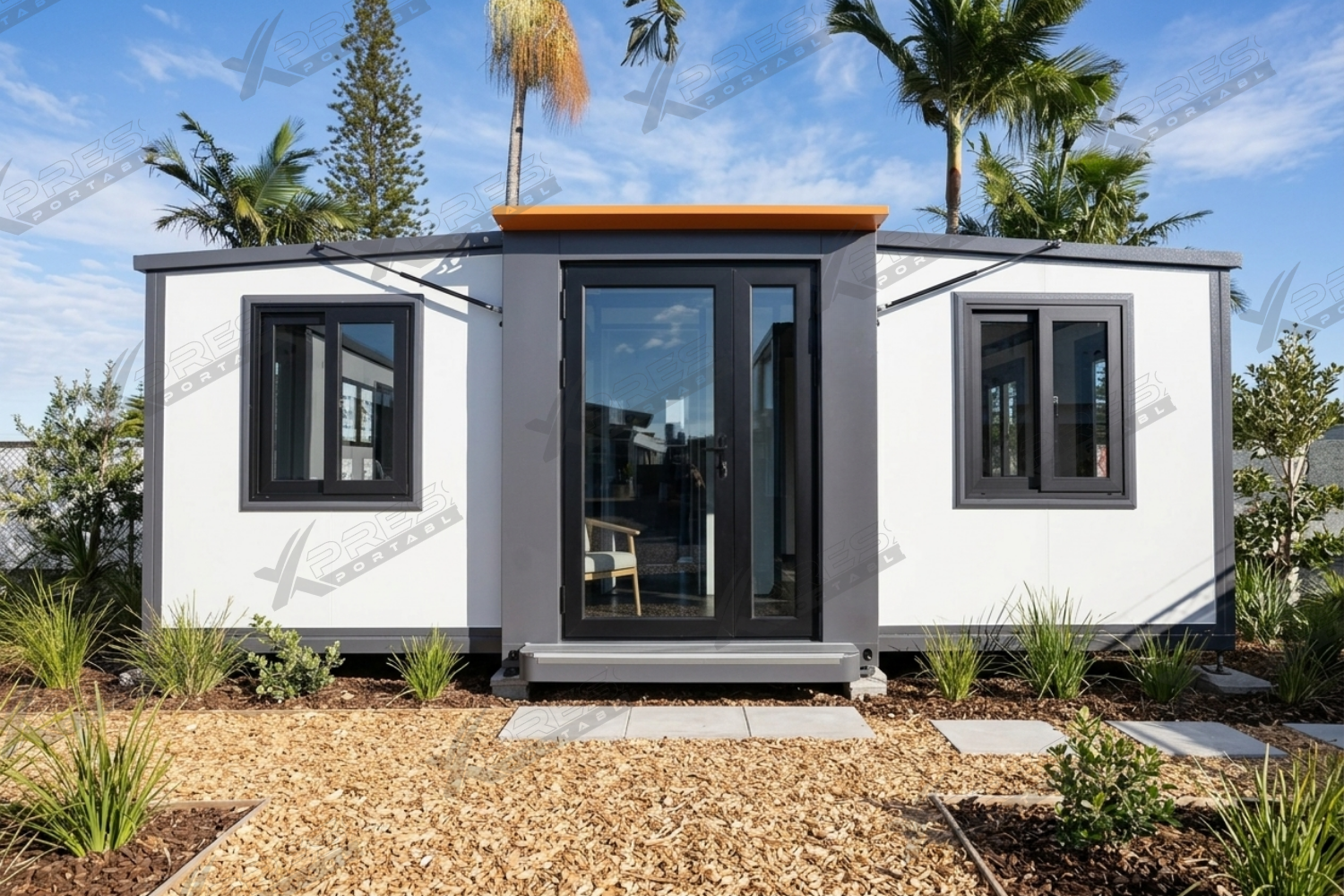

Our 24m² portable Expander has been designed to provide you with a spacious, stylish and affordable open plan space. At 4m by 6m in its open configuration, this fold out building is the epitome of smart design. Its true magic lies in its ability to be transported economically and expanding to a generous 24m², offering you ample space to configure your DIY interior layout.

The Expander is perfect for a bedroom, cabin, office, playroom, storage, retreat or endless possibilities for businesses.

Please note: that ongoing product improvements may result in slight variations between the images on our website and the actual product.

Steel Frame

Built with a sturdy steel frame painted in a sleek black epoxy finish. This steel frame not only provides exceptional durability but also adds a touch of modern elegance to your living space. It's the perfect blend of strength and style.

FlooringThe flooring system combines 3mm anti-slip, wear-resistant soft PVC with a 20mm fireproof board sub-floor for a safe, durable and easy-to-maintain finish.

Insulation

The Expander features thermally efficient roof and walls made with advanced 50mm EPS panels. These panels ensure that your living space remains cosy and snug with the added bonus of double glazed windows and doors. Enjoy energy savings and a comfortable living environment year-round.

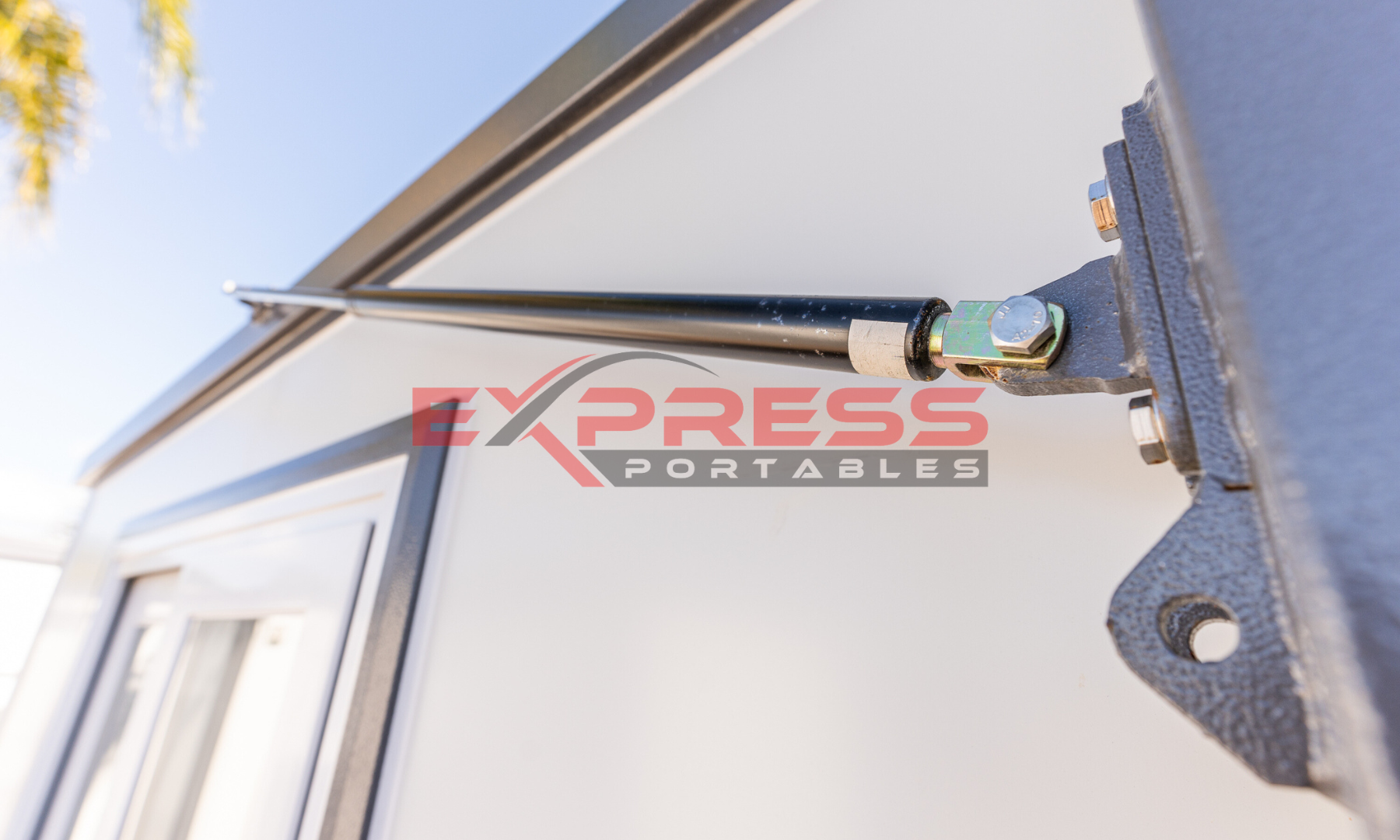

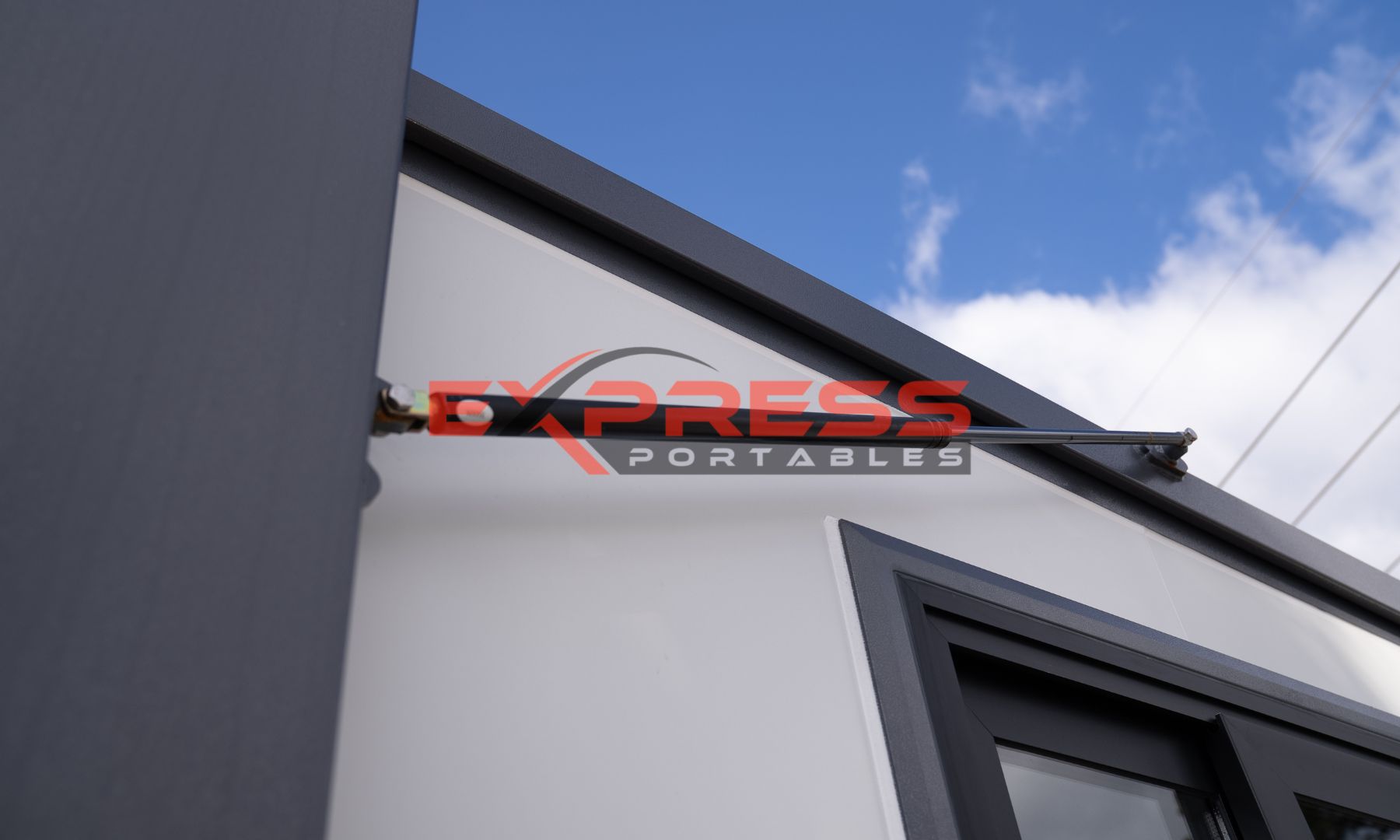

Gas Struts
Gas struts are also attached to the roof of the folded building, assisting with the unfolding process. These gas struts can then be removed once the building has been unfolded.

Delivery Information
The two front panels of the building are delivered unhinged and will need to be hinged. This will require some heavy lifting (recommend at least 3 people to lift the panels).

***Internal dimensions on showroom models and floor plans displayed on our website are subject to minor variations due to updates in manufacturing and structural requirements. Please refer to your factory plans for final internal dimensions. Factory plans can be provided after deposits have been received***

Dimensions

Length: 3.93m | Width: 6.13m | Height: 2.5m

Weight

Approx | 2600kg

Ask a question

View full details

Specifications

General Overview

Entry Door Lockable glass entry door

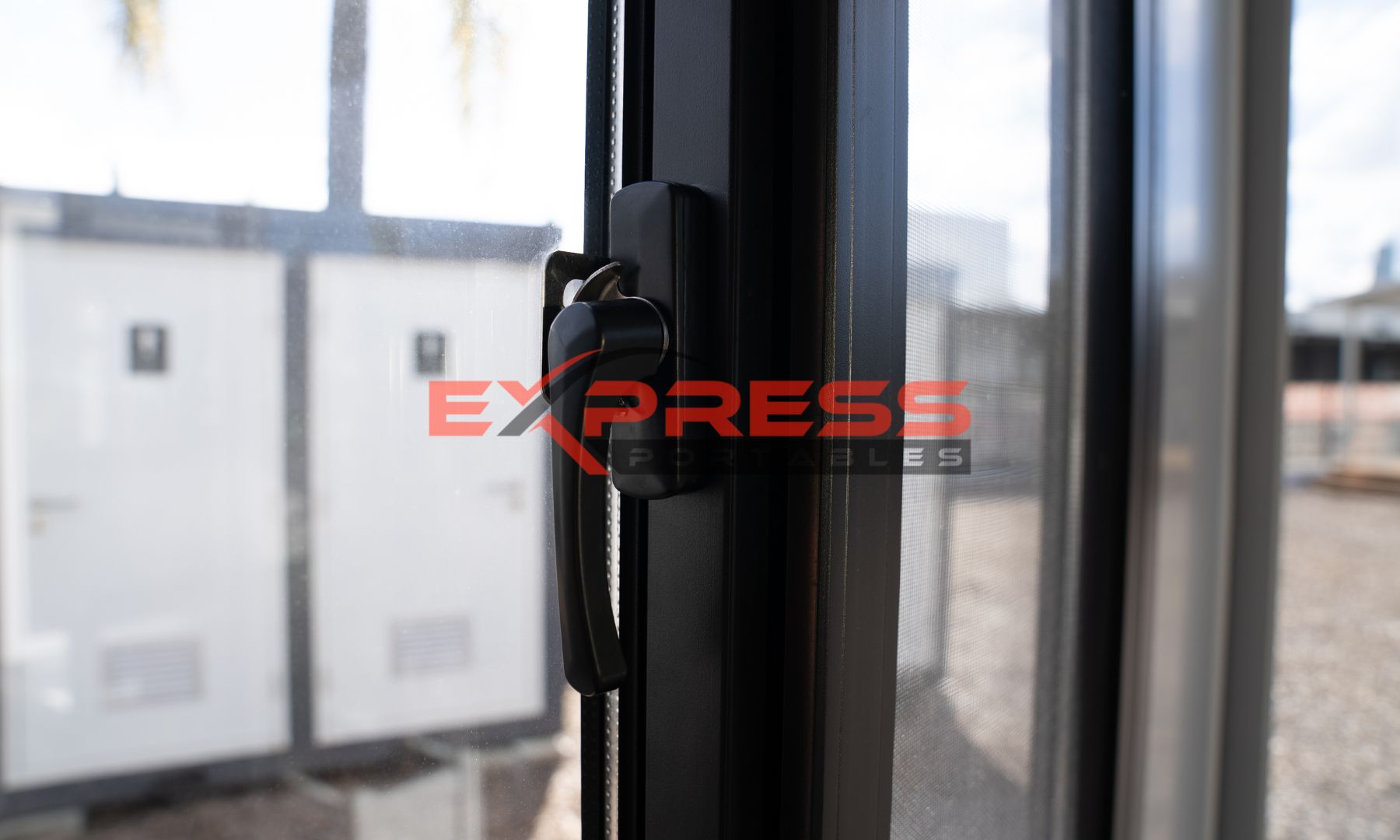

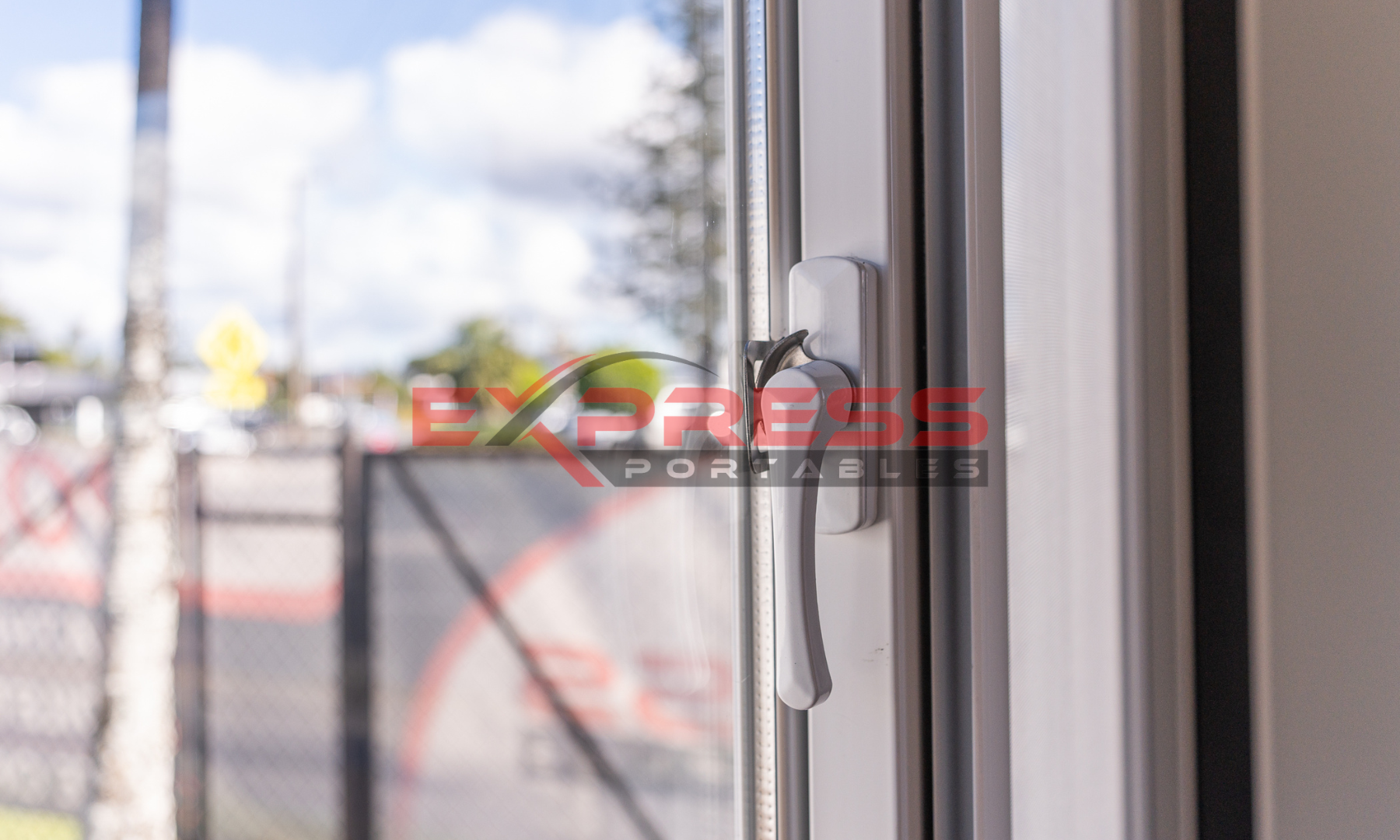

Windows Aluminium double-glazed windows with PVC panes
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Glass-wool insulation, galvanised & painted steel
Walls 50mm EPS panels
Flooring Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and could be conveniently installed in numerous Councils without requiring approval from the council.

Frame

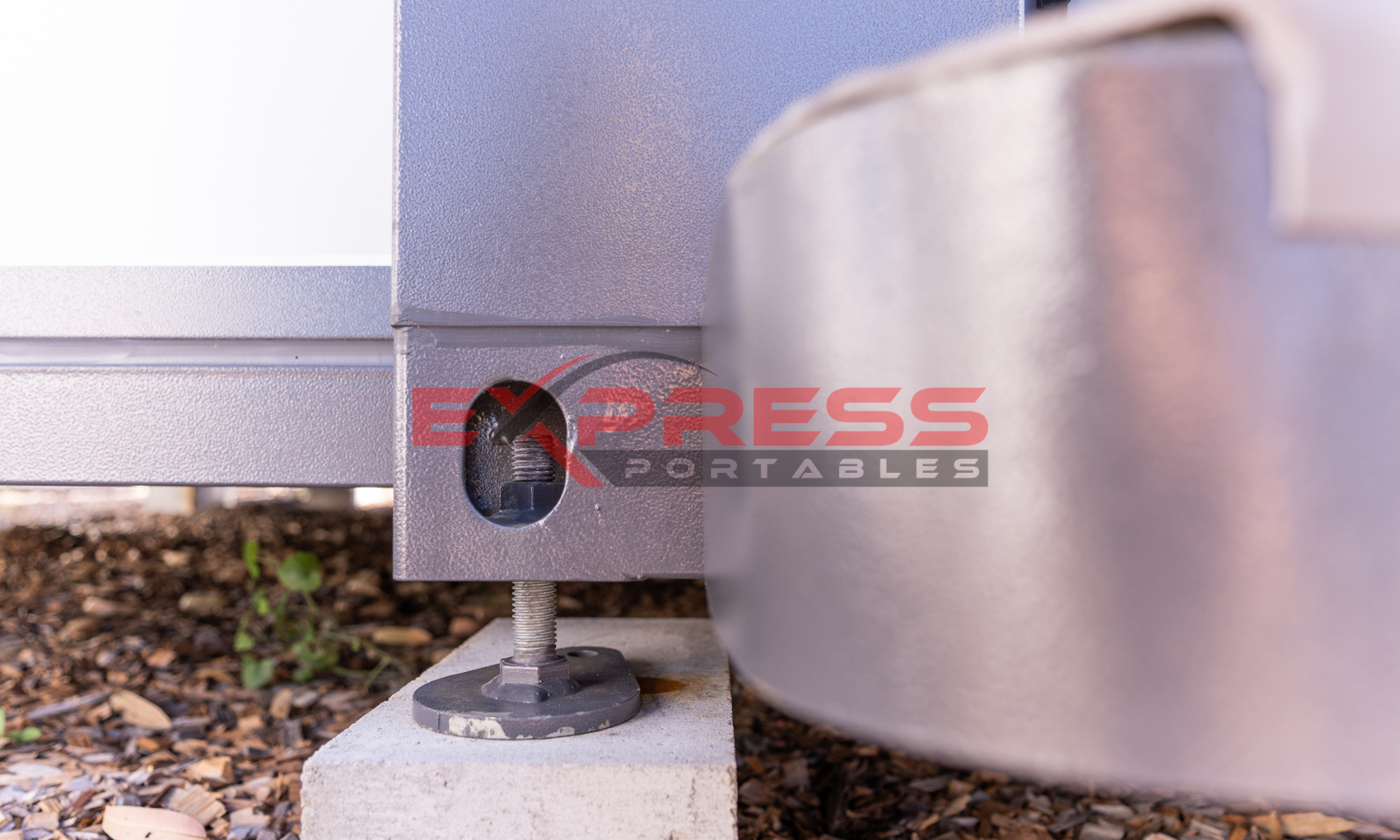

Sub-Floor Steel Chassis 150x100 Rectangular Hollow Section (RHS)
Steel Post 150x150 Square Hollow Section (SHS)
70x50 Rectangular Hollow Section (RHS) 70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist 50x30 Rectangular Hollow Section (RHS)
Casting Corner castings on each corner
Coating Epoxy coated and painted in gloss

Installation

Instructions Unfolding instructions and video provided for the Expander
DIY Express Portable Expanders are customer DIY installations
Footing Plans Footing Plans supplied by Express Portables
Electrical & Plumbing The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work

Transport

Crane Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt- Tray The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer Customer is required to organise a forklift unload or crane unload

Internal Walls

Interior Walls 50mm EPS panel with an off white finish

External Walls

50mm EPS panel walls

Windows

Frames Aluminium framed windows with sliding PVC panes (pre-installed on folding panels)
Glass Double-glazed windows
Type Decorative cottage feature windows

Doors

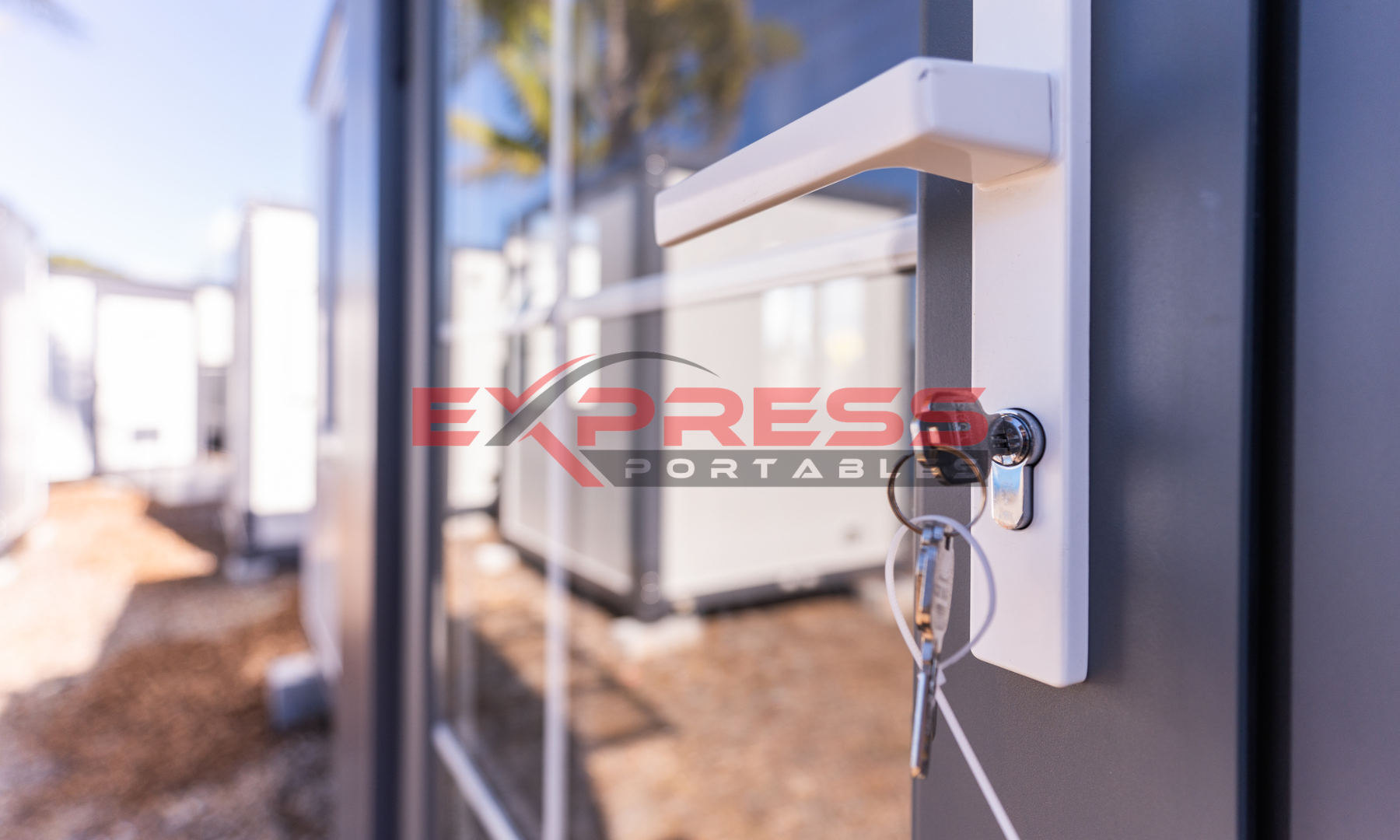

Entry Lockable glass entry door

Roof

Steel Plate Gas struts installed to assist with opening roof
Exterior Panels 50mm EPS panels on outside folding roof panels with a 3mm steel plate over the main body

Flooring

Sub-floor 3mm anti-slip and wear-resistant soft PVC floor and 20mm fireproof board
Top Layer 2mm vinyl timber pattern
Power Points & Lights PowerPoints & lights are supplied or pre-installed
Electrical Plan General electrical plan provided or customer to install their own layout
Switchboard 240v switchboard is installed

Council Compliance

Council Approval Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and could be conveniently installed in numerous Councils without requiring approval from the council.
Certificates Structural engineering and plumbing certificates are not provided with the purchase

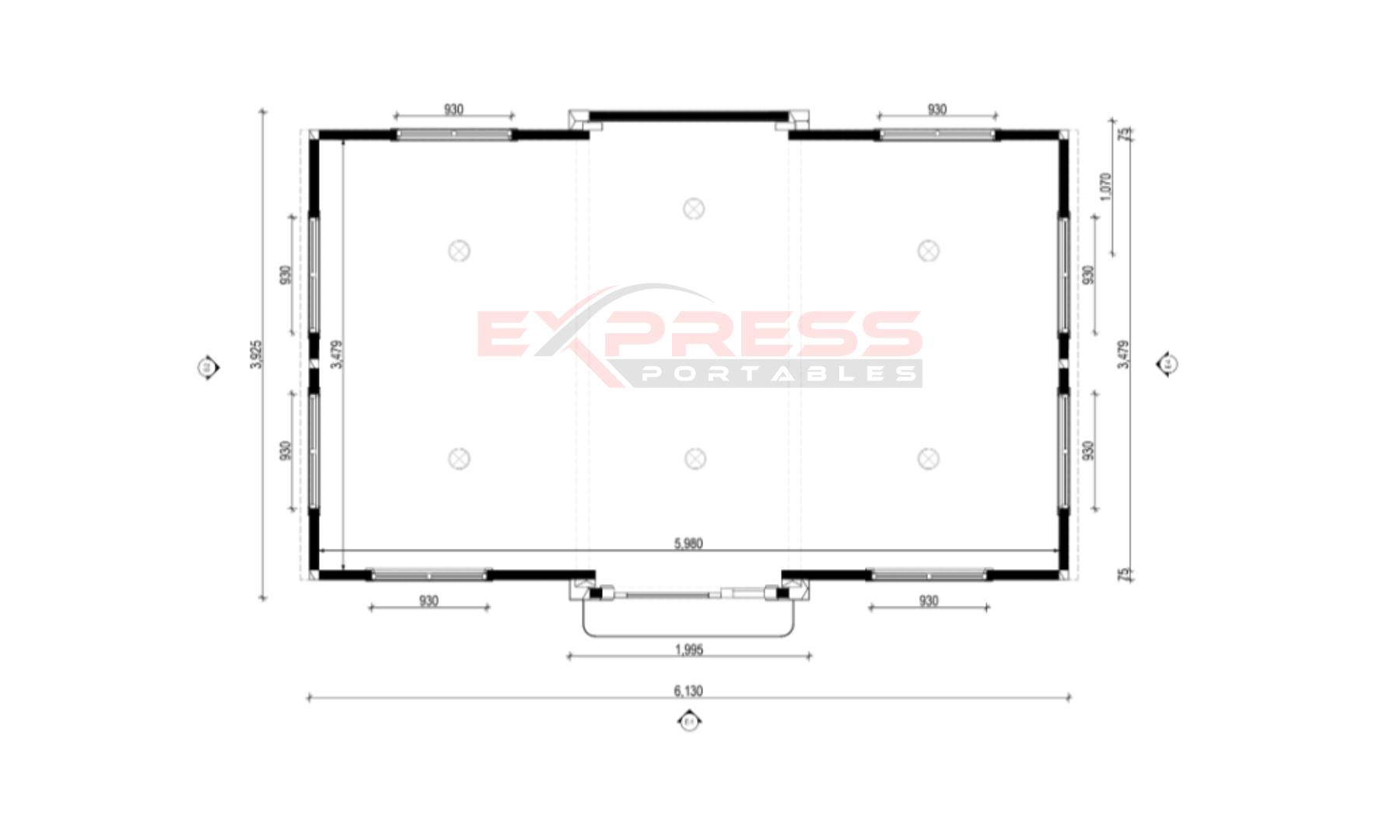

Floor & Electrical Plans
