Floor Plan Options
We provide a selection of up to 15 distinct floor plans tailored for our 20ft container homes, including a range of layouts to accommodate various preferences and lifestyles. From open-plan to 4-bedroom options.
Regular price
$31,500.00
Regular price
$34,500.00 AUD
Sale price
$31,500.00
Unit price
per
$31,500.00
(Incl. GST)
Buy Now, Pay Later with
Learn more
Learn more
Description
Description
Featuring a steel frame helping ensure the structural integrity of the building. The walls are made from 75mm EPS sandwich panels and the roof uses 50mm EPS panels, ensuring both sturdiness and thermal efficiency. Inside, the expandable home is adorned with resilient doors framed in aluminium and windows boasting double-glazed tempered glass for enhanced durability. Adding a touch of style are ceiling and floor skirting board trim, along with corner trim and capping.

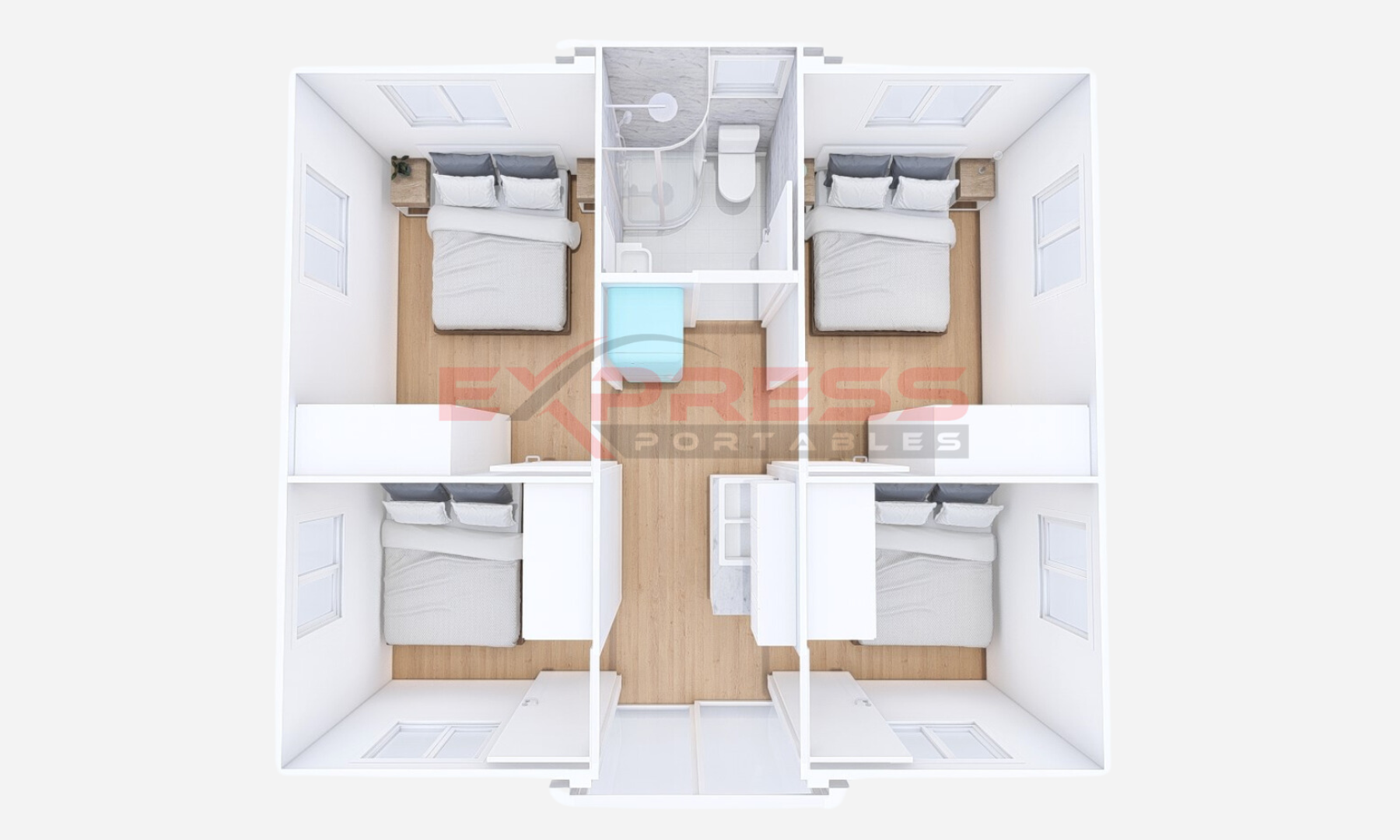

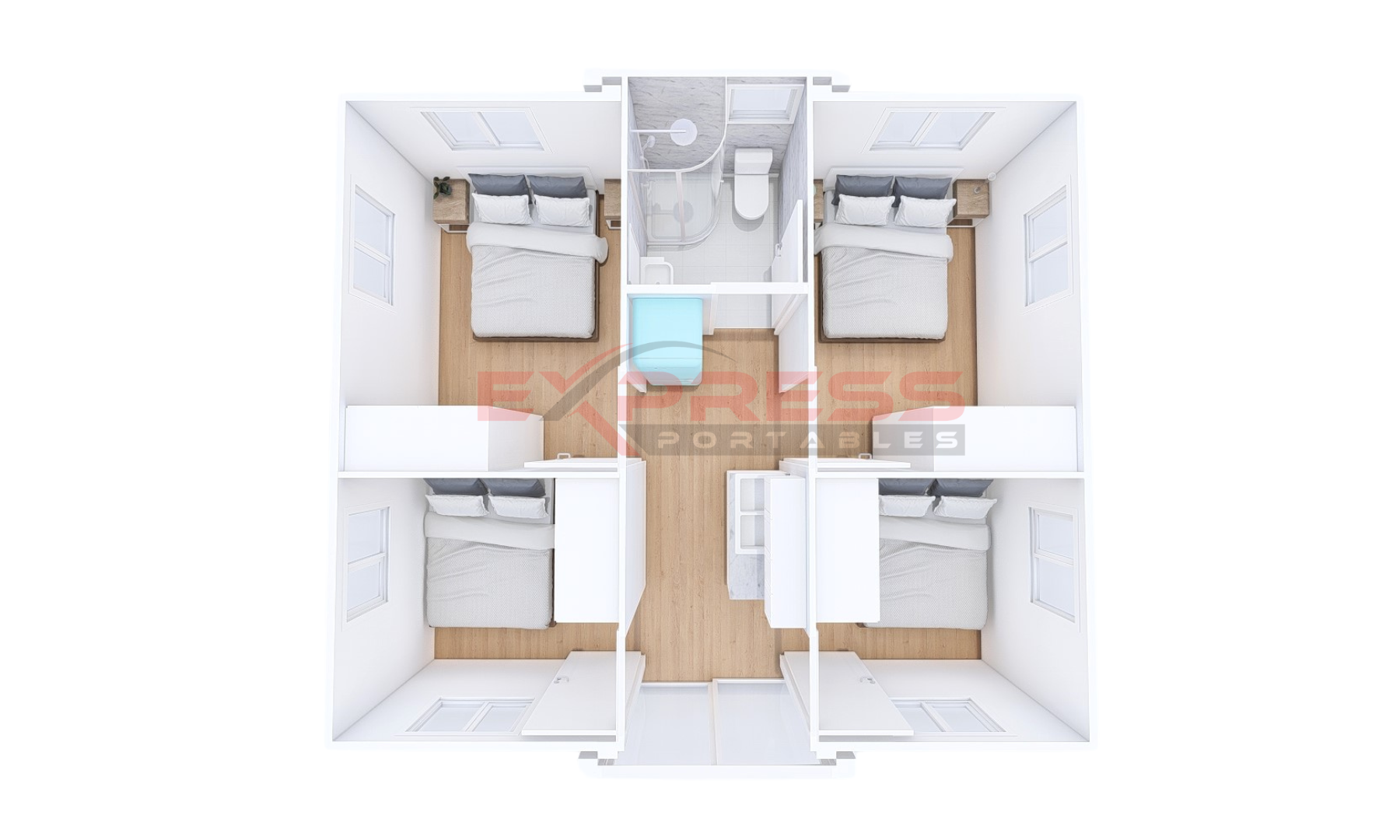

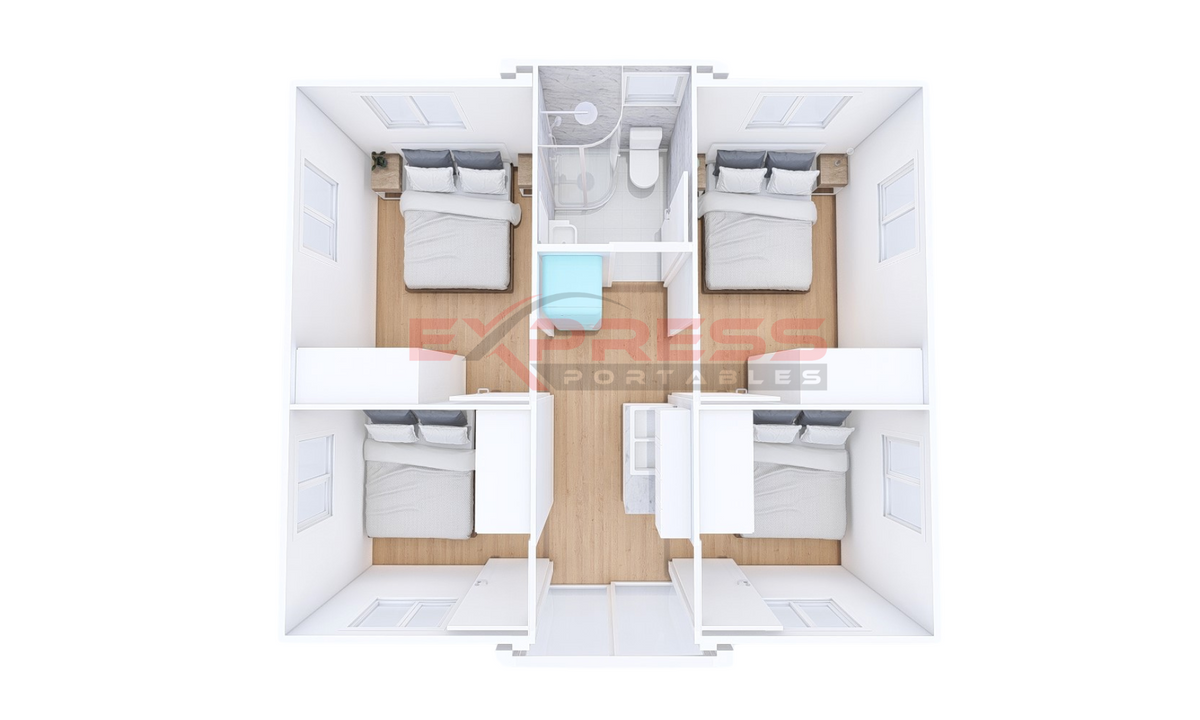

Internally, the floor is built on an 18mm fibre cement subfloor board base, pre-fitted onto a sturdy steel frame, and finished with a sleek polyvinyl chloride (PVC) layer. The interior layout has four bedrooms in the corners of the relocatable home with the the kitchen and bathroom positioned in the middle of the building.
The building arrives pre-plumbed and pre-wired, necessitating the expertise of a qualified electrician and plumber for secure connection and plumbing upon delivery.
Please Note: Furniture and robes are not supplied with the building.

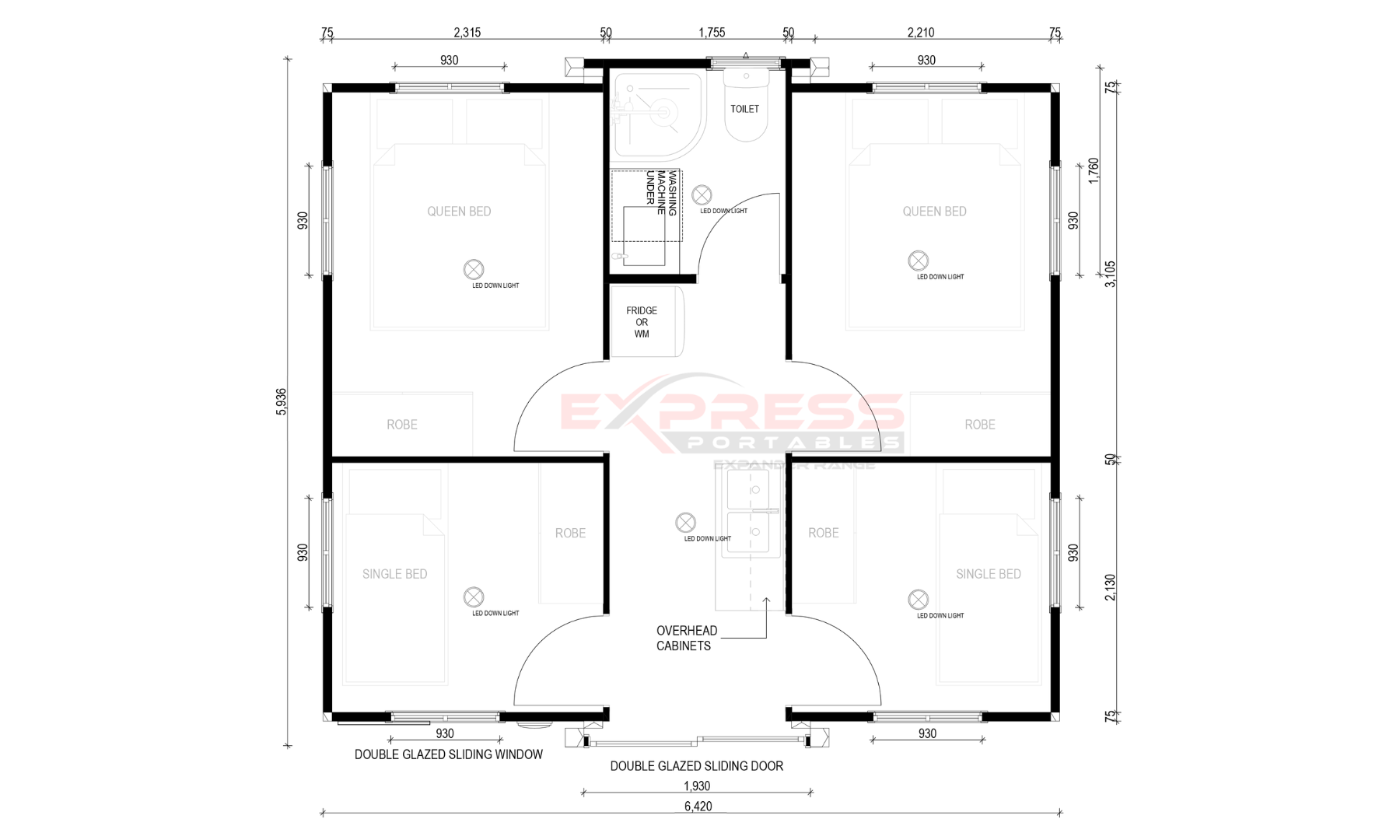

Dimensions
Dimensions
Weight
Weight
Ask a question
Ask a question
Key Features
Modern Kitchen
Complete with a marble look laminate benchtop, stainless steel sink, and taps. Enjoy the seamless blend of style and functionality with soft-closing cabinets throughout.

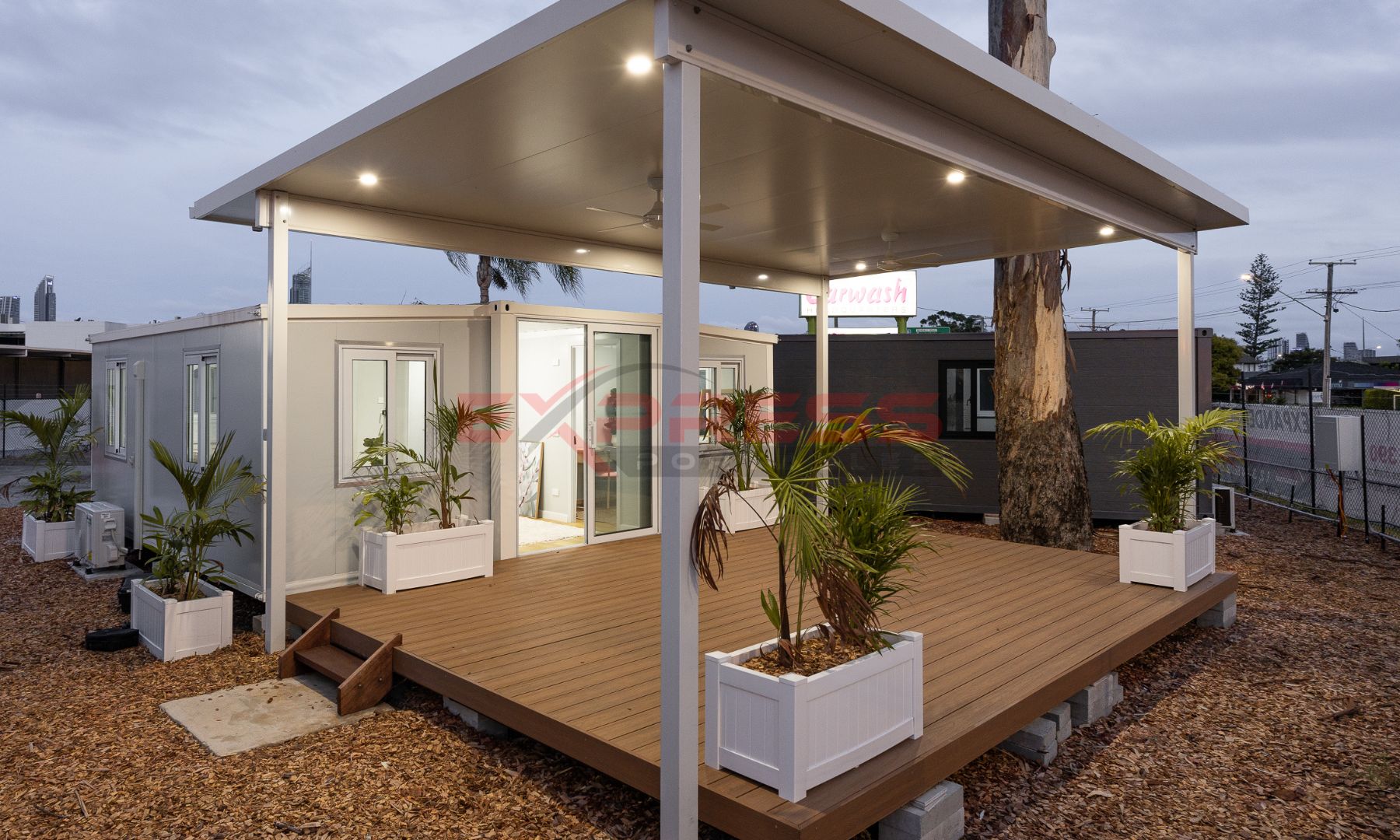

Decking & Patio
The Ekodeck composite decking is built on a solid base of 140x45 MGP10 H3 subfloor framing, with a waterproof membrane ensuring structural integrity and longevity. Please note this is not included with the product.
Optional Extras
Optional extras available for purchase include: air conditioning, hot water systems and decking & patio options. Enhance your living experience today.
Specifications
General
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS wall panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and could be conveniently installed in numerous Councils without requiring approval from the council.
External Walls
With Cladding
60mm EPS panel walls & 15mm cladding
No Cladding
75mm EPS panel walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed sliding windows
Flyscreens
All windows come with flyscreens
Doors
Entry
Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
General
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
Glass-wool insulation, galvanised & painted steel
Walls
75mm EPS wall panels
Floor
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and could be conveniently installed in numerous Councils without requiring approval from the council.
Frame
Sub-floor Steel Chassis
150x100 Rectangular Hollow Section (RHS)
Steel Post
150x150 Square Hollow Section (SHS)
Steel Floor Bearer
70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist
50x30 Rectangular Hollow Section (RHS)
Casting
Corner castings on each corner
Coating
Epoxy coated and painted in gloss
Bathroom
Flooring
Grey floor tiles
Shower
Full room width shower on acrylic shower base with a rain maker shower head
Shower Door
Toughened glass sliding door
Toilet
S-trap toilet with soft closing lid
Vanity
Vanity with porcelain sink, chrome flick mixers
Cabinets
Soft closing kitchen cabinets and overhead cabinets
Wall
Marble look wall PVC wall lining
Installation
Instructions
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations
Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Interior Walls
50mm EPS panel with an off white finish
External Walls
With Cladding
60mm EPS panel walls & 15mm cladding
No Cladding
75mm EPS panel walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed sliding windows
Flyscreens
All windows come with flyscreens
Doors
Entry
Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
Roof
Steel Plate
3mm steel plate over the main body
Exterior Panels
50mm EPS panels on outside folding roof panels
Flooring
Sub-floor
Sub-floor - Magnesium concrete composite board – water, rot and insect resistant
Top Layer
2mm vinyl timber pattern
Skirting
PVC cornice and skirting
Floor Trims
Powdercoated internal corner trims
Kitchen
Plan
Kitchen plan provided
Sink
Double bowl stainless sink with flick mixer
Benchtop
Marble look laminate benchtop
Provisional Space
Provisional space for a fridge (650mm)

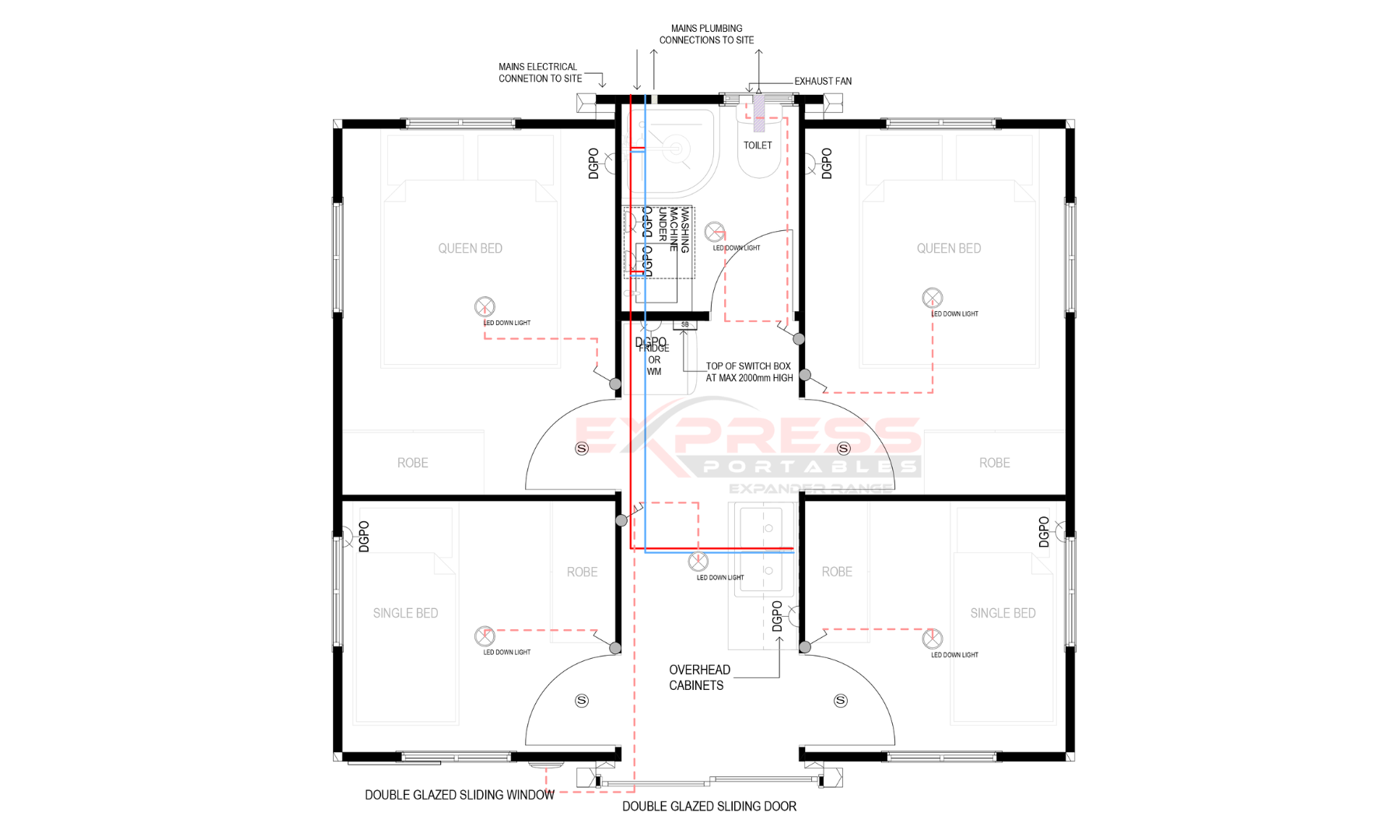

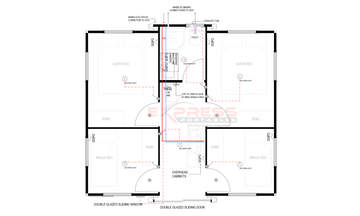

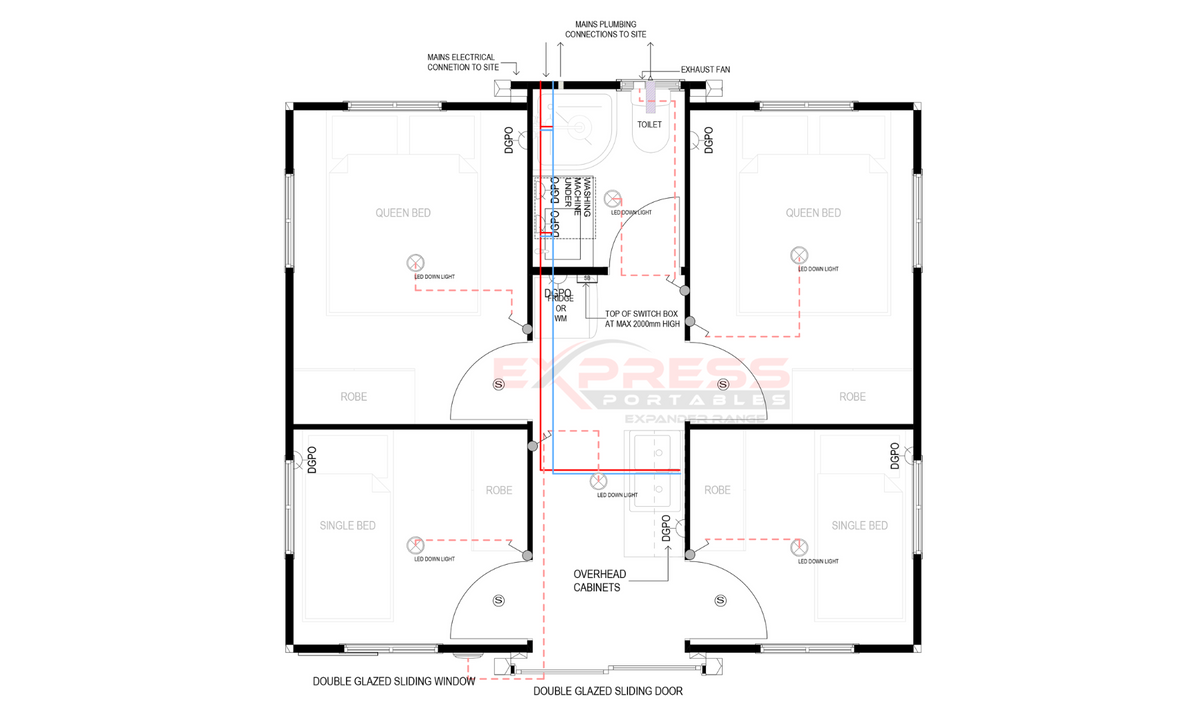

Electrical
Power
All electrical points are prewired inside walls. Fit off of electrical points required after opening and installing, Aerial point provided for TV. Mains supply located at rear of expander
Lighting
All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building. LED oyster lights supplied
Smoke Alarm
Smoke alarm hardwired back to switchboard per habitable room (customer must install)
Plumbing
Water
Water connection located on the exterior rear wall
Waste
Kitchen sink and mixer is to be connected when building is installed (access required under floor in sink area)
Sink & Mixer
Kitchen sink and mixer is to be connected when building is installed
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and could be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
