Name: 6m Cabin with Kitchenette
Brand: Express Portables
SKU: CAB06002
Price: 23100.0 AUD
Availability: InStock
Rating: 4.5 (100 reviews)

Steel Frame

Featuring a steel frame ensuring structural integrity and stability. Engineered to withstand harsh weather conditions and the rigors of transportation, the steel frame provides a secure foundation for the entire structure.

Mini Kitchenette

The utility includes a mini kitchenette with a sink and cabinets. Featuring a smooth 20mm quartz counter (0% Silica) with a stainless steel sink and chrome fittings. It also comes with provisional space for a fridge and dishwasher.

Non-Migratory Cables

Pre-wired electrical system using non-migratory sheathed cabling for durability and safety. Specialised purple sheathing prevents chemical reactions with insulated panels, avoiding premature deterioration, while reducing the risk of hazardous fumes or flame spread. All our electrical parts are registered with the Electrical Equipment Safety Scheme (EESS).

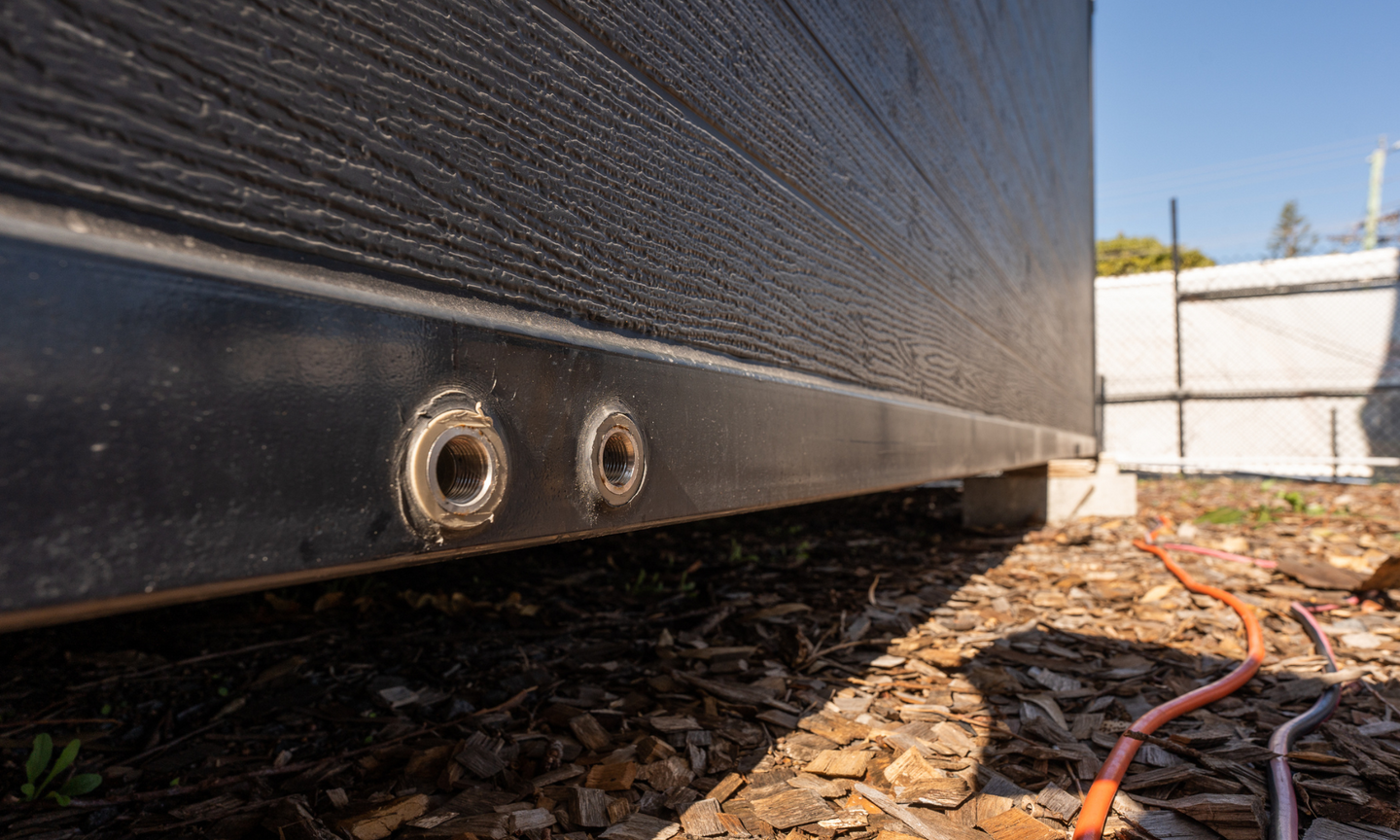

Pre-Plumbed

The building comes pre-plumbed with the toilet and vanity waste plumbed through the side of the building, along with the inlets. The shower and kitchen waste is plumbed underneath the building meaning that the building will need to be elevated (approx. 500mm) in order to allow access for plumbing.

LED Downlights

LED downlights are a stylish and energy-efficient lighting solution, designed to brighten your space while helping you save on energy costs. With their sleek, modern design, LED downlights offer a clean and unobtrusive look that complements any décor.

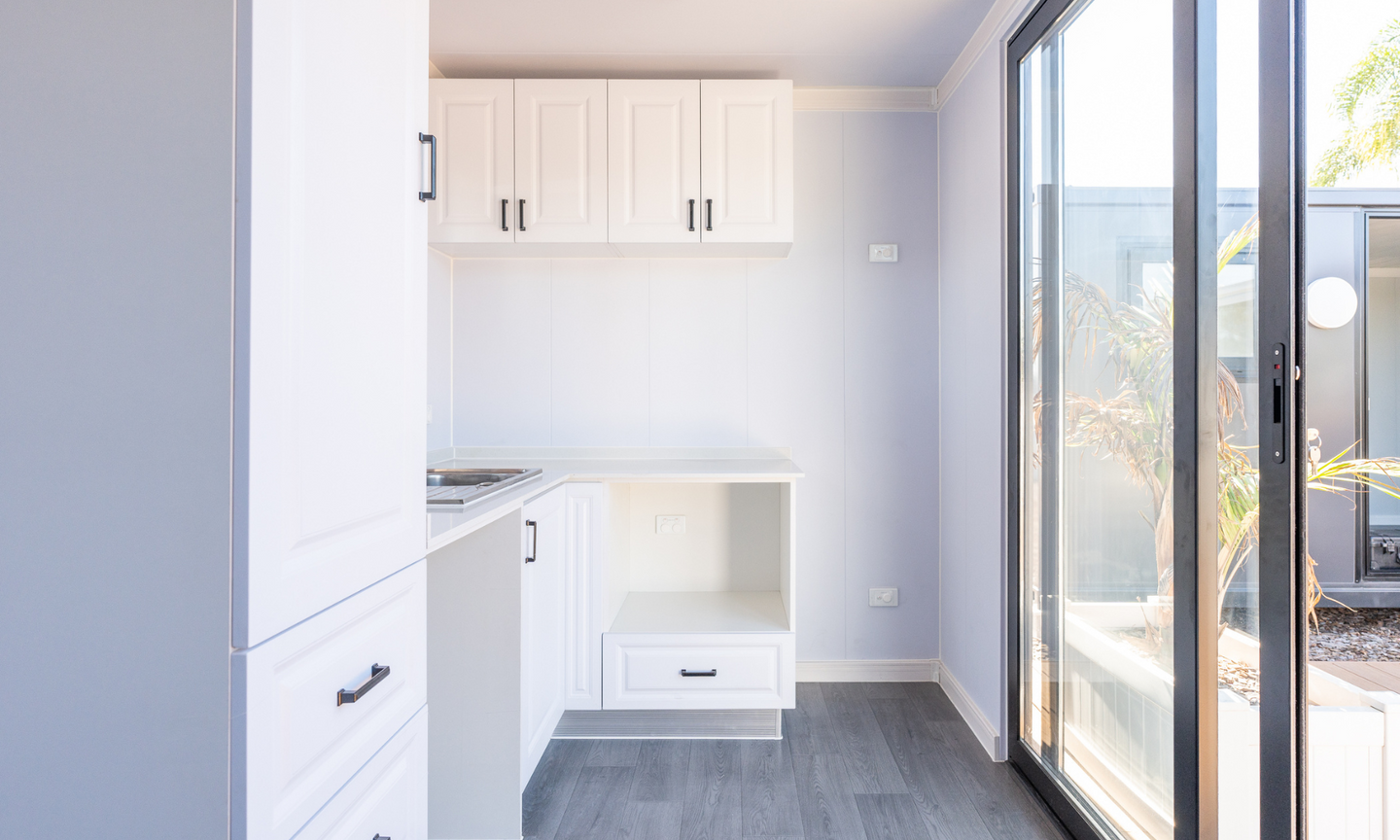

2.4m Internal Ceiling

The 2.4m internal ceiling height is thoughtfully designed to provide optimal space, enhancing the sense of openness and comfort within the cabin. This taller ceiling height creates a comfortable living experience while adding a modern and expansive feel to the cabin’s design.

Specifications

General Overview

Entry Door Glass entry sliding door

Windows Double-glazed awning window

Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.

Frame Structural steel frame with steel floor joists

Roof Glass-wool insulation, galvanised & painted steel

Wall 75mm EPS panels

Floor Water & insect resistant magnesium concrete composite

Lighting LED oyster lights supplied

Council Compliance Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Bathroom

Flooring 18mm Magnesium subfloor concrete composite – water, rot and insect resistant

Installation

Instructions Instructions provided

DIY The Cabin is a customer DIY installation, Express Portables will supply only

Footing Plans Footing Plans supplied by Express Portables. Level site prepared and/or footings prepared by customer

Electrical & Plumbing The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work

Transport

Crane Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload

Tilt-Tray The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away

Rigid/Semi-Trailer Customer is required to organise a forklift unload or crane unload

Walls

Cladding 60mm EPS Panel Walls & 15mm Cladding

No Cladding 75mm EPS Panel Wall

Windows

Frames Aluminium frames

Type Double-glazed awning window

Flyscreens Flyscreens on windows.

Doors

Entry Glass entry sliding door

Flooring

Sub-Floor 18mm Magnesium subfloor concrete composite – water, rot and insect resistant.

Top Layer 2mm vinyl timber pattern - Grey or Brown

Skirting PVC cornice and skirting

Kitchenette

Cabinetry Soft-closing kitchen cabinets and overhead cabinets

Sink Double bowl stainless sink with flick mixer

Benchtop Engineered stone with zero silica (test certificate supplied)

Electrical

Power Mains electrical cable terminated on rear wall ready for connection to site

Lighting LED downlights pre-installed and wired

Smoke Alarm Smoke alarm hardwired back to switchboard (customer to install)

Plumbing

Water Hot and cold water water lines preinstalled, connections through wall

Waste Waste pre-plumbed (kitchenette sink), connection through wall

Council Compliance

Council Approval Please note that the cabin does not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Certificates Structural engineering and plumbing certificates are not provided with the purchase

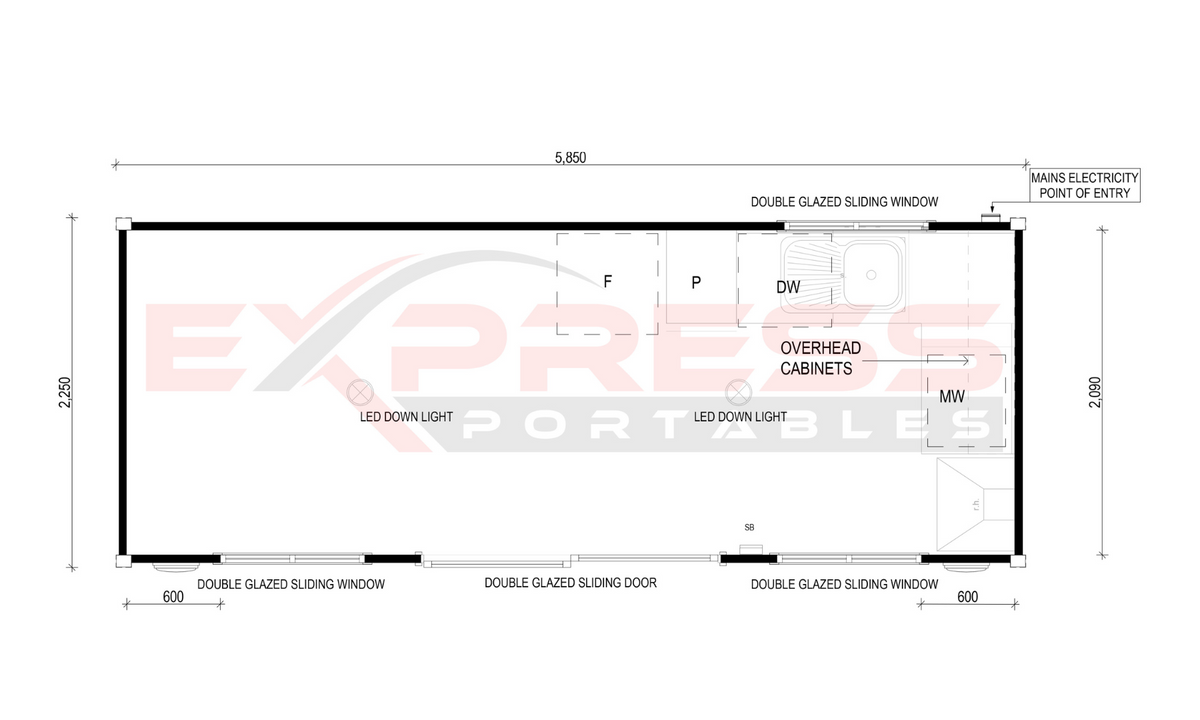

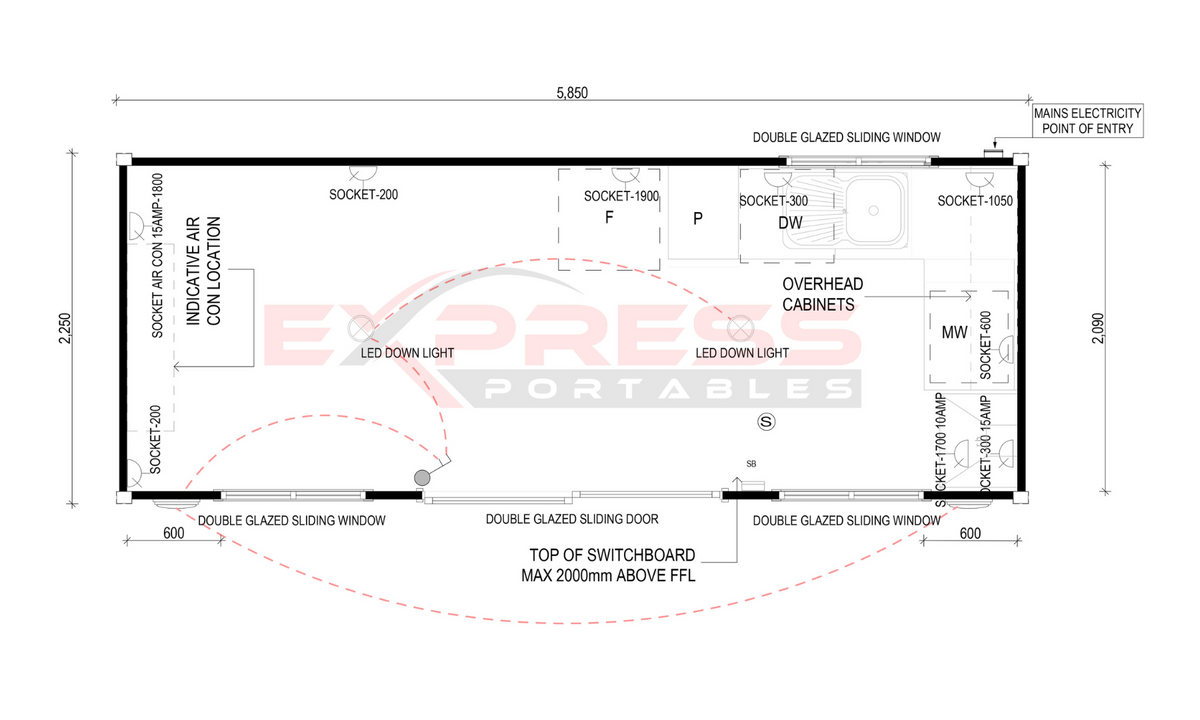

Floor & Electrical Plans

Claddings

6m Cabin with Kitchenette
