Premium 20ft 3 Bed Type A Expander Home

Premium 20ft 3 Bed Type A Expander Home

Regular price $34,500.00
Regular price
$34,500.00 (Incl. GST)
Sale price $34,500.00
(Incl. GST) Sale Sold out
Buy Now, Pay Later with Learn more
Colour
Kitchen
A three bedroom relocatable home that unfolds to an expansive 36m². Delivered prefabricated and ready to be unfolded and installed.

Description

Built on a strong foundation, the steel frame ensures lasting structural integrity for the two-bedroom relocatable home. Walls and ceilings use 75mm EPS galvanized steel sandwich panels for a sturdy and thermally efficient enclosure. Inside, durable doors with aluminium frames and windows with double-glazed tempered glass enhance the expandable home. Stylish touches include ceiling and floor skirting board trim, along with corner trim and capping.

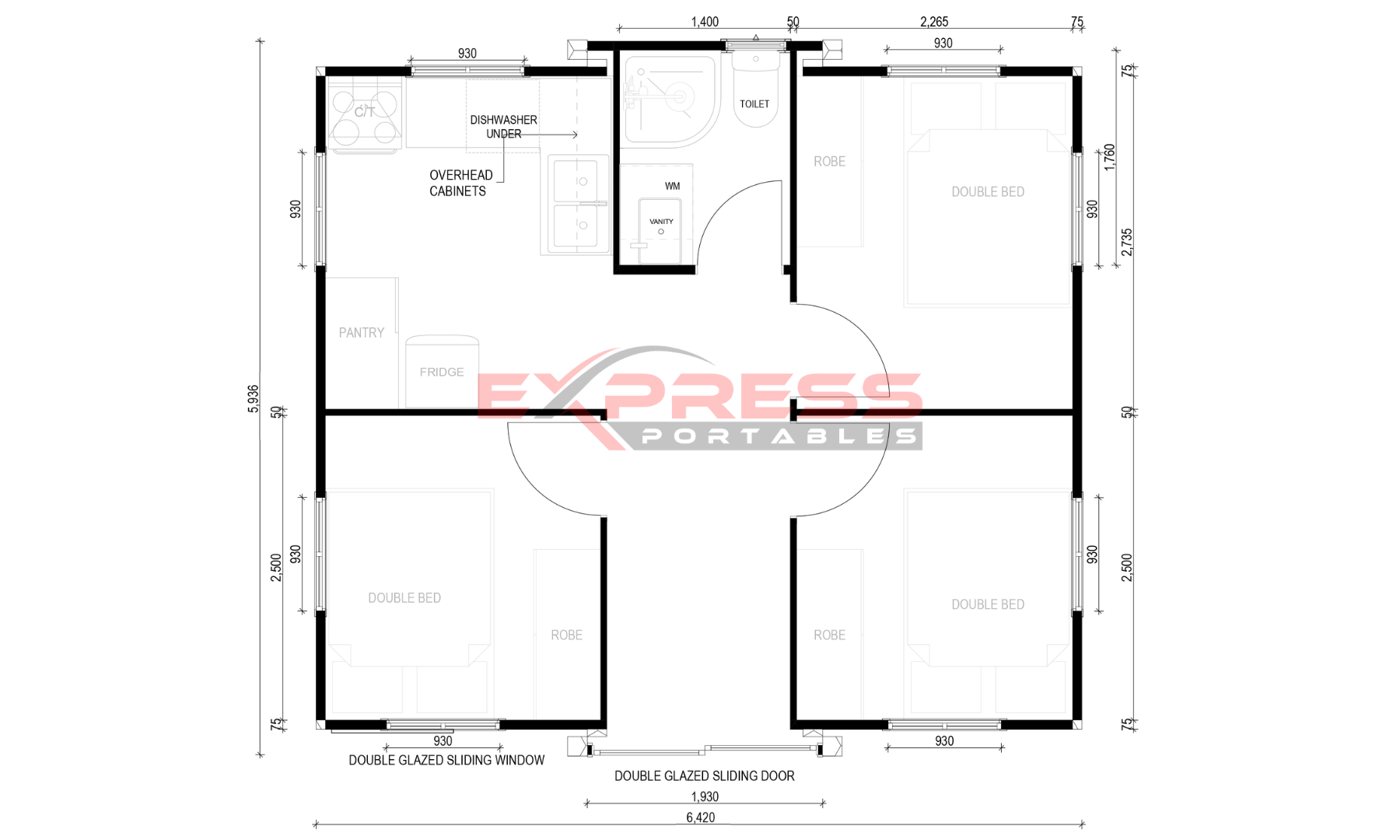

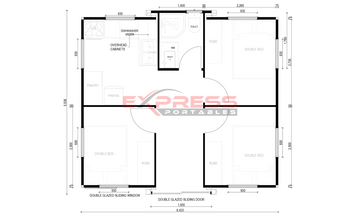

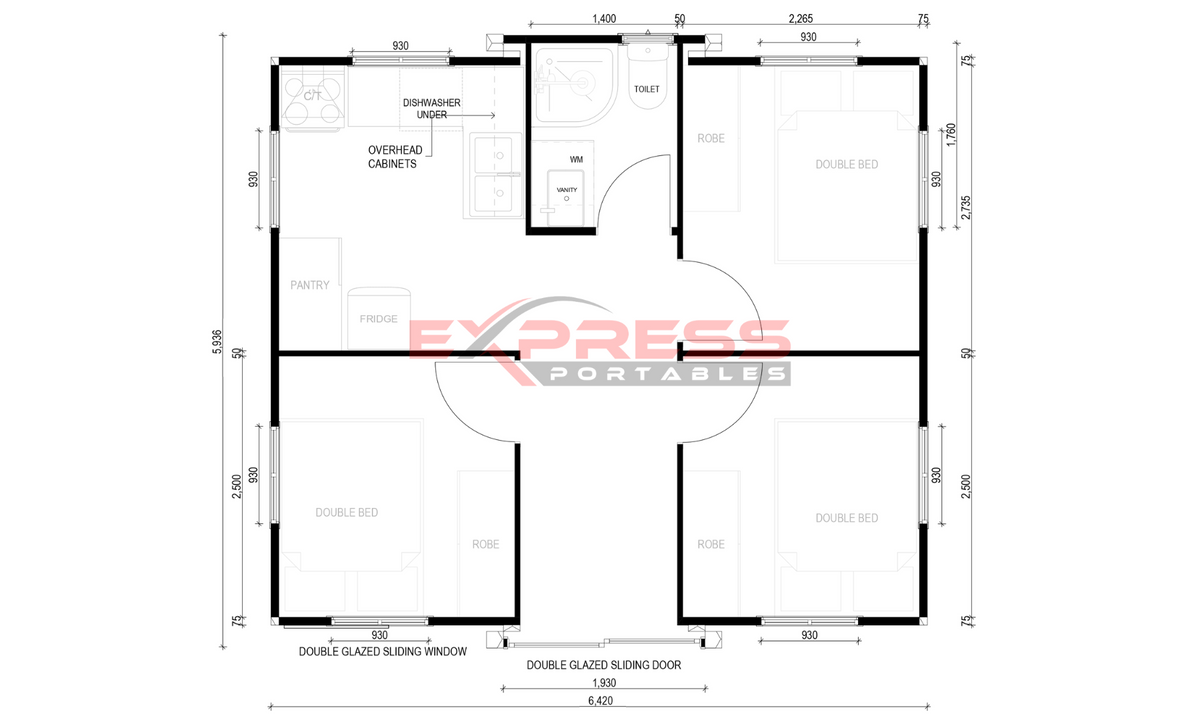

Internally, the floor comprises an 18mm fibre cement subfloor board base, pre-fitted onto a sturdy steel frame and finished with a sleek polyvinyl chloride (PVC) layer. Notably, this floor plan sacrifices a living room or dinning area. However, we do have a slightly different floor plan with a dinning or living room area with our 20ft Expandable Home - 3 Bedroom - Type B

The building comes pre-plumbed and pre-wired, requiring a qualified electrician and plumber for secure connection and plumbing upon delivery.

The internal floor to ceiling height is 2.4m.

Please Note: Gas struts are also attached to the roof of the folded building, assisting with the unfolding process. These gas struts can then be removed once the building has been unfolded.

The building must be installed a minimum 500mm above ground allowing enough access for a plumber to connect fittings.

Dimensions

External: Length: 5.85m | Width: 6.3m | Height: 2.53m
Internal: Length: 5.85m | Width:6.3m | Height: 2.26m

Weight

Approx | 4000kg

Ask a question

View full details

Key Features

Floor Plan Options

We provide a selection of up to 15 distinct floor plans tailored for our 20ft mobile homes, including a range of layouts to accommodate various preferences and lifestyles. From open-plan to 4-bedroom options.

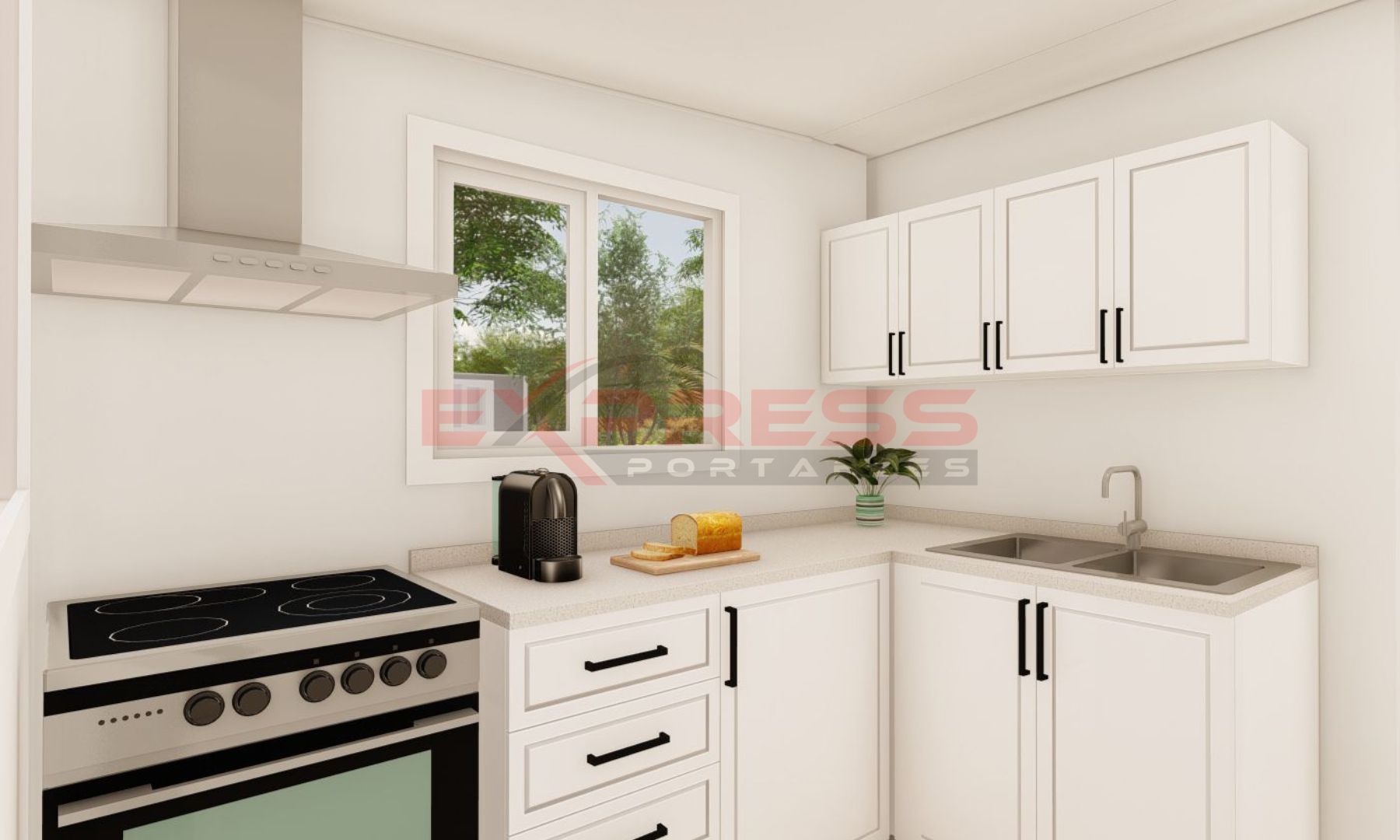

Modern Kitchen

Complete with a marble look laminate benchtop, stainless steel sink, and taps. Enjoy the seamless blend of style and functionality with soft-closing cabinets throughout.

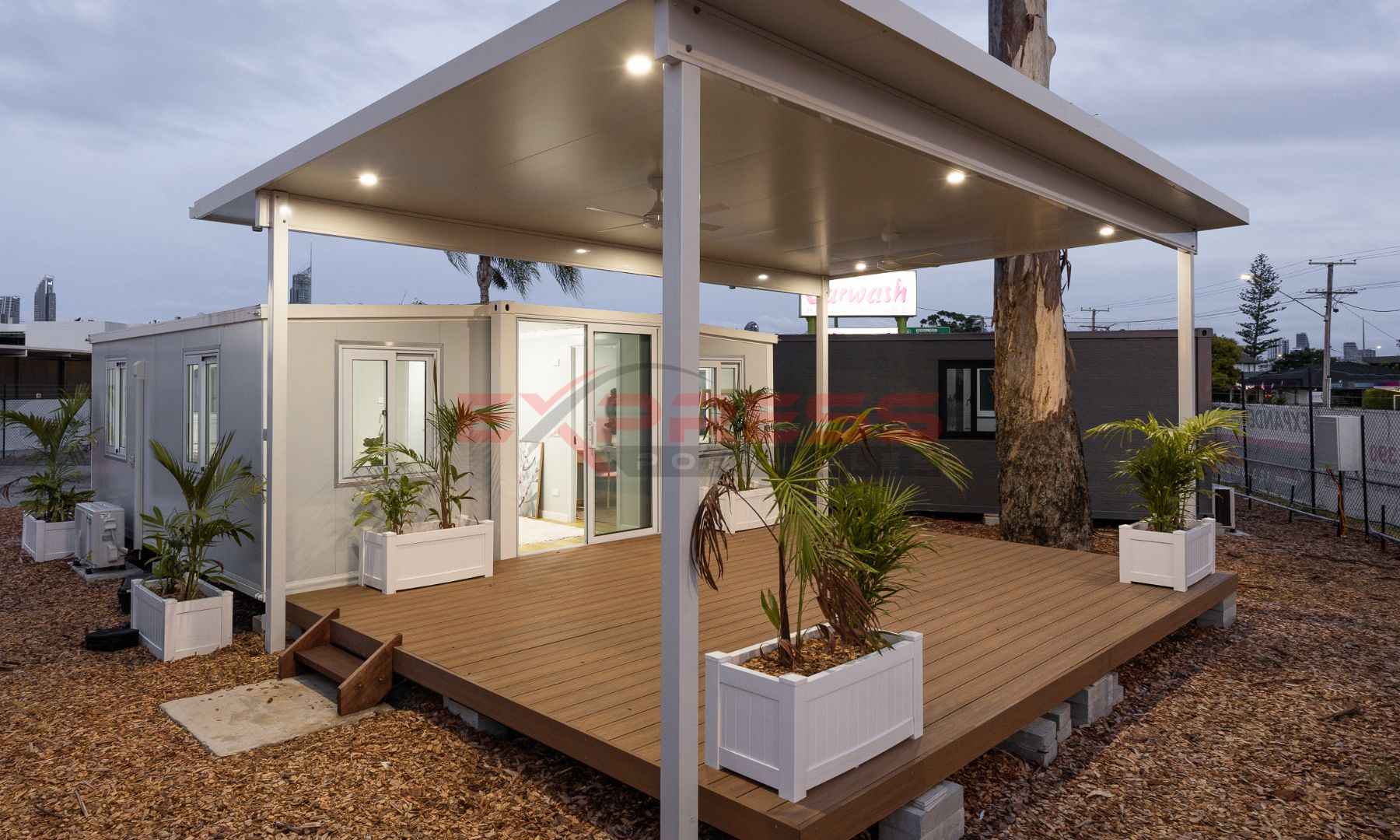

Decking & Patio

The Ekodeck composite decking is built on a solid base of 140x45 MGP10 H3 subfloor framing, with a waterproof membrane ensuring structural integrity and longevity. Please note this is not included with the product.

Optional Extras

Optional extras available for purchase include: air conditioning, hot water systems and decking & patio options. Enhance your living experience today.

Specifications

General Overview

Entry Door Sliding glass and lockable aluminium entry door
Windows Aluminium double-glazed windows with fly screens
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Glass-wool insulation, galvanised & painted steel
Walls 75mm EPS wall panels
Floor Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA).

Exterior Walls

With Cladding 60mm EPS panel walls & 15mm cladding
No Cladding 75mm EPS panel walls

Windows

Frames Aluminium framed windows
Type Double-glazed sliding windows
Flyscreens All windows come with flyscreens

Doors

Entry Sliding glass and lockable aluminium entry door
Bathroom Privacy glass bathroom door

General Overview

Entry Door Sliding glass and lockable aluminium entry door
Windows Aluminium double-glazed windows with fly screens
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Glass-wool insulation, galvanised & painted steel
Walls 75mm EPS wall panels
Floor Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA).

Frame

Sub-floor Steel - Chassis 150x100 Rectangular Hollow Section (RHS)
Steel Post 150x150 Square Hollow Section (SHS)
Steel Floor Bearer 70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist 50x30 Rectangular Hollow Section (RHS)
Casting Corner castings on each corner
Coating Epoxy coated and painted in gloss

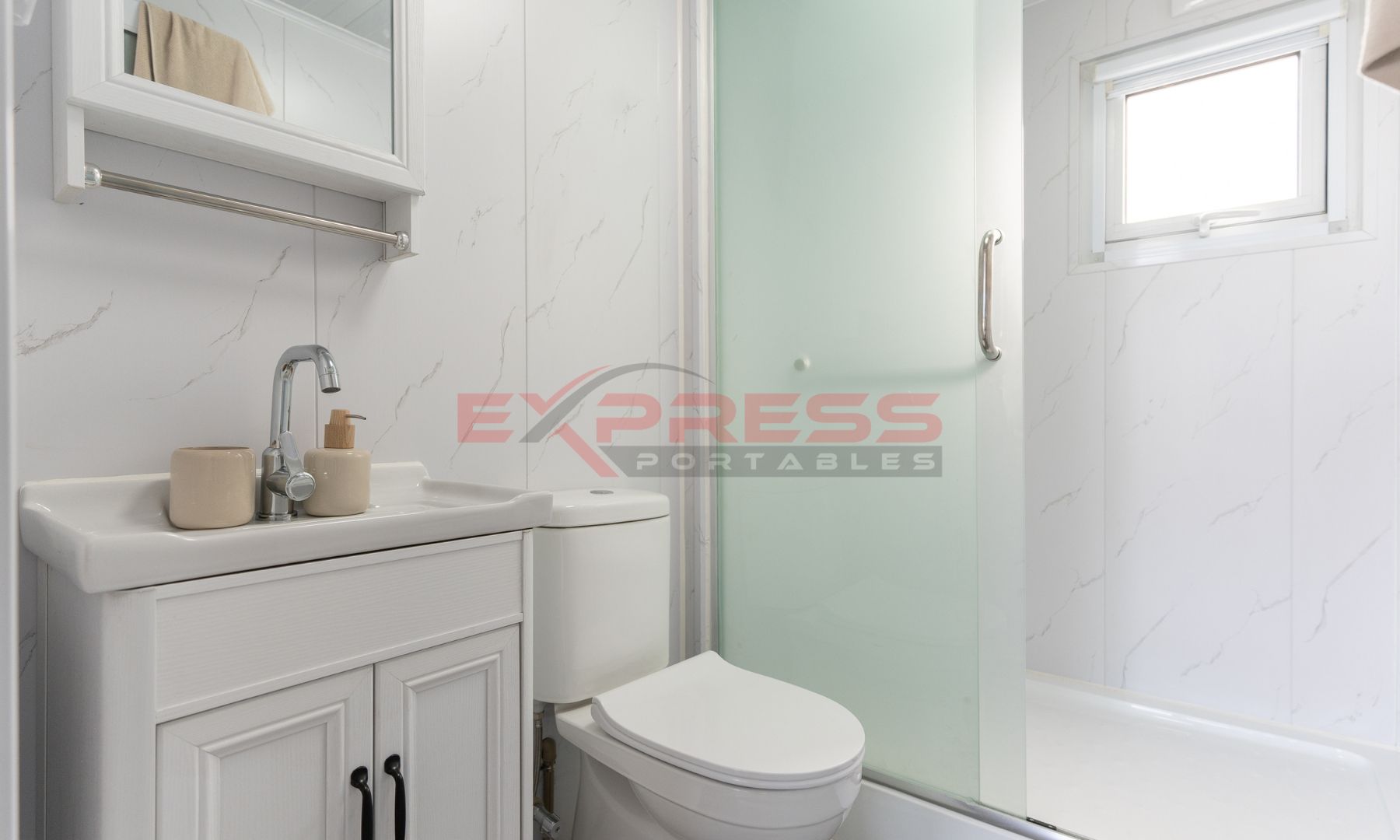

Bathroom

Flooring Grey floor tiles
Shower Full room width shower on acrylic shower base with a rain maker shower head
Shower Door Toughened glass sliding door
Toilet S-trap toilet with soft closing lid
Vanity Vanity with porcelain sink, chrome flick mixers
Cabinets Soft closing kitchen cabinets and overhead cabinets
Wall Marble look wall PVC wall lining

Installation

Instructions Unfolding instructions and video provided for the Expander
DIY Express Portable Expanders are customer DIY installations
Footing Plans Footing Plans supplied by Express Portables
Electrical & Plumbing The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work

Transport

Crane Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt Tray The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer Customer is required to organise a forklift unload or crane unload

Internal Walls

Interior Walls 50mm EPS panel with an off white finish

Exterior Walls

With Cladding 60mm EPS panel walls & 15mm cladding
No Cladding 75mm EPS panel walls

Windows

Frames Aluminium framed windows
Type Double-glazed sliding windows
Flyscreens All windows come with flyscreens

Doors

Entry Sliding glass and lockable aluminium entry door
Bathroom Privacy glass bathroom door

Roof

Steel Plate 3mm steel plate over the main body
Exterior Panels 50mm EPS panels on outside folding roof panels

Flooring

Sub-floor Sub-floor - Magnesium concrete composite board – water, rot and insect resistant
Top Layer 2mm vinyl timber pattern
Skirting PVC cornice and skirting
Floor Trims Powdercoated internal corner trims

Kitchen

Plan Kitchen plan provided

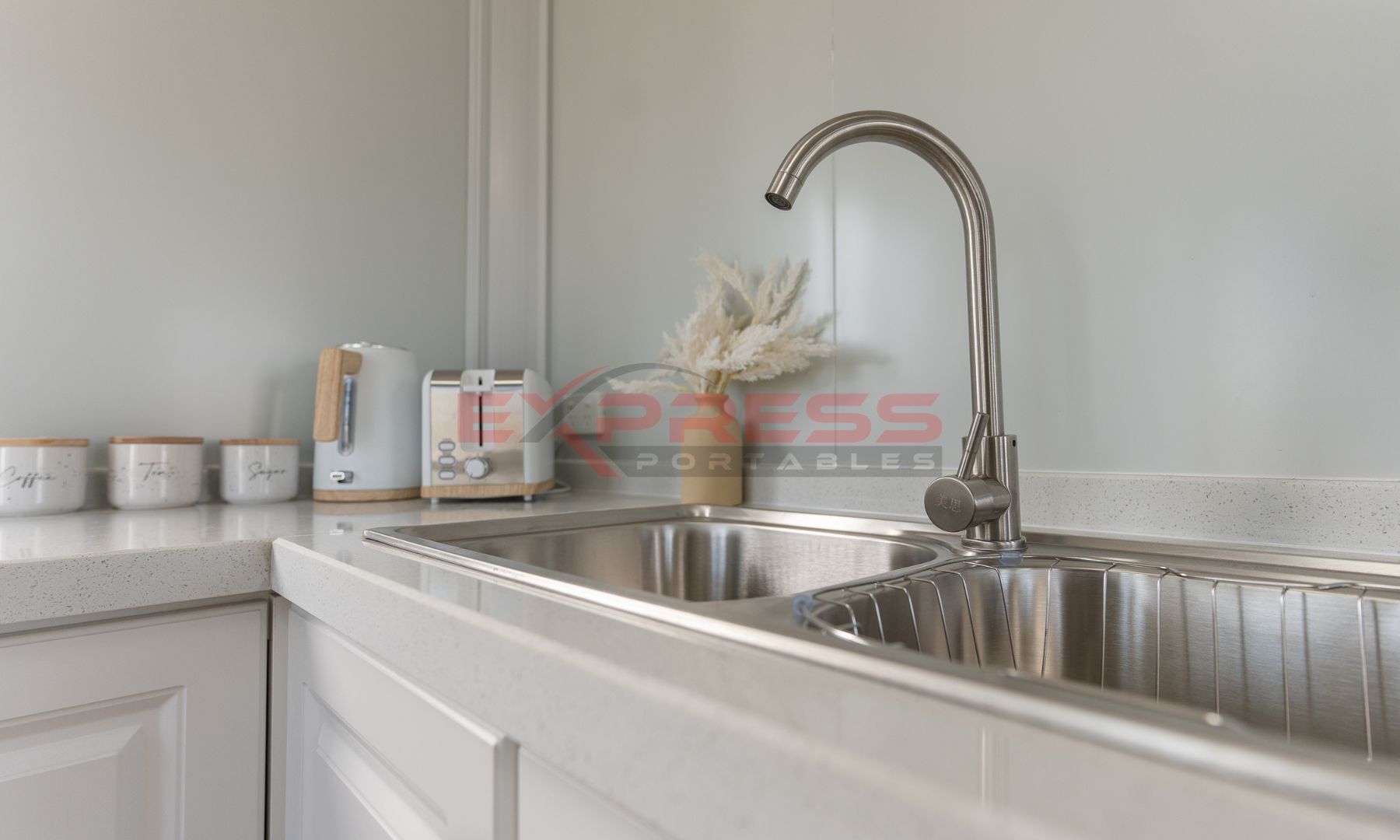

Sink Double bowl stainless sink with flick mixer
Benchtop Marble look laminate benchtop

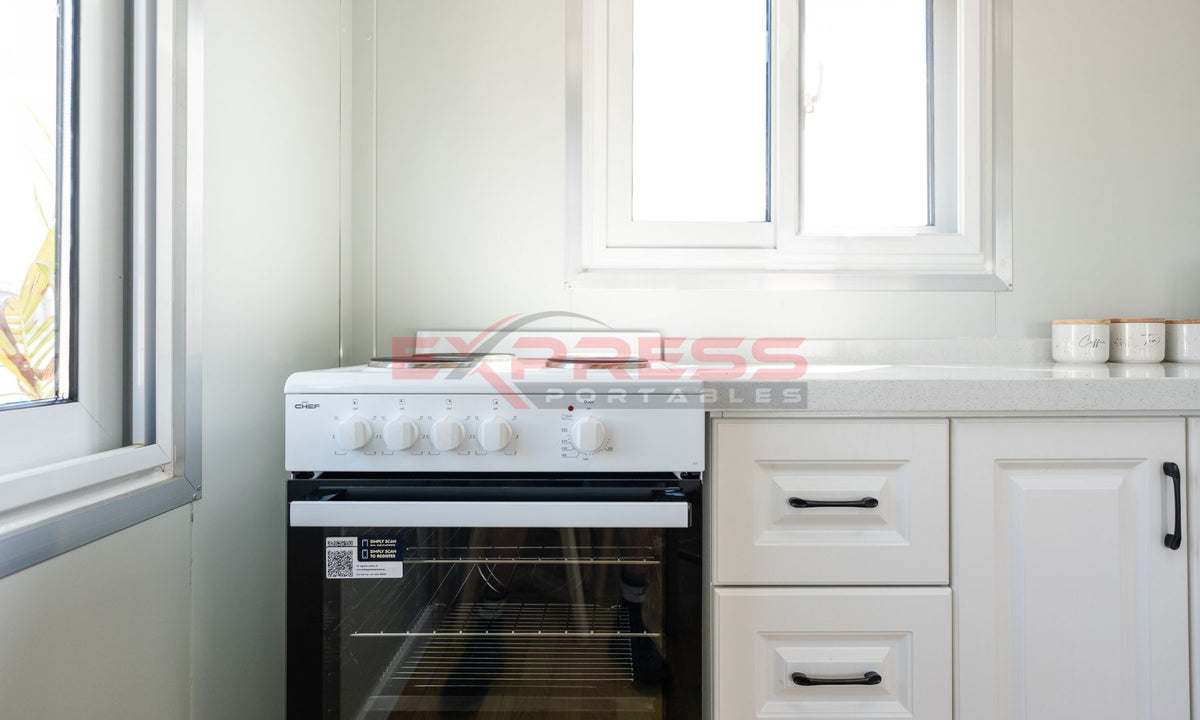

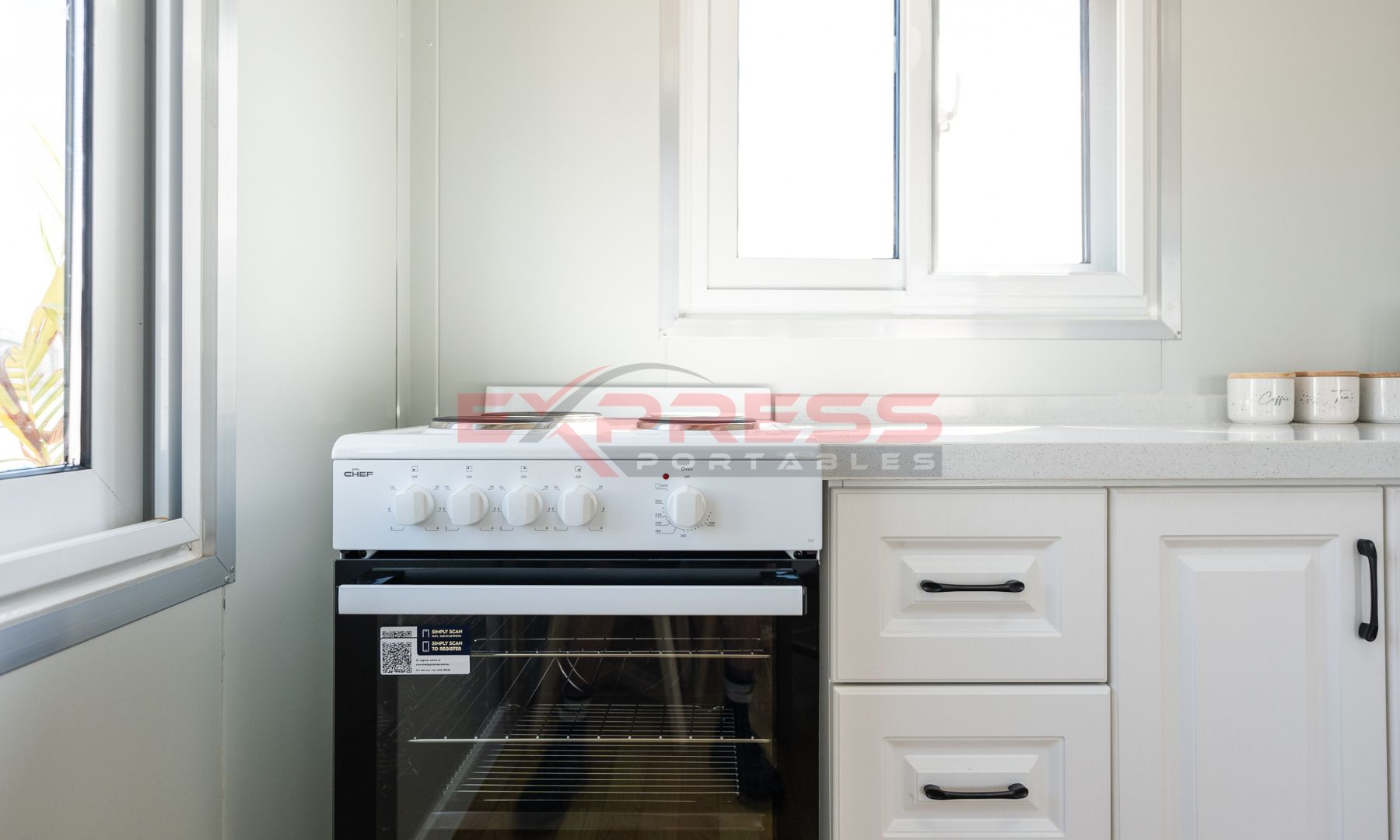

Provisional Space Provisional space for dishwasher (620mm), freestanding cooker (650mm), rangehood (600mm), fridge (650mm)

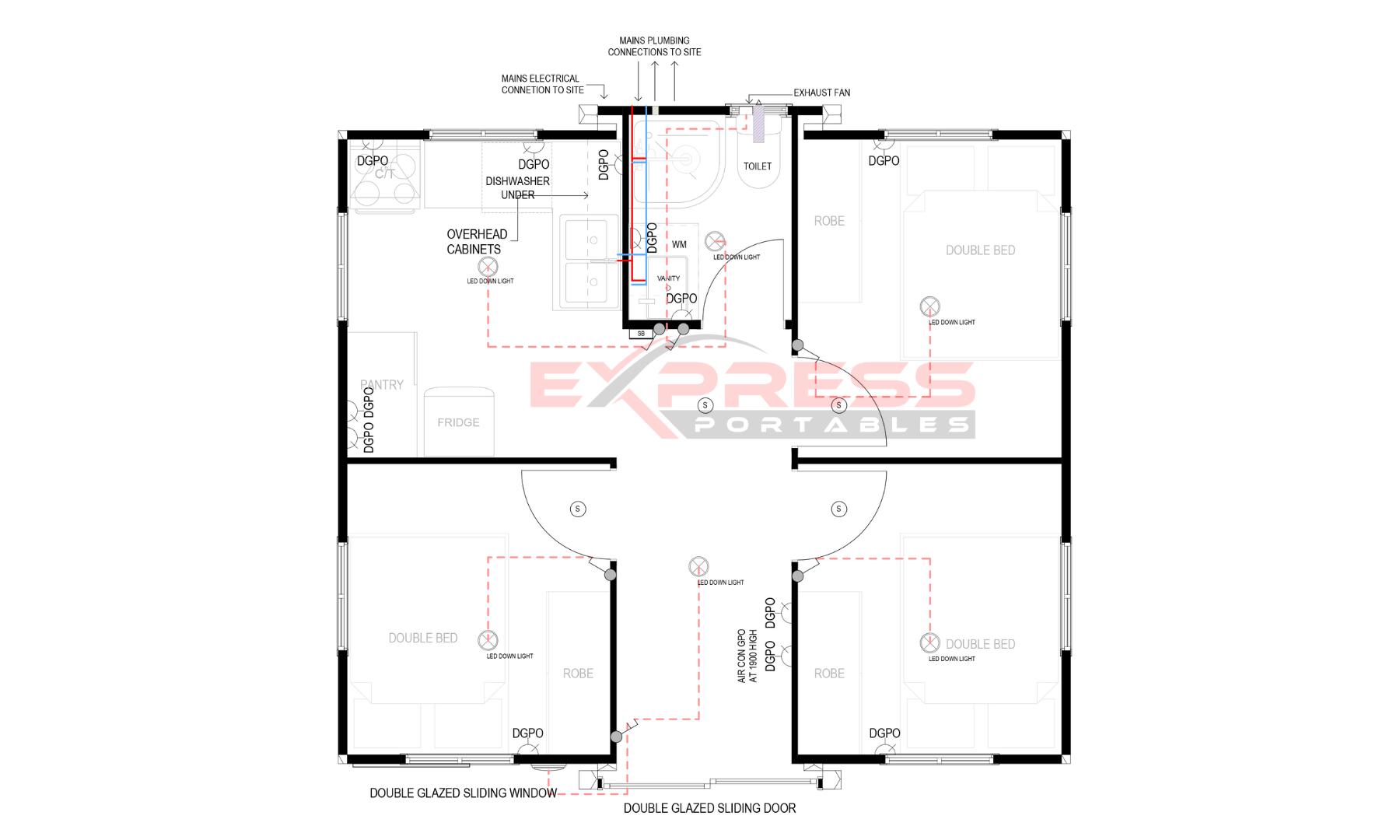

Electrical

Power All electrical points are prewired inside walls. Fit off of electrical points required after opening and installing, Aerial point provided for TV. Mains supply located at rear of expander
Lighting All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building. LED oyster lights supplied
Smoke Alarm Smoke alarm hardwired back to switchboard per habitable room (customer must install)

Plumbing

Water Water connection located on the exterior rear wall
Waste Waste connection located on the exterior rear wall
Sink & Mixer Kitchen sink and mixer is to be connected when building is installed

Council Compliance

Council Approval Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and could be conveniently installed in numerous Councils without requiring approval from the council.
Certificates Structural engineering and plumbing certificates are not provided with the purchase
