Description
Description
Built using a steel frame that has been epoxy treated and acrylic painted ensuring long-lasting resilience against corrosion and wear, providing a sturdy foundation for the entire structure of the fold-out home. The Walls use 75mm EPS sandwich panels and the roof uses 50mm EPS panels.
Featuring a glass and lockable aluminium entry door, ensuring security while welcoming natural light. Aluminium double-glazed windows with fly screens provide ventilation and insulation, complementing the modern aesthetic.
The roof comes with glass-wool insulation and galvanised, painted steel, guaranteeing optimal temperature regulation and protection against the elements. Additionally, 75mm EPS sandwich panels contribute to energy efficiency and thermal comfort, creating a cosy living environment. The water and insect-resistant magnesium concrete composite floor ensures stability and resilience and comes with a timber-looking PVC vinyl covering.
In the kitchen, soft-closing cabinets and overhead cabinets offer ample storage space, while a stainless-steel sink and tap.
The bathroom features a full-width shower with a shower rail, rainmaker shower head, and frosted privacy glass door, while the soft-close toilet lid adds a touch of luxury. Completing the bathroom ensemble is a sink with a stainless-steel tap and a vanity with a mirror.
The internal floor to ceiling height is 2.4m.
Please Note: Furniture and robes are not supplied with the building.

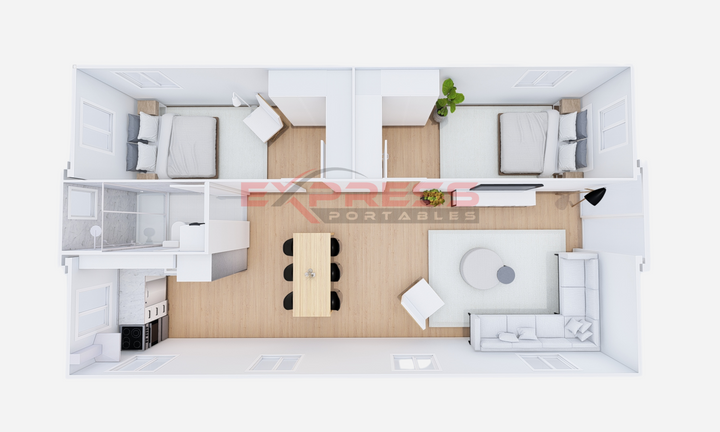

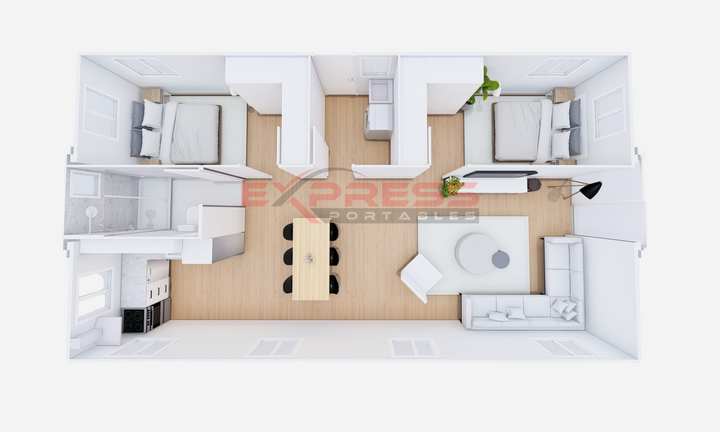

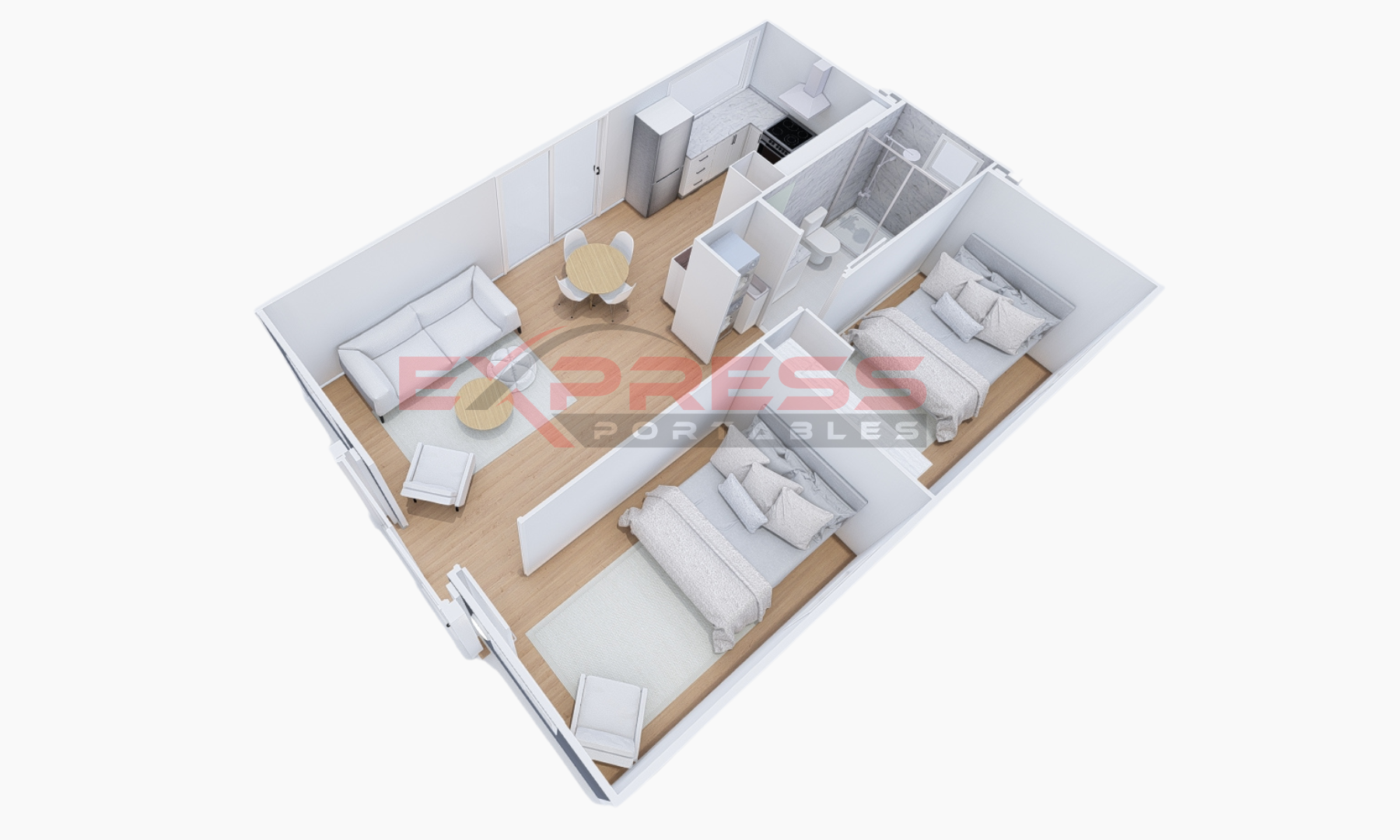

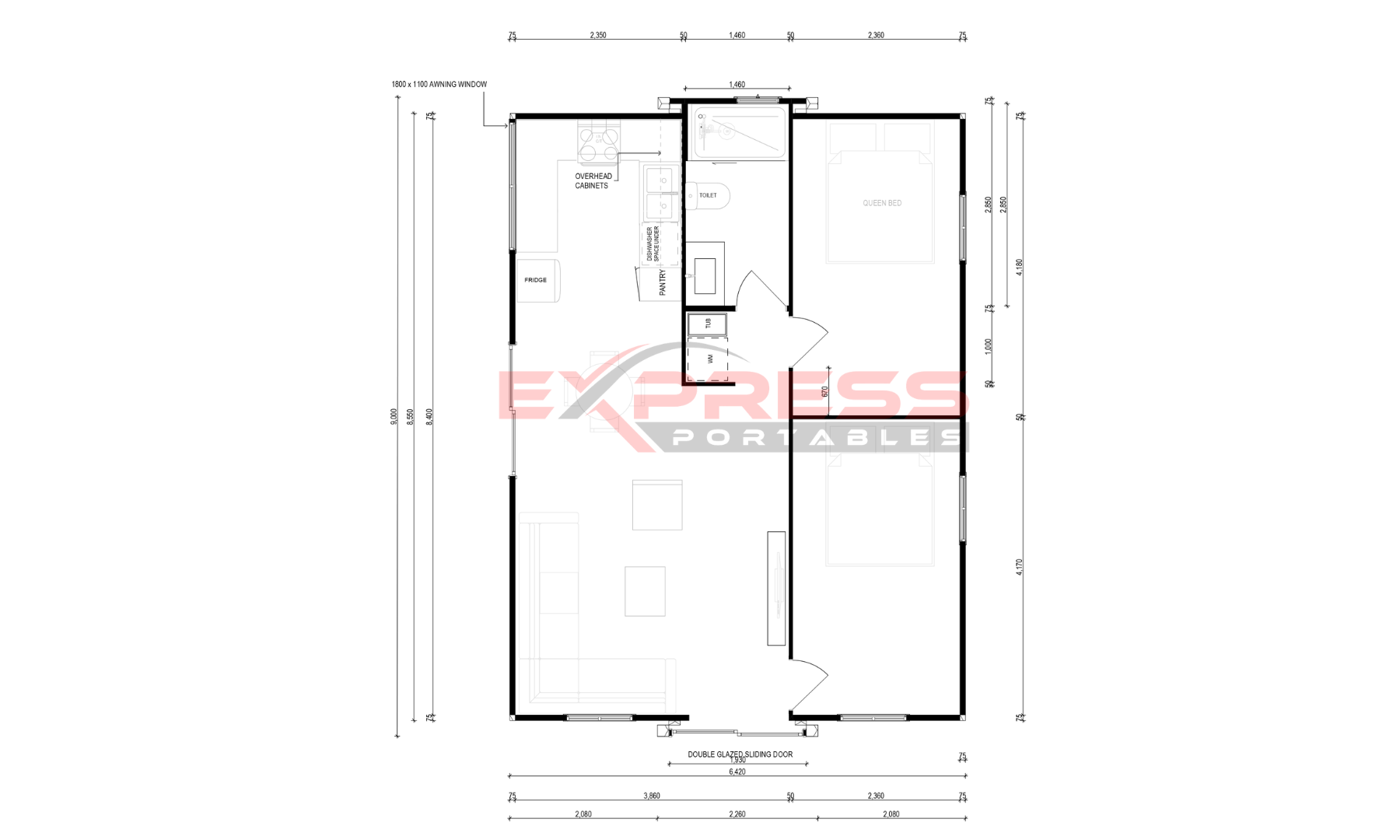

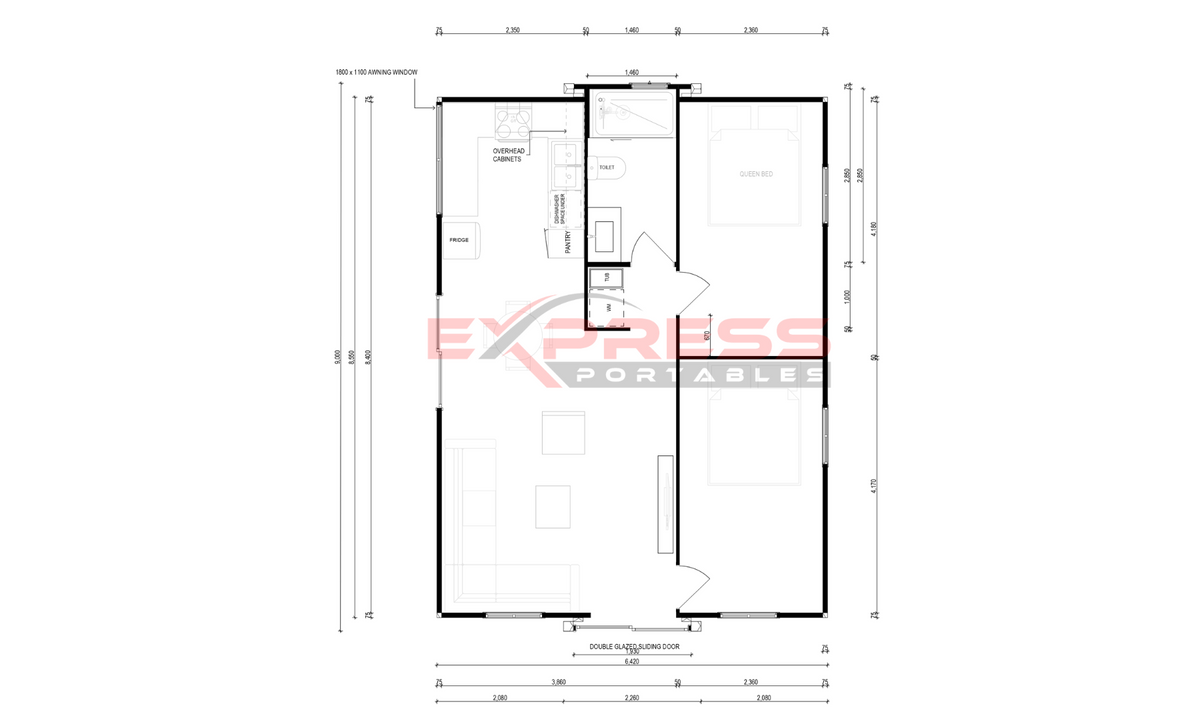

***Internal dimensions on showroom models and floor plans displayed on our website are subject to minor variations due to updates in manufacturing and structural requirements. Please refer to your factory plans for final internal dimensions. Factory plans can be provided after deposits have been received***
The building must be installed a minimum 500mm above ground allowing enough access for a plumber to connect fittings.
Dimensions
Dimensions
Weight
Weight
Approx | 8000kg
Ask a question
Ask a question
Key Features

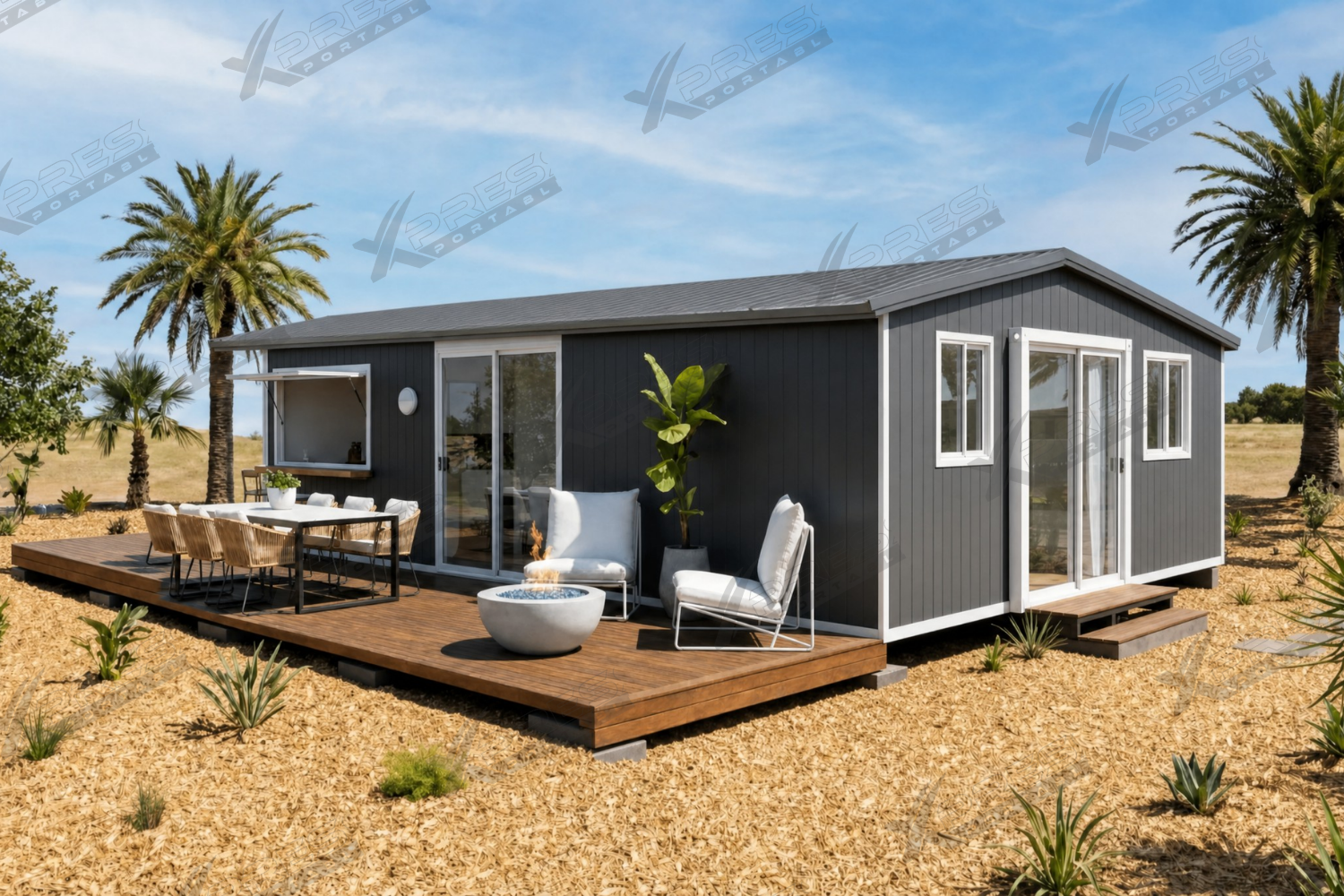

Pitched Roof
The Superior range features a 10-degree pitched roof that improves water drainage, prevents leaks, and adds a modern look to your home. The pitched roof options allows for a 2.4m internal ceiling. The gable roof comes flat-packed inside the building and must be assembled and installed by the customer or a qualified tradesperson.

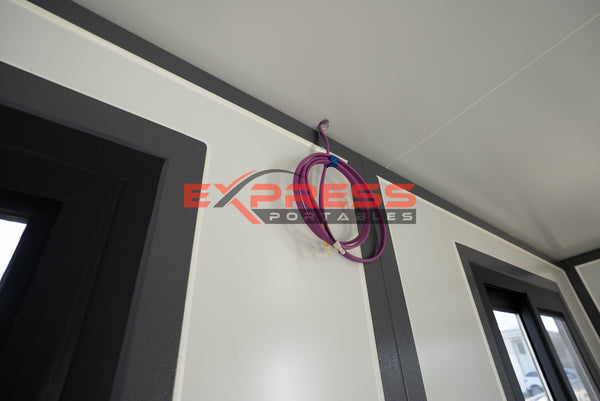

Non-migratory Cable
Pre-wired system using non-migratory sheathing to prevent cable degradation caused by reactions with insulated panels. Purple sheathing ensures material stability. All electrical components comply with EESS certification standards.
Roof Eaves
The roof’s overhanging edges protect against the elements, shielding walls, doors, and windows from rain and sun while directing water away to prevent moisture build-up and damage.
Equipped Bathroom
A fully equipped bathroom designed for convenience and style, featuring a toilet, shower, mirror, cabinetry, and a sleek vanity. Optional washing machine space
Bathroom Pre-plumbed
The bathroom is pre-plumbed; however, additional plumbing might be necessary depending on the building. The building must be elevated at least 500mm off the ground.
Our Features
Sliding Windows With Flyscreens
Vinyl Timber Look Flooring
Stone Bench Top
Under Bench Cabinets
Overhead Cabinets
Sink and Mixer
Glass sliding door
Cornice And Skirting
Switchboard
Shaving Cabinet
Bathroom Vanity
PowerPoints
Plumbing Connections
Lockable Bedroom Doors
Toilet
Exterior Cladding
Prewired Mains Power
Galvanised Steel Frame
LED Downlights
Shower
Specifications
General
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
2.4m Internal Ceiling Height
Walls
75mm EPS wall panels
Floor
Magnesium concrete composite board – water, rot and insect resistant
Lighting
LED oyster lights supplied
Council Compliance
The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA).
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed sliding windows
Flyscreens
All windows come with Flyscreens
Door
Entry
Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
Bedroom
General
Entry Door
Sliding glass and lockable aluminium entry door
Windows
Aluminium double-glazed windows with fly screens
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Roof
2.4m Internal Ceiling Height
Walls
75mm EPS wall panels
Floor
Magnesium concrete composite board – water, rot and insect resistant
Lighting
LED oyster lights supplied
Council Compliance
The Expandable Container Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA).
Frame
Sub-floor
Rectangular Hollow Section (RHS)
Steel Post
Square Hollow Section (SHS)
Steel Floor Bearer
Rectangular Hollow Section (RHS)
Steel Floor Joist
Corner castings on each corner
Casting
Corner castings on each corner
Coating
Expoxy coated and painted in gloss
Bathroom
Flooring
Grey Floor Tiles
Shower
Full room width shower on acrylic shower base with a rain maker shower head
Shower Door
Toughened glass sliding door
Toilet
S-trap toilet with soft closing lid
Vanity
Vanity with porcelain sink, chrome flick mixers
Wall
Marble look wall PVC wall lining
Installation
Instructions
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations
Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Internal Walls
Interior Walls
50mm EPS Panel with an off white finish
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Type
Double-glazed sliding windows
Flyscreens
All windows come with Flyscreens
Door
Entry
Sliding glass and lockable aluminium entry door
Bathroom
Privacy glass bathroom door
Bedroom
Roof
Steel Plate
3mm steel plate over the main body
Exterior Panels
75mm EPS panels on outside folding roof panels
Flooring
Sub-floor
Magnesium concrete composite board – water, rot and insect resistant
Top Layer
2mm vinyl timber pattern - Grey or Brown
Skirting
PVC cornice and skirting
Floor Trims
Powdercoated internal corner trims
Kitchen
Plan
Kitchen plan provided
Cabinets
Soft closing cabinets and overhead cabinets
Sink
Stainless steel sink with mixer tap
Benchtop
Engineered stone with Zero Silica (certificate provided)
Provisional Space
Provisional space for dishwasher (620mm), freestanding cooker (650mm), rangehood (600mm), fridge (650mm)

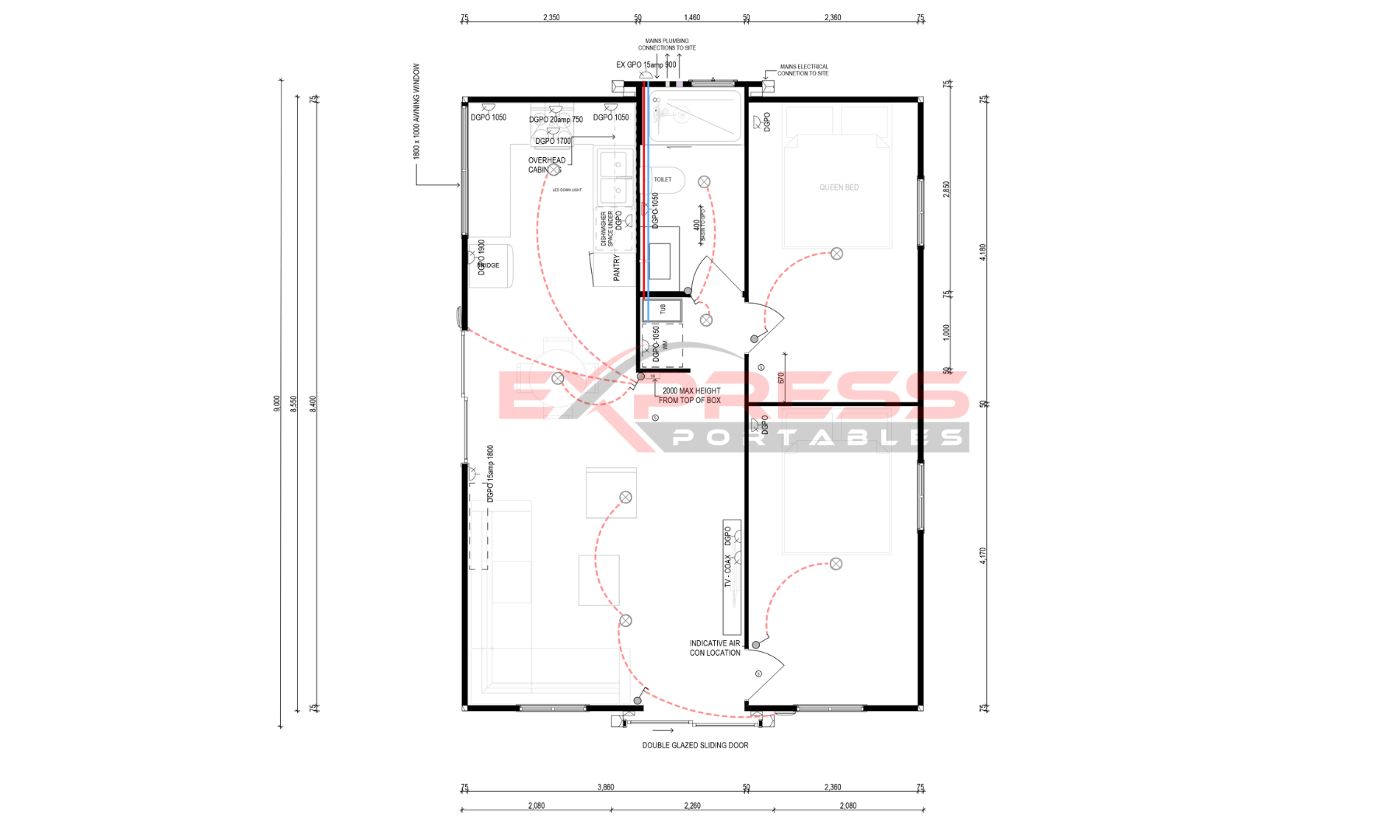

Electrical
Power
All electrical points are prewired inside walls. Fit off of electrical points required after opening and installing, Aerial point provided for TV. Mains supply located at rear of expander.
Lighting
All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building. LED oyster lights supplied.
Smoke Alarm
(x1) Smoke alarm hardwired back to switchboard per habitable room (customer must install)
Plumbing
Water
Water connection is penetrated through the floor only ready for the onsite plumber to connect
Waste
Waste connection is penetrated through the floor only ready for the onsite plumber to connect
Sink & Mixer
Kitchen sink and mixer is to be connected when building is installed
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
Pitched Roof
Overview
Due to the flat 2400mm floor to ceiling height the pitched roof (supplied) must be installed on the Expander to help prevent want run off. Additionally it contributes to the thermal insulation values of the Expander
Trusses
Steel trusses, roof sheets and fixings supplied. Truss layout provided
Optional Extra's
Decking
Deck supplied as prebuilt modular
Patio
Patio supplied as a flatpack kit
