Regular price
$63,500.00
Regular price
Sale price
$63,500.00
Unit price
per
$63,500.00
(Incl. GST)
Buy Now, Pay Later with
Learn more
Learn more
Description
Description

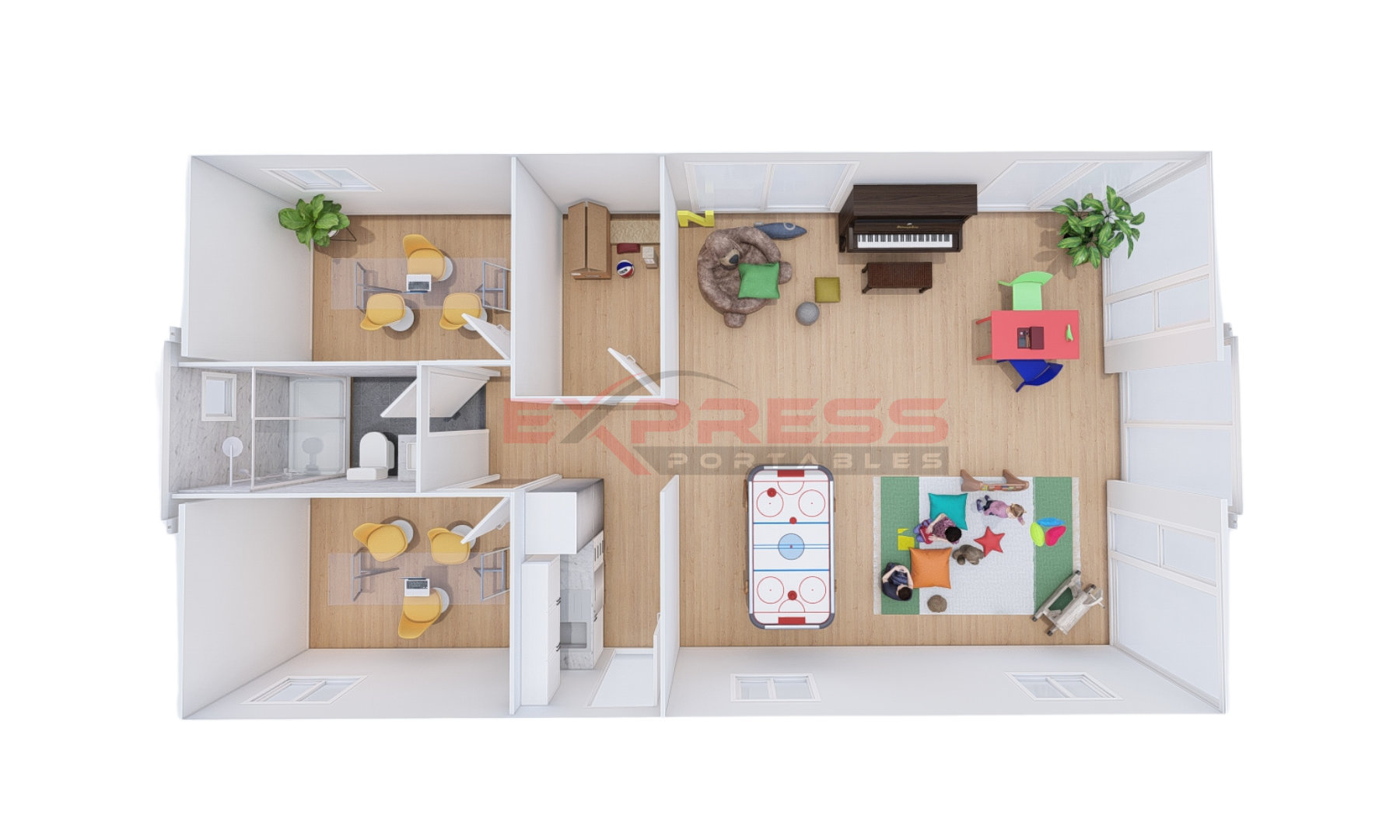

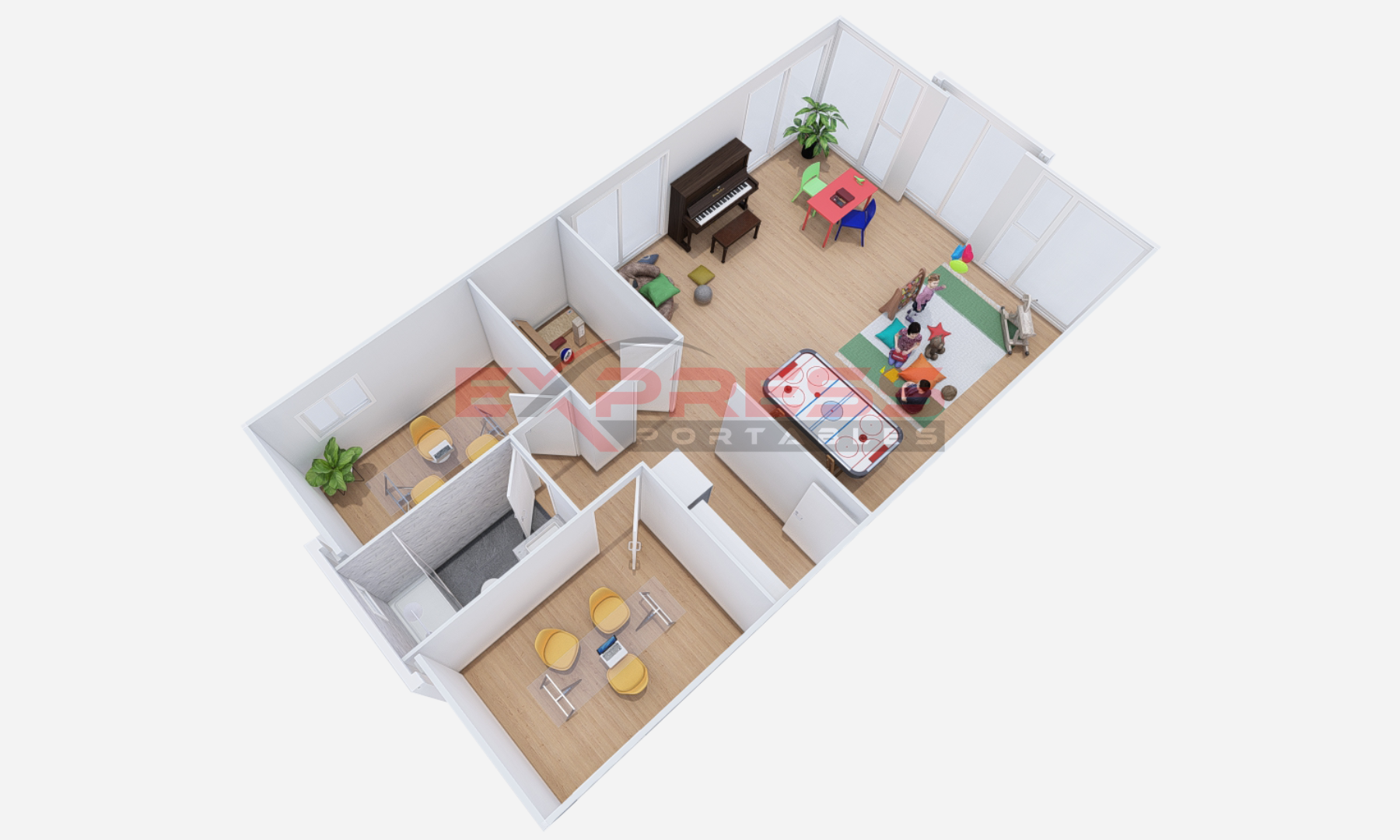

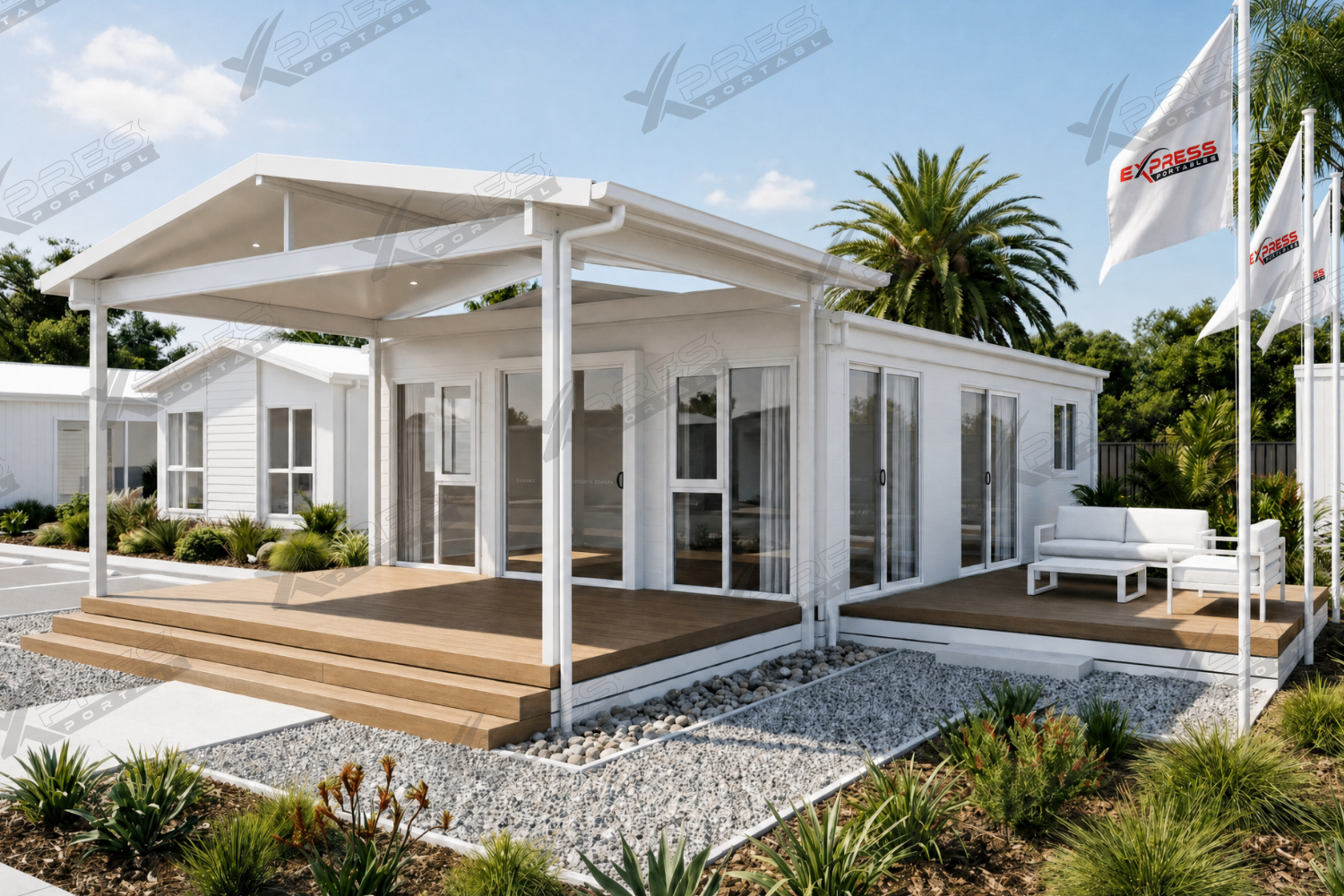

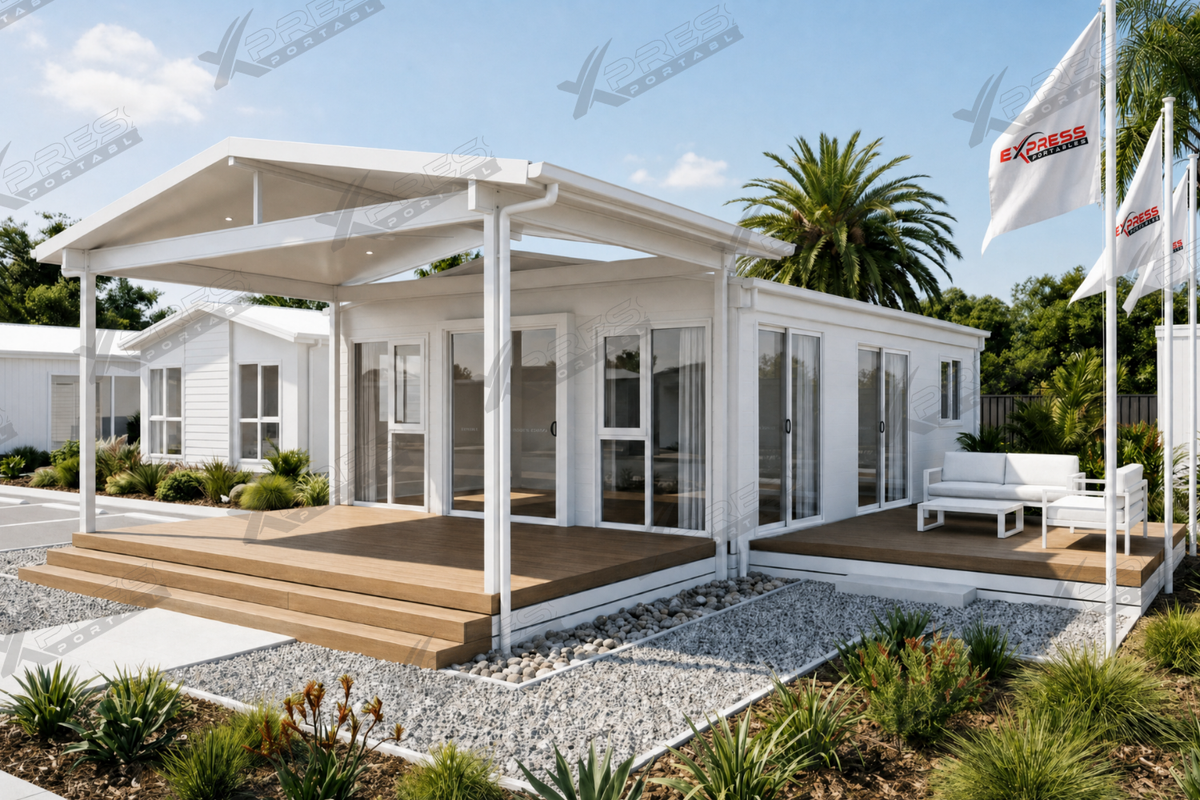

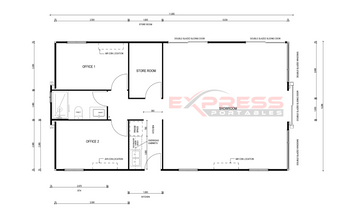

Featuring a full glass front, this showroom creates a bright and inviting open area upon entrance, ideal for product displays and customer interactions. The showroom includes a modern kitchen area with an engineered stone benchtop that is zero silica (test certificate supplied). This area has provisional space for a dishwasher underneath and a designated spot at the end of the worktop for a fridge, ensuring a functional and elegant kitchen setup.

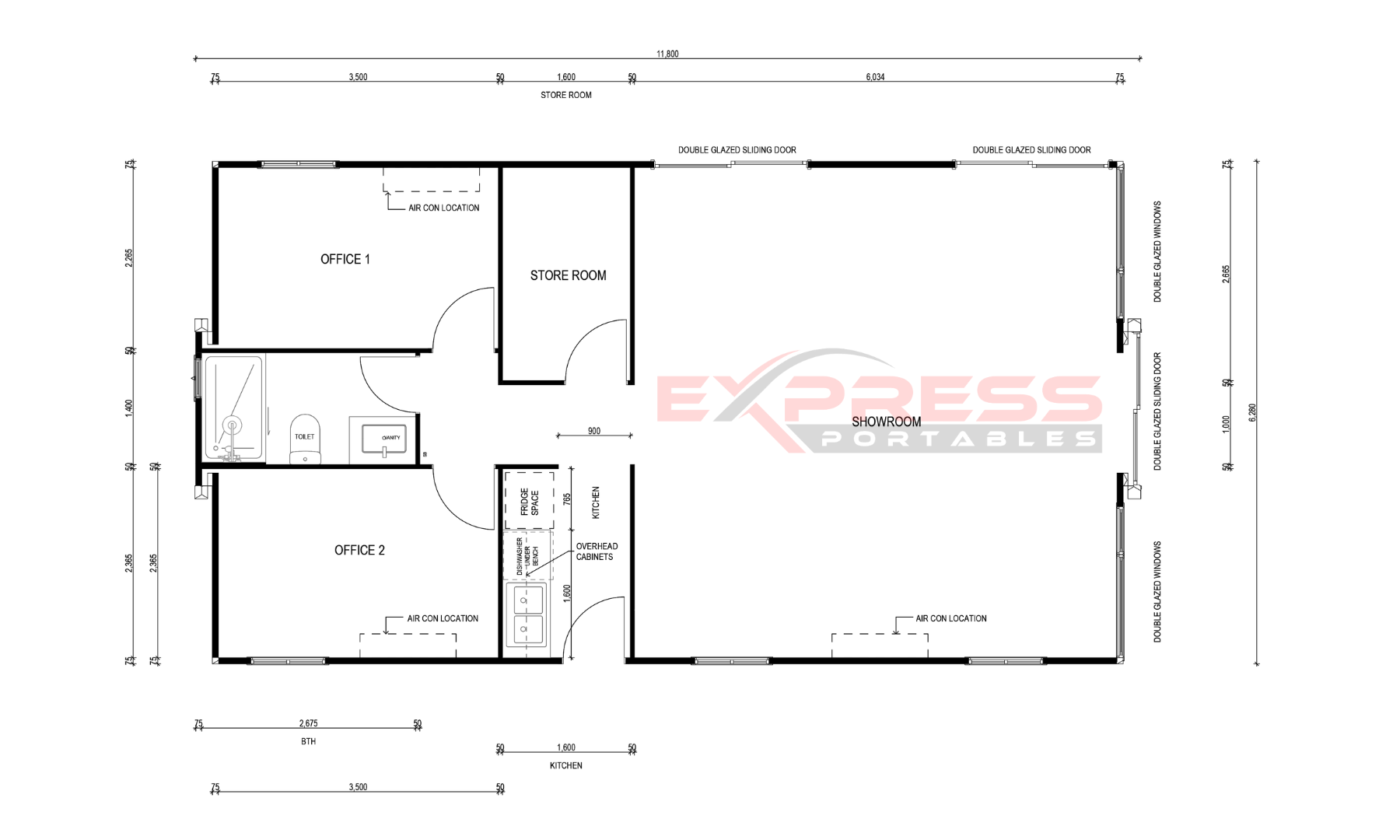

Opposite the kitchen area is a dedicated storage room, providing ample space to keep the showroom organized and free of clutter. Additionally, the showroom includes two separate rooms that can serve as offices or meeting rooms, offering versatile spaces to meet your business needs. Centrally located between these rooms is a fully equipped bathroom, ensuring convenience and comfort for you and your clients.
The internal ceiling height is 2.26m, however, 2.4m options are available.
Please Note: Furniture and robes are not supplied with the building.
Dimensions
Dimensions
Weight
Weight
Approx. | 9500kg
Ask a question
Ask a question
Specifications
General
Entry Door
Sliding glass and lockable entry door
Windows
Aluminium double-glazed windows
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Walls
Interior walls are 50mm EPS with off white finish
Flooring
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Glass
Double-glazed windows
Thickness
5mm glass
Doors
Entry
Sliding glass and lockable aluminium entry door
General
Entry Door
Sliding glass and lockable entry door
Windows
Aluminium double-glazed windows
Electrical
Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame
Galvanised steel frame, epoxy treated & acrylic painted
Walls
Interior walls are 50mm EPS with off white finish
Flooring
Water & insect resistant magnesium concrete composite
Lighting
LED oyster lights supplied
Council Compliance
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Frame
Sub-Floor Steel Chassis
150x100 Rectangular Hollow Section (RHS)
Steel Post
150x150 Square Hollow Section (SHS)
Steel Floor Bearer
70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist
50x30 Rectangular Hollow Section (RHS)
Castings
Corner castings on each corner
Coating
Epoxy coated and painted in gloss
Tiles
Grey floor tiles
Installation
Instructions
Unfolding instructions and video provided for the Expander
DIY
Express Portable Expanders are customer DIY installations
Footing Plans
Footing Plans supplied by Express Portables
Electrical & Plumbing
The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work
Transport
Crane
Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray
The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer
Customer is required to organise a forklift unload or crane unload
Walls
Interior Walls
50mm EPS Panel with an off white finish
External Walls
With Cladding
60mm EPS Panel Walls & 15mm Cladding
No Cladding
75mm EPS Panel Walls
Windows
Frames
Aluminium framed windows
Glass
Double-glazed windows
Thickness
5mm glass
Doors
Entry
Sliding glass and lockable aluminium entry door
Roof
Steel Plate
3mm steel plate over the main body
Exterior Panels
75mm EPS panels on outside folding roof panels
Flooring
Sub-Floor
Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer
2mm vinyl timber pattern - Grey or Brown
Floor Trims
Aluminium colour-matched floor trims were provided to cover folding/hinge join. Powercoated internal trims
Kitchen
Cabinetry
Prebuilt kitchen cabinets packaged in a protective film ready for installation & overhead cabinets with soft closing hinges
Sink
Sink with flick mixer
Benchtop
Engineered stone with zero silica (test certificate supplied)

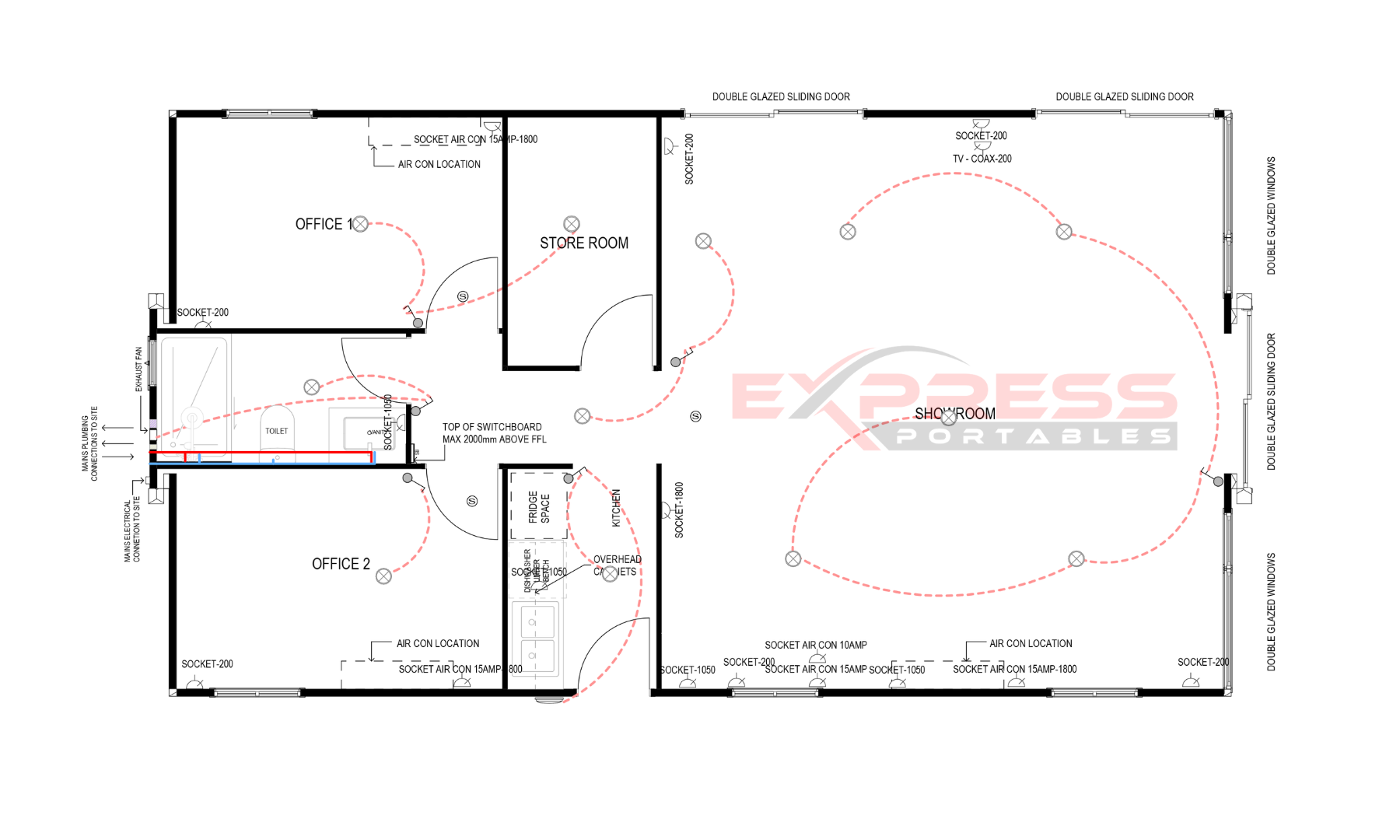

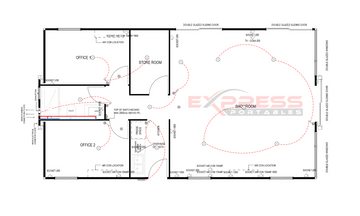

Electrical
PowerPoints
All electrical points are pre-wired inside walls.
Lighting
All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building
Smoke Alarm
Smoke alarm hardwired back to switchboard per habitable room, customer to supply/install smoke alarm
Aerial Point
Aerial point provided for TV (cable connection on rear exterior wall with plumbing)
Mains
Site mains electrical supply connected by hardwire, located at rear of Expander
Plumbing
Overview
Kitchen is pre-plumbed
Water & Waste
Water and waste lines provided to kitchen sink for easy connection after opening the building
Council Compliance
Council Approval
Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates
Structural engineering and plumbing certificates are not provided with the purchase
