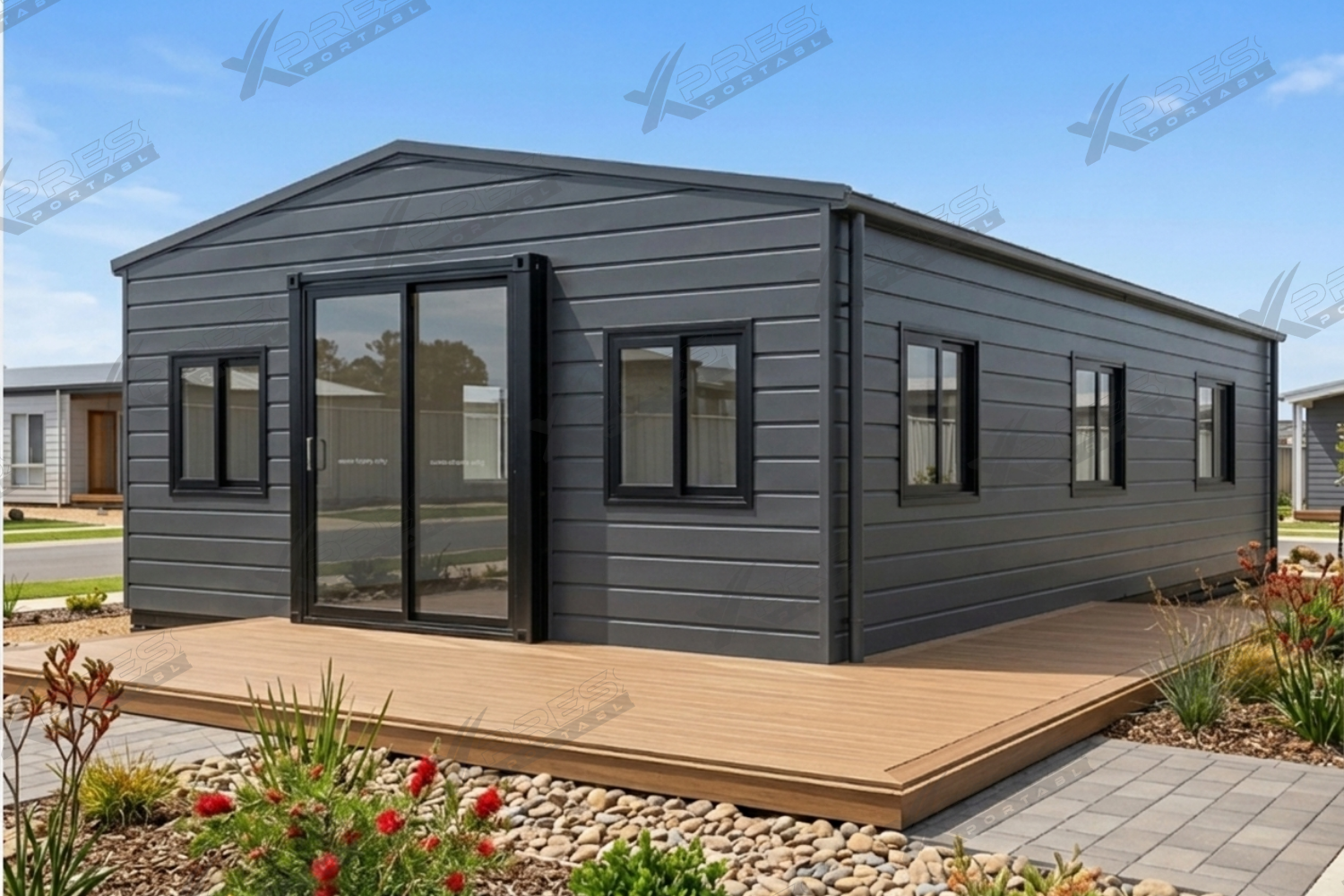

A 40ft two bedroom relocatable home that is delivered prefabricated and unfolds to an expansive 72m². Featuring a pitched roof and 2.4m internal ceiling height.

Description

The Accessible Expander is designed with accessibility in mind, featuring extra circulation space, wide 1020mm clear door widths and a level entry bathroom and shower area.

The open shower features safety rails, non-slip surfaces and offers for ample circulation space. A soft-close toilet lid adds sophistication, while a stainless-steel tap and vanity with a mirror complete the elegant and functional space is constructed from a steel frame treated with epoxy and acrylic paint for long-lasting resilience against corrosion.

The dedicated laundry nook with a laundry tub and space for a washing machine.

It features a pitched roof and full glass entrance, adding a touch of modern elegance while welcoming natural light into the living space. The pitched roof is not included but can be purchased separately.

The interior boasts 18mm sub-flooring with a 2mm PVC top layer, making it resistant to moisture, stains, scratches, and wear. The 2.4m floor-to-ceiling height complies with the National Construction Code within Australia.

In the spacious U-shaped kitchen, you'll find a durable 20mm Quartz stone countertop with a built-in stainless steel sink. There is space for a free standing cooker, dishwasher, and fridge, ensuring maximum functionality.

Please Note: Furniture, robes, patio, and decking are not supplied with the building.

Product Improvements: Ongoing improvements may result in slight variations between the images on our website and the actual product.

Dimensions

External: Length: 11.8m | Width: 6.42m | Height: 3.73m (With Gable Roof)

Weight

Approx | 10,500kg

Ask a question

View full details

Key Features

Roof Covering

Featuring a one-piece roof covering made from fibre reinforced plastic offering a seamless finish, preventing roof leaks. It's sleek design enhances durability, ensures weather resistance, and offers a modern, low-maintenance solution built to last.

Non-migratory Cable

The building comes pre-wired and uses non-migratory sheathing ensuring reliable performance and longevity. The purple sheathing prevents the chemical reaction that would typically cause a standard white cable to deteriorate when in contact with various types of insulated panels. All our electrical parts are registered with the Electrical Equipment Safety Scheme (EESS).

Roof Eaves

The roof eaves of the building feature a 175mm overhang, providing additional protection against rain. It also offers improved insulation by allowing rainwater to run off more efficiently, preventing moisture build-up around the structure. Guttering can be installed.

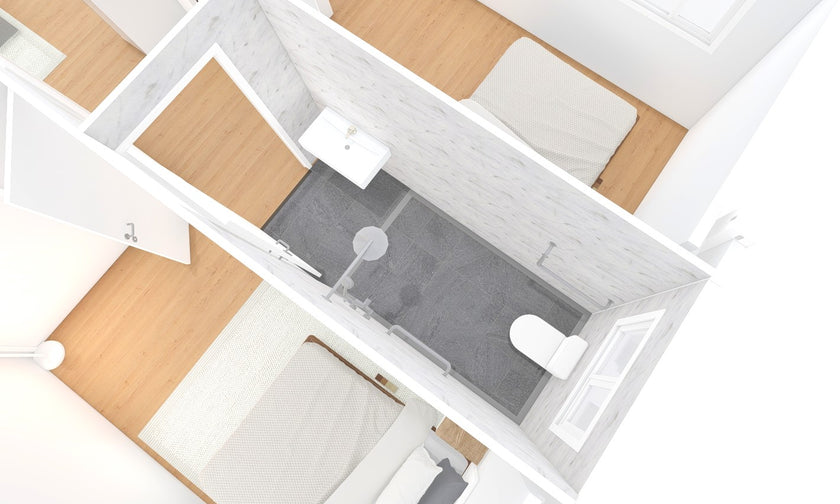

Bathroom

A fully equipped bathroom designed for convenience and style, featuring a toilet, shower, mirror, cabinetry, and a sleek vanity.

Pre-plumbed

The bathroom is pre-plumbed; however, additional plumbing might be necessary depending on the building. The building must be elevated at least 500mm off the ground.

Pitched Roof

The Superior range features a 20-degree pitched roof that improves water drainage, prevents leaks, and adds a modern look to your home. The pitched roof options allows for a 2.4m internal ceiling. The gable roof comes flat-packed inside the building and must be assembled and installed by the customer or a qualified tradesperson.

Our Features

Sliding Windows With Flyscreens

Sliding Windows With Flyscreens

Vinyl Timber Look Flooring

Vinyl Timber Look Flooring

Stone Bench Top

Stone Bench Top

Under Bench Cabinets

Under Bench Cabinets

Overhead Cabinets

Overhead Cabinets

Sink and Mixer

Sink and Mixer

Glass sliding door

Glass sliding door

Cornice And Skirting

Cornice And Skirting

Switchboard

Switchboard

Shaving Cabinet

Shaving Cabinet

Bathroom Vanity

Bathroom Vanity

PowerPoints

PowerPoints

Plumbing Connections

Plumbing Connections

Lockable Bedroom Doors

Lockable Bedroom Doors

Toilet

Toilet

Exterior Cladding

Exterior Cladding

Prewired Mains Power

Prewired Mains Power

Galvanised Steel Frame

Galvanised Steel Frame

LED Downlights

LED Downlights

Shower

Shower

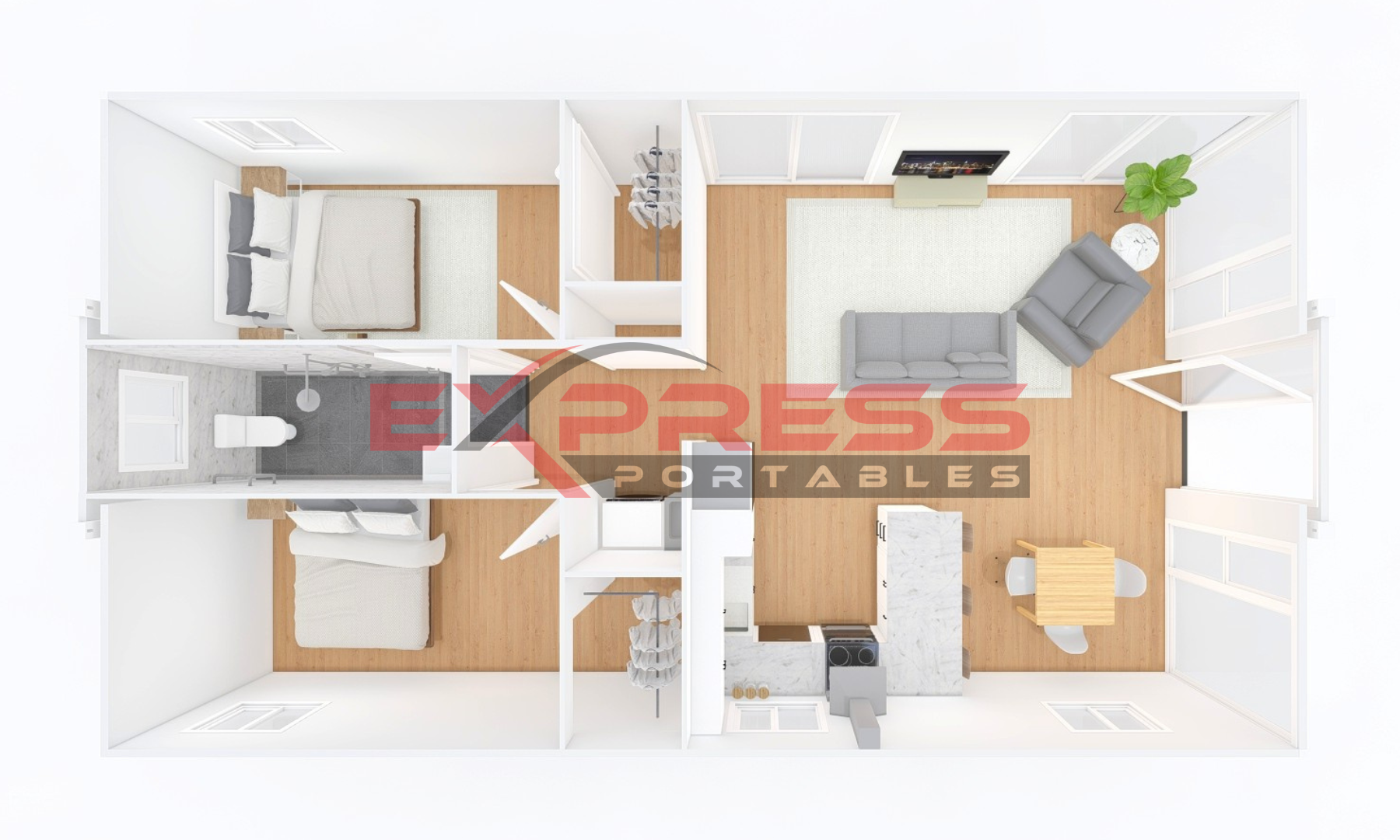

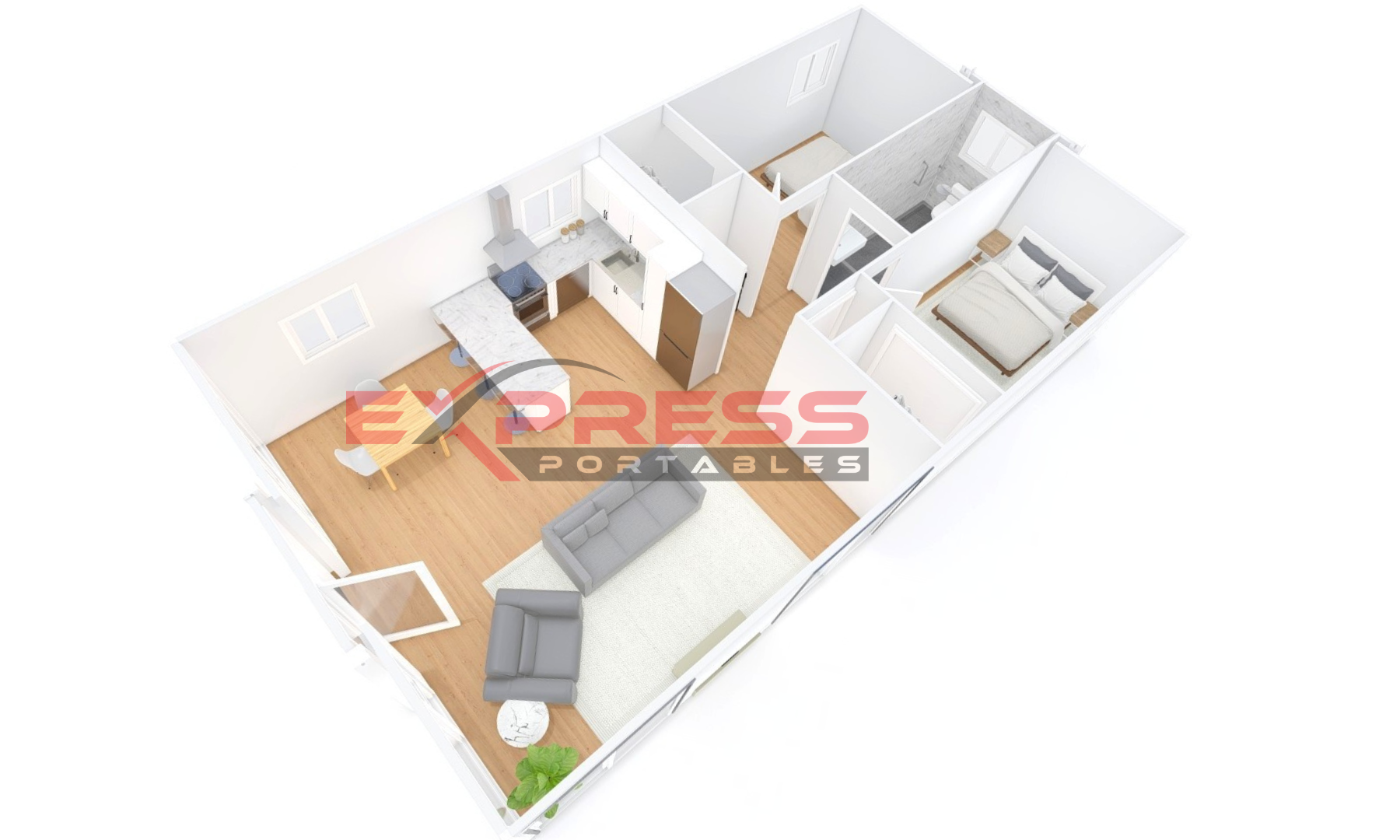

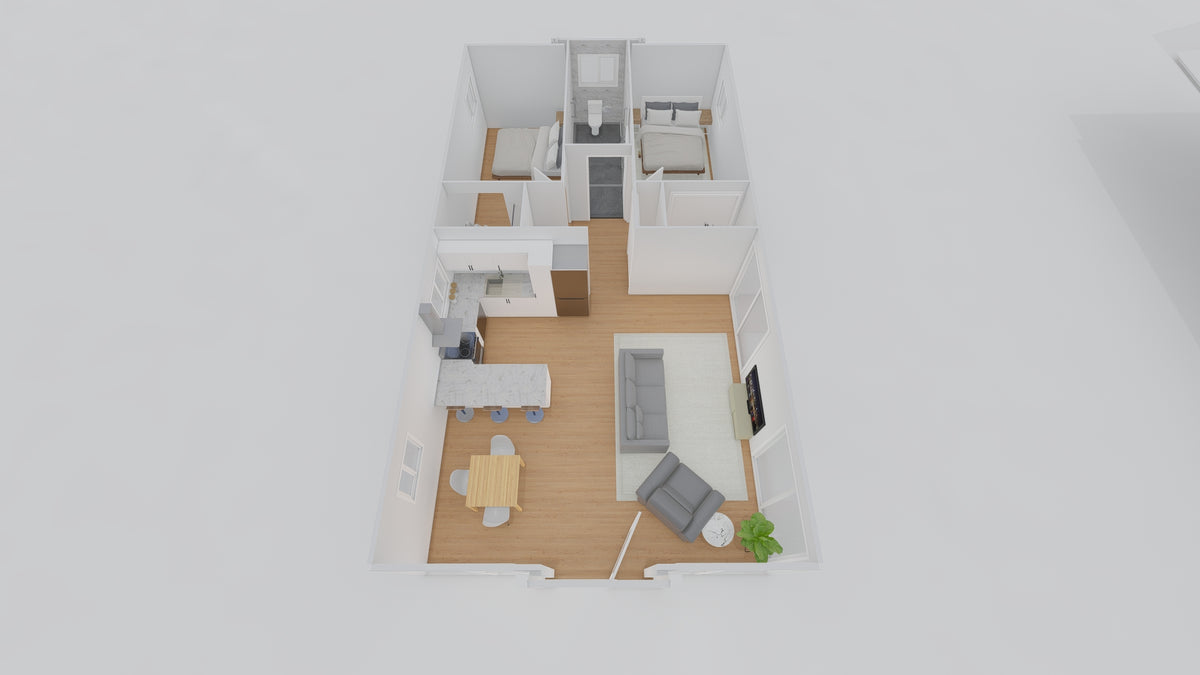

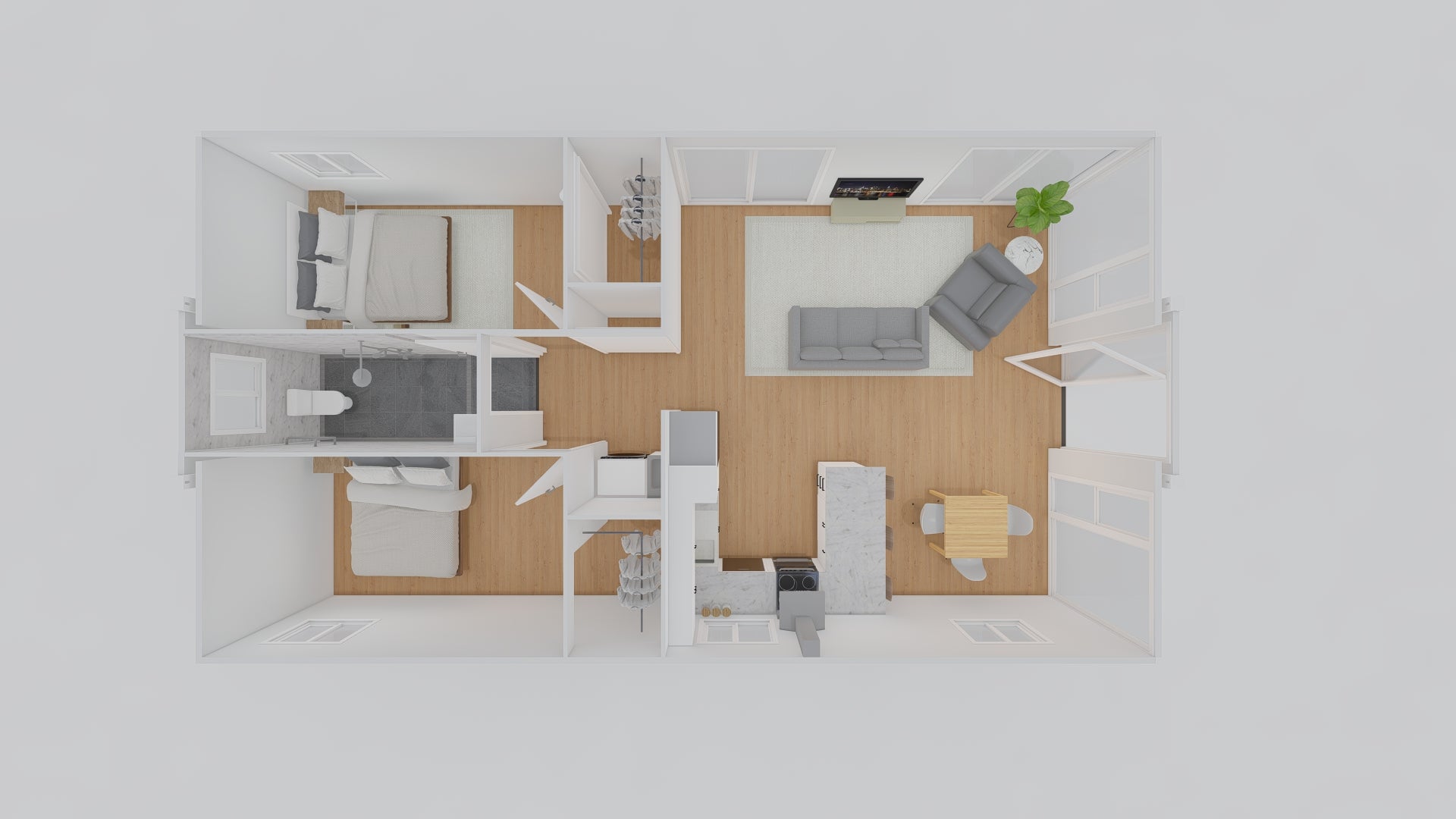

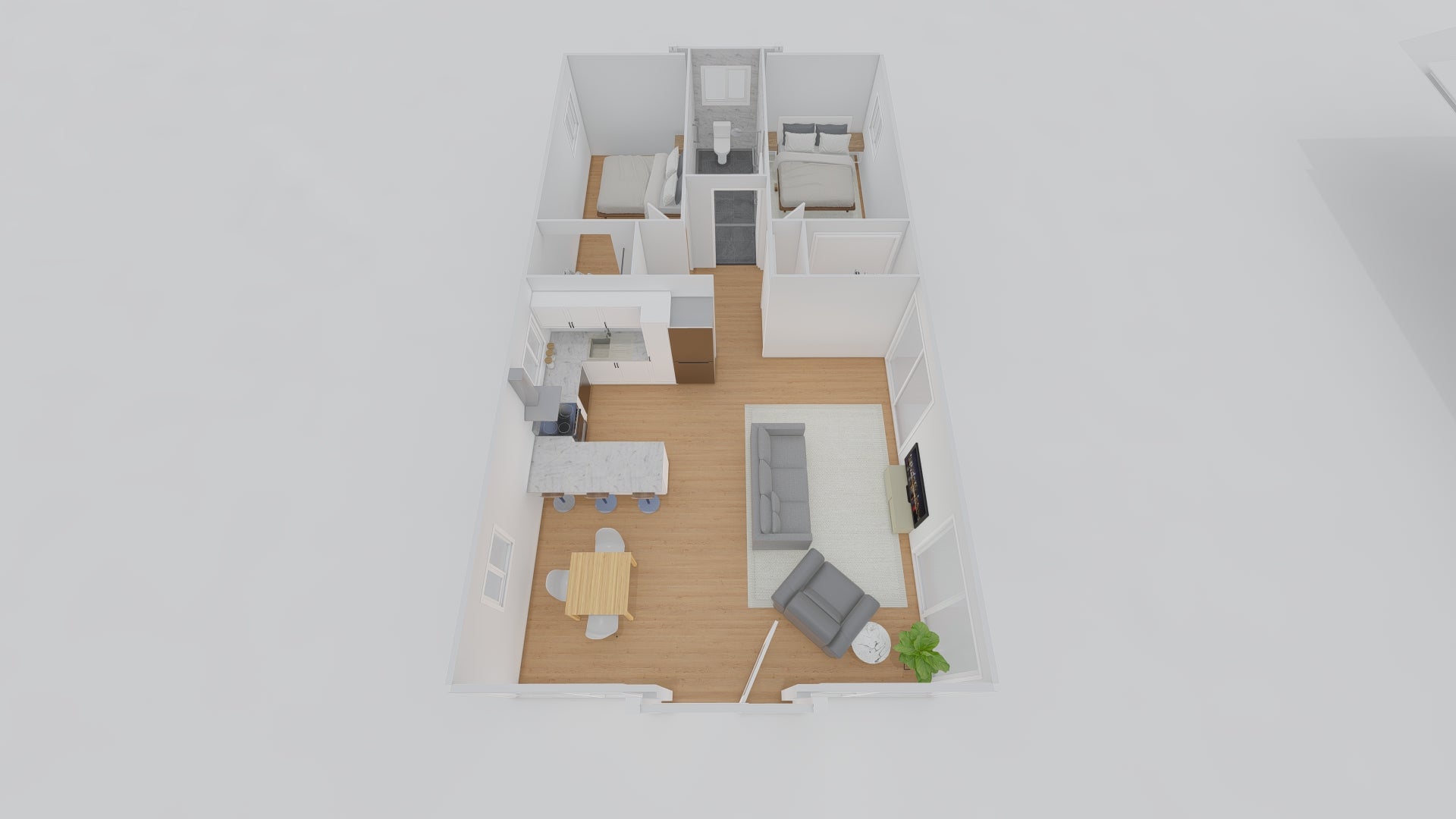

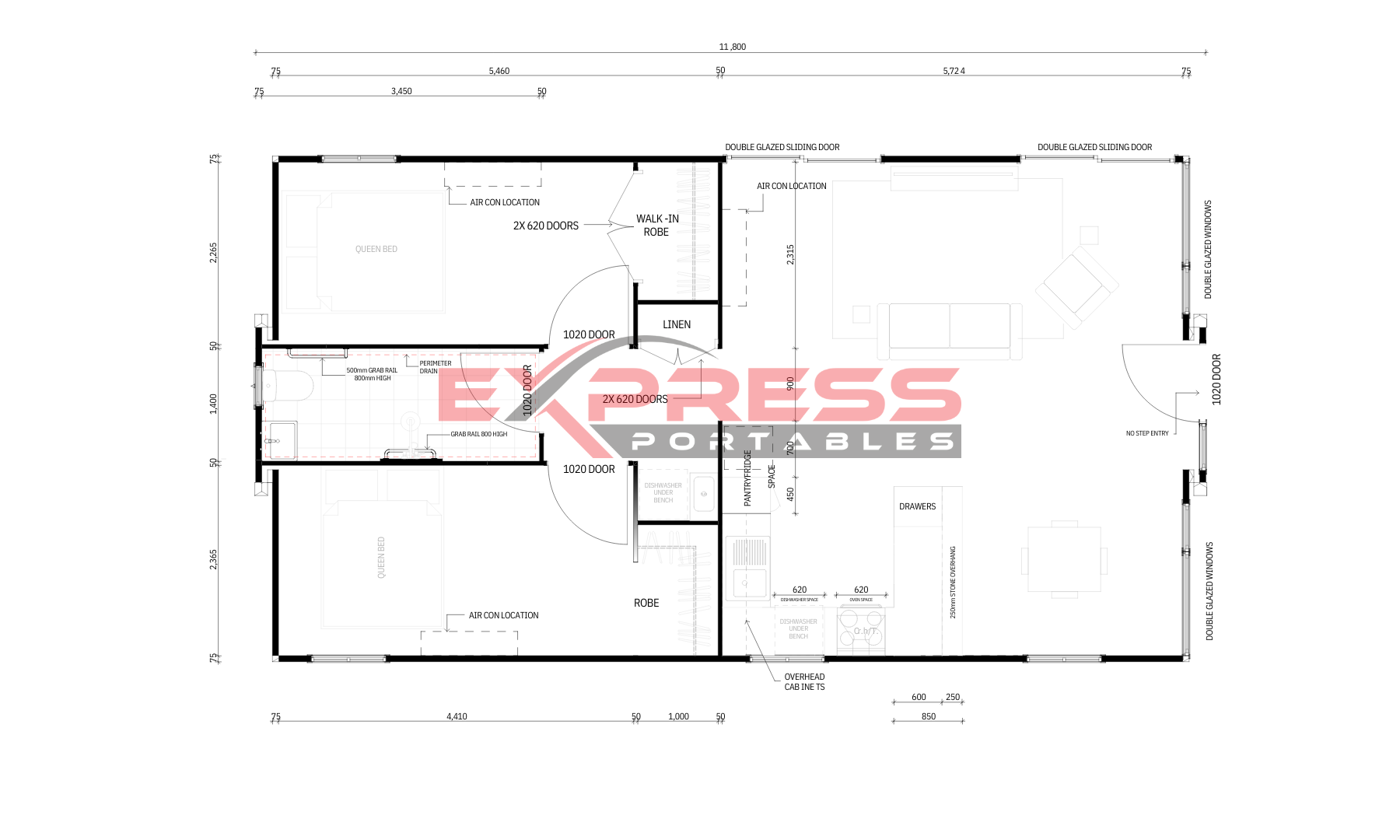

Floor & Electrical Plans

Specifications

General

Entry Door Sliding glass and lockable entry door
Windows Aluminium double-glazed windows
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Due to the flat 2400mm floor-to-ceiling height, the pitched roof (supplied) must be installed on the Expander to help with water run off. Additionally it contributes to the thermal insulation values of the Expander
Walls Interior walls are 50mm EPS with off white finish
Flooring Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

External Walls

With Cladding 60mm EPS Panel Walls & 15mm Cladding
No Cladding 75mm EPS Panel Walls

Windows

Frames Aluminium framed windows
Glass Double-glazed windows
Thickness 5mm glass

Doors

Entry Glass and aluminium 1020mm entry door
Bathroom Privacy glass 1020mm bathroom door

General

Entry Door Sliding glass and lockable entry door
Windows Aluminium double-glazed windows
Electrical Australian Standard electrical products are installed and/or supplied. The building is sold in accordance with the Electrical AS3000 standards and electrical items carry the RCM logo which meets the Australian electrical safety regulations. The customer's qualified electrician is to complete the hardwired electrical supply to the building, complete electrical fit off (if required) and test the installation according to AS3000.
Frame Galvanised steel frame, epoxy treated & acrylic painted
Roof Due to the flat 2400mm floor-to-ceiling height, the pitched roof (supplied) must be installed on the Expander to help with water run off. Additionally it contributes to the thermal insulation values of the Expander
Walls Interior walls are 50mm EPS with off white finish
Flooring Water & insect resistant magnesium concrete composite
Lighting LED oyster lights supplied
Council Compliance Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.

Frame

Sub-Floor Steel Chassis 150x100 Rectangular Hollow Section (RHS)
Steel Post 150x150 Square Hollow Section (SHS)
Steel Floor Bearer 70x50 Rectangular Hollow Section (RHS)
Steel Floor Joist 50x30 Rectangular Hollow Section (RHS)
Castings Corner castings on each corner
Coating Epoxy coated and painted in gloss

Bathroom

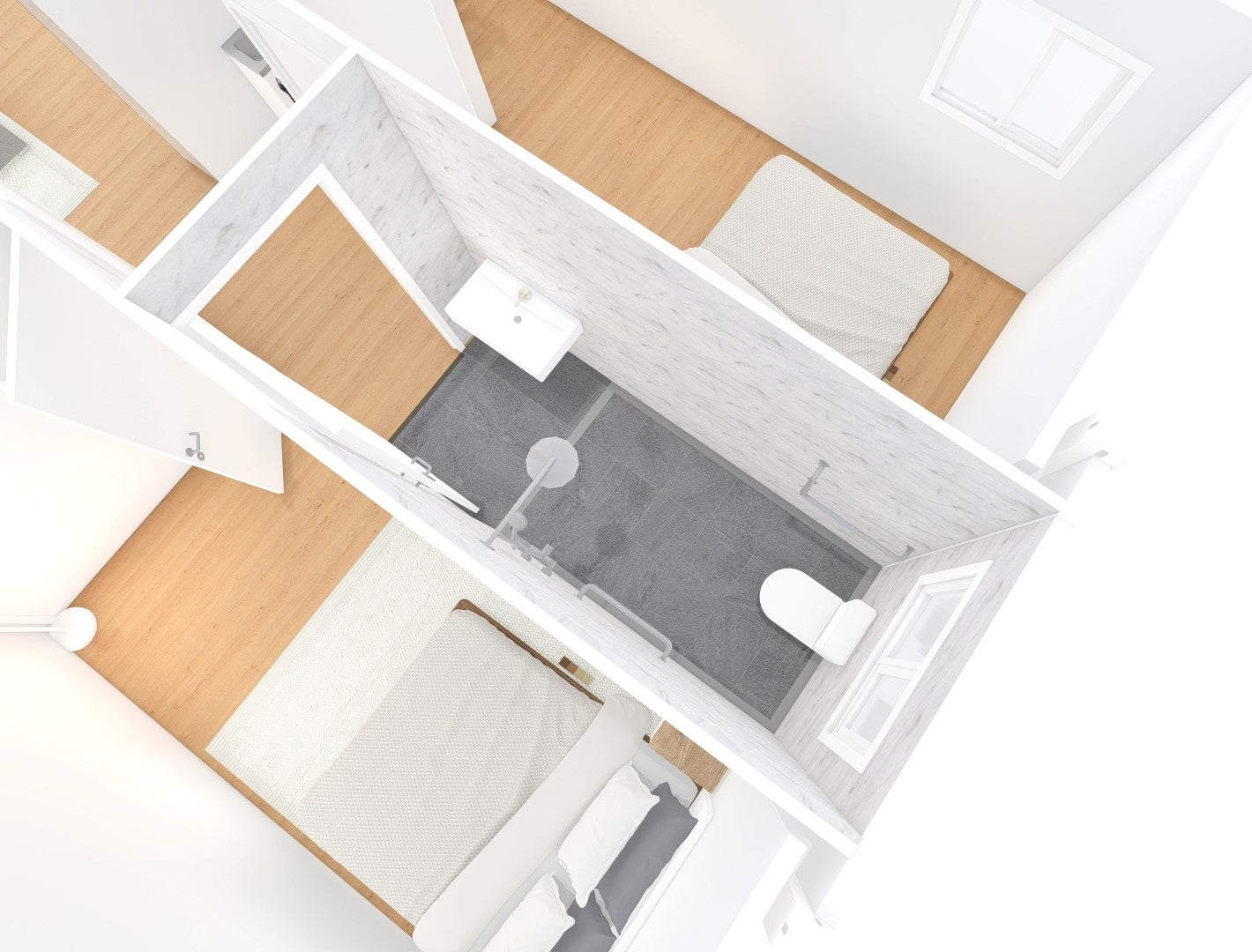

Overview The accessible bathroom is fitted out and complete
Shower Full open shower area with perimeter drain and grab bars.
Toilet S-trap toilet with soft closing lid
Shower Head Rain maker shower head with hand piece, adjustable shower rail
Vanity & Sink Vanity with porcelain sink, Care chrome flick mixers
Walls Marble look wall PVC wall lining
Tiles Grey floor tiles

Installation

Instructions Unfolding instructions and video provided for the Expander
DIY Express Portable Expanders are customer DIY installations
Footing Plans Footing Plans supplied by Express Portables
Electrical & Plumbing The customer must engage a licenced Plumber and Electrician to carry out any plumbing and electrical work

Transport

Crane Truck self unloads with own crane. Reach is usually 2m-6m from side of the truck’s tray from where it can park, set up and safely unload
Tilt-Tray The truck carefully slide unloads the building to the rear of the truck. Manoeuvrability and access around the site is essential, the truck requires 10-15m in a straight line to slide unload and drive away
Rigid Truck/Semi Trailer Customer is required to organise a forklift unload or crane unload

Walls

Interior Walls 50mm EPS Panel with an off white finish

New Features

Design Unique design only available through Express Portables
Internal Ceiling Height 2400mm floor to ceiling height
Pitched Roof Apex Height - 3340mm | Floor to Ceiling - 2565mm | Pitched Roof - 775mm
Front Full glass feature front
Side Access Large sliding doors leading on to deck
Laundry Laundry nook with tub

External Walls

With Cladding 60mm EPS Panel Walls & 15mm Cladding
No Cladding 75mm EPS Panel Walls

Windows

Frames Aluminium framed windows
Glass Double-glazed windows
Thickness 5mm glass

Doors

Entry Glass and aluminium 1020mm entry door
Bathroom Privacy glass 1020mm bathroom door

Roof

Steel Plate 3mm steel plate over the main body
Exterior Panels 75mm EPS panels on outside folding roof panels

Flooring

Sub-Floor Magnesium subfloor concrete composite – water, rot and insect resistant
Top Layer 2mm vinyl timber pattern - Grey or Brown
Floor Trims Aluminium colour-matched floor trims were provided to cover folding/hinge join. Powercoated internal trims

Kitchen

Shape L-Shaped Kitchen
Cabinetry Prebuilt kitchen cabinets packaged in a protective film ready for installation & overhead cabinets with soft closing hinges
Sink Stainless sink with tap mixer
Benchtop Engineered stone with zero silica (test certificate supplied)
Provisional Space Provisional space for dishwasher (620mm), freestanding cooker (650mm), rangehood (600mm), fridge (650mm)

Electrical

PowerPoints All electrical points are pre-wired inside walls. 15amp air conditioner high wall PowerPoint included in living room and all bedrooms
Lighting All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building
Smoke Alarm Smoke alarm hardwired back to switchboard per habitable room, customer to supply/install smoke alarm
Aerial Point Aerial point provided for TV (cable connection on rear exterior wall with plumbing)
Mains Site mains electrical supply connected by hardwire, located at rear of Expander

Plumbing

Overview Bathroom is pre-plumbed
Water & Waste Water and waste lines provided to kitchen sink for easy connection after opening the building

Council Compliance

Council Approval Please note that the Expander Homes do not fall under the Class 1a building category that conforms with the regulations stipulated by the Building Code of Australia (BCA). If any of our Products are purchased together with our Trailers, they are considered as a Caravan (movable dwelling) and can be conveniently installed in numerous Councils without requiring approval from the council.
Certificates Structural engineering and plumbing certificates are not provided with the purchase

Laundry

Overview Plumbing is not included to the laundry due to folding and packing of the building. Customer's plumber is to supply and connect laundry tub and mixer. Plumbing pipes will penetrate the floor inside the laundry cabinet

Pitched Roof

Overview Due to the flat 2400mm floor to ceiling height the pitched roof (supplied) must be installed on the Expander to help prevent want run off. Additionally it contributes to the thermal insulation values of the Expander
Trusses Steel trusses, roof sheets and fixings supplied. Truss layout provided

Optional Extra's

Decking Deck supplied as prebuilt modular
Patio Patio supplied as a flatpack kit
